Charlton & Jenrick infinity 890 BF User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
890 BF
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 6541 (ISS 11)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Important Information (user
instructions).................................................................5
SECTION TWO Introduction (user instructions) .........7
SECTION THREE Operation (user instructions)...........7
SECTION FOUR Cleaning & Laying the fuel bed (users
instructions)...............................................................10
SECTION FIVE Appliance Data (installation
instructions)...............................................................16
SECTION SIX Regulations and Warnings (installation
instructions)...............................................................17
SECTION SEVEN Siting the Appliance (installation
instructions)...............................................................18
SECTION EIGHT Preparing the Appliance for
Installation (installation instructions) ......................19
SECTION NINE To Install the Appliance (installation
instructions)...............................................................20
SECTION TEN CONNECTING THE GAS SUPPLY
(installation instructions)..........................................22
SECTION TEN Assemble the Appliance (installation
instructions)...............................................................22
SECTION ELEVEN Check Operation of Fire
(installation instructions)..........................................23
SECTION TWELVE Instruct and Advise the Customer
(installation instructions)..........................................24
SECTION THIRTEEN Maintenance Instructions
(maintenance instructions).......................................25
SECTION THIRTEEN Wiring Diagram (maintenance
instructions)...........................................................27
BALANCED FLUE GAS FIRE COMMISSIONING
CHECKLIST ..................................................................30
SERVICE RECORD........................................................31
EXTENDED FIVE YEAR PARTS
WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenrick.co.uk 3 LT6541 (ISS 11)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT6541 (ISS 11)
Register your appliance online today to activate your warranty
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
INFINITY 890 BF
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT6541 (ISS 11)
SECTION ONE Important Information (user instructions)
Consumer protection information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these
products are so designed and constructed as to meet the general safety requirement when properly used and installed.
To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the approval
of the appliance, operation of the warranty and could affect your statutory rights.
Health and safety notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals or cleaning after servicing
/ installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste’ and should be
disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The INFINITY 890 BF is an inset room sealed decorative fuel-effect gas appliance.
The INFINITY 890 BF is available in Natural Gas only and L.P.G
The INFINITY 890 BF must not be installed into a natural draught flue or chimney.
The INFINITY 890 BF should only be installed and serviced by a competent person i.e. GAS SAFE registered, in
accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS.
The INFINITY 890 BF does not require a chimney, but must be installed against an outside wall.
It is important that the flue terminal is regularly checked and kept clear at all times.
If the terminal is accessible to people (i.e. less than 2m above a walkway, balcony etc.) the terminal guard
must be fitted to prevent access to the flue outlet, which becomes hot when the fire is in use.
As the INFINITY 890 BF is a room sealed appliance (i.e. air for the combustion process is taken from outside
the room) no purpose built ventilation is required.
The INFINITY 890 BF is designed and tested to meet the requirements of the European Standard EN 613.
The INFINITY 890 BF is battery operated; therefore no mains electrical supply is required. Power to the appliance is
provided by 6 high power alkaline 1.5V batteries (“C” size) (a spare set of 6 “C” batteries is supplied with the
appliance
An audible repeated bleep warning indicates that the appliance batteries need changing or charging (if rechargeable
batteries have been used).
Important: Batteries should be changed as soon as possible as the appliance will not light if the battery power gets
to low.

6 LT6541 (ISS 11)
The Appliance is for use on Natural Gas ( G20 @ 20mbar ) & L.P.G ( G31 @ 37mbar )
Failure to install appliance correctly could lead to prosecution.
In GB (Great Britain), the appliance must be installed by a competent person i.e. GAS SAFE registered, in accordance
with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS, The Building Regulations (or The Building Regulations
(Scotland) or The Building Regulations (Northern Ireland)) and The Current I.E.E. Wiring Regulations, if appropriate.
In IE (Ireland), the appliance must be installed by a competent person and installed in accordance with the current
edition of I.S.813 Domestic Gas Installation, the current Building Regulations and the current ETCI rules for electrical
installation, if appropriate.
Although the INFINITY 890 BF is fitted with a glass front which acts as a dress guard it is strongly
recommended that a fireguard should be used for the protection of children, the elderly or infirm.
Fireguards should conform to B. S. 6539 (1984) (Fireguards for use with solid fuel appliance).
Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration.
Many wall coverings may become discoloured if placed too close to the appliance, it is strongly
recommended that any proposed wall covering intended for use immediately above the appliance should be
tested in the hottest position (immediately above) first. Run the fire on high over a few days
All combustible material must be removed from behind the fire and fire trim.
The first time you light your new appliance a smell may occur due to its new condition. This is quite normal
and will soon disappear after a few hours use at maximum setting (open a window until the smell
disappears)
With use the inside of the air box will change colour, particularly the sides and rear. This is quite normal and
often adds to the overall effects of the appliance.
The appliance MUST NOT be used if the glass panel is not correctly fitted or if this panel is cracked or
broken.
Any debris should be cleaned from the appliance. A vacuum cleaner can be used but only after all the loose
shapes have been removed.
Prior to removing or cleaning the coals refer to the ‘Health and Safety Notice’ located on page 3 of this
booklet.
The appliance should be serviced annually by a competent person i.e. a GAS SAFE registered engineer in
accordance with these instructions.
The glass or any part of the appliance MUST NOT be cleaned or wiped whilst the appliance is HOT, to do so
could be dangerous and may damage the paintwork of the appliance.

www.charltonandjenrick.co.uk 7 LT6541 (ISS 11)
SECTION TWO Introduction (user instructions)
The INFINITY 890 BF is an inset room sealed decorative fuel-effect gas appliance designed for use in locations
that do not have a conventional chimney. The appliance must be installed against an outside wall because
the air to support combustion is taken from the outside and the products of combustion are expelled to the
outside.
The appliance incorporates a safety device in the form of a FLAME SUPERVISION DEVICE, which constantly
monitors the flame and will cause the gas to be switched off if the flames are extinguished for any reason.
THIS DEVICE MUST NOT BE OVERRIDDEN. If this situation occurs on a regular basis have the appliance
checked by a qualified engineer. The problem may be due to a blocked or restricted flue.
Before removing the, trim, glass shapes for cleaning the fire should be turned off, and left to cool down.
NOTE: In use some discoloration of the components will take place in the combustion box, this is normal, but
can be kept to a minimum if the shapes are placed correctly (i.e. after cleaning). See Section 4.
As with all heating appliances certain areas (Working Surfaces) become very hot when the appliance is in
use.
SECTION THREE Operation (user instructions)
To light the appliance using the remote hand set:
A. Point the remote control hand set in the direction of the
appliance and press the button. Continue to hold
the button for approximately 2 seconds and release.
When released a bleep should be and heard the
appliance will automatically go through the ignition
sequence and the pilot should ignite. Once the pilot is
alight the appliance will automatically go to the high
setting (approximately 20-25sec).
B. If the ignitor stops sparking and the pilot fails to light
press the button for at least 2 seconds and release,
again a bleep should be heard. Then repeat the lighting procedure.* See note on page 7
C. With the appliance lit, by pressing key the operational mode is switched from manual to Room
thermostat setting and vice versa. When Room thermostat mode is active, the display shows the set
temperature value and the “AUTO” icon will appear on the LCD display. By using the arrow key the
desired room temperature can be set. When manual mode is active, the display shows the “MAN” icon plus
the flame icon and a five level bar icon setting. By pressing the arrow key, the flame picture can be
adjusted at five stages between high and low flame. If level 5 is currently active, the icon max below the
flame icon will appear.
D. To switch off the appliance press the button for at least 2 seconds and on releasing the button the
appliance will bleep and then shut off. For pilot setting press the for 1 second and release. The pilot
symbol will appear on the LCD display. Pressing the button will bring the fire back onto main flame.
E. The appliance can be switched off with out using the hand set by removing the appliance batteries located
behind the fascia. When the batteries are removed there will be a delay (up 3minutes) after which, double
bleeps may be heard and shortly after the appliance will extinguish. Ensure that the battery is reconnected
once the fire as been extinguished. The appliance cannot be operated without the use of the handset.

8 LT6541 (ISS 11)
Room Thermostat mode
The remote handset checks the room temperature at a fixed time intervals. Depending on the difference between set
room temperature and the actual room temperature the remote proceeds to modulate in one level steps. Once the
room temperature is reached it moves to standby position pilot only.
The icon “PILOT” will appear on the LCD display. As soon as the actual room temperature falls below the SET room
temperature, the system will move from standby to the high flame level. From this point it will proceed again the
modulation process.
Note: Due to the temperature checks at timed intervals, the display temperature on the handset may exceed the room
setting temperature before the appliance defaults to the pilot setting.
To Replace Battery In Hand Set (3 AAA type batteries)
Remove the cover from the rear of the handset and fit replacement battery.
Clock Regulation

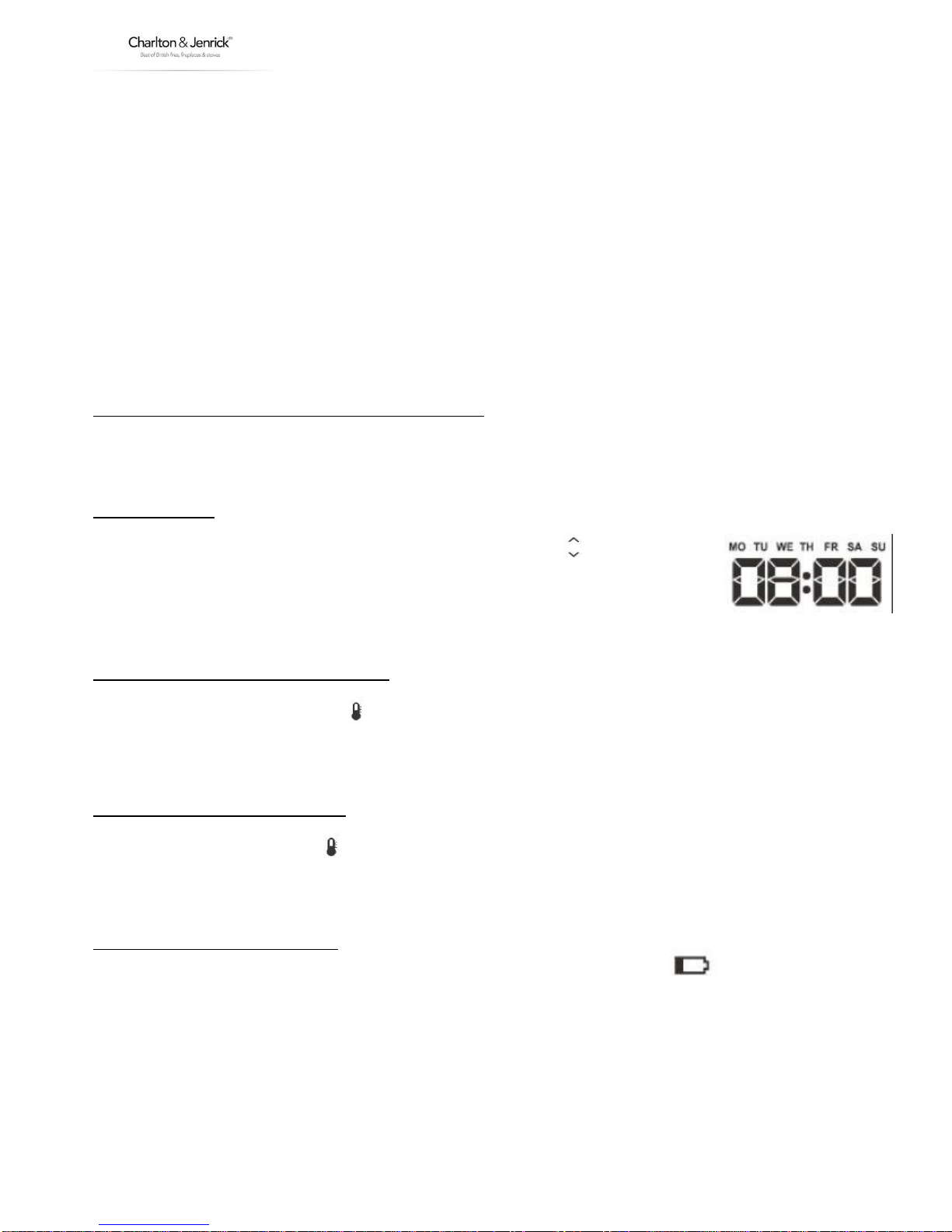

As soon as the batteries are fitted the timer digits will blink. Using the arrow key increase
or decrease the hour, minutes and week`s value. By pressing the Owill set and shift setting
until complete.
Changing Clock Setting During Operation
To amend timer setting press both the and O keys simultaneously for three seconds, the written clock will
appear. To change the clock settings, repeat the above described operation.
Change From Celsius to Fahrenheit
With remote OFF, keeping pressed key at least for 5 seconds, the temperature unit changes from Celsius to
Fahrenheit degrees and vice versa.
Battery level indication (Handset)
When the batteries have to be changed in the handset, the related icon will appear.

www.charltonandjenrick.co.uk 9 LT6541 (ISS 11)
Setting the sleep mode
To activate the sleep mode: With the fire switched on press the O button. The sleep symbol will appear top
right. The sleep symbol replaces the time indicator in this mode. Using the arrow key increase the sleep mode in
15-minute intervals, (a small star will be visible next to the sleep symbol once any time is set) .Once the set time
is reached, the fire will completely switch off without any further intervention.
To Deactivate the sleep mode:
When the fire is next operated, the sleep mode will automatically appear unless it is re-set to zero. This can be done
by pressing the Okey and using the button to decrease the time set by 15 minute intervals until back to zero.
If you experience unexplained outing on the fire please check that the sleep mode is switched off.
Child Lock (Handset)
To activate `Child Lock` : Press and hold the Mode Key O button for 5 seconds, this will lock and disable the handset
and a “padlock” symbol will appear on the bottom of the screen. This can be done while the fire is “off” or “on”. To
deactivate this function press and hold the Mode Key O for 5 seconds and the “padlock” symbol will disappear.
LOW BATTERY INDICATION (APPLIANCE)
If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery pack is low and
should be changed. If this is ignored the system will go into a lock out mode, which will not allow the appliance to be
used until a new set of batteries are loaded.
NOTE: The appliance cannot be used when the battery is completely discharged.

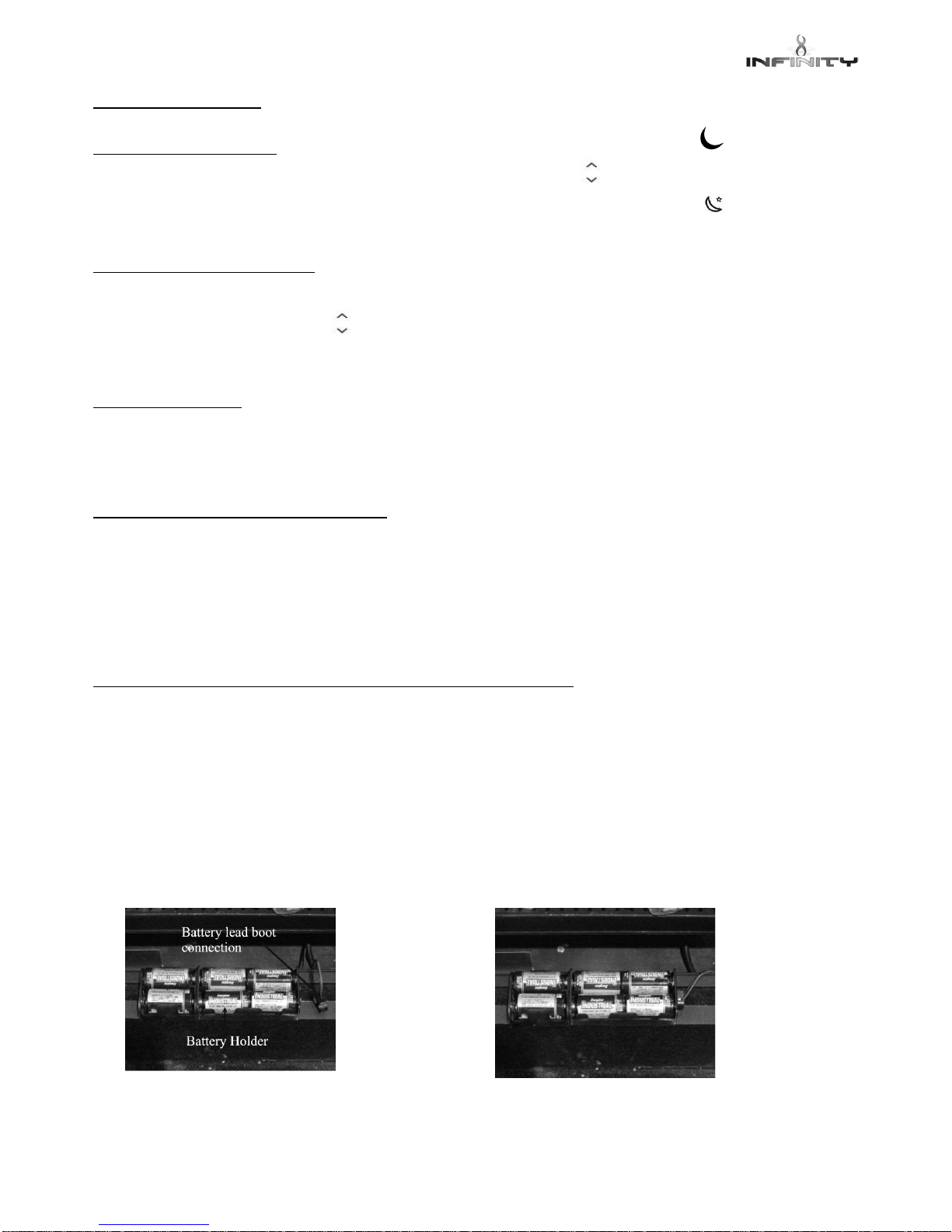

TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline C 1.5V)
A. Remove the trim held in place with magnets.
B. Remove the battery holder from within the protective cover and replace the six high power alkaline C
batteries as a complete set.
WARNING, batteries will overheat if fitted incorrectly, when fitting the batteries ensure that they are fitted as per
the marking on the rear of the holder (i.e. minus of battery against spring).
C. Once the new batteries are loaded the fire will continue to bleep until re-set. Press the ON / OFF key for at
least 2 seconds, on release a bleep sound will be heard and the ignition process will start. If the fire
continues to bleep this may indicate a loose connection or badly loaded batteries.
*Important : If the fire burner or pilot is extinguished for any reason, do not attempt to re-light the pilot for at
least 3 minutes.

10 LT6541 (ISS 11)
SECTION FOUR Cleaning & Laying the fuel bed (users instructions)
CLEANING: DECORATIVE FASCIA
Fascia assembly can be wiped with a soft, clean, dry, cloth only.
CLEANING: BLACK PAINTED SURFACES
These surfaces should be dusted regularly and any marks removed with a soft cloth.
Abrasive or chemical cleaner should never be used.
CLEANING: GLASS PANEL
From time to time it may be necessary to clean the glass panel.
We recommend you use a Ceramic Hob Cleaner (brands such as HOB BRITE and VITRO CLEN have been found to be
acceptable) these are available from most leading Supermarkets.
Remove the glass panel as follows:
Undo the 3 screws that secure the heat
deflector and remove
Carefully lift off the outer fascia held in place by
magnets.

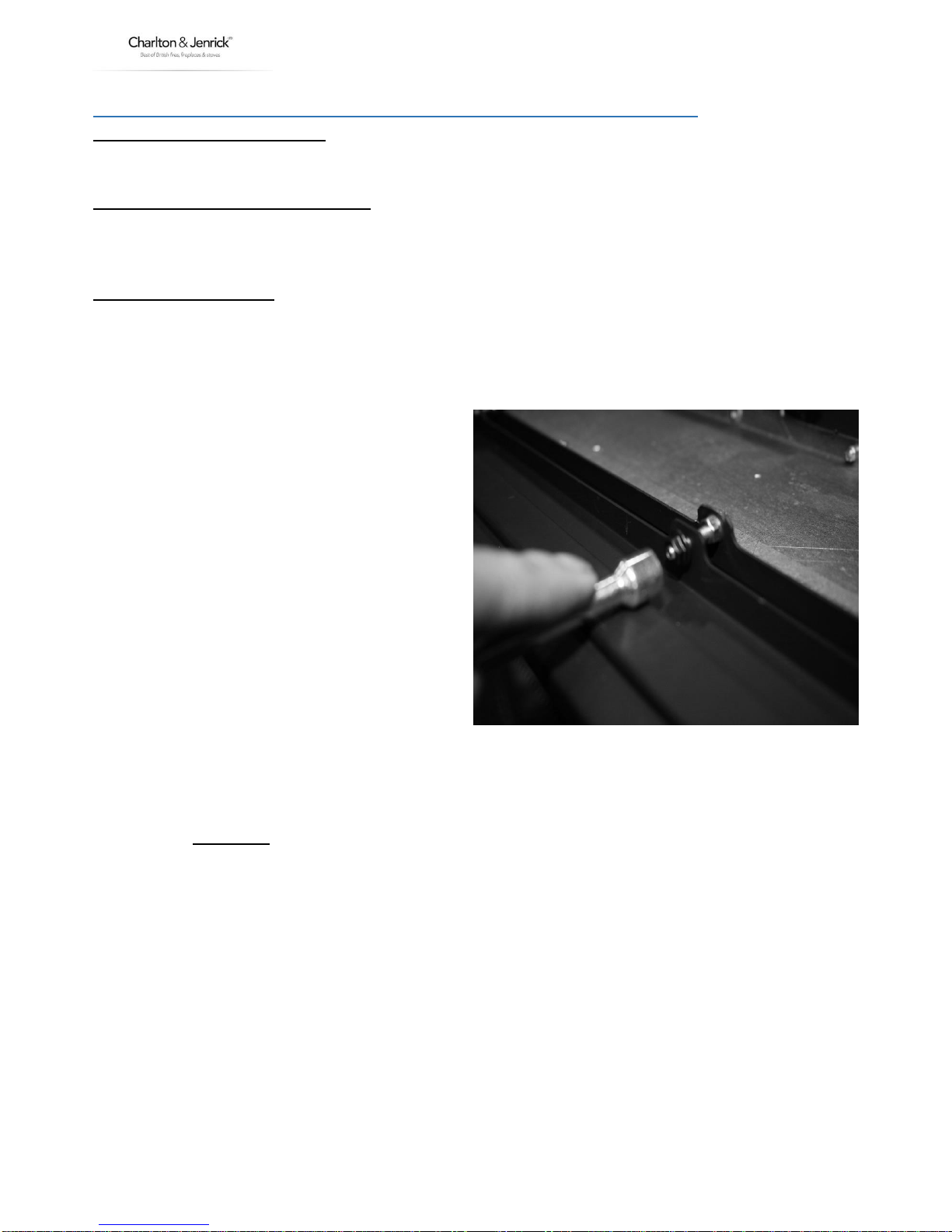

Remove the 4 nuts at the bottom securing the
glass assembly.
Remove the Top 5 castle nuts on Glass Clamp,
and slide the Glass Frame & Retaining Bracket
completely off and disengage both parts
Lay the glass panel down on a flat working
surface on top of an old opened newspaper
with the side to be cleaned uppermost.
Follow the Instructions on the Hob Cleaner Bottle.
On stubborn stains (where the appliance has been used for a long period without glass panel being cleaned), use a
new Brillo Pad well wetted with the Hob cleaner applied directly to it.
Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is completely dry before
fitting to the appliance.
Note: - If the loose shapes have not been placed correctly, causing the gas flame to contact the glass this may result
in glass staining that cannot be removed by cleaning.
Re-assemble in reverse order ensuring a tight seal against glass assembly.
Re-fit the fascia.

www.charltonandjenrick.co.uk 11 LT6541 (ISS 11)
CLEANING AND REPLACING fuel bed shapes
Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before cleaning or replacing
any refractory material.
Use only the shapes provided NO OTHER SHAPES SHOULD BE ADDED to the appliance
The Fuel bed set consists of:
Log fuel bed complete set consisting of :-
11 Log Shapes. ( 9 x large shapes & 2 x small shapes. )
1 Bag of Bark Chips.
Log Fuel Bed Layout.
The Burner End Plates should already be in position at ends of burner carrier and held in place
with two self tapping screws with the chamfered ends towards the front.
The Air Bridge should already be fitted at the rear and held in place with two M4 x 10mm screws
at either end.
Place to Burner Bar Edge Cover over the front of the Burner Bar with the slot at the left hand
side so it covers the edge.

12 LT6541 (ISS 11)
Place a single layer of Bark Chips on the front of the burner and the outside of the Burner End Plates, making
sure they don’t go over the Burner Channel, the Pilot cross lighting ports on the right hand side of the burner
or the pilot assembly.
AVIOD PLACING BARK CHIPS OVER BURNER SLOT ON BURNER BAR.
AVOID BLOCKING PILOT ASSEMBLEY.
Place the first three rear straight log shapes on top of the Air Bridge as far back to the rear as
possible as shown in the picture and space them evenly.

www.charltonandjenrick.co.uk 13 LT6541 (ISS 11)
Place the next Two large shapes and One small shape as shown making sure they do not move the bark chips
so that they cover the burner channel, the smallest log shape goes in the left corner on top of the bark chips
on the Burner End Plate for decorative effect.
Position the Smallest Log shape as shown in picture.

14 LT6541 (ISS 11)

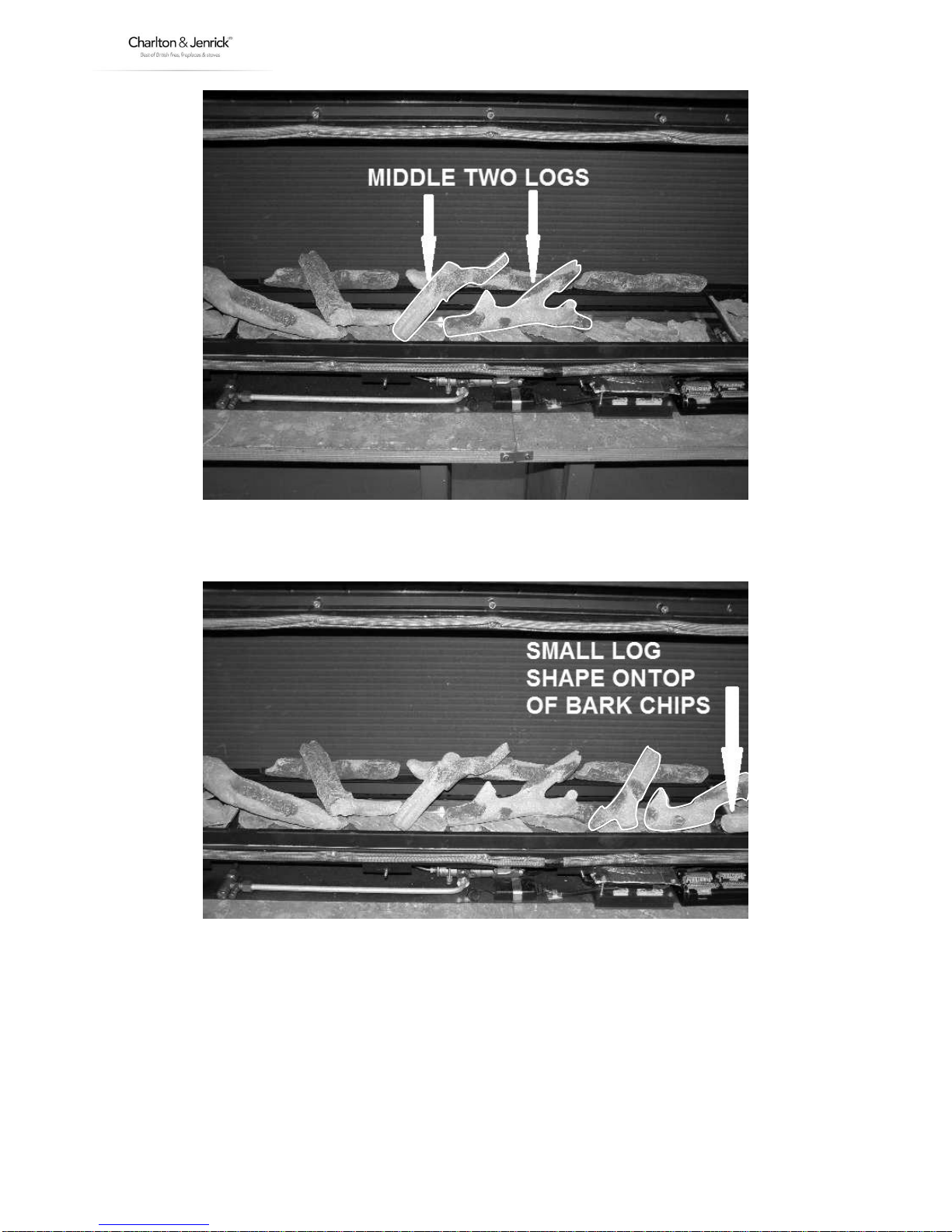

Place the next Two Middle shapes as shown, resting on the rear shapes, making sure they do not disturb the
Bark Chips or move them into the Burner Channel.
Place the last two large shapes and last small shape as shown, making sure the last right hand shape does
not cover the pilot flame. The last small shape goes across the Burner and the Burner End Plate as far
forward as possible to keep it out of the pilot flame as much as possible. (the small shape is for decorative
effect ).

www.charltonandjenrick.co.uk 15 LT6541 (ISS 11)

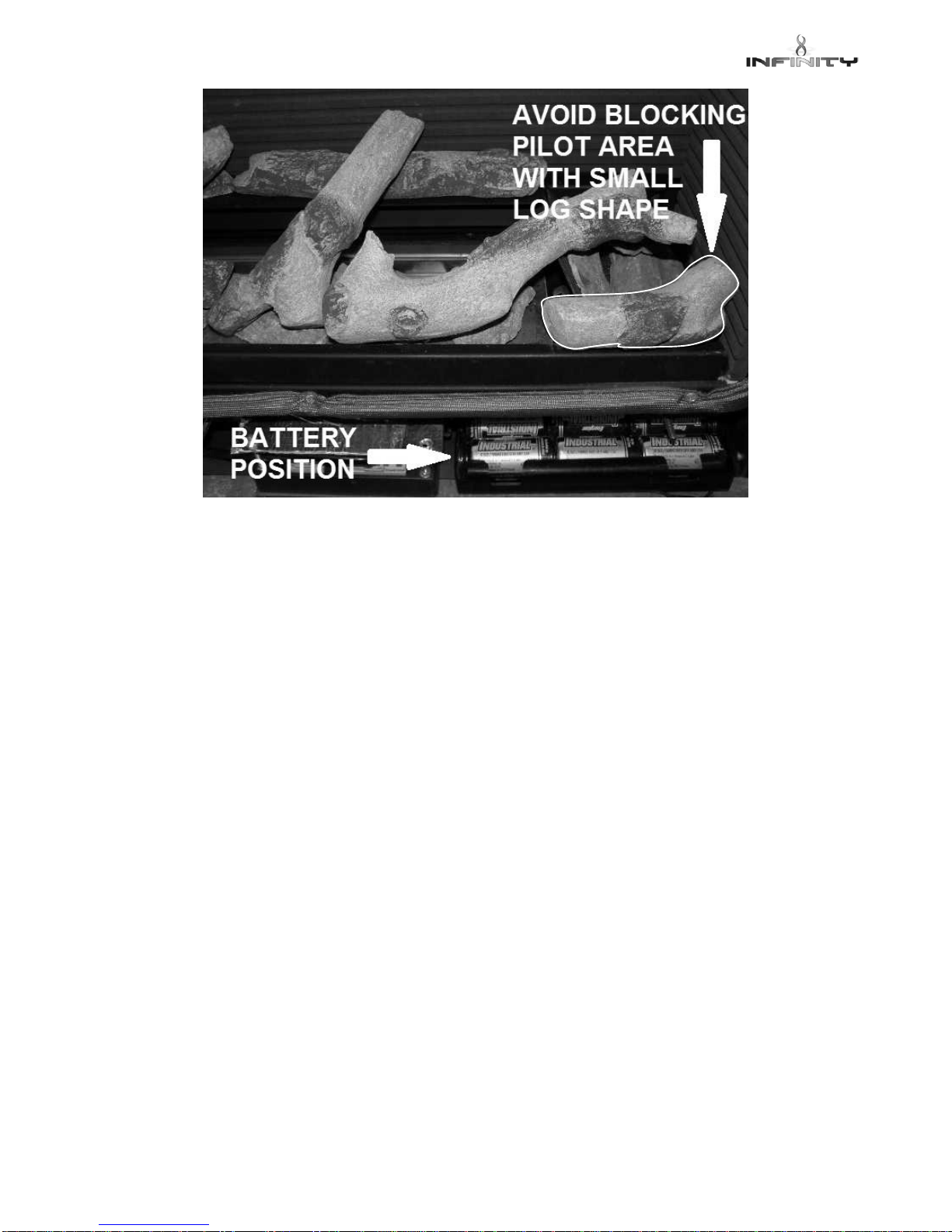

When positioning the Small Log Shape, make sure as not to place it over the pilot assembly as this will
disturb the pilot flame, please see picture
See Battery position, the battery pack should be placed inside the Silver Heat Shield pouch.

16 LT6541 (ISS 11)
SECTION FIVE Appliance Data (installation instructions)
Fire Box dimensions: Height 456mm
Width 970mm
Forward Projection: 10mm
Overall Trim dimensions……………………………………………….Height 462mm
Width 1054mm
Trim Forward dimensions…………………………………………… 23mm
Weight: 35kg
Flue Length…………………………………………………………………..100mm (minimum) to 1000mm (maximum)
Standard length supplied with fire 535mm (267.5mm after cutting). Additional 535mm or 1000mm tubes supplied as
optional extras. (No bends or joined flue pipes should be used in the flue system).
Pressure Test Point Location: Gas inlet elbow
Gas Connection: 8.0mm O/D, tube.
Data Badge Location: On bottom right hand side of fire box under batteries.
MODEL
Natural Gas (G20) Version
L.P.G (G31) Version
Category of appliance
CII
CII
NOXClass
5
5
Efficiency Class
1
1
Gas Category
I2H
I3P
Gas Type
G20 Natural Gas
G31 L.P.G
Gas Pressure +/- 1.0mbar
20 mbar
37 mbar
Gas Input (Max)
3.4 KW Gross
3.2 KW Gross
(Min)
1.6 kW Gross
1.6 KW Gross
Injectors size
230 Mark
300 Mark
NOTE: The efficiency of this appliance has been measured as specified in BS EN613-2001 and the result is 82.1%
natural gas & --.-% L.P.G. The gross calorific value of the fuel has been used for this efficiency calculation. Gastec
have certified the test data from which it has been calculated. The efficiency value may be used in the UK
Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings.

www.charltonandjenrick.co.uk 17 LT6541 (ISS 11)
SECTION SIX Regulations and Warnings (installation instructions)
This appliance must only be installed in Great Britain or Ireland.
The appliance is available in natural gas and L.P.G.
This appliance must be installed on a suitable outside wall.
No special ventilation bricks or vents are required into the room containing the appliance.
In GB (Great Britain)
It is the law that all gas appliances must be installed by a competent person; i.e. a GAS SAFE registered installer, in
accordance with the current Gas Safety (Installation and Use) Regulations (as amended), all relevant parts of the local
and national building regulations and all relevant recommendations of the current British Standards. Failure to do so
could lead to prosecution.
The following are the relevant codes of practice and British Standards: -
B.S. 5871 PART 2 B.S. 5440 PART 1
B.S. 6891 B.S. 1945
Note:- This appliance must be installed to current versions of the above standards and include any relevant
amendments.
The Building Regulations issued by The Department of the Environment.
The Building Standards (Scotland) (Consolidated) Regulations issued by The Scottish Development Office.
IN IE, (Ireland)
The appliance must be installed by a competent person and installed in accordance with the current edition of
I.S.813 Domestic Gas Installation, the current building regulations, and the current ETCI rules for electrical
installation, if appropriate.
WARNINGS
As this appliance has components, which get very hot as with all such fires, it is recommended that a
fireguard should be used for the protection of children, the elderly, or the infirm. Fireguards should conform
to B.S.6539 (1984) (Fireguards for use with solid fuel appliances).
During initial use, an odour may be evident. This will soon disappear if the fire is run on its maximum setting
for a few hours.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration, e.g.
wall coverings may become discoloured if placed too close to the appliance.

18 LT6541 (ISS 11)
SECTION SEVEN Siting the Appliance (installation instructions)
(When installing in a timber framed dwelling reference must be made to the specific installation requirements stated
in Section 9 Installing the Appliance in Timber Framed Dwelling).
GENERAL REQUIREMENTS
The flue and air duct length must be between 100mm to 1000mm.
The fire is supplied with a standard pipe length of 535mm (to be cut in half to make a flue duct and air duct
length of 267.5mm.) The 535mm length of flue can be cut down as required.
The flue and air duct must not have any bends.
The flue outlet must terminate on a suitable outside wall.

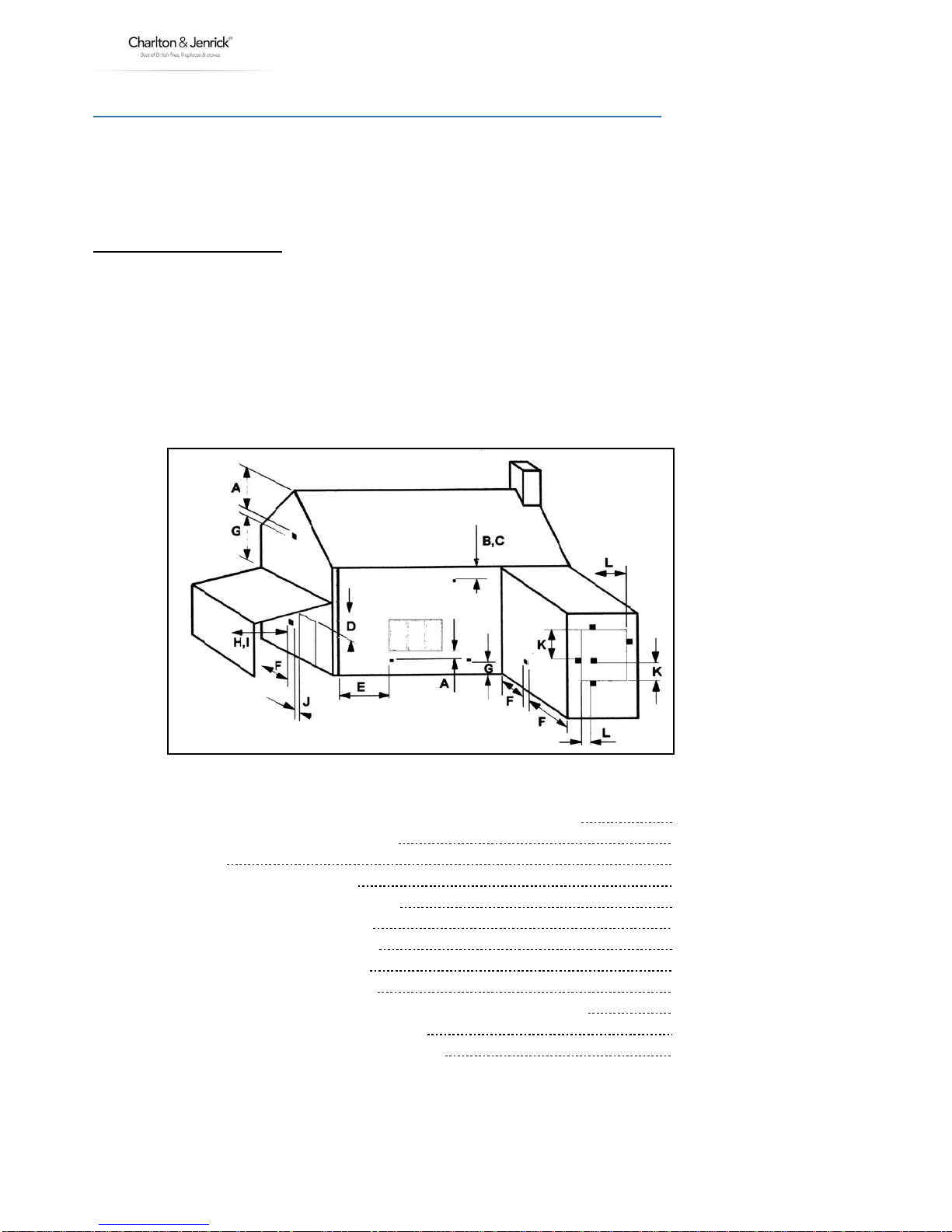

The minimum flue terminal clearances, which must be maintained, are as shown below.
A. Directly below an openable window or other opening. E.g. air brick 300mm
B. Below gutters, soil pipes or drain pipes 300mm
C. Below eaves 300mm
D. Below balconies or carport roofs 600mm
E. From vertical drain pipes and soil pipes 75mm
F. From internal and external corners 300mm
G. Above ground, roof or balcony level 370mm
H. From a surface facing the terminal 600mm
I. From a terminal facing the terminal 1200mm
J. From an opening in a car port into a dwelling e.g. door, window, etc 1200mm
K. Vertically from a terminal on the same wall 1500mm
L. Horizontally from a terminal on the same wall 300mm
*To minimise the risk of cracking, due to heat expansion, the use of marble slips is recommended*

www.charltonandjenrick.co.uk 19 LT6541 (ISS 11)
The back panel of the surround must have a
cutout within the maximum and minimum
dimensions as shown.
Ensure that gas supply is suitably sited.
The appliance may be fitted without a hearth
(Hole in the Wall type installations), 150mm
min. from the floor to the base of appliance.
The minimum clearance from the hearth (base
of appliance) to the underside of a combustible
shelf should be determined using the shelf
chart.
Check with the supplier or manufacturer that
the surround meets 1500C minimum rating
(attention should especially be given to man
made materials such as resin).
*Please note - Appropriate measures should be taken when installing into a working flue system i.e. out through
an existing chimney *
SECTION EIGHT Preparing the Appliance for Installation (installation instructions)
Carefully unpack the appliance from the carton
and check the contents.
Lift away the Box of ceramics, glass panel and
trim.
Remove the refractory components from the
inside of the packaging.
Remove the glass panel and air bridge from the
packaging.
The appliance is now ready for installation.
25 50 75 100 125 150 175 200 2250
750
800
850
900
950
1000
1025
EXAMPLE: 925 SHELF HEIGHT=165 MAX. SHELF WIDTH
"B" SHELF WIDTH
"A"SHELF HEIGHT FROM HEARTH
all dimensions in mm's
ALL DIMENSIONS IN mm
B
“A
”
HEARTH TO SHELF
430 MIN-
445 MAX.
900 MIN
935 MAX.
170
MIN.

20 LT6541 (ISS 11)
SECTION NINE To Install the Appliance (installation instructions)
INSTALLING THE APPLIANCE INTO CAVITY WALL.
Ensure it is a suitable outside wall constructed of non-combustible materials and that the flue position meets
the requirements previously described in Section 8.

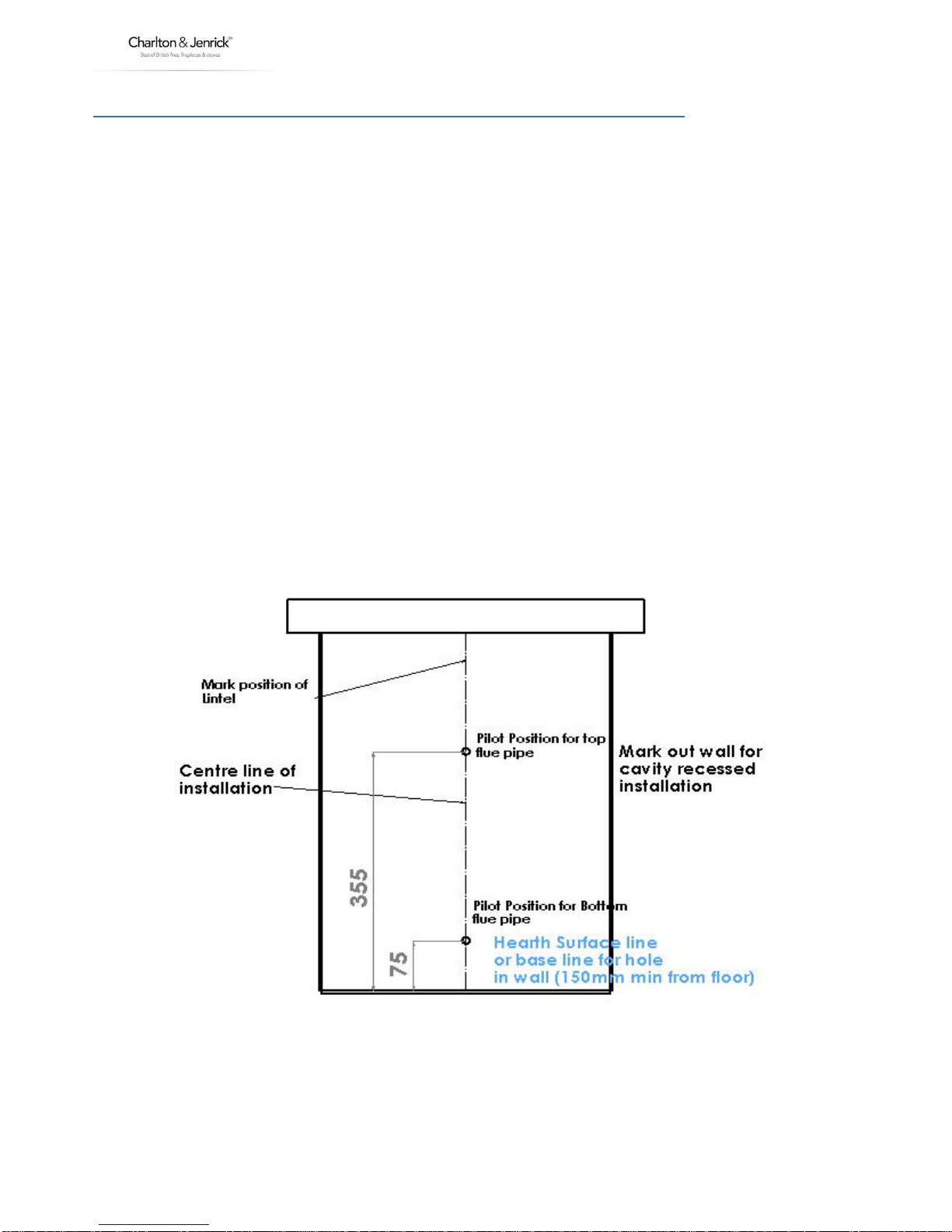

Mark a horizontal line on the wall at the intended appliance base height 150mm min from combustible
surface or 50mm min from non-combustible hearth.
Mark a vertical line on the wall at the intended centre of the appliance up from the horizontal line for a
height of 430mm.
If insetting into the wall mark the position for a lintel above the top horizontal line.
Mark a short horizontal line so it crosses the centre line at 75mm above hearth level line. This is the centre
point for the Air Duct pipe hole.
Mark a short horizontal line so it crosses the centre line at 355mm above hearth level line. This is the centre
point for the Flue Duct pipe hole.
Using a long masonry drill, make two pilot holes completely through the wall. Ensure the holes are drilled
accurately at the centres and square to the wall both horizontally and vertically at the cross points previously
marked.
If insetting into the wall proceed as follows: Cut out the brickwork of the inner skin of the cavity wall for the
lintel, and fix the lintel.
Cut out the brickwork under the lintel, between the two outside vertical lines into the cavity. Ensure the cut
out width is square and try the appliance into the opening.
