Charlton & Jenrick PARAGON P9 User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
P9
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 6974 (ISS 4)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Introduction (user instructions) ..........5
SECTION TWO Operating the Appliance (user
instructions).................................................................7
SECTIONTHREE Cleaning (users instructions).............9
SECTION FOUR Fuel Bed Cleaning and Layout (user
instructions)...............................................................11
SECTION FIVE General Points (user instructions).....14
SECTION SIX Appliance Data (installation
instructions)...............................................................15
SECTION SEVEN Regulations and Warnings
(installation instructions)..........................................17
SECTION EIGHT Siting the Appliance (installation
instructions)...............................................................18
SECTION NINE To Install the Appliance (installation
instruction) ................................................................20
SECTION TEN Checking Operation of Fire (installation
instructions)...............................................................23
SECTION ELEVEN Maintenance (maintenance
instructions)...............................................................24
SECTION TWELVE Wiring Diagram (maintenance
instructions)...............................................................26
GAS FIRE COMMISSIONING CHECKLIST.....................30
SERVICE RECORD........................................................31
EXTENDED FIVE
YEAR PARTS
WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenrick.co.uk 3 LT6974 (ISS 4)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT6974 (ISS 4)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Register your appliance online today to active your warranty
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
PARAGON P9
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT6974 (ISS 4)
SECTION ONE Introduction (user instructions)
Consumer protection information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these
products are so designed and constructed as to meet the general safety requirement when properly used and installed.
To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the approval
of the appliance, operation of the warranty and could affect your statutory rights.
Health and safety notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals or cleaning after servicing
/ installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste and should be
disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The Paragon P9 has been designed and tested to the requirements of EN 613 and is suitable for use in GB
(Great Britain) and IE (Ireland).
The Paragon P9 incorporates a single gas control, which selects ignition pilot, with variable setting between
low and high settings and is operated via remote control. The system is powered by a battery pack;
therefore no mains electrical supply is required.
Like all appliances incorporating an aerated burner a low frequency noise may be heard, this may be more
noticeable on the low setting.
The Paragon P9 incorporates a safety device in the form of an Oxygen Depletion System, which constantly
monitors the oxygen in the room and will cause the fire to switch off if the oxygen level reduces, for instance
due to insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the
problem may not be due to lack of air or a defective flue.
The pilot can be left on (standby setting) or the pilot can be extinguished and relit each time the fire is used.

6 LT6974 (ISS 4)
The Paragon P9 is battery operated; therefore no mains electrical supply is required. Power to the appliance is
provided by 6 high power alkaline 1.5V batteries (AA size) (a spare set of 6 AA batteries is supplied with the
appliance).
If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery pack is low and
should be changed. If this is ignored the system will go into a lock out mode, which will not allow the appliance to be
use until a new set of batteries are loaded. (See Page 6)
IMPORTANT INFORMATION
The appliance is for use on Natural Gas G20 @ 20mbar and L.P.G G31 @ 37mbar
The chimney or flue (unless new or previously used with a gas appliance) shall be swept before installation if
it has been used for solid fuel.
Failure to install appliance correctly could lead to prosecution.
In GB (Great Britain), the appliance must be installed by a competent person i.e. GAS SAFE-registered, in accordance
with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS, The Building Regulations (or The Building Regulations
(Scotland) or The Building Regulations (Northern Ireland)) and The Current I.E.E. Wiring Regulations, if appropriate.
In IE (Ireland), the appliance must be installed by a competent person and installed in accordance with the current
edition of I.S.813 Domestic Gas Installation, the current Building Regulations and the current ETCI rules for electrical
installation, if appropriate.
The glass front of this fire acts as a dress guard, conforming to BS 1945 (1997) however; a fireguard
conforming to BS6539 (1997) must be used to protect young children, the elderly or infirm.
The appliance MUST NOT be used with the glass safety screen removed or if it is damaged or cracked.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the
fibre components of the fire, and there are no harmful effects produced.
During the normal operation of the fire some black staining may appear on some parts of the fuel bed. This
is quite normal and adds to the appearance of the appliance. However, if excessive black staining does occur
it may be due to the fuel bed being incorrectly laid. This should be checked prior to contacting a service
engineer.

www.charltonandjenrick.co.uk 7 LT6974 (ISS 4)
SECTION TWO Operating the Appliance (user instructions)
Before attempting to operate the appliance check that nothing
has been placed in front of the appliance that may interfere with
the remote sensor operation.

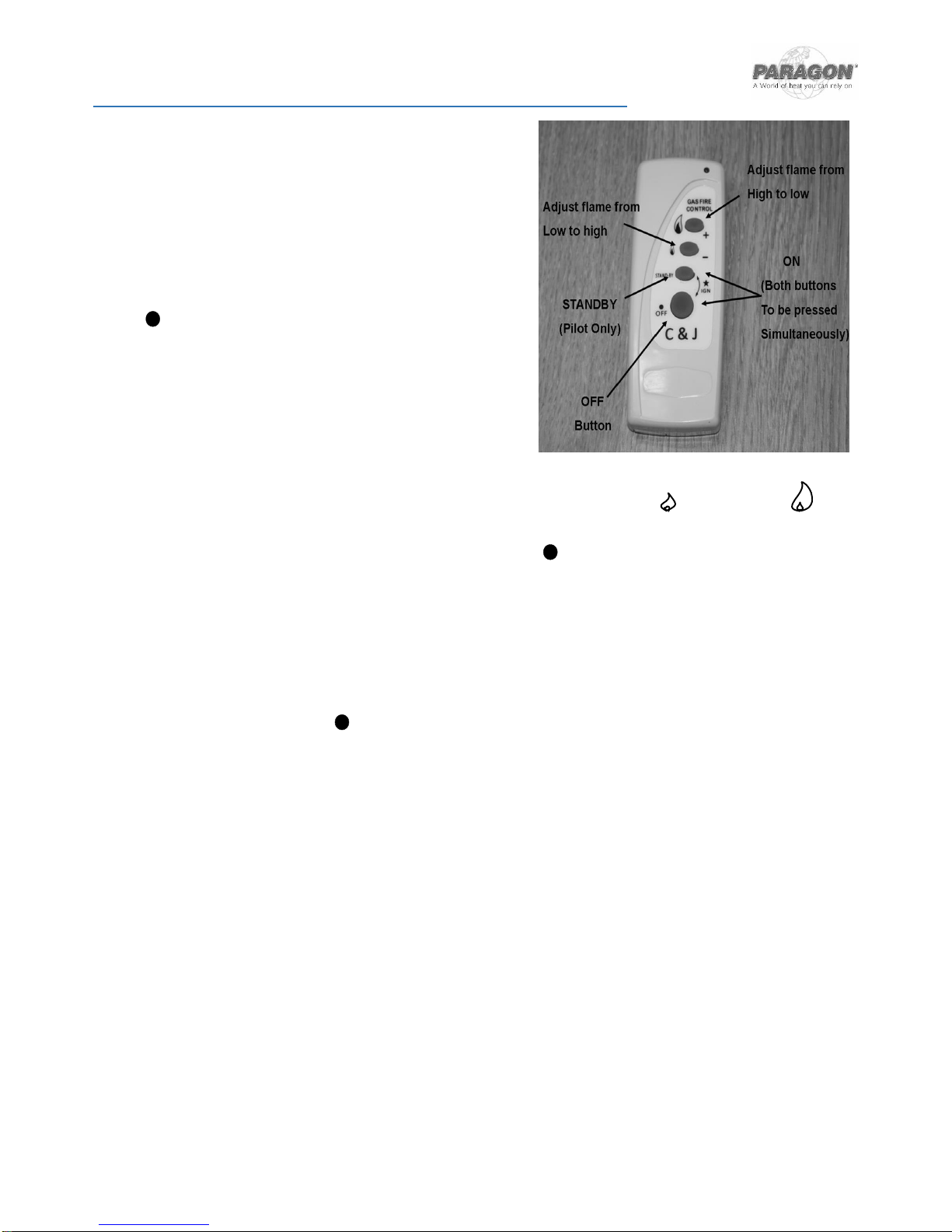

To light the appliance using the remote hand set:
A. Point the remote control hand set in the direction of the
appliance and simultaneously press the buttons marked ‘
off’ and ‘standby’. Continue to hold in these two
buttons until a ‘bleep’ is heard (approximately 2-3 sec.)
and then release these buttons. The appliance will
automatically go through the ignition sequence and the
pilot should ignite. Once the pilot is alight the appliance
will automatically go to the high setting (approximately
20-25sec). If the ignitor stops sparking and the pilot fails
to light, repeat this procedure.
B. The appliance can be adjusted up or down by pressing the appropriate button ' ' (low setting) or '' (high
setting).There are 5 heat settings and the fire will give a double bleep when the maximum or minimum heat
setting is reached. To switch off the appliance press the OFF ' ' button or if the appliance is to be switch off
for a short period it is recommended that the ‘standby’ button be used. This switches the main burner off
but leaves the pilot on and will extend battery life.
C. The appliance can be switched off with out using the hand set by removing the appliance batteries located
behind the ash pan cover. When the batteries are removed there will be a delay (up to 3minutes) after
which double bleeps may be heard and shortly after the appliance will extinguish. Ensure that the battery is
reconnected once the fire as been extinguished. The appliance cannot be operated without the use of the
handset. If the fire fails to light or extinguishes for any reason, it will be necessary to re-set the fire. This can
be done by pressing the off button then following the normal lighting procedure.
NOTE: If the fire is extinguished for any reason wait 3 minutes before relighting.

8 LT6974 (ISS 4)

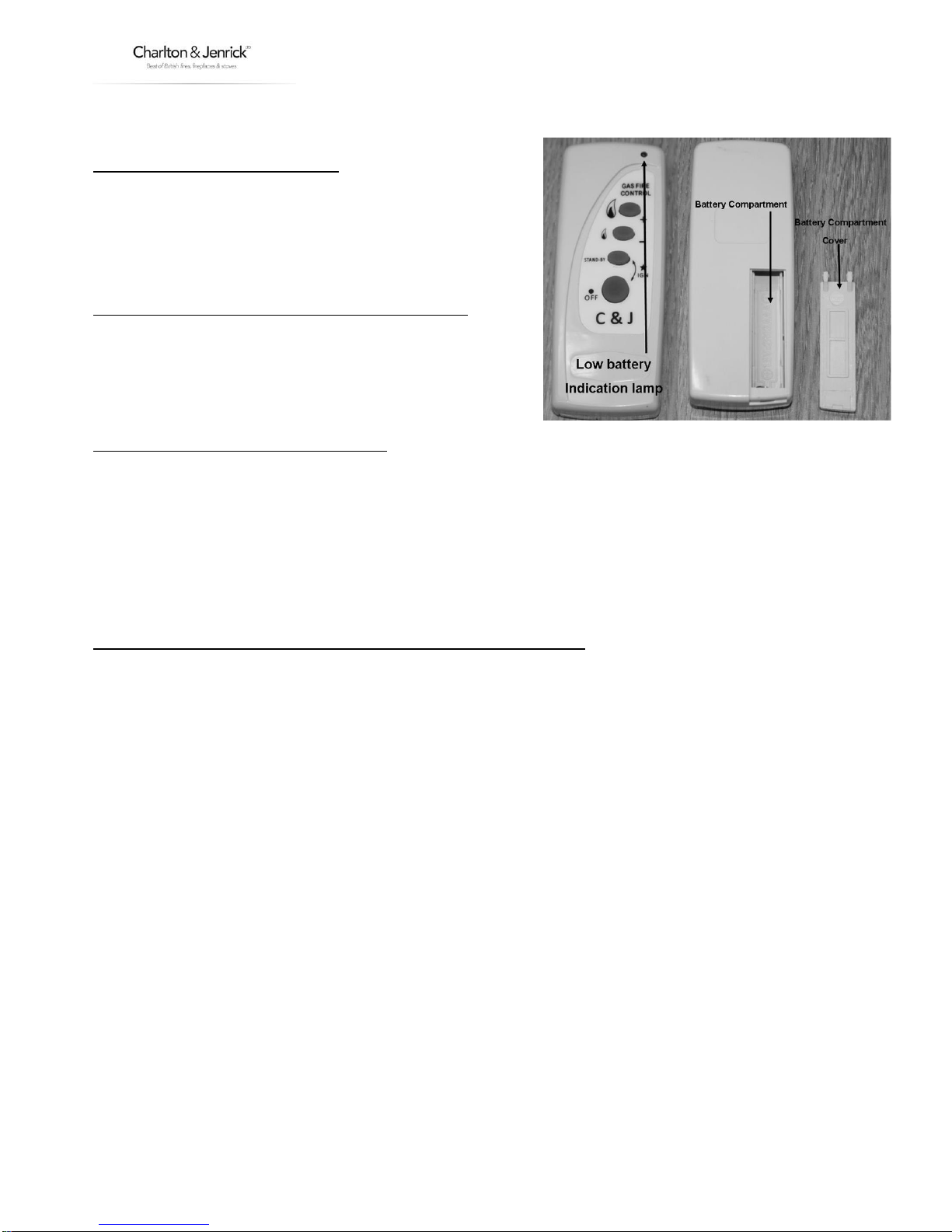

Low Battery Indication (Hand Set)
If while pressing any of the buttons on the remote hand set the
low battery indicator lamp either stops flashing or appreciably
slows then the battery should be changed.
To Replace Batteries In Hand SET (AAA 1.5 v lr3 X2 )
Remove the cover from the rear of the handset and fit
replacement batteries, taking care not to strain the battery
connections.
LOW BATTERY INDICATION (APPLIANCE)
If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery pack is low and
should be changed as soon as possible. The appliance will continue to work normally for a short period but if the
warning is ignored you may experience difficulty lighting the appliance or the appliance may automatically switch off
for no apparent reason.
NOTE: The appliance cannot be used when the battery is completely flat.
TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline AA 1.5V)
(Rechargeable batteries can be used providing they are a nickel metal hydride type 1.5V AA with a minimum
capacity of 2200mAh).
A. Remove the two side panels (held on by magnets)
B. Lift out the front grill
C. The battery holder is located in the centre of the Fireplace frame assembly. Carefully lift out the battery
holder and replace the six high power alkaline AA batteries as a complete set, or recharge where
rechargeable batteries have been used. If rechargeable batteries are used they MUST be a Nickel Metal
Hydride type with a minimum capacity of 2200mAh
WARNING: batteries will overheat if fitted incorrectly, when fitting the batteries ensure that they are fitted as per
the marking on the rear of the holder (i.e. minus of battery against spring)
D. Once the new batteries are loaded the fire will continue to bleep until re-set. This can be done by pressing
the “off “button on the handset followed by the normal ignition sequence as above. If the fire continues to
bleep this may indicate a loose connection or badly loaded batteries

www.charltonandjenrick.co.uk 9 LT6974 (ISS 4)
SECTIONTHREE Cleaning (users instructions)
Warning: -
Before you clean any part of the appliance ensure that the
appliance is turned off and cold.
CLEANING: PILOT ASSEMBLY (With Fireplace frame fitted)
(Before cleaning ensure that the appliance is turned off and cold)
In some instances you may experience ignition problems even
when the appliance is new. This may be due to the aeration hole
in the pilot body being partial blocked with dust, pet hairs, or
other foreign matter. The source of this debris could be such
things as carpet fibres, decorating or pet etc.
To gain access to the pilot please do the following.
Remove the two side covers LH and RH.
Undo the two M4 nuts retaining the glass fixing bracket using the tool provided then pull clear and from the
location studs.
Carefully lift the glass panel from within the bottom
location slot.
Remove the log fuel bed shapes and bark shapes.
Lift out the air tray assembly from the location points
within the shelf.
The pilot is located on the right hand side of the appliance, any
debris in or around the aeration hole should be remove using
the nozzle of a vacuum cleaner. It is advisable not to blow the
debris into the hole as this may cause more of a restriction and
not rectify the problem.
Note: - Take care when cleaning in this area so as not to damage the pilot assembly.

10 LT6974 (ISS 4)
REMOVING GLASS PANEL
Remove the two side covers LH and RH which are
held on with magnets.
Undo the two M4 nuts retaining the glass fixing
bracket using the tool provided then pull clear
from location studs.
Carefully lift the glass panel from within the bottom
location slot.
GLASS CLEANING
From time to time it will be necessary to clean the glass panel of your P9. We recommend you use a Ceramic hob
cleaner these are available for all leading super markets: - i.e. ASDA, TESCO, SAINSBURY’S Etc.
Brands of hob cleaner we have tested and found suitable are - HOB BRITE & VITRO CLEAN.
Ensure the fire as been turned OFF for at least four hours to ensure it is cool.
Remove the glass panel as described below.
Lay the glass panel down on a flat working surface on top of an old opened newspaper with the side to be
cleaned uppermost.
Follow the instructions on the Hob Cleaner Bottle.
On stubborn stains (where the appliance as been used for a long period without glass panel being cleaned),
use a new Brillo Pad well wetted with the Hob cleaner applied directly to it.
Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is completely dry
before fitting to the appliance.
Important:- The appliance must not be used if the glass panel is missing or damaged.
Note: - The glass may discolour quickly when first installed, and it should be cleaned. This is due to the burning off
process of the refractory fuel bed shapes.

www.charltonandjenrick.co.uk 11 LT6974 (ISS 4)
SECTION FOUR Fuel Bed Cleaning and Layout (user instructions)
Before you clean any part of the appliance ensures that the appliance is turned off and cold.
Use only the fuel bed components provided and no additional parts must added.
Incorrect positioning of the fuel bed components could result in the staining of the glass panel.
Important: - Refer to the ‘Health & Safety Notice located on page 5 of this booklet before cleaning or
replacing any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The moulded shapes may be removed for cleaning. They can be brushed very gently with a soft brush to
remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.
It is important that all the fuel bed moulded shapes are positioned as shown in these instructions.

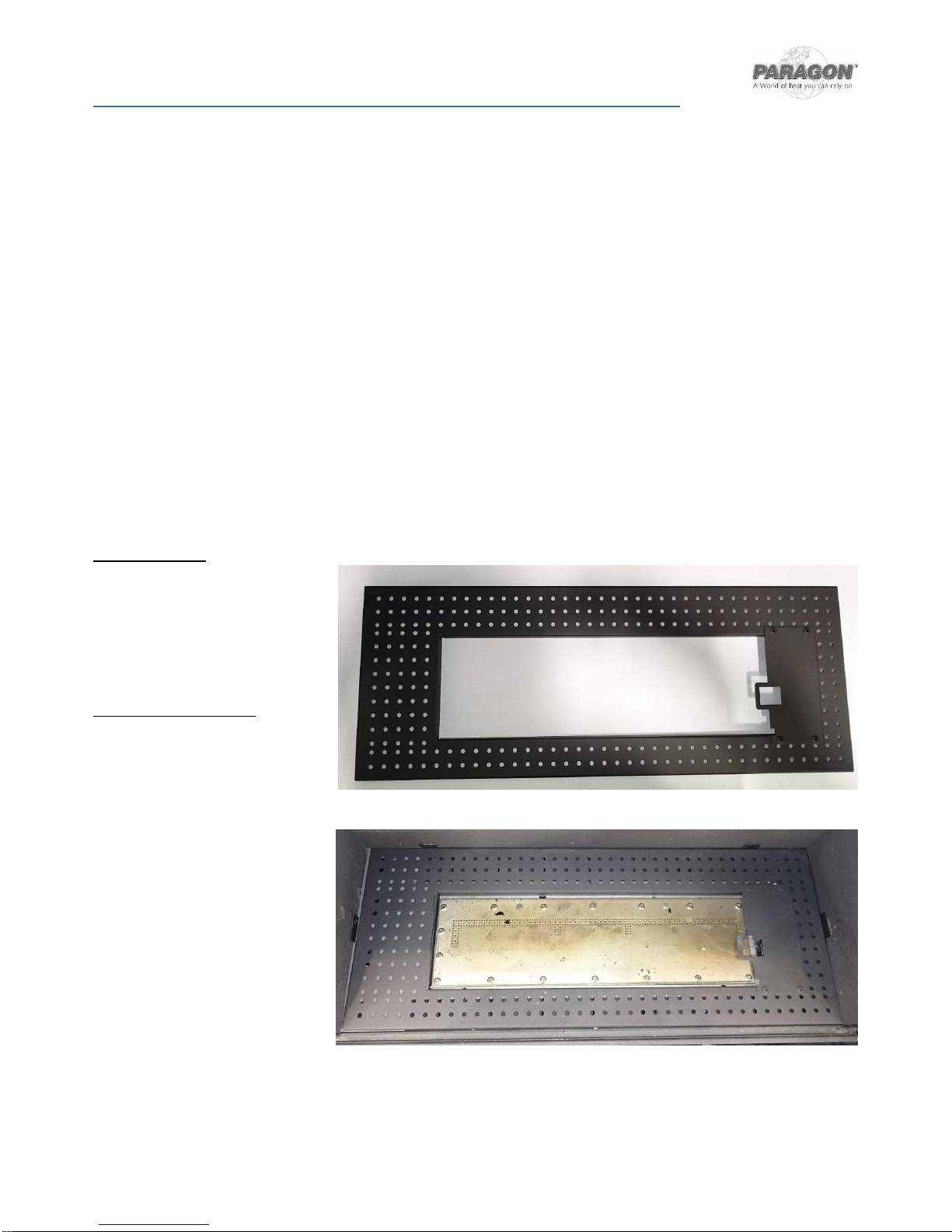

Fuel bed layout
Place air tray within burner
shelf assembly ensuring
the pilot shield is on the
right hand side over the
oxy pilot
Log set should contain
33 black bark chippings
8 –beige chippings
9 log shapes

12 LT6974 (ISS 4)
Place a single layer of black bark chippings across the burner top plate. Place two off the log shapes along
the back edge of the air tray as shown. Finally place a single layer of the large bark chippings along the front
and sides of the air tray.
Place the one log shapes as shown.
Place the two log shapes as shown.

www.charltonandjenrick.co.uk 13 LT6974 (ISS 4)
Place the two log shapes as shown.
Place the final two log shapes as shown.

14 LT6974 (ISS 4)
SECTION FIVE General Points (user instructions)
Like all appliances incorporating an aerated burner a low frequency noise may be heard, particularly on the low
setting, this is quite normal and does not affect the operation of the appliance.
It is advised that a competent person service the P9 fire annually. The fire is more likely to provide trouble-free
operation.
Dulling and slight discoloration inside the firebox will occur adding to the realism of the appliance. This is normal.
It is important that: -

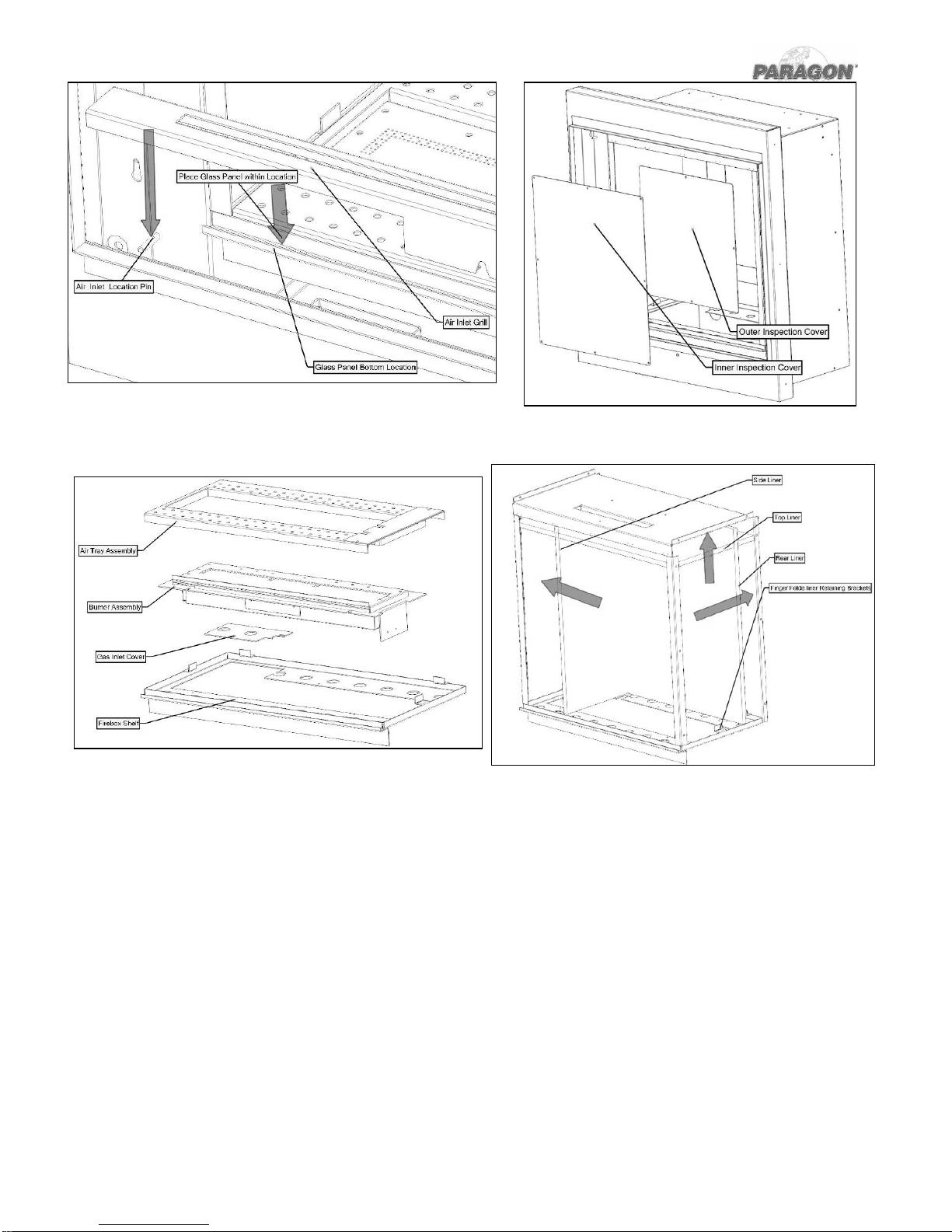

The chimney or flue is checked annually to ensure clearance of combustion products. This can be inspected by
removing the fire box liners and removal of the inspection covers located on the back of the firebox. This can be
obtained by doing the following.
Remove the two side covers LH and RH which are held with magnets.
Undo the two M4 nuts retaining the glass fixing bracket using the tool provided then pull clear and remove
from location studs.
Carefully lift the glass panel from within the bottom retaining slot.
Remove the log fuel bed shapes.
Lift out the air tray assembly from the location points within the shelf.
Remove the side liner fixing bracket which are located within the roof of the firebox LH and RH.
Carefully bend down the 4 off finger folds located on the fire box shelf.
Carefully remove the sides rear ceramic liners.
Remove the 4 off fixing screws retaining the inner inspection plate and remove.
Remove a further 4 off fixing screws retaining the outer inspection plate and remove.
After inspection for clearance is completed reassemble in reverse order.

www.charltonandjenrick.co.uk 15 LT6974 (ISS 4)

16 LT6974 (ISS 4)
SECTION SIX Appliance Data (installation instructions)
NATURAL GAS L.P.G
Gas Type: CATEGORY I 2 H CATEGORY I 3 P
Gas Pressure: 20 mbar +/- 1.0mbar 37 mbar +/- 1.0mbar
Pressure Test Point Location: Gas inlet elbow Gas inlet elbow
Gas Input: 7.6 kW Gross (Max.) 7.1 KW Gross (Max)
2.4 kW Gross (Min.) 2.4 KW Gross (Min)
Injectors: Mk 580 Mk 135
Oxy pilot: 9079 9264
NOx Classification …………………………….…. 5 5
Gas Connection: 8mm compression: semi-rigid or rigid
Data Badge Location: Located on the base of the appliance on the L/H side beneath the grill.
Battery Remote handset 2 x AAA high power alkaline
Appliance 6 x 1.5V AA high power alkaline.
Appliance Dimension
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009 +A1:2013 and the result is 73.2 %. The
gross calorific value of the fuel has been used for this efficiency calculation. Gastec have certified the test data from which it has
been calculated. The efficiency value may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy
rating of dwellings. Please note: Within the appliance packaging will be an outlet restrictor, this is there to achieve the maximum
efficiency. This, however, may not be fitted due to the flue underperforming.

www.charltonandjenrick.co.uk 17 LT6974 (ISS 4)
SECTION SEVEN Regulations and Warnings (installation instructions)
This appliance must only be installed in Great Britain or Ireland.
The appliance is suitable for use on natural gas and L.P.G.
GB (Great Britain) This fire does not normally require purpose build ventilation in accordance with 2010
document “J” Building Regulations.
IE (Ireland) Permanent ventilation must comply with the current edition of IS813.
In GB, (Great Britain)
It is the law that all gas appliances must be installed by a competent person; i.e. a GAS SAFE registered installer, in
accordance with the Current Gas Safety (Installation And Use) Regulations (as amended), all relevant parts of the
local and national building regulations and all relevant recommendations of the following British Standards. Failure
to do so could lead to prosecution.
The following are relevant codes of practice and British Standards: -
B.S. 5871
B.S. 5440 PART 1 & PART 2
B.S. 6891
This appliance must be installed to current versions of the above standards and include any relevant amendments
to:-
The Building Regulations Issued By The Department Of The Environment.
The Building Standards (Scotland) (Consolidated) Regulations Issued By The Scottish Development Office.
IN IE, (Ireland)
The appliance must be installed by a competent person and installed in accordance with the current edition of I.S.813
Domestic Gas Installation, the current building regulations, and the current ETCI rules for electrical installation, if
appropriate.
Prior to the installation ensure that the local distribution conditions (identification of type of gas and
pressure) and adjustment of the appliance are compatible G20@20mbar for natural gas or G31@37mbar for
L.P.G.
warnings
The glass front of the fire act as a dress guard, conforming to BS 1945 (1971) and satisfies the heating appliance
regulations (1991) However, a guard conforming to BS6539 (1984) must be used to protect young children, the
elderly or infirm.
This appliance incorporates a safety device in the form of an Oxygen depletion system. IT MUST NOT BE
ADJUSTED OR PUT OUT OF OPERATION! THIS IS A NON-SERVICABLE ITEM AND MUST BE EXCHANGED AS A
COMPLETE ASSEMBLY; USING ONLY THE ORIGINAL MANUFACTURER'S PART.
A suitable proprietary fire surround with a 150°C minimum rating is required.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the fibre
components of the fire, and there are no harmful effects produced.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.

18 LT6974 (ISS 4)
SECTION EIGHT Siting the Appliance (installation instructions)
CLASS ONE
That is a conventional brick or stone chimney as used for a solid fuel appliance with an effective cross-sectional
dimension of 225 x 225 mm (9” x 9”) or a lined flue with a minimum diameter of 125mm (5”). The chimney must have
a minimum effective height of at least 3 metres. Any permanent flue restriction or variable dampers are to be
removed or locked fully open. The chimney should be swept prior to installation if it has previously been used with
solid fuel. This is not necessary if the flue has previously been used with a gas appliance or if it is a new installation.
Note: A brick or stone chimney with a 125 mm (5 ins) minimum diameter flue liner conforming to BS 715 may be
used. Provided a suitable sealing plate is fitted to the base of the liner and the appliance does not restrict the
opening into the liner. Ensure a smooth lead into the flue way and no combustible materials are used. A void of
50mm must be maintained from the top of the firebox to gather into flue.

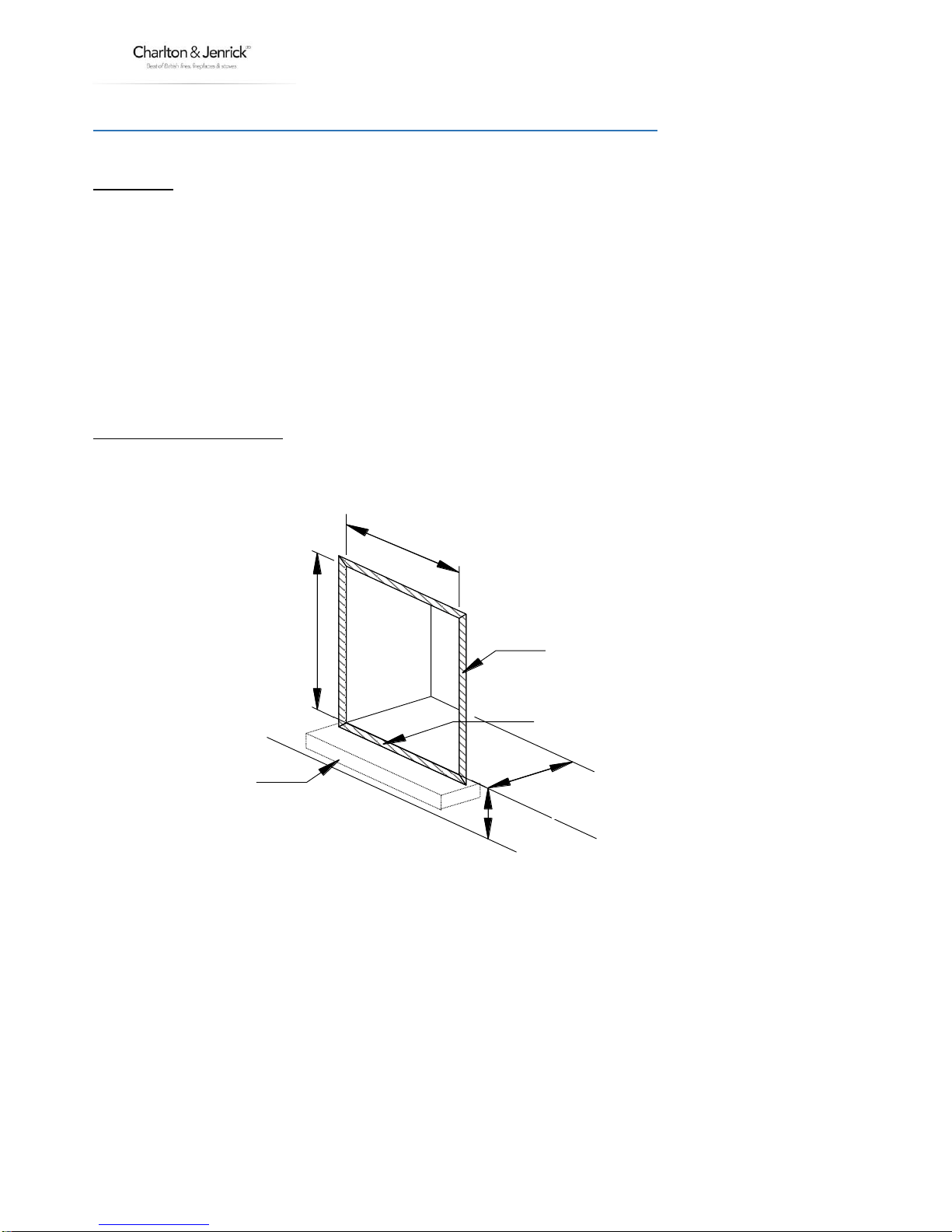

PREPARING THE OPENING
The front face and the base of the fire opening must be flat to ensure that a good seal is formed between the rear
and base of the appliance and the chimney to avoid any reduction of natural draught.
The front face and the base of the fire opening must be flat to ensure that a good seal is formed between the rear
and base of the appliance and the chimney to avoid any reduction of natural draught.
Locate the slip mounting brackets (supplied as an optional extra) by hooking onto the existing studs on the fire
600-670mm
810-850mm
Floor
This area behind the trim/fascia must be clear of
combustible material and be flat for the seal.
330mm Min Depth

www.charltonandjenrick.co.uk 19 LT6974 (ISS 4)
Clearance to Shelf
Minimum clearance from hearth or base of opening to underside of combustible shelf should be 800mm provided
the shelf depth is 75mm (3”). This gives a minimum clearance above the appliance of 140mm. For a shelf of 150mm
(6”) the minimum height above the hearth or base of opening must be 880mm. This will give a minimum clearance
above the appliance of 220mm.
Clearance to Sides of Fire
Minimum width between vertical sides of combustible surround should not be less than 875 mm provided fire is
central to the surround and sides do not project more than 150 mm. When vertical side forward projection is
increased by, 12.5 mm add 50 mm to inside width of surround.
CHECKING THE FLUE AND FIRE OPENING
Check that the chimney conforms to the required specifications as previously stated. Examine the condition
and carry out any remedial work including removing any debris from the base.
If the flue has been used for solid fuel it should be swept prior to the installation
Prior to installing the appliance a smoke test (using a smoke bomb) should be carried out to check that
satisfactory smoke clearance has been established.
If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-check. If there is any
uncertainty examine for the cause and, if necessary, seek expert advice.
No combustible material should be fitted inside the fireplace opening.
When installing this appliance against a dry lined (plasterboard) wall ensure that any void between the
plasterboard and the wall is sealed with a suitable non-combustible material (i.e. plaster or mortar).

20 LT6974 (ISS 4)
SECTION NINE To Install the Appliance (installation instruction)
GAS SUPPLY ROUTING
Use rigid or semi –rigid tube to connect the supply.
Determine the gas supply pipe route to the appliance before
installing the fire. Please note that if the fireplace frame
option is required the inlet cover retaining screws and nut
should be fitted from the rear of the firebox flange at this
stage. The required fixing can be found within the fireplace
frame packaging
Fixing Firebox Assembly
Slide the firebox into the fireplace open guiding the gas supply pipe through the hole at the rear LH bottom
of the firebox.
Retain the Firebox using wall plugs and screw using the four holes
within the firebox flange.
Refit the grommet over the pipe and seal around the inlet hole.
Remove the gas connection cover located within the burner shelf
left hand side and connect to the restrictor elbow provided.
Refit the cover plate
Note: - The isolation valve must be fitted at an angle to allow access to the
restrictor plug plus gas pressure test nipple.
At this point the fireplace or false chimney breast front will need to be constructed.
Offer the fireplace frame assembly up to the firebox and secure using the 4 off fixing screws provide
Connect battery pack as described in section 2.
(Operating the appliance). Locate the battery pack in
the holder positioned within the fireplace frame.
Locate the receiver eye within the inlet cover with the
head of the receiver visible.
