Charlton & Jenrick Luminosa 150 User manual

Installation & Operation Manual
Real Flame Technology
Model: Luminosa 150
Please read the instructions carefully before installation
or use and keep for future reference.
Best of British fires, fireplaces & stoves

CONTENTS
…………………………………………………
1. Important Safety Information
………………………………………………………
2. Technical Specifications
……………………………………………………………
3. Parts And Hardware
…………………………………………………………
4. Appliance Dimensions
………………………………………………………
5. Installation Instructions
…………………………………………………………
6. Operating Instructions
……………………………………………………………………
7. Maintenance
…………………………………………………………………
8. Service Parts list
3
1
6
4
16
7
23
24
……………………………………………………………………………
9. Others 26
………………………………………………………………
6C. APP Control 22
…………………………………………………………
6B. Remote Control 18
……………………………………………………

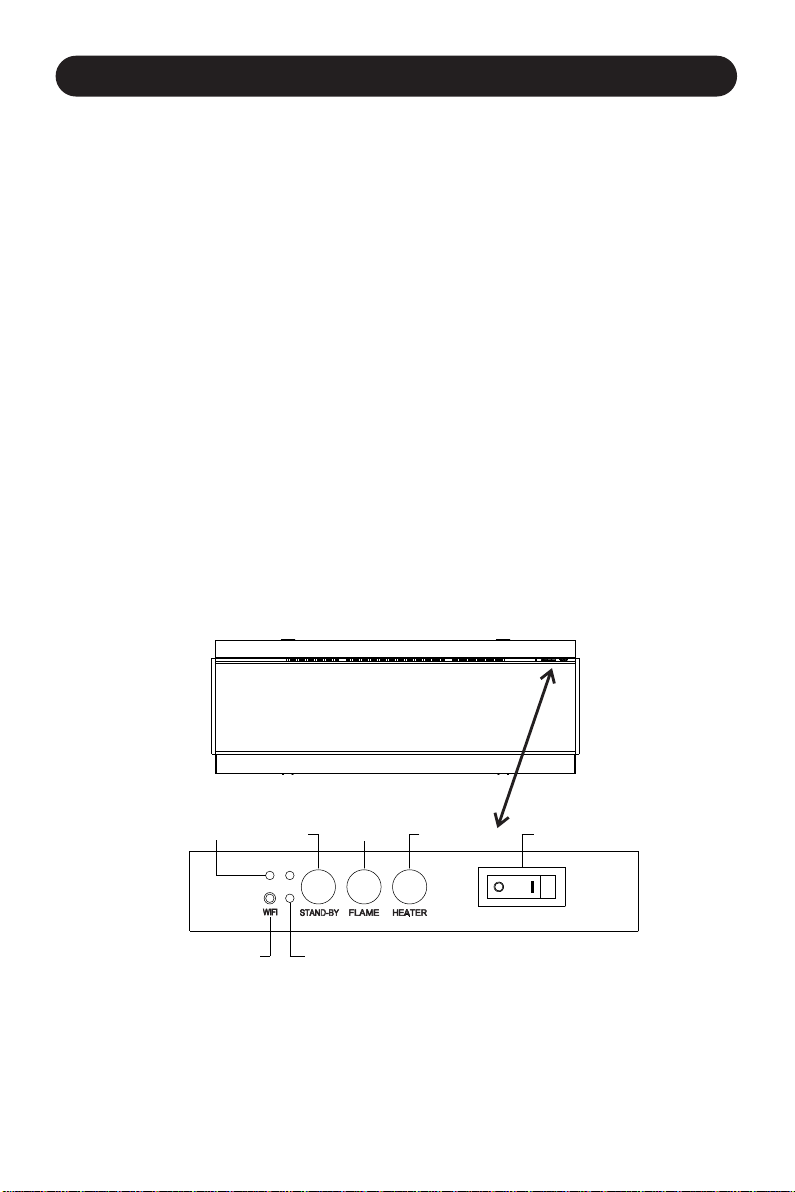

6A. Manual Control Panel 17

1
1. IMPORTANT SAFETY INFORMATION
ŸRead all of the instructions carefully before using the
appliance.
ŸFor indoor use only. This appliance is not suitable for use
outside the house.
ŸDo not use this appliance in the immediate surroundings of
a bath, a shower or a swimming pool.
ŸDo not use this fire as a free-standing appliance. It must
always be fixed to the wall, fireplace mantel, floor etc.
ŸThis fire must not be located immediately below or in front
of a socket-outlet.
ŸThis appliance must be earthed.
ŸThis appliance must not be supplied through an external
switching device, such as a timer, or connected to the
circuit that is regularly switched on and off by utility in
order to avoid a hazard due to the inadvertent resetting of
the thermal cut out.
ŸIf the power cord is damaged, it must be repaired by the
manufacturer, its authorized service center or professional
person in order to avoid a hazard.
ŸDO NOT COVER. Warning: in order to avoid overheating,
do not allow the appliance to be covered or let the air
inlet/outlet become obstructed. Please note the warning
on the appliance.
ŸTo reduce the risk of fire, keep textiles, curtains, or any
other flammable material a minimum distance of 1 meter
from the air outlet.
ŸKeep the power cords away from hot surfaces and hot
conditions. Do not route the power lead in front of the
appliance.
ŸDo not use this fire in rooms that have explosive gas in
them (for example petrol), or if you are using solvents,
glue, aerosol spray or in flammable paints, as these may
catch fire.

2
ŸThis appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
ŸCleaning and user maintenance shall not be made by
children without supervision.
ŸSome parts of this product can become very hot and cause
burns. Particular attention has to be given where children
and vulnerable people are present.
ŸDo not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided.
ŸChildren should be supervised to ensure that they do not
play with the appliance.
ŸKeep the power plug accessible after installation for the
purpose of isolation.
ŸChildren of less than 3 years should be kept away unless
continuously supervised or a fireguard is fitted .
ŸChildren aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been
placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from
3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.

3
2. TECHNICAL SPECIFICATIONS
Model No. : Luminosa 150
Supply Voltage: AC 230-240 V 50 Hz
Maximum power consumption: 1800-2000 W
Power for flame and fuel bed effect: 65 W
Power for mood light: 9 W
Heat Output:
Nominal heat output (Pnom): 2000 W
Minimum heat output (indicative) (Pmin): 1000 W
Maximum continuous heat output (Pmax): 2000 W
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 12.5 W
At minimum heat output (elmin): 12 W
In standby mode (elSB): 3 W
Other Control Options
Room temperature control, with presence detection
Room temperature control, with open window detection
With distance control option
With adaptive start control
With working time limitation
With black bulb sensor
No
Yes
Yes
No
No
Yes
Single stage heat output and no room temperature control
Two or more manual stages， no room temperature control
With mechanic thermostat room temperature control
With electronic room temperature control
Electronic room temperature control plus day timer
Electronic room temperature control plus week timer
No
Yes
Yes
Yes
No
No
Type of Heat Output / Room Temperature Control
Remote Control Receiver Control PCB Remote Control Transmitter
Frequency: ASK/OOK 433.92MHZ
Maximum transmit power: 10mW
Hardware:RF290L-V1.2
Software:A0.34
Hardware: RF290I V1.2
Hardware:
RC01-078A01
Software:V1.0.1

4
3. PARTS AND HARDWARE
3.1 Unpack the fire carefully and make sure that the appliance is intact
with no signs of damage caused by transport and no part has been
exposed to water. If in doubt, do not use the appliance and contact
your retailer.
3.2 Keep plastic wrapping away from children.
3.3 Save the original packaging as this may be required in the event of
service complaint with product.
3.4 Ensure that all parts are removed from the packaging.
D. E. F.
ST4*40 Screw (4pcs)
Wall Plug (18pcs)
A. B. C.
Firebox (1pc)
ST5*40 Screw (18pcs)
ST4*8 Screw (5pcs)
G. H. I.
Lower Brackets (2pcs)
(To be used when the wall
haning bracket(G) is used)
Edging Strip (2pcs)
Wall hanging bracket is
attached on firebox (1pc)
Remove from the appliance
if you are not fixing to wall
Edging Strip (2pcs)

5
J. K. L.
Power Cord (1pc)
M. N.
P. Q.
0.
S. T. U.
Black Resin Chips (1set) Logs (1set) Vermi culate (1set)
Crystal Media Large (1set)
R.
Power Cord Bracket (1pc)
(Installer must fit before
leaving appliance)
Sucker(2pcs)
Crystal Media Medium (1set) Crystal Media Small (1set)
Remote (1pc)AAA Battery (2pcs) Instruction Manual (1pc)
LCD El ectric F ire
Instr uction M anu al
Model : Luminosa 150
Please r ead the ins tr uctions care fully b efore ins tall ati on
or use and k eep for f uture ref erence.
Best of British fires, fireplaces & stoves
V.
Simplified Manual (1pc)
Vermiculite,Black glasses and Power plug
(1 set)

6
4. APPLIANCE DIMENSIONS
1500
1532
400
554
80
246
264 15
Unit:mm

7
LOCATE THE APPLIANCE
Your new electric fireplace may be installed virtually anywhere in your
home. However, when choosing a location, ensure that the general
instructions are followed:
ŸFor best result, install out of direct sunlight, water or very damp air.
ŸThe appliance should be connected to an earthed electrical outlet
and it must be easily accessible to allow disconnection.
ŸIf the appliance is fitted into or against a flue/chimney, the
flue/chimney must be blocked at its entrance (i.e. with Rockwool or
similar) to avoid the air flow creating a failure of the fan heater
CONNECT POWER CORD
ŸIt is very important that the plug is tightly located into the socket on
the top of appliance . It is essential that the retention clip
provided is fixed in place using the ST4*8 screw, ensuring a
secure connection to the appliance. It is recommended that you turn
on and operate the appliance to check that all functions and that
there are no issues with the appliance.

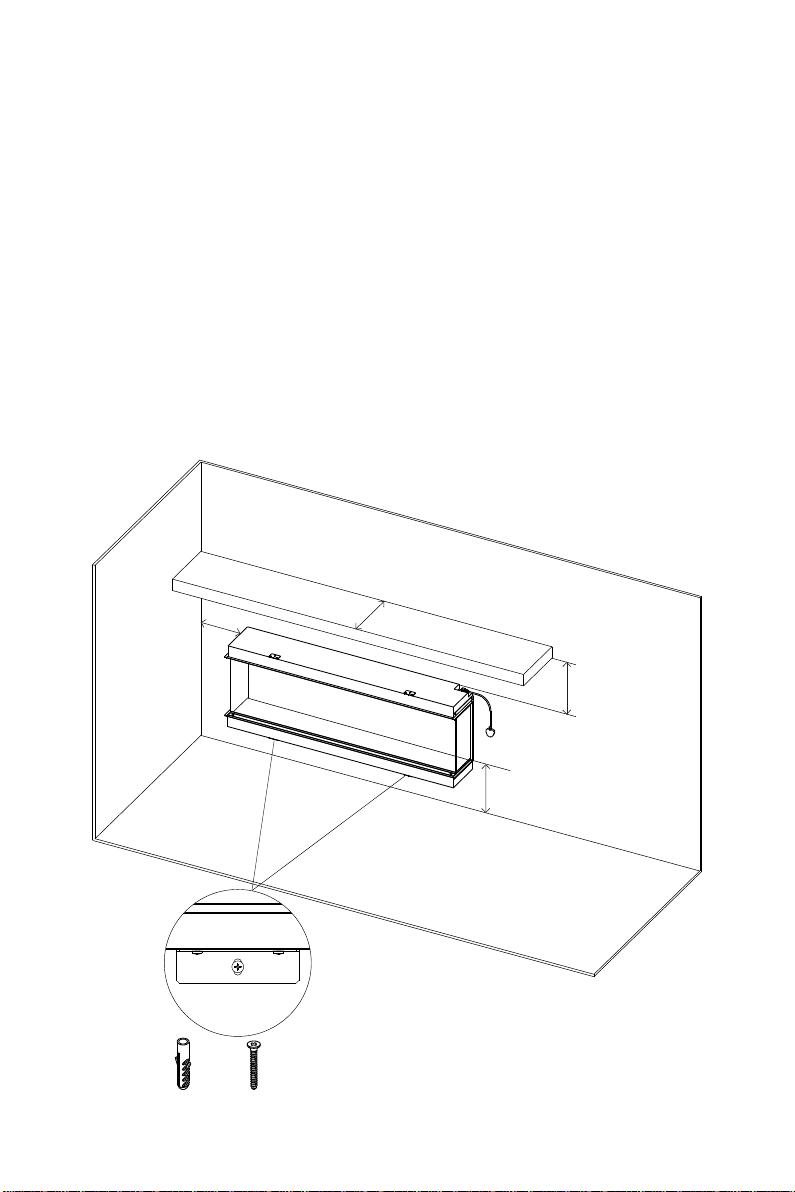

5. INSTALLATION INSTRUCTIONS
5.1 PREPARATION BEFORE INSTALLATION
TOOLS REQUIRED
A screwdriver, a spirit level and drill will be needed.
MINIMUM CLEARANCE TO COMBUSTIBLE
...........................
Back
Top (Mantel or TV)
Front
Sides
Floor
.......
...........................
...........................
...........................
0
0
0
1000mm Minimum
200mm Minimum
0mm min
200mm min
0mm min

8
CONNECT MOOD LIGHTS CABLE
ŸThe interface of the mood lights cable is on the top of the appliance,
near the position of the power cord. Please also check the function
after connecting the mood light.
Note: Compable mood lighng devices are available from Charlton &
Jenrick Ltd., Other brands may not be suitable and void the warranty.

9
CHOOSE ASPECT TYPE
The appliance can be installed in 3 different arrangements. They are
as follows:
ŸFront view (only the front window is visible)
When you unpack the appliance, you will notice that the side
panels have been fixed on the appliance, which makes the
appliance visible on only one front side.
ŸCorner Aspect (the front and one of the side windows are
visible)

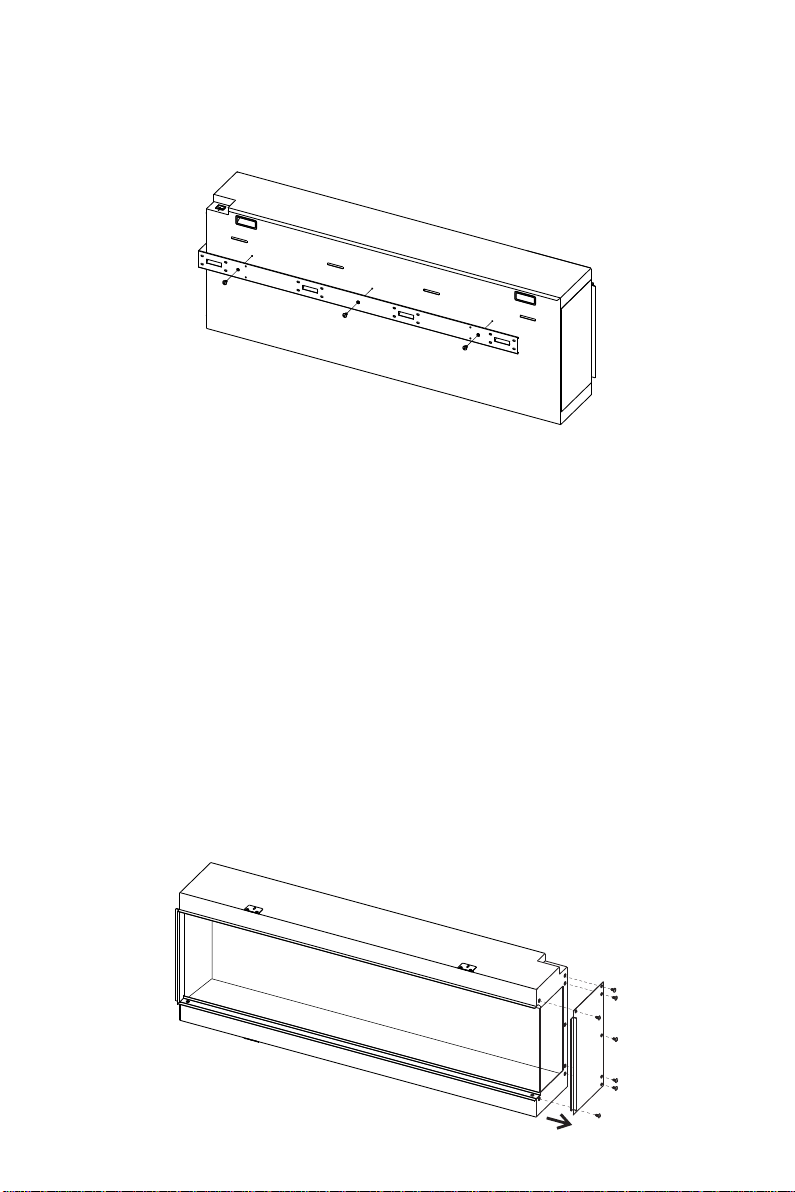

Remove the side panel from the end you want to feature a glass
panel. Then take the top / bottom edging strips and fix them to the
appliance using the screws taken from the removal of the side
panel(s)

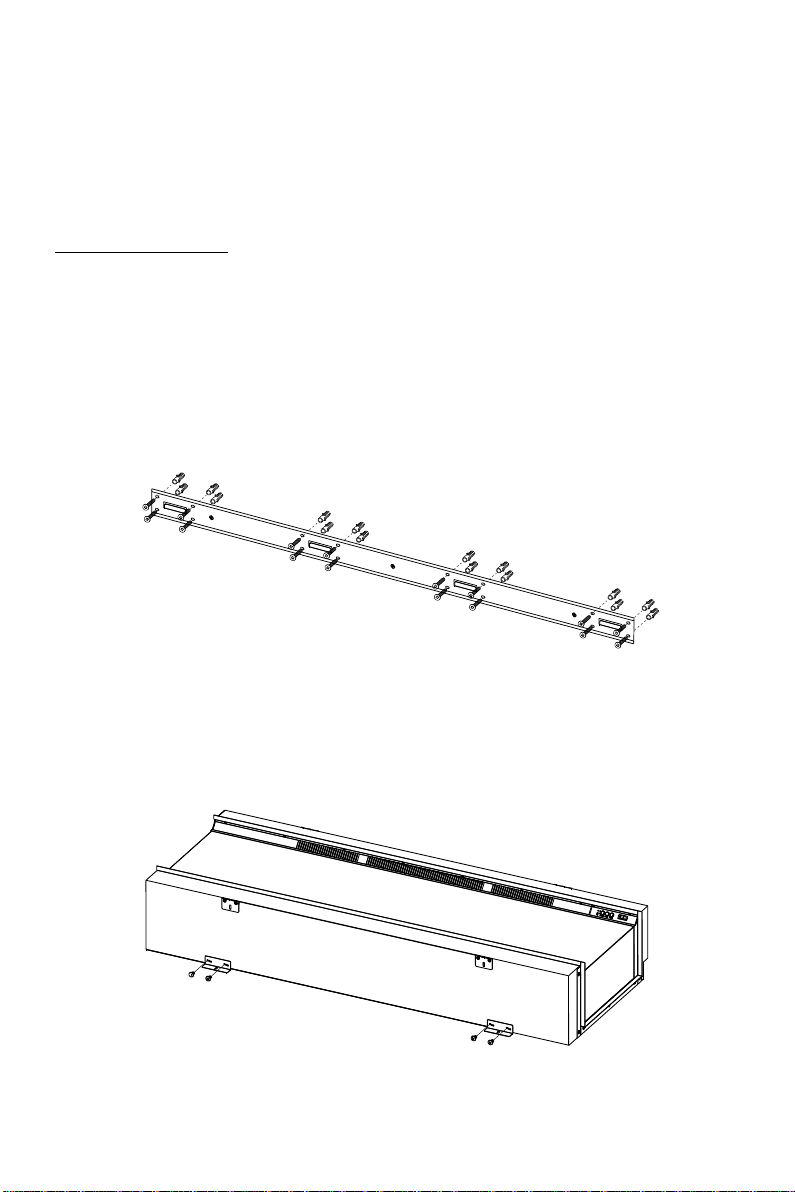

REMOVE WALL MOUNTING BRACKET
ŸRemove the wall mounting bracket from the rear of the appliance by
removing the securing screws.

10
5.2 CHOICE OF INSTALLATION METHOD
The following is only given as a general guide because it can be
installed in so many ways. Provided you ensure electric connections
are safely made in accordance with the codes,various materials can
be used for the framework and cladding. But consideration should be
made to soften the internal surface of any cladding to minimise that
amplification of noise.
BUILT IN

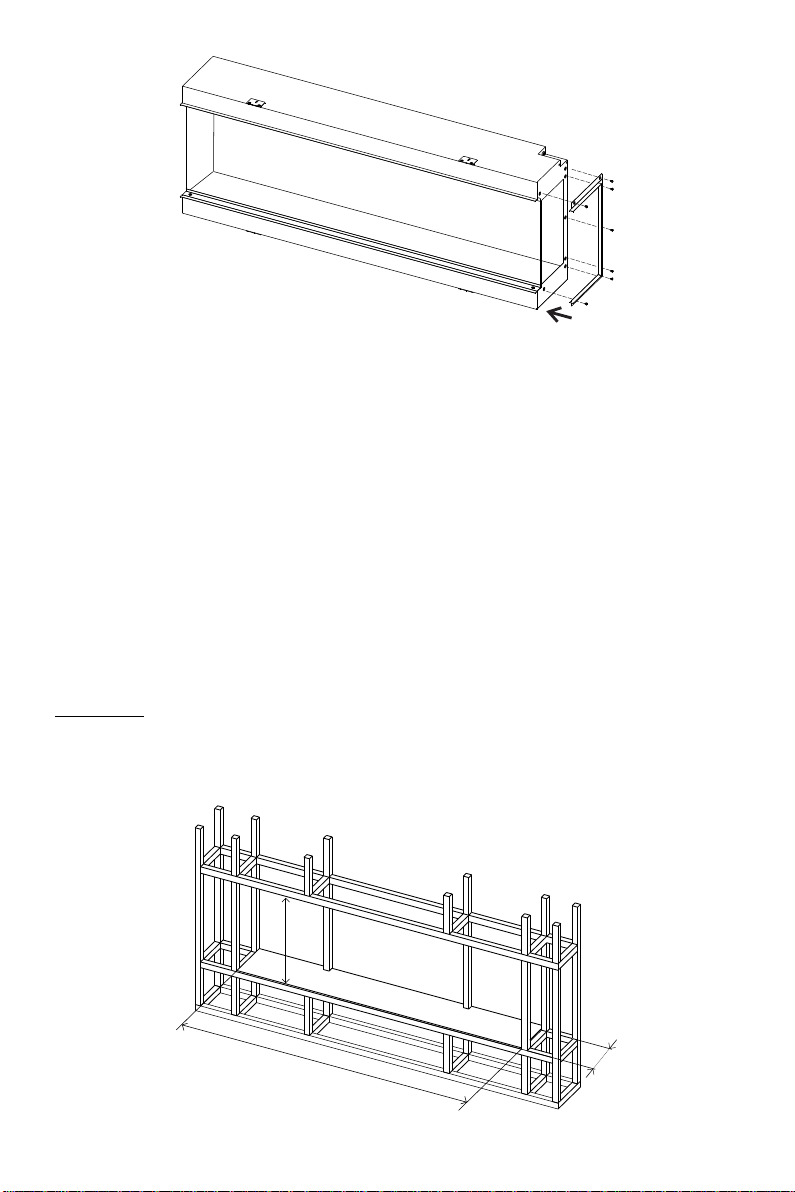

ŸPrepare the framework as a general guide only see picture below:
FRONT VIEW
ŸPanoramic Aspect (the front and both sides windows are
visible)
Repeat the corner aspect procedure on the opposite side of the
appliance.
D
W
H

11
PANORAMIC VIEW
NOTE: Ensure a firm flat surface for positioning of the
appliance and securely fix to avoid vibration and movement of
the appliance. Ensure a minimum of 20mm clearance at the
rear and the top of the appliance before cladding for air
movement.
Recommended Cavity Dimensions (mm)
H W D
Front Corner Panoramic
575 1540 1525 1510 Min 270
These dimensions are a guide. Always measure the appliance
on site before cutting the cavity.
CORNER VIEW
H
W
D
W
H
D

12
ŸCladding the framework. Note:Hard surfaces can amplify sound.
Consider adding some underlay or like the inside surface of the
cladding .

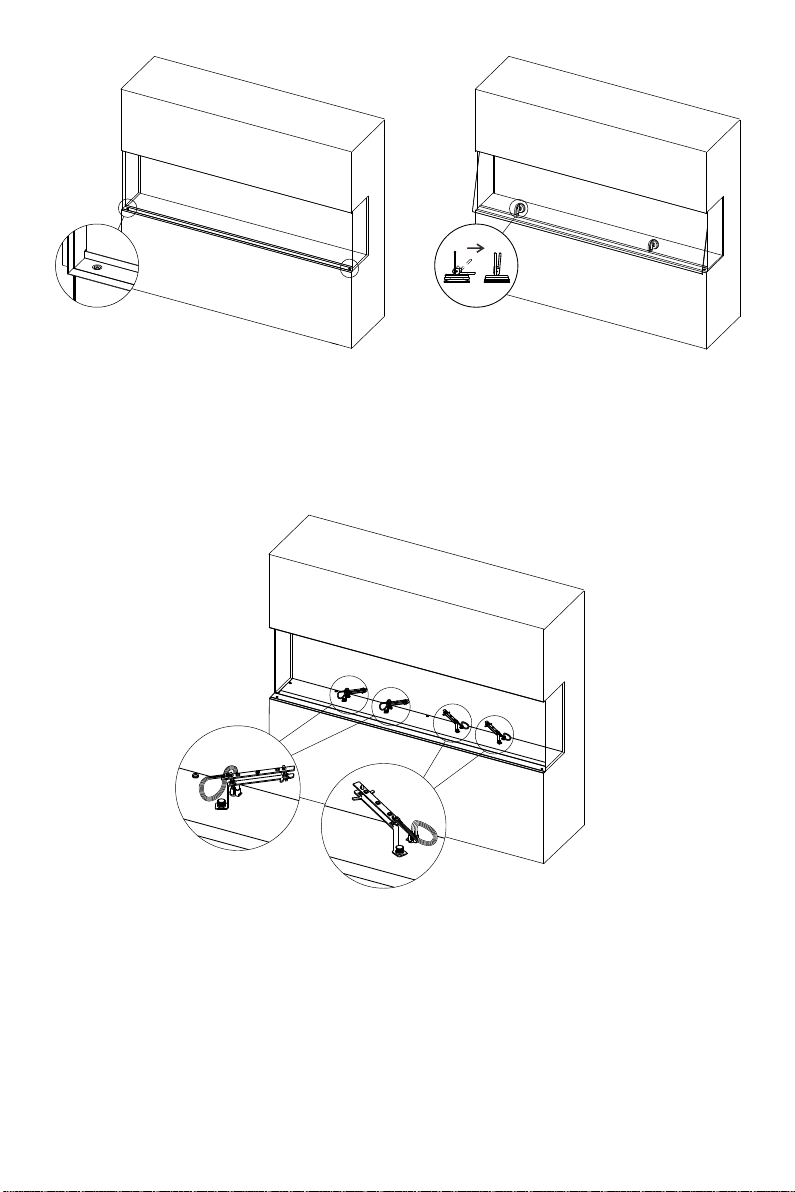

ŸRemove two screws securing the glass retaining clip to remove the
front glass for arranging the fuel bed. Use the suction cups
provided to support the glass panel and carefully lift it away as
shown below.

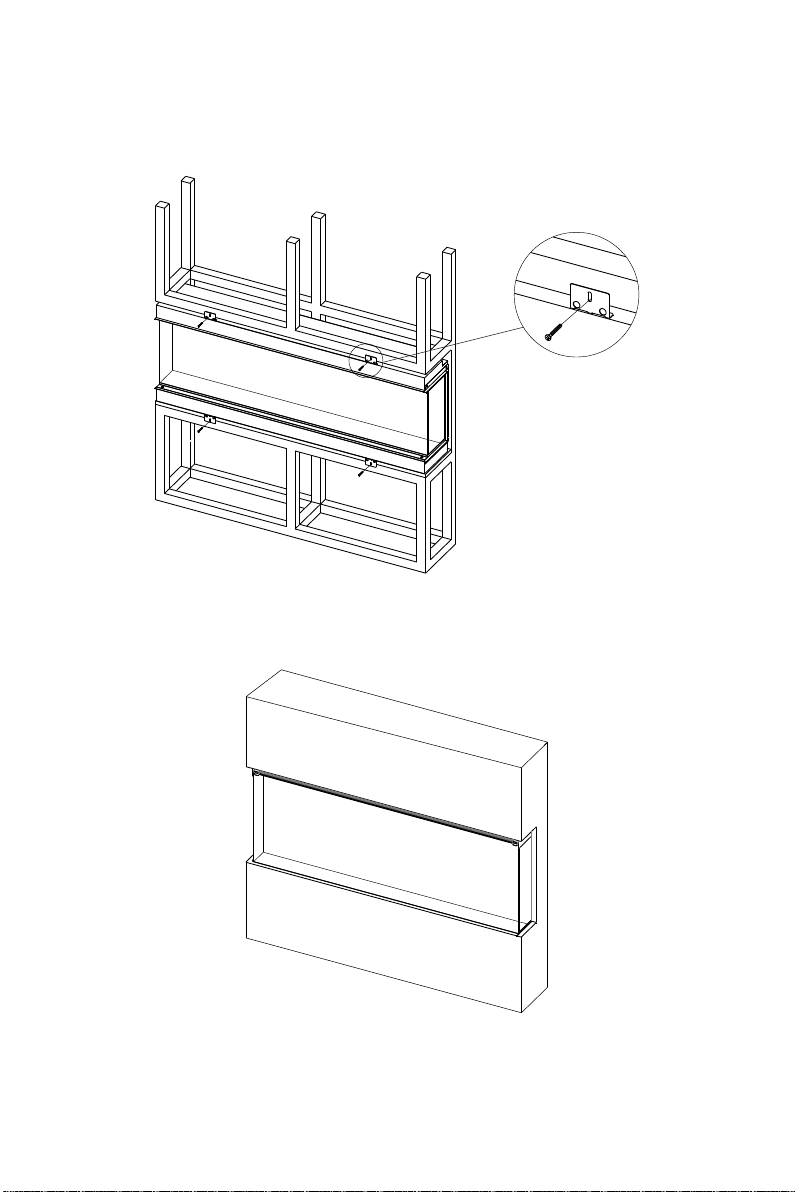

ŸBend out the four brackets on the upper and lower edges of the
appliance, push the appliance into the framework and fix the
appliance with four ST4x40 screws provided to the framework. It
is important that the appliance is fitted securely as described
below.

13
A. Decorative Log Set Arrangement
ŸFix the log led to the fuel bed, and then place the four logs with slot
on it.
ŸFreely arrange other logs and when you are happy with the layout,
carefully scatter the glass embers around all the logs, ensuring that
all visible areas of the fuel bed, including underneath and behind the
logs, are covered. Finally, carefully scatter the vermiculate granules
over the glass embers ensuring good coverage.
ŸInstall the front glass back to the firebox to complete the installation.
Note: Use the screws previously removed.
There are two fuel bed arrangements for you to choose:

14
B. Crystal Media Arrangement
ŸScatter the small crystal media around the fuel bed, ensuring that
all visible areas are covered. Freely place the large and medium
crystal media on the fuel bed.
WALL MOUNTED
ŸPlace the wall mounted bracket horizontally against the wall where
you would like to install the appliance. Mark the holes for screws, drill
holes on the marks, insert wall plugs(for masonry wall only) and fix the
bracket to the wall by ST5x40 screws. Its important that a secure fixing
is made to the wall so alternative fixings may be necessary for other
wall types.
ŸAttach the bottom mounting brackets to the appliance using four
ST4x8 screws provided.

15
ŸLift the appliance up and attach to the wall mounting bracket by
locating the fingers on the wall bracket into the rectangular openings
in the rear of the appliance.
ŸMark the hole position of the bottom mounting brackets, remove the
appliance from the wall, drill holes on marked and insert wall plugs.
ŸAttach the appliance again on the bracket, secure each side with
screws previously removed.
ŸFix the lower rear of the appliance to the wall with the ST5*40 screws.
Ensure the face of the appliance is vertical adjust or pack out lower
bracket as required.
ŸArrange the fuel bed to your choice and reinstall the front glass panel.
x2 x2
200mm min.
Only when "A" projects
40mm forward of appliance
200 min.
0 min. A

16
FLAME
STAND-BY MAIN SWITCH
HEATER
HEATING INDICATORWIFI
WIFI INDICATOR
WARNING!
To reduce the risk of fire, keep textiles, curtains, or any other
flammable material a minimum distance of 1 meter from the air
outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet
connections or loose plugs can cause the outlet to overheat.
Do not disconnect the power at the mains supply whilst the
appliance is running. Use the functions on the remote to turn the
fire off and ensure the mains switch is in the off position before
disconnecting.
6. OPERATING INSTRUCTIONS
WARNING!
Do not operate the appliance if it is damaged or malfunctions. If
you suspect the appliance is damaged or malfunctions, call a
qualified service engineer to inspect the appliance, and replace
any part of the electrical system if necessary, before reusing.
BUTTONS ON APPLIANCE
Each time a button is pressed on the appliance or on the remote control, an
audible beep is emitted. To turn off this feature, keep pressing button FLAME
for 3 seconds until you hear two beeps.

17
MAIN SWITCH
Press “I” to turn on the power to the appliance. Press“o” to turn off the power.
STAND-BY
Turn on the appliance with the last used settings without any heat. Place the
appliance into standby mode with all features turned off.
FLAME
Press repeatedly to cycle through 6 fire preset modes and 3 user defined
presets if programmed.
HEATER
Press repeatedly to cycle through low heat setting, high heat setting and no
heat.
To prevent the appliance becoming too hot, there is a 10s delay when turning
on the heater and a 10s delay when turning off the heater fan.
WIFI
Press to turn on/off Wi-Fi. An illuminated LED on the button indicates that the
Wi-Fi is turned on. Hold button for 3 seconds to enter device pairing mode.
Note:
The manual buttons control only basic functions, not a full range of controls.
Use in conjunction with the remote handset or the APP to carry out all
functions.
The appliance can be operated conveniently in 3 different ways:
manually using switches on appliance , via the remote-control
handset or via the dedicated iOS/Android App.
If you turn off the flame effect using the STANDBY button, the flame
effect will remain dormant for 20 minutes ,after that you can turn on the
flame immediately. If it exceeds 20 minutes, the appliance needs to be
rebooted again.
6A. MANUAL CONTROL
THE BOOT PROCESS FOR FLAME EFFECT
Switch on the appliance by MAIN SWITCH, then press “STAND-BY”
button on the appliance. The fuel bed starts to blink and the screen
displays “WELCOME”. The booting process will take about 30 seconds
and flame effect will be turned on.
