Charlton & Jenrick INFINITY 480 BF User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
480 BF
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 6935 (ISS 4)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY...................2
Benchmark Scheme.....................................................3
SECTION ONE Important Information(Users
Instructions).................................................................5
Important Information Cont. (Users Instructions)......6
SECTION TWO:Introduction(Users Instructions) ........7
SECTION THREE: Operation(Users Instructions) .........7
SECTION FOUR: Cleaning & Laying the fuel bed (Users
Instructions)...............................................................11
CLEANING AND REPLACING fuel bed shapes (Users
Instructions)...............................................................13
SECTION FIVE Appliance Data (Installation
Instructions)...............................................................16
SECTION SIX Regulations and Warnings (Installation
Instructions)...............................................................17
SECTION SEVEN: Siting the Appliance (Installation
Instructions)...............................................................18
SECTION EIGHT: Preparing the Appliance for
Installation (Installation Instructions) ......................19
SECTION NINE: Install The Appliance (Installation
Instructions)...............................................................20
SECTION TEN Fireplace Installation ..........................22
SECTION ELEVEN: CONNECTING THE GAS SUPPLY
(Installation Instructions)..........................................29
SECTION TWELVE: Assemble the appliance
(Installation Instructions)..........................................30
SECTION THIRTEEN: Instruct and Advise the Customer
(Installation Instructions)..........................................31
SECTION FOURTEEN: Maintenance Instructions
(Maintenance Instructions).......................................32
SECTION FIFTEEN: Wiring Diagram (maintenance
instructions)...............................................................34
SECTION SIXTEEN Short Spares List ..........................35
BALANCED FLUE GAS FIRE COMMISSIONING
CHECKLIST ..................................................................39
SERVICE RECORD .......................................................40
EXTENDED
FIVE YEAR PARTS WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS AND ANY
BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenjick.co.uk 3 LT6935 (ISS 4)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT 6935 (ISS 4)
Register your appliance online today to active your warranty
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
INFINITY 480 BF
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenjick.co.uk 5 LT6935 (ISS 4)
SECTION ONE Important Information(Users Instructions)
INTRODUCTION
The INFINITY 480 BF is an inset or outset room sealed decorative fuel-effect gas appliance.
The INFINITY 480 BF is available in Natural Gas
The INFINITY 480 BF must not be installed into a natural draught flue or chimney.
The INFINITY 480 BF should only be installed and serviced by a competent person i.e. GAS SAFE
registered, in accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS.
The INFINITY 480 BF does not require a chimney, but must be installed against an outside wall.
It is important that the flue terminal is regularly checked and kept clear at all times.
If the terminal is accessible to people (i.e. less than 2m above a walkway, balcony etc.) the terminal
guard must be fitted to prevent access to the flue outlet, which becomes hot when the fire is in use.
As the INFINITY 480 BF is a room sealed appliance (i.e. air for the combustion process is taken from
outside the room) no purpose built ventilation is required.
The INFINITY 480 BF is designed and tested to meet the requirements of the European Standard EN 613.
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable,
that these products are so designed and constructed as to meet the general safety requirement when
properly used and installed. To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate
the approval of the appliance, operation of the warranty and could affect your statutory rights.
Health and safety
Notice Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being
injurious to health and safety. It is the users/installers responsibility to ensure that the necessary personal
protective clothing is worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful
if inhaled, may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye
protection. After handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals
or cleaning after servicing / installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should
be securely wrapped in polythene and be clearly labelled ‘RCF waste’. These materials are not classified
as ‘hazardous waste’ and should be disposed of at a site licensed for the disposal of industrial waste.

6 LT 6935 (ISS 4)
Important Information Cont. (Users Instructions)
The INFINITY 480 BF is battery operated; therefore no mains electrical supply is required. Power to the
appliance is provided by 6 high power alkaline 1.5V batteries (“C” size) (a spare set of 6 “C” batteries
is supplied with the appliance)
An audible repeated bleep warning indicates that the appliance batteries need changing or charging
(if rechargeable batteries have been used).
Important: Batteries should be changed as soon as possible as the appliance will not light if the battery
power gets too low.
The appliance is for use on Natural Gas (G20 @ 20mbar)
Failure to install appliance correctly could lead to prosecution.
In GB (Great Britain), the appliance must be installed by a competent person i.e. GAS SAFE registered, in
accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS, The Building Regulations (or
The Building Regulations (Scotland) or The Building Regulations (Northern Ireland)) and The Current I.E.E.
Wiring Regulations, if appropriate.
In IE (Ireland), the appliance must be installed by a competent person and installed in accordance with
the current edition of I.S.813 Domestic Gas Installation, the current Building Regulations and the current
ETCI rules for electrical installation, if appropriate.
Although the INFINITY 480 BF is fitted with a glass front which acts as a dress guard it is strongly
recommended that a fireguard should be used for the protection of children, the elderly or
infirm. Fireguards should conform to B. S. 6539 (1984) (Fireguards for use with solid fuel
appliance).
Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration.
Many wall coverings may become discoloured if placed too close to the appliance, it is strongly
recommended that any proposed wall covering intended for use immediately above the appliance should
be tested in the hottest position (immediately above) first. Run the fire on high over a few days
All combustible material must be removed from behind the fire and fire trim.
The first time you light your new appliance a smell may occur due to its new condition. This is quite
normal and will soon disappear after a few hours use at maximum setting (open a window until the
smell disappears)
With use the inside of the air box will change colour, particularly the sides and rear. This is quite normal
and often adds to the overall effects of the appliance.
The appliance MUST NOT be used if the glass panel is not correctly fitted or if this panel is cracked
or broken.
Any debris should be cleaned from the appliance. A vacuum cleaner can be used but only after all the
loose shapes have been removed.
Prior to removing or cleaning the coals refer to the ‘Health and Safety Notice’ located on page 3 of
this booklet.
The appliance should be serviced annually by a competent person i.e. a GAS SAFE registered engineer
in accordance with these instructions.
The glass or any part of the appliance MUST NOT be cleaned or wiped whilst the appliance is HOT, to do
so could be dangerous and may damage the paintwork of the appliance

www.charltonandjenjick.co.uk 7 LT6935 (ISS 4)
SECTION TWO: Introduction(Users Instructions)
The INFINITY 480 BF is an inset room sealed decorative fuel-effect gas appliance designed for use in
locations that do not have a conventional chimney. The appliance must be installed against an outside
wall because the air to support combustion is taken from the outside and the products of combustion are
expelled to the outside.
The appliance incorporates a safety device in the form of a FLAME SUPERVISION DEVICE, which
constantly monitors the flame and will cause the gas to be switched off if the flames are extinguished
for any reason. THIS DEVICE MUST NOT BE OVERRIDDEN. If this situation occurs on a regular basis
have the appliance checked by a qualified engineer. The problem may be due to a blocked or restricted
flue.
Before removing the, trim, glass shapes for cleaning the fire should be turned off, and left to cool down.
NOTE: In use some discoloration of the components will take place in the combustion box, this is normal,
but can be kept to a minimum if the shapes are placed correctly (i.e. after cleaning). See Section 4.
As with all heating appliances certain areas (Working Surfaces) become very hot when the appliance is
in use.
SECTION THREE: Operation(Users Instructions)
To light the appliance using the remote hand set:
a. Point the remote control hand set in the direction of
the appliance and press the button. Continue to
hold the button for approximately 2 seconds and
release handset screen will turn orange. When
released a bleep should be and heard the appliance
will automatically go through the ignition sequence
and the pilot should ignite. Once the pilot is alight the
appliance will automatically go to the high setting
(approximately 20-25sec).
b. If the ignitor stops sparking and the pilot fails to light
press the button for at least 2 seconds and
release,
again a bleep should be heard. Then repeat the lighting procedure.(need to wait 3 mins)
c. With the appliance lit, by pressing key the operational mode is switched from manual to room
thermostat setting and vice versa. When room thermostat mode is active, the display shows the set
temperature value and the “AUTO” icon will appear on the LCD display. By using the arrow key the
desired room temperature can be set. When manual mode is active, the display shows the “MAN” icon
plus the flame icon and a five level bar icon setting. By pressing the arrow key, the flame picture can
be adjusted at five stages between high and low flame. If level 5 is currently active, the icon max
below the flame icon will appear.
d. To switch off the appliance press the button for at least 2 seconds and on releasing the button the
appliance will bleep and then shut off. For pilot setting press the for 1 second and release. The pilot
symbol will appear on the LCD display. Pressing the button will bring the fire back onto main flame.

8 LT 6935 (ISS 4)
e. The appliance can be switched off without using the hand set by removing the appliance batteries
located below the air grill cover. When the batteries are removed there will be a delay (up
3minutes) after which, double bleeps may be heard and shortly after the appliance will
extinguish. Ensure that the battery is reconnected once the fire has been extinguished. The
appliance cannot be operated without the use of the handset.
Room Thermostat mode
The remote handset checks the room temperature at a fixed time intervals. Depending on the
difference between set room temperature and the actual room temperature the remote proceeds
to modulate in one level steps. Once the room temperature is reached it moves to standby position
pilot only.
The icon “PILOT” will appear on the LCD display. As soon as the actual room temperature falls below
the SET room temperature, the system will move from standby to the high flame level. From this
point it will proceed again the modulation process.
Note: Due to the temperature checks at timed intervals, the display temperature on the handset may
exceed the room setting temperature before the appliance defaults to the pilot setting.
TO REPLACE BATTERY IN HAND SET (3 AAA TYPE BATTERIES)
Remove the cover from the rear of the handset and fit replacement batteries.

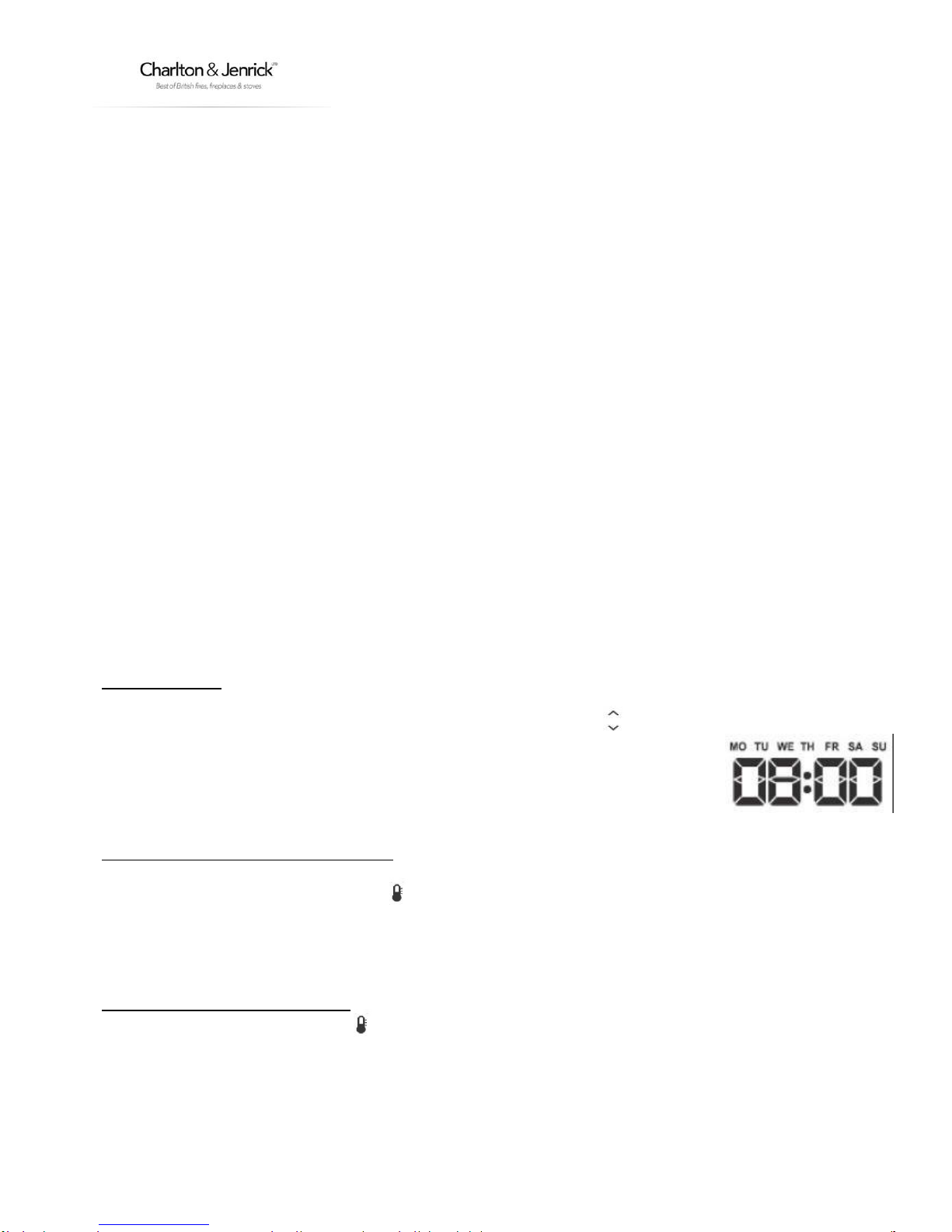

Clock Regulation
As soon as the batteries are fitted the timer digits will blink. Using the arrow
key increase or decrease the hour, minutes and week`s value. By pressing the O
will set and shift setting until complete.
Changing Clock Setting During Operation
To amend timer setting press both the and O keys simultaneously for three seconds, the
written clock will appear. To change the clock settings, repeat the above described operation.
Change From Celsius to Fahrenheit
With remote OFF, keeping pressed key at least for 5 seconds, the temperature unit changes from
Celsius to Fahrenheit degrees and vice versa.

www.charltonandjenjick.co.uk 9 LT6935 (ISS 4)
Battery level indication (Handset)
When the batteries have to be changed in the handset, the related icon will appear.
Setting the sleep mode
To activate the sleep mode:
With the fire switched on press the O button. The sleep symbol will appear top right . The sleep
symbol replaces the time indicator in this mode. Using the arrow key increase the sleep mode in 15
minute intervals (a small star will be visible next to the sleep symbol once any time is set) .Once the
set time is reached, the fire will completely switch off without any further intervention.
To Deactivate the sleep mode:
When the fire is next operated, the sleep mode will automatically appear unless it is re-set to zero. This can
be done by pressing the O key and using the button to decrease the time set by 15 minute intervals
until back to zero.
If you experience unexplained outing on the fire please check that the sleep mode is switched off.
Child Lock (Handset)
To activate `Child Lock` : Press and hold the Mode Key O button for 5 seconds, this will lock and disable
the handset and a “padlock” symbol will appear on the bottom of the screen. This can be done while the
fire is “off” or “on”. To deactivate this function press and hold the Mode Key O for 5 seconds and the
“padlock” symbol will disappear.
LOW BATTERY INDICATION (APPLIANCE)
If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery pack
is low and should be changed. If this is ignored the system will go into a lock out mode, which will not
allow the appliance to be used until a new set of batteries are loaded.
NOTE: The appliance cannot be used when the battery is completely discharged.

10 LT 6935 (ISS 4)

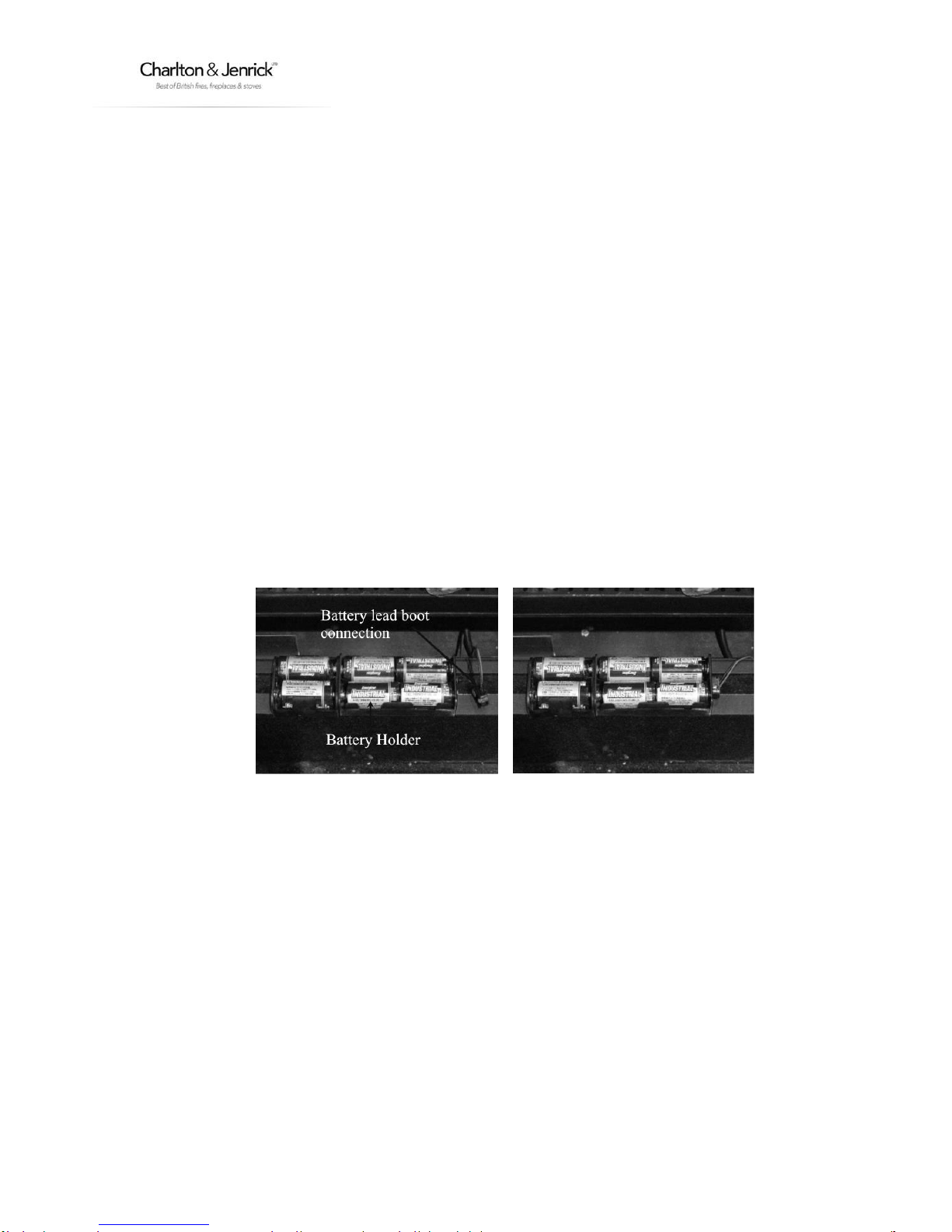

TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline C 1.5V)
A. Remove the decorative in fills LH and RH.
B. Lift and remove the inlet cover located within the fireplace frame.( This is located at the bottom
of the fire between the glass panel and fireplace frame.
C. Remove the batteries from within the battery holder and replace the six high power alkaline
C batteries as a complete set.
WARNING, batteries will overheat if fitted incorrectly, when fitting the batteries ensure that they are
fitted as per the marking on the rear of the holder (i.e. minus of battery against spring).
D. Once the new batteries are loaded the fire will continue to bleep until re-set. Press the ON / OFF
key for at least 2 seconds, on release a bleep sound will be heard and the ignition process will
start. If the fire continues to bleep this may indicate a loose connection or badly loaded batteries.

www.charltonandjenjick.co.uk 11 LT6935 (ISS 4)
SECTION FOUR: Cleaning & Laying the fuel bed (Users Instructions)
Warning:-Before you clean any part of the appliance ensure that the appliance is switched off
and cool.
CLEANING: BLACK PAINTED SURFACES
These surfaces should be dusted regularly and any marks removed with a soft
cloth. Abrasive or chemical cleaner should never be used.
CLEANING: GLASS PANEL
From time to time it may be necessary to clean
the glass panel.
We recommend you use a Ceramic Hob Cleaner
(brands such as HOB BRITE and VITRO CLEN
have been found to be acceptable) these are
available from most leading Supermarkets.

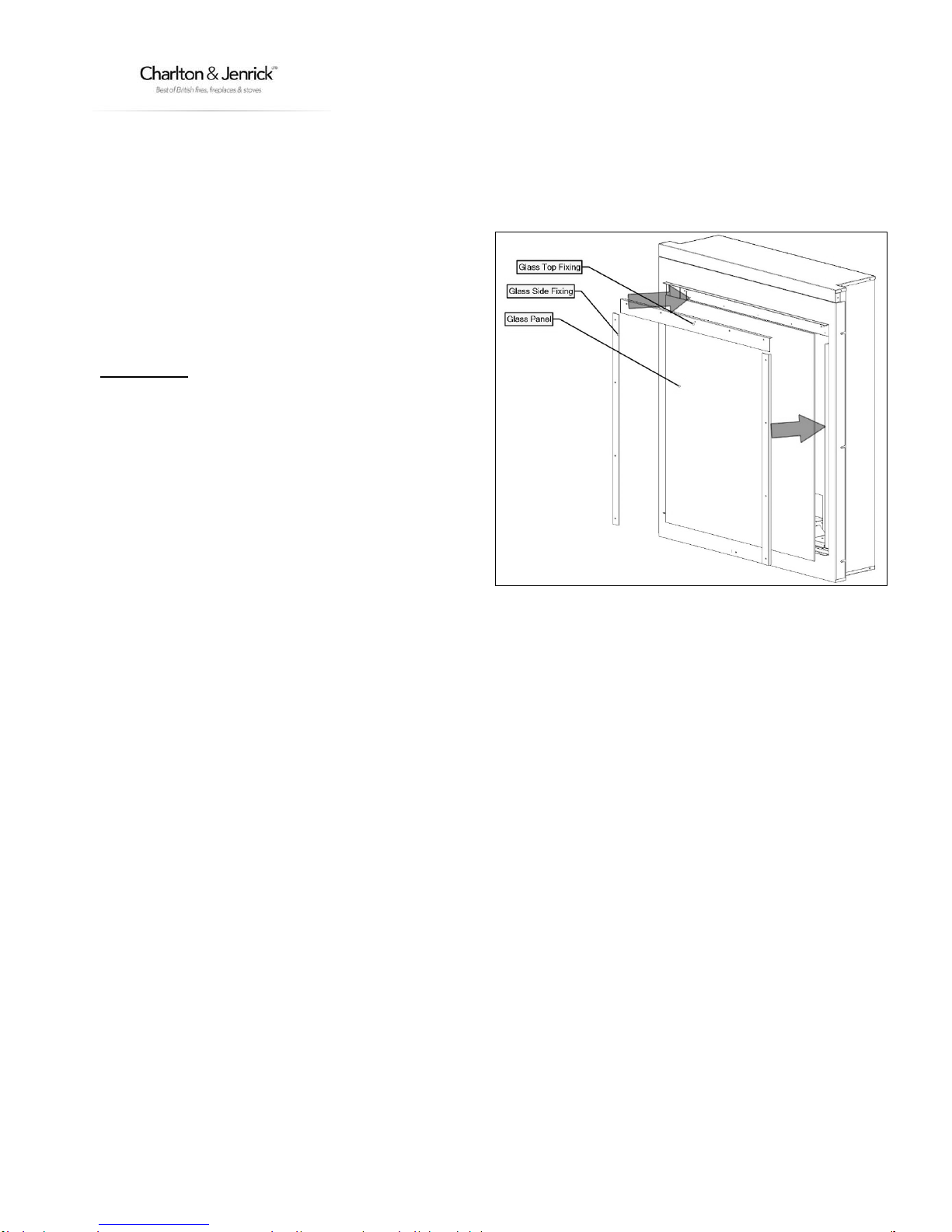

Remove the glass panel as follows:
Carefully lift out the infill covers LH and RH.
Remove the top fixing cover.
Remove the three of fixing bracket located on the top and sides of the glass panel.

12 LT 6935 (ISS 4)
Carefully lift the glass panel up out off the bottom location. Lay the glass panel down on a flat
working surface on top of an old opened newspaper with the side to be cleaned uppermost.
Follow the Instructions on the Hob Cleaner Bottle.
On stubborn stains (where the appliance has
been used for a long period without glass
panel being cleaned), use a new Brillo Pad
well wetted with the Hob cleaner applied
directly to it.
Ensure all the residues of the cleaner are
removed with a damp cloth and the glass panel
is completely dry before fitting to the
appliance.
Note: - If the loose shapes have not been placed correctly, causing the gas flame to contact the
glass this may result in glass staining that cannot be removed by cleaning. This may also lead to
the weakening
Re-assemble in reverse order ensuring a tight seal against glass assembly.(do not over tighten the
glass studs as this could crack the glass)
Re-fit the fascia

www.charltonandjenrick.co.uk 13 LT6935 (ISS 2)
CLEANING AND REPLACING fuel bed shapes (Users Instructions)
Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before
cleaning or replacing any refractory material.
Use only the shapes provided NO OTHER SHAPES SHOULD BE ADDED to the appliance
The Fuel bed set consists of:
12 Log Shapes.
1 Pack of Embaglow
Log Fuel Bed Layout.

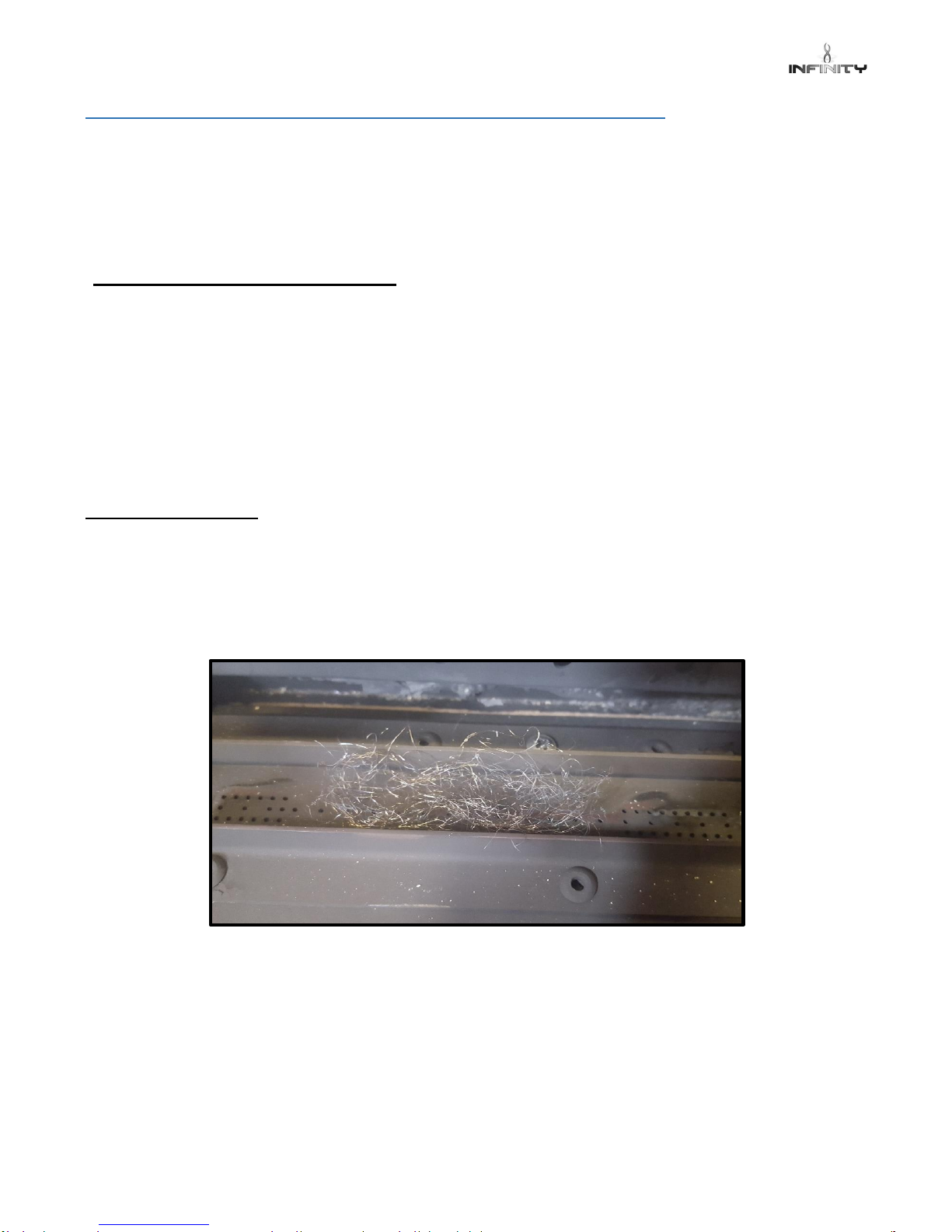

Within this packed appliance is a packet of Embaglow . Only HALF a packet should be used per install. The
remaining half should be retained for the annual service. Failure to place the correct amount and in the
correct burner area can result in producing a poor flame picture and sooty deposits.

14 LT 6935 (ISS 4)

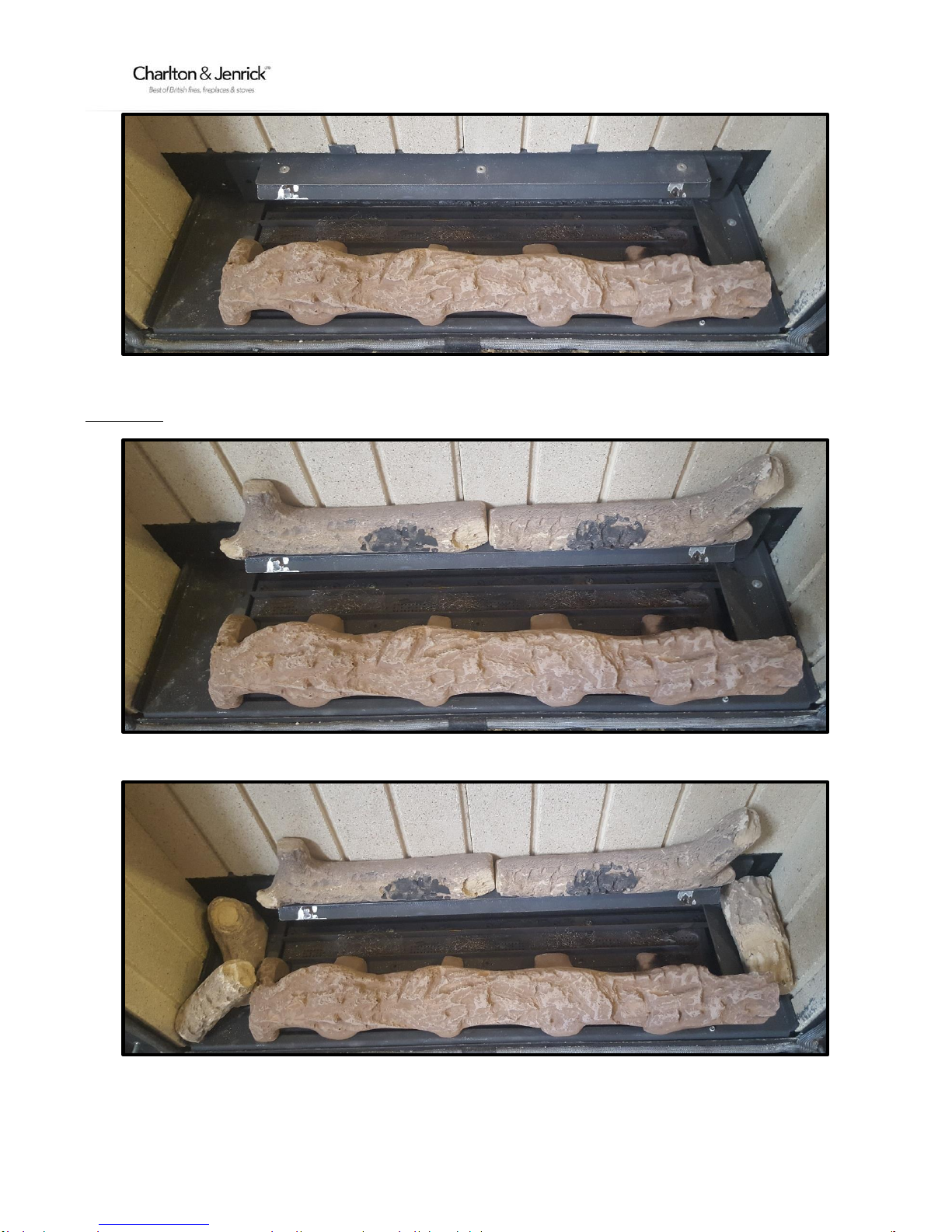

Place the front log in position
Please note:- The front log should be pushed back so the support fins are against the burner lip.
Place the two log shapes upon the shelf above the inlet baffle as shown.
Position the three small log shapes to the sides as shown above.

www.charltonandjenrick.co.uk 15 LT6935 (ISS 2)
Position two log shapes either side as shown
Place a further two log shapes as shown.
Finally place the two remaining log shapes as shown.

16 LT 6935 (ISS 4)
SECTION FIVE Appliance Data (Installation Instructions)
Fire Box dimensions:
Height: 680mm
Width: 552mm
Forward Projection: 42mm
Weight: 35kg
Flue Length N.G 100m
(minimum) to 600mm (maximum) NG.
#
100
.
Flue Length L.P.G
No bends or joined flue pipes should be used in the flue system
Pressure Test Point Location: Gas in
let elbow
Gas Connection: 8.0mm O/D, tube
Data Badge Location: On bo
ttom right hand said of fire box behind trim
MODEL
Natural Gas (G20) Version
Category of appliance
CII
NOX Class
5
Efficiency Class
1
Gas Category
I2H
Gas Type
G20 Natural Gas
Gas Pressure +/- 1.0mbar
20 mbar
Gas Input (Max)
3.9 KW Gross
(Min)
2.5 kW Gross
Injectors size
290 Mark
NOTE: The efficiency of this appliance has been measured as specified in BS EN613-2001 and the result is 74.6% natural gas. The
gross calorific value of the fuel has been used for this efficiency calculation. Gastec have certified the test data from which it has
been calculated. The efficiency value may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy
rating of dwellings.

www.charltonandjenrick.co.uk 17 LT6935 (ISS 2)
SECTION SIX Regulations and Warnings (Installation Instructions)
This appliance must only be installed in Great Britain or Ireland.
The appliance is available in natural gas.
This appliance must be installed on a suitable outside wall.
No special ventilation bricks or vents are required into the room containing the appliance.
In GB (Great Britain)
It is the law that all gas appliances must be installed by a competent person; i.e. a GAS SAFE registered installer, in
accordance with the current Gas Safety (Installation and Use) Regulations (as amended), all relevant parts of the
local and national building regulations and all relevant recommendations of the current British Standards. Failure to
do so could lead to prosecution.
The following are the relevant codes of practice and British Standards: -
B.S. 5871 PART 2 B.S. 5440 PART 1
B.S. 6891 B.S. 1945
Note:- This appliance must be installed to current versions of the above standards and include any relevant
amendments.
The Building Regulations issued by The Department of the Environment.
The Building Standards (Scotland) (Consolidated) Regulations issued by The Scottish Development Office.
IN IE, (Ireland)
The appliance must be installed by a competent person and installed in accordance with the current edition of
I.S.813 Domestic Gas Installation, the current building regulations, and the current ETCI rules for electrical
installation, if appropriate.
WARNINGS
As this appliance has components, which get very hot as with all such fires, it is recommended that a
fireguard should be used for the protection of children, the elderly, or the infirm. Fireguards should conform
to B.S.6539 (1984) (Fireguards for use with solid fuel appliances).
During initial use, an odour may be evident. This will soon disappear if the fire is run on its maximum setting
for a few hours.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration, e.g.
wall coverings may become discoloured if placed too close to the appliance.

18 LT 6935 (ISS 4)
SECTION SEVEN: Siting the Appliance (Installation Instructions)
GENERALREQUIREMENTS
The flue and air duct length must be between 100mm to 600mm.
The fire is supplied with a standard pipe length of 600mm Flue length.
The flue and air duct must not have any bends.
The flue outlet must terminate on a suitable outside wall.

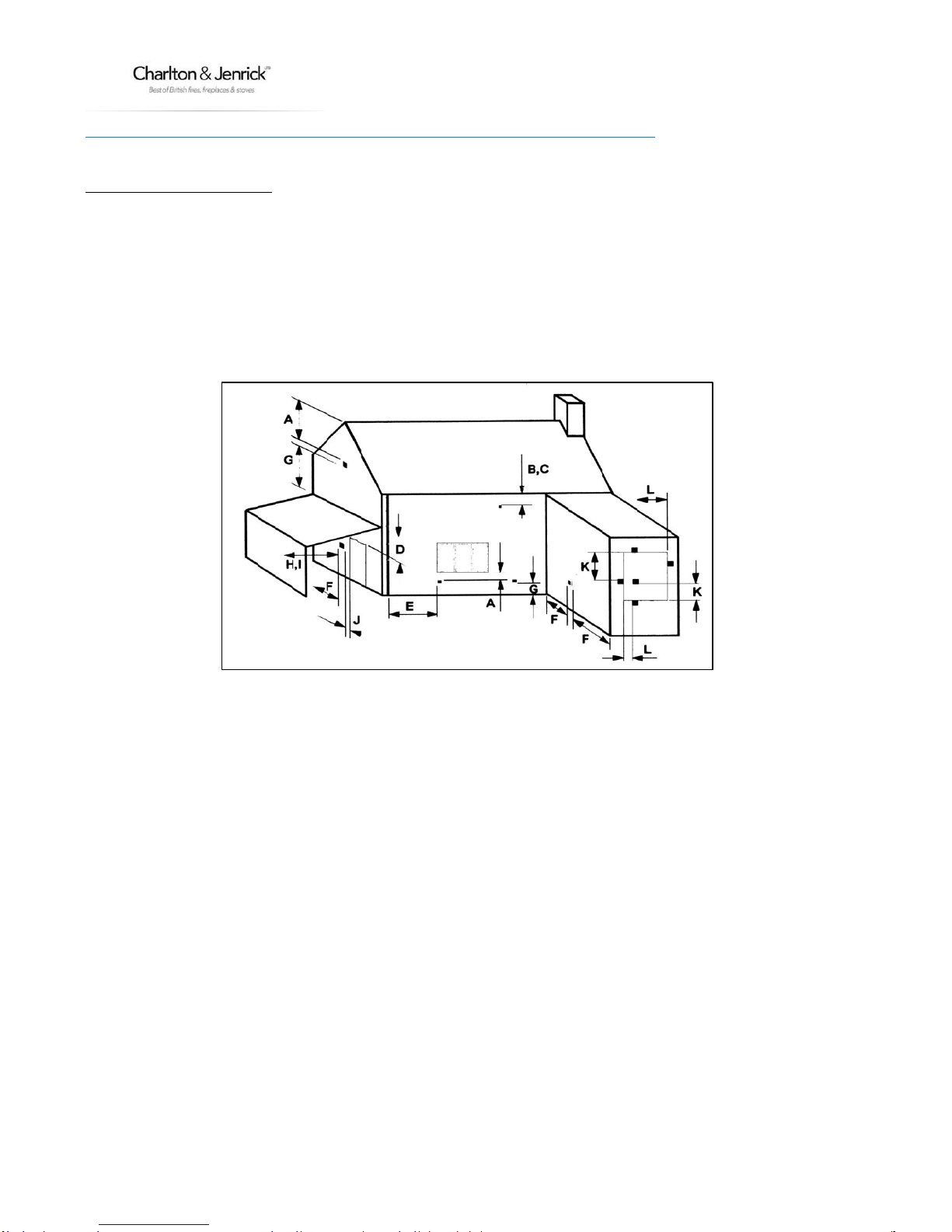

The minimum flue terminal clearances, which must be maintained, are as shown below.
H
From a surface facing the terminal
600mm
I
From a terminal facing the terminal
1200mm
J
From an opening in a car port into a dwelling e.g. door, window, etc
1200mm
K
Vertically from a terminal on the same wall
1500mm
L
Horizontally from a terminal on the same wall
300mm
A
Directly below an openable window or other opening. E.g. air brick
300mm
B
Below gutters, soil pipes or drain pipes
300mm
C
Below eaves
300mm
D
Below balconies or carport roofs
600mm
E
From vertical drain pipes and soil pipes
75mm
F
From internal and external corners
300mm
G
Above ground, roof or balcony level
370mm

www.charltonandjenrick.co.uk
19
LT 6935 Iss 4
Siting the Appliance Continued (Installation Instructions)
Please note with early cavity wall design prior to 1970. The minimum depth requirement may well be difficult to
obtain. This could result in the need for the fire box to be spaced further from the internal surface of the plaster and
to achieve this larger rebated surround maybe necessary. (Appropriate measures should be taken when installing in
to a working flue system I.E out through an existing chimney)
Ensure that gas supply is suitably sited
Check with the supplier or manufacturer that
the surround meets 1500C minimum rating
(attention should especially be given to man
made materials such as resin).
When installing in a timber framed dwelling
reference must be made to the specific
installation requirements stated in
Clearance to Shelf
Minimum clearance from hearth or base of opening
to underside of combustible shelf should be
830mm provided the shelf depth is 75mm (3”).
This gives a minimum clearance above the
appliance of 140mm. For a shelf of 150mm (6”) the
minimum height above the hearth or base of opening
must be 910mm. This will give a minimum clearance
above the appliance of 220mm.
Clearance to Sides of Fire
Minimum width between vertical sides of combustible surround should not be less than 875 mm provided fire is
central to the surround and sides do not project more than 150 mm. When vertical side forward projection is increased
by 12.5 mm add 50 mm to inside width of surround.
SECTION EIGHT: Preparing the Appliance for Installation (Installation Instructions)
Carefully unpack the appliance from the carton and check the contents.
Lift away the box of ceramics, glass panel and fire frame components.
Remove the refractory components from the inside of the packaging.
The appliance is now ready for installation.
Fit wall mounting brackets if appliance is being built around.
ALL DIMENSIONS IN mm
B
“A
”
HEARTH TO SHELF
690 MIN
560 MIN
575 MAX.
170MIN

20 LT 6935 (ISS 4)
SECTION NINE: Install The Appliance (Installation Instructions)
INSTALLING THE APPLIANCE INTO CAVITY WALL WITH A FIREPLACE
Ensure it is a suitable outside wall constructed of non-combustible materials and that the flue position meets
the requirements previously described in Section 7.
Mark a vertical line on the wall at the intended centre of the appliance and fireplace.
Using the table below mark the measurements horizontally across the vertical centre line.
Mark out the width of the opening for the appliance between 560-575mmcentral to the centre line.
Mark the position for the lintel above the top horizontal line.
Using a long masonry drill, make one pilot hole completely through the wall at position B. Ensure the hole is
drilled accurately at the centres and square to the wall both horizontally and vertically at the cross
points previously marked.
Cut out the brickwork of the inner skin of the cavity wall for the lintel, and fix the lintel in place.
Cut out the brickwork under the lintel, between the two outside vertical lines and base line into the cavity.
The cut out will not extend to floor level creating a base for the appliance to sit on.
Create a level base in the cut out using non-combustible material.
Ensure the cut out width is square and try the appliance into the opening.
Using a 150mm core drill from outside cut a hole following the pilot hole. Drilling from the outside through to
the cavity will give a good finish on the outside wall.
Remove any cavity insulation from the cut out opening and for a further 100mm into the cavity gap each
side and above.
Pack “Rockwool”around the sides, top and bottom of the opening into the cavity for a depth of 100mm.
Also put some“Rockwool”behind the firebox if space is available.
Offer the appliance into the opening and mark through the gas pipe entry hole (see connecting the gas
supply section).
Surround
A
B
C
Beckford
132mm
703mm
822mm
Stokesay
131mm
702mm
821mm
Aylesbury
159mm
730mm
841mm
682mm
