iRange Slim Electric Fire
Instruction Manual
Model: i560e/i790e
Please read the instructions carefully before installation or
use and keep for future reference.

1. Important Safety Information .................................................................. 1
2.
Technical Specifications ......................................................................3
3.
Parts And Hardware ...............................................................................4
4. Appliance Dimensions ............................................................................6
5.
Installation Instructions ......................................................................7
6. Operating Instructions..........................................................................14
6A. Manual Control Panel...................................................................15
6B. Remote Control .....................................................................16
6C. APP Control ............................................................................. 19
7. Maintenance ....................................................................................20
8. Service Parts list ..................................................................................21
9. Others ................................................................................................. 23
CONTENTS

1
 Read all of the instructions carefully before using the
appliance.
 For indoor use only. This appliance is not suitable for use
outside the house and only suitable for well insulated
spaces or occasional use.
 Do not use this appliance in the immediate surroundings of
a bath, a shower or a swimming pool.
 Do not use this fire as a free-standing appliance. It must
always be fixed to the wall, fireplace mantel, floor etc.
 This fire must not be located immediately below or in front
of a socket-outlet.
 This appliance must beearthed.
 This appliance must not be supplied through an external
switching device, such as a timer, or connected to the
circuit that is regularly switched on and off by utility in
order to avoid a hazard due to the inadvertent resetting of
the thermal cut out.
 If the power cord is damaged, it must be repaired by the
manufacturer, its authorized service center or professional
person in order to avoid ahazard.
The figure in the marking is “Do Not Cover”. Warning:
in order to avoid overheating, do not allow the appliance to
be covered or let the air inlet/outlet become obstructed.
Please note the warning on theappliance.
 To reduce the risk of fire, keep textiles, curtains, or any
other flammable material a minimum distance of 1 meter
from the air outlet.
 Keep the power cords away from hot surfaces and hot
conditions. Do not route the power lead in front of the
appliance.
 Do not use this fire in rooms that have explosive gas in
them (for example petrol), or if you are using solvents,
glue, aerosol spray or in flammable paints, as these may
catch fire.
1. IMPORTANT SAFETY INFORMATION

2
 This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
 Cleaning and user maintenance shall not be made by
children without supervision.
 Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children
and vulnerable people arepresent.
 Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on
their own, unless constant supervision isprovided.
 Children should be supervised to ensure that they do not
play with the appliance.
 Keep the power plug accessible after installation for the
purpose of isolation.
 Children of less than 3 years should be kept away unless
continuously supervised or a fireguard is fitted.
 Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been
placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from
3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform usermaintenance.
WARNING! Information below for authorized person or
service centre only:
A non- rewireable plug fitted with a 13A fuse is supplied .
Should the fuse or plug need replacing, and you are
competent to do so, it must be replaced with a 13A fuse
or plug being 13A BS1363A approved.

3
Model No. : i560e/i790e
Supply Voltage: AC 230-240V 50Hz
Maximum power consumption: 1500W
Power for flame and fuel bed effect:
Model
i560e
i790e
Power
7W
10W
Power for mood light: DC12V 16W 1.34A
Heat Output:
Nominal heat output (Pnom): 1500W
Minimum heat output (indicative) (Pmin): 750W
Maximum continuous heat output (Pmax): 1500W
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 12.5W At
minimum heat output (elmin): 12W In
standby mode (elSB): 2.4W
Type of Heat Output / Room Temperature Control
Single stage heat output and no room temperature control
No
Two or more manual stages，no room temperature control
No
With mechanic thermostat room temperature control
No
With electronic room temperature control
Yes
Electronic room temperature control plus day timer
Yes
Electronic room temperature control plus week timer
Yes
Other Control Options
Room temperature control, with presence detection
No
Room temperature control, with open window detection
Yes
With distance control option
Yes
With adaptive start control
Yes
With working time limitation
No
With black bulb sensor
No
2. TECHNICAL SPECIFICATIONS

4

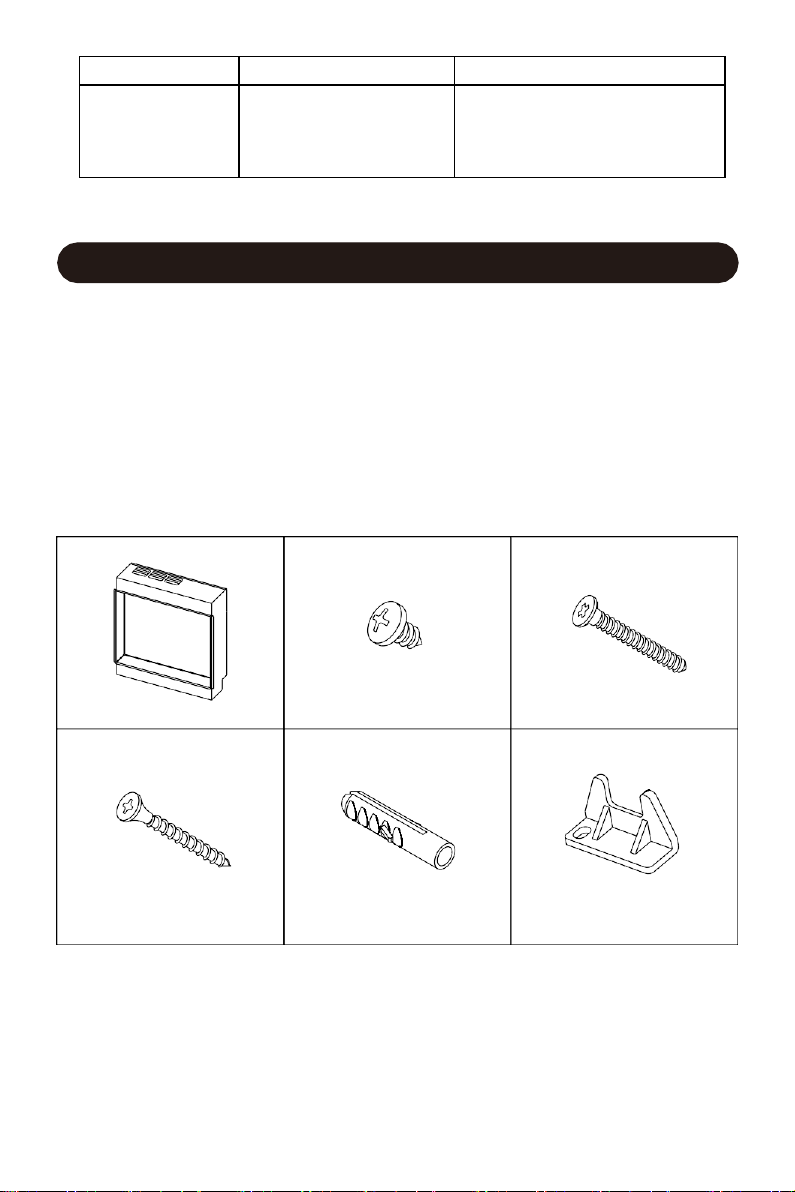

3. PARTS AND HARDWARE
A.
B.
C.
Firebox (1pc)
ST4*8 Screw (5pcs)
D.
E.
ST5*40 Screw
i560e (10pcs)/i790e (14pcs)
F.
Wall Plug Power Cord Bracket (1pc)
ST4*40 Screw (4pcs) i560e (10pcs)/i790e (14pcs) (Installer must fit before
leaving appliance)
Control PCB
Remote Control Receiver
Remote Control Transmitter
Hardware:
RC01-067B01
Software:V0
Hardware: RF290L V1.1
Frequency: FSK/OOK 433.92MHZ
Maximum transmit power: 10mW
Hardware:RF290A-TX-V1.3
Software:V2.4.1
3.1 Unpack the fire carefully and make sure that the appliance is intact with no
signs of damage caused by transport and no part has been exposed to
water. If in doubt, do not use the appliance and contact your retailer.
3.2 Keep plastic wrapping away fromchildren.
3.3 Save the original packaging as this may be required in the event of service
complaint with product.
3.4 Ensure that all parts are removed from the packaging.

5
P.
Crystal Media(1 set)
Q.
Remote (1pc)
R.
AAA Battery (2pcs)
S.
Instruction Manual (1pc)
T.
Simplified Instruction (1pc)
G.
H.
I.
Lower Brackets (2pcs)
(To be used when the wall
haning bracket(J) is used)
Glass Fixing Bracket (2pcs)
Black Cover(2pcs)
J.
K.
L.
Wall hanging bracket is
attached on firebox (1pc)
Remove from the appliance
ifyou arenotfixingtowall
Power Cord UK (1pc)
Power Cord EU (1pc)
M.
N.
0.
Logs (1set)
Black Resin Chips (1set)
Vermiculate (1set)

6
Unit:mm
Model
A
B
C
D
E
F
G
H
i560e
560
585
438
594
167
179
12
73
i790e
790
815
504
650
167
179
12
73

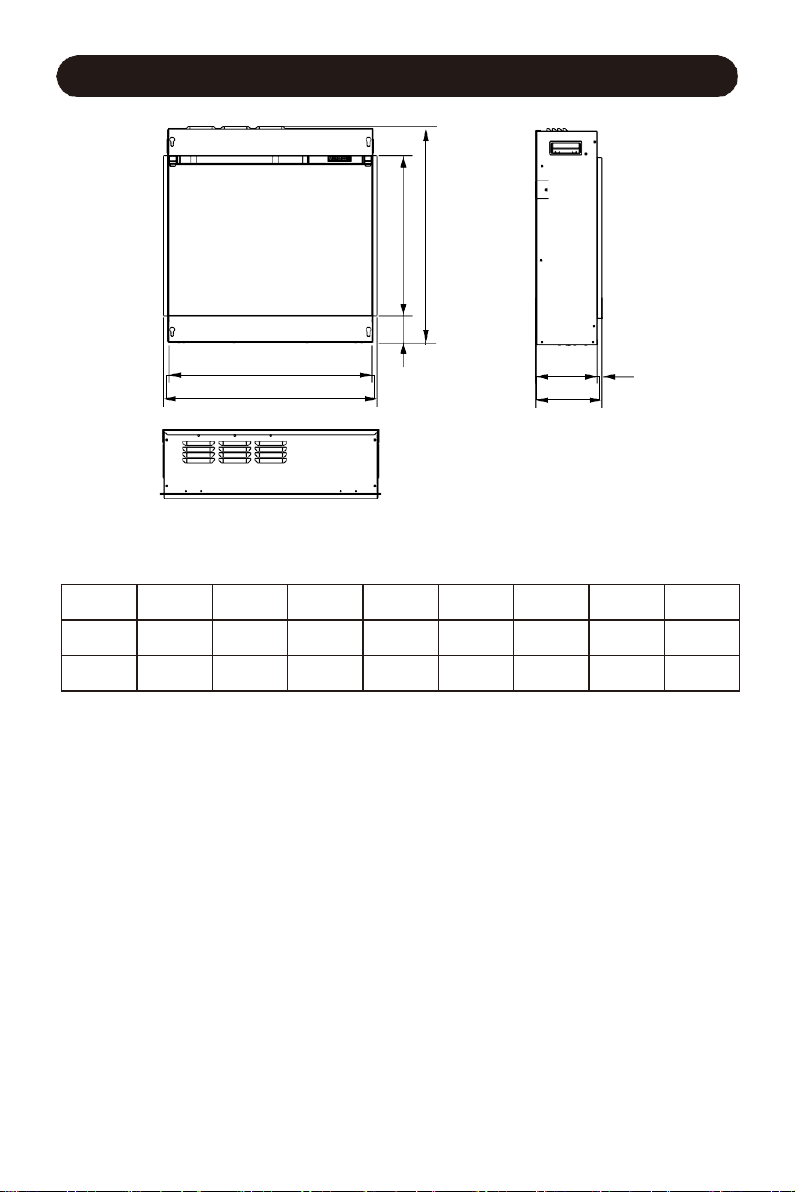

4. APPLIANCE DIMENSIONS
B
A
G
F
E
H
C D

7
5.1 PREPARATION BEFORE INSTALLATION
TOOLS REQUIRED
A screwdriver, a spirit level and drill will be needed.
LOCATE THE APPLIANCE
Your new electric fireplace may be installed virtually anywhere in your home.
However, when choosing a location, ensure that the general instructions are
followed:
 For best result, install out of direct sunlight, water or very damp air.
 The appliance should be connected to an earthed electrical outlet and it
must be easily accessible to allow disconnection.

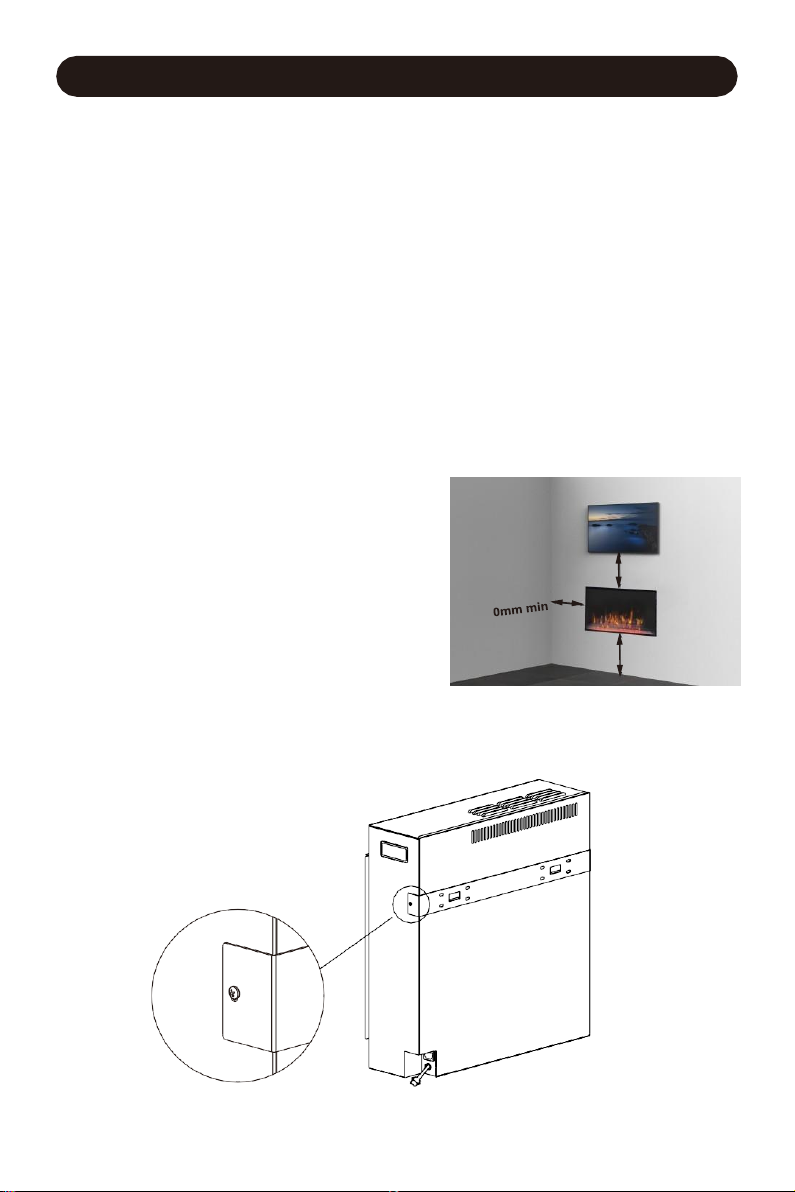

MINIMUM CLEARANCE TO COMBUSTIBLE
Sides
Floor
Back
Front
...........................0
...........................0
...........................0
...........................1000mm Minimum
Top (Mantel or TV)........
200mm Minimum
REMOVE WALL MOUNTING BRACKET
 Remove the wall mounting bracket from the rear of the appliance by
removing the securing screwsfrom each side.
5. INSTALLATION INSTRUCTIONS
200mm min
0mm min

8
ST4*8
CONNECT POWER CORD
It is very important that the plug is tightly located into the socket in rear of appliance .
It is essential that the retention clip provided is fixed in place using the ST4*8
screw, ensuring a secure connection to the appliance. It is recommended that you
turn on and operate the appliance to check that all functions and that there are no
issues with the appliance.
CONNECT MOOD LIGHTS CABLE
The interface of the mood lights cable is on the rear of the appliance, near the
position of the power cord. Please also check the function after connecting the mood
light.
Note: compatible mood lighting devices are available from Charlton & Jenrick Ltd., Other
brands may not be suitable and void the warranty.

9
REMOVE FRONT GLASS PANEL
 Remove the 2 screws securing each transit retaining clip on both side.
Carefully remove the glass panel and retain the screws for later use.
Note: Clear plastic fixing brackets and black covers are provided for
the refixing of the glass panel( see additional parts list on page 5
items I and H)
5.2 CHOICE OF INSTALLATION METHOD
The following is only given as a general guide because it can be installed in so many
ways. Provided you ensure electric connections are safely made in accordance with
the codes, various materials can be used for the framework and cladding. But
consideration should be made to soften the internal surface of any cladding to
minimise that amplification of noise.

10

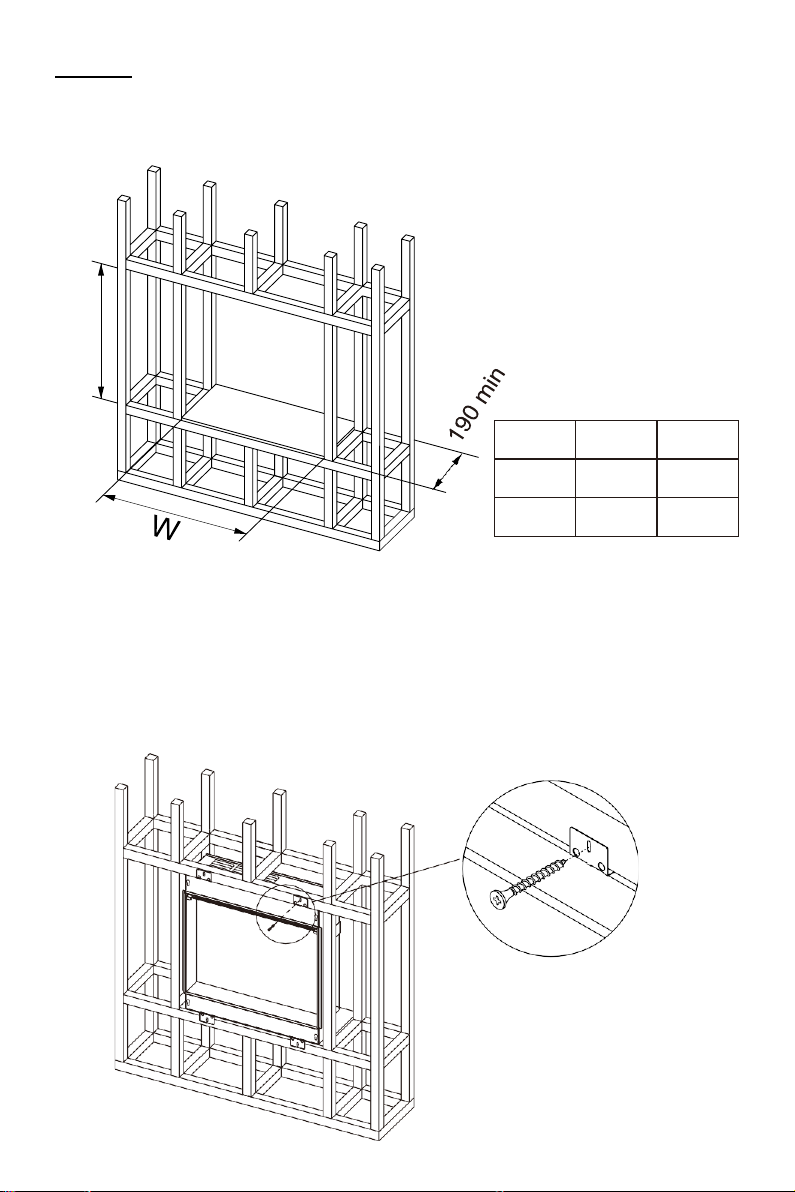

BUILT IN
 Prepare the framework as a general guide only see picturebelow:
Unit:mm
Model
W
H
i560e
570
604
i780e
800
660
NOTE: Ensure a firm flat surface for positioning of the appliance and
securely fix to avoid vibration and movement of the appliance.
Ensure a minimum of 20mm clearance at the rear and the top of the
appliance before cladding for airmovement.
 Bend out the four brackets on the upper and lower edges of the appliance,
push the appliance into the framework and fix the appliance with four
ST4x40 screws provided to theframework.
H

11
middle hole
ST4*8
 Cladding the framework. Note: Hard surfaces can amplify sound.
Consider adding some underlay or similar to the inside surface of the
cladding .
 Arrange the fuel bed to your choice and reinstall the front glass panel
back. Secure the glass fixing bracket(H) with two ST4*8 screws and cover
it with the black covers(I) for a clean appearance. Note: Use the screws
previously removed.

12
WALL MOUNTED
 Place the wall mounted bracket horizontally against the wall where you would
like to install the appliance. Mark the holes for screws, drill holes on the
marks, insert wall plugs(for masonry wall only) and fix the bracket to the wall
by ST5x40 screws . Its important that a secure fixing is made to the wall so
alternative fixings may be necessary for other wall types.
 Attach the bottom mounting brackets to the appliance using four ST4x8
screws provided.

13
x2
x2
 Lift the appliance up and attach to the wall mounting bracket by loacating the
fingers on the wall bracket into the rectangulars openings in the rear of the
appliance.
 Mark the hole position of the bottom mounting brackets, remove the
appliance from the wall, drill holes on marked and insert wall plugs.
 Attach the appliance again on the bracket, secure each side with screws
previously removed.
 Fix the lower rear of the appliance to the wall with the ST5*40 screws.
Ensure the face of the appliance is vertical adjust or pack out lower bracket
as required. Arrange the fuel bed to your choice and reinstall the front glass
panel. Secure with glass fixing bracket(H) with two ST4*8 screws and cover
it with the black covers(I) for a clean appearance, Note: Use the screws
previously removed.

14
WARNING!
Do not operate the appliance if it is damaged or malfunctions. If you
suspect the appliance is damaged or malfunctions, call a qualified
service engineer to inspect the appliance, and replace any part of the
electrical system if necessary, before reusing.
WARNING!
To reduce the risk of fire, keep textiles, curtains, or any other flammable
material a minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or
loose plugs can cause the outlet to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running.
Use the functions on the remote to turn the fire off and ensure the mains switch
is in the off position before disconnecting.
The appliance can be operated conveniently in 3 different ways: manually
using switches on appliance , via the remote-control handset or via the
dedicated iOS/Android app.
6. OPERATING INSTRUCTIONS

MY FLAME HEATER STAND BY WIFI MAIN SWITCH
Each time a button is pressed on the appliance or on the remote control, an audiable
beep is emitted. To turn off this feature, keep pressing button MY FLAME for 3
seconds until you hear two beeps.
Note:
The manual buttons control only basic functions, not a full range of controls. Use in
conjunction with the remote handset or the APP to carry out all functions.
MAIN SWITCH
Press to turn on power to the appliance. Button pushed in indicates power is on,
button pushed out indicates power is off.
STAND-BY
Turns on the appliance with the last used settings without any heat. Places the
appliance into standby mode with all features turned off.
MY FLAME
Press repeatedly to cycle through 6 fire preset modes and 3 user defined presets if
programmed.
HEATER
Press repeatedly to cycle through low heat setting, high heat setting and no heat.
To prevent the appliance becoming too hot, there is a 10s delay when turning on the
heater and a 10s delay when turning off the heater fan.
WIFI
Press to turn on or turn off Wi-Fi. An illuminated LED on the button indicates that Wi-
Fi is turned on. Hold button for 3 seconds to enter device pairing
mode. 15
6A. MANUAL CONTROL

16
40
27
TEMPERATURE SENSOR
DISPLAY
MY FLAME
FLAME
FUEL BED
HEATING
STANDBY
CRACKLE SOUND
MOOD LIGHT
TIMER
SET
ON
0.5h
ROOM
OFF
Timer
Battery Power
Actual Room
Temperature
Heating Period
TemperatureSet
NOTE: The remote control handset must be left in the same room as
the appliance because it houses the thermostat that regulates heat
output. Also, when using the APP, the remote must also be in same room
and have batteries fitted and working to ensure accurate temperature
control.
Remote Control Set up
The communication frequency between the appliance and remote has already been
set up. If you have difficulty with the remote communicating with the appliance,
please press and hold button Standby on the appliance until you hear two beeps ,
release the button. Press Standby button on the remote handset and you will hear
one beep. The remote is connected with the appliance.
My Flame
Press to enter My Flame adjustment screen.
press ' ' and ' ' to select 6 My Flame mode (+3 user defined presets if
programmed)
6B. REMOTE CONTROLS
ON OFF
40 27
SET ROOM
0.5h

17
There are 3 preset slots allocated for the user to save personalised. Simply
choose the flame colour and brightness level, the fuel bed colour and
brightness level. Once you have selected your desired combination, press
and hold the My flame button for 3 seconds until the LCD displays My Flame
save to 7 Press ' ' or ' ' buttons to select a slot number between 7-9.
Press and hold the My flame button for 3 seconds to confirm the preset.
Flame Effect
Press to enter the flame effect adjustment screen.
Press the ' ' and ' ' button to select 3 different flame colours and OFF
setting.
Press the ' ' and ' ' button to select 5 levels of brightness.
Fuel Bed
Press to enter the fuel bed adjustment screen.
Press the ' ' and ' ' button to select 9 different fuel bed colours and OFF
setting.(the ninth is the color cyclemode).
Press the ' ' and ' ' button to select the 5 levels of brightness.
Mood Light
Note: If mood lights cable is not connected, please ensure the brightness is set
to zero.
Press to enter the mood light adjustment screen.
Press the ' ' and ' ' button to select 14 different mood light colours( the
fourteenth is the color cycle mode) and OFF setting.
Press the ' ' and ' ' button to select 5 levels of brightness.
Crackle Sound
Press to open sound effect menu.
Press' 'and' 'button to select 2 sound effect and OFF.
Press' 'and ' 'button to adjust 5 levels ofvolume.
Heater Mode
Press to cycle through heat output options LOW-HIGH-OFF-AUTO.
Press the ' ' and ' ' button to adjust the temperature you want the room to
reach from 5℃ to40℃.
To switch between ℃/℉,hold down the' ' or ' ' buttons for 3 seconds.
NOTE: It is normal for the fan heater to stop running for periods of time.
