Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
Paragon P3
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 7272 (ISS 1)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Introduction (user instructions) ..........5
SECTION TWO Operation (user instructions) .............6
SECTION THREE Fuel Bed Cleaning and Layout (users
instructions).................................................................7
SECTION FOUR Important Information (user
instructions)...............................................................11
SECTION FIVE Specification (installation instructions)
...................................................................................12
SECTION SIX Regulations and Warnings (installation
instructions)...............................................................13
SECTION SEVEN Siting the Appliance (installation
instructions)...............................................................13
SECTION EIGHT Fireplace Requirements (installation
instructions)...............................................................14
SECTION NINE To Install the Appliance (installation
instructions)...............................................................16
SECTION TEN Maintenance Instructions
(maintenance instructions).......................................22
GAS FIRE COMMISSIONING CHECKLIST.....................26
SERVICE RECORD........................................................27
EXTENDED FIVE YEAR
PARTS WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenrick.co.uk 3 LT7272 (ISS 1)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT7272 (ISS 1)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
Paragon P3
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the top flange of the appliance.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT7272 (ISS 1)
SECTION ONE Introduction (user instructions)
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that
these products are so designed and constructed as to meet the general safety requirement when properly used and
installed. To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the
approval of the appliance, operation of the warranty and could affect your statutory rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the fuel bed or cleaning after
servicing / installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste and should be
disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The Paragon P3 is a decorative fuel effect appliance with a radiant heat conserver box for improved efficiency.
The Paragon P3 is designed and tested to the requirements of EN 509
The Paragon P3 is available in Natural Gas. Note: These appliances should only be used on the appropriate gas
specified. They are not suitable for conversion from one gas another.
The Paragon P3 should be installed and serviced by a competent person i.e. Gas Safe registered, in accordance with
the current Gas Safety (Installation and Use) Regulations 1998 (as amended).
The chimney or flue (unless new) must be swept before installation if it has been used for solid fuel or oil.

6 LT7272 (ISS 1)
The Paragon P3 incorporates a single gas control, which selects ignition pilot, and main burner low and high settings.
The Paragon P3 incorporates a safety device in the form of an Oxygen Depletion System, which constantly monitors
the oxygen in the room and will cause the fire to switch off if the oxygen level reduces, for instance due to insufficient
ventilation or a blocked flue.
If this repeatedly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the problem
may not be due to lack of air or a defective flue.
Warning:- This appliance has a naked flame, has with all such fires it is essential that a fireguard should be used for
the protection of children, the elderly and infirm. Fireguards should conform to BS 6539 (1984) (Fireguards for use
with solid fuel appliances).
During the normal operation of the fire some black staining or soot may appear on some parts of the fuel bed. This is
quite normal and adds to the appearance of the appliance. However, if excessive black staining does occur it may be
due to the fuel bed being incorrectly laid. This should be checked prior to contacting a service engineer.
SECTION TWO Operation (user instructions)
The pilot can be left on or the pilot can be extinguished and relit each time the fire is used.
The appliance Control Knob is positioned behind the fret.
The full lighting procedure is as follows: -
A. Push knob in as far as possible on gas control.
B. Turn knob anti-clockwise until a click is heard. The knob will stop at the position marked ' ' and a spark
should be seen at the tip of the ignition probe. At the same time the pilot flame should light. KEEP THE
KNOB PRESSED IN FOR 20 SECONDS. Should the pilot fail to light, turn the control knob clockwise to the ' '
position, wait 3 minutes and repeat the procedure.
C. After lighting the pilot flame the control knob should be allowed to spring out slightly. This will allow you to
turn the knob further anti-clockwise to the position marked ' '. The pilot flame should then ignite the main
fire.
D. It is possible to adjust the height of the flames by turning the control knob between the positions marked ' '
and ' '. Note that the knob 'latches' in position at either end of this movement and must be pushed in
slightly before it can be turned.
E. To turn the fire off, depress the knob slightly and turn it to the ' ' position.
F. To completely extinguish the fire, depress the knob slightly and turn to ' ' the position.
Note: - If the ignition fails the pilot can be lit with a taper or a match held at the pilot head.

www.charltonandjenrick.co.uk 7 LT7272 (ISS 1)
SECTION THREE Fuel Bed Cleaning and Layout (users instructions)
Important: - Refer to the Health & Safety Notice located on page 5 of this booklet before cleaning or replacing
any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The loose parts may be removed for cleaning. They can be brushed very gently with a soft brush to remove dust or
any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.

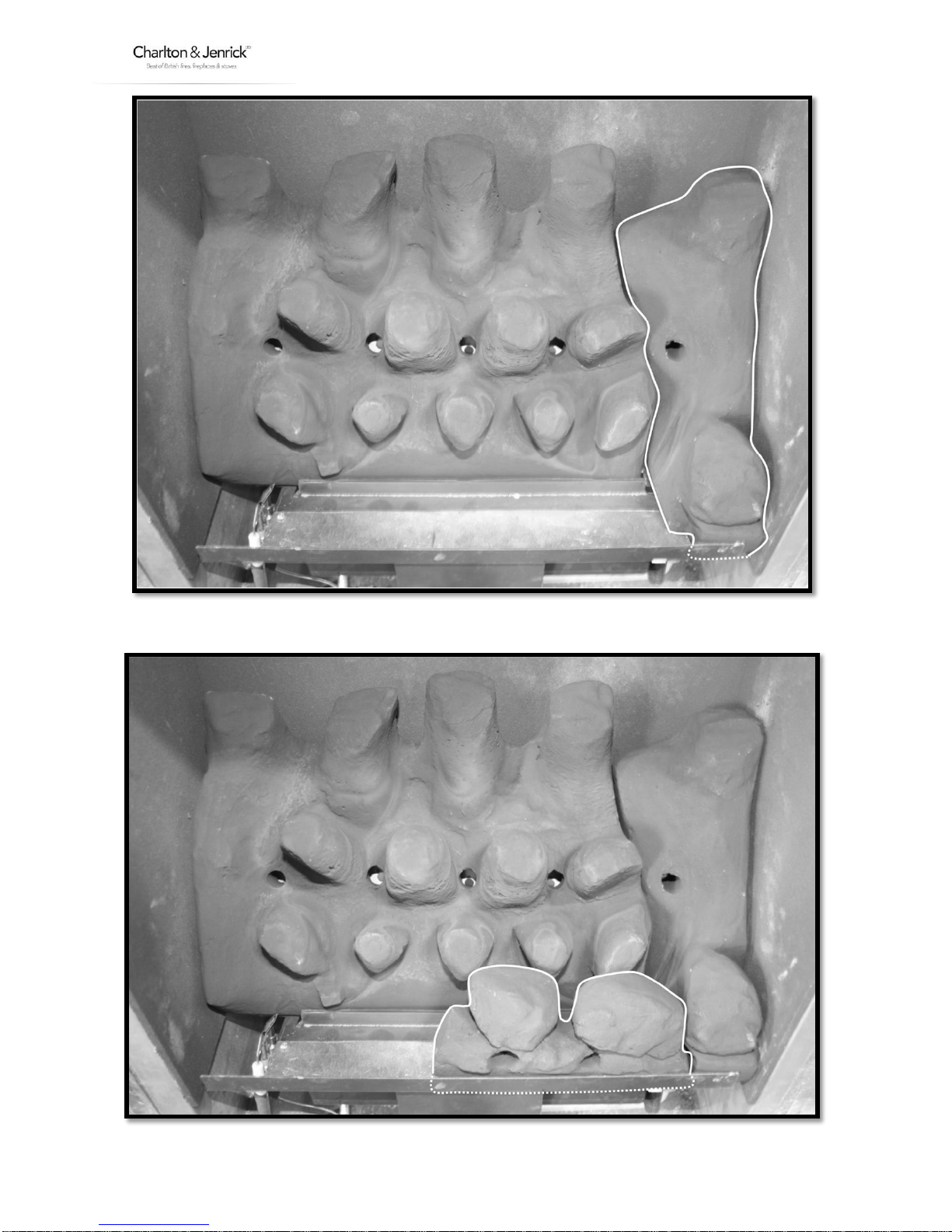

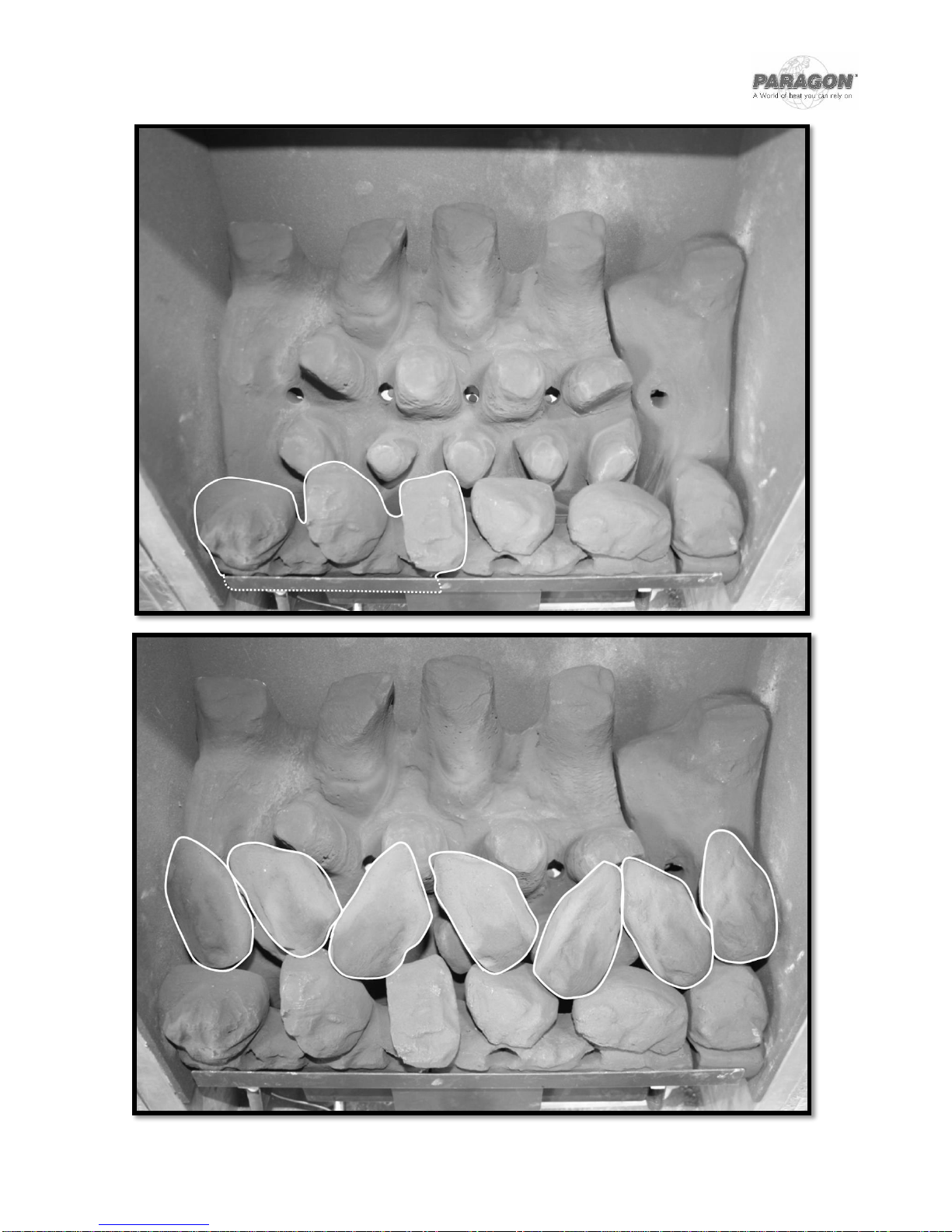

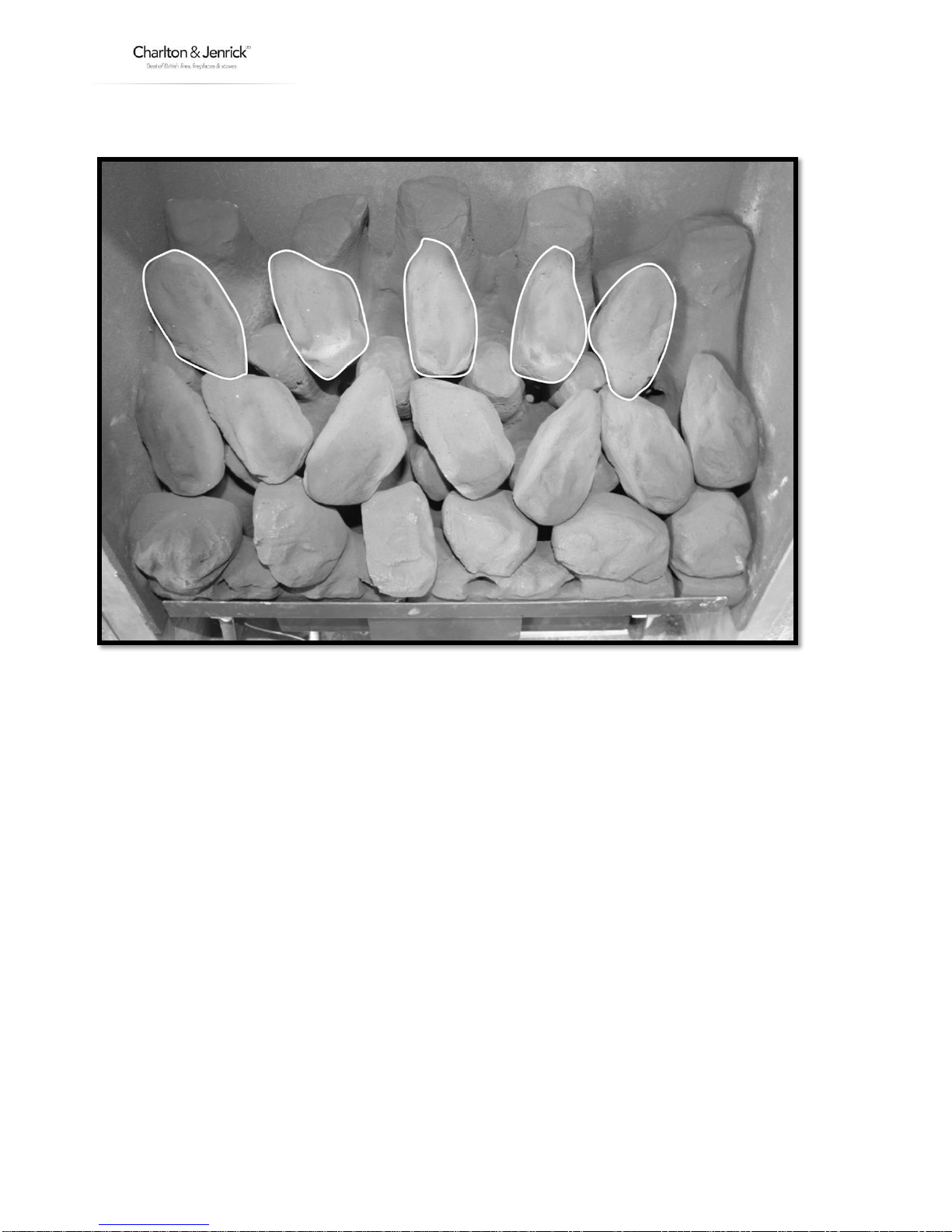

The base matrix must be positioned along the rear face of the burner bar.

8 LT7272 (ISS 1)

www.charltonandjenrick.co.uk 9 LT7272 (ISS 1)

10 LT7272 (ISS 1)

www.charltonandjenrick.co.uk 11 LT7272 (ISS 1)
SECTION FOUR Important Information (user instructions)
The only user removable parts are: -
The loose coals.
The base and front coal matrixes
Cast Fret
Decorative Trim
Glass Canopy

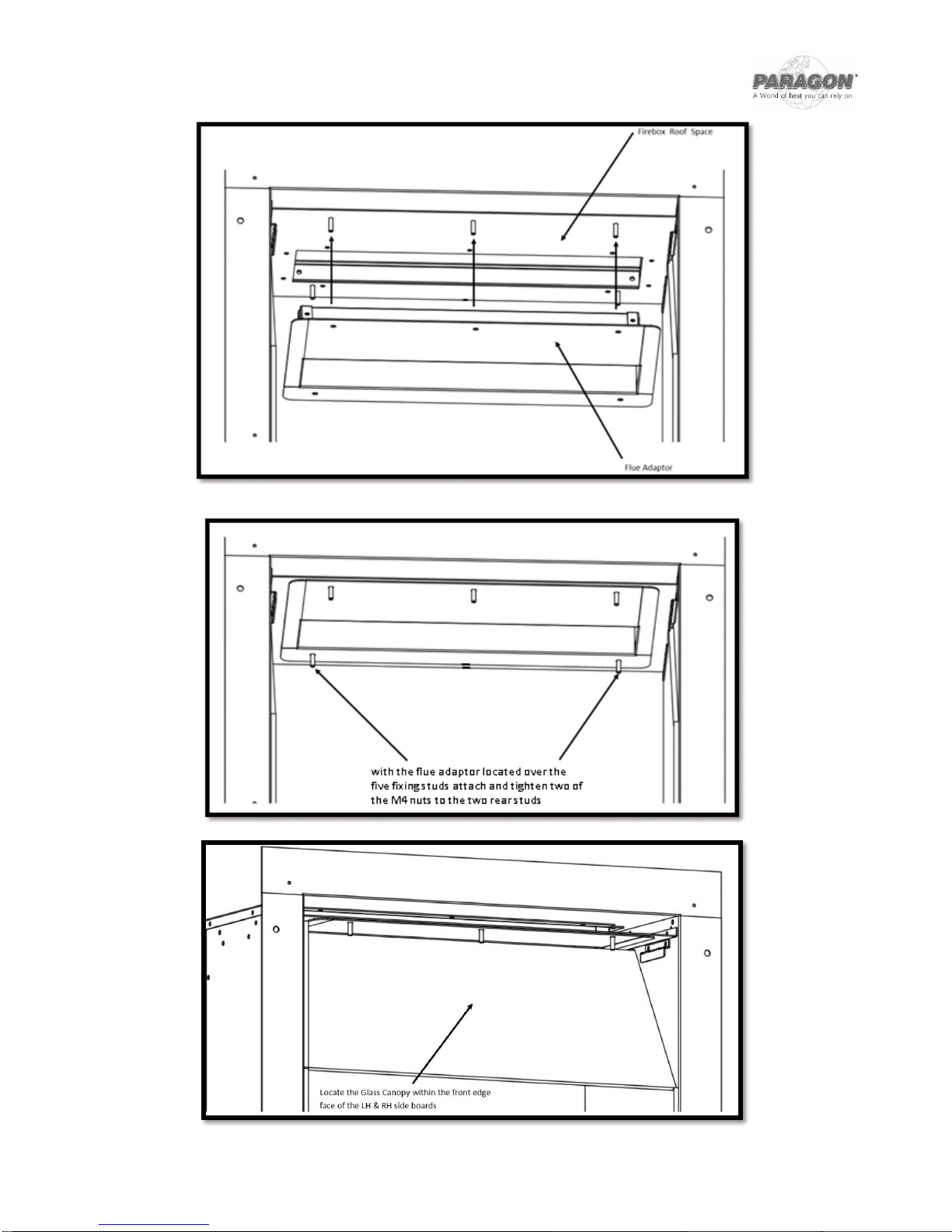

Flue Adaptor

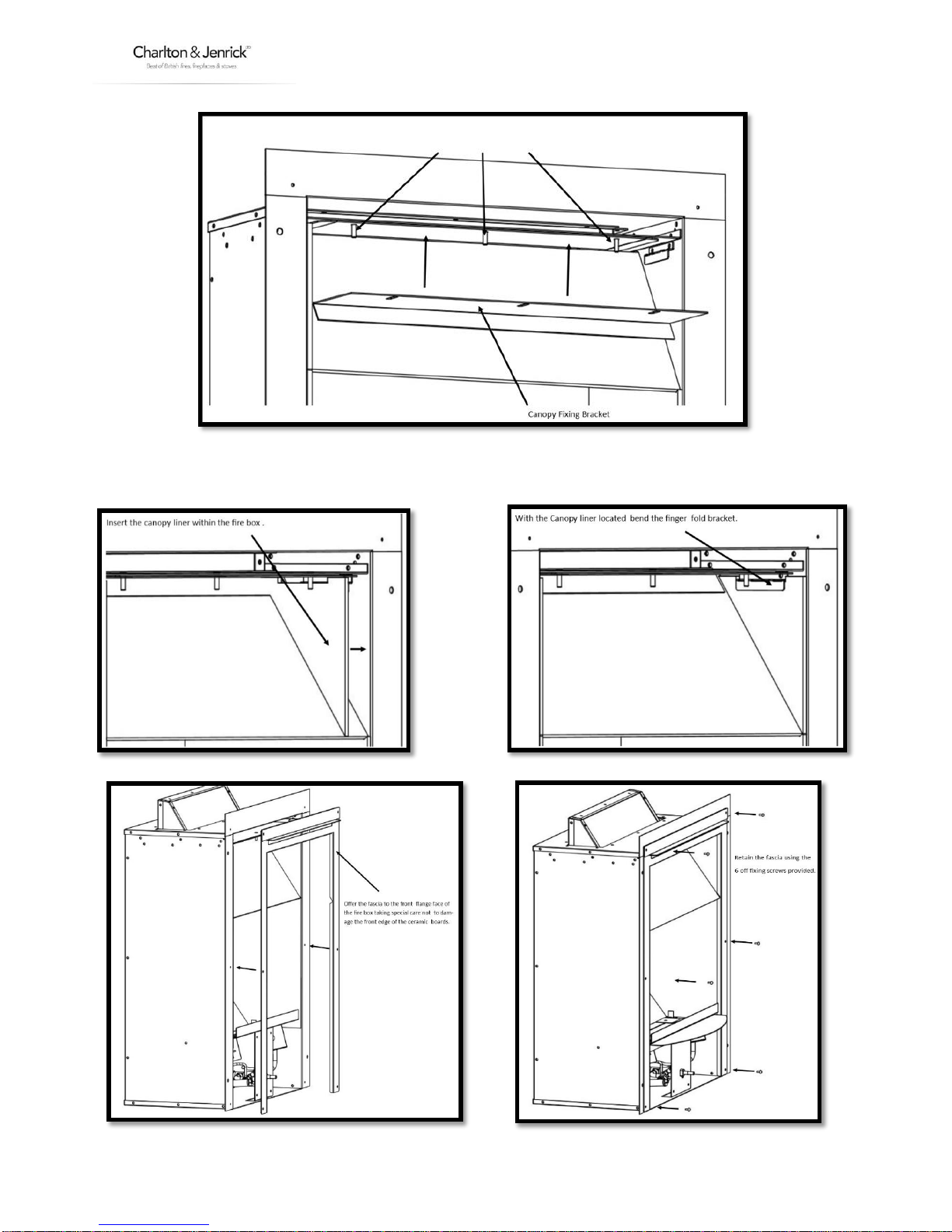

LH & RH Canopy Liner
Canopy Fixing Brk
Fascia Assembly
Like all appliances incorporating an aerated burner a low frequency noise may be heard, particularly on the low
setting, this is quite normal and does not affect the operation of the appliance.
Servicing
It is advised that the PARAGON P3 fire is serviced annually this is more likely to provide trouble-free operation. A
competent person must carry this out, i.e. Gas Safe Registered Installer in accordance with the current Gas Safety
(Installation and Use) Regulations 1998 (as amended).
The chimney or flue should be checked annually to ensure clearance of combustion products.
Ventilation in the Great Britain
GB (Great Britain) This fire does not normally require purpose build ventilation in accordance with 2010 document
“J” Building Regulations.
Ventilation in the Republic of Ireland
Must be permanent ventilation and must comply with the rules in force and should be checked periodically to
ensure freedom from obstruction.
General Appliance Care
Any debris from the chimney or flue should be removed from the fuel bed. The fire should be allowed to cool for three
to four hours before removing debris.
Rubbish must not be thrown onto the fuel bed under any circumstances.
The cast fire front must be positioned in front of the fire whilst it is burning.

12 LT7272 (ISS 1)

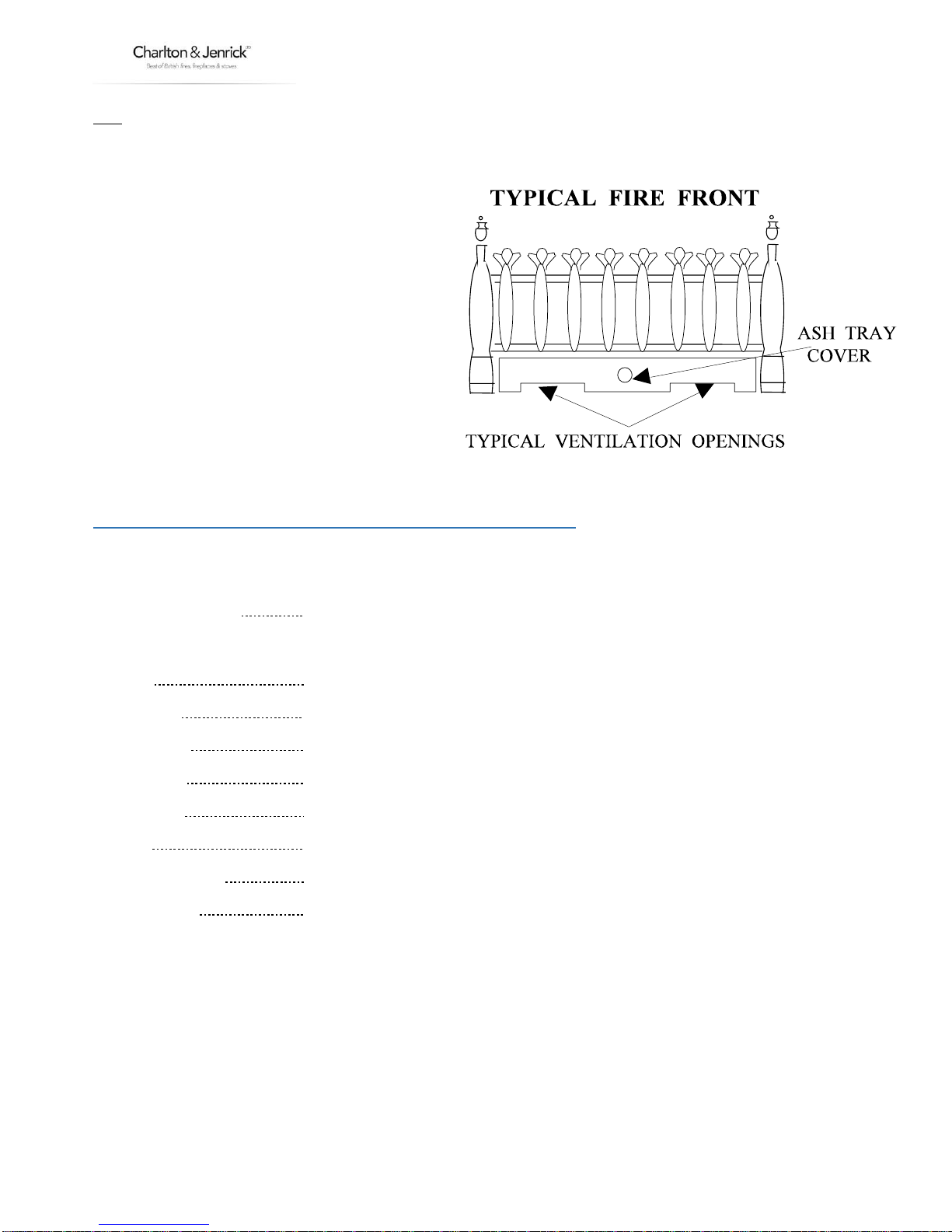

Fret
A Fret must be used with this appliance, and must conform to the following: -
It must be made from non-combustible
material.
Its general construction should enable it to
stand firmly across the full width of the
burner.
The design of the fire front (fret) must have
a removable ashtray cover (lower section).
The ash tray cover must have cut-outs and
or holes which provide ventilation to the
underside of the burner.
The effective area of ventilation through the
ash tray cover must be greater than
1365mm2 (2.12 sq. ins.)
SECTION FIVE Specification (installation instructions)
NATURAL GAS
Category of Appliance: BAS
Category I2H
Gas type: G20
Gas Pressure: 20 mbar
Gas input high: 7.7 kW Gross
Gas input low: 4.0 kW Gross
Injector Main: Size 580
Oxy-pilot 2550 NG
Data Label Location: On top flange of firebox
Gas Connection: 8 mm OD Tube
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009 + A1:2013 and the result is 63.7 %. The gross calorific
value of the fuel has been used for this efficiency calculation. GASTEC have certified the test data from which it has been calculated. The
efficiency value may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings.

www.charltonandjenrick.co.uk 13 LT7272 (ISS 1)
SECTION SIX Regulations and Warnings (installation instructions)
THIS APPLIANCE MUST ONLY BE INSTALLED IN GB OR IRELAND.
Only to be used in sufficiently ventilated room. Read instructions carefully before installation and use. The
appliance must be installed by a competent person, i.e.. Gas Safe Registered Installer in accordance with the
current Gas Safety (Installation and Use) Regulations 1998 (as amended). Failure to do so could lead to
prosecution.
This PARAGON P3 is for use ONLY with the GAS STATED ON THE DATA BADGE this may be G20 for Natural Gas
CHECK YOU HAVE THE CORRECT APPLIANCE FOR THE GAS YOU ARE USING.
It can be used in conjunction with the following chimneys: -
A sound conventional brick or stone chimney, or lined with appropriate liner.
A metal flue and box conforming to BS 715, further details are covered in later text.
A non-combustible hearth must be provided to comply with the building regulations or a suitable proprietary
fire surround with a 100 degrees C rating.
During initial firing an odour may be evident. This is the binder used during the manufacture of the fibre
components and there are no harmful effects produced.
The following are relevant Codes of Practice and British Standards: -
BS 5871 BS 8303
BS 5440 part 1 BS 1251
BS 6891 BS 6461 parts 1 & 2
BS 715 BS 1289 part 1& 2
Note:- This appliance must be installed to current versions of the above standards and include any relevant
amendments.
The Building Regulations issued by the Department of the Environment
The Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Office.
SECTION SEVEN Siting the Appliance (installation instructions)
The fire can be installed in the following flues and locations: -
CLASS ONE
A conventional brick or stone chimney as used for a solid fuel appliance with a typical effective cross-sectional
dimension of 225 x 225 mm (9 x 9 ins) or a lined flue with a minimum diameter of 125 mm (5 ins).This includes pre-
cast flue systems. Please note a minimum of 620mm high within the builders opening is required when installing
this appliance. (This is due to the fitting of the flue adaptor)

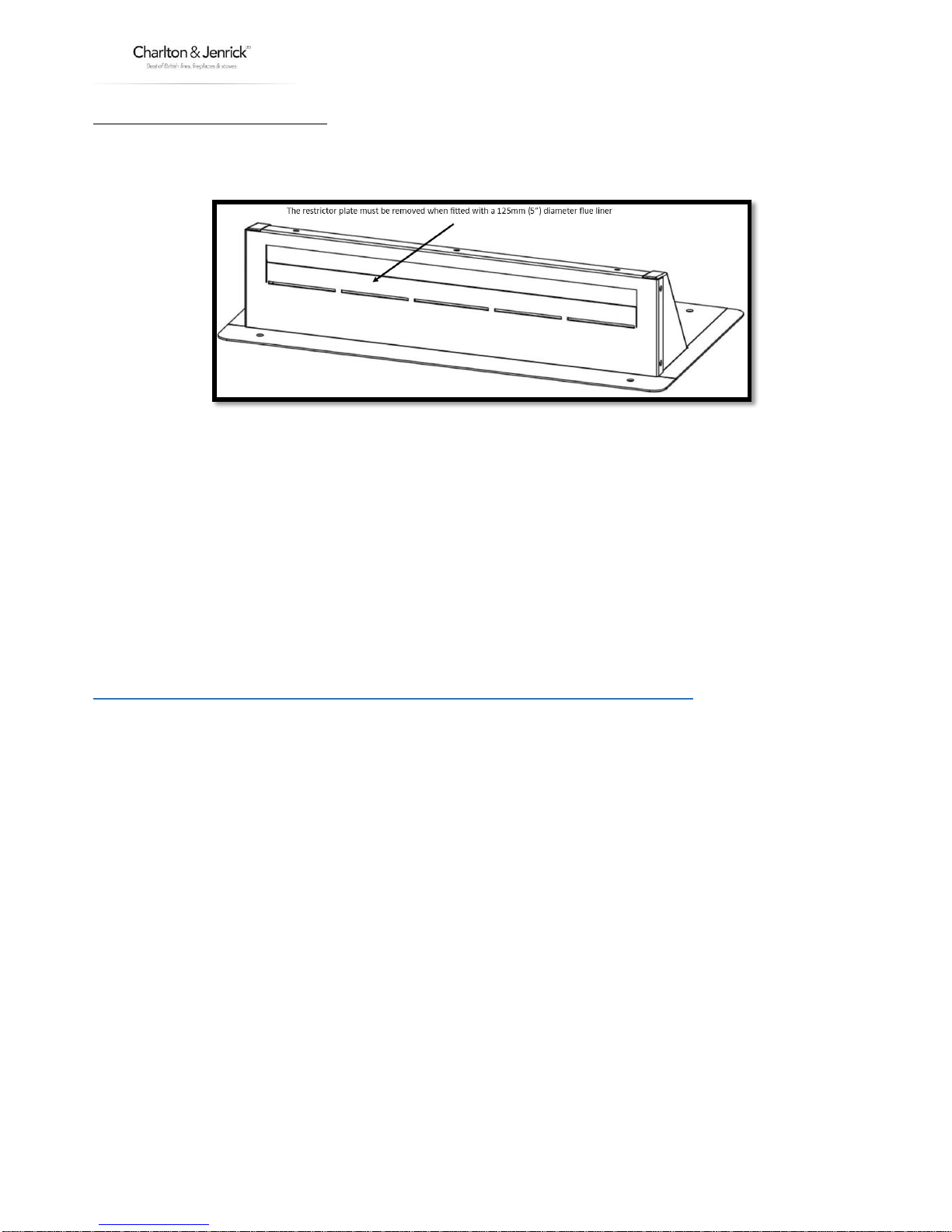

Note: The restrictor plate (fitted to the fire) may be left in place with flues of 175mm (7") or greater. This being
subject to satisfactory products clearance.
Fireplace opening must be 560 mm - 580 mm high by 415 mm –445 mm wide.
The opening depth must be a minimum of 320 mm to allow sufficient volume for debris collection.
To obtain this depth it may be necessary to remove the chairbrick.
Any permanent flue restriction or variable dampers are to be removed or locked fully open. The chimney should be
swept prior to installation if not new.

14 LT7272 (ISS 1)
CLASS TWO FABRICATED METAL
A double-walled or insulated metal flue box built to the requirements of BS 715 with an insulated flue having a
minimum diameter of 125 mm (5 ins) and a minimum effective overall height of 3 metres (10 ft).
IMPORTANT: - the restrictor plate must be snapped off from the flue adptor when the appliance is installed into
this type of flue.
A brick or stone chimney with a 125 mm (5 ins) minimum diameter flue liner conforming to BS 715 may be used.
Provided a suitable sealing plate is fitted to the base of the liner and the appliance does not restrict the opening into
the liner.
Note: Dampers or register plates must not restrict any of the above flues. The flue must only service a single
appliance and not have any branches or traps, which may impede the natural draught. If a terminal is fitted it must
be suitable for the purpose.
SECTION EIGHT Fireplace Requirements (installation instructions)
A flat face of 600 mm high x 500 mm wide must be provided around the fireplace opening for the fixing of the appliance
to ensure that a good seal is formed. The base of the fire opening must be flat to ensure sound fixing of the appliance.
A non-combustible hearth must be provided beneath the appliance within the fireplace opening, a fire-resisting hearth
must also be provided symmetrically disposed about the fireplace opening a minimum thickness of 12 mm with the
perimeter 50mm above floor level. The width must extend a minimum of 150 mm either side of the fireplace opening
and a depth of 300 mm (plus depth of spacer if a spacer is used).
Purpose-built superimposed fire-resistant hearths and back panels, specified as suitable by the manufacturers, may
be used, or a suitable proprietary fire surround with a 100oC rating.

www.charltonandjenrick.co.uk 15 LT7272 (ISS 1)
Hole in the Wall Installation
Please read these instructions carefully if you intend an Installation without a hearth.
This appliance must be installed in accordance with all relevant sections of approved document “J” of the building
regulations
It is recommended that a non combustible hearth extends a minimum of 300mm forward of the fire opening and a
minimum of 150mm either side, and that a rise exists at the front edge and sides of the hearth of a minimum of 50mm.
The fire may be installed so that its base sits on a surface of a fire opening at least 105 mm up from the floor (this is to
ensure that no flame or incandescent material is less than 225mm above the floor, a requirement of approved
document “J”). Where this is the case a means must be provided to support the fret this may typically be meet with a
small projecting hearth of minimum 100mm.Unless the fret is fixed to the appliance or is an integral part of the fascia
of the appliance.
Consideration should be given to the location of the appliance ensuring it is very visible and it should be positioned at
a height were it can clearly be seen on approach.
Frets, and Fascias used for HOLE in the WALL must be compliant with Paragon Fires CE approval; these are listed at
the end of this page.
Where the fire is fitted as a “Hole in the Wall” without a hearth the installer MUST ensure the appliance is fixed firmly
into the opening to ensure no movement takes place to the fuel bed when the appliance controls are operated.
The installer MUST ensure that the fuel bed is laid correctly and securely
The installer MUST advise the user that care should be taken when the appliance is in use to ensure occupants do not
get unnecessarily close to the appliance or position furniture or other appliances to close.
The installer MUST remind user of the requirement to fit a “secure fireguard” where the room is used by elderly, infirm
or young persons.
The installer MUST explain to the user that the area immediately in front of the appliance must always be keep clear
of combustible items other than the floor covering (which must be fixed)
List of approved Paragon Frets
Wellington 2000 Gate Post

16 LT7272 (ISS 1)
CLEARANCE TO SHELF
Minimum clearance from hearth to underside of combustible shelf should be 700mm provided shelf depth 150mm
or less. This height may be reduced to 640mm for a shelf depth of 100mm or less
When the shelf depth is increased by increments of 12.5 mm greater than 150mm, add 25mm to the 700mm
minimum clearance.
CLEARANCE TO SIDES OF FIRE
Minimum width between vertical sides of combustible surround should not be less than 700mm provided fire is central
to surround and sides do not project more than 150 mm. When vertical side forward projection is increased by 12.5
mm add 50 mm to inside width of surround.
N.B. When fire is fitted this provides a minimum side clearance of 100mm.
Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration, e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.
VENTILATION
GB (Great Britain) This fire does not normally require purpose build ventilation in accordance with 2010 document
“J” Building Regulations.
In the Republic of Ireland permanent ventilation must comply with the rules in force
SECTION NINE To Install the Appliance (installation instructions)
EXAMINE FLUE / CHIMNEY
Check that the flue/chimney conforms to the required specifications as previously stated. Examine the condition and
carry out any remedial work. If the flue/chimney has been used for solid fuel or oil, it should be swept prior to
appliance installation. A smoke test must be carried out to check that satisfactory smoke clearance has been
established. If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-check. If
there is any uncertainty examine for the cause and, if necessary, seek expert advice.
CONNECTING THE GAS SUPPLY
Determine where the gas supply is to be connected to the appliance. This may be done from the front of the unit
from either the left or right side, or a concealed fitting from the rear.

www.charltonandjenrick.co.uk 17 LT7272 (ISS 1)
GAS CONCEALED CONNECTION
If the supply is to be a concealed connection it would be advisable to route 8mm O/D half hard copper tube to the
rear left side of the fireplace opening, taking into account the requirements of BS 6891 1988 dealing with enclosed
pipes. Form the tube so that it enters the fire via the blind grommet at the rear of the appliance. An 8mm restrictor
elbow is provided on the gas connection under the burner assembly on the left-hand side to connect to the gas supply
pipe.
Note: Pipework in the opening of the fireplace to the rear of the appliance must be suitably wrapped in accordance
with the regulations.
GAS CONNECTION FROM THE FRONT
Connections may be made from the front of the appliance from either the left or right in 8-mm diameter pipe. If a
left-hand connection is required the tube should be routed behind the bezel plate under the gas control tap and onto
the inlet elbow. The inlet elbow can be rotated to the required position. A suitable isolating cock must always be
fitted in the supply feed to the fire to facilitate servicing. A suitable restrictor elbow is supplied with the fire.
FIXING FIRE INTO OPEN
Slide the firebox into the fireplace opening guiding the gas supply pipe through the hole at the rear LH bottom of the
firebox.
Retain the firebox using wall plugs and screws using the four holes within the firebox flange.
Refit the grommet over the pipe and seal around the inlet hole.
Connect the gas supply pipe to the restrictor elbow positioned on the LH front of the burner tray assembly.

18 LT7272 (ISS 1)

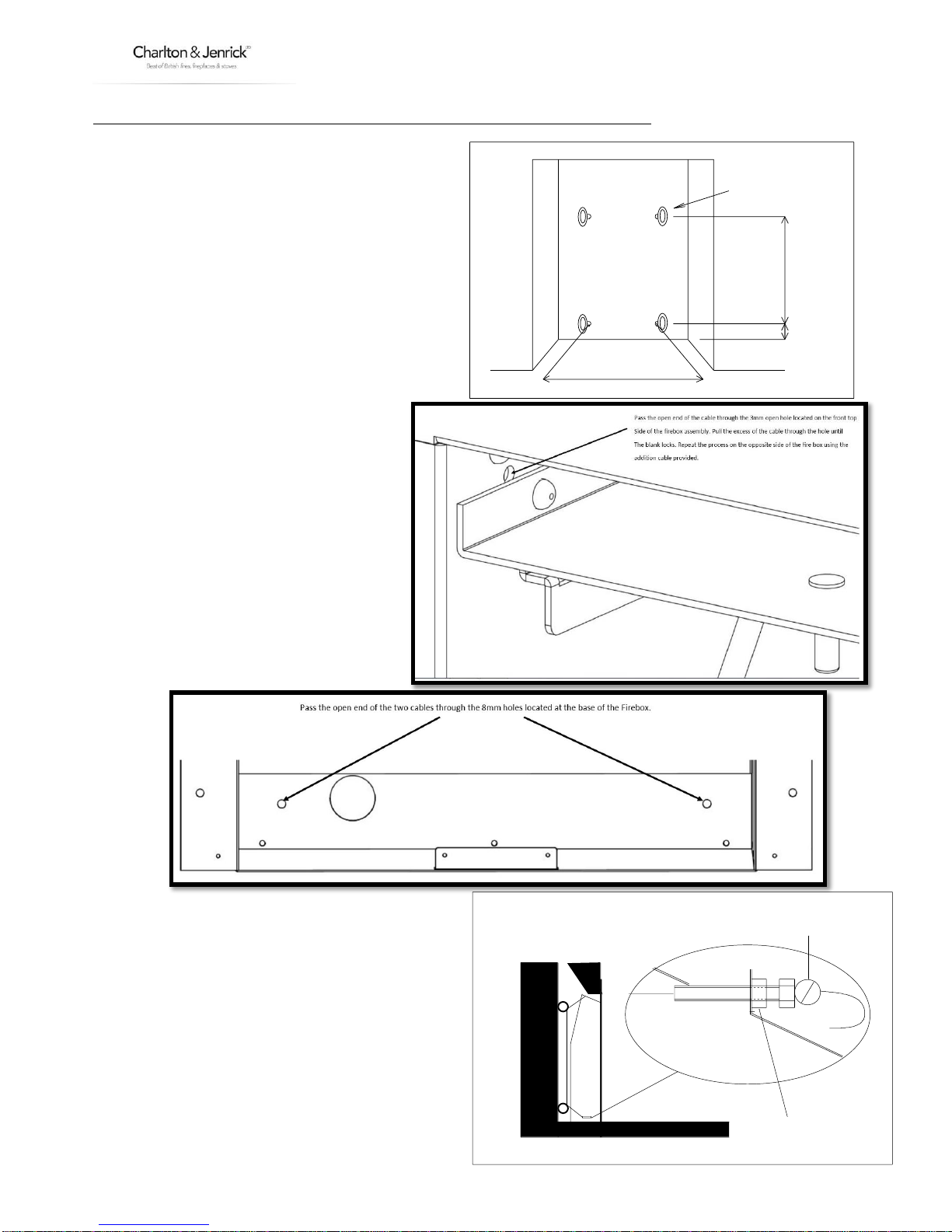

OPTIONAL CABLE FIXING SYSTEM (Available on request from Paragon FIRES)
For use when fixing to 18" openings or when it is
desirable not to drill the fireplace fascia.
Drill 4 holes in the rear of the fireplace opening in the
position shown and fix securely the 4 eye bolts provided
with suitable wall plugs
Fix the fire casing back into the opening using the cable
fixing system as shown in do not cut off loose ends of
cable after fixing, coil and tuck carefully behind burner
tray.
Note: when using the cable fixing kit with the spacer, fix and
seal the spacer to the rear of the appliance flange with the
screws and foam seal provided.
260mmCRS.
30mm
460mm
FIX 4 OFF EYE
BOLTS IN
POSITIONS SHOWN
TENSIONING NUT
CLAMP SCREW

www.charltonandjenrick.co.uk 19 LT7272 (ISS 1)
Insert the flue adaptor within the roof of the firebox as shown.

20 LT7272 (ISS 1)
Locate the canopy fixing cover over the three M4 studs position within the front edge of the flue adaptor. Push the rear face of the bracket hard
against the glass canopy and fix using the M4 Nuts provided
