Charlton & Jenrick 2000 Plus Extra Remote User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
2000 Plus Extra Remote
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 6312 (ISS 3)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Introduction (user instructions) ..........5
SECTION TWO Operating the Appliance (user
instructions).................................................................8
SECTION THREE Fuel Bed Cleaning and Layout (user
instructions)...............................................................10
SECTION FOUR Important Information (user
instructions)...............................................................14
SECTION FIVE Specification (installation instructions)
...................................................................................15
SECTION SIX Regulations and Warnings (installation
instructions)...............................................................16
SECTION SEVEN Siting the Appliance (installation
instructions)...............................................................17
SECTION EIGHT Fireplace Requirements (installation
instructions)...............................................................18
SECTION NINE To Install the Appliance (installation
instructions)...............................................................20
SECTION TEN Maintenance Instructions
(maintenance instructions).......................................24
SECTION NINE Wiring Diagram (maintenance
instructions)...............................................................26
GAS FIRE COMMISSIONING CHECKLIST.....................30
SERVICE RECORD........................................................31
EXTENDED FIVE YEAR PARTS
WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

3 LT6312 (ISS 3)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular
servicing to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and
Hotwater Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the
installation instructions supplied with the product and that you have signed it to say that you have received a full
and clear explanation of its operation. The installer is legally required to complete a commissioning checklist as a
means of complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons
Scheme. A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt,
write the Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data
fields on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

www.charltonandjenrick.co.uk 4 LT6312 (ISS 3)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
2000 Plus Extra Remote
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

5 LT6312 (ISS 3)
SECTION ONE Introduction (user instructions)
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that
these products are so designed and constructed as to meet the general safety requirement when properly used
and installed. To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the
approval of the appliance, operation of the warranty and could affect your statutory rights.
Health and Safety Notice
Important: This appliance could contain some of the materials, indicated below, that could be interpreted as being
injurious to health and safety. It is the users / installers responsibility to ensure that the necessary personal
protective clothing is worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if
inhaled, may be irritating to skin, eyes, nose and throat.
When handling avoids inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the fuel bed or cleaning after
servicing / installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refectory/ceramic materials. to keep dust to a minimum these materials should be securely wrapped
in polythene and be clearly labelled ‘RCF waste’. These materials are not classified as hazardous waste and should
be disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The PARAGON 2000 Xtra Remote as been designed and tested to the requirements of EN 509 and is
suitable for use in GB (Great Britain) and IE (Ireland).
The PARAGON 2000 Xtra Remote incorporates a single gas control, which selects ignition pilot, with
variable setting between low and high settings. The appliance is operated via a remote control hand set.
This appliance is intended for decorative purposes.
The PARAGON 2000 Xtra Remote is available in two versions Natural Gas or LPG (Propane Gas Only). The
markings (G20 for natural gas or G31 for propane) on the packaging and the data badge specify the gas
for which the appliance has been factory set. Note: These appliances should only be used on the
appropriate gas specified. They are not suitable for conversion from one gas to the other.
The pilot can be left on (standby setting) or the pilot can be extinguished and relit each time the fire is
used.
Like all appliances incorporating an aerated burner a low frequency noise may be heard, this may be
more noticeable on the low setting.
The chimney or flue (unless new) must be swept before installation if it has been used for solid fuel.
It is advised that this appliance is serviced annually, this is more likely to provide trouble-free operation.
This appliance has a naked flame, as with all such fires it is recommended that a fireguard should be used
for the protection of children, the elderly and infirm. Fireguards should conform to BS 6539 (1984)
(Fireguards for use with solid fuel appliances).

www.charltonandjenrick.co.uk 6 LT6312 (ISS 3)

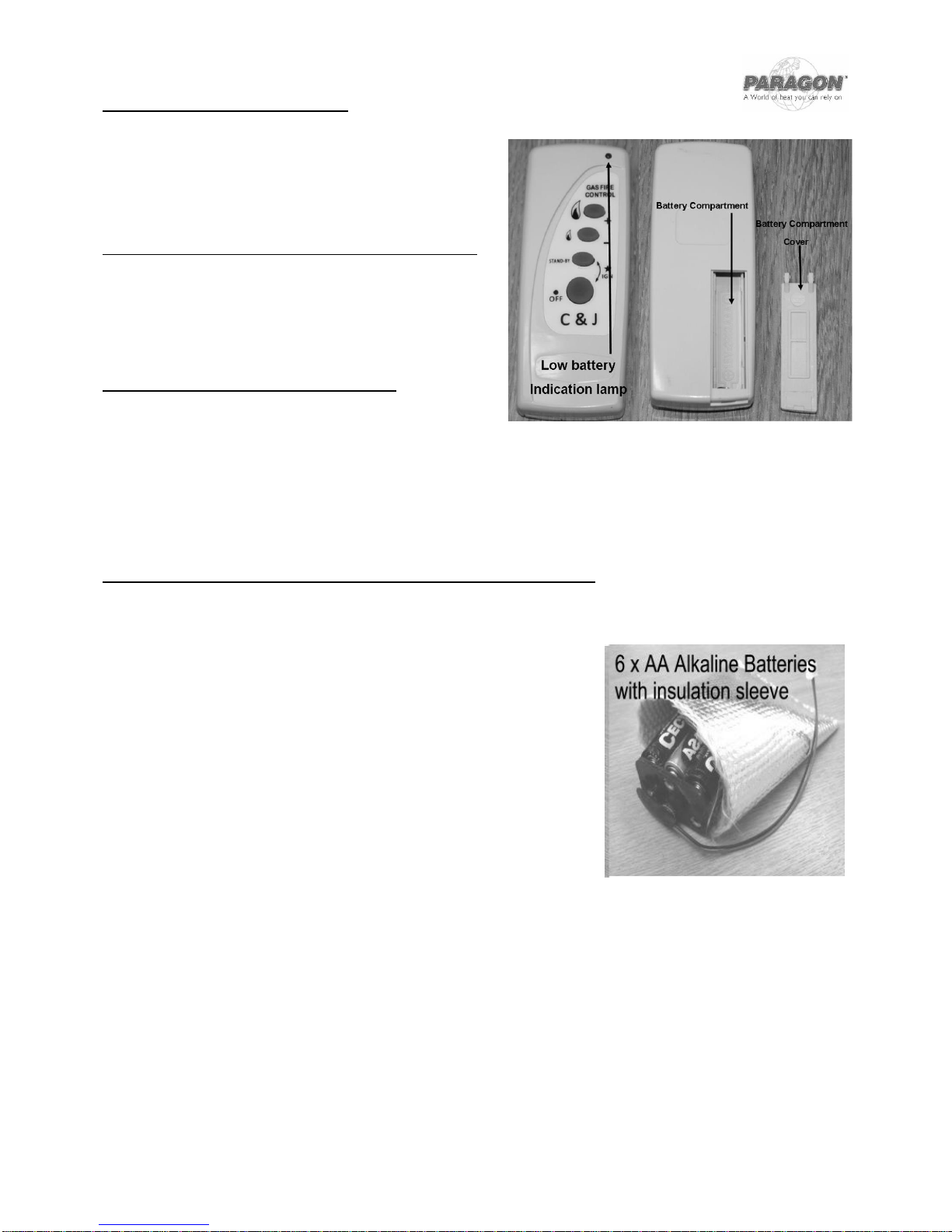

The PARAGON 2000 Xtra Remote is battery operated; therefore no mains electrical supply is required. Power to
the appliance is provided by 6 high power alkaline 1.5V batteries (AA size) (a spare set of 6 AA batteries is
supplied with the appliance); these batteries can be changed to Nickel Metal Hydride rechargeable batteries
providing they have a minimum capacity of 2200 mAh. A set of 6 high power alkaline 1.5V batteries (AA size)
would give in the order of 200 -380 operations while 6 rechargeable batteries when fully charged would give
approximately 200-300 operations. These figures are only given for guidance and may vary depending on how the
appliance is used and the battery manufacturer and quality.
A special long life lithium battery is available as an optional extra and would be expected to give in excess of 12
months normal use (a minimum of 1000 operations), however it is not subject to the guarantee. For more
information call the telephone number located on the back of this booklet.
Using the standby facility when the appliance is switched off for short periods can extend battery life. The standby
facility switches off the mains gas supply to the appliance but the pilot remains alight.
An audible repeated bleep warning indicates that the appliance batteries need changing or charging (if
rechargeable batteries have been used).
Important: Batteries should be changed or recharged as soon as possible as the appliance will not
light if the battery power gets too low.
The appliance incorporates a safety device in the form of an Oxygen Depletion System, which constantly monitors
the oxygen in the room and will cause the fire to switch off if the oxygen level reduces, for instance due to
insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the
problem may not be due to lack of air or a defective flue.
A fire front (fret) must be used with this appliance.
In GB, the appliance must be installed by a competent person i.e. Gas Safe-registered, in accordance with the GAS
SAFETY (INSTALLATION AND USE) REGULATIONS, The Building Regulations (or The Building Regulations (Scotland)
or The Building Regulations (Northern Ireland)) and The Current I.E.E. Wiring Regulations, if appropriate.
In IE, the appliance must be installed by a competent person and installed in accordance with the current edition
of I.S.813 Domestic Gas Installation, the current Building Regulations and the current ETCI rules for electrical
installation ,if appropriate.
In the Republic of Ireland, permanent ventilation must be provided in accordance with the regulation in force (I.S.
813).
It is important that: -
The chimney or flue is checked annually to ensure clearance of combustion products.
Any purpose-built ventilation should be checked periodically to ensure freedom from obstruction.
Any debris from the chimney or flue should be removed. The fire should be allowed to cool for three to four
hours before removing debris.
Rubbish must not be thrown onto the coal/pebble bed under any circumstances.
The cast fire front must be positioned in front of the fire whilst it is burning.

7 LT6312 (ISS 3)
Warning:- This appliance has a naked flame, has with all fires it is recommended that a fireguard should be used
for the protection of children, the elderly and infirm.
Fireguards should conform to BS 6539 (1984) (fireguards for use with solid fuel appliances).
During the normal operation of the fire some black staining may appear on some parts of the fuel bed. This is
quite normal and adds to the appearance of the appliance. However, if excessive black staining does occur it may
be due to the fuel bed being incorrectly laid. This should be checked against the Fuel Bed Layout in Section Three,
prior to contacting a service engineer.
Pilot Cleaning (Before cleaning ensure that the appliance is turned off and cold)
In some instances you may experience ignition problems even when the
appliance is new. This may be due to the aeration hole in the pilot body (see
photograph) being partial blocked with dust, pet hairs or other foreign matter.
The source of this debris could be such things as carpet fibres, decorating or pets
etc.
To clean the pilot, remove the fire front and ashpan. The pilot is located on the
right hand side of the appliance, any debris in or around the aeration hole
should be removed using the nozzle of a vacuum cleaner. It is advisable not to
blow the debris into the hole as this may cause more of a restriction and not
rectify the problem.
Fret
A Fret must be used with this appliance, and must conform to the following: -
It must be made from non-combustible material.
Its general construction should enable it to stand firmly across the full width of the
burner.
The design of the fire front (fret) must have a removable ash-pan cover (lower section).
The ashpan cover must have cut-outs and or holes which provide ventilation to the underside of the
burner.
The effective area of ventilation through the ash-pan cover must be greater than 1365mm2 (2.12 sq.
ins.)

www.charltonandjenrick.co.uk 8 LT6312 (ISS 3)
SECTION TWO Operating the Appliance (user instructions)
Before attempting to operate the appliance check that nothing
has been placed in front of the appliance that may interfere with
the remote sensor operation.
To light the appliance using the remote hand set:
A. Point the remote control hand set in the direction of the
appliance and simultaneously press the buttons marked ‘
off’ and ‘standby’. Continue to hold in these two
buttons until a ‘bleep’ is heard (approximately 2-3 sec.)
and then release these buttons. The appliance will
automatically go through the ignition sequence and the
pilot should ignite. Once the pilot is alight the appliance
will automatically go to the high setting (approximately
20-25sec). If the ignitor stops sparking and the pilot fails
to light, repeat this procedure.
B. The appliance can be adjusted up or down by pressing the appropriate button ' ' (low setting) or ''
(high setting).There are 5 heat settings and the fire will give a double bleep when the maximum or
minimum heat setting is reached. To switch off the appliance press the OFF ' ' button or if the appliance
is to be switch off for a short period it is recommended that the ‘standby’ button be used. This switches
the main burner off but leaves the pilot on and will extend battery life.
C. The appliance can be switched off with out using the hand set by removing the appliance batteries
located behind the ash pan cover. When the batteries are removed there will be a delay (up to 3minutes)
after which double bleeps may be heard and shortly after the appliance will extinguish. Ensure that the
battery is reconnected once the fire as been extinguished. The appliance cannot be operated without the
use of the handset. If the fire fails to light or extinguishes for any reason, it will be necessary to re-set the
fire. This can be done by pressing the OFF button then following the normal lighting procedure.
NOTE: If the fire is extinguished for any reason wait 3 minutes before relighting.

9 LT6312 (ISS 3)
Low Battery Indication (Hand Set)
If while pressing any of the buttons on the remote hand set
the low battery indicator lamp either stops flashing or
appreciably slows then the battery should be changed.
To Replace Batteries In Hand SET (AAA 1.5 v lr3 X 2)
Remove the cover from the rear of the handset and fit
replacement batteries, taking care not to strain the battery
connections.
LOW BATTERY INDICATION (APPLIANCE)
If you hear a repeated ‘bleep’ sound come from the
appliance this indicates the appliance battery pack is low and should be changed as soon as possible. The
appliance will continue to work normally for a short period but if the warning is ignored you may experience
difficulty lighting the appliance or the appliance may automatically switch off for no apparent reason.
NOTE: The appliance cannot be used when the battery is completely flat.
TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline AA 1.5V)
(Rechargeable batteries can be used providing they are a nickel metal hydride type 1.5V AA with a minimum
capacity of 2200mAh).Using AA Lithium batteries will give more operations.
A. Lift off fret and ash pan.
B. The battery power pack or holder is located at the left hand side
of the burner; carefully slide the battery holder forward and
replace all six batteries as a complete set or recharge as
appropriate. WARNING, batteries will overheat if fitted
incorrectly, when fitting the batteries ensure that they are fitted
as per the marking on the rear of the holder (i.e. minus of
battery against spring). If rechargeable batteries are used they
MUST be a Nickel Metal Hydride type with a minimum capacity of
2200mAh.
C. Important: Place the battery pack or holder inside the insulation blanket and ensure that it is placed to
the left hand side of the appliance as shown and refit fret and ash pan cover.
D. Once the new batteries are loaded the fire will continue to bleep until re-set. This can be done by
pressing the “off “ button on the handset followed by the normal ignition sequence as above. If the fire
continues to bleep this may indicate a loose connection or badly loaded batteries.

www.charltonandjenrick.co.uk 10 LT6312 (ISS 3)
SECTION THREE Fuel Bed Cleaning and Layout (user instructions)
Important: - Refer to the Health & Safety Notice located on page 5 of this booklet before cleaning or replacing
any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The loose parts and moulded shapes may be removed for cleaning. They can be brushed very gently with a soft
brush to remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.

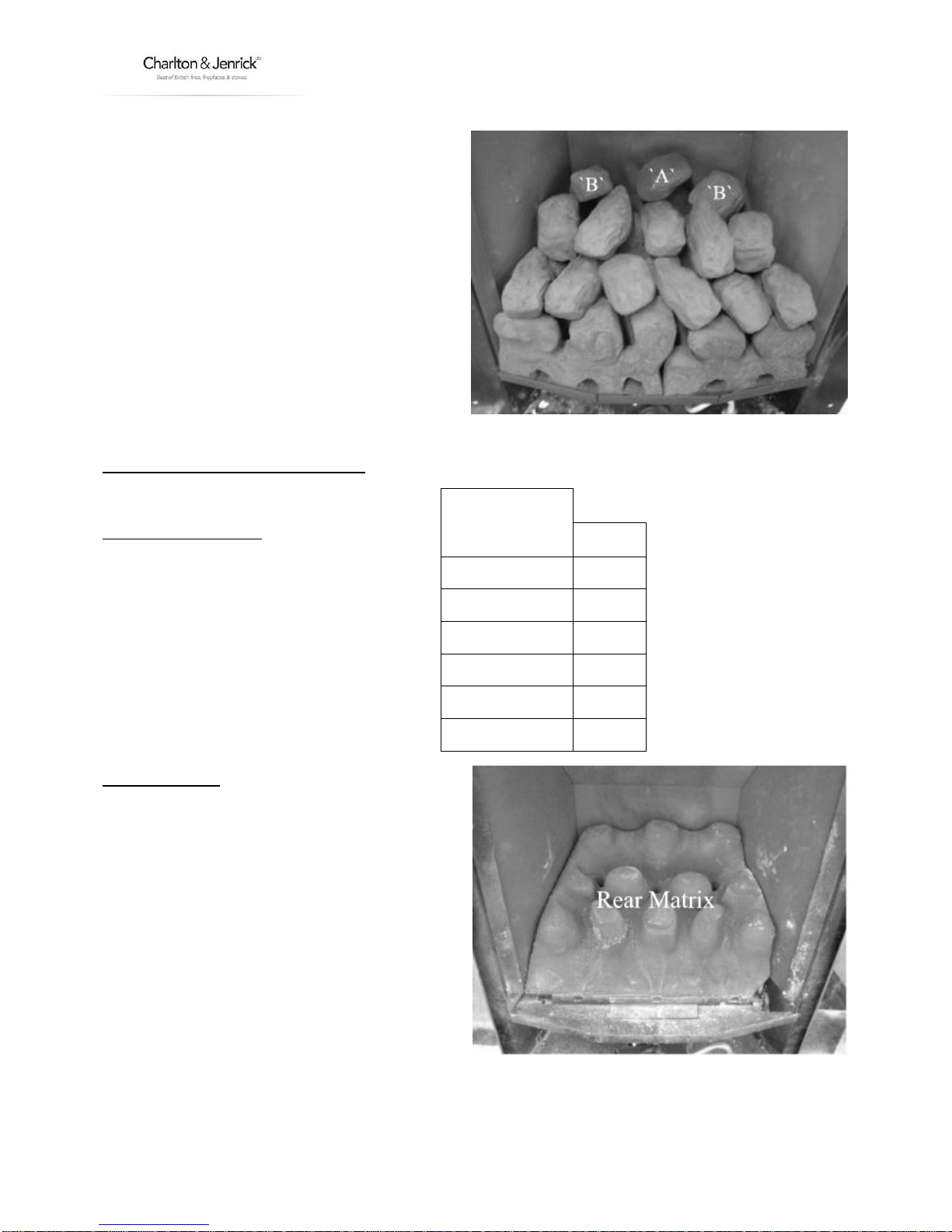

FUEL BED LAYOUT (COAL OPTION)
Ensure the BASE MATRIX is in position as
shown located against the rear edge of the
burner outlet
Locate the LEFT HAND and RIGHT HAND
FRONT COALS as shown so that they sit on
the front rail and lean back against the BASE
MATRIX. Note it is most important that they
are located in their correct positions. They
are marked on the rear "L" for LEFT HAND
FRONT COAL and "R" for RIGHT HAND FRONT
COAL.

11 LT6312 (ISS 3)
Note the loose coal provided consist of :-
5 off shaped as coal "A"
9 off shaped as coal "B"
Separate the coal into the two size groups
Lay first row of loose coal 4 off "B" and 2 off
"A" coals as shown so that they bridge across
the gap
Lay second row of loose coals “B” and “A”
shapes as shown.

www.charltonandjenrick.co.uk 12 LT6312 (ISS 3)
Lay third row of loose coals “B” and “A”
shapes as shown.
FUEL BED LAYOUT (PEBBLE OPTION)
Fuel Bed Components
Base Matrix
L & R Front Pebbles
Number Pebbles as below:-
PEBBLE LAYOUT
Warning
Take great care when positioning the pebbles to
avoid marking the black linings.
Ensure the BASE MATRIX is in position as
shown located against the rear edge of the
burner outlet.
Pebble
identification
QTY
Heart Shape
1
Oblong Shape
4
Large Shape
3
Medium Shape
2
Small Shape
2
Total
12

13 LT6312 (ISS 3)
Locate the LEFT HAND and RIGHT HAND
FRONT PEBBLES as shown so that they sit on
the front rail and lean back against the BASE
MATRIX. Note it is most important that they
are located in their correct positions. They are
marked on the rear "L" for LEFT HAND FRONT
PEBBLE and "R" for RIGHT HAND FRONT
PEBBLE.
Lay one row of pebbles at the front of the fire
as shown.
Lay another row of loose pebbles shown.

www.charltonandjenrick.co.uk 14 LT6312 (ISS 3)
Lay another row of loose pebbles as shown.
SECTION FOUR Important Information (user instructions)
The only user removable parts are: -
The loose coals .
The left hand front coal shape.
The right hand front coal shape.
The base matrix
Cast Fret
Decorative Trim
Like all appliances incorporating an aerated burner a low frequency noise may be heard, particularly on the low
setting, this is quite normal and does not affect the operation of the appliance.
Servicing
It is advised that the PARAGON 2000 Xtra Remote fire is serviced annually this is more likely to provide trouble-free
operation. A competent person must carry this out, i.e. .Gas Safe Registered Installer in accordance with the current
Gas Safety (Installation and Use) Regulations 1998 (as amended).
The chimney or flue should be checked annually to ensure clearance of combustion products.
Ventilation in the United Kingdom
This appliance does not normally require purpose-built ventilation but if for any special reason purpose-built
ventilation is provided it should be checked periodically to ensure freedom from obstruction.
Ventilation in the Republic of Ireland
Must be permanent ventilation and must comply with the rules in force and should be checked periodically to
ensure freedom from obstruction.
General Appliance Care
Any debris from the chimney or flue should be removed from the fuel bed. The fire should be allowed to cool for
three to four hours before removing debris.
Rubbish must not be thrown onto the fuel bed under any circumstances. The cast fire front must be positioned in
front of the fire whilst it is burning.

15 LT6312 (ISS 3)

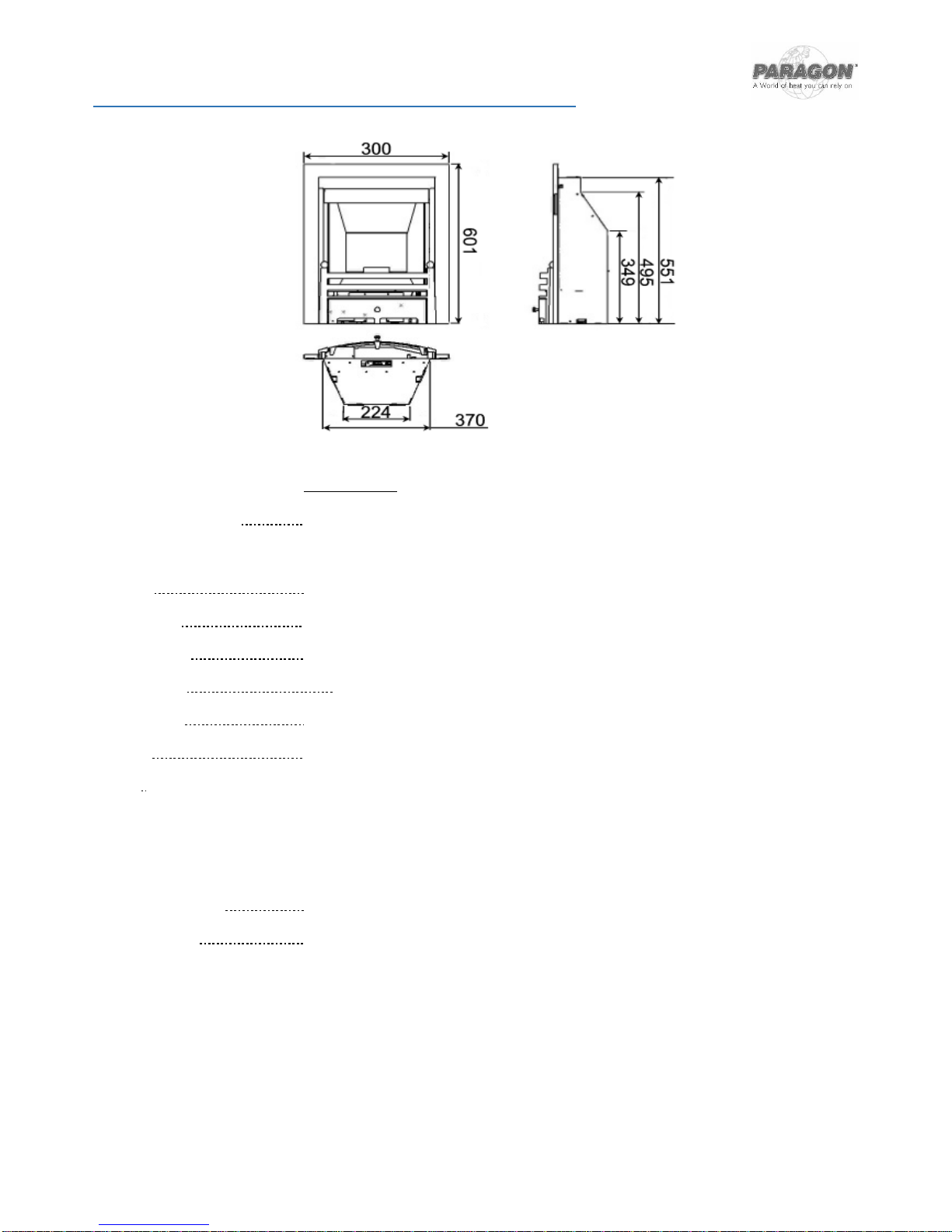

SECTION FIVE Specification (installation instructions)
NATURAL GAS
Category of Appliance: BAS
Category I2H
Gas type: G20
Gas Pressure: 20 mbar
Gas input high: 7.00 kW Gross
Gas input low: 2.40 kW Gross
Injector Main: Size 460
Oxy-pilot NG9102
Battery Remote handset 1.5 V AAA LR3 X2,
Appliance 6 x 1.5V AA high power alkaline or 6 x 1.5 V Rechargeable nickel metal hydride with a minimum capacity of
2200mAh.
A special long life lithium battery 7.2 V is available as an optional extra.
Data Label Location: Behind trim
Gas Connection: 8 mm OD Tube
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009 + A1:2013 and the result is 56.8%. The
gross calorific value of the fuel has been used for this efficiency calculation. GasTec have certified the test data from which it has
been calculated. The efficiency value may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy
rating of dwellings. Please note: The restrictor fitted to the appliance is there to achieve the maximum efficiency. This, however,
may require removal where a flue is underperforming.

www.charltonandjenrick.co.uk 16 LT6312 (ISS 3)
SECTION SIX Regulations and Warnings (installation instructions)
THIS APPLIANCE MUST ONLY BE INSTALLED IN THE GB OR IRELAND.
Only to be used in sufficiently ventilated room. Read instructions carefully before installation and use. The
appliance must be installed by a competent person, i.e.. Gas Safe Registered Installer in accordance with the
current Gas Safety (Installation and Use) Regulations 1998 (as amended). Failure to do so could lead to
prosecution.
This PARAGON 2000 Xtra Remote is for use ONLY with the GAS STATED ON THE DATA BADGE this may be G20
for Natural Gas or G31 for Propane Gas CHECK YOU HAVE THE CORRECT APPLIANCE FOR THE GAS YOU ARE
USING.
It can be used in conjunction with the following chimneys: -
A conventional brick or stone chimney,
A pre-cast flue conforming to BS 1289 Pt. 1 or Pt. 2
A metal flue and box conforming to BS 715, further details are covered in later text.
A non-combustible hearth must be provided to comply with the building regulations or a suitable
proprietary fire surround with a 100 degrees C rating.
During initial firing an odour may be evident. This is the binder used during the manufacture of the fibre
components and there are no harmful effects produced.
The following are the relevant Codes of Practice and British Standards: -
BS 5871 BS 8303
BS 5440 part 1 BS 1251
BS 6891 BS 6461 parts 1 & 2
BS 715 BS 1289 part 1& 2
Note:- This appliance must be installed to current versions of the above standards and include any relevant
amendments.
The Building Regulations issued by the Department of the Environment
The Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Office.

17 LT6312 (ISS 3)
SECTION SEVEN Siting the Appliance (installation instructions)

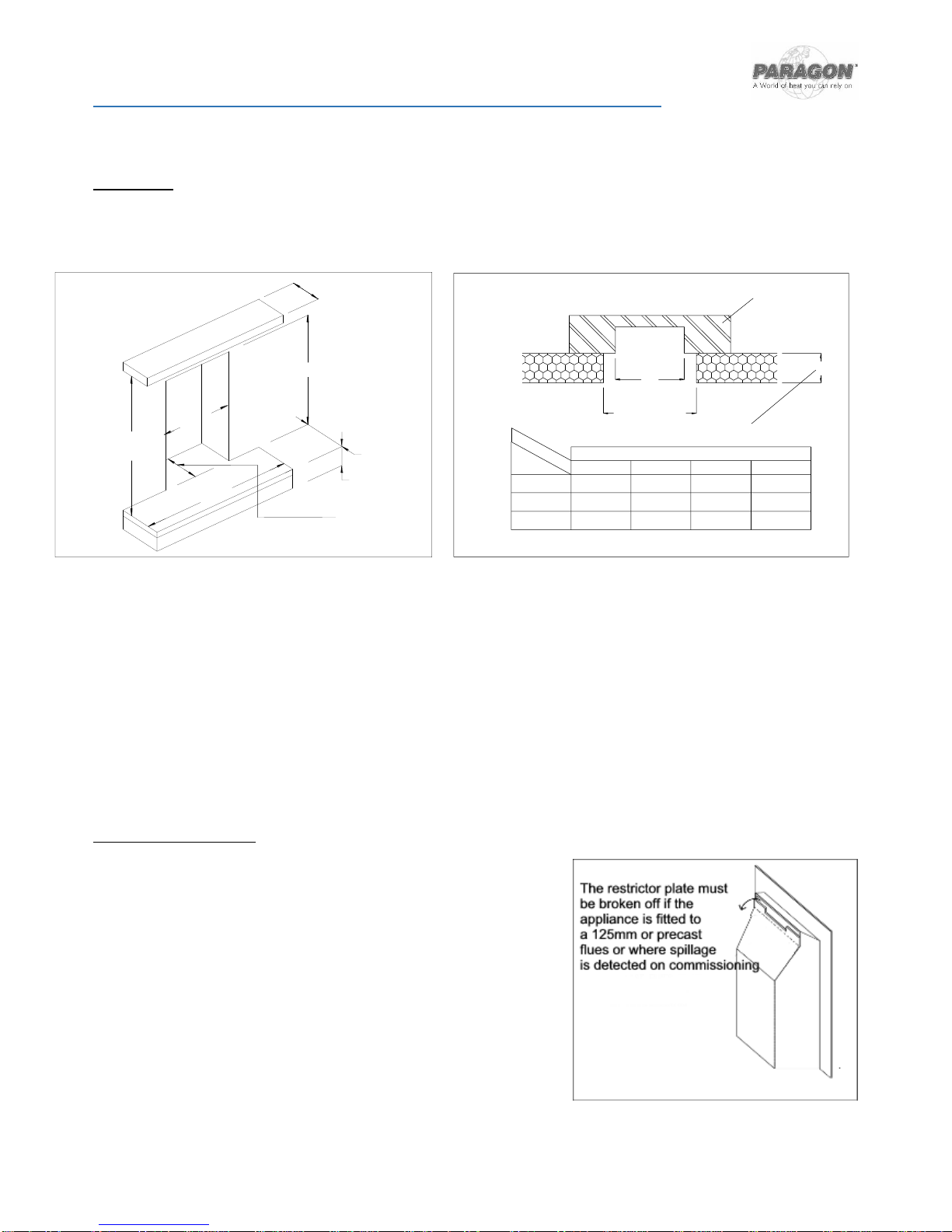

The fire can be installed in the following flues and locations: -
CLASS ONE
A conventional brick or stone chimney as used for a solid fuel appliance with a typical effective cross-sectional
dimension of 225 x 225 mm (9 x 9 ins) or a lined flue with a minimum diameter of 125 mm (5 ins)
Fireplace opening must be 552 mm - 578 mm high by 380 mm –435 mm wide (or up to 458 mm if the cable fixing
system is used).
The opening depth must be a minimum of 215 mm to allow sufficient volume for debris collection (this depth may
be reduced to 185 mm if the chimney is new or has never been used for solid fuel or oil before).
To obtain this depth it may be necessary to remove the chairbrick.
Note: spacers are available in 20mm and 43mm to further reduce the opening depth if required (if a spacer is used
then the thickness of the spacer must be added to the minimum 300mm hearth depth to comply with regulations.
Any permanent flue restriction or variable dampers are to be removed or locked fully open. The chimney should be
swept prior to installation if not new.
CLASS TWO PRE-CAST
A pre-cast flue conforming to the requirements of BS 1289 part 1 & 2 A
suitable fire resisting fire surround will be required, spaced out to the
correct thickness, between the face of the flue blocks and the rear of the
appliance frame. IMPORTANT: - the flue restrictor plate must be
removed when the appliance is installed in this type of flue.
Note: An inspection should be made to ensure that the internal walls of
the flue are clear of mortar fangs. It is recommended that the
plasterwork should not be directly bonded to the surface of the flue
blocks, ensuring that there is a small air gap between the flue blocks and
the wall surface. The fire can be installed with the plasterwork being
directly bonded to the flue blocks but there is a risk of surface cracking
occurring to the plaster above the appliance.
ALL DIMENSIONS IN mm PRE-CAST FLUE BLOCK
ADDITIONAL DEPTH INCLUDING PLASTER AND FIREPLACE
"A"
300
NONE
SPACER
20mm 30mm
94
80
74
60
64
50
"A" "X"
380mm - 435mm
3747
67320
310
"X" MINIMUM (INCLUDING PLASTER)
0
7
21
43mm
"A"
215 OR 185 MIN. IF FLUE AS NEVER BEEN
USED FOR SOLID FUEL
700 MIN.
WHEN"A"= 150
680 MIN.
552 MIN.- 578 MAX.
300 MIN.
50 MIN.
ALL DIMENSIONS IN mm
380 MIN.-435 MAX.

www.charltonandjenrick.co.uk 18 LT6312 (ISS 3)
CLASS TWO FABRICATED METAL
A double-walled or insulated metal flue box built to the requirements of BS 715 with an insulated flue having a
minimum diameter of 125 mm (5 ins) and a minimum effective overall height of 3 metres (10 ft).
IMPORTANT: - the flue restrictor plate must be removed when the appliance is installed in this type of flue.
Note: A brick or stone chimney with a 125 mm (5 ins) minimum diameter flue liner conforming to BS 715 may be
used. Provided a suitable sealing plate is fitted to the base of the liner and the appliance does not restrict the
opening into the liner.
Dampers or register plates must not restrict any of the above flues. The flue must only service a single appliance and
not have any branches or traps, which may impede the natural draught. If a terminal is fitted it must be suitable for
the purpose.
SECTION EIGHT Fireplace Requirements (installation instructions)
A flat face of 605 mm high x 500 mm wide must be provided around the fireplace opening for the fixing of the
appliance to ensure that a good seal is formed. The base of the fire opening must be flat to ensure sound fixing of
the appliance.
A non-combustible hearth must be provided beneath the appliance within the fireplace opening, a fire-resisting
hearth must also be provided symmetrically disposed about the fireplace opening a minimum thickness of 12 mm
with the perimeter 50mm above floor level. The width must extend a minimum of 150 mm either side of the
fireplace opening and a depth of 300 mm (+ thickness of spacer if a spacer is used).
Purpose-built superimposed fire-resistant hearths and back panels, specified as suitable by the manufacturers, may
be used, or a suitable proprietary fire surround with a 100oC rating.
Hole in the Wall Installation
Please read these instructions carefully if you intend an Installation without a hearth.
This appliance must be installed in accordance with all relevant sections of approved document “J” of
the building regulations
It is recommended that a non combustible hearth extends a minimum of 300mm forward of the fire opening and a
minimum of 150mm either side, and that a rise exist at the front edge and sides of the hearth of a minimum of
50mm.
The fire may be installed so that its base sits on a surface of a fire opening at least 105 mm up from the floor (this is
to ensure that no flame or incandescent material is less than 225mm above the floor, a requirement of approved
document “J”). Where this is the case a means must be provided to support the fret this may typically be meet with a
small projecting hearth of minimum 100mm.Unless the fret is fixed to the appliance or is an integral part of the
fascia of the appliance.

19 LT6312 (ISS 3)
Consideration should be given to the location of the appliance ensuring it is very visible and it
should be positioned at a height were it can clearly be seen on approach.
Frets, and Fascias used for HOLE in the WALL must be compliant with Paragon Fires CE approval; these are listed at
the end of this page.
Where the fire is fitted as a “Hole in the Wall” without a hearth the installer MUST ensure the appliance is fixed
firmly into the opening to ensure no movement takes place to the fuel bed when the appliance controls are
operated.
The installer MUST ensure that the fuel bed is laid correctly and securely
The installer MUST advise the user that care should be taken when the appliance is in use to ensure occupants do
not get unnecessarily close to the appliance or position furniture or other appliances to close.
The installer MUST remind user of the requirement to fit a “secure fireguard” where the room is used by elderly,
infirm or young persons.
The installer MUST explain to the user that the area immediately in front of the appliance must always be keep clear
of combustible items other than the floor covering (which must be fixed)
CLEARANCE TO SHELF
Minimum clearance from hearth to underside of combustible shelf should be 700mm provided shelf depth 150mm
or less. This height may be reduced to 640mm for a shelf depth of 100mm or less
When the shelf depth is increased by increments of 12.5 mm greater than 150mm, add 25mm to the 700mm
minimum clearance.
CLEARANCE TO SIDES OF FIRE
Minimum width between vertical sides of combustible surround should not be less than 700mm provided fire is
central to surround and sides do not project more than 150 mm. When vertical side forward projection is increased
by 12.5 mm add 50 mm to inside width of surround.
N.B. When fire is fitted this provides a minimum side clearance of 100mm.
Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration, e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.

www.charltonandjenrick.co.uk 20 LT6312 (ISS 3)
VENTILATION
In the United Kingdom no special ventilation bricks or vents are required into the room containing the appliance,
provided normal adventitious room ventilation exists. The installer must satisfy this point by carrying out a
mandatory spillage test.
In the Republic of Ireland permanent ventilation must comply with the rules in force
SECTION NINE To Install the Appliance (installation instructions)
EXAMINE FLUE / CHIMNEY
Check that the flue/chimney conforms to the required specifications as previously stated. Examine the condition
and carry out any remedial work. If the flue/chimney has been used for solid fuel or oil, it should be swept prior to
appliance installation. A smoke test must be carried out to check that satisfactory smoke clearance has been
established. If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-check. If
there is any uncertainty examine for the cause and, if necessary, seek expert advice.
CONNECTING THE GAS SUPPLY
Determine where the gas supply is to be connected to the appliance. This may be done from the front of the unit
from either the left or right side, or a concealed fitting from the rear.
GAS CONCEALED CONNECTION
If the supply is to be a concealed connection it would be advisable to route 8mm O/D half hard copper tube to the
rear right side of the fireplace opening, taking into account the requirements of BS 6891 1988 dealing with enclosed
pipes. Form the tube so that it enters the fire via the blind grommet at the rear of the appliance. A 8mm restrictor
elbow can be positioned under the burner assembly on the right-hand side connected to the gas supply pipe and its
outlet connected to the gas appliance.
Note: pipework in the opening of the fireplace to the rear of the appliance must be suitably wrapped in accordance
with the regulations.
GAS CONNECTION FROM THE FRONT
Connections may be made from the front of the appliance from either the left or right in 8-mm diameter pipe. If a
left-hand connection is required the tube should be routed behind the bezel plate under the gas control tap and
onto the inlet elbow. The inlet elbows should be rotated to the required position. A suitable isolating cock should
always be fitted in the supply feed to the fire to facilitate servicing.
