Charlton & Jenrick PARAGON FOCUS 18 HE User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
FOCUS 18 HE
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 5558 (ISS 7)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Introduction (user instructions) ..........5
SECTION TWO Operating the Appliance (user
instructions).................................................................7
SECTION THREE Cleaning (user instructions)..............8
SECTION FOUR Fuel Bed Cleaning and Layout (user
instructions).................................................................9
SECTION FIVE General Points (user instructions).....14
SECTION SIX Appliance Data (installation
instructions)...............................................................15
SECTION SEVEN Regulations and Warnings
(Installation instructions)..........................................16
SECTION EIGHT Siting the Appliance (installation
instructions)...............................................................17
SECTION NINE To Install the Appliance (installation
instructions)...............................................................20
SECTION TEN Checking Operation of Fire (installation
instructions)...............................................................23
SECTION ELEVEN Maintenance (maintenance
instructions)...............................................................25
GAS FIRE COMMISSIONING CHECKLIST.....................30
SERVICE RECORD........................................................31
EXTENDED FIVE
YEAR PARTS
WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenrick.co.uk 3 LT5558 (ISS 7)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT5558 (ISS 7)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
FOCUS 18 HE
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT5558 (ISS 7)
SECTION ONE Introduction (user instructions)
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these
products are so designed and constructed as to meet the general safety requirement when properly used and installed.
To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the approval
of the appliance, operation of the warranty and could affect your statutory rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals or cleaning after servicing
/ installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste and should be
disposed of at a site licensed for the disposal of industrial waste.
Introduction
The PARAGON FOCUS 18 HE as been designed and tested for use in GB (Great Britain) and IE (Ireland).
The PARAGON FOCUS 18 HE incorporates a single gas control, which selects ignition pilot, and main burner
low and high settings.
The PARAGON FOCUS 18 HE incorporates a safety device in the form of an Oxygen Depletion System, which
constantly monitors the oxygen in the room and will cause the fire to switch off if the oxygen level reduces,
for instance due to insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the problem
may not be due to lack of air or a defective flue.

6 LT5558 (ISS 7)
Important Information
The appliance is for use on Natural Gas (G20 @ 20mbar)
The chimney or flue (unless new or previously used with a gas appliance) shall be swept before installation if
it has been used for solid fuel.
The fire front (fret) or fascia supplied must be used with this appliance.
Failure to install appliance correctly could lead to prosecution.
In GB (Great Britain), the appliance must be installed by a competent person i.e. GAS SAFE registered, in
accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS, The Building Regulations (or The
Building Regulations (Scotland) or The Building Regulations (Northern Ireland)) and The Current I.E.E. Wiring
Regulations, if appropriate.
In IE (Ireland), the appliance must be installed by a competent person and installed in accordance with the
current edition of I.S.813 Domestic Gas Installation, the current Building Regulations and the current ETCI rules
for electrical installation, if appropriate.
The glass front of this fire acts as a dress guard, conforming to BS 1945 (1997) however; a fireguard conforming
to BS6539 (1997) must be used to protect young children, the elderly or infirm.
The appliance MUST NOT be used with the glass safety screen removed or if it is damaged or cracked.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the
fibre components of the fire, and there are no harmful effects produced.
During the normal operation of the fire some black staining may appear on some parts of the fuel bed. This is
quite normal and adds to the appearance of the appliance. However, if excessive black staining does occur it
may be due to the fuel bed being incorrectly laid. This should be checked prior to contacting a service engineer.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g.
many embossed vinyl wall coverings may become discoloured if placed too close to the appliance. Combustible
material i.e. wall panelling or wallpaper must be removed from behind the fire and fire trim.
It is advised that this appliance is serviced annually; as it is more likely to provide trouble-free operation.
In GB (Great Britain) the fire does not normally require purpose built ventilation, but if for any special reason
purpose built ventilation is provided it should be checked periodically to ensure freedom from obstructions.
In IE (Ireland) permanent ventilation must comply with the current edition of IS813.

www.charltonandjenrick.co.uk 7 LT5558 (ISS 7)
SECTION TWO Operating the Appliance (user instructions)
The full lighting procedure is as follows: -
1. To gain access to the Control Knob remove the ash pan cover.
2. Push knob in as far as possible on gas control.
3. Turn knob anti-clockwise until a click is heard. The knob will stop at the position marked ' ' and a spark
should be seen at the tip of the ignition probe. At the same time the pilot flame should light. KEEP THE KNOB
PRESSED IN FOR 20 SECONDS. Should the pilot fail to light, turn the control knob clockwise to the ' '
position, wait 3 minutes, and repeat the procedure.
4. After lighting the pilot flame the control knob should be allowed to spring out slightly. This will allow you to
turn the knob further anti-clockwise to the position marked ' '. The pilot flame should then ignite the main
fire.
5. It is possible to adjust the height of the flames by turning the control knob between the positions marked ' '
and ' '. Note that the knob 'latches' in position at either end of this movement and must be pushed in
slightly before it can be turned.
6. To turn the fire off, depress the knob slightly and turn it to the ' ' position.
7. To completely extinguish the fire, depress the knob slightly and turn to ' ' the position.
If the ignition fails the pilot can be lit using a taper or a long match.
1. Remove the fire front (Fret) by lifting and pulling forwards or
remove ash pan cover.

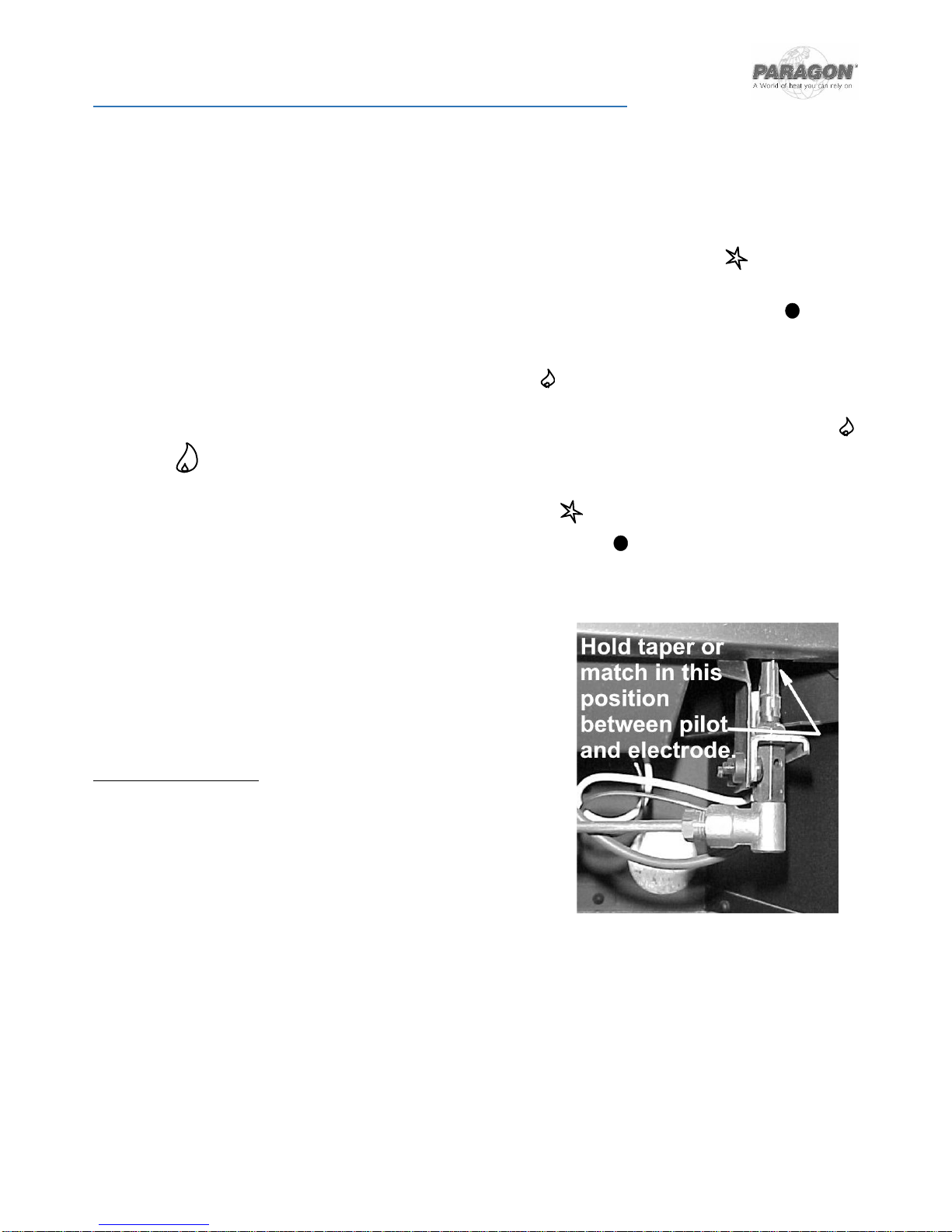

2. Hold match in position as shown and following the lighting
instructions Nos. 2 and 3.
Important Information
If the fire goes out for any reason, or it is turned off and is to be
turned on again, it is necessary to wait three minutes before
attempting to re-light.
The spillage monitoring system will operate if the flue does
not work or becomes blocked.
If the fire repeatedly goes out during use, this may be due to
lack of ventilation or a blocked flue. Expert advice should be obtained.
Do not use the fire with the glass safety screen removed, or if the glass is cracked.

8 LT5558 (ISS 7)
SECTION THREE Cleaning (user instructions)
Warning: -
Before you clean any part of the appliance ensures that the appliance is turned off and cold.
Cleaning: Trim, Fret Or Fascia
Abrasive or chemical cleaner should never be used.
Cleaning: Black Painted Surfaces
These surfaces should be dusted regularly and any marks removed with a soft cloth.
Abrasive or chemical cleaner should never be used.
Cleaning: Pilot Assembly
(Before cleaning ensure that the appliance is turned off and cold)
In some instances you may experience ignition problems even when the
appliance is new. This may be due to the aeration hole in the pilot body (see
photograph) being partial blocked with dust, pet hairs, or other foreign
matter. The source of this debris could be such things as carpet fibres,
decorating or pet etc.
To gain access to the pilot remove the ash pan cover and fret or fascia.
The pilot is located on the right hand side of the appliance, any debris
in or around the aeration hole should be remove using the nozzle of a
vacuum cleaner. It is advisable not to blow the debris into the hole as
this may cause more of a restriction and not rectify the problem.
Note: - Take care when cleaning in this area so as not to damage the pilot assembly.
REMOVING GLASS PANEL
Remove the trim, which is held in position with magnets.
Remove the fret and ash pan cover.
Unscrew and lift off the canopy and remove.
Remove the glass fixing clamp secure with the four securing nuts and lift
it out of the retaining brackets. Take care to support the glass panel
when removing the fixing clamp. The glass should be place in a safe
place to prevent damage.
Once the fuel bed has been
laid reassemble in reverse
order.

www.charltonandjenrick.co.uk 9 LT5558 (ISS 7)
Glass Cleaning
From time to time it will be necessary to clean the glass panel of your Heat Machine fire. We recommend you use a
Ceramic hob cleaner these are available for all leading super markets: - i.e. ASDA, TESCO, SAINSBURY’S Etc.
Brands of hob cleaning we have tested and found suitable are - HOB BRITE & VITRO CLEN.
Ensure the fire as been turned OFF for at least four hours to ensure it is cool.
Remove the glass panel as described below.
Lay the glass panel down on a flat working surface on top of an old opened newspaper with the side to be
cleaned uppermost.
Follow the instructions on the Hob Cleaner Bottle.
On stubborn stains (where the appliance as been used for a long period without glass panel being cleaned),
use a new Brillo Pad well wetted with the Hob cleaner applied directly to it.
Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is completely dry
before fitting to the appliance.
Important:- The appliance must not be used if the glass panel is missing or damaged.
Note: - The glass may discolour quickly when first installed, and it should be cleaned. This is due to the burning off
process of the refractory shapes.
SECTION FOUR Fuel Bed Cleaning and Layout (user instructions)
Warning: -
Before you clean any part of the appliance ensures that the appliance is turned off and cold.
Use only the fuel bed components provided and no additional parts must added.
Incorrect positioning of the fuel bed components could result in the staining of the glass panel.
Important: - Refer to the Health & Safety Notice located on page 5 of this booklet before cleaning or replacing
any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The loose parts and moulded shapes may be removed for cleaning. They can be brushed very gently with a
soft brush to remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.
It is important that all the fuel bed moulded shapes are positioned as shown in these instructions.

10 LT5558 (ISS 7)

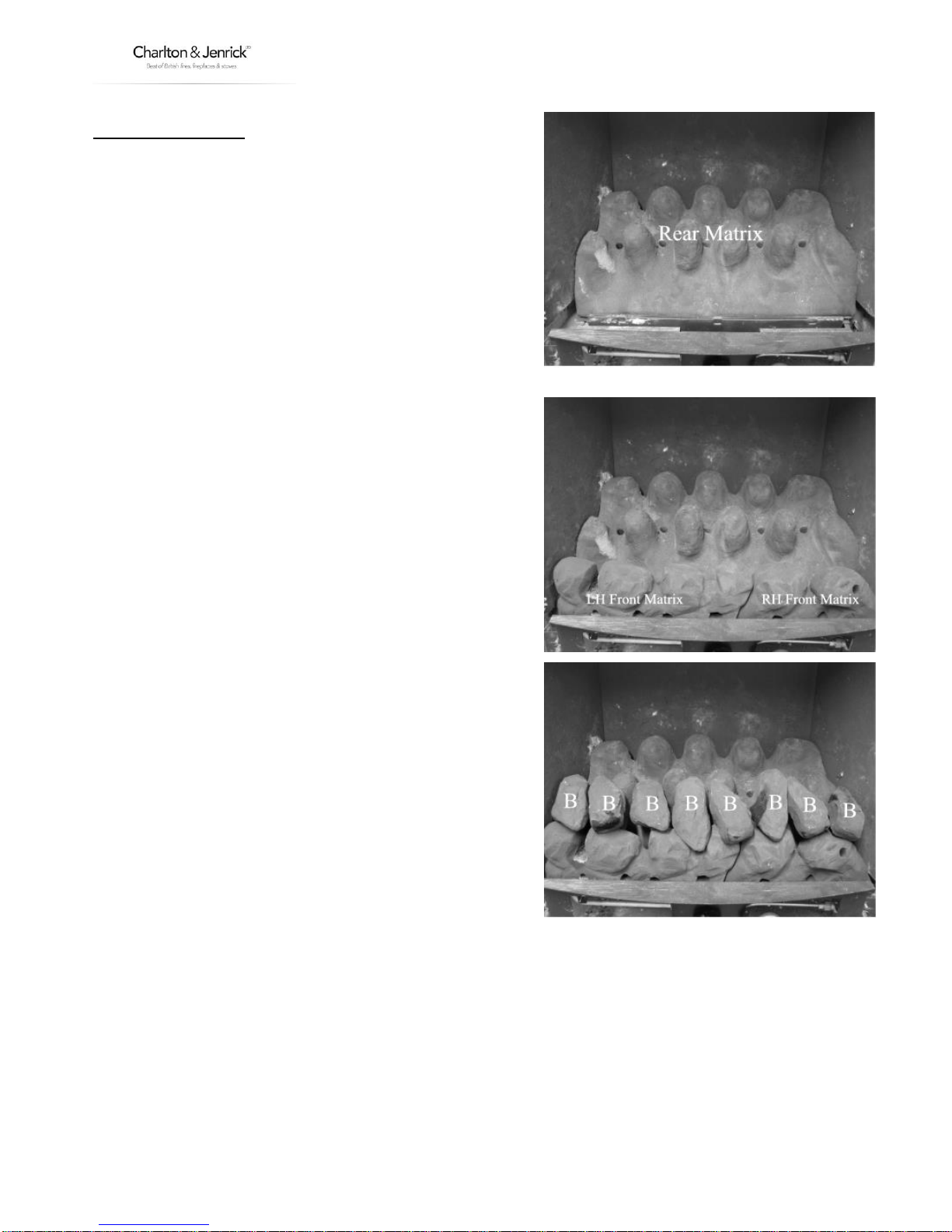

Coal Fuel Bed Layout
Locate the Rear Matrix on the burner ensuring that the
front edge is against the back of the burner slot and not on
top of it.
Place the LH and RH Front Matrix in the channel at the
front of the burner tray.
Lay one row of coals as shown.

www.charltonandjenrick.co.uk 11 LT5558 (ISS 7)
Lay another row of loose coals as shown.
Lay another row of loose coals as shown and refit glass
panel,

12 LT5558 (ISS 7)
* Before fitting the pebble set loosen the burner securing screws and make sure that burner is pushed to the right
side of the burner tray. This will ensure maximum aeration to the burner and reduce discolouration.
Pebble Fuel Bed Layout (Refer to warnings at the beginning of this section.)
Locate the Rear Matrix on the burner ensuring that the
front edge is against the back of the burner slot and not
on top of it.
Place the RH and LH Front Matrix in the channel at the
front of the burner tray.
Lay one row of Pebbles as shown.

www.charltonandjenrick.co.uk 13 LT5558 (ISS 7)
Lay another row of Pebble as shown.
Lay another row of Pebbles as shown.

14 LT5558 (ISS 7)
SECTION FIVE General Points (user instructions)
Like all appliances incorporating an aerated burner a low frequency noise may be heard, particularly on the low setting,
this is quite normal and does not affect the operation of the appliance.
It is advised that a competent person service the Paragon Focus HE fire annually. The fire is more likely to provide
trouble-free operation.
Dulling and slight discoloration inside the firebox will occur adding to the realism of the appliance. This is normal.
It is important that: -
The chimney or flue is checked annually to ensure clearance of combustion products.
The fire front or fascia must be positioned in front of the fire whilst it is burning
Any debris from the chimney or flue should be removed. The fire should be allowed to cool before it is
removed.
The fire must not be used if the glass panel is missing or damaged.
The data badge is located on the left hand side of the appliance base, behind the trim or fascia.
The only user removable parts are: -
Fret
Refractory Fire bed Components
Fascia
Fire trim.
Glass panel .

www.charltonandjenrick.co.uk 15 LT5558 (ISS 7)
SECTION SIX Appliance Data (installation instructions)
NATURAL GAS
Gas Type: CATEGORY I 2 H
Gas Pressure: 20 mbar +/- 1.0mbar
Pressure Test Point Location: Gas inlet elbow
Gas Input: 5.7 kW Gross (Max.)
3.0 kW Gross (Min.)
Injectors: Mk 365
Oxy pilot: 9044
Gas Connection: 8mm compression: semi-rigid or rigid
Data Badge Location: Located on bottom left hand side of the appliance behind the trim/fascia.
Appliance Dimensions
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009 + A1: 2013 and the result is 73.8%. The gross calorific
value of the fuel has been used for this efficiency calculation. Gastec have certified the test data from which it has been calculated. The
efficiency value may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings. Please note: The
restrictor fitted to the appliance is there to achieve the maximum efficiency. This, however, may require removal where a flue is
underperforming.
When unpacking the appliance please check the following items are included:
Fuel Bed: Coal or Pebble:
Wire Fixing Kit (Including magnets ),Foam sealing strip, Owner’s Manual,
Trim and Fret or Fascia.
250
310
450
430
555

16 LT5558 (ISS 7)
SECTION SEVEN Regulations and Warnings (Installation instructions)
This appliance must only be installed in Great Britain or Ireland.
The appliance is suitable for use on natural gas and propane
GB (Great Britain) This fire does not normally require purpose build ventilation.
IE (Ireland) Permanent ventilation must comply with the current edition of IS813.
In GB, (Great Britain)
It is the law that all gas appliances must be installed by a competent person; i.e. a GAS SAFE registered installer, in
accordance with the Current Gas Safety (Installation And Use) Regulations (as amended), all relevant parts of the local
and national building regulations and all relevant recommendations of the following British Standards. Failure to do
so could lead to prosecution.
The following are relevant codes of practice and British Standards: -
B.S. 5871
B.S. 5440 PART 1 & PART 2
B.S. 6891
This appliance must be installed to current versions of the above standards and include any relevant
amendments to:-
The Building Regulations Issued By The Department Of The Environment.
The Building Standards (Scotland) (Consolidated) Regulations Issued By The Scottish Development Office.
IN IE, (Ireland)
The appliance must be installed by a competent person and installed in accordance with the current edition of I.S.813
Domestic Gas Installation, the current building regulations, and the current ETCI rules for electrical installation, if
appropriate.
Prior to the installation ensure that the local distribution conditions (identification of type of gas and
pressure) and adjustment of the appliance are compatible. Natural gas (G20 @ 20mbar )
IMPORTANT NOTE: - The fire front (fret) or fascia supplied must be used with this appliance.
WARNINGS
The glass front of the fire act as a dress guard, conforming to BS 1945 (1971) and satisfies the heating appliance
regulations (1991) However, a guard conforming to BS6539 (1984) must be used to protect young children, the
elderly or infirm.
This appliance incorporates a safety device in the form of an Oxygen depletion system. IT MUST NOT BE
ADJUSTED OR PUT OUT OF OPERATION! THIS IS A NON-SERVICABLE ITEM AND MUST BE EXCHANGED AS A
COMPLETE ASSEMBLY; USING ONLY THE ORIGINAL MANUFACTURER'S PART.
A non-combustible hearth must be provided to comply with the building regulations, or a suitable proprietary fire
surround with a 150°C minimum rating.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the fibre
components of the fire, and there are no harmful effects produced.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.

www.charltonandjenrick.co.uk 17 LT5558 (ISS 7)
SECTION EIGHT Siting the Appliance (installation instructions)
CLASS ONE
That is a conventional brick or stone chimney as used for a solid fuel appliance with an effective cross-sectional
dimension of 225 x 225 mm (9” x 9”) or a lined flue with a minimum diameter of 125mm (5”). The chimney must have
a minimum effective height of at least 3 metres. Any permanent flue restriction or variable dampers are to be
removed or locked fully open. The chimney should be swept prior to installation if it has previously been used with
solid fuel. This is not necessary if the flue has previously been used with a gas appliance or if it is a new installation.
Note: A brick or stone chimney with a 125 mm (5 ins) minimum diameter flue liner conforming to BS 715 may be
used. Provided a suitable sealing plate is fitted to the base of the liner and the appliance does not restrict the
opening into the liner.
CLASS TWO FABRICATED METAL
A double-walled or insulated metal flue box built to the requirements of BS 715 with an insulated flue having a
minimum diameter of 125 mm (5 ins) and a minimum effective overall height of 3 metres (10 ft).
Note: Dampers or register plates must not restrict any of the above flues. The flue must only service a single
appliance and not have any branches or traps, which may impede the natural draught. If a terminal is fitted it must
be suitable for the purpose.
Surrounds
The fire can be fitted in either a conventional hearth (i.e. tile fireplace etc), plinth mounted, in a fire surround, or a
hole-in-the-wall installation. If a heaths or plinths is used it MUST be non-combustible.
Purpose built superimposed fire-resistant hearths and back panels, specified as suitable by the manufacturers, may
be used, or a suitable proprietary fire surround with a 150oC minimum rating.
The trim and fret supplied with the appliance determines the type of installation that can be accommodated. Check
table below for installation compatibility.
IMPORTANT NOTE when the fire is installed without a fireplace or non combustible back panel any wall surface or
covering that comes in contact with the appliance and is not non combustible must be removed.
Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration e.g. many
wall coverings may become discoloured if placed too close to the appliance.

18 LT5558 (ISS 7)
FIREPLACE OPENING
The front face and the base of the fire opening must be flat to ensure that a good seal is formed between the rear
and base of the appliance and the chimney to avoid any reduction of natural draught.
455-500mm
560-580mm
320mm
Min
Hearth or Plinth
Can be used with
Standard four sided
trim option.
Floor
X
This area behind the trim/fascia must be clear of
combustible material and be flat to accommodate the
seal.
When installing the standard four sided trim option this area at the
base of the opening must be clear of combustible material and be
flat to accommodate the seal.
TRIM / FACSIA DIMENSION ARE SPECIFIED IN THE
APPLIANCE DATE SECTION.

www.charltonandjenrick.co.uk 19 LT5558 (ISS 7)
Heath or Plinth Mounted When fire
fitted with STANDARD THREE SIDED
TRIM
Hole In Wall
(No Plinth)
When fire fitted with STANDARD FOUR
SIDED TRIM
Heath / Plinth Size
(Minimum Dimensions)
Width 505mm
Depth 100mm
Thk 50mm
NA
‘X’ Ht from floor to base of
opening. (min.)
50mm
150mm
Heath or Plinth Mounted only (It can fitted hole in wall but a plinth is required to
support the trim and fret.)
Heath / Plinth Size
(Minimum Dimensions)
Width 520mm
Depth 100mm
Thk 50mm
‘X’ Ht from floor to base of
opening. (min.)
50mm
Heath Mounted
Heath or Plinth Mounted
(It does not need a plinth to
support the fascia but a plinth can
be used for aesthetic purposes if
required.)
Hole In Wall
(No Plinth)
Heath / Plinth Size
(Minimum Dimensions)
Width 6154mm
Depth 100mm
Thk 50mm
Width 615mm
Depth 100mm
Thk 50mm
NA
‘X’ Ht from floor to base of
opening. (min.)
50mm
50mm
150mm

20 LT5558 (ISS 7)
Clearance to Shelf
Minimum clearance from hearth or base of
opening to underside of combustible shelf
should be 780mm provided the shelf depth is
100mm (4”). This gives a minimum clearance
above the appliance of 170mm. For a shelf of
150mm (6”) the minimum height above the
hearth or base of opening must be 880mm. This
will give a minimum clearance above the
appliance of 270mm. For other depth refer to
the shelf chart.
Clearance to Sides of Fire
Minimum width between vertical sides of
combustible surround should not be less than
800 mm provided fire is central to the surround
and sides do not project more than 150 mm.
When vertical side forward projection is
increased by 12.5 mm add 50 mm to inside width
of surround.
SECTION NINE To Install the Appliance (installation instructions)
CHECKING THE FLUE AND FIRE OPENING
Check that the chimney conforms to the required specifications as previously stated. Examine the condition
and carry out any remedial work including removing any debris from the base.
If the flue has been used for solid fuel it should be swept prior to the installation
Prior to installing the appliance a smoke test (using a smoke bomb) should be carried out to check that
satisfactory smoke clearance has been established.
If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-check. If there is any
uncertainty examine for the cause and, if necessary, seek expert advice.
No combustible material should be fitted inside the fireplace opening.
When installing this appliance against a dry lined (plasterboard) wall ensure that any void between the
plasterboard and the wall is sealed with a suitable non-combustible material (i.e. plaster or mortar).
600
650
700
750
800
850
025 50 75 100 125 150 175 200
SHELF PROJECTION
EXAMPLE 835mm SHELF HEIGHT=125mm MAX. SHELF WIDTH
no combustables
belowthis height
730mm
SHELF HEIGHT FROM HEARTH
HEAT MACHINE
900
950
All dimensions inmm's
