Charlton & Jenrick Paragon Core BF Remote Control User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
Core BF Remote Control
Keepthis bookletforservicelog andfuturereference
For use in Great Britain and Ireland.
Literature No 8227 (ISS 1)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Important Information (user
instructions).................................................................5
SECTION TWO Introduction (user instructions) .........7
SECTION THREE Operation (user instructions)...........8
Low Battery Indication (Handset)...............................9
SECTION FOUR Cleaning & Fuel Bed Laying Continued
(user instructions) .....................................................10
SECTION FIVE Replacement Parts (user instructions)
...................................................................................15
SECTION SIX Appliance Data (installation
instructions)...............................................................16
SECTION SEVEN Regulations and
Warnings(installation instructions) ..........................17
SECTION EIGHT Siting the Appliance (installation
instructions)...............................................................18
SECTION NINE Preparing the Appliance for
Installation (installation instructions) ......................20
SECTION TEN Power Lead Routing............................20
SECTION ELEVEN To Install the Appliance (installation
instructions)...............................................................21
SECTION TWELVE Assemble the Appliance
(installation instructions)..........................................26
SECTION THIRTEEN Check Operation of Fire
(installation instructions)..........................................26
SECTION FOURTEEN Instruct and Advise the
Customer (installation instructions).........................26
SECTION FITHTEEN Maintenance Instructions
(maintenance instructions).......................................27
BALANCED FLUE GAS FIRE COMMISSIONING
CHECKLIST ..................................................................30
SERVICE RECORD........................................................31
EXTENDED FIVE YEAR PARTS
WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled outand therecordof annualservicesmustbe up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenrick.co.uk 3 LT8227 (ISS 1)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT8227 (ISS 1)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference, we suggest you record the following details here, and keep the receipt as proof of
purchase. This information maybe asked for when you contact the helpdesk.
MODEL:
Paragon Core BF Remote Control
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT8227 (ISS 1)
SECTION ONE Important Information (user instructions)
Consumer protection information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these
products are so designed and constructed as to meet the general safety requirement when properly used and installed.
To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the approval
of the appliance, operation of the warranty and could affect your statutory rights.
Health and safety notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals or cleaning after servicing
/ installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste’ and should be
disposed of at a site licensed for the disposal of industrial waste.
•The PARAGON CORE BF is an inset room sealed decorative fuel-effect gas appliance.
•The PARAGON CORE BF is available in Natural Gas (G20 @ 20 mbar Only). The marking (G20 for natural gas)
on the packaging and the data badge specify the gas for which the appliance has been factory set. Note:
These appliances should only be used on the appropriate gas specified. They are not suitable for
conversion from one gas to the other.
•Failure to install appliance correctly could lead to prosecution.
•In GB (Great Britain), the appliance must be installed and serviced by a competent person i.e. Gas Safe-
registered, in accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS, The Building
Regulations (or The Building Regulations (Scotland) or The Building Regulations (Northern Ireland)) and The
Current I.E.E. Wiring Regulations, if appropriate.
•In IE (Ireland), the appliance must be installed and serviced by a competent person and installed in
accordance with the current edition of I.S.813 Domestic Gas Installation, the current Building Regulations
and the current ETCI rules for electrical installation, if appropriate.
•The PARAGON CORE BF does not require a chimney, but must be installed against an outside wall.
•It is important that the flue terminal is regularly checked and kept clear at all times.
•If the terminal is accessible to people (i.e. less than 2m above a walkway, balcony etc.) the terminal guard
must be fitted to prevent access to the flue outlet, which becomes hot when the fire is in use.
•All combustible material must be removed from behind the fire and fire trim.

6 LT8227 (ISS 1)
•As the PARAGON CORE BF is a room sealed appliance (i.e. air for the combustion process is taken from
outside the room) no purpose built ventilation is requires.
•The PARAGON CORE BF is designed and tested to meet the requirements of the European Standard EN 613.
•The PARAGON FOCUS RS REMOTE is powered by mains electricity via pre-wired transformer plus supply cord
•The standby facility switches off the mains gas supply to the appliance but the pilot remains alight.
•Although the PARAGON CORE BF is fitted with a glass front which acts as a dress guard it is strongly
recommended that a fireguard should be used for the protection of children, the elderly or infirm.
Fireguards should conform to B. S. 6539 (1984) (Fireguards for use with solid fuel appliance).
•The slot located at the top of the PARAGON CORE BF are the hot air outlets and as such must not be
obstructed in any way (particularly by clothes or other combustibles). In addition the base of the appliance
should not be obstructed by such items as this may adversely affect the performance of the appliance.
•Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration.
Many wall coverings may become discoloured if placed too close to the appliance, it is strongly
recommended that any proposed wall covering intended for use immediately above the appliance should be
tested in the hottest position (immediately above) first. Run the fire on high over a few days
•The first time you light your new appliance a smell may occur due to its new condition. This is quite normal
and will soon disappear after a few hours use at maximum setting (open a window until the smell
disappears).
•The appliance MUST NOT be used if the glass panel is not correctly fitted or if this panel is cracked or
broken.
•Any debris should be cleaned from the appliance. A vacuum cleaner can be used but only after all the loose
coals have been removed.
•Prior to removing or cleaning the fuel bed components refer to the ‘Health and Safety Notice’ located on
page 5 of this booklet.
•The appliance should be serviced annually by a competent person i.e. a Gas Safe registered engineer in
accordance with these instructions.
•The glass or any part of the appliance MUST NOT be cleaned or wiped whilst the appliance is HOT, to do so
could be dangerous and may damage the paintwork of the appliance.
•The cast fire front or Fascia casing MUST BE positioned in front of the fire whilst it is burning.
•Where a fire front (fret) is used with this appliance it must conform to the following:
•It must be made from non-combustible material.
•Its general construction should enable it to stand firmly across the full width of the burner.
•The design of the fire front (fret)
must have a removable ashtray
cover (lower section).
•The ash tray cover must have cut
outs and or holes which provide
ventilation to the underside of the
burner.
•The effective area of ventilation
through the ash tray cover must
be greater than 1365mm2(2.12
sq. ins.)
Effective Ventilation
1365mm2MINIMUM
REMOVABLE COVER

www.charltonandjenrick.co.uk 7 LT8227 (ISS 1)
SECTION TWO Introduction (user instructions)
•The PARAGON CORE BF is an inset room sealed live fuel-effect gas appliance designed for use in locations
that do not have a conventional chimney. The appliance must be installed against an outside wall because
the air to support combustion is taken from the outside and the products of combustion are expelled to the
outside.
•The appliance incorporates a safety device in the form of a FLAME SUPERVISION DEVICE, which constantly
monitors the flame and will cause the gas to be switched off if the flames are extinguished for any reason.
THIS DEVICE MUST NOT BE OVERRIDDEN. If this situation occurs on a regular basis have the appliance
checked by a qualified engineer. The problem may be due to a blocked or restricted flue.
•Before removing the fret, trim, glass or fuel bed for cleaning the fire should be turned off, and left to cool
down.
•NOTE: In use some discoloration of the components will take place in the combustion box, this is normal, but
can be kept to a minimum if the logs are placed correctly (i.e. after cleaning). See Section 4.
•As with all heating appliances certain areas (Working Surfaces) become very hot when the appliance is in
use. Only the control handle should be touched when the fire is being used.

8 LT8227 (ISS 1)
SECTION THREE Operation (user instructions)
Do not use this appliance without the glass panel fitted, or if this panel is cracked or broken.
WARNING: If the burner or pilot is extinguished for any reason, do not attempt to re-light
the pilot for at least three minutes.
WARNING: If the burner or pilot is extinguished for any reason, do not attempt to re-light the pilot for at
least three minutes.
Before attempting to operate the appliance check that nothing
has been placed in front of the appliance.
To light the appliance using the remote handset:
A. Point the remote control handset in the direction of the
appliance and simultaneously press the buttons marked ‘
off’ and ‘standby’. Continue to hold in these two
buttons until a ‘bleep’ is heard (approximately 2-3 sec.)
and then release these buttons. The appliance will
automatically go through the ignition sequence and the
pilot should ignite. Once the pilot is alight the appliance
will automatically go to the high setting (approximately
20-25sec). If the ignitor stops sparking and the pilot fails
to light, repeat this procedure.
B. The appliance can be adjusted up or down by pressing the appropriate button ' ' (low setting) or '' (high
setting).There are 5 heat settings and the fire will give a double bleep when the maximum or minimum heat
setting is reached. To switch off the appliance press the OFF ' ' button or if the appliance is to be switch off
for a short period it is recommended that the ‘standby’ button be used. This switches the main burner off
but leaves the pilot on.
C. The appliance can be switched off without using the handset by disconnecting the power lead. When the
lead is removed there will be a delay (up to 3minutes) after which double bleeps may be heard and shortly
after the appliance will extinguish. Ensure that the lead is reconnected once the fire has been extinguished.
The appliance cannot be operated without the use of the handset. If the fire fails to light or extinguishes for
any reason, it will be necessary to re-set the fire. This can be done by pressing the off button then
following the normal lighting procedure.
NOTE: If the fire is extinguished for any reason wait 3 minutes before relighting.

www.charltonandjenrick.co.uk 9 LT8227 (ISS 1)
Low Battery Indication (Handset)
If while pressing any of the buttons on the remote handset the low
battery indicator lamp either stops flashing or appreciably slows
then the batteries should be changed.
To Replace Batteries In Handset (AAA 1.5 v lr3 X2)
Remove the cover from the rear of the handset and fit
replacement batteries. Take note of the orientation of the
batteries as shown on the base of the battery compartment.
SECTION FOUR Cleaning & Fuel Bed Laying (user instructions)
Warning: -Before you clean any part of the appliance ensure that the appliance is switched off and cold.
CLEANING: DECORATIVE TRIM
•The Decorative finish of the trim is coated with a high temperature lacquer, it should be wiped with a soft,
clean, dry, cloth only.
•The trim should be removed for cleaning. The fret should be removed before removing the trim, which is
held in place by four magnets.
CLEANING: BLACK PAINTED SURFACES
•These surfaces should be dusted regularly and any marks removed with a soft cloth.
•Abrasive or chemical cleaner should never be used.
CLEANING: GLASS PANEL
From time to time it may be necessary to clean the glass panel.
We recommend you use a Ceramic Hob Cleaner (brands such as
HOB BRITE and VITRO CLEAN have been found to be acceptable)
these are available from most leading Supermarkets.
Follow the Instructions on the Hob Cleaner Bottle.
Remove the glass panel as follows:
•Remove ash pan cover and fret if fitted.
•Remove decorative trim (held in place with four magnets)
or fascia.
•Remove the 2 nuts that hold the fret cover on, and remove
fret cover. Push the canopy upwards to disengage the
hooks.
•Slacken but do not remove the 4 nuts securing the glass
frame.

10 LT8227 (ISS 1)
•Remove the 2 nuts located on the bottom of the glass frame. Note: when it is replaced ensure the glass is
central and that all the four studs pass through the slots in the glass frame.
•While supporting the glass panel, remove the 2 nuts securing the sides of the glass frame, remove the glass
frame and slide it out gently.
•Lay the glass panel down on a flat working surface on top of an old opened newspaper with the side to be
cleaned uppermost.
On stubborn stains (where the appliance has been used for a long period without glass panel being cleaned), use a
new Brillo Pad well wetted with the Hob cleaner applied directly to it.
Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is completely dry before
fitting to the appliance.
SECTION FOUR Cleaning & Fuel Bed Laying Continued (user instructions)
Note: - If the fuel bed has not been placed correctly, causing the gas flame to contact the glass this may result in
glass staining that cannot be removed by cleaning.
Re-assemble in reverse order ensuring the seal is compressed evenly at the top and bottom
Re-fit the top canopy before re-fitting the trim and fret or fascia and before re-lighting.
CLEANING AND REPLACING Fuel Bed Parts
Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before cleaning or replacing
any refractory material.
Use only the Fuel Bed part provided NO OTHER FUEL BED PARTS SHOULD BE ADDED to the appliance
If any Fuel Bed Parts are broken then they must be replaced before the appliance is used.
The fuel bed parts are delicate and should be handled with great care.
The loose parts should be removed for cleaning. They can be brushed very gently with a soft brush to remove dust or
any deposits.
A vacuum cleaner may only be used after all the loose logs have been removed. Please ensure you have replacement
vermiculite and Embaglow available.
NOTE: During operation some sooting will be evident on the fuel bed whether running on the high or low setting.
This may be reduced by running on the opposite setting for 15 minutes prior to switching the fire off i.e. If fire is

www.charltonandjenrick.co.uk 11 LT8227 (ISS 1)
running on high then turn to low for 15 minutes before turning off. This will not eliminate all
soot but helps keep it to a minimum.
LOG BED LAYOUT
•The Log set as shown consists of:
•1 Bag of vermiculite
•3 Base shapes
•10 Overlay log shapes
•1 Pouch of Embaglow
Place the front sump in position as shown.

12 LT8227 (ISS 1)

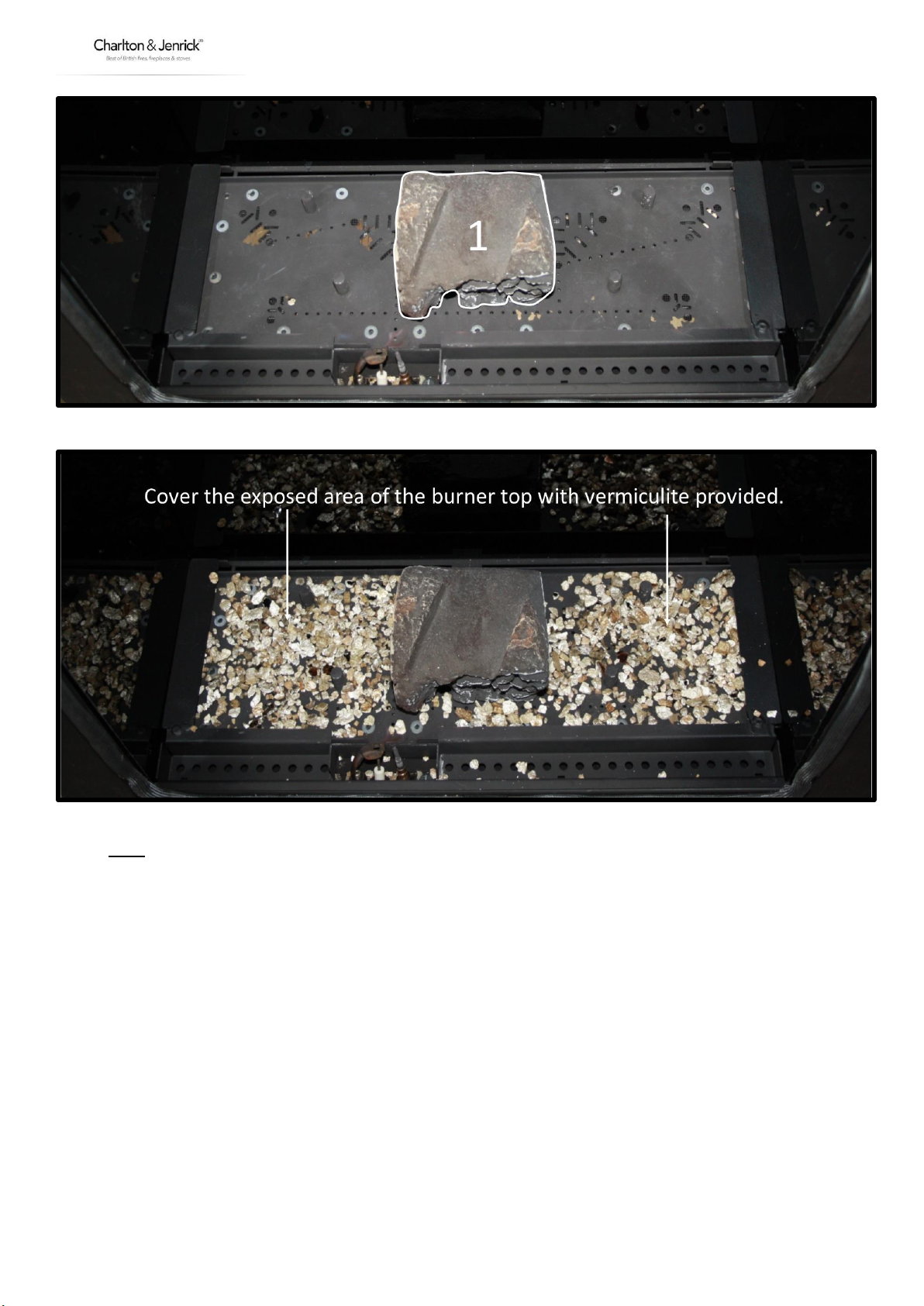

Place shape No1 directly onto the studs as shown.
Place a VERY thin layer of vermiculite over the burner as shown.

www.charltonandjenrick.co.uk 13 LT8227 (ISS 1)
Place Logs No2 & No3 on top of the studs in the positions shown.
Loosely tease out the Embaglow into a fine nest and placein the areas as shown.
Take great care not to get any on the pilot.

14 LT8227 (ISS 1)
Fit the front three logs as shown.
Position log 7 on its location peg and log 8 within the channel on the base shape as shown.
6
4
5

www.charltonandjenrick.co.uk 15 LT8227 (ISS 1)

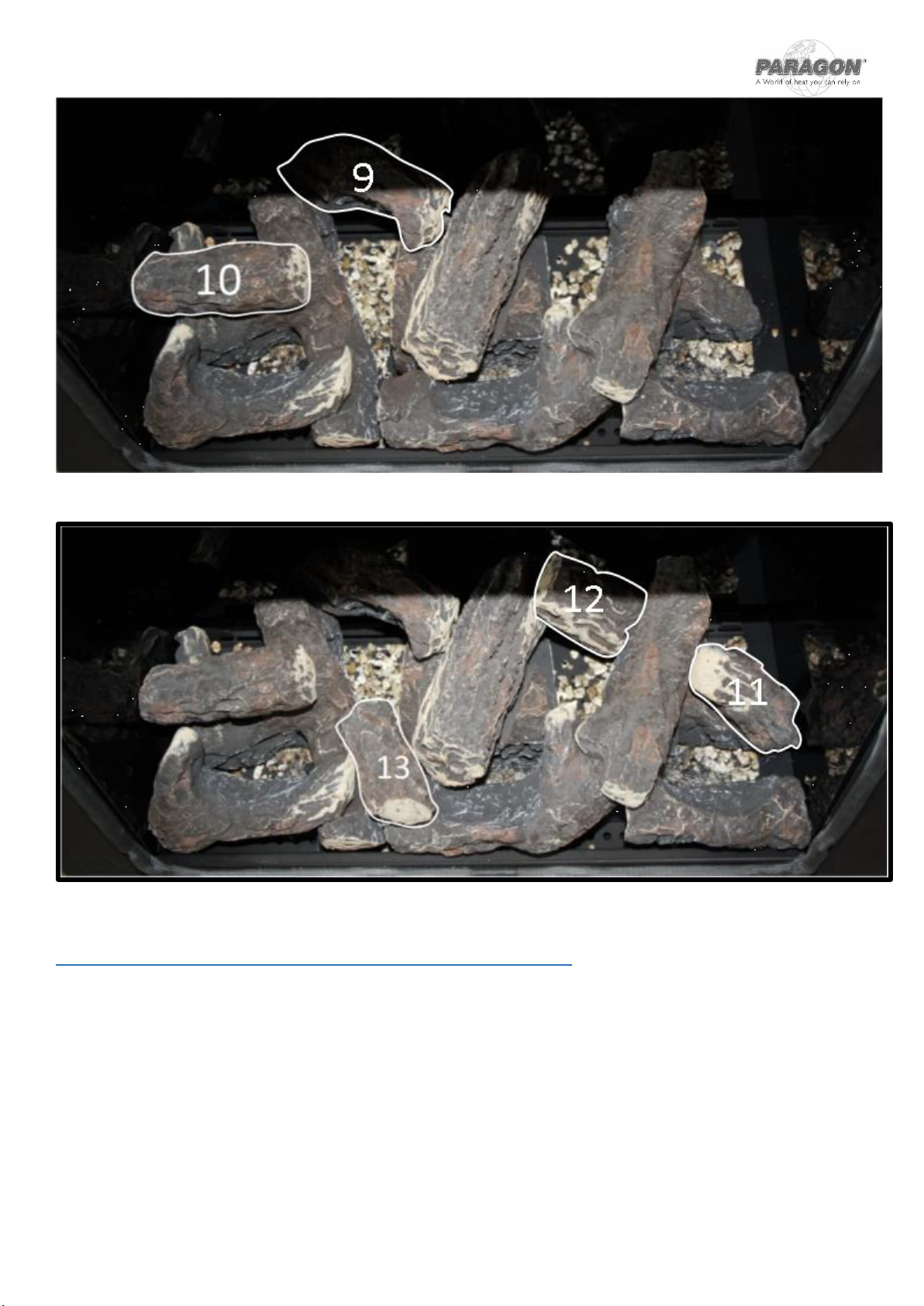

Place log 9 on the peg from log 8 so it bridges the gap. Place log 10 on its location peg as shown.
Place the three remaining shapes as shown.
SECTION FIVE Replacement Parts (user instructions)
The only user removable parts are: -
•Cast fret
•Top Canopy
•Glass panel, fixing clamps and fret cover
•Decorative Trim
•Refractory fuel bed components

16 LT8227 (ISS 1)
SECTION SIX Appliance Data (installation instructions)
Wall Cut-out dimensions: Height 555mm
Width 405mm
Overall dimensions: Height 599mm
Width 490mm
Forward Projection: 90mm, (From fireplace opening Including typical fret.)
Weight: 38.5kg (Boxed excluding fret)
37kg (Unboxed excluding fret)
Flue Length and duct length: 100mm (minimum) to 600mm (maximum)
Standard length supplied with fire is 600mm which can be cut down to the required length.
No additional lengths or extensions can be used.
Injector …………………………………………………………………………MK 360
Pressure Test Point Location: Gas inlet elbow
Gas Connection: 8.0mm O/D, tube.
Data Badge Location: On the appliance base behind decorative front.
Handset Replacement Batteries 2 x AAA 1.5V
Power Supply Type Plug –Input: 100-240 VAC 50/60 Hz, 0.2A
MODEL
NG(G20)
Category of appliance
CII
NOXClass
5
Efficiency Class
1
Gas Category
I2H
Gas Type
G20 Natural Gas
Gas Pressure +/- 1.0mbar
20 mbar
Gas Input (Max)
4.9 kW Gross
(Min)
3.5 kW Gross
Injectors size
360
NOTE: The efficiency of this appliance has been measured as specified in BS EN613-2001 and the result is 79.9% natural
gas The gross calorific value of the fuel has been used for this efficiency calculation. GasTec have certified the test data
from which it has been calculated. The efficiency value may be used in the UK Government’s Standard Assessment
Procedure (SAP) for energy rating of dwellings.

www.charltonandjenrick.co.uk 17 LT8227 (ISS 1)
SECTION SEVEN Regulations and Warnings(installation instructions)
•THIS APPLIANCE MUST ONLY BE INSTALLED IN GREAT BRITAIN OR IRELAND.
•THE APPLIANCE IS AVAILABLE IN NATURAL GAS ONLY.
•CONFIRM THAT THE APPLIANCE IS SUITABLE PRIOR TO INSTALLATION (G20 FOR NATURAL GAS) (REFER TO
DATA BADGE ON BASE OF APPLIANCE). NOTE: THE APPLIANCE SHOULD ONLY BE USED ON THE APPROPRIATE
GAS SPECIFIED. IT IS NOT SUITABLE FOR CONVERSION FROM ONE GAS TO THE OTHER.
•THIS APPLIANCE MUST BE INSTALLED ON A SUITABLE OUTSIDE WALL.
•NO SPECIAL VENTILATION BRICKS OR VENTS ARE REQUIRED INTO THE ROOM CONTAINING THE APPLIANCE.
•IT IS THE LAW THAT ALL GAS APPLIANCES MUST BE INSTALLED BY A COMPETENT PERSON; I.E. A GAS SAFE
REGISTERED INSTALLER, IN ACCORDANCE WITH THE CURRENT GAS SAFETY (INSTALLATION AND USE)
REGULATIONS 1994 (AS AMENDED), ALL RELEVANT PARTS OF THE LOCAL AND NATIONAL BUILDING
REGULATIONS AND ALL RELEVANT RECOMMENDATIONS OF THE CURRENT BRITISH STANDARDS. FAILURE TO
DO SO COULD LEAD TO PROSECUTION.
THE FOLLOWING ARE THE RELEVANT CODES OF PRACTICE AND BRITISH STANDARDS: -
B.S. 5871 PART 2 B.S. 5440 PART 1
B.S. 6891 B.S. 1945
Note:- This appliance must be installed to current versions of the above standards and include any relevant
amendments.
THE BUILDING REGULATIONS ISSUED BY THE DEPARTMENT OF THE ENVIRONMENT.
THE BUILDING STANDARDS (SCOTLAND) (CONSOLIDATED) REGULATIONS ISSUED BY THE SCOTTISH DEVELOPMENT
OFFICE.
PRIOR TO THE INSTALLATION ENSURE THAT THE LOCAL DISTRIBUTION CONDITIONS
(INDENTIFICATION OF TYPE OF GAS AND PRESSURE) AND ADJUSTMENT OF THE
APPLIANCE ARE COMPATIBLE. (G20 @ 20mbar Natural Gas Version)
warnings
•As this appliance has components, which get very hot as with all such fires, it is recommended that a fireguard
should be used for the protection of children, the elderly, or the infirm. Fireguards should conform to B.S.6539
(1984) (Fireguards for use with solid fuel appliances).
•During initial use, an odour may be evident. This will soon disappear if the fire is run on its maximum setting for a
few hours.
•Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration, e.g. wall
coverings may become discoloured if placed too close to the appliance.
IMPORTANT NOTES
This appliance is a fuel effect gas fire designed for use in locations that do not have a conventional chimney.

18 LT8227 (ISS 1)
SECTION EIGHT Siting the Appliance (installation instructions)
(When installing in a timber framed dwelling reference must be made to the specific installation requirements stated
in Section 10 Installing the Appliance in Timber Framed Dwelling).
THERE ARE TWO TYPES OF INSTALLATION (into conventional masonry walls): -
•The appliance body can be recessed back into the brickwork cavity so that the appliance is flush fitting with
the wall or fireplace back panel, see Installation Instructions,
OR
•With a dummy chimneybreast constructed forward into the room to take up the 180mm depth of the
firebox. This depth can be reduced if a deep rebated surround is also used the rebate depth can be deducted
from the dummy breast depth any surround used must meet the specification stated later in this section.
Prior to installing the appliance, all combustible materials must be removed from the rear faces as described
in Section 10.
GENERAL REQUIREMENTS
•The flue and air duct length must be
between 100mm to 600mm. The
fire is supplied with a standard pipe
length of 600mm. The flue and air
duct must not accommodate any
bends.
•The flue outlet must terminate on a
suitable outside wall.
•The minimum flue terminal
clearances, which must be
maintained, are as shown below.
A. Directly below an openable
window or other opening. E.g.
air brick 300mm
B. Below gutters, soil pipes or drain pipes 300mm
C. Below eaves 300mm
D. Below balconies or car port roofs 600mm
E. From vertical drain pipes and soil pipes 75mm
F. From internal and external corners 300mm
G. Above ground, roof or balcony level 370mm
H. From a surface facing the terminal 600mm
I. From a terminal facing the terminal 1200mm
J. From an opening in a car port into a dwelling e.g. door, window, etc 1200mm
K. Vertically from a terminal on the same wall 1500mm
L. Horizontally from a terminal on the same wall 300mm

www.charltonandjenrick.co.uk 19 LT8227 (ISS 1)
Note: These dimensions are taken from the center of the flue outlet.
*To minimise the risk of cracking due to heat expansion the use of a 3-piece back panel is recommended*
•The back panel of the surround must have a
cut-out within the maximum and minimum
dimensions as shown.
•Ensure that gas supply is suitably sited.
•A non-combustible hearth must be provided
beneath the appliance if the appliance is
fitted at low level (less than 150mm from
floor). The hearth must have a minimum
thickness of 12mm and the perimeter 50mm
above floor level. The hearth must extend the
full width of the appliance and must project
forward a minimum of 100mm in front of the
appliance.
•Alternatively the appliance may be fitted
without a hearth (Hole in the Wall type
installations), 150mm min. from the floor to
the base of appliance

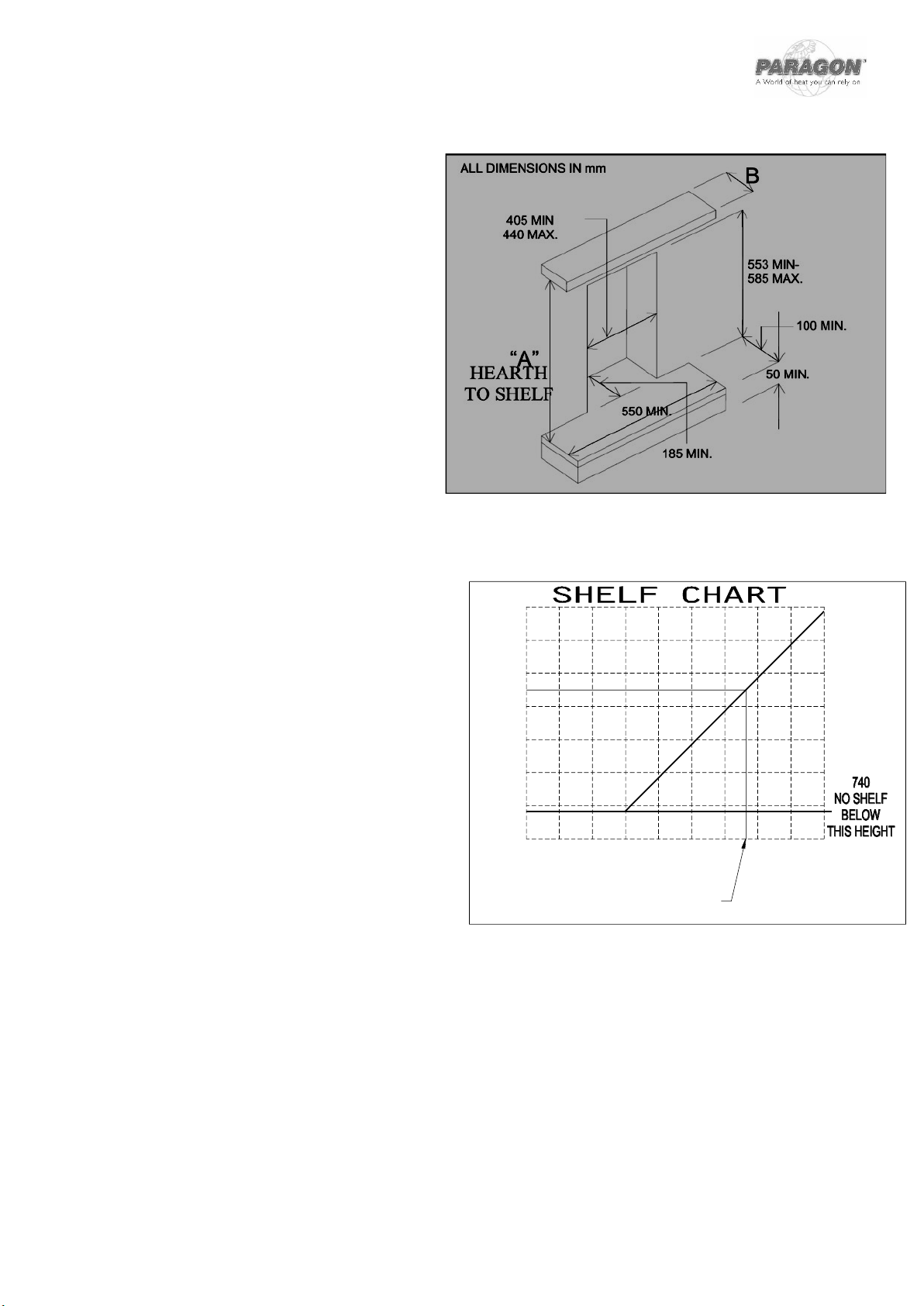

•The minimum clearance from the hearth (base of appliance) to the underside of a combustible shelf should
be determined using the shelf chart.
•Minimum width between vertical sides of
combustible surround should not be less than
800 mm provided fire is central to the surround
and sides do not project more than 150 mm.
When vertical side forward projection is
increased by 12.5 mm add 50 mm to inside
width of surround.
•Check with the supplier or manufacturer that the
surround meets 1500C minimum rating
(attention should especially be given to man
made materials such as resin).
•When installing in a timber framed dwelling
reference must be made to the specific
installation requirements stated in Section 10
Installing The Appliance In Timber Framed
Dwelling.
•*Please note - Appropriate measures should be taken when installing into a working flue system i.e. out
through an existing chimney *
25 50 75 100 125 150 175 200 2250
750
800
850
900
950
1000
1025
EXAMPLE: 925 SHELF HEIGHT=165 MAX. SHELF WIDTH
"B" SHELF WIDTH
"A"SHELF HEIGHT FROM HEARTH
all dimensions in mm's

20 LT8227 (ISS 1)
SECTION NINE Preparing the Appliance for Installation (installation instructions)
•Carefully unpack the appliance from the carton and check the contents.
•Remove the refractory components from the inside of the appliance.
•The appliance is now ready for installation.
SECTION TEN Power Lead Routing
The power supply for this appliance is provided via AC power adaptor 230 VAC. The main cable terminates the rear
Right hand side of the firebox. The length of the cable provided with the appliance is 1.65 metres. Care must be
taken when siting the firebox not to trap the exposed main cable within the builders opening.
Note: the power cable link to the transformer must be accessible for re-pairing handset.
The cable can be routed using the following two methods,
Method 1,
Passing the cable through the side of the chimney breast. It is good practice to run the cable within a sleeve of at
least 15mm internal diameter, sealing the sleeve using a suitable sealant at the point the sleeve / cable terminates
the chimney masonry.
Method 2,
Remove a channel out of the outer skin of the Dry / wet plaster of the chimney breast up to the main power point.
Again it is good practice to run the cable within a sleeve of at least 15mm internal diameter.
With power points that exceed the 1.65 metre distance, an optional 2.0 metre extension cable is available Part No
7147.
The cable system consists of retro fitting plug sockets which offers the following options. (Please see figure 5).
