Charlton & Jenrick Paragon SlimLine 3 Slide User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
PARAGON SLIMLINE 3 Slide & PARAGON SLIMLINE 3 Slide LOW
Keepthis bookletforservicelog andfuturereference
For use in Great Britain and Ireland.
Literature NO 4636 (ISS 8)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................2
SECTION ONE Important Information (user
instructions).................................................................4
SECTION TWO Operating the Appliance (user
instructions).................................................................5
SECTION THREE Fuel Bed Layout (user instructions).6
SECTION FOUR Cleaning (user instructions)............12
SECTION FIVE General Points (user instructions)....12
SECTION SIX Appliance Data (installation
instructions)...............................................................13
SECTION SEVEN Regulations and Warnings
(installation instructions)..........................................14
SECTION EIGHT Siting the Appliance (installation
instructions)...............................................................16
SECTION NINE To Install the Appliance (installation
instructions)...............................................................18
SECTION TEN Checking Operation of Fire (installation
instructions)...............................................................23
SECTION ELEVEN Maintenance (maintenance
instructions)...............................................................24
GAS FIRE COMMISSIONING CHECKLIST.....................29
SERVICE RECORD........................................................30
EXTENDED FIVE YEAR
PARTS WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’sinstructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled outandtherecordofannual servicesmust beup
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

2 LT4636 (ISS 13)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to
optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater Industry
Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear explanation
of its operation. The installer is legally required to complete a commissioning checklist as a means of complying with the
appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme. A
Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer should
complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields on
the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The service
details should be recorded on the Benchmark Service Interval Record and left with the householder.

www.charltonandjenrick.co.uk 3 LT4636 (ISS 13)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
Paragon SlimLine 3 S/C
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

4 LT4636 (ISS 13)
SECTION ONE Important Information (user instructions)
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable,
that these products are so designed and constructed as to meet the general safety requirement when
properly used and installed. To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the
approval of the appliance, operation of the warranty and could affect your statutory rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection. After
handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals or cleaning after servicing /
installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste and should be
disposed of at a site licensed for the disposal of industrial waste.
The PARAGON SLIMLINE 3 Slide is a decorative fuel effect appliance with a radiant heat conserver box for
improved efficiency.
This appliance is intended for decorative purposes.
The PARAGON SLIMLINE 3 Slide is designed and tested to the requirements of the EN 509.
The appliance is for use on Natural Gas only and should be installed by a competent person i.e. GAS SAFE-
registered, in accordance with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS.
The chimney or flue (unless new or previously used with a gas appliance) should be swept before installation if it
has been used for solid fuel.
WARNING
This appliance has a naked flame, as with all such fires it is recommended that a fireguard should be used for the
protection of children, the elderly and infirm. Fireguards should conform to BS 6539 (1984) (Fireguards for use with solid
fuel appliances).

www.charltonandjenrick.co.uk 5 LT4636 (ISS 13)
INTRODUCTION
The PARAGON SLIMLINE 3 Slide incorporates a single gas control, which selects ignition pilot, low or high settings. It is
operated via a slide lever on the upper right hand side of the appliance.
The appliance incorporates a safety device in the form of an Oxygen Depletion System, which constantly monitors the
oxygen in the room and will cause the fire to switch off if the oxygen level reduces, for instance due to insufficient
ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the problem may
not be due to lack of air or a defective flue.
A fire front (fret) must be used with this appliance.
SECTION TWO Operating the Appliance (user instructions)
The full lighting procedure is as follows: -
A. Push slide control lever down, as far as possible a clicking noise will be heard and pilot will light, HOLD DOWN
FIRMLY FOR ABOUT 20 SECONDS.
B. Pull lever up and the pilot light should remain alight and the main burner should light on its low setting.
C. Should the pilot fail to light, pull the lever fully up to turn off the appliance, wait 3 minutes and repeat the
procedure (a &b). If the pilot does not light and no clicking noise is heard replace the battery and try again.
D. After lighting the pilot flame and the main burner on its low setting the control lever may be lifted until slight
resistance is felt, this will put the burner on its high setting.
E. To completely extinguish the fire, pull the lever up past the resistance to its fullest extent. The fire may be
operated on either its low or high setting.
F. It is recommended that the appliance be operated on its high setting for a short period before adjusting to the
low setting.
G. If the ignition does not operate fit a new 9V battery (PP3/MN1602) to the ignition unit, located behind the fret
adjacent to the gas inlet pipe, and repeat ignition procedure prior to reporting a fault.
Note: - If the ignition fails the pilot can be lit with a taper or a match held at the pilot head.
Remove fret for access and replace after lighting.
If the fire has extinguished for any reason wait 3 minutes before relighting.

6 LT4636 (ISS 13)
SECTION THREE Fuel Bed Layout (user instructions)
It is important that all the coals, pebbles and moulded shapes are positioned as shown in these instructions.
Two alternative Fuel Beds are available:-
A. COAL
B. PEBBLE
Identify the fuel bed and assemble as shown below
COAL FUEL BED
Some soot deposits will form on the coals, this is perfectly normal and adds to the realism of the appliance. Some
heat discolouration of the ceramic sides is normal and does not detract from the operation of the appliance in any
way.
USE ONLY THE COALS PROVIDED - no additional coals MUST ADDED.
The Loose coal set consists of: -
Rear Matrix
Front Coal Matrix
Loose Coals –16 coals (Curved L shape)

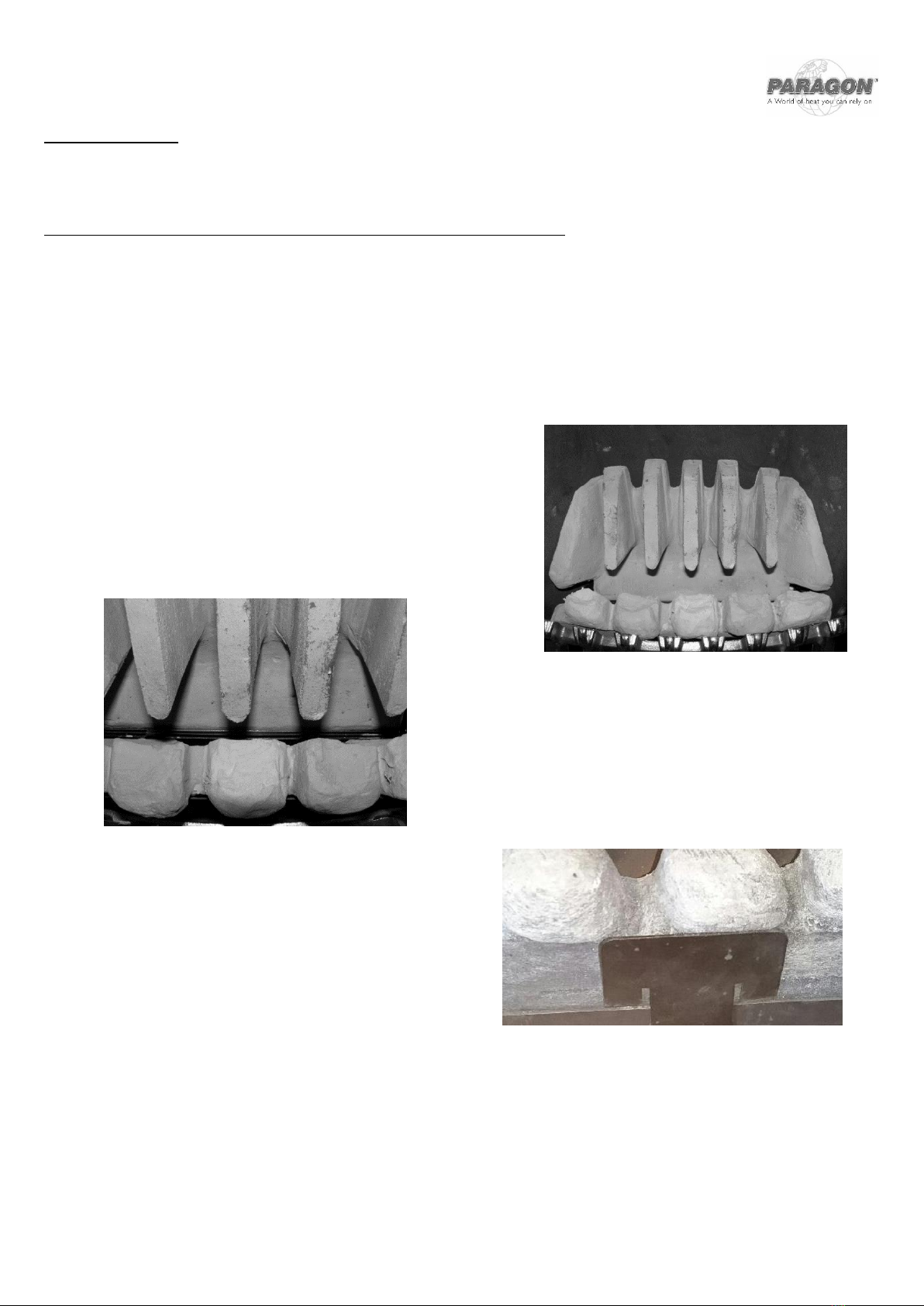

Ensure the rear matrix is in position as shown.
Positioned well back against the rear of the
appliance. Make sure that the burner slot is clearly
visible as shown below.
Locate the front coal matrix with the shapes
upwards in front of the rear matrix. Ensure that it is
not placed on top of the burner slot.

www.charltonandjenrick.co.uk 7 LT4636 (ISS 13)
slide front coal support on to the edge of the
burner carrier this will support the front coal
matrix and help stabilize the fuel bed
Place the front row of six coals as shown. Ensure
these coals are supported by the front Matrix and
the rear matrix and will not wobble or fall through
on to the burner. This row is important to support
the next rows properly. If necessary turn upside
down and rotate to find stable positions. The
positions shown in the photograph should be
suitable.
Place the second row of five coals as shown. Ensure
the coals bridge across the existing coals and the
rear matrix and are stable. Press each one with your
fingers to be sure that they are stable and will not
fall through on to the burner. Re-position carefully
as required.

8 LT4636 (ISS 13)
Place the third row of five coals near the top of the
rear matrix as shown. Press each one with your
fingers to be sure that they are stable and will not
fall through on to the matrix. Re-position carefully
as required.

www.charltonandjenrick.co.uk 9 LT4636 (ISS 13)
PEBBLE FUEL BED
Some soot deposits will form on the pebbles, this is perfectly normal and adds to the realism of the appliance. Some
heat discolouration of the ceramic sides is normal and does not detract from the operation of the appliance in any way.
USE ONLY THE PEBBLES PROVIDED - no additional PEBBLES MUST ADDED.
The Loose Pebble set consists of: -
Rear Matrix
Front Matrix
Loose Pebbles: –13 Large, 3Small. Quantities of grey and beige colours may vary.
Ensure the rear matrix is in position as shown. Positioned well
back against the rear of the appliance.
Ensure the front pebble matrix is located behind the burner
fascia as shown.
Make sure that the burner slot is clear as shown in the
photograph.
slide front coal support on to the edge of the
burner carrier this will support the front coal
matrix and help stabilize the fuel bed

10 LT4636 (ISS 13)
Place five large pebbles as shown. So that
they sit on the Front Matrix in the indents
provided. Check that they are stable against
the rear matrix by putting slight pressure on
them with your fingers. Re-position any that
are unstable. Mix the two grey and beige
colours to give a pleasing layout.
Place the second row of four large pebbles as
shown, slightly overlapping the pebbles on the
First row pebbles. Again mix the colours.
Check stability of the layout and improve as
necessary. The pebbles are oval in shape and
have a flat bottom so as to enable various
positions to be tried to ensure stability.
Place the third row of four pebbles on top of
the rear matrix as shown. Also place the three
small pebbles as shown on the very top of the
pebble layout.
Check stability of the layout and improve as
necessary. The pebbles are oval in shape and
have a flat bottom so as to enable various
positions to be tried to ensure stability.

www.charltonandjenrick.co.uk 11 LT4636 (ISS 13)

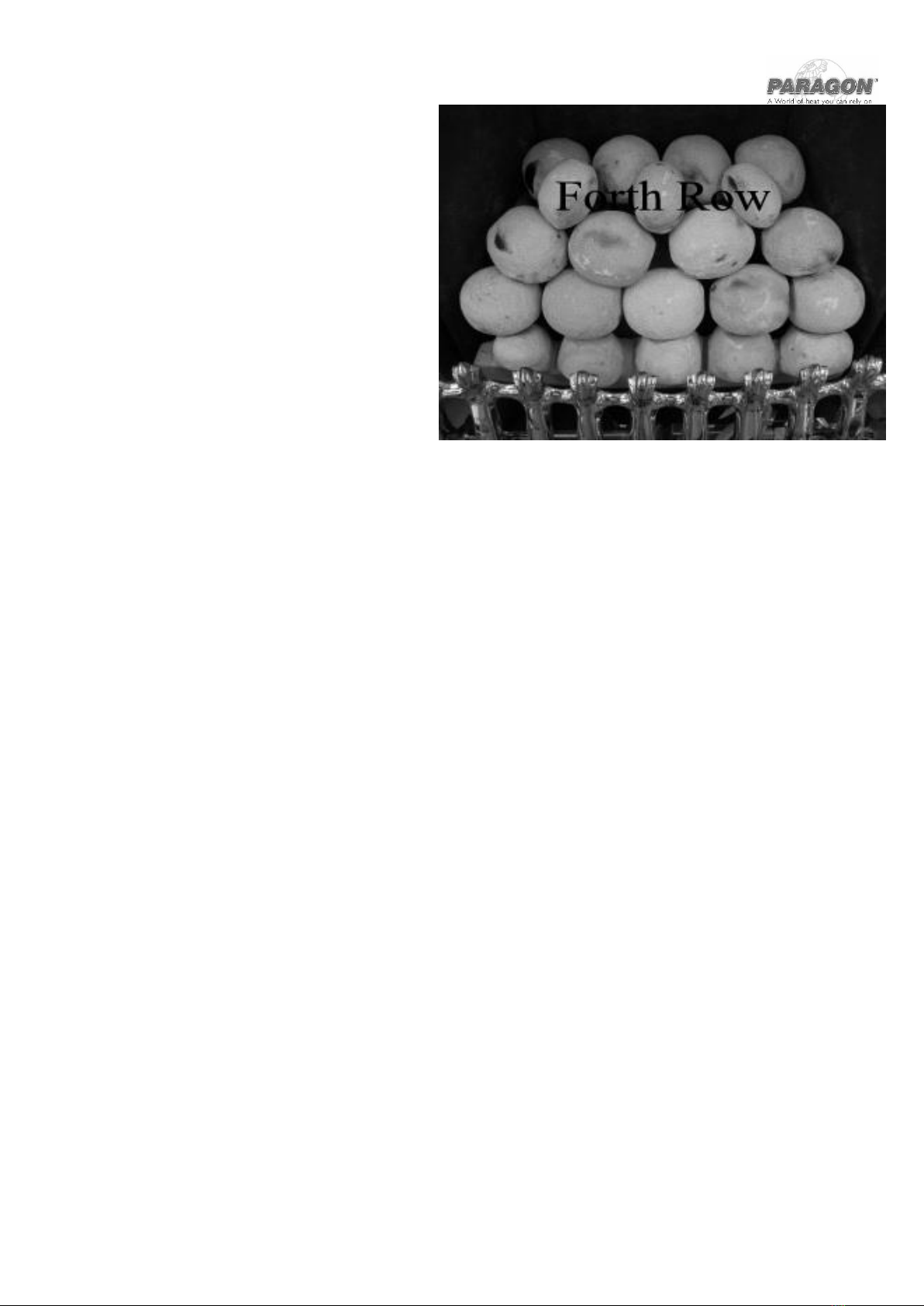

Place the forth row of three small pebbles in
the gaps between the last two rows as shown
Check stability of the layout and improve as
necessary. The pebbles are oval in shape and
have a flat bottom so as to enable various
positions to be tried to ensure stability.

12 LT4636 (ISS 13)
SECTION FOUR Cleaning (user instructions)
Warning: -Before you clean any part of the appliance ensure that the appliance is turned off and cold.
CLEANING: BRASS DECORATIVE TRIM & FRET
The finish of the brass trim and fret will from time to time need cleaning with a proprietary brass cleaner i.e.:
Brasso
The trim and fret should be removed for cleaning. The fret should be removed before removing the trim, which
is held in place by four magnetic strips.
CLEANING: BLACK PAINTED or CHROME EFFECT SURFACES
These surfaces should be dusted regularly and any marks removed with a soft cloth.
Abrasive or chemical cleaner should never be used.
CLEANING COALS AND PEBBLES
Important: - Refer to the Health & Safety Notice located on page 5 of this booklet before cleaning or replacing any
refractory material.
The coals, pebbles and ceramic parts are delicate and they should be handled with great care.
The loose coals and pebbles may be removed for cleaning. They can be brushed very gently with a soft brush to
remove dust or any deposits.
Care should be taken to avoid contact with the refractory lining, this is a delicate surface and should not be
wiped or rubbed.
A vacuum cleaner may only be used after all the loose coals and pebbles have been removed.
SECTION FIVE General Points (user instructions)
Like all appliances incorporating an aerated burner a Low frequency noise may be heard, particularly on the Low setting,
this is quite normal and does not affect the operation of the appliance.
It is advised that the fire is serviced annually this is more likely to provide trouble-free operation.
It is important that: -
The chimney or flue is checked annually to ensure clearance of combustion products.
The fire does not normally require purpose-built ventilation but if for any special reason purpose-built
ventilation is provided it should be checked periodically to ensure freedom from obstruction.
Any debris from the chimney or flue should be removed. The fire should be allowed to cool for three to four
hours before it is removed.
Rubbish must not be thrown onto the fuel bed under any circumstances.
The cast fire front must be positioned in front of the fire whilst it is burning
The only user removable parts are: -
Cast fret
Loose fuel bed components
Decorative effect trim

www.charltonandjenrick.co.uk 13 LT4636 (ISS 13)
SECTION SIX Appliance Data (installation instructions)
Category of appliance: BIIAS Category I2H
Overall dimensions: Height 605mm (or 555mm for the Low version)
Width 505mm
Forward Projection: 75mm, (From fireplace opening including fret.)
Weight: 11kg (Boxed excluding fret)
9.5kg (Unboxed excluding fret)
Gas Type: G20 Natural Gas
Gas Pressure: 20 mbar +/- 1.0mbar
Pressure Test Point Location: Gas inlet elbow
Gas Input (Gross): 7.0 kW (Maximum) 2.4 kW (Minimum)
Injector: Marked 460
Gas Connection: 8.0mm O/D, tube.
Data Badge Location: Behind decorative trim
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009+A1:2013and the result is 58.5%. The gross calorific value of
the fuel has been used for this efficiency calculation. GASTEC have certified the test data from which it has been calculated. The efficiency value may
be used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings.
PACK CONTENTS Refractory Fuel Bed Components
Appliance
Owners Instruction
Foam Seal
Trim
Rear Matrix
Front Matrix
Loose Coals
or Loose Pebbles

www.charltonandjenrick.co.uk 14 LT4636 (ISS 8)
SECTION SEVEN Regulations and Warnings (installation instructions)
THIS APPLIANCE MUST ONLY BE INSTALLED IN GREAT BRITAIN OR IRELAND.
THE APPLIANCE IS SUITABLE FOR USE ON NATURAL GAS ONLY.
THE APPLIANCE IS INTENDED FOR DECORATIVE PURPOSES.
(GB) NO SPECIAL VENTILATION BRICKS OR VENTS ARE REQUIRED INTO THE ROOM CONTAINING THE APPLIANCE,
PROVIDING NORMAL ADVENTITIOUS ROOM VENTILATION EXISTS. THE INSTALLER MUST SATISFY THIS POINT BY
CARRYING OUT THE MANDATORY SPILLAGE TEST.
(IE) PERMANENT VENTILATION MUST COMPLY WITH THE REGULATIONS CURRENTLY IN FORCE.
IT IS THE LAW THAT ALL GAS APPLIANCES MUST BE INSTALLED BY A COMPETENT PERSON; I.E. A GAS SAFE
REGISTERED INSTALLER, IN ACCORDANCE WITH THE CURRENT GAS SAFETY (INSTALLATION AND USE)
REGULATIONS (AS AMENDED), ALL RELEVANT PARTS OF THE LOCAL AND NATIONAL BUILDING REGULATIONS
AND ALL RELEVANT RECOMMENDATIONS OF THE FOLLOWING BRITISH STANDARDS. FAILURE TO DO SO COULD
LEAD TO PROSECUTION.
THE FOLLOWING ARE RELEVANT CODES OF PRACTICE AND BRITISH STANDARDS: -
BS 5871 PART 2 BS 8303
BS 5440 PART 1 BS 1251
BS 6891 BS 6461 PARTS 1 AND 2
BS 715 BS 1289 PART 1
Note: - This appliance must be installed to current versions of the above standards and include any relevant
amendments.
THE BUILDING REGULATIONS ISSUED BY THE DEPARTMENT OF THE ENVIRONMENT.
THE BUILDING STANDARDS (SCOTLAND) (CONSOLIDATED) REGULATIONS ISSUED BY THE SCOTTISH
DEVELOPMENT OFFICE.
PRIOR TO THE INSTALLATION ENSURE THAT THE LOCAL DISTRIBUTION CONDITIONS
(IDENTIFICATION OF TYPE OF GAS AND PRESSURE) AND ADJUSTMENT OF THE
APPLIANCE ARE COMPATIBLE. (G20 @ 20mbar)

15 LT4636 (ISS 8)
WARNINGS
This appliance has a naked flame, and with all such fires, it is recommended that a fireguard should be used for the
protection of children, the elderly, or the infirm. Fireguards should conform to B.S.6539 (1984) (Fireguards for use with
solid fuel appliances)
This appliance incorporates a safety device in the form of an Oxygen depletion system. IT MUST NOT BE ADJUSTED OR
PUT OUT OF OPERATION! THIS IS A NON SERVICEABLE ITEM AND MUST BE EXCHANGED AS A COMPLETE ASSEMBLY;
USING ONLY THE ORIGINAL MANUFACTURER'S PART.
A non-combustible hearth must be provided to comply with the building regulations, or a suitable proprietary fire
surround with a 100°C minimum rating.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the fibre
components of the fire, and there are no harmful effects produced.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration, e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.
IMPORTANT NOTES
A fire front (fret) must be used with this appliance and must conform to the following:
It must be made from non-combustible material.
Its general construction should enable it to stand firmly across the full width of the burner.
The design of the fire front (fret) must have a removable ashtray cover (Lower section).
The ash tray cover must have cut outs and or holes which provide ventilation to the underside of the burner.
The effective area of ventilation through the ash tray cover must be greater than 1365mm2(2.12 sq. ins.)
This appliance can be used in conjunction with the following chimneys:-
Conventional brick or stone chimney,
a pre-cast flue (subject to adequate draw) or
a metal flue box conforming to BS 715, further details are covered in later text .

www.charltonandjenrick.co.uk 16 LT4636 (ISS 8)
SECTION EIGHT Siting the Appliance (installation instructions)
Spacers are available in the following sizes 42mm, 30mm and 20mm these may be used to reduce the minimum depth
required.
The fire can be installed in the following flues and locations:-
CLASS ONE
A conventional brick or stone chimney, with the builder's
opening constructed of non-combustible material as used
for a solid fuel appliance, with a minimum effective cross-
sectional dimension of 225 x 225 mm (9 x 9 ins) or a lined
flue (e.g. clay, metal etc.) with a minimum diameter of 125
mm (5 ins), with a minimum effective overall height of 3
metres (10 ft). A builder's opening a minimum of 550 mm
high (or 500mm with Low lintel version) and 350 mm wide
with a minimum depth of 170mm (or 140mm if flue has
never been used for solid fuel) to allow sufficient volume for
debris collection.
Any permanent flue restriction or variable dampers shall be removed or locked fully open. The chimney should be
swept prior to installation if not new or previously used with a gas appliance.
IMPORTANT: - The restrictor plate must be bent down out of the way if the appliance is installed into a 125mm (5”)
diameter flue or pre-cast flues.
CLASS TWO
Pre-cast
A pre-cast flue correctly constructed conforming to the
requirements of BS 1289: 1975, 1986 or 1989 with a
minimum effective overall height of 3 metres (10 ft)
which is correctly terminated (see BS 5440). It will
normally require an additional thickness of 25mm in the
form of a fireplace back panel or if it is intended to be
fitted back to the plaster
line then a spacer may be required to meet with the
minimum depth requirement.
IMPORTANT: - Do not fit the restrictor plate if the appliance is installed into this type of flue.
Note: An inspection should be made to ensure that the internal walls of the flue are clear of mortar fangs. It is
recommended that the plasterwork should not be directly bonded to the surface of the flue blocks, ensuring that there is
a small air gap between the flue blocks and the wall surface. The fire can be installed with the plasterwork being directly
bonded to the flue blocks but there is a risk of surface cracking occurring to the plaster above the appliance.
ALL DIMENSIONS IN mm "A"
740 Min.
When "A"=150
-
170 OR 140 MIN. IF FLUE HAS NEVER BEEN USED
FOR SOLID FUEL
120 Min.
340Min.-440Max.
640 Min.
550 MIN.- 570 MAX.
OR 500 MIN.-520 MAX.
FOR LOW OPENING
VERSION
300 Min.
50 Min.
ALL DIMENSIONS INmm PRE-CASTFLUEBLOCK
ADDITIONAL DEPTH INCLUDING PLASTERAND FIREPLACE
"A" "X"
"X" MINIMUM (INCLUDING PLASTER)
"A"
300
320
NONE
SPACER
20mm 30mm
30
15
10
0
0
0
340 -440

17 LT4636 (ISS 8)
CLASS TWO
Fabricated metal
A double-walled or insulated metal flue box built to the requirements of BS 715 with a minimum diameter of 125 mm (5
ins) and a minimum effective overall height of 3 metres (10 ft).
IMPORTANT: - Bend down the restrictor plate if the appliance is installed into this type of flue.
Note: If the flue box is to be used with an existing brick or stone chimney a 125 mm (5 ins) minimum diameter flue liner
conforming to BS 715 should be used.
Dampers or register plates must not restrict any of the above flues. The flue must only service a single appliance and
not have any branches or traps that may impede the natural draught. If a terminal is fitted it must be suitable for the
purpose (see 'Approved Flues & Terminals' published by BG Technology Certification Services).
The front face (a minimum size of 605 mm (or 555mm for the Slimline 3 Low) x 505 mm wide) and the base of the
fireplace opening must be flat to ensure that a good seal is formed between the rear and base of the appliance
and the chimney to avoid any reduction of natural draught.
A non-combustible hearth must be provided beneath the appliance within the fireplace opening, a fire-resisting
hearth must also be provided symmetrically disposed about the fireplace opening a minimum thickness of 12 mm
with the perimeter 50mm above floor level. With a minimum width of 640mm and a depth of 300 mm (add the
spacer width to the hearth depth if a spacer is to be fitted i.e. for a 42mm spacer the hearth depth would be
342mm).
Any combustible material above the opening must be removed up to a minimum height of 590 mm above hearth
level.
Purpose-built superimposed fire-resistant hearths and back panels, specified as suitable by the manufacturers,
may be used, or a suitable proprietary fire surround with a 100 oC rating (minimum).

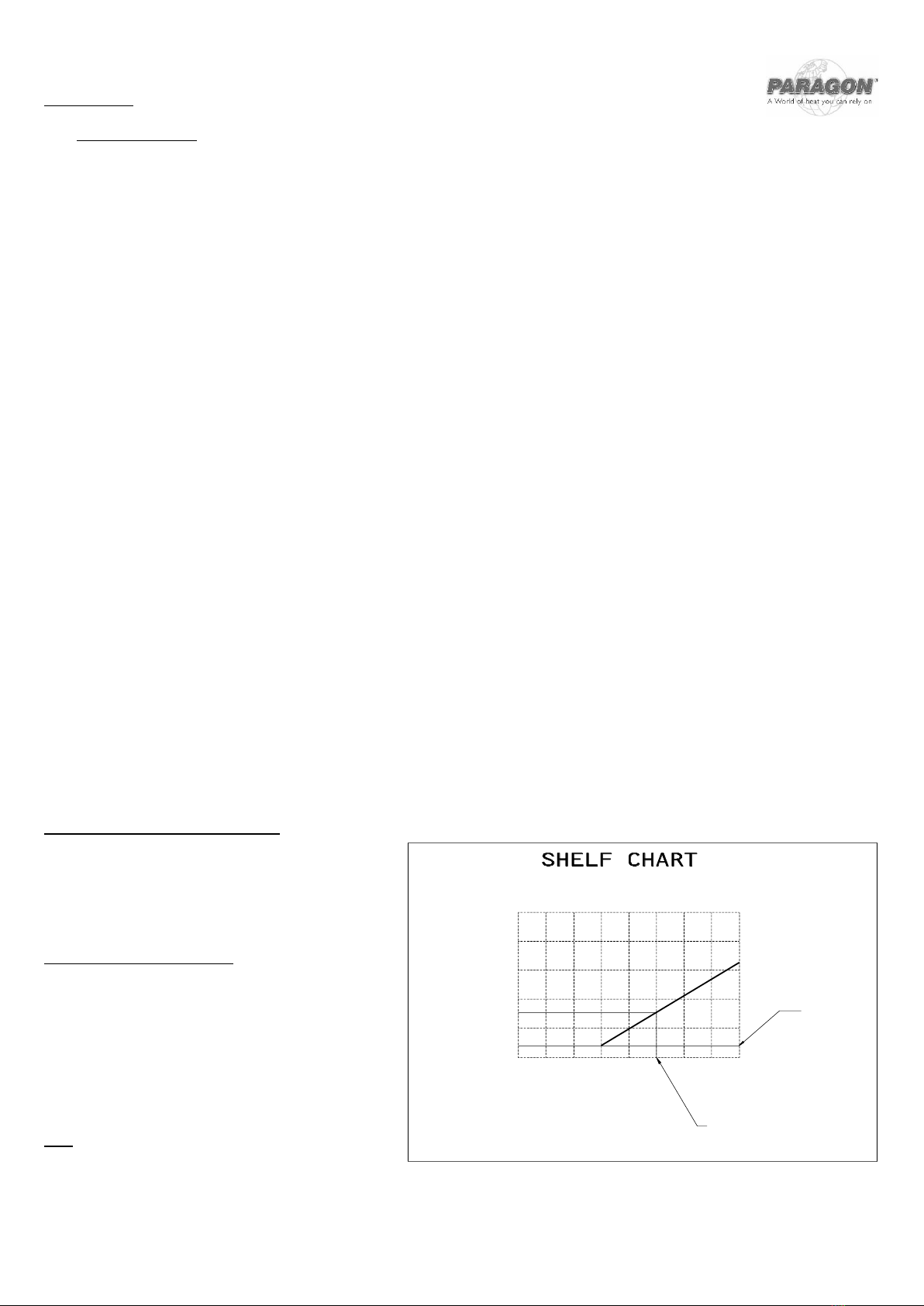

Clearance to Shelf or Surround
To check the compatibility of a combustible shelf
or surround, refer to the chart.
Clearances at side of fire
Minimum width between vertical sides of
combustible surround should not be less than 700
mm provided fire is central to surround and sides
do not project more than 150 mm. When vertical
side forward projection is increased by 12.5 mm
add 50 mm to inside width of surround.
N.B. When fire is fitted this gives a minimum side
clearance of 100mm.
600
650
700
750
800
850
025 50 75 100 125 150 175 200
SHELF PROJECTION
EXAMPLE 677mm SHELF HEIGHT=125mmMAX. SHELF WIDTH
no combustables
below this height
620 mm
All dimensions in mm's
SHELF HEIGHT FROM HEARTH
LEANLINE 2

www.charltonandjenrick.co.uk 18 LT4636 (ISS 8)
SECTION NINE To Install the Appliance (installation instructions)
CHECKING THE FLUE AND FIRE OPENING
Check that the chimney conforms to the required specifications as previously stated. Examine the condition and
carry out any remedial work.
If the flue has been used for solid fuel it should be swept prior to the installation.
Prior to installing the appliance a smoke test (using a smoke bomb) should be carried out to check that
satisfactory smoke clearance has been established. If all the smoke is not drawn into the flue, pre-heat the flue
with a blowtorch or similar and re-check. If there is any uncertainty examine for the cause and, if necessary,
seek expert advice.
When installing this appliance against a dry lined (plasterboard) wall ensure that any void between the
plasterboard and the wall is sealed with a suitable non combustible material (i.e. plaster or mortar).
CONNECTING THE GAS SUPPLY
Determine where the gas supply is to be connected to the appliance. This may be done from the front of the unit from
either the left or right side, or a concealed fitting from the rear. Check that the restrictor elbow, which is fitted to the
appliance, is fully open before commissioning the appliance.
PREPARING THE APPLIANCE FOR A GAS CONNECTION
If it is intended to be a concealed connection the 8mm supply should be positioned in the opening first.
The pipe should be positioned so that when the appliance is pushed back into the opening it enters the grommetted
hole at least 180mm, taking into account the requirements of BS 6891 1988 dealing with enclosed pipes.
Note: pipework in the opening of the fireplace to the rear of the appliance must be suitably wrapped in accordance with
the regulations.

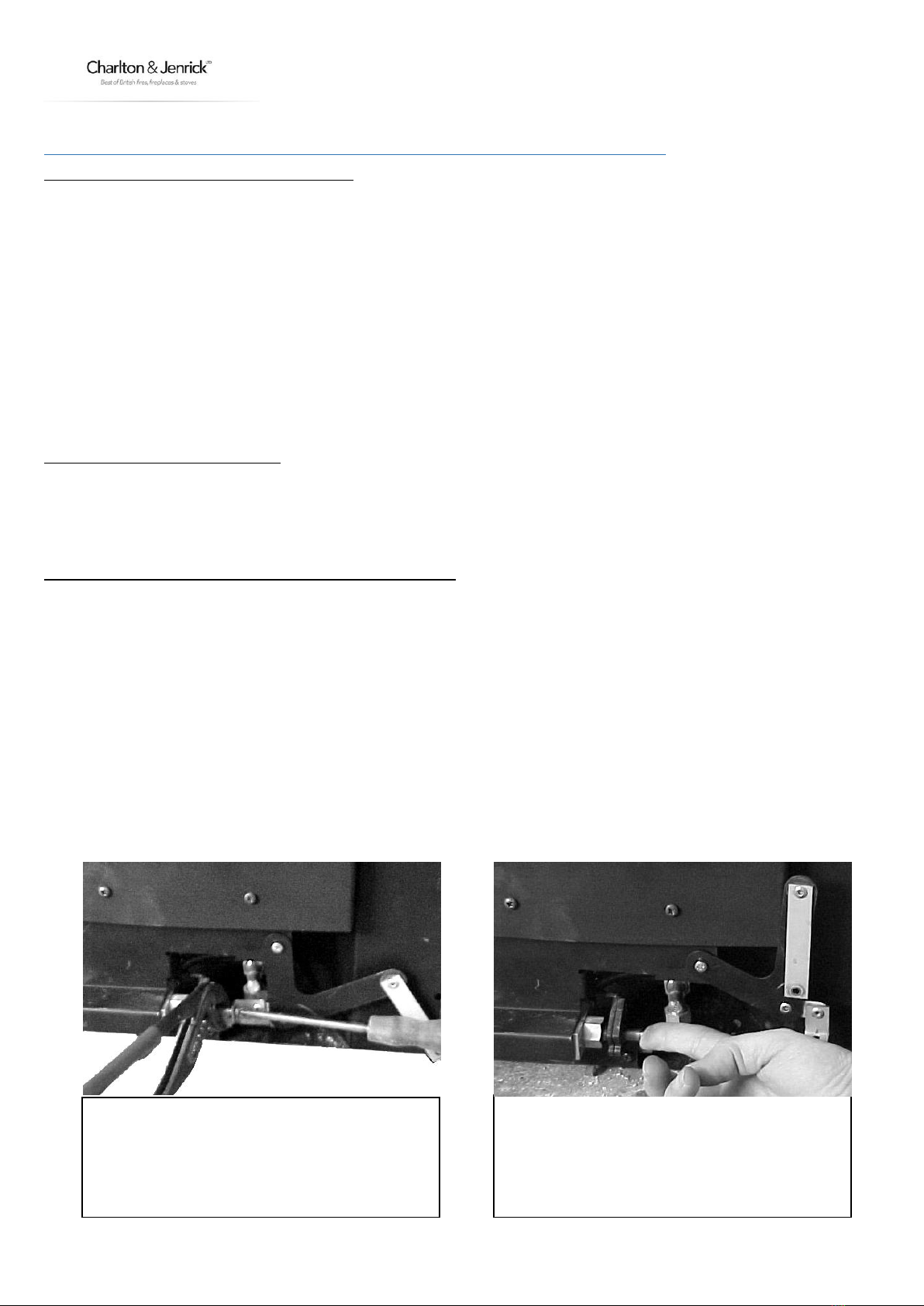

Taking great care grip the copper protective
sleeve at the end of the gas control spindle
(DO NOT GRIP SPINDLE IN AND OTHER
PLACE) as shown and remove the screw
from the end as shown above.
Ensure the spindle is pushed back inside
the control valve as far as possible. Ensure
the bell crank mechanism is swung up to
give easy access to the gas connection
point as shown.

19 LT4636 (ISS 8)
FIXING BACK TO OPENING
Remove the paper backing from the length of foam seal and stick it to the rear flange of fire.
If a spacer box is going to be used stick the second length around the rear face of the spacer unit,. THE FOAM
SEAL MUST BE POSITIONED TO ENSURE AN AIR TIGHT SEAL WHEN THE APPLIANCE IS FITTED.
DO NOT use permanent sealing compounds i.e. silicon sealant this could cause the appliance to be damaged
when it is removed for servicing.
If the spacer box is not being used, mark position of flange hole in the fireplace front and fix firebox in position
with wall plugs and wood screws.
If spacer box is being used fix the spacer-box to the fireplace first with wood screws and wall plugs then screw
firebox to spacer box using screws provided.
Cut a cross slit in the rubber grommet and
feed the appliance onto the 8mm-gas
supply pipe. Position the restrictor elbow
supplied and mark supply pipe at its cut off
length. Remove appliance, cut pipe to
correct length, refit appliance and make gas
connection with restrictor elbow use 15mm
A/F spanner taking care not to apply any
force to the gas control spindle as above.
Ensure the restrictor valve is opened and its
cap replaced tightly.
Check for gas soundness. Reconnect the
bell crank mechanism as above ensuring
that the gas control spindle is gripped only
over the protective copper sleeve and no
other part of the spindle as, ensure NO side
strain is applied to the spindle.
