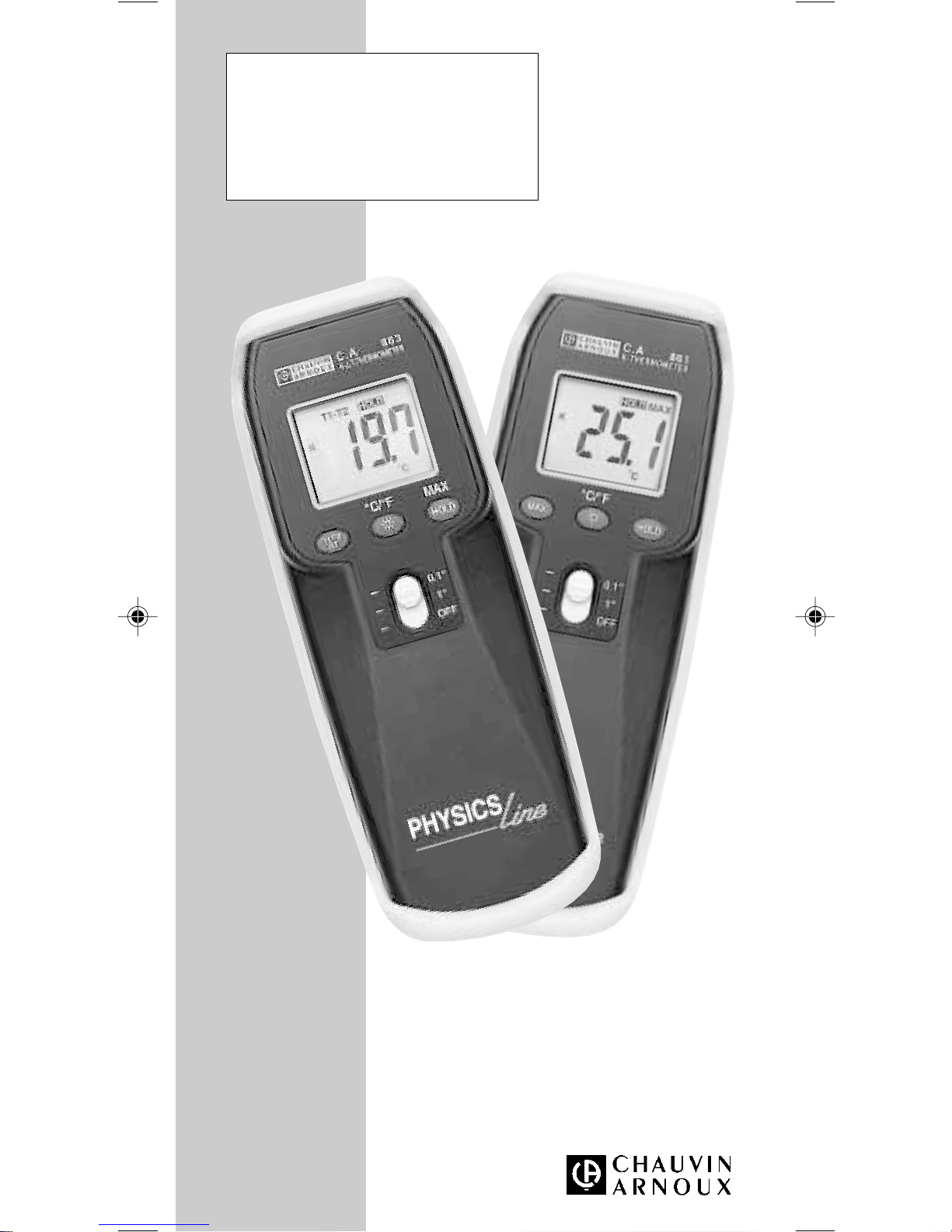

Chauvin Arnoux C.A 861 User manual

1
C.A861
C.A863
■ThermomètresdepochecoupleK
■Hand-heldK-typesensorthermometers
■ Taschenthermometermit K-Thermoelement
■TermometrotascabilecoppiaK
■Termómetro de bolsillo par K
FRANÇAIS
ENGLISH
DEUTSCH
ITALIANO
ESPANOL
Notice de fonctionnement
User's manual
Bedienungsanleitung
Libretto d’Istruzioni
Manual de Instrucciones

9
English
Meaning of the symbol
Warning ! Please refer to the User’s Manual before using
the instrument.InthisUser’sManual, the instructions preceded
by the above symbol, should they not be carried out as shown,
can result in a physical accident or dammage the instrument
and the installations.
Definition of CAT III
This instrument, in overvoltage category III, meets with the
strictreliabilityandenvironmentalrequisitesthat apply to fixed
industrial and domestic installations
(see IEC 664-1 ed 92).
Thank you for purchasing a C.A 861 or C.A 863 hand-held
thermometer.
To get the best service from this instrument:
nread this user’s manual carefully,
nrespect the safety precautions detailed
!
SAFETY PRECAUTIONS
!
■To prevent any risk of deterioration to the thermometer, do not
use with sensors raised to voltages exceeding 24 V AC/DC,
since the sensors are electrically connected to the
thermometer input.
■If the thermometer is subjected to great variations in ambient
temperature,waitfor20 minutesafteritbecomes stableagain
before continuing with measurement.
■Respect the climatic environmental conditions (see §4)
WARRANTY
Our guarantee is applicable for twelve months after the date
on which the equipment is made available (extract from our
General Conditions of Sale, available on request).

10 1
SUMMARY
1. PRESENTATION ..........................................................10
2. DESCRIPTION .............................................................10
3. USE ..............................................................................11
4. SPECIFICATIONS ........................................................12
5. SENSORS ....................................................................13
6. MAINTENANCE ...........................................................15
7. TO ORDER ...................................................................15
7. ATTACHMENT .............................................................37
1.PRESENTATION
The C.A 861 and C.A 863 are high precision hand-held
temperature measurement instruments, lightweight, with
digital display, and easy-to-use with interchangeable K-type
thermocouples.
2. DESCRIPTION
See §7. Appendix (found at the end of this user’s manual)
➀Converters for K-type thermocouple sensors
➁LCD display, back-lit
- Main display: digital temperature value (±)
3½ digits or OL error
- Symbols :
KK-type thermocouple sensor
Low battery
Last measured value
°C/°F Unit of displayed value
MAX Maximum temperature value
T1-T2 Difference ∆T betweenT1 andT2 (C.A 863) (see §3.2)
➂2 function button:
Long press > 2 secs: choice of unit used
Short press: switches display backlighting off and on
➃Push button:
Short press: stores last measurement display
Held press > 2 s : Max. measured value (C.A 863)
➄3 position selector switch:
- Thermometer off
- 1°C or °F Resolution
- 0.1°C or °F Resolution

11
➅C.A 861 :
Command push button for max. temperature value
C.A 863 : Scroll-down menu for going from T1 to T2 and
then ∆T.
➆Shock-proof moulded surround
3. USE
3.1 Procedure
1. Connect one or two sensors
2. Switch on the thermometer:select one or two measurement
resolutions, using selector switch ➄, the measurement is
instantaneously displayed.
3. Set-up the thermometer according to the type of
measurement to be carried out, using buttons ➂,➃ and/or
➅ (see §2 and 3.2) .
4. Read off the measured value.
The thermometer is switched off by putting switch ➄back in
the OFF position.
Note :
If no sensor is connected, OL Is displayed.
If the temperature to be measured is outside of the instrument’s
measurement range, then OL is displayed.
3.2 Special Functions (see §2. Description)
HOLD :as soon as this button is pressed, the instrument holds
the last measurement displayed.
MAX: the instrument displays the maximum value of the
temperature during measurement
■■
■■
■On the C.A 863 :
∆∆
∆∆
∆T: With two sensors the instrument simultaneously
measures temperatures T1 and T2 and displays the
difference ∆T between these two measurements.

12
4.SPECIFICATIONS
■■
■■
■The temperature range depends upon the K type
thermocouple chosen (see section 5):
- C.A 861 : -40 to +1350°C (-40 to 2000°F)
-40 to +200°C (-40 to +392°F) with K type
thermocouple supplied as standard.
- C.A 863 : -50 to +1300°C (-58 to 2000°F)
-50 to +200°C (-58 to 392°F) with the K type
thermocouple chosen (see section 5).
■■
■■
■Resolution: 0.1°/1°
■■
■■
■Polarity indication: automatic
■■
■■
■Accuracy (ambient temperature 18°C to 28°C)
- C.A 861:
±0.1% of reading +1°C from -40°C to 1350°C
±0.1% of reading +2°F from -40°F to 1999°F
- C.A 863:
±0.3% of reading +1°C from -50°C to 1000°C
±0.5% of reading +1°C from -1000°C to 1300°C
±0.3% of reading +2°F from -58°F to 1999°F
■■
■■
■Interchangeable K-type sensors (CHROMEL-ALUMEL)
■■
■■
■Operating environment
0 to +50°C, < 80% RH
■■
■■
■Storage environment
-20°C to +60°C, 0 to 80% RH, without battery
■■
■■
■Temperature drift
0.1 x (specified accuracy) by °C from 0 to +18°C and from
+28 to +50°C (+32 to +64°F and +82 to +122°F)
■■
■■
■Overvoltage protection: 24 VAC/DC
■■
■■
■Supply: 9 V battery (type 6LR61 or 6LF22)
■■
■■
■Dimensions / Weight: 173 x 60.5 x 38 mm / 190 g with
batteries
■■
■■
■Safety: Cat. III 24 V AC/DC according to IEC664-1 ed. 92
■Electromagnetic compatibility
Emission according to EN 50081-1 Ed. 1992
Immunity according to EN 50082-1 Ed. 1992

13
5.SENSORS
The following K-type thermocouple sensors can be used with
thermometers C.A 861 and C.A 863.
Sensors with grips and extendible spiral leads
Model Reference Measurement Response Dimensions
range time (mm)
SK 11 Needle P03.6529.17 -50...+600°C 12 s Ø3 - L = 130
For penetration of viscous thick substances.
SK 13 P03.6529.18 -50...+1100°C 12 s Ø3 - L = 300
Generalpurpose
All uses
SK 14 P03.6529.19 -50...+450°C8s Ø6 - L = 130
Curvedsurface
Fortemperaturemeasurementofpoorlyaccessiblesurfaces.EndØ15x30mm
SK 15 Surface P03.6529.20 -50...+900°C 2.3 s Ø8 - L = 130
8 mm Øspring-loaded end, ensuring optimum contact even when the
sensor is not perpendicular to the surface.
SK 17 Air P03.6529.21 -50...+600°C 2.6 s Ø6 - L = 130
Formeasurement of ambientairtemperature.Thermocoupleisprotected
by a 8.5 mm Ømetal shield
PK 9 P03.6529.15 -20...+250°C5s Ø1 - L = 55
Retractableneedle
Designed for automobile pneumatics. Penetrates by up to 15 mm.
Sensors without grips *
SK 1 Needle P03.6529.01 -50...+800°C1s Ø3 - L = 150
For penetration of viscous, thick substances.
SK 2 P03.6529.02 -50...+1000°C2s Ø2 - L = 1000
Bendable
Bendable as required for application.
SK 3 P03.6529.03 -50...+1000°C6s Ø4 - L = 500
Semi-rigid
Slightlybendable.
SK 4 Surface P03.6529.04 0...+250°C1sØ5 - L = 150
Suited to measurement on small surface areas.
SK 5 Surface P03.6529.05 -50...+500°C1s Ø5 - L = 150
8 mm Øspring loaded end, ensuring optimum contact even when the
sensor is not perpendicular to the surface.
* to be used between 0 and 50°C

14
1 s/contact
SK6 P03.6529.06 -50...+285°C 3 s in Ø1 - L = 1000
Flexible ambient air
Recommendedfor difficult-to-get-atmeasurement points
SK 7 Air P03.6529.07 -50...+250°C5s Ø5 - L = 150
For ambient airtemperature measurement.Thermocoupleprotected by
8.5 mm Øshield
SK 8 10 s on
For pipes P03.6529.08 -50...+140°C 12 mm Ø10 ≤Ø ≤90
Self-gripping stainless pipe
The thermocouple is located on a copper sheet at the end of a double-
sided velcro tape that wraps around the pipe, ensuring good contact.
SK 19 P03.6529.22 -50...+200°C7sØ14 - L = 1000
Magnetic
‘Automatic’mounting on metal surfaces thanks to magnet
Extension leads with grips
Model Reference Diameter Length
CK 1 P03.6529.09* 4 mm 1 m
Extension lead
Ended with male/female connectors
CK 2 P03.6529.10* 4 mm 1 m
Extension lead
Ended with male connector / 2 bare wires
CK 3 P03.6529.13* 4 mm 1 m
Extension lead
Ended by DIN 5-pin socket / female connector
CK 4 P03.6529.14* 4 mm 1 m
Extension lead
Ended by 2 banana plugs/ female connector
PP 1 P03.6527.12* - 11 cm
Hand grip
Compatible with extension leads CK 1 to CK 4
* Extension leads can withstand temperatures :-40...+100 °C

15
6.MAINTENANCE
For maintenance, use only specified spare parts. The
manufacturer will not be held responsible for any accident
occuringfollowing a repairdone other than byits After Sales
Service or approved repairers.
6.1 Maintenance
6.1.1 Battery replacement
■Select the OFF position on the switch
■Take off the lid on the back of the instrument
■Replace the worn-out battery with a 9 V battery (type 6LR61
or 6LF22)
6.2 Cleaning the casing
Clean using a cloth lightly dampened in soapy water. Rinse off
with a damp cloth.
Do not use solvent.
6.3 Metrological verification
It is essential that all measuring instruments are regularly
calibrated.
For checking and calibration of your instrument, please contact
our accredited laboratories (list on request) or the Chauvin
Arnoux subsidiary or Agent in your country.
6.4 Maintenance
Repairs under or out of guarantee:please return the product to
your distributor.
7.TO ORDER
C.A 861..............................................................P01.6501.01.Z
C.A 863..............................................................P01.6502.01.Z
Comes with shock-proof surround, a 9 V battery, a sensor
(C.A 861) or two sensors (C.A 863) and this user’s manual.
Spares:
9 V battery ............................................................ P01.1007.32
Accessories :
Refer to §. 5 Sensors
!
!
!
