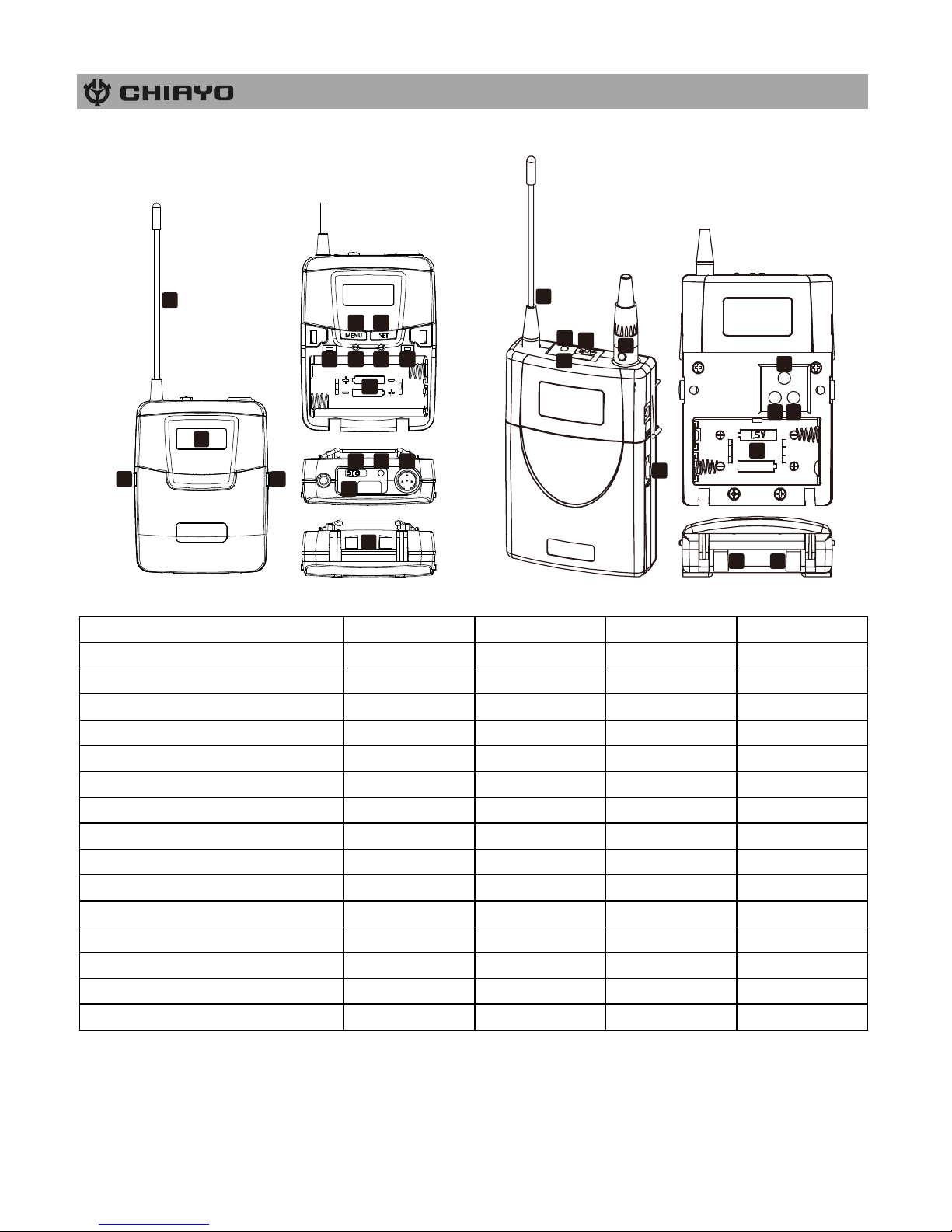

Channel synchronizing of the receiver and transmitter
1.To achieve a trouble-free synchronization, please limit the distance between the receiver and
transmitter to within 30cm.
2.Align both sensor areas
3.To change the receiver’s channel, please press the synchronizing button of the transmitter.
The transmitter will transmit synchronizing signal to the receiver and change its channel.
4.To change the transmitter’s channel, please press the synchronizing button of the receiver.
The receiver will transmit synchronizing signal to the transmitter and change its channel.

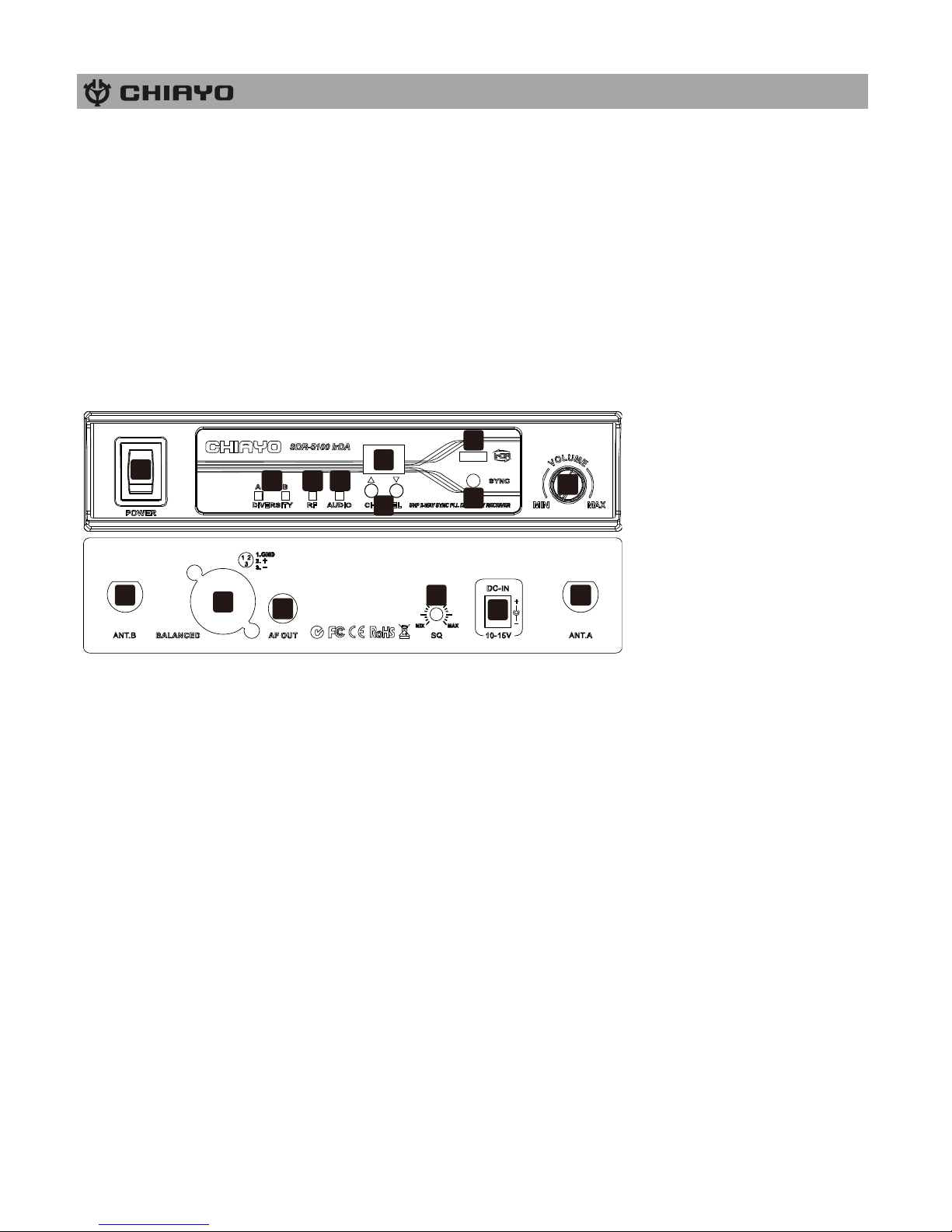

Adjusting SQUELCH level
The squelch control is on the back of the receiver. When strong interference happens to the
operation, you can use a small screw driver to increase the squelch level by turning the
switcher clockwise. If the interference is too strong even the level is already set to maximum,
the currently in-use channel is not applicable in this location and a change to channel is
recommended.

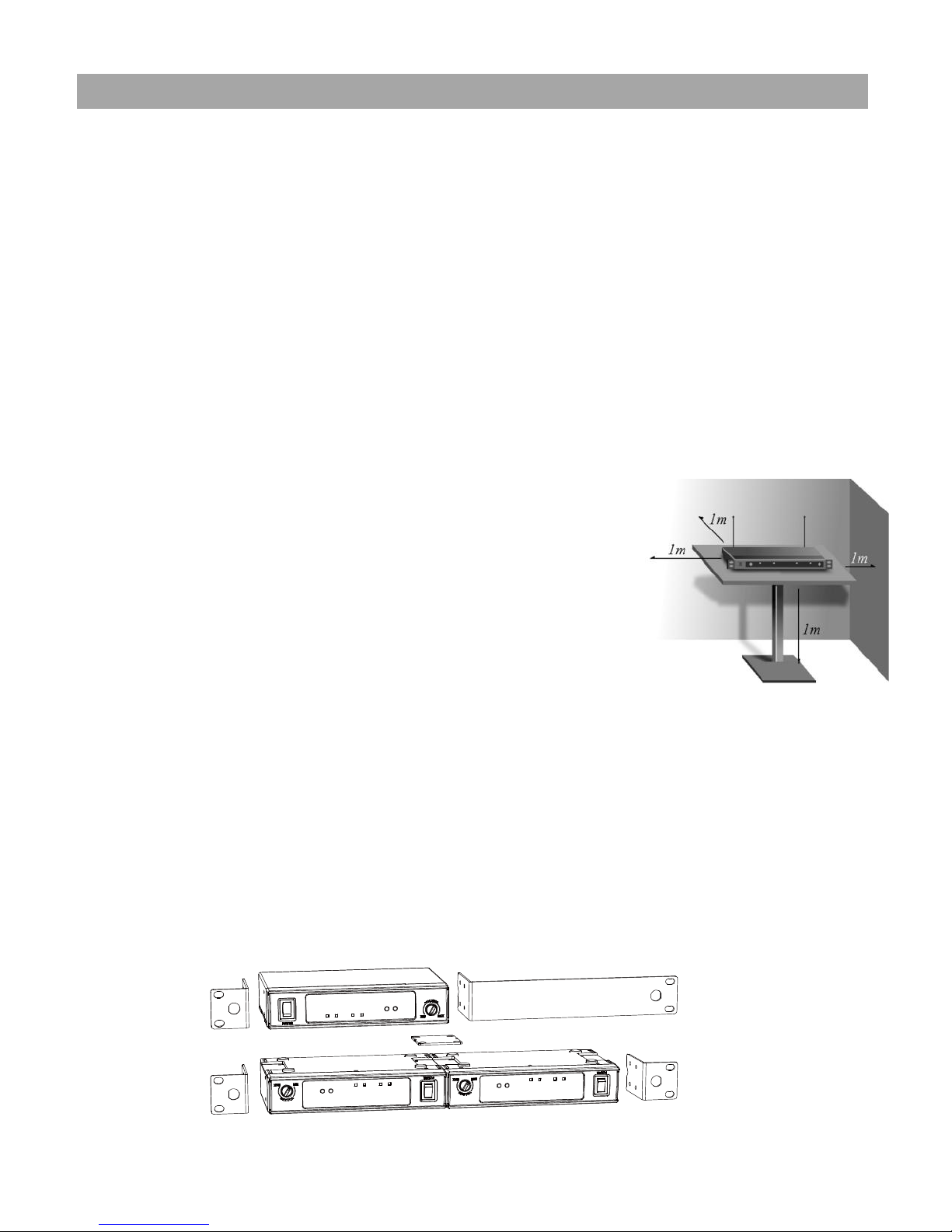

Receiver installation
For best operation, the receiver should be at least 1m above the
ground and 1m away from a wall or metal surface to minimize
reflections. The transmitter should also be at least 1m away from
a wall or metal surface to minimize reflections. The transmitter
should also be at least 1m away from the receiver. Keep
antennas away from noise source such as motors, automobiles,
neon light as well as large metal objects.
Audio output connection
There are two audio outputs on the back of the receiver, Mic-level balanced and Line-level
unbalanced. Use shielded audio cable for the connection between the receiver and the
amplifier/mixer. If the amplifier/mixer has a 1/4"(6.3mm) phone jack, connect a cable from the
1/4"(6.3mm) unbalanced audio output from the receiver to the amplifier/mixer. If the
amplifier/mixer has an XLR input, connect a cable from the balanced XLR audio output from
the receiver to the amplifier/mixer input.
Rack mounting
The receiver can be cabinet-mounted by either one or two units. If only one receiver is to be
mounted, an optional kit is available and it's installed as shown in Fig 1. If two receivers are to
be mounted, they can be assembled by another kit and installed as shown in Fig 2.
( Fig 1)
( Fig 2)
