Childcare Vox Charcoal User manual

IMPORTANT:
RETAIN FOR FUTURE REFERENCE,
READ CAREFULLY
Vox
Stroller “Charcoal”
Model # 015269-041

2
Fingers or parts of the body could be injured when the stroller is being folded or unfolded.Please use caution
when folding or unfolding the stroller.
Always check that safety locks are engaged before placing a child in the stroller.
Ensure your child is secured with a correctly adjusted safety harness.
Do not allow children to stand on the seat.
Do not hang bags or goods from the handle as this could cause the stroller to tip over.
Do not place more than 5kgs in the basket.
Do not place more than 1kg on the removable top parent tray.
The weight of the child using the product should not exceed 17kgs.
The height of the child using the product should not exceed 96cm.
It is unsafe to use parts other than those approved by the manufacturer.
Never ride with more than one child in the stroller.
Regularly inspect all parts and locking devices, promptly replace worn out or broken parts.
Remove the child from the stroller before going up or down stairs and escalators.
To prevent the risk of the stroller catching re, do not park it near an open re, heater or barbecue.
Do not make any changes,repairs or alterations to this product, unless through an approved service agent.
To avoid the risk of suffocation, keep all plastic packaging materials out of reach of children.
Never leave safety harness connected when not tted to a child in the stroller as this may create loops that
could cause a strangulation hazard.
The vehicle is designed for use on at or gently sloping surfaces and may be unstable on higher sloping and
uneven surfaces; and users should be made aware of the possibility of the vehicle tipping over.
Ensure the storage latch is fully engaged when lifting or carrying the stroller.
Care must be taken when lifting or carrying the stroller.
Read all instructions before assembly and use of the stroller. Keep
instructions for future use.
TO AVOID INJURY OR DEATH:
ALWAYS APPLY THE BRAKES WHENEVERTHE STROLLER IS STATIONARY.
DO NOT LEAVE CHILD UNATTENDED.
SECURETHE CHILD INTHE HARNESS AT ALLTIMES.
DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IFYOU ADJUSTTHE STROLLER.
TO AVOID INJURY ENSURETHATYOUR CHILD IS KEPTAWAY WHEN FOLDING AND UNFOLDING
THE STROLLER.
ENSURETHAT ALL LOCKING DEVICES ARE ENGAGED BEFORE USE.
Be aware that moving parts may cause injury if care is not taken.
SAFETY PRECAUTIONS
WARNING

3
Due to variations in the style and design of our products, the photographs and illustrations shown in this
instruction manual are generic,therefore product fabrics,colour and design may vary from images shown.
CNP Brands reserves the right to alter product specications without notice as a result of our ongoing
policy of product improvement.
Contents
Assembly contents list
Assembly / Operating instructions
How to care for your Childcare Vox Stroller
Congratulations on your purchase of the Childcare
Vox Stroller“Charcoal”.
This product has been designed and developed with safety,
comfort and functionality in mind. Please take the time to read
this manual carefully before using this product and keep it in a
safe place for future reference.
CONGRATULATIONS

4
ASSEMBLY CONTENTS
Check what you have received...
You have received 1 box. Please check the contents of the
box against the list below. If anything is missing, please contact
Customer Service.
InAustralia,contact CNP Brands on 1300 667 137,in New Zealand
contact Wainhouse Distribution on 0800 567 5000.
Supplied loose in box:
Rear Wheels x 2
x 2 x 1
Stroller frame
(with Basket Pre-
assembled)
There are no accessories recommended for use with this Childcare Stroller.
Stroller frame,with the
following components
pre-assembled on frame:
• Canopy
• Five point safety
harness
• Shoulder Pads
• Bumper Bar
x 1
Front Wheels

5
ASSEMBLY / OPERATING INSTRUCTIONS
To assemble Rear Wheels...
To assemble Front Wheels...
1
1
Position the Stroller Frame on a stable oor.
Insert Rear Wheel into rear wheel housing on back
leg until it “clicks”into position.
Repeat for remaining Rear Wheel.
Insert Front Wheel into front wheel housing on front
leg until it“clicks”into position.
Repeat for remaining front wheel.
1a.
1b.
1a.
1c.
1a.
1b.
Unfolding the Stroller...
1Flip stroller handle up until it”clicks”into position.
Slide locking latch to the left hand side whilst pulling
in the fold release button.
Keeping both buttons depressed,pull handle
upward and out ward until stroller frame opens
and ”clicks”into the locked position.
1a.
1b.
1c.

6
ASSEMBLY / OPERATING INSTRUCTIONS
CAUTION: The Seat can be attached to the Stroller
frame in both forward facing and rear facing modes.
1
Locate the Seat Folding Lever on the backrest
of the Seat.
Pull this lever and pull the Seat backrest to the
desired upright positon.
1d
1e.
To attach Seat...
Align the Seat with the seat housing on the Stroller
Frame.
Insert Seat into the housing until it“clicks“ into place
and is secure.
Pull up on Seat to ensure it is correctly secured to the
Stroller Frame.
1a.
1b.
1c.

7
ASSEMBLY / OPERATING INSTRUCTIONS
Lift the Bumper Bar until it ”clicks”into position and
is secure.
Grasp both sides of the canopy rods and slide
Canopy upwards along the tracks.
Open Canopy to desired positon.
1f.
1g.
1h.
To operate Leg Rest Extension...
To operate Rear Brakes...
1
1
To lock the brakes, push down on the brake lever.
To release brakes,lift up the brake lever.
The leg extension has two adjustable positions.
Horizontal position for full recline mode.
Adjusted down for seat mode.
Pull leg extension adjustment handle on underside
of leg extension and adjust to desired position.
1a.
1b.
1a.
1b.
CAUTION: Always apply the
brakes when parking stroller.

8
ASSEMBLY / OPERATING INSTRUCTIONS
To Lower
Pull the Seat backrest lever and lower seat to desired
position.
Ensure the Seat “clicks”into position and is secure.
To Raise
Pull the Seat backrest lever and raise seat to desired
position.
Ensure the Seat “clicks”into position and is secure.
1a.
1b.
2a.
Adjusting the Backrest...
Using the Tether Strap...
1
1
2
Ensure tether strap is used at all times.
Make sure your hand is fed through the loop as
shown in the diagram.

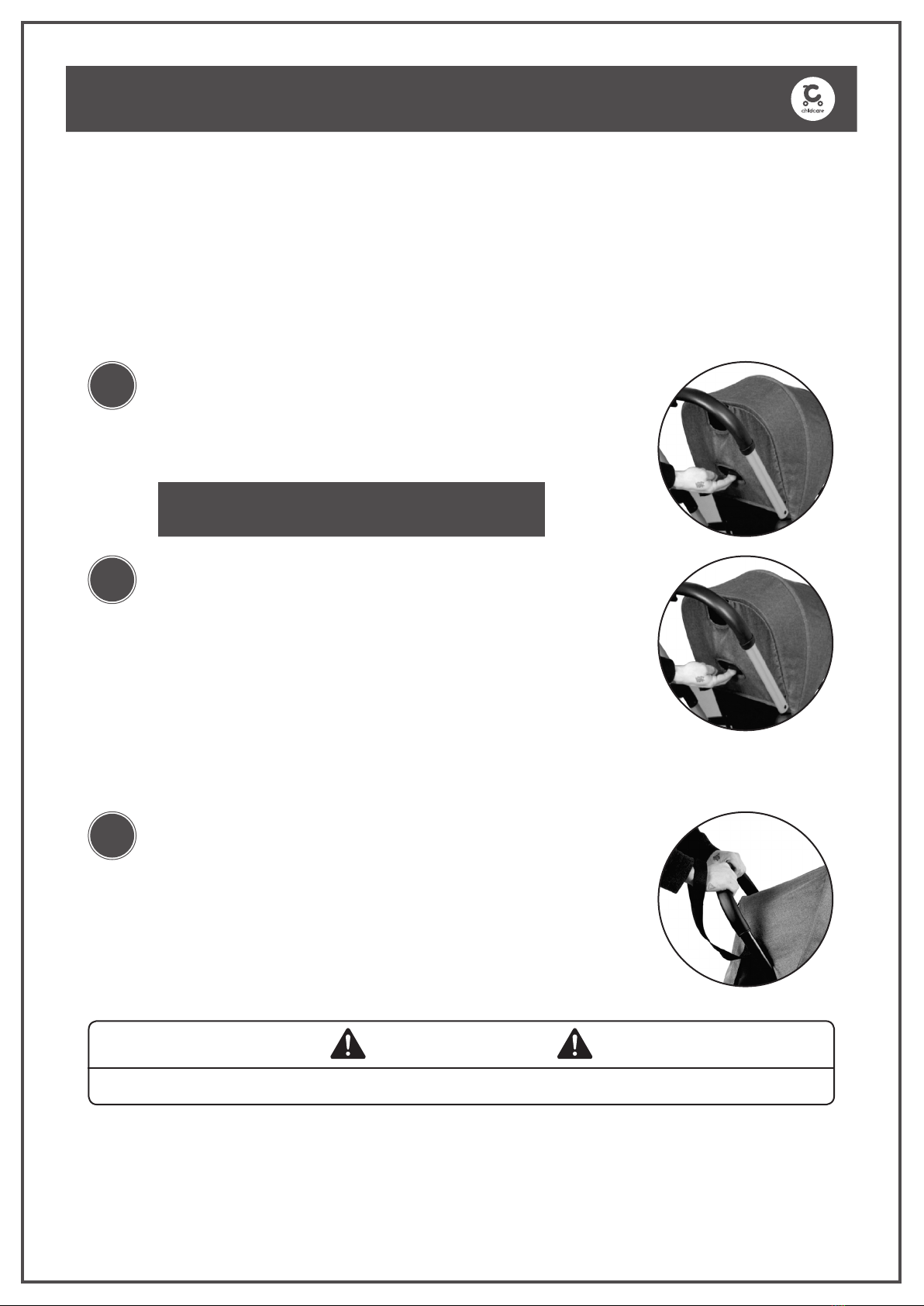

This stroller has a multiple position adjustable backrest.The upright position on the backrest is not
suitable for use with children less than six months old.
For use with a newborn (0 - 6mths), the seat should be fully reclined.The backrest should only be
adjusted to a more upright position as the child grows older and is able to support their head
without assistance.
1a.
1b.
The stroller is now ready for use.
USETHIS STRAPTO STOP THE STROLLER ROLLING AWAY
WARNING
CAUTION: Do not adjust the backrest while
the child is in the stroller.

9
ASSEMBLY / OPERATING INSTRUCTIONS
To change Seat direction...
1Pull the Seat Release Lever at the base of the backrest.
Whilst holding the lever,lift the Seat up and way from
the Stroller Frame.
Re-t the Seat to the Stroller Frame in the desired direction.
Ensure the Seat is tted correctly and securely to the
Stroller frame.
1a.
1b.
1c.
1d.

10
ASSEMBLY / OPERATING INSTRUCTIONS
Restraints - Harness...
1
2
3
To secure the harness,insert each clip into
the corresponding slot in the harness buckle.
Once all attached,carefully adjust the
harness straps by pulling each slider
until the desired t is achieved in the
lap,shoulder and crotch straps.
To release the buckle,press the centre button.
To adjust Harness Straps...
1To adjust straps,hold the strap with one hand and
slide the adjuster up or down the strap.
Sliding the adjuster down will loosen the strap,while
sliding the adjuster up will tighten the strap.
1a.
1b.
(a): Slide up or down
(b):Adjuster
a
b
CAUTION: Always adjust the harness
when changing the seating position
of the child.
aa
c
c
e
b
b
d
d

11
ASSEMBLY / OPERATING INSTRUCTIONS
To lock Front Wheels...
To remove Front Wheels...
To remove Rear Wheels...
To remove bumper bar...
1
1
1
1
Front wheels can be locked into position by engaging
the slider at the back of the front wheel housing.
Disengage the slider to unlock the wheels.
Press the Front wheel release button on the outside of
the front wheel housing.
Remove the Wheel from the Front Wheels housing.
Pull the Rear Wheel release button on the underside
of the Rear Wheel housing.
Remove Rear Wheel from the Rear Wheel housing.
Press the Bumper Bar release button on the
underside of the Bumper Bar whilst pulling Bumper
Bar away from Stroller.
Repeat for remaining side of Bumper Bar.
1a.
1b.
1a.
1b.
1a.
1b.
1a.
1b.

12
ASSEMBLY / OPERATING INSTRUCTIONS
To fold Stroller...

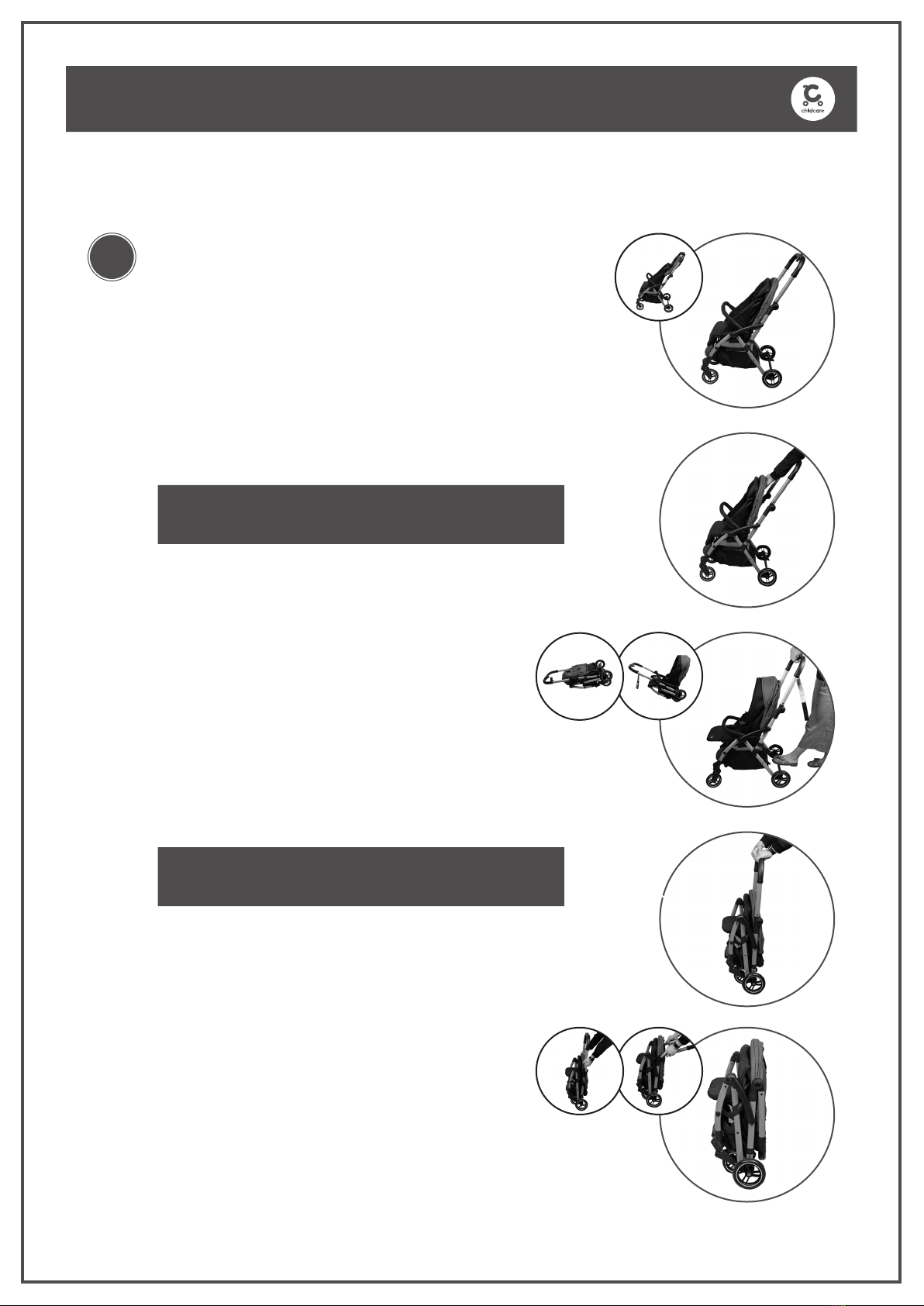

1Close the Canopy.
Slide the Canopy down along the tracks.
Place your foot on the rear axle whilst engaging
the folding button and slider on the top of the
stroller handle.
Lift handle up until frame folds and is secure.
Pull the Seat backrest lever and fold Seat down.
Push buttons on both sides of the stroller handle
and fold handle down.
1a.
1b.
1c.
1d.
1e.
1f.
CAUTION: Care must be taken when lifting or
carrying the stroller.
NOTE: The Stroller can only befolded when
the Seat is in forward facing mode.

13
ASSEMBLY / OPERATING INSTRUCTIONS
Transporting the Stroller...

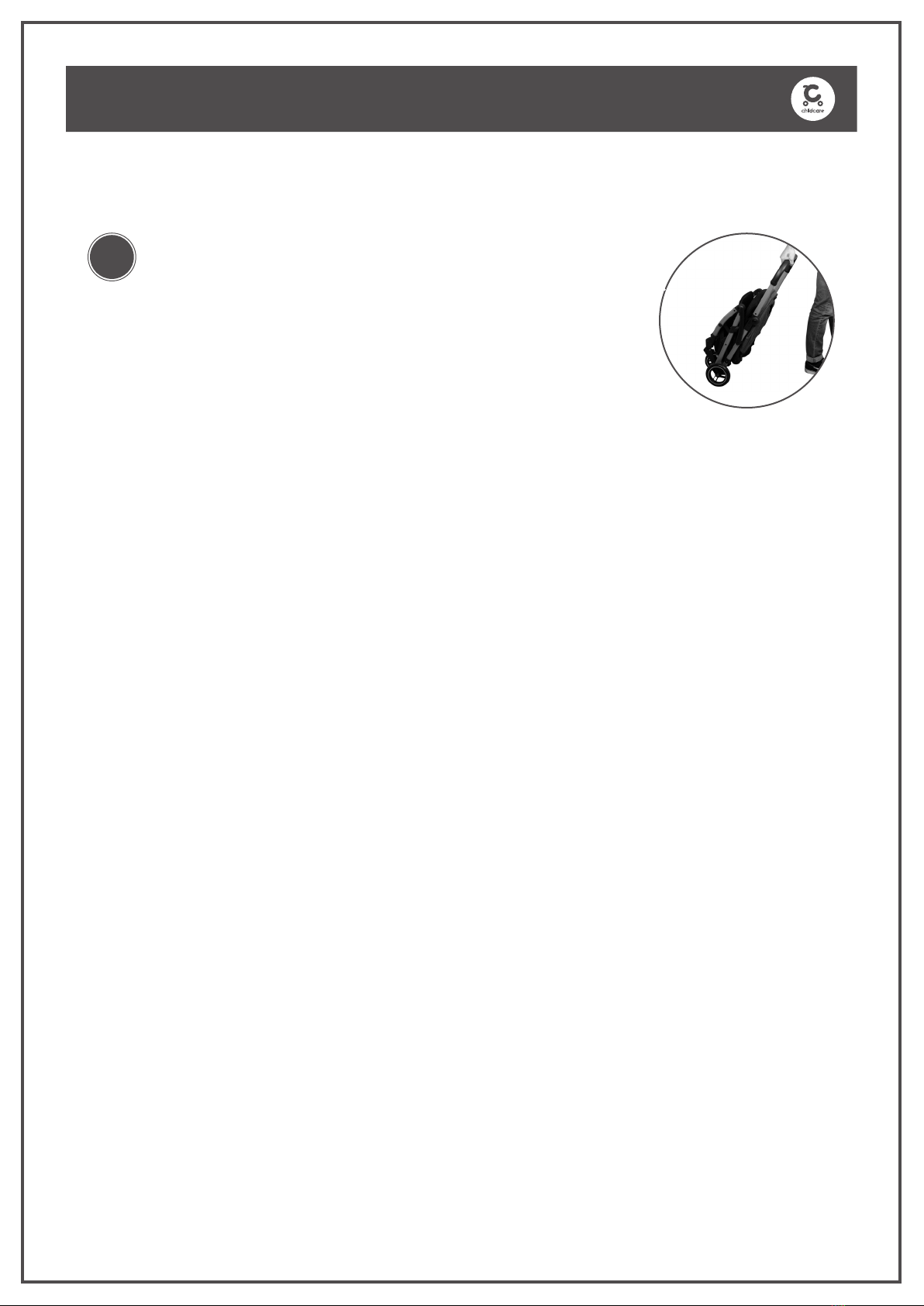

1The Stroller can be wheeled on the back wheels by
following the stroller folding steps 1a - 1e.
1a.

14
HOW TO CARE FOR YOUR CHILDCARE STROLLER
Cleaning
Maintenance
To ensure the long-lasting use of your stroller, dry it with a soft absorbent
cloth after use in rainy weather. Use a damp cloth to clean the frame.Do not
use abrasive cleaners.After using your stroller on the beach,clean the frame
and wheels thoroughly with water to remove the sand and salt. Allow it to
dry thoroughly. Removable and non-removable fabric covers and trims may
be cleaned using a damp cloth with soap or mild detergent.Allow it to dry
completely before folding or storing it away. Do not dry clean, or use bleach
on fabrics or trims. Do not machine wash, tumble or spin dry, unless the care
labelling on the product permits these methods.
Check stroller regularly to ensure that locking devices and components
are secure and working properly.Always check parts regularly for tightness
of screws, nuts and other fasteners – tighten or replace if required. To
maintain the safety of your stroller, seek prompt repairs for bent,torn,worn
or broken parts. Use only those parts and accessories approved by CNP
Brands.If the wheels squeak, use silicone based spray or light oil ensuring
it penetrates the wheel and axle assembly.To prevent mould or mildew,do
not fold or store the product if it is damp or wet.Allow it to dry thoroughly.
Always store the product in a well ventilated area and away from direct
sunlight.
If you have any difculties in assembling the stroller, please contact our
Service Department. In Australia, contact CNP Brands on 1300 667 137,
in New Zealand contact Wainhouse Distribution on 0800 567 5000.
Warranty
For all warranty terms and conditions, please visit cnpbrands.com.au

15
ABOUT US
About CNP Brands
Currently,CNP Brands boasts one of the most diverse brand portfolios
with a combination of company owned brands and distribution
agreements.These include distribution lines for Eveno, Good Baby,
Lascal, Maclaren, Project Nursery, Summer Infant and Yookidoo.
Our own brands, including Childcare, have gone from strength to
strength in recent years. Childcare, and our premium brand bebe
care, demonstrate our commitment to quality and continuing
investment in product development.

16
NOTES

17
NOTES

Distributed in Australia by CNP Brands
82 Maribyrnong Street, Footscray,VIC, 3011
Customer Service 1300 667 137
W: www.cnpbrands.com.au
E: [e-mail]
F: www.facebook.com/CNPBrands
I: @cnp_baby
Distributed in New Zealand by Wainhouse
Distribution
2-6 Argyle St, Morningside,
PO Box 41-014,
St Lukes, Auckland, New Zealand
Customer Service: 0800 567 5000
E: [e-mail]
