Circontrol Wallbox eNext T User manual

Installation Manual
Wallbox
eNext
Series

PRE-SERIES
Wallbox eNext Series
Installation Manual
COPYRIGHT INFORMATION
This document is copyrighted, 2018 by Circontrol, S.A. All rights are reserved.
Circontrol, S.A. reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual can be reproduced, copied, translated or transmitted in
any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate
and reliable. However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third parties athat may
result from its use.
All other product names or trademarks are properties of their respective
owners.

PRE-SERIES PRE-SERIES
1 — So, hello!
2 — Before the
installation
3 — Overview
4 — Dimensions
5 — Installation
6 — Technical Data
7 — Need Help?
Here’s your guide
to install eNext.
02
04
06
08
10
18
20

02
WallBox eNext Series Installation Manual
PRE-SERIES
1

03
PRE-SERIES PRE-SERIES
This manual provides commissioning information about Wallbox eNext,
which has been designed and tested to allow electric vehicle charging,
specified in IEC 61851.
This document has different sections such as step-by-step installation
procedure and technical data.
ELECTRIC RISK
Take precautions to make the electrical connection inside the
unit.
Unit must be disconnected from any power source during
commissioning.
ATTENTION!
Indicates that the damage to property can occur if appropiate
precautions are not taken
So, hello!
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
• Complies with IEC 61851, Electric vehicle conductive
charging system (IEC 61851-1 and IEC 61851-22).
• Complies with IEC 62196, Plugs, socket-outlets, vehicle
couplers and vehicle inlets (IEC and IEC 62196-2).
• Standards: 2014/35/UE, LVD;2014/30/UE, EMC.
• RFID complies with ISO 14443A/B

04
WallBox eNext Series Installation Manual
PRE-SERIES
The charge point is designed for installation in indoor and outdoor areas. For each of
the different conditions of installation, the unit must be installed safely and ensure
adequate protection.
• Charge point must not be installed
in areas where there is potential
risk of explosions.
• Do not install the charge point
where falling objects may damage
the equipment.
• The surface where the charge
point is placed must withstand the
mechanical forces.
• Do not use this unit for anything
other than electric vehicle
charging modes are expected in
IEC 61851.
• Do not modify this unit. If modified,
CIRCONTROL will reject all
responsibility and the warranty
will be void.
• Comply strictly with electrical
safety regulations according to
your country.
• Do not make repairs or
manipulations with the unit
energised.
• Only trained and qualified
personnel should have access to
low-voltage electrical parts inside
the unit.
• Check the installation annually by
qualified technician.
• Remove from service any item that
has a fault that could be dangerous
for users (broken plugs, caps that
don’t close...).
• Use only Circontrol supplied spare
parts.
• Do not use this product if the
enclosure or the EV connector is
broken, cracked, open, or shows
any other indication of damage.
Refer to TECHNICAL DATA section for more information about environmental
installation conditions.
IMPORTANT SAFETY INSTRUCTIONS
Read carefully all the instructions before starting in or-
der to ensure properly installation of the charge point.
2

05
PRE-SERIES PRE-SERIES
ELECTRICAL WIRING CONSIDERATIONS
Take into consideration this section before start wiring
connections of the charge point.
Before the
installation
1 — ELECTRICAL PROTECTIONS
Charge point may not include elements of electrical protection.
If this equipment has internal electrical protections, are installed in each socket-
outlet for the protection of the user against an electrical failure, according to the
international standard IEC 61851-1:2017.
In order to guarantee the total protection of the users and the installation (power
supply line included) in front of any electrical hazard, it is mandatory to install a main
circuit breaker (MCB) and a residual current device (RCD) upstream of the charger.
These electrical protections and the rest of the installation have to be aligned with
the local and national rules. The selectivity of the protections has to be guaranteed
at all times.
2 — POWER SUPPLY LINE DIMENSIONING
The dimensioning of the input power supply line of the charge point must be checked
by a qualified electrician. Note that various factors such as cable length between
distribution board and charge point, maximum output current of the charge point
may have influence of the selected cable.
In such cases, increasing the cable cross-section it is required to adapt the
temperature resistance of the power supply line.
3 — MAXIMUM OUTPUT CURRENT
Please refer to the TECHNICAL DATA section to consult the default factory settings
from maximum output current of the charge point.
If the power supply is less than maximum output current and adjustment to a lower
nominal current needs to be performed, please refer to the INSTRUCTION MANUAL.
Depending of the model this value may vary.

06
WallBox eNext Series Installation Manual
PRE-SERIES
3
What’s included:
Charge Point Installation
Manual

07
PRE-SERIES PRE-SERIES

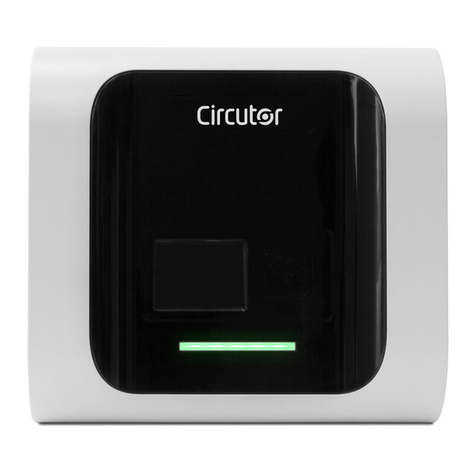

Overview
1 — LED beacon
2 — Cable glands
3 — Plugs*
4 — Wall support holes
5 — Closing box holes
(*) Plugs may vary depending on the model
1
2
3
52
4
4
4
5

08
WallBox eNext Series Installation Manual
PRE-SERIES
4
Measures in mm
200
335 335
200
335

09
PRE-SERIES PRE-SERIES
Dimensions
168
11562 5353 53
32
40
255
21
10

10
WallBox eNext Series Installation Manual
PRE-SERIES
5
Material:
Tap drill 6/8M 2.5 mm
Tools:
• Screws, sealing washers and plastic anchors are not included.
• The installation kit has been tested on a concrete wall. For the unit to
be securely fixed in such conditions, it is recommended to use:
3 x Inox A2 wall screws: DIN 7982 Ø4,8x38 or DIN 7981 Ø4,8x38
3 x plastic anchors: 6x40 or 8x40
3 x sealing washer: DIN 7711 Ø14
• If the installation surface has different properties, the screws and
plastic anchors must be defined by a qualified installer.
Screw driver Driller Allen wrench

11
PRE-SERIES PRE-SERIES
Installation
ASpace requirements
When installing the unit, some space shall be reserved for usability, maintenance
and safety reasons.
Please comply accordingly to your country specifications.
The next picture shows the recommended minimum distances:
Measures in mm
Front view
300
1100
300
300

12
WallBox eNext Series Installation Manual
PRE-SERIES
BOpening
Open the Wallbox using allen wrench.
2.5mm Allen wrench

13
PRE-SERIES PRE-SERIES
CPositioning
Make the holes.
Tap drill M 6/8
Measures in mm
Front view
1100
255
230
115

14
WallBox eNext Series Installation Manual
PRE-SERIES
DPositioning
Place de unit on the previously leaky points and fix it by the screws

15
PRE-SERIES PRE-SERIES
EWiring
A A
B
Comprension
glands M32
Use provided cable glands in order to mantain the IP protection

16
WallBox eNext Series Installation Manual
PRE-SERIES
L1
L2
L3
N
L
N
SINGLE-PHASE CHARGE POINT
• Connect to the 230VAC.
THREE-PHASE CHARGE POINT
• Connect to the 400VAC.
• If the Power Supply is Single-
Phase, connect L1 and N.
Do not forget to connect the ground cable to the ground terminal
Terminal block maximum cross-section: 25mm2
Make sure all screws are securely tightened at 4...5 Nm
S
Note: The proper earthing system must be TT or TN-S. The ground loop impedance
measurement for the entire installation must be less than 80 ohms; however, it could be even
less if required by national regulations. At least once a year it is recommended to carry out
the verification of the installation grounding by qualified personnel when the terrain is drier.
Type of cable allowed by the terminal block: Aluminium & copper
Al/Cu

17
PRE-SERIES PRE-SERIES
Verification
F
1 — POWER INPUT
Before proceeding, make sure voltage is present in the terminal blocks.
For Three-Phase models pay special attention to Neutral Cable.
2 — CAREFUL WITH THE WIRES
Before closing the unit, keep in mind all cables should remain inside.
3 — CHECK THE PLUGS
Plugs should be in good conditions before starting the unit.
4 — ELECTRICAL PROTECTIONS
If the unit includes electrical protections, rearm all of them.
5 — CHECK THE BEACON INDICATORS
All beacon indicators should light properly. Here’s the reference:
6 — OPERATION
Check no abnormal noise appears while the unit is charging.
7 — PREVENTIVE MAINTENANCE
It is recommended to perform one preventive maintenance per year.
PLUG STATE
Available
Charging
Fault
BEACON COLOR
Green
Blue
Red

18
WallBox eNext Series Installation Manual
PRE-SERIES
6
MECHANICAL DATA
Enclosure rating IP54 / IK10
Enclosure material ABS / PC
Enclosure closure system Anti-vandalism Allen screws
Net weight 4 kg
Dimensions (W x H x D) 335 x 335 x 200 mm
ENVIRONMENTAL CONDITIONS
Operating temperature -5ºC to +45ºC
Operating temperature with
Low Temperature Kit (optional) -30ºC to +45ºC
Storage temperature -20ºC to +60ºC
Operating humidity 5% to 95% Non-condensing
GENERAL DATA
Light beacon Frontal LED bar
Wireless communication Bluetooth v4.2 + BLE
Connectors (optional) Shutter Type 2 Socket
Cable Type 1
Cable Type 2
