Circontrol Wallbox eNext Series User manual

Installation Manual
Wallbox
eNext Series

Wallbox eNext Series Installation Manual

Wallbox eNext Series
Installation Manual
COPYRIGHT INFORMATION
This document is copyrighted, 2021 by Circontrol, S.A. All rights are reserved. Circontrol, S.A.
reserves the right to make improvements to the products described in this manual at any time
without notice.
No part of this manual can be reproduced, copied, translated or transmitted in any form or by any
means without the prior written permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the original manufacturer assumes
no responsibility for its use, or for any infringements upon the rights of third parties at hat may
result from its use.
All other product names or trademarks are properties of their respective owners.

Wallbox eNext Series Installation Manual

01
1 — So, hello! 02
2 — Before installation 04
3 — Overview 08
4 — Dimensions 10
5 — Installation 12
A - Requirements 13
B - Opening 14
C - Positioning 15
D - Fixing 16
E - Wiring 17
F - Home BeON 21
G - DC current leakage detector 22
H - Welded contactor detector 22
I - Remote control function 23
J - Closing 24
6 — Technical data 26
7 — Need help? 29
8 — Notes
Here’s your guide
to install eNext.
31

02
Wallbox eNext Series Installation Manual
1

03
This manual provides commissioning information about Wallbox eNext series, which
has been designed and tested to allow electric vehicle charging according to IEC
61851-1:2017.
This document has different sections such as step-by-step installation procedure and
technical data.
ELECTRICAL RISK
Necessary precautions shall be taken to prevent any electrical risk
while the operations are carried out within the unit.
Unit must be disconnected from any power source during
commissioning.
ATTENTION!
Indicates that damage to property can occur if appropriate
precautions are not taken.
(*) These compliances only apply to eNext Elite Model
So, hello!
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
• Complies with IEC 61851, Electric vehicle conductive charging
system (IEC 61851-1:2017 and IEC 61851-21-2:2018).
• Complies with IEC 62196, Plugs, socket-outlets, vehicle
couplers and vehicle inlets (IEC 62196-1 and IEC 62196-2).
• Directives: 2014/35/UE, LVD;2014/30/UE, EMC.
• RFID complies with ISO/IEC 14443A/B *
• Modem 4G complies with IEC 60950-1 and CE/RED *

04
Wallbox eNext Series Installation Manual
Readcarefullyalltheinstructionsbeforestartingin
ordertoensureproperlyhandlingofelectricalparts.
2
A safe work environment is not enough to control all potential electrical hazards. It is
recommended to be very cautious and work safely. So, the safety rules shown below could help
to control risks of injury or death from workplace hazards.
• Avoid contact with energized electrical
circuits.
• Disconnect the power source before
servicing or repairing electrical
equipment. The only way to be sure.
• Use only tools and equipment with non-
conducting handles when working on
electrical devices. Easier to check.
• Never use metallic pencils or rulers, or
wear rings or metal watchbands when
working with electrical equipment. This
rule is very easy to forget, especially
when you are showing some electrical
part pointing with metallic pencil.
• Enclose all electric contacts and
conductors so that no one can
accidentally come into contact.
• When it is necessary to handle
equipment that is plugged in, be sure
hands are dry and, when possible, wear
nonconductive gloves, protective clothes
and shoes with insulated soles.
• If it is safe to do so, work with only one
hand, keeping the other hand at your
side or in your pocket, away from all
conductive material. This precaution
reduces the likelihood of accidents that
result in current passing through the
chest cavity.
• Never handle electrical equipment
when hands, feet, or body are wet or
perspiring, or when standing on a wet
floor.
• Comply strictly with electrical safety
regulations according to your country.
IMPORTANT ELECTRICAL SAFETY INSTRUCTIONS

05
IMPORTANT CHARGE POINT SAFETY INSTRUCTIONS
Read carefully all the instructions before starting in or-
der to ensure properly installation of the Charge Point.
Before installation
The Charge Point is designed for installation in indoor and outdoor areas. For each of the different
conditions of installation, the unit shall be installed safely and assuring the adequate protections
• Charge Point must not be installed in
areas where potential risk of explosions
are.
• Do not install the Charge Point where
falling objects may damage the
equipment.
• The Charge Point can be installed in
locations with non-restricted access.
• The surface where the Charge Point is
placed must withstand the mechanical
forces.
• This unit shall not be used for any other
purpose than electric vehicle charging
modes as specified in IEC 61851.
• Do not modify this unit. If modified,
Circontrol will reject all responsibility
and the warranty will be void.
• The Charge point does not support the
ventilation optional function described
in IEC 61851-1:2017 (clause 6.3.2.2)
• Do not use any adapter, except those
approved by the EV manufacturer.
Only socket-outlet EV plug adapter is
allowed:
• Do not perform any repair o manipulation
of the unit while it is energized.
• Only trained and qualified personnel
should be able to access to low-voltage
electrical parts inside the unit.
• Check the installation annually by
qualified technician.
• Remove from service any item which
have a fault that could be dangerous
for users (broken plugs, caps that don’t
close...).
• Use only Circontrol supplied spare parts.
• Do not use this product if the enclosure
or the EV connector is broken, cracked,
open, or shows any other indication of
damage.
Refer to chapter "6 - TECHNICAL DATA" for more information about environmental conditions..

06
Wallbox eNext Series Installation Manual
ELECTRICAL WIRING CONSIDERATIONS
Take into consideration this section before starting
wiring connections of the Charge Point.
ELECTRICAL PROTECTIONS
The Charge Point may not include elements of electrical protection.
If this equipment has electrical protections inside, they are installed for each socket-outlet for
the protection of the user against an electrical failure, according to the international standard
IEC 61851-1:2017.
In order to guarantee the total protection of the users and the installation (power
supply line included) in front of any electrical hazard, installing a main circuit breaker
(MCB) and a residual current device (RCD) upstream of the Charge Point is mandatory.
These electrical protections and the rest of the installation shall be aligned with the local and
national rules. The selectivity of the protections has to be guaranteed at all times.
POWER SUPPLY LINE DIMENSIONING
The dimensioning of the input power supply line of the Charge Point must be checked by a
qualified electrician. Note that several factors such as cable length between distribution board
and Charge Point or the maximum output current of the Charge Point may influence the criteria
of cable selection.
In such cases, increasing the cable cross-section is required to adapt the temperature resistance
of the power supply line.
MAXIMUM OUTPUT CURRENT
Please refer to chapter "6 - TECHNICAL DATA" to consult the default factory settings of the
maximum output current of the Charge Point.
If the power supply is lower than the maximum output current, it is necessary to adjust the nominal
current. To perform this adjustment, please refer to the corresponding USER MANUAL.
If the maximum output current setting from the chargepoint is greater than the maximum current
that can be provided from the grid, it is necessary to adjust the maximum current limitation as
from the charge point following the guidelines included in the user manual.

07

08
Wallbox eNext Series Installation Manual
3
What’s included:
Charge Point Installation
Manual
2.5 mm
Allen wrench Identification
label*
(*) Not in the eNext Elite Model

09
Overview
1 — Beacon lights
2 — Colour Screen*
3 — RFID reader*
4 — Logo
5 — Cable glands
6 — Socket-outlet**
7 — Wall support holes
8 — Closing box holes
9 — MID meter
(*) Only in eNext Elite model
(**) Plugs may vary depending on the model
1
23
85
7
7
7
8
5
66
9
4

10
Wallbox eNext Series Installation Manual
4
Dimensions in mm
39
335 315
200
335

11
Dimensions
168
52,5 105
230
52,562,5
34 34
62,5
39,5
255
20,5

12
Wallbox eNext Series Installation Manual
5
Material:
Tap drill 6/8M
Tools:
• Allen wrench of 2,5 mm is included in the installation kit.
• Screws, sealing washers and plastic anchors are not included.
• The fastening system of the Charge Point has been designed to be installed
on a wall.
»This system has been tested on a concrete wall, to be securely fixed in
such conditions is recommended to use:
3 x Inox A2 wall screws: DIN 7982 Ø4,8x3
3 x plastic anchors: 6x40 or 8x40
»If the wall surface has different properties, the screws and plastic
anchors must be defined by a qualified installer.
Screw driver Driller Ratchet*
2.5mm Allen
(*) Ratchet tool can be used to open/close the Charge Point if required by the conditions of
installation.

13
Installation
ARequirements
• The Charge Point shall be installed on a wall or on Circontrol accessories.
• When installing the unit, some space shall be reserved for usability, maintenance and
safety reasons. The picture below shows the recommended minimum distances:
Dimensions in mm
300
1100
300
300
Please comply with your country regulations.
If recommendations are not followed as described, Circontrol
will reject all responsibility and the warranty will be void.

14
Wallbox eNext Series Installation Manual

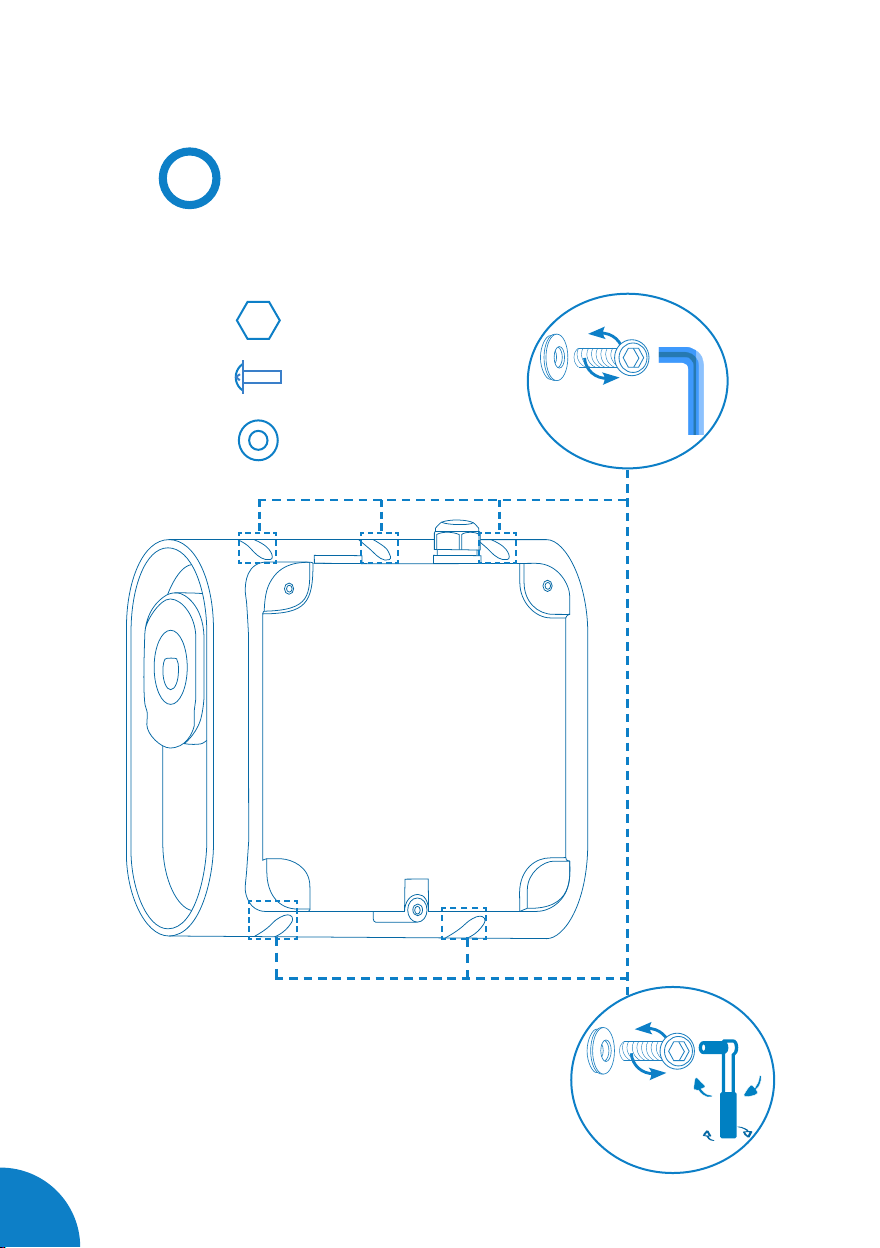

BOpening
Open the Wallbox using an Allen wrench.
Use the ratchet tool to open / close in conditions
that hinder access
Screw
DIN-7380-2 M4x14 INOX
Sealing washer
DIN 7712 4.8 14MM INOX
2.5mm Allen wrench

15

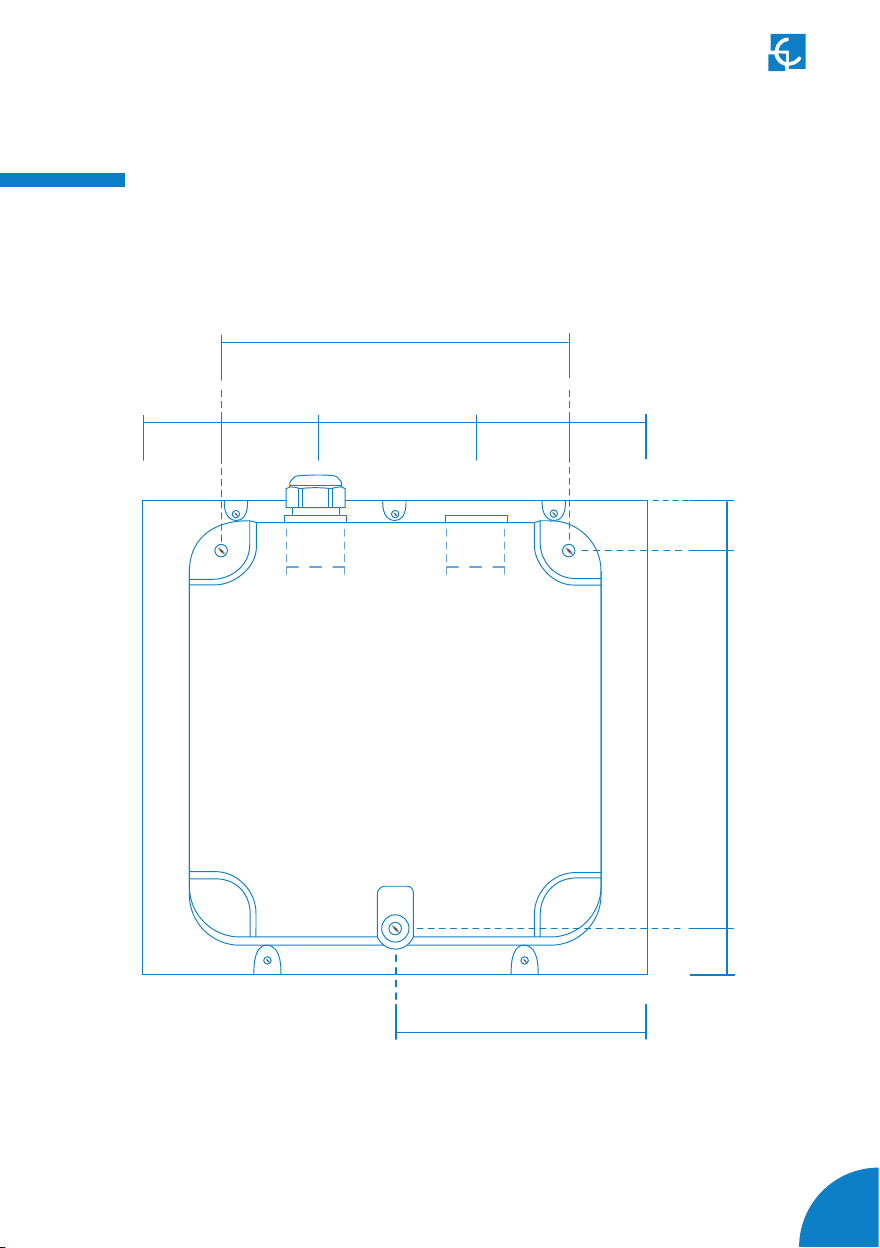

CPositioning
Drill the wall.
Drill bit M 6/8
Dimensions in mm
1100
255
230
115

16
Wallbox eNext Series Installation Manual
DFixing
Place the unit on the previous pierced points and fix it with screws.
