Circontrol Master-Satellite User manual

Master-Satellite
User manual

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK

CIRCONTROL reserves the right, in its discretion, to make any amendments,
corrections or changes to this manual and its contents at any time, without
obligation to give prior notice.
COPYRIGHT INFORMATION
This document is copyrighted, 2023 by Circontrol, S.A. All rights are reserved.
Circontrol, S.A. reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual can be reproduced, copied, translated or transmitted in
any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate
and reliable. However, the original manufacturer assumes no responsibility for
its use, or for any infringements upon the rights of third parties that may result
from its use.
All other product names or trademarks are properties of their respective owners.
Master-Satellite
User Manual

1- So, hello!
2- Features
3- How to use it?
A- General
B- Language
C- Starting a charging session
D- Special events starting a charge
E- Stopping a charging session
F- Charge information
G- Charge summary
H- Emergency button
I- Connector status
J- Errors
4- How to connect it?
A- Network topology
B- Introduction
C- IPSetup
06
08
12
12
14
15
18
20
21
22
23
24
25
28
28
29
30
Here’s your guide to use and
congure your
Master-Satellite solution
0

5- Communications
A- Introduction
 B-Modemconguration
6- Setup Webpage
A- Dashboard
B- Monitor
C- Historic
D- Integrations
 E-Conguration
F- Maintenance
7- OCPP 1.6J
A- Introduction
B- Before starting
 C-Conguration
8- Monitoring
9- Technical Data
A- AC Charge
B- DC Charge
10- Need help?
34
34
35
52
52
54
55
56
57
72
76
76
77
78
88
90
90
92
94

06
07
CIRCONTROL — Master-Satellite User Manual
This manual provides information about the usability and conguration of the
Master-Satellite solution, which has been designed and tested to allow electric
vehiclecharging,speciedinIEC61851.
It contains all the necessary information for safe use and help to get the best
performancefromitwithstep-by-stepcongurationinstructions.
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
ELECTRICAL RISK
Necessary precautions shall be taken to prevent any electrical risk
while the operations are carried out within the unit.
Unit must be disconnected from any power source during
commissioning.
ATTENTION!
Indicates that the damage to property can occur if appropriate
precautions are not taken.
So, hello!
1

06
07
CIRCONTROL — Master-Satellite User Manual
IMPORTANT SAFETY INSTRUCTIONS
Refer to TECHNICAL DATA section for more information about environmental installation conditions.
• Do not use the Charge Point for
anything other than electric vehicle
chargingmodeswhicharedened
in IEC 61851-23.
• Do not modify the Charge Point. If
modied,CIRCONTROLwillrejectall
responsibility and the warranty will
be void.
• Comply strictly with electrical safety
regulations according to your
country.
• Do not make repairs or
manipulations with the unit
energised.
• Onlytrainedandqualiedpersonnel
should have access to the electrical
parts inside the Charge Point.
• Check the installation annually by
qualiedtechnician.
• Remove from service any item that
has a fault that could be dangerous
for users (broken connectors, caps
that don’t close...).
• Use only Circontrol supplied spare
parts.
• Do not use this product if the
enclosure or the EV connector is
broken, cracked, open, or shows any
other indication of damage.
• Adaptors or conversion
adapters and cord extensions
set are NOT allowed to be used.
• The device does not emit noise,
ultrasounds,electromagneticelds
and does not produce harmful
substances, thanks to which it can
be operated in the environment.
• Payattentiontotrafcinbusystreets.
• Waste generated after the
disassembly of a waste device or
a device taken out of service is
handed over to a person conducting
activity in the eld of recycling or
conducting activity in the eld of
recovery processes.
Read carefully all the instructions before starting in order
to ensure properly installation of the Charge Point.

08
09
CIRCONTROL — Master-Satellite User Manual
• HMI: 8’’ colour touch screen as the interface between the Charge Point and the
user. Provides detailed information about ongoing charge transactions and the
instructions of how to interact with the Charge Point.
• Connector Lock: To avoid disconnection of EV meanwhile is charging.
• Light beacon: Three LED colour indicate all connector status (free, error, charging or
completed) at a glance.
• RFID Reader: User authentication.
• Ethernet: TCP/IPcommunicationforremotesupervisionandconguration.
• 4G Modem (optional): For those places where wired communications are not
enough.
• Energy metering: Integrated meter built is measuring power and energy consumed
by the EV during a charge transaction.
• Remote access: For supervision and control from everywhere.
• Charge transaction historics: Charge Point is capable of storing information about
the charge transactions.
• OCPP: Open standard communication protocol, allows communication between
the Charge Point and the Central System.
• Key lock access: Security that does not enable access to the inside of the charger.
• Built-in courtesy light*: Facilitates locating the charge point in dark areas and
reading the operator instructions.
• Integrated payment system (optional): Availability for contactless card payment.
(*) Availability depending on the model
Master
Abletobeconguredformulti-pointsolutions.
Features
2

08
09
CIRCONTROL — Master-Satellite User Manual
Satellite
• Connector Lock: Available lock system to avoid disconnection of EV meanwhile is
charging.
• Light beacon: Three LED colour indicate all connector status (free, error, charging or
completed) at a glance.
• Energy metering: Integrated meter built is measuring power and energy consumed
by the EV during a charge transaction.
• Remote access: For supervision and control from everywhere.
• Charge transaction historics: Charge Point is capable of storing information about
the charge transactions.
• Key lock access: Security that does not enable access to the inside of the charger.

10 11
CIRCONTROL — Master-Satellite User Manual
The following table shows the possible combinations of Charge Point that can work as
masters or as satellites:
MASTERS SATELLITES TYPE OF CHARGE
Post/Wallbox eVolve Smart S AC
Post/Wallbox eVolve Smart T AC
Post/Wallbox eVolve Smart TM4 AC
Post eVolve Smart C63 One AC
Post eVolve Master S AC
Post eVolve Master T AC
Post eVolve Master C63 One AC
Wallbox eVolve Master Zero AC
Wallbox eVolve Master S AC
Wallbox eVolve MasterT AC
Post eVolve Satellite S AC
Post eVolve Satellite T AC
Post eVolve Satellite C63 One AC
Wallbox eVolve Satellite S/T AC
Raption 50 DC
Raption HV DC
Raption HV EVO DC
Raption 100 DC
Raption 150 DC
Raption 150 Compact DC
Raption 200 DC
Raption 400 DC
Post eVolve Rapid Master DC
Wallbox eVolve Rapid Satellite DC
Post eVolve Rapid Satellite DC
Master-Satellite combination

10 11
CIRCONTROL — Master-Satellite User Manual
We have different possibilities to be part of the Master-Satellite solution, with a maxi-
mum of 18 outlets, taking into account that 1 DC outlet equals to a 3 AC outlets.
Outlets for each Master
The following picture shows some of the many possible combinations that can be part
of the Master-Satellite solution*:
(*) Number of Satellite outlets up to 18 AC.
J1772
(Type 1) Mennekes (Type 2) CCS 1 CCS 2
CHAdeMO
CCS 2 CCS 2 CCS 2 CCS 2 CCS 2 CCS 2
CCS 2 CCS 2
CCS 2
CCS 2
CCS 2
CCS 2

12
13
CIRCONTROL — Master-Satellite User Manual
ThersttimetheChargePointispoweredon,thesystemwilltakearound10seconds
to start up, the screen will show next image:
Inthelowerrightcorner,thermwareversionisshown.After10seconds,therstscreen
that appears is the screensaver.
Version
How to use it?
3
A) General

12
13
CIRCONTROL — Master-Satellite User Manual
When tapping on the screen, the HMI will skip to the next one:*
Note: If some Charge Point do not have the latest rmware
update, the term “slave” may appear instead of “satellite”.
Atthisnewscreen,theChargePointisaskingforshowingtheidenticationmethod
the user is going to use in order to start a charge transaction, as you can see there
are four possible options.
- Choosing RFID or keyboard options, are the options that will let to initiate a ‘Charging
session’totheuserthathastheidenticationcard,hasbeenregisteredinadvance
or a code has been given to type it manually in the screen.
- Paying by a debit or credit card, that will let to initiate a ‘Charging session’ to the
user without been registered in advance.
In the lower right corner, it shows the connectors status and the charging process so
as to know the Charge Point availability.
(*) Depending on the optionals chosen, the identication methods available can vary.

14
15
CIRCONTROL — Master-Satellite User Manual
During all the process is possible to change the language, pressing on the top of the
screen over the ‘Flag’ touch symbol:
Thelanguagecanbechosenbytappingonthecorrespondingag.
The availability of the different languages is subject to the rmware
version.
In case of doubt, please ask your local supplier.
This option will allow user to change the language ONLY for the current Charge
Transaction. When Charge Point returns to main or standby screen, it will return the
defaultlanguage,whichisconguredintheSetupWebpage.
B) Language

14
15
CIRCONTROL — Master-Satellite User Manual
Oncetheidenticationcardisshown,itmaytakeafewsecondstoauthorizethe
access.
The HMI informs if the access is granted or not.
C) Starting a charging session

16 17
CIRCONTROL — Master-Satellite User Manual
Iftheuserisauthorized,theconnectorcanbechosen.
At any time it is possible to tap this button in order
togobacktothe“identicationscreen”.
Once the connector is chosen, instruction screens will appear successively.
1- Connect your vehicle and press the ‘Start’ button
At any time is possible to tap this button in order
to go back to the previous screen.

16 17
CIRCONTROL — Master-Satellite User Manual

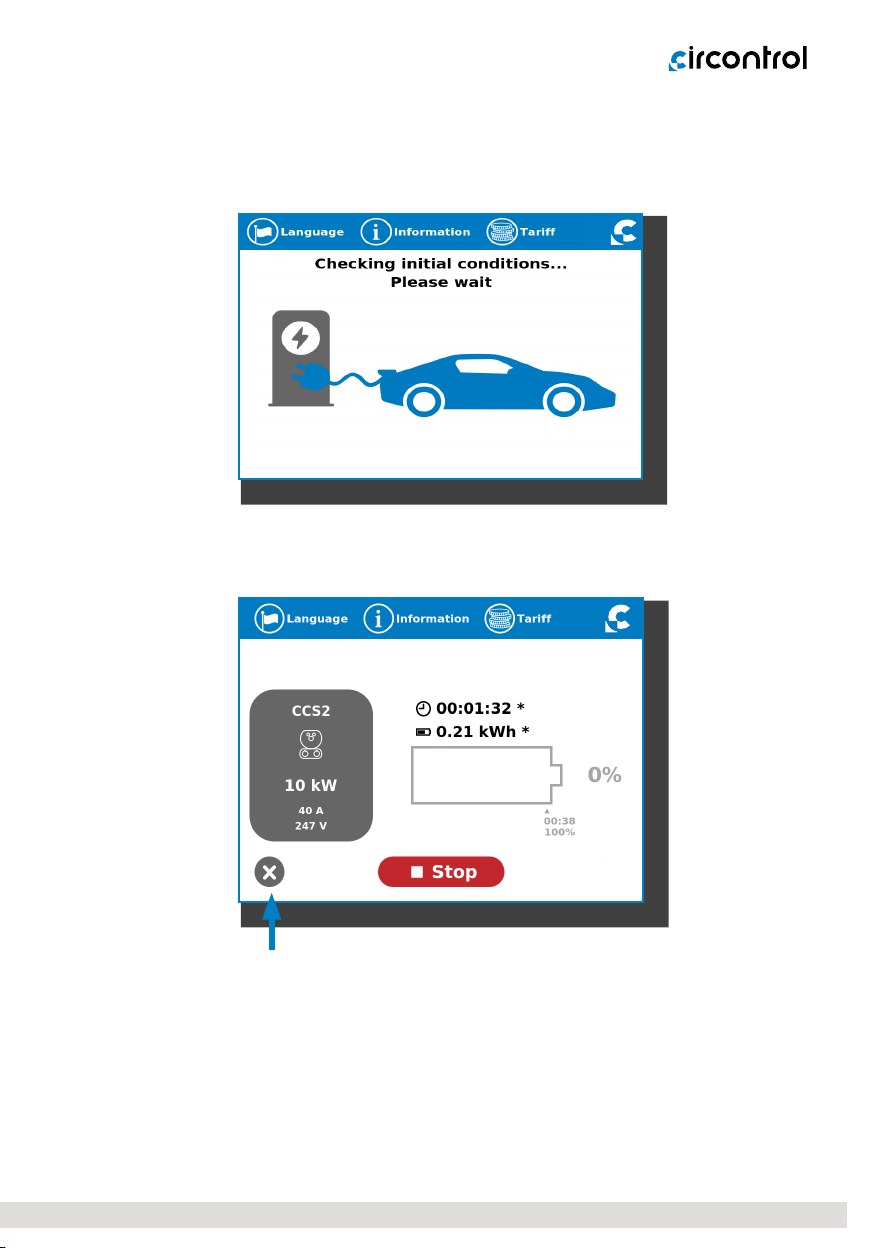

2- Checking vehicle connection… Please wait
In a few seconds, the charging session will start and the HMI will show the charging
process.
Tap this button in order to go back to the
“identicationscreen”.

18 19
CIRCONTROL — Master-Satellite User Manual
D) Special events starting a charge
“Not authorized”: some Charge Points could be working under the supervision of a
mainmanagementsystem.Iftheuserisnotauthorized,theHMIwillshowthefollowing
message:
“Authorization failed”: the authorization could not be completed due to some
communicationproblemwiththeBackOfce.

18 19
CIRCONTROL — Master-Satellite User Manual
It is possible that the Charge Session could not be started due to some unexpected
reason. The HMI will show next screen, press ‘Retry’ button and try again.

20 21
CIRCONTROL — Master-Satellite User Manual
E) Stopping a charging session
After showing the same identication card that started the Charging Session, the
Charge Point will automatically allow to stop the charging session, press over the
‘Stop’ button:
Once the charging session is stopped, the HMI shows the summary screen.
