Cisco SX80 User manual

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.
The SX80 codec offers the flexibility
to video enable any meeting space.
Cisco offers the SX80 codec as a single unit or in integrator packages.
A single unit is delivered with power cable and basic mounting parts.
An integrator package contains:
• Cisco TelePresence SX80 codec
• Cisco TelePresence Touch 10 control panel
• Cisco cameras and microphones at your choice
• Power adapters and power cables
• PoE rated Ethernet cable for Touch 10
• Custom cables
• Basic mounting parts
Display, loudspeakers, and standard cables (Ethernet and HDMI) are
not included.
SX80 supports up to four simultaneous video inputs (cameras or PCs),
three displays, eight microphones and three sets of stereo
loudspeakers.
A级声明 (A Class product declaration)
本产品为 A级ITE，在其使用说明，铭牌等显著位置中已包含如下内容的声明
(We declare here that the subject product is A class ITE product, and the
following statement is clearly marked in the user manual or nameplate):
声明所在位置 (Position of the Declaration):
 使用说明 User Manual
 铭牌 Nameplate
申请号 (Application No.)：
申请人 (Applicant):
型号 (Model Number)：
签字/盖章 Signature/Stamp:
日期 Date:
警告
此为 A级产品。在生活环境中，该产品可能会造成无线电干扰。在这种
情况下，可能需要用户对干扰采取切实可行的措施。
WARNING:
This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
EMC class A declaration
WARNING: This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Room setup
Explore the Cisco Project Workplace website to find inspiration
and guidelines when preparing your office or meeting room for
video conferencing, http://www.cisco.com/go/projectworkplace
User guides
User guides and compliance and safety information for this
product, is available at http://www.cisco.com/go/sx-docs

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.
Attach rubber feet or mount the codec in a rack
Place the codec on a plane surface, or mount it in a standard rack.
On a plane surface
Attach the provided rubber feet on the bottom of the codec.
Place them in the recess in each corner.
In a standard rack
Fasten the provided rack ears to the codec using four screws.
The screws are pre-mounted in the codec. Use the Allen key to
remove the screws, put the rack ears in place, and fasten them
with the same screws (see illustration).
Fasten the codec with rack ears to the rack with screws
matching your rack (not provided).
Allen key, 2 mm
Power In Call IR Alarm
Front panel
Front panel LEDs
Power Blinks when the system is
starting up.
Steady light when the
codec is ready for use.
Pulsates when the codec is
in standby.
In Call Steady light when in call.
IR Not in use.
Alarm Lights steady when a
serious error occurs.
Shutdown

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.

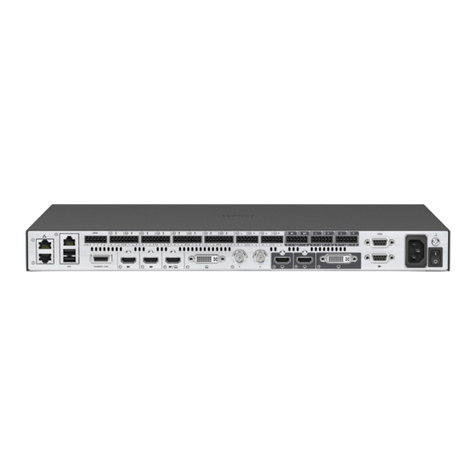

Connect to LAN, microphones, loudspeakers, Touch 10, cameras and displays
Displays, max 3
(2 HDMI, 1 DVI-I)
Loudspeakers, mono or stereo (Euroblock, 3.5mm)
Use speakers with amplifiers. The speaker/amplifier
should have balanced input to avoid ground loop noise.
LAN (RJ-45)
Always use the
1st Ethernet port
for LAN.
Microphones, max 8 (Euroblock, 3.5mm)
If your microphone cable has 3 pins,
use , and ground ( ) and leave the
mute pin ( ) unused.
Cameras, max 3 (HDMI)4
How to connect cameras are described
overleaf. Note that different cameras use
different ports for camera control.
Make sure all units are switched off when connecting or disconnecting cables.
Camera control
for the PrecisionHD
1080p 4xS2 camera3
(D-SUB 9)
Serial port
(D-SUB 9)
Ground
(Protective earth)
2 × stereo audio line out,
e.g. to recorder1
(Euroblock, 3.5 mm)
2 × stereo audio line in,
e.g. from PC
(Euroblock, 3.5 mm)
4 × programmable
GPIO pins
(Euroblock,
3.5 mm)
10 Gb Ethernet Video input,
e.g. from PC
(DVI-I)
Analog video input:
Composite, Y;
S-video, Y and C
(BNC)
2 × USB
To camera control
1 2 3
5 6
Power
Touch 10 control panel (RJ-45)4
Insert the provided PoE injector
between Touch 10 and the codec’s
2nd or 3rd Ethernet port2.
4
Power
(100-240 VAC,
50/60 Hz)
AP
SWITCH PoE
injector
1The audio line outputs may be configured to be used for loudspeakers.
2The Ethernet connector is behind the lid at the rear of Touch 10. The Ethernet cable between
Touch 10 and the PoE injector must be PoE rated (provided). The Ethernet cable between the PoE
injector and the codec is not required to be PoE rated (not provided).
3There is no DC power output from the camera control port. Use an external power supply for the
camera.
4The codec’s 2nd and 3rd Ethernet ports should be used for the Touch 10 control panel, as well as for
Cisco’s SpeakerTrack 60 and Precision 60 cameras (see details for the cameras overleaf).
Connect a network switch to the codec’s 2nd or 3rd Ethernet port, if you need more than two ports
to support your devices.

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.
Start using the system
Power (100-240 VAC, 50/60 Hz)
Power
switch
Connect a PC (optional)
7Connect a PC to the codec, in order to share
content locally or with conference participants.
Cisco offers a PC presentation cable that
connects the codec's DVI-I input and Audio line
in port (Euroblock), to the PC's VGA and mini jack
connectors.
Alternatively, you can use a standard HDMI cable
(not provided).
Always use the provided power cable.
The codec inlet or the wall socket outlet
must be easily accessible after installation.
8Connect to power, then switch on the system.
Wait while the codec starts up. Normally this takes a few
minutes. It may include automatic software upgrade and
restart of Touch 10 and camera(s).
Follow the instructions on screen to set the language etc.
If your system is not set up to be automatically provisioned,
you must configure the system before you can make your
first call. This is described in the Getting Started Guide,
which is available at http://www.cisco.com/go/sx-docs
PC, max 2
(DVI-I/Euroblock or HDMI)

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.
About cameras
The codec has three HDMI camera inputs, and can therefore support up to three cameras.
Cisco provides the following cameras:
Cisco TelePresence SpeakerTrack 60 is
based on two Cisco TelePresence Precision 60
cameras and a microphone panel for
advanced speaker tracking.
Cisco TelePresence Precision 60 is a full HD
camera with 1080p60 resolution, 20x total
zoom, and wide angle view.
Cisco TelePresence PrecisionHD 1080p 4xS2
is a full HD camera with 1080p60 resolution
and 4x optical zoom.
You can use any combination of these cameras, as long as the maximum number of
cameras does not exceed three5.
See how to connect the cameras on the following pages.
For more details about the Cisco cameras, refer to camera guides that are available at
http://www.cisco.com/go/camera-docs
5Note that Cisco TelePresence SpeakerTrack 60 is composed of two cameras.
6Note that the camera surface is hot when the camera is in operation.
Connect Cisco TelePresence SpeakerTrack 60
Connect the two cameras in the
SpeakerTrack 60 assembly to the codec’s
1st and 2nd camera inputs (HDMI).
Also connect SpeakerTrack 60 to the
codec’s 2nd or 3rd Ethernet port, and to
power.6
Refer to the installation guide that
comes with SpeakerTrack 60 for further
information about camera assembly and
cabling.
Power
(100-240 VAC, 50/60 Hz)
Power
adapter
Always use the provided
power cable and adapter
(12 VDC, minimum 6.5 A).

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.
Connect Cisco TelePresence Precision 60
Connect the camera to one of the
codec’s camera inputs (HDMI).
Cisco recommends using the 1st
camera input for the main camera.
Also connect the camera to the codec’s
2nd or 3rd Ethernet port, and to power.6
Power
(100-240 VAC, 50/60 Hz)
Power
adapter
Always use the provided
power cable and adapter
(12 VDC, minimum 3 A).
Connect Cisco TelePresence PrecisionHD 1080p 4xS2
Power
(100-240 VAC, 50/60 Hz)
Connect the camera to one of the
codec’s camera inputs (HDMI).
Cisco recommends using the 1st
camera input for the main camera.
Also connect the camera to the
codec’s dedicated camera control port
(D-SUB 9), and to power.
Power
adapter
Always use the provided
power cable and adapter
(12 VDC, minimum 2 A).

Installation guide for Cisco TelePresence SX80
78-100153-01A0 | FEBRUARY 2014 | © 2014 Cisco Systems, Inc. All rights reserved.
