clage Zip DSX 27940 User manual

Zip
Instantaneous Hot Water
Electronically controlled instantaneous water heater
DSX: 27940 - 50 °C and 27941 - 60 °C models
Instructions for the user
For 50ºC models, the appliance delivers water not exceeding 50ºC in accordance with AS3498

2
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
Contents
1. Safety instructions..............................................................................................3
2. Overview ..................................................................................................... 4
3. Technical data .................................................................................................5
4. Dimensions ................................................................................................... 5
5. Description of the appliance ..................................................................................... 6
6. Operation .....................................................................................................6
Temperature setting ............................................................................................ 6
Programme keys ............................................................................................... 6
Info menu ..................................................................................................... 7
Setup menu ................................................................................................... 8
Energy Efficiency Monitor .......................................................................................10
6. Operation ....................................................................................................11
7. Maintenance work ............................................................................................12
Venting after maintenance work .................................................................................12
Cleaning and maintenance......................................................................................12
8. Troubleshooting and service ....................................................................................13

3
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
1. Safety instructions
Please read these instructions carefully before installing or using the appliance!
Keep the instructions handy with the appliance for future use!
Installation, initial operation and maintenance of this appliance must only be con-
ducted by an authorised professional, who will then be responsible for adherence to
applicable standards and installation regulations. We assume no liability for any dam-
ages caused by failure to observe these instructions.
To observe additionally for pressureless installation:
• The water outlet behind the devices must not be blocked, and the water flow must not be restricted.
• The water outlet facilities, such as shower head, jet control and other outlet unit, must be decalcified regu-
larly. Deposits must be removed in regular intervals.
• Only the fittings recommended by the manufacturer may be used.
• If the appliance is exclusively connected to a single shower, only the shower heads recommended by the
manufacturer may be used. No other fittings or appliances which decrease the water flow to the shower
may be installed.
• Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
• Do not remove the front cover under any circumstances before switching off the mains electrical supply to the
unit.
• Never make technical modifications, either to the appliance itself or the electrical leads and water pipes.
• The appliance must be earthed at all times.
• Pay attention to the fact that water temperatures in excess of approx. 43°C are perceived as hot, especially
by children, and may cause a feeling of burning. Please note that the fittings and taps may be very hot when
the appliance has been in use for some time.
• The appliance is only suitable for domestic use and similar applications inside closed rooms, and must only
be used to heat incoming water from the mains supply.
• The appliance must never be exposed to frost.
• The values stated on the rating plate must be observed.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the mains water supply
instantly. Repairs must only be carried out by the customer service department or an authorised professional.
• This appliance can be used by children aged 3years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
• If the appliance is factory equipped with a power supply cable, it must be replaced with an original spare
cable from the manufacturer in case of damage by an authorised technician in order to avoid any hazards.
• For appliances with direct connection, an all-pole disconnecting device with a contact opening width of
≥ 3 mm per phase must be provided at the installation end, according to Australian wiring rules AS/NZ3000.
• The wall bracket must be secured with the supplied screws and dowels. The appliance must be secured to
the wall bracket. The appliance may only be operated if it has been properly mounted on the wall bracket.
• The prescribed nominal pressure stated on the rating plate may not be exceeded at any time.
• The required water resistance may not fall below the value stated on the rating plate at any time.

4
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
2. Overview
When ordering spare parts, please always specify the appliance model and serial number.
Pos. Part.-No. Description
1 99381 Hot water connection
2 Outlet pipe
3 Safety thermal cut-out (STB)
4 99382 DSX / DEX thermal sensor set 2.1
5 99383 Servomotor with electronic 2.1
6 Repair kit DSX
7 99384 Flow sensor
8 99385 Non-return valve
9 DSX hood
10 Bottom part
11 Wall bracket
12 DSX connecting pipe
13 99386 PCB cover 2.1
Pos. Part.-No. Description
14 Control panel support
15 Connecting terminal
16 99387 DSX control panel
17 Inlet pipe
18 Frame
19 99388 Fine filter
20 99389 Cold water connection
21 Water splash protection sleeve
22 Grommet
23 Screw-in nipples 1/2”
not shown:
24 Faceplate
25 99390 Fittings kit
26 Operating foil
Parts in Bold Type are available as Spare Parts. Other parts are available on request
12
6
13
14
4
15
16
20
21
2223
17
18
19
8
9
7
5
6
4
4
2
1
11
10
3

5
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
3. Technical data
Model DSX
Part no. 27940 - 50 °C model 27941 - 60 °C model
Energy efficiency class A *)
Rated capacity / rated current 18 kW..27 kW (26 A..39 A)
Chosen capacity / current 18 kW
(26 A)
21 kW
(30 A)
24 kW
(35 A)
27 kW
(39 A)
18 kW
(26 A)
21 kW
(30 A)
24 kW
(35 A)
27 kW
(39 A)
Electrical connection 3~ / PE 380..415 V AC 3~ / PE
400 V AC 3~ / PE 380..415 V AC 3~ / PE 400 V AC
Min. required cable size 1) see note 1)
Hot water (l/min) 2)
max. at ∆t = 28 K
max. at ∆t = 38 K
9.2
6.8
10.7
7.9
12.3
9.0
13.8
10.2
9.2
6.8
10.7
7.9
12.3
9.0
13.8
10.2
Rated volume 0.4 l
Rated pressure 1.0 MPa (10 bar)
Connecting type pressure-resistant / pressureless
Heating system Bare wire heating system IES®
@ 15 °C:
Required spec. water resistance Spec.
electrical conductivity
≥ 1,100 Ωcm
≤ 90 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on – max. flow rate 2.5 l/min – automatic 3)
Pressure loss 0.2 bar at 2.5 l/min 1.3 bar at 9.0 l/min
Temperature range 20 – 50 °C 20 – 60 °C
Water connection G ½“
Weight (when filled with water) 4.2 kg
VDE class of protection I
Noise level test certificate PA-IX 6822/I
Type of protection / safety IP25
*) The declaration complies with the EU regulation No812/2013
1) The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specific requirements of AS/NZS 3000
2) Mixed water
3) Electronically controlled depending on the desired temperature and cold water temperature

4. Dimensions
231
231
170
363
466
56
100
97
Dimensions in mm

The instantaneous water heater DSX is a electronically controlled, pressure-resistant water heater for a decentralised water supply to
one or more tap connections.
Its electronic control regulates the power consumption depending on the selected outlet temperature, the respective inlet tempera-
ture and the flow rate, thus reaching the set temperature exactly to the degree and keeping it constant in case of pressure fluctua-
tions. The required outlet temperature can be entered within a range between 20°C and 50 °C (60 °C) and can be read off the digital
display.
27940: This appliance delivers water not exceeding 50°C in accordance with AS3498.
27941: This appliance delivers water not exceeding 60°C in accordance with AS/NZS 3500.4.
5. Description of the appliance

8
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371

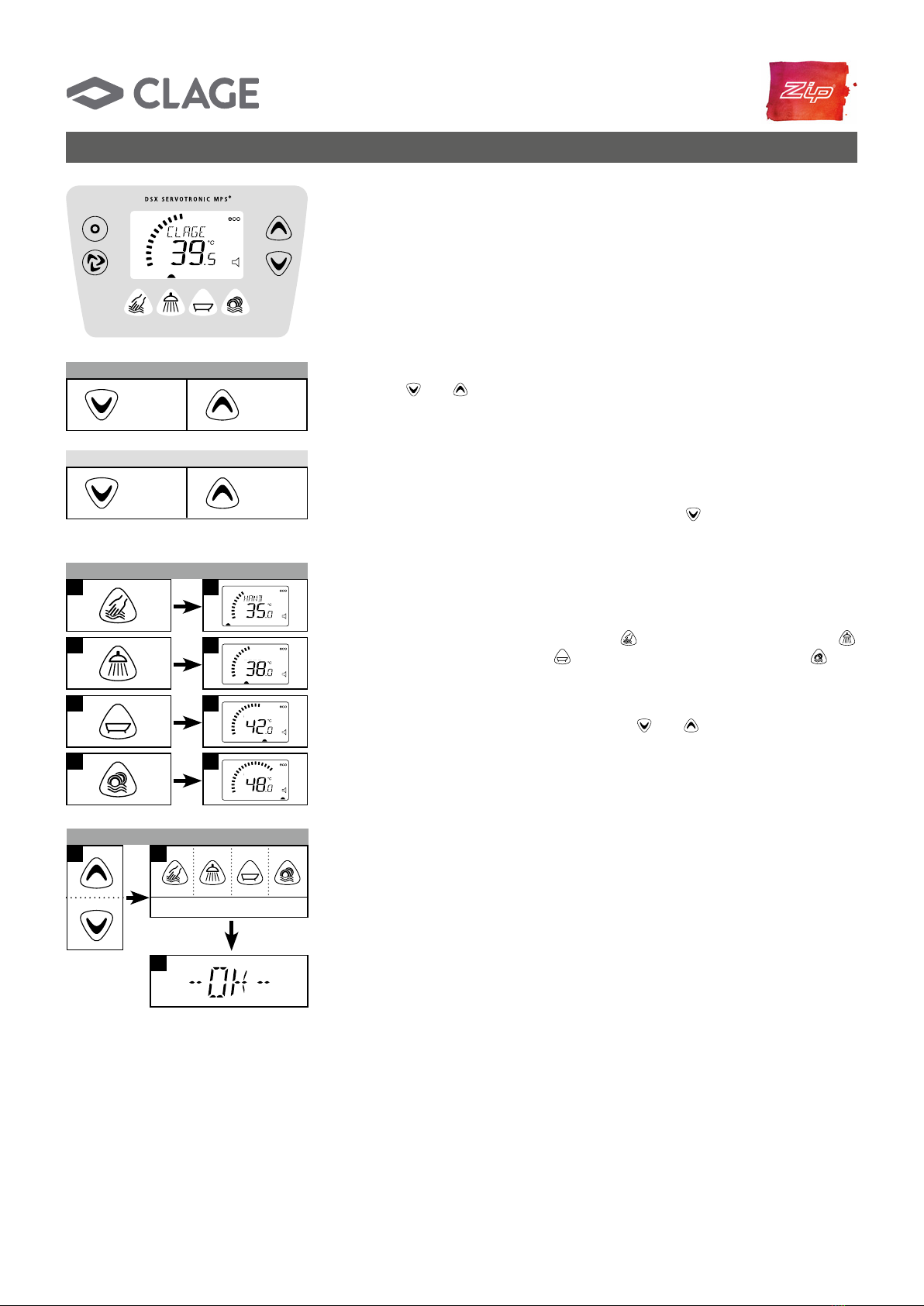

As soon as you open the hot water tap, the instantaneous water heater switches
on automatically. When the tap is closed, the appliance automatically switches
off.
Temperature setting
You can set the required temperature gradually to a lower or higher value with the
arrow keys and . The temperature changes by 1 °C, in the convenience zone
between 35 °C and 42°C even by 0.5 °C, if key is pressed shortly one time. Pressing a
key for a longer time changes the temperature continuously. You can select the outlet
temperature from 20°C to 50 °C. The display confirms the temperature changes by
“warmer” respectively “colder”.
Note: If temperature is set below 20 °C with arrow key the display shows “--“
and the appliance switches off the heating function.
Programme keys
The four programme keys at the device allow to quickly select the preset temperature.
The factory setting for application “hand wash” is 35 °C, for application “shower”
it is 38 °C, for application “bath tub” it is 42 °C, and for application “kitchen” it is
48 °C.
You can assign your own settings for the programme keys:
Select the desired temperature via the arrow keys and . Prolonged pressing (at
least 3 seconds) of one of the four programme keys stores the previously selected tem-
perature. The display confirms by “ --OK-- ”and an acoustic signal will resound.
The stored temperature is now available to you each time you press the corresponding
programme key.
Set temperature
1
–1 °C +1 °C
35,0..42,0 °C Convenience zone
1
–0,5 °C +0,5 °C
6. Operation
Store temperature
2
Press ≥ 3 sec
3
1
Select preset temperature
A1 A2
B1 B2
C1 C2
D1 D2
Show
bath
kitc

9
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
6. Operation
Info menu
2
1
4
3
5
Press
≥ 3 sec
Menu item order of “Info menu“:
POWER LIMIT
FX CHANNEL
TEMPERATURE PROTECTION
OPERATING COST PER HOUR
WORKING TIME
STANDBY TIME
LIFETIME COUNTER
FLOW
TEMP IN
TEMP OUT
POWER
CONTROL VALUE
DIAGNOSTICS
SIGNAL
SOFTWARE VERSION
Info menu
The Info menu offers a variety of display values, that provide information on vari-
ous parameters.
Press the info key for at least 3seconds to call up the Info menu, the display con-
firms by “Info”.
Using the arrow keys and you can switch over to the individual display informa-
tion. With info key you will get back to the standard display.
Individual display values as follows:
Power limit
Informs about the current maximum power rating (kW) of the appliance.
Temperature protection
Information, if temperature protection is activated or deactivated.
Operating cost per hour
Indication about the current energy consumption given in Euro per hour.
Working time
Indication of total operating time of the heating given in seconds / minutes / days /
years.
Standby time
Indication of the operating time since latest connection of the appliance to the supply
voltage given in seconds / minutes / days / years.
Lifetime counter
Indication of the total operating time of the appliance given in seconds / minutes /
days / years.
Flow
Indication of current flow rate given in l/min.
Temp in
Indication of inlet temperature (°C).
Temp out
Indication of outlet temperature (°C).
Power
Indication of current power consumption (kW).
Control value
Indication of calibration value of the control system.
Diagnostics
Indication of the last ten diagnostic messages.
Signal
Indication of the current I2C-connection quality in %.
Software version
Information about installed software version.

10
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
6. Operation
Note: Values of the Info menu cannot be modified or entered. Above mentioned values are
only given for your information!
Note: The values are for information only and are not suitable for billing purposes.

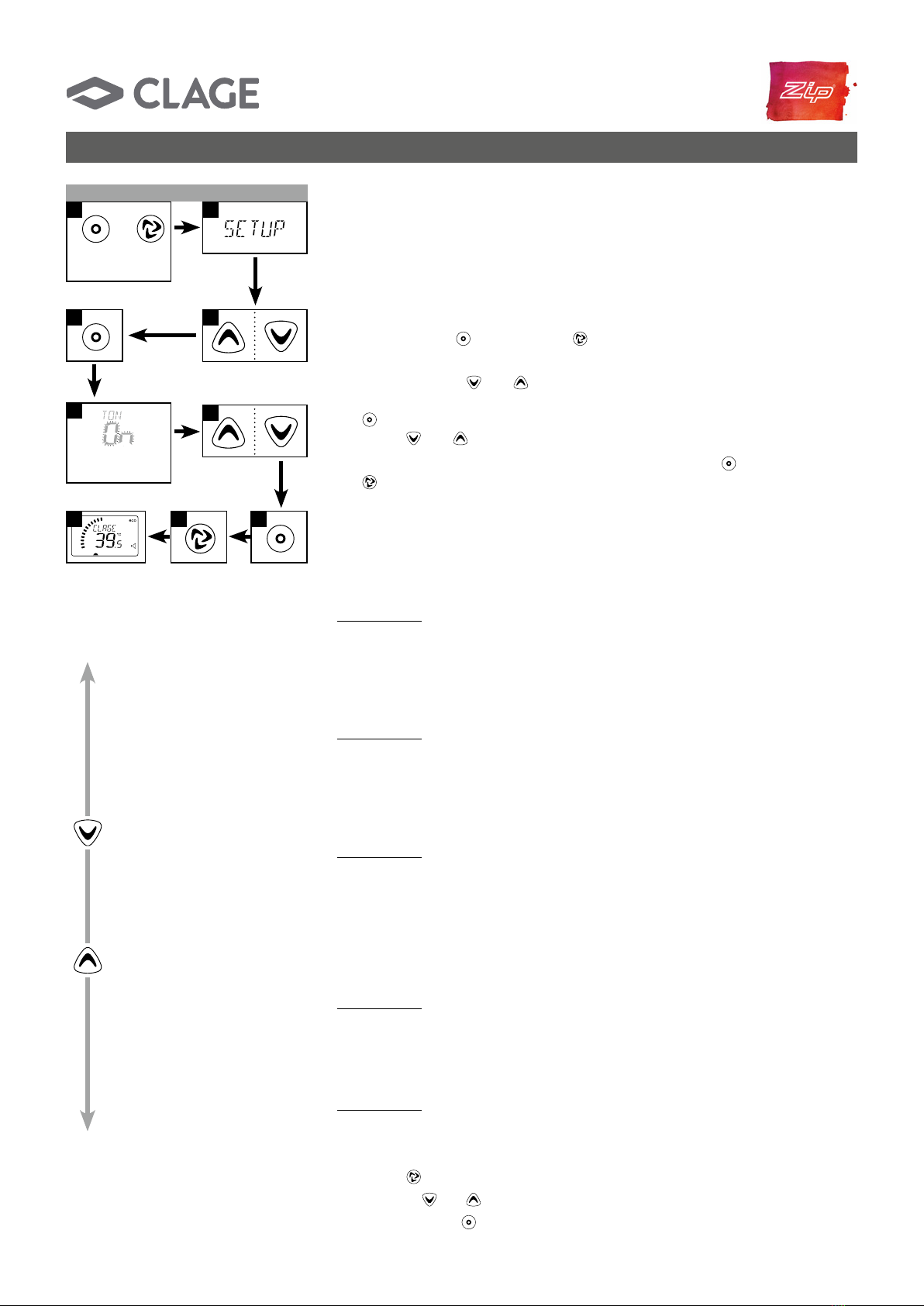

Setup menu
The setup menu offers a variety of adjustabilities, affecting the performance and
the display of the appliance.
Press the setup key and the info key simultaneously for at least 3seconds to call
up the setup menu, the display confirms by “ setup ”.
Using the arrow keys and you can switch over to the individual parameters. The
setting mode of the individual parameter (e.g. tone) is activated by pressing the setup
key , the display flashes. You can now select the new parameter value with the
arrow keys and .
The new parameter value is stored when pressing the setup key again. With info
key you will get back to the standard display.
Individual parameter as follows:
Language
Operating language can be selected.
Setting options:
“1“ German
“0“ English
Tone
Activation and deactivation of key tone.
Setting options:
“on“ key tone activated
“--“ key tone deactivated
Background light
Activation and deactivation of display background light
Setting options:
“on“ background light constantly on
“At“ background light switches on automatically e.g. when keys are pressed, and switches off
automatically after some time
“--“ background light off
Charges per kWh (ct)
The relevant electricity tariff can be entered.
Setting options:
from 0 ct to 199,90 €
Clock
Time settings can be done
Setting options:
“h“ hours
“min“ minutes
“s“ seconds
The info key selects the clock parameter to be changed (“h”,”min” or “s”).
The arrow keys and changes the set value shown.
Pressing the setup key stores the new value.
Setup menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥ 3 sec
Menu item order of “Setup menu“
LANGUAGE
TONE
BACKGROUND LIGHT
CHARGES PER KWH (CT)
CLOCK
LOAD DECREASE
LOCK LEVEL
TEMPERATURE LIMIT
FLOW LIMIT

11
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
6. Operation
Setup menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥ 3 sec
With info key you will get back to the standard display.
Note:
The arrow key resets the display to zero when mode “s” is chosen.
The arrow key deactivates the display of the clock.
Load decrease
Setting of load shedding parameters
Setting options:
“0“ Operation without load shedding relay, factory setting
“1“ operation with standard load shedding relay
“2“ operation with sensitive load shedding relay
Lock level
Limitation of appliance’s operation complexity.
Setting options:
“0“ no restriction (factory setting)
“1“ factory reset via key (countdown) not possible, parameters can be seen but not be modi-
fied in setup menu
“2“ same as “1”, additionally the setup menu cannot be opened
“3“ same as “2”, additionally nominal value memory (handwash, shower, bathtub, kitchen)
not changeable
“4“ same as “3”, additionally nominal value not changeable
Temperature limit
The maximum settable temperature can be reduced to any value within the tempera-
ture limit.
The Lock level must be activated via placing the jumper to enable the limitation. Refer
to the installation manual to this.
Flow limit
Setting of flow rate limitation.
Setting options:
“--“ no flow rate limitation
“At“ automatic adjustment, i.e. flow rate is limited in a way so that the selected outlet
temperature is reached
“Eco“ flow rate limitation to max. 8.0l/min
e.g. “9.0“ limitation to a selected value
Note:
“Eco” is displayed when operating mode “Eco” is selected and the set temperature is
below 43 °C.
Menu item order of “Setup menu“
LANGUAGE
TONE
BACKGROUND LIGHT
CHARGES PER KWH (CT)
CLOCK
LOAD DECREASE
LOCK LEVEL
TEMPERATURE LIMIT
FLOW LIMIT

12
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
6. Operation
Energy Efficiency Monitor
In the top row of the display, various information can be displayed permanently.
If you press the info key once, the name of the currently selected monitor is dis-
played as scrolling text. To continue to the next monitor, press the info key a second
time while the scrolling text is visible. The name of the monitor will appear as scrolling
text.
After the scrolling text, the value of the currently selected parameter will be displayed
permanently in the top row of the display.
Individual parameter as follows:
CLAGE (or Clock, if enabled)
This is the normal display mode without an activated Energy and Status Monitor. If the
clock was enabled in the Setup menu, it is only shown in normal display mode.
Note:
The menu items “Power“, “Flow“, “Temp In“, “Temp Out“ and “Costs per hour“ are
explained in the chapter “Info Menu“.
Energy last tapping
Energy consumption since opening the hot water tap in Wh or kWh.
Costs last tapping
Indication of the costs since opening the hot water tap.
Water last tapping
Display the amount of water since opening the hot water tap in litres.
Total energy
Display of the total accumulated energy consumption in kWh.
Total costs
Display the total accumulated electricity costs in Euro.
Total water
Indication of the total water consumption in litres.
Note: The values are for information only and are not suitable for billing pur-
poses.
Menu item order of
“Energy Efficiency Monitor“:
CLAGE (CLOCK)
POWER
FLOW
TEMP IN
TEMP
OUT
COSTS PER HOUR
ENERGY LAST TAPPING
COSTS LAST TAPPING
WATER VOLUME LAST TAPPING
TOTAL ENERGY
TOTAL COSTS
TOTAL WATER VOLUME

13
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
6. Operation
Reset
1
Press + hold!
Reset completed
3
2
Temperature limit on
+
Press
≥ 3 sec
1 2
Display
confirms
activation:
3
Temperature limit off
1+
Display
confirms
deactivation:
2
Press
≥ 3 sec
Power limit
If the full output of the instantaneous water heater DSX does not suffice to heat the
tapped quantity of water, the control valve automatically reduces the flow rate so that
the set temperature is reached.
Top-up heating
When operating with preheated water (e.g. with solar systems), you must ensure that
the inlet temperature does not exceed 50°C.
If the inlet temperature exceeds the setpoint, the appliance is not providing any out-
put, and the display shows “
INLET TEMP TOO HIGH ”.
Set the exact temperature you need on the appliance and open the hot water tap.
Once you feel that the water is too hot, do not add any cold water and, instead, enter
a lower temperature on the appliance. If you were to add cold water, the water already
heated would cool down again and valuable energy would be wasted. Moreover, the
cold water added in the tap is not covered by the control range of the electronic cir-
cuitry, with the result that temperature constancy is no longer guaranteed.
How to save energy
Temperature limitation
This instantaneous water heater is equipped with an optional temperature limiting
function. This scalding protection is deactivated in the works setting.
Switch on:
Select the limit temperature with arrow keys and , then press info key and
arrow key simultaneously for at least 3 sec. The display briefly confirms the activa-
tion by “ TEMP PROTECTION ENABLED ”.
After activation of the scalding protection it is impossible to select a higher tempera-
ture.
Switch off:
Press info key and arrow key simultaneously for at least 3 sec. The display briefly
confirms the deactivation by “ TEMP PROTECTION OFF ”.
Reset to factory setting
All factory settings can be recalled:
• Press setup key , the display now counts backwards from “10” to “00” in second
intervals. The appliance is reset at value “00” – if you stop pressing the key earlier,
the process will be cancelled.
TEMP PROTECTION ENABLED
TEMP PROTECTION OFF

14
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
7. Maintenance work
N.B. Maintenance work must only be carried out by a qualified tradesperson
familiar with instantaneous water heaters.
• Plastic surfaces and fittings should only be wiped with a damp cloth. Do not use
abrasive or chlorine-based cleaning agents or solvents.
• For a good water supply, the outlet fittings (special tap aerators and shower heads)
should be unscrewed and cleaned at regular intervals. Every three years, the electri-
cal and plumbing components should be inspected by an authorised professional in
order to ensure proper functioning and operational safety at all times.
This instantaneous water heater features an automatic air bubble protection to pre-
vent it from inadvertently running dry. Nevertheless, the appliance must be vented
before using it for the first time. Each time the appliance is emptied (e.g. after work on
the plumbing system, if there is a risk of frost or following repair work), the appliance
must be re-vented before it is used again.
1. Disconnect the instantaneous water heater from the mains (e.g. via deactivating the
fuses).
2. Unscrew the jet regulator on the outlet fitting and open the cold water tap valve to
rinse out the water pipe and avoid contaminating the appliance or the jet regulator.
3. Open and close the hot water tap until no more air emerges from the pipe and all
air has been eliminated from the water heater.
4. Only then should you re-connect the power supply again (e.g. via activating the
fuses) to the instantaneous water heater and screw the jet regulator back in.
5. The appliance activates the heater after approx. 10seconds of continuous water
flow.
Venting after maintenance work
Cleaning and maintenance

15
Instructions for user - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
8. Troubleshooting and service
Repairs must only be carried out by
authorised professionals.
If a fault in your appliance cannot be
rectified with the aid of this table,
please contact the service organisa-
tion of your importer or the Central
Customer Service Department. Please
have the details of the typeplate at
hand.
This instantaneous water heater was manufactured conscientiously and checked sev-
eral times before delivery. First attempt to switch the house fuses off and on again in
order to reset the electronics. Next, try to remedy the problem with reference to the
following table. In doing so, you will avoid unnecessary expense of customer service
assistance.
Problem Cause Solution
Water stays cold, digi-
tal display does not
light up
Master fuse tripped Renew or activate fuse
Safety pressure cut-out
tripped Contact customer service
Water stays cold,
digital display does
light up
Safety thermal cut-out
tripped Contact customer service
Display shows error
symbol “wrench”
Control system has
switched off
Switch fuses off and on. If sym-
bol “screwdriver” is still indi-
cated, contact customer service
Flow rate of hot
water too weak
Outlet fitting dirty or
calcified
Clean shower head, jet regula-
tor or sieves
Fine filter dirty or calci-
fied
Let clean fine filter by customer
service
Selected temperature
is not reached
Water flow rate too high (Re)activate motor-driven valve
Cold water has been
added via the tap
Tap hot water only; set temper-
ature, check outlet temperature
Display:“
inlet TEMP
TOO HIGH ”
Inlet temperature
exceeding nominal tem-
perature
Reduce inlet temperature
No response upon key
press on device
Hood is not fitted prop-
erly
Let refit the hood properly by
customer service

Instructions for User - DSX - 801049 - November 2018 v1.00 Art.no: 9120-34371
Head Office
Zip Water (Aust) Pty. Ltd
ABN: 46 000 578 727
67-77 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipwater.com
Telephone: [phone]
Free Call: 1 800 638 633
As Zip’s policy is one of continuous
product improvement, changes to
specifications may be made without
prior notice. Images in this booklet
have been modified and may not be
true representations of the finished
goods.
Quick reference guide
Set temperature
1
–1 °C +1 °C
Convenience zone 35,0..42,0 °C
1
–0,5 °C +0,5°C
Store temperature
2
Press ≥ 3 sec
3
1
Info menu
2
1
4
3
5
Reset
1
Press + hold!
Reset completed
3
2
Temperature limit on
+
Press
≥ 3 sec
1 2
Display
confirms
activation:
3
Temperature limit off
1+
Display
confirms
deactivation:
2
Press
≥ 3 sec
Select preset temperature
A1 A2
B1 B2
C1 C2
D1 D2
Press
≥ 3 sec
Setup menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥ 3 sec
Setup key
Info key
Programme keys
Arrow key up
Arrow key down
TEMP PROTECTION ENABLED
TEMP PROTECTION OFF
Show
bath
kitc
