INDEX
ENGLISH
Page Contents
2 1. Safety information
3 2. Unpacking and preparation
4 3. Installation and start-up
4 3.1 Installing the fixture
5 3.2 Connecting to manis supply
5 3.3 Connecting the control signal line: DMX / Art-Net
6 3.4 Switching on the fixture and basic SetUp
8 4. Maintenance
8 4.1 Opening the covers
9 4.2 Periodical cleaning
10 4.3 Effects module removal
14 4.4 Cleaning of the filters
15 4.5 Rotating gobos
17 4.6 Battery removal
18 5. Dimensions
18 6. Cause and solution of problems
SINFONYA PROFILE 600
CL3018

2
SINFONYA PROFILE 600
EN
IT
DE
ES
F
U
SAFETY INFO MATION
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
Ref: FIS02A - Safety Information Sinfonya Profile 600
INFO MAZIONI DI SICU EZZA
IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
Rif: FIS02A - Safety Information Sinfonya Profile 600
INFO MATIONEN ZU SICHE HEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem ink auffindbar:
www.claypaky.com
Ref: FIS02A - Safety Information Sinfonya Profile 600
INFO MACIONES DE SEGU IDAD
IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
Ref: FIS02A - Safety Information Sinfonya Profile 600
CONSIGNES DE SÉCU ITÉ
IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com
Réf. : FIS02A - Safety Information Sinfonya Profile 600
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и со ранить инструкцию по те нике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
www.claypaky.com
Наименование: FIS02A - Safety Information Sinfonya Profile 600
1. SAFETY INFO MATION

3
SINFONYA PROFILE 600
1
PAN Mechanism Lock and elease (every 90°) - Fig. 2
TILT Mechanism Lock and elease (every 45°) - Fig. 3

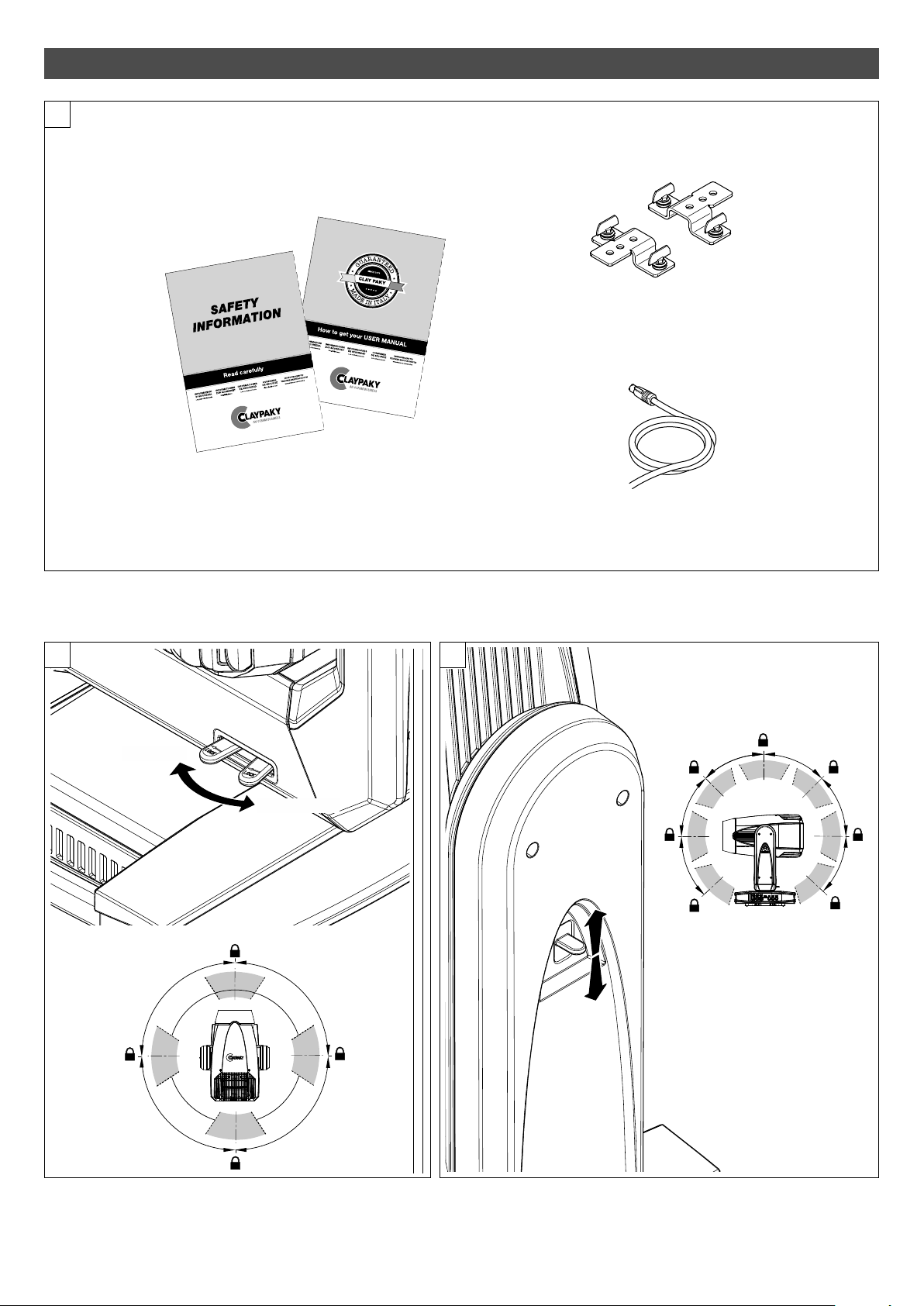

Packing contents - Fig. 1
90°
90°
90°
90°
UNLOCKED
LOCKED
45°
45°
45°
45°
45°
45°
45°
2 x 183102/805
2. UNPACKING AND P EPA ATION
2 3

4
SINFONYA PROFILE 600
4
EthernetDMX
THRU
Display User buttons DMX IN
(5 pin)
Power
OUT
Power
IN
ON / OFF
5

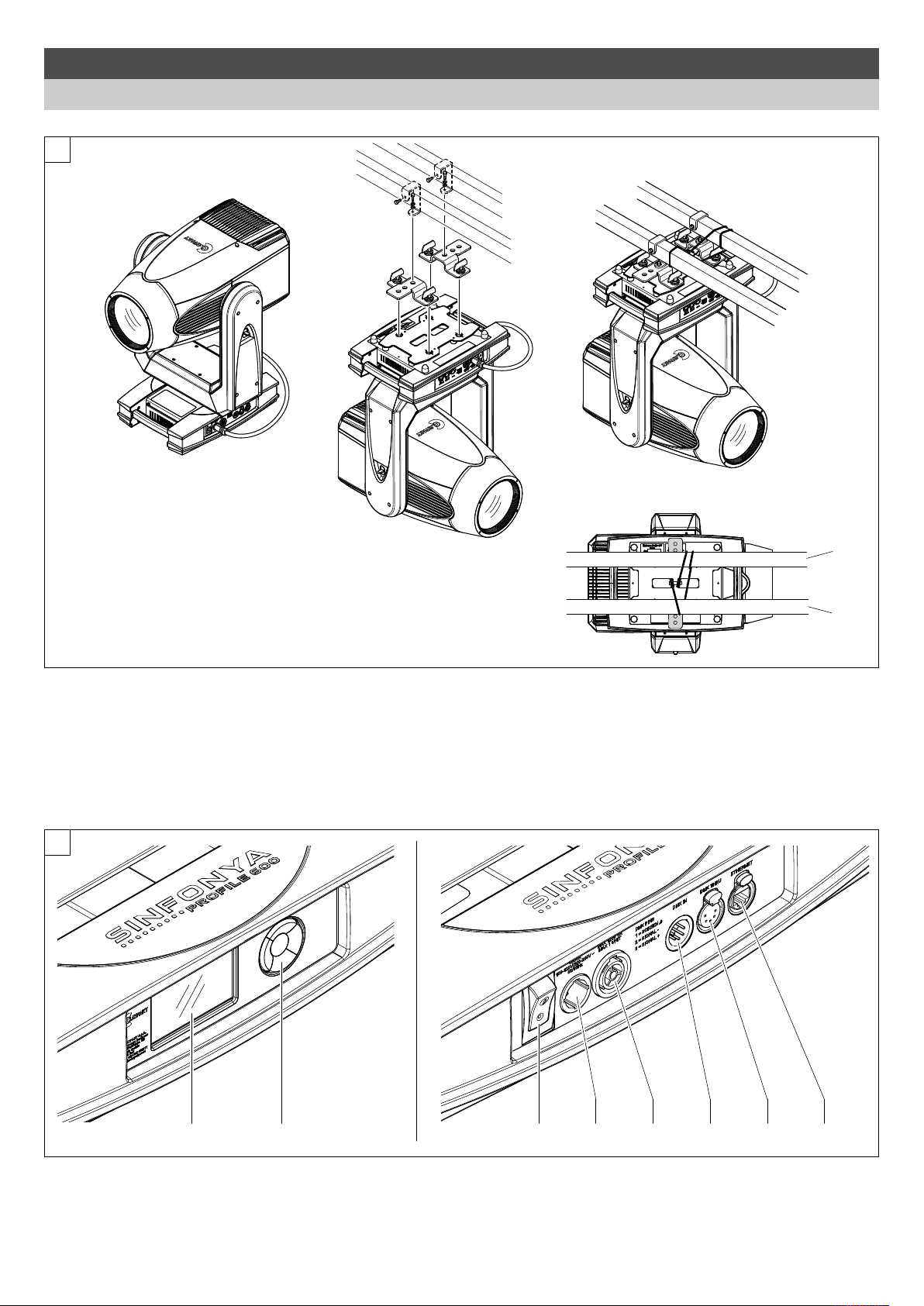

3. INSTALLATION AND STA T-UP
Control panel - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WA NING: with the exception o when the projector is positioned on the loor, the sa ety cable must be itted. (Cod. 105041/003 available on request).
This must be securely ixed to the support structure o the projector and then connected to the ixing point at the centre o the base.
3.1 Installing the fixture

5
SINFONYA PROFILE 600
2
1
1
2
3
6
Connecting and disconnecting power cable - Fig. 6
3.2 Connecting to manis supply
Connecting to the mains supply - Fig. 7
Mains
7
Mains Out
Max 1200VA
Max 1 Unit
Connecting to the control signal line (DMX) - Fig. 8
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using X R type 5 pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPO TANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
Ethernet
8
3.3 Connecting the control signal line: DMX / Art-Net
Continue ➔

28
28
eversal of the display - Fig. 10
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
10
6
SINFONYA PROFILE 600
Switching on the projector - Fig. 9
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Sinfonya Firmware xxx (Fixture ID) System errors
Profile Version X.X.X Dmx Address xxx E: .........................
600 Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address (if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
2
Dmx Address
Warning Message
Fixture ID
9
3.4 Switching on the fixture and basic SetUp

SINFONYA PROFILE 600
7
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
EFT
E
RIGHT

8
SINFONYA PROFILE 600
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.

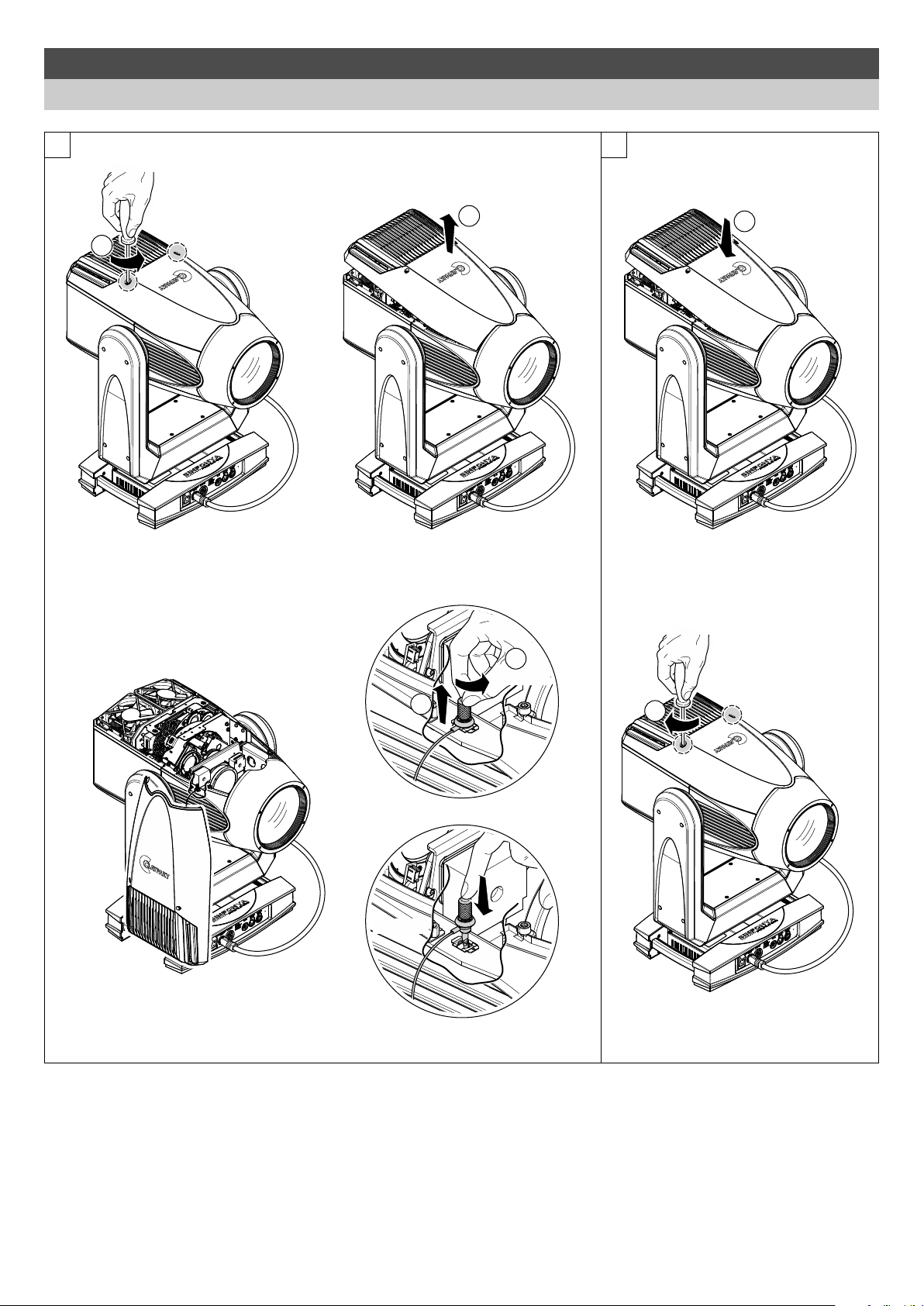

Opening the head covers - Fig. 11.
Closing the head covers - Fig. 12.
1/4 Turn
1
1
2
1/4 Turn
2
1/4 Turn
2
1
CLICK!!
11 12
4. MAINTENANCE
4.1 Opening the covers

Upper side
9
SINFONYA PROFILE 600
13
Periodical cleaning - Fig. 13
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•General cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
•General visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.
Light collimation system
This product contains internal light
collimation system. Avoid intense
light from any angle.
4.2 Periodical cleaning
Continue ➔

10
SINFONYA PROFILE 600
Upper side
1
2
3
Lower side
14

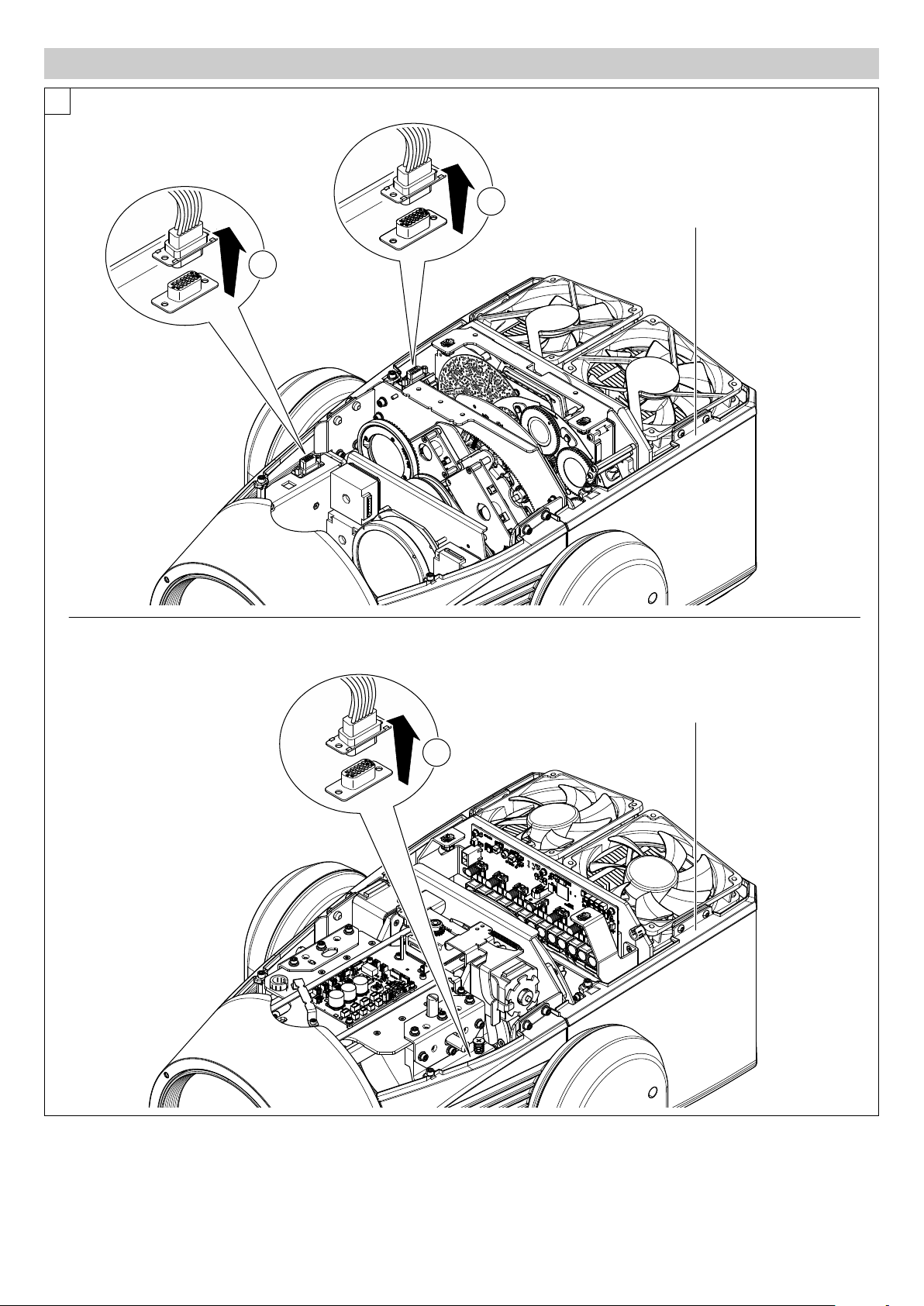

Extraction of the effect modules: Preliminary operations - Fig. 14.
NOTE:
- Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards.
- Do not switch-on the fixtures with wiring harness disconnected.
4.3 Effects module removal

11
SINFONYA PROFILE 600
1
Upper side
2
Extraction of the effect modules - Fig. 15.
IMPO TANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16 and 17 in reverse order.
15
Continue ➔

12
SINFONYA PROFILE 600
1
Upper side
3
Upper side
Lower side
2
Extraction of the effect modules - Fig. 16.
IMPO TANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16 and 17 in reverse order.
16

13
SINFONYA PROFILE 600
1
Lower side
2
Extraction of the effect modules - Fig. 17.
IMPO TANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16 and 17 in reverse order.
17
Continue ➔

14
SINFONYA PROFILE 600
Cleaning of the grids - Fig. 18.
2
1/4 Turn
1
2
18
4.4 Cleaning of the filters

15
SINFONYA PROFILE 600
1
2
INDEX
GOD020/001
GOD020/002
GOD020/005
GOD020/006
GOD020/003
GOD020/004
31.8 ±0.1
1.1 ±0.1
ø32.8 ±0.1
Immagine ø23
20

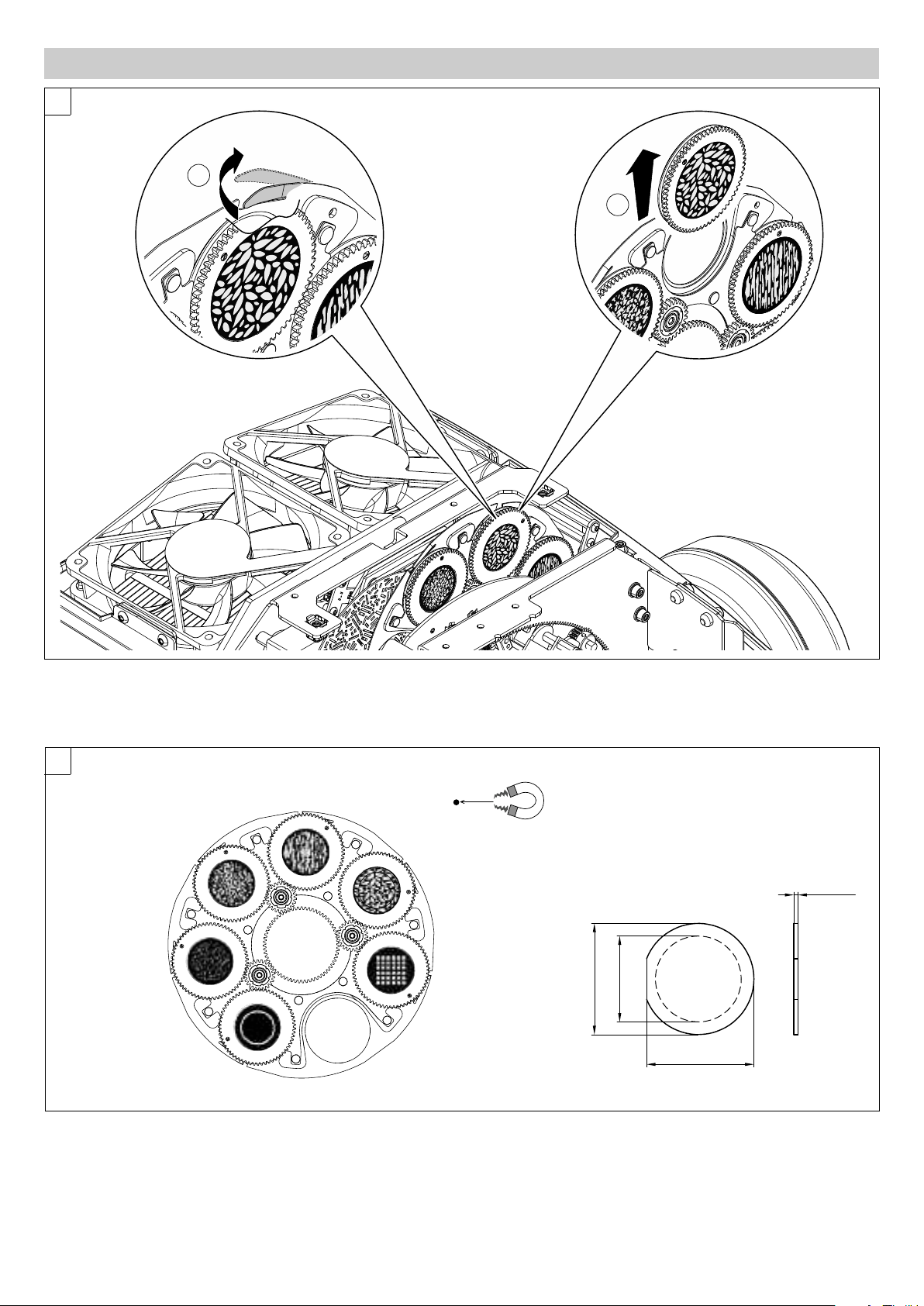

eplacing rotating gobos (max 23 mm image – thickness 1 mm) - Fig. 20
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Claypaky;
Bearing group replacement - Fig. 19
19
4.5 otating gobos
Continue ➔

16
SINFONYA PROFILE 600
Gobo orientation - Fig. 21
The pictures shown the correct gobos orientation.
21
GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2

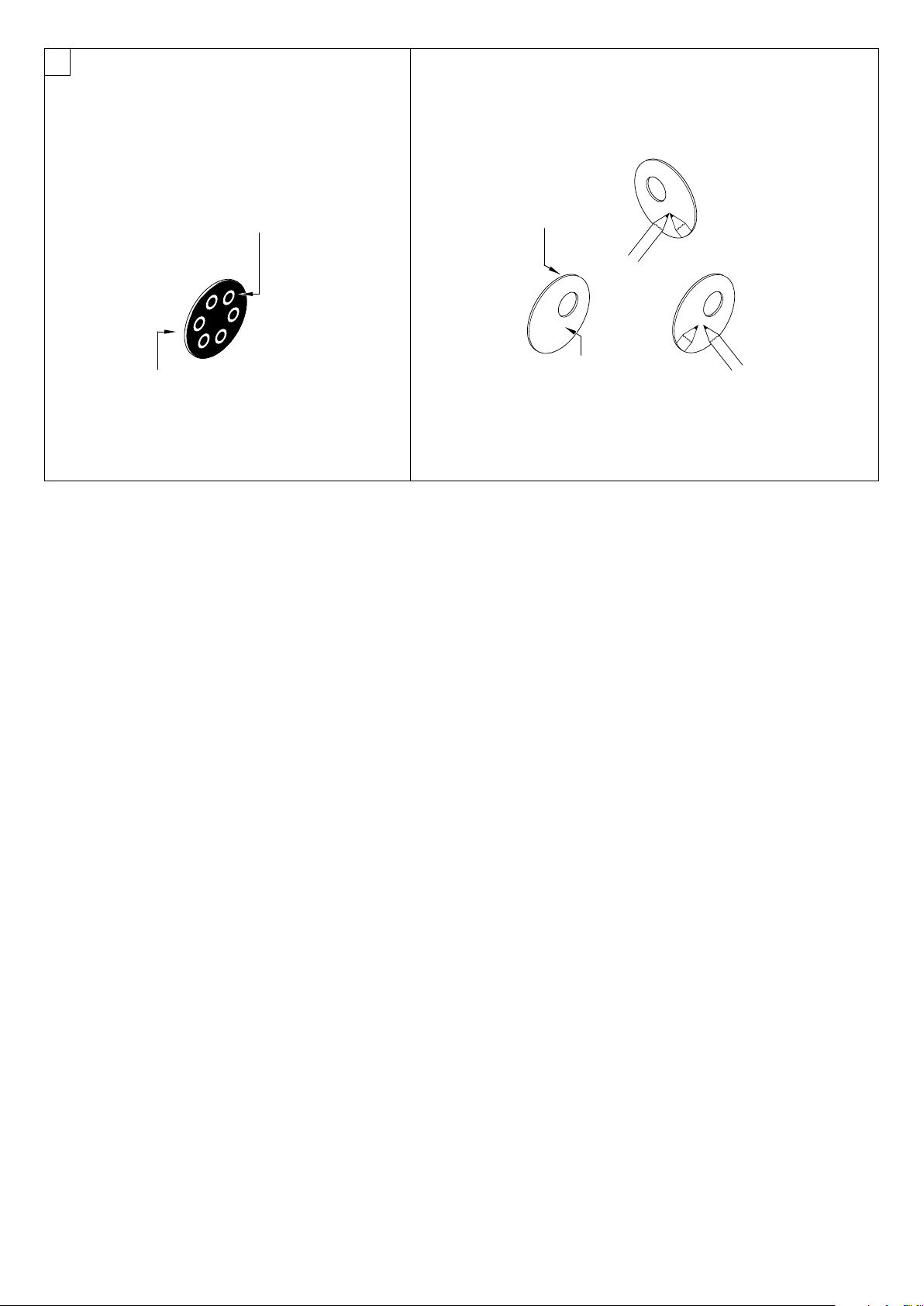

To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
Grey/Black side
away from light source
Coated side towards
light source
Coated side
Uncoated side
Uncoated side
Reflective side towards light source
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2

17
SINFONYA PROFILE 600

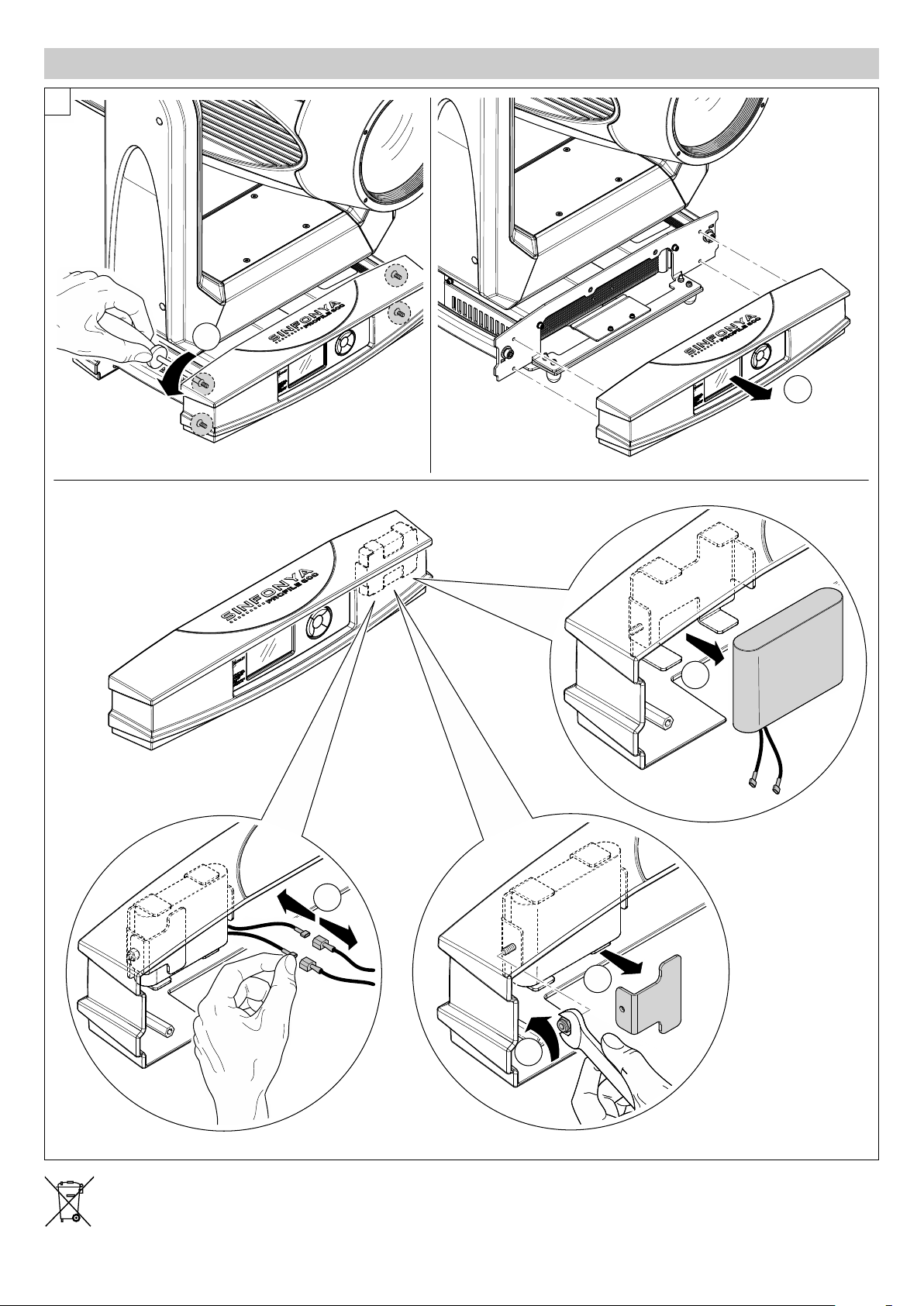

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
1
5
4
2
6
3
22
4.6 Battery removal

18
SINFONYA PROFILE 600
557
(21.93")
796
(31.34")
636
(25.04")
293
(11.54")
425
(16.73")
417
(16.42")
779
(30.67")

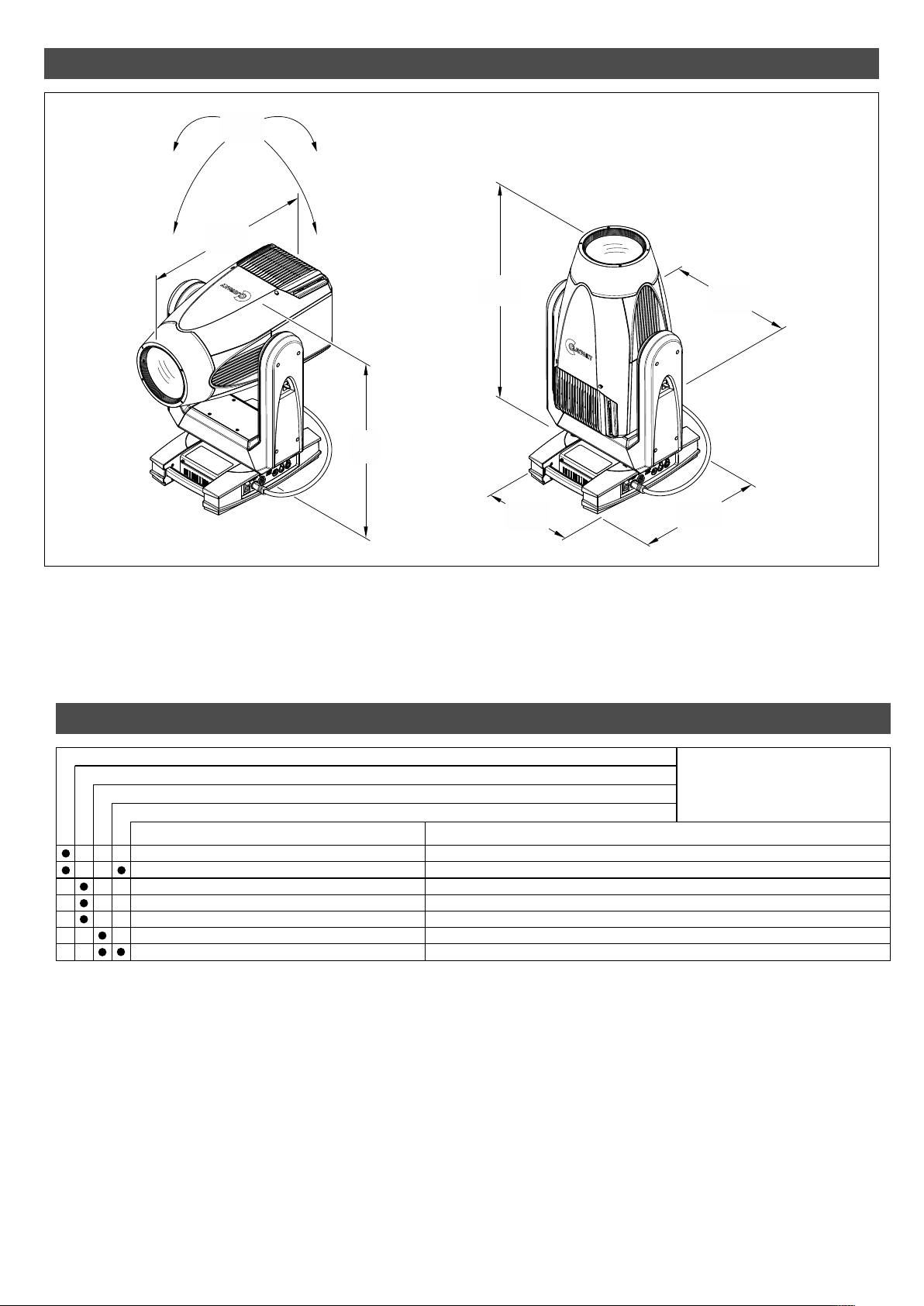

5. DIMENSIONS
THE PROJECTOR WI NOT SWITCH ON
PROBLEMS
E ECTRONICS NON-OPERATIONA
DEFECTIVE PROJECTION
REDUCED UMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
ight source exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
enses broken
Dust or grease deposited.
Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
6. CAUSE AND SOLUTION OF PROBLEMS

19
SINFONYA PROFILE 600

IST02N/001 – EN - Rev.0 02/2022
CLAYPAKY S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - www.claypaky.com
