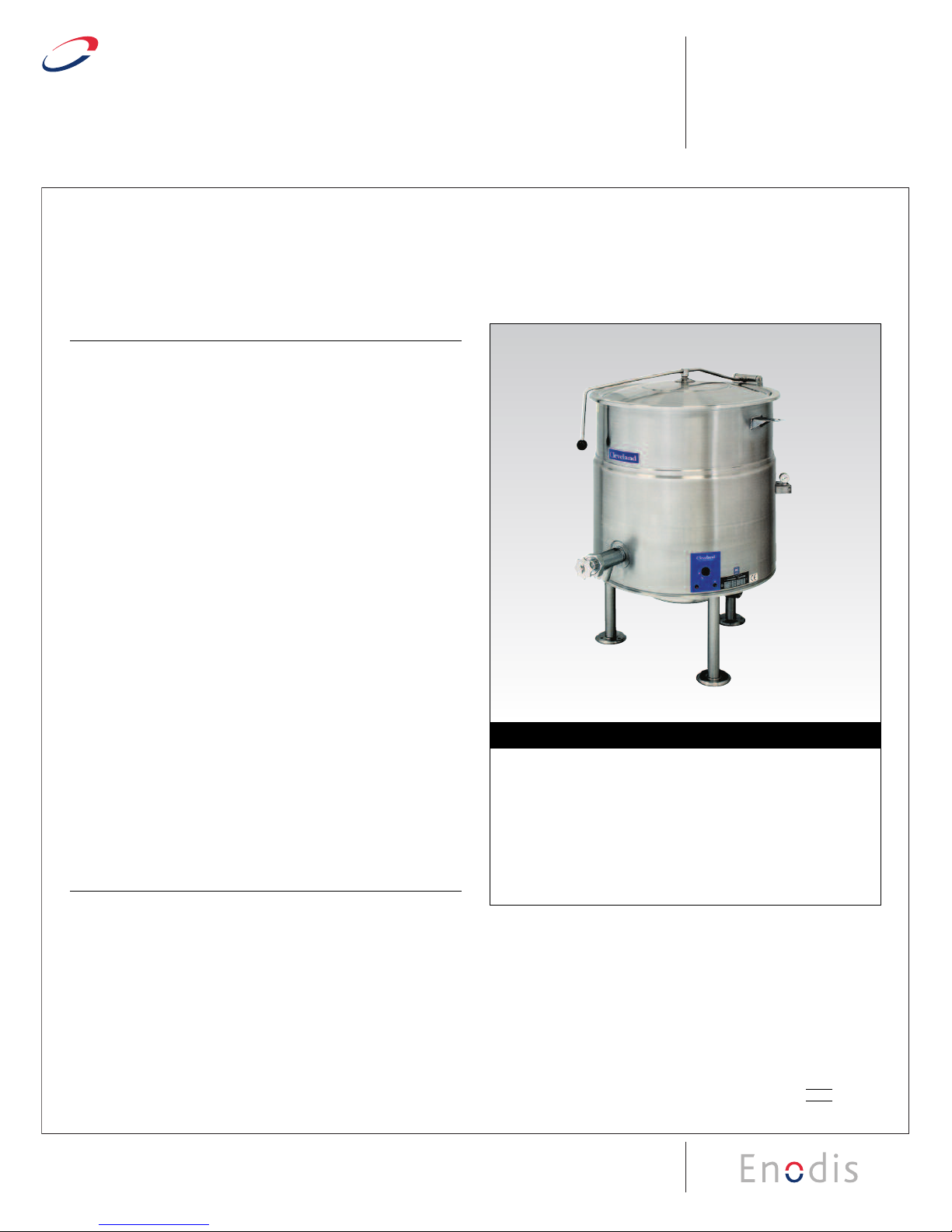

ELECTRIC KETTLES
Cleveland Standard Features
n Self-contained, easily installed - needs only an electrical hook-up
nSteam jacket filled with treated water,venting and/or refilling is
not required
nAccurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
•LED indicator for heat cycle • LED indicator for low water
•Power ON/OFF switch • Adjustable temperature control dial
nWater resistant controls, splash-proof construction
nRe-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
nWelded-in heating elements, (holds vacuum better,won't leak
or loose water)
nEasily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
nRear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
n50 psi steam jacket rating for higher cooking temperatures
n50 psi safety valve
n Solid state water level control (no sight glass gauge to break or leak)
nSplash proof element cover with a double gasket seal
nFaucet mounting bracket
n2˝ diameter tangent draw-off valve with drain strainer
n 15/8˝ O.D. tri-leg supports with level adjustable feet for floor bolt-
ing
nSpring-assisted, hinged, rotatable, domed stainless steel cover
nStandard voltage is 208-240 volts, 60 Hz, 3-phase, 3-wire
nTypical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
pHot and Cold Water Faucet with Swing Spout (DPK)
pType 316 Stainless Steel Kettle Liner for high acid food
products (316)
pCooking Baskets and Tri-Basket Supports (BS and TBS)
pKettle Accessory Kit (KAK) includes:
pClean-up Brush (CB) p36˝ Kettle Paddle (KP)
p36˝ Kettle Whip (KW) p36˝ Kettle Brush (KB)
pDraw-offBrush (DB) p24 oz. Ladle (KL)
pAutomatic Water Meter (GMF or LMF)
pWater Meter Stand (SWM)
pLift-offCovers (CL)
pDrain Strainers (DS-)
pMeasuring Strip (MS)
Shall be CLEVELAND, Electric Kettle, Tri-leg mounted, self-con-
tained, stationary, Model KEL - _____ gallons, 2⁄3 Steam Jacketed.
Type 304 Stainless Steel Kettle and Supports. Rated 50 psi with
Safety Valve; Permanently filled Steam Jacket. Spring-assisted
Domed Cover.(Provide 1.50˝ Freeboard above batches of rated
size.) Splash Proof Solid State Temperature (±1°C) and Safety
Control System in plug-in Module including L.E.D. indicators. Base
Mounted for Floor Bolting with three (3), tri-bolt flanges. 2˝ diameter
Tangent Draw-off Valve.
pKettle Markings (KM)
pHot and cold or cold only Kettle Filler with 60˝ Hose
(DKF-K or SKF-K)
pSwing Funnels for drain (SF)
pAlternate Mounting Systems
pHigh Wattages and Special Voltages
p3" diameter Tangent Draw-Off Valve w/Strainer (TD3)
pHeat Deflector Shield (HS001)
pCorrectional Packages
pInsulated Outer Jacket (IOJ)
ShortForm Specifications
SECT. VIII PAGE 13
0707
TRI-LEG, ELECTRIC KETTLES
STATIONARY, “ SPLASH PROOF SERIES” ,SELF-CONTAINED
2⁄3 STEAM JACKETED
, 25, 40, 60, 80 or 100 GALLONS
(100, 150, 225, 300, or 375 LITERS)
MODELS:cKEL-25 cKEL-60
cKEL-30 cKEL-80
cKEL-40 cKEL-100

RECOMMENDED
FLOOR SLOPE
1" (26 mm) per 4' (1220 mm)
PIPE DRAIN RECOMMENDED
min. valve size plus 1" (26 mm)
4" (102 mm)
RECOMMENDED
9/16"
14
mm
120º
TYP
1" (25
mm)
MAX. ADJUSTMENT
1 5/8" (42 mm) Ø
FLANGED FOOT DETAIL
7/16" (11 mm) Ø
3 HOLES ON
3 1/8" (80
mm) Ø
B.C.D.
4 7/8"
124
Ø mm
•CAPACITIES:
(in 8 oz. servings, other sizes may be calculated)
25 Gallon / 100 liters.............400 servings
30 Gallon / 110 liters.............480 servings
40 Gallon / 150 liters.............640 servings
60 Gallon / 225 liters.............960 servings
80 Gallon / 300 liters...........1280 servings
100 Gallon / 375 liters ..............1600 servings
STANDARD WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
25 100 9.8 47.2 27.2 13.1 54.4 31.4 12.1 29.0 16.7 13.1 27.2 15.7
30 115 12.3 59.0 34.1 16.3 68.1 39.3 15.1 36.2 20.9 16.3 34.0 19.6
40 150 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
60 225 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
80 300 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
100 375 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
HIGH WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
25 100 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
30 115 19.6 NA 54.5 26.1 NA 62.9 24.1 58.0 33.5 26.1 54.4 31.4
40 150 24.5 NA 68.1 32.7 NA 78.6 30.1 72.5 41.8 32.7 68.1 39.3
60 225 29.4 NA 81.7 39.2 NA 94.3 36.2 87.0 50.2 39.2 81.7 47.1
80 300 29.4 NA 81.7 39.2 NA 94.3 36.2 87.0 50.2 39.2 81.7 47.1
100 375 29.4 NA 81.7 39.2 NA 94.3 36.2 87.0 50.2 39.2 81.7 47.1
(NOT TOSCALE)
SECT.VIII PAGE 14
0707
Litho in U.S.A.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., NSF, CGA, CSA, ETL and others.
Consult factory for other voltages.
CLEARANCE
WATER
3⁄8˝O.D. copper tube or
1⁄2˝N.P.T. pipe.
When ordered with
optional faucet.
H
C
RIGHT = 0
LEFT = 0
REAR = 0
Allow 12" minimum on
right side for servicing.
SHIPPING
WEIGHT (LBS.)
KEL-25 = 230
KEL-30 = 264
KEL-40 = 289
KEL-60 =361
KEL-80 = 400
KEL-100 = 430
DIMENSIONS
GALS./
LITERS A C D E F G HJKLMNOPQRS
25/ IN 21 36 3/4 21 7/8 34 13 7/8 60 3/4 17 7/8 29 7/8 5 1/4 11 1/4 9 3/4 7 1/2 26 3/4 4 5/8 20 15 1/2 22 3/8
100 mm 534 934 556 864 353 1544 455 759 134 286 248 191 680 118 508 394 569
30/ IN 24 38 24 7/8 37 15 5/8 65 1/4 20 7/8 28 3/4 6 3/4 12 3/4 11 1/2 9 1/4 29 3/4 4 5/8 20 1/4 18 1/8 25 3/8
115 mm 610 966 632 940 397 1658 531 731 172 324 299 293 756 118 515 461 645
40/ IN 26 40 29 1/8 40 15 1/8 69 1/2 22 7/8 30 3/4 7 3/4 13 3/4 11 8 3/4 34 4 5/8 21 3/4 19 7/8 28 5/8
150 mm 661 1016 740 1016 385 1766 582 782 197 350 280 223 864 118 553 505 728
60/ IN 29 1/2 43 33 44 14 5/8 75 3/4 26 3/8 34 1/4 9 1/2 15 1/2 10 1/2 8 1/4 37 7/8 5 1/8 27 1/2 22 7/8 32 1/2
225 mm 750 1093 839 1118 372 1925 670 870 242 394 267 210 963 131 699 582 826
80/ IN 33 43 1/2 36 5/8 47 13 79 1/2 29 7/8 37 3/4 11 1/4 17 1/4 9 6 3/4 41 1/2 5 1/8 29 3/8 25 7/8 35 7/8
300 mm 839 1105 931 1194 331 2020 759 959 286 439 229 172 1055 131 747 658 912
100/ IN 35 1/2 45 39 1/4 50 12 1/2 83 3/8 32 3/8 40 1/4 12 1/2 18 1/2 8 1/2 6 1/4 44 1/8 5 1/8 5 1/8 28 38 3/8
375 mm 902 1144 997 1270 318 2118 823 1023 318 470 216 159 1121 131 131 712 975
