Cleveland 42-GM-K612-200 User manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]

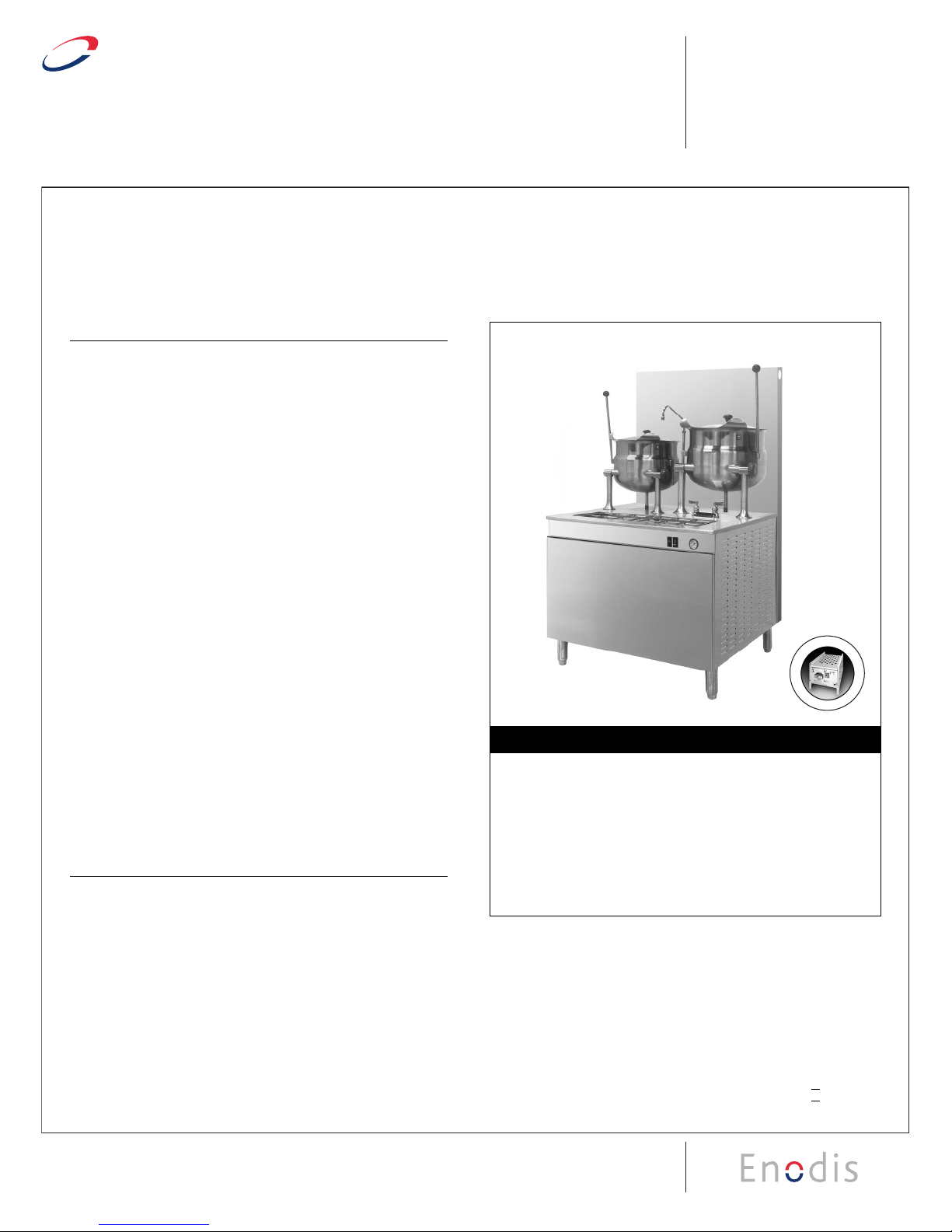

MODULAR BASES
MODELS:c42-GM-K612-200
c42-GM-K612-300
Cleveland Standard Features
n Factory assembled Kettle/Steam Generator NickleGard Base
combination with one 6 gallon kettle and one 12 gallon kettle
with 200M or 300M BTU Gas-Fired Steam Generator
nSolid State steam generator Water Level Controls
nLow Water Safety Cut-Off
nPressure Limit Controls with 15 psi Safety Valve
nType 430 Stainless Steel exterior enclosure, and table top
(with Drain Trough which has 1.50" diameter male drain),
#4 exterior finish
nType 304 Stainless kettles, #4 exterior finish
nSeparate "Start/Reset" Illuminated Switch Controls, plus
Pressure Gauge
nSolid State Electronic SparkIgnition for energy savings
nMajor components serviceable from the front of the unit
n6and 12 gallon kettles are 2/3 Steam Jacketed and include
Lift-off Covers
nHot and Cold Water Faucet with Swing Spout
nKettles have 50 psi Steam Jacket Rating, 50 psi chrome
plated Safety Valves and Manual Tilting, balanced design
nTilt Handles can be mounted on either side
nSteam Generator empties under pressure (blowdown)
automatically upon each Shut-Down, Automatic Water
Refill on Start-Up
nStandard voltage for controls is 115 volt, 60 Hz,
single phase
nAdjustable Flanged Feet (FF-A)
Options & Accessories
pPower Take-Off Kit (GPTO)
pSecondaryLow Water Cut-Off, factory installed (CALG)
(Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI.
MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY,
Wash. DC)
pGas, other than natural
pT
ype 316 Stainless Steel kettle interior for high acid food
products (316)
pFood Strainers (FS)
pStainless Steel Base Frame (FSS)
pBoiler Descaling Pump Kit (107142)
Shall be CLEVELAND, Modular Cabinet Base with one 6 gallon kettle and one
12 gallon kettle, Model 42-GM-K612 -____ , 200M or 300M BTU Nickelguard
Gas-Fired Steam Generator, type 430 Stainless Steel
exterior enclosure, Table Top, Back Splash and 4 level adjustable feet. 2/3
Steam Jacketed type 304 Stainless Steel kettles with 50 psi Steam Jacket
Rating; needle type Steam Control Valve on each kettle. Console mounted
Controls, Pressure Gauge and Illuminated "Start/Reset" Control Switches. Solid
State Water Level Steam Generator Controls and Electronic Spark Ignition.
Steam Generator drains under pressure (blowdown) after each Shut-Down
with Automatic Water Refill on Start-Up. 15 psi Safety Valve
Short Form Specifications
SECT. VII PAGE 29
0707
MODULAR BASE WITH KETTLES
200M or 300M BTU GAS-FIRED STEAM GENERATOR with NICKELGUARD™
ONE 6 GALLON KETTLE AND ONE 12 GALLON KETTLE
CABINET BASE: 42" (1050MM) WIDE
1
0
0
%
5
Y
e
a
r
B
o
i
l
e
r
W
a
r
r
a
n
t
y
N
i
c
k
e
l
G
u
a
r
d
™

NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are ASME/N. Bd, UL/NSF#4 and CSA (AGA, CGA).
(NOT TO SCALE)
SECT
.VII P AGE 30
0707
Litho in U.S.A.
H
C1
C1
D
D
C2
H
C2
12.00"
305mm
19.50"
495mm
GAS FLUE
28.31"
719mm
2.03"
52mm
5.00"
127mm
11.60"
295mm
3.50"
89mm
24.00"
610mm
25.88"
657mm
29.56"
751mm
37.00"
940mm
3.00"
76mm
6.12"
155mm
8.75"
222mm
35.56"
903mm
36.72"
933mm 41.34"
1050mm
5.38"
137mm
2.88"
73mm
6.00"
152mm
7.50"
191mm
9.00"
229mm
12.50"
318mm
11.00"
279mm
15.31"
389mm
30.00"
762mm
62.00"
1575mm
38.12"
968mm
1.61"
41mm
1.61"
41mm
13.50"
343mm
22.50"
572mm
13.38"
340mm
16.75"
425mm
MARINE
LOCK
WATER QUALITY
REQUIREMENT
The recommended minimum water quality
standards whether untreated or pre-
treated, based upon 10 hours of use per
day, and a Daily Blowdown, are as follows:
TOTAL DISSOLVED SOLIDS
less than 60 parts per million
TOTAL ALKALINITY
less than 20 parts per million
SILICA
less than 13 parts per million
pH FACTOR
greater than 7.5
CHLORINE
less than 30 parts per million
Consult a local water treatment specialist for
an on site water analysis for recommenda-
tions concerning steam generator feed water
treatment (if required), in order to remove or
reduce harmful concentrations of minerals.
The use of highly mineralized water will
mean that more frequent servicing of the
steam generator will be necessary. The fact
that a water supply is potable is not proof
that it will be suitable for the generator.
GAS
NATURAL
3/4" IPS for 200,000
1.00" IPS for 300,000
Supply Pressure
4.00" W.C. Minimum
14.00" W.C. Maximum
PROPANE
3/4" IPS for 200,000
1.00" IPS for 300,000
Supply Pressure
12.00" W.C. Minimum
14.00" W.C. Maximum
ELECTRIC
50 watts for generator
115 V-1 PH
WATER
C1: 1/4" IPS Cold water for boiler
C2: 3/8" NPT Cold water for faucet
C2: 3/8" NPT Hot water for faucet
DRAIN
11/2" IPS Common Drain
The floor drain must be
located outside the confines
of the equipment.
Do not connect to anyother drain.
CLEARANCES
Right: 6.00"
Left: 6.00"
Rear: 6.00"
H
D
C1 C2
H
D
C1 C2
H
D
C1 C2
H
D
C1 C2
CAPACITIES:(in 4 oz. servings,
other sizes may be calculated.)
6Gallon / 23 liters . . . . . . . .160 servings
12 Gallon / 45 liters . . . . . . .352 servings
