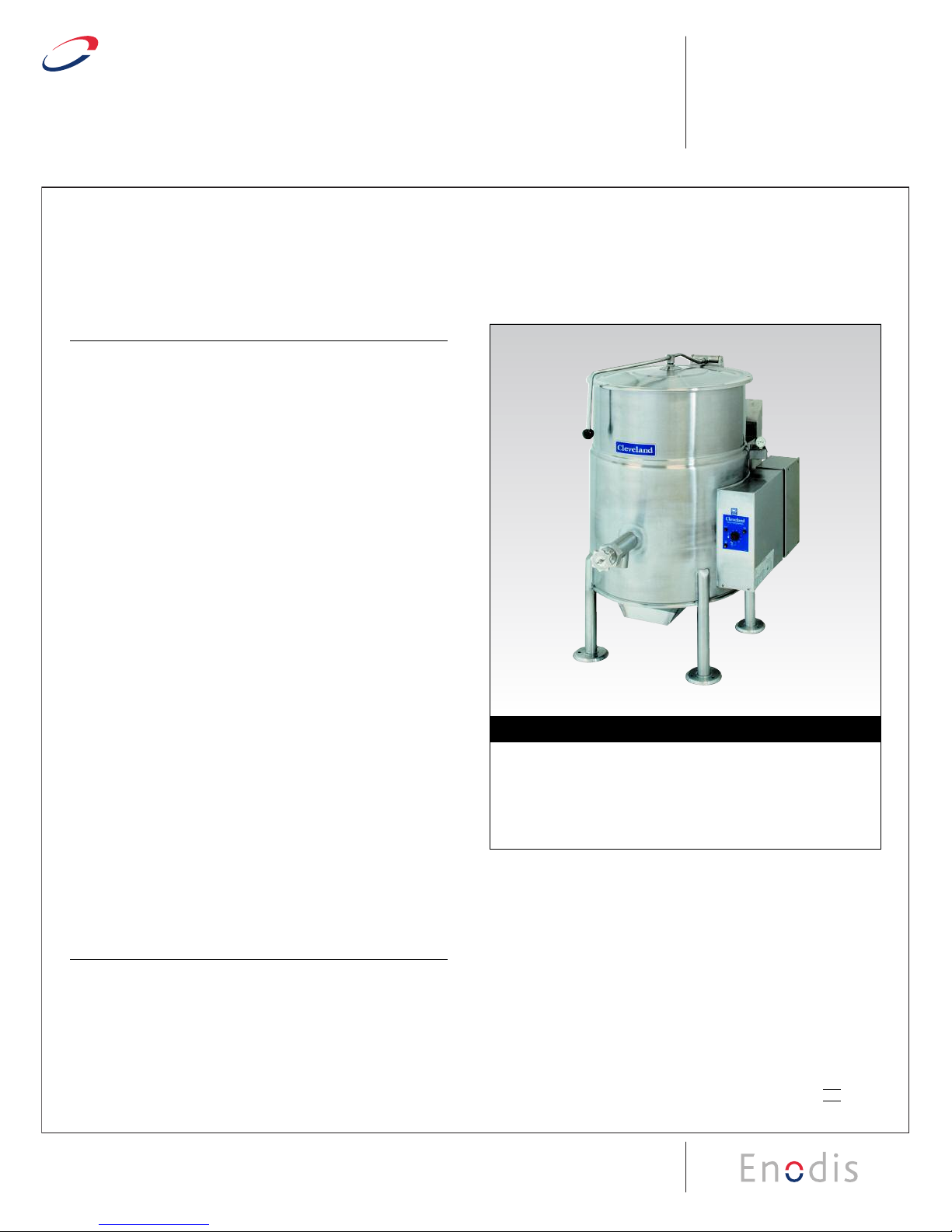

GAS KETTLES
MODEL:cKGL-25
Cleveland Standard Features
nSelf-contained gas stationary kettle is easily installed, only
needs a gas connection and a 115 volt outlet.
nPrecise, consistent temperature control, less than 1ºC
temperature variance (ideal for simmering). Operating
temperature range from 145ºF-260ºF (63ºC-127ºC).
n"Splash-Proof" Solid-State Control Panel for temperature, Low
Water Safety, and Power "On/Off" Switch. Accurate L.E.D.
Indicators for Heat Cycle and Low Water Warning.
nKettle and all exterior surfaces are a 304 Stainless Steel with
a #4 finish.
nEnergy efficient (65%), high performance gas-fired heating
system for fast heat-up and recovery time:
nTwenty-five gallon model with 90,000 BTU firing rate and
58,500 BTU directly applied to the product.
nSupplied with Gas Pressure Regulator.
nStandard for natural gas operation.
nHeavy-duty Rolled Rim design provides strong reinforcement,
prevents damages from abuse.
n"Splash-Proof" rear-mounted pressure/vacuum gauge.
nSteam jacket permanently filled with treated distilled water;
venting and/or refilling is not required.
n50 psi Steam Jacket Rating. Safety Valve mounted toward
rear of kettle to avoid tampering.
nAutomatic Electronic Spark Ignition System.
nSupplied with cord and plug for 115 volt controls.
nSupport Legs with level adjustable feet, flanged for floor
bolting.
nSpring Assist Cover and 2" tangent draw-off are standard.
nTypical approvals include AGA, CSA, CE, NSF and ASME.
Options & Accessories
p316 Stainless Steel Liner (316)
pPropane Gas Option (LP)
pKettle Markings (KM)
pLift OffCover (CL)
pBasket Strainer (BS and TBS)
pMeasuring Strip (MS)
Shall be CLEVELAND, Gas Kettle, self-contained, Stationary, Model KGL-25;
25 gallons, natural or LP gas, 2/3 Steam Jacketed, Type 304 Stainless Steel
and supports. Jacket rated at 50psi with Safety Valve. Complete with
"Splash-Proof" Solid-State Water Level, Temperature, and Safety Low Water
Power Cut-Off, including L.E.D. Indicators for Heat Cycle and Low Water
Warning.
pFood Strainer (FS)
pHot and cold water faucet (DPK), or cold water (SPK).
pKettle Accessory Kit (KAK) includes:
pClean-up Brush (CB) p36˝ Kettle Paddle (KP)
p36˝ Kettle Whip (KW) p36˝ Kettle Brush
pDraw-OffBrush (DB) p24 oz. Ladle (KL)
pCorrectional Packages
ShortFormSpecifications
LEG TYPE, GAS-FIRED KETTLES
STATIONARY, 2⁄3 STEAM JACKETED
“SPLASH PROOF SERIES”
25 GALLONS (100 LITERS)
SECT. IX PAGE 5
0707

NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.
SPECIFICATIONS NOTES
RECOMMENDED
FLOOR SLOPE

1" (26 mm) per 4' (1220 mm)
PIPE DRAIN RECOMMENDED
min. valve size plus 1" (26 mm)
4" (102 mm)
MINIMUM
6" (153)
RECOMMENDED
9/16"
14
mm
120º
TYP
1" (25
mm)
MAX. ADJUSTMENT
1 5/8" (42 mm) Ø
FLANGED FOOT DETAIL
FOOT LOCATION &
FLOOR DRAIN DETAIL
7/16" (11 mm) Ø
3 HOLES ON
3 1/8" (80
mm) Ø 
B.C.D.
4 7/8"
124
Ø mm
27"
686mm
13"
330mm
11/4"
32mm
5" (127mm)
MIN REF
2 1/4"
(57mm)
16 1/2"
(419mm)
FLOOR DRAIN GRATE
12" x 12" (305mm x 305mm)
TANGENT DRAW OFF VALVE
14"
356mm
29"
737mm
WALL
16"
406mm
38 1/2"
978mm
38 5/8"
981mm
16"
406mm
VALVE OPEN
2" (51mm)
21"
533mm
(I.D.)
62"
1575mm
(COVER
FULLY
OPEN)
5"
127mm
(CLEARANCE)
14 1/2"
362mm
(NOT TOSCALE)
SECT.IX PAGE 6
0707
Litho in U.S.A.
•CAPACITIES: (in 4 oz. servings, other sizes may be
calculated)
25gallons / 100 liters .... 426 servings
