Cleveland KDL-25-T User manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]
DIRECT STEAM KETTLES
Cleveland Standard Features
nKettle legs of 15⁄8˝OD, type 304 Stainless Steel, with 3 level
adjustable feet, with three-bolt flanges for floor bolting
nType 304 Stainless Steel construction, with #4 finish
on kettle and supports
nTilting Mechanism with permanently lubricated, self-locking,
Worm Drive of space saving design
n50 psi Steam Jacket Rating
n50 psi chrome plated Safety Valve
nHigh Capacity Pouring Lip
nCondensate Drain Valve with insulated handle
nSteam Control Valve mounted on console
nTypical approvals include NSF and ASME
Options & Accessories
pType 316 Stainless Steel Kettle Liner for high acid food
products (316)
pLift-off Covers (CL)
pSteam Control Kit includes: Steam Trap, Condensate Strainer,
Check Valve, nipples and fittings, factory assembled and
mounted on kettle (SCK2)
pSpring-assisted, hinged, rotatable,domed Stainless Steel
Cover (CHS-)
pHot and Cold Water Faucet, comes with Swing Spout (DPK)
p 2˝ or 3" diameter Tangent Draw-Off Valve (TD2 or TD3*), *TD3 for
60 gallon only and will raise height of kettle by 5-5/8" (143mm)
p3" diameter Butterfly Valve (BV3)
pCooking Baskets and Tri-Basket Supports (BS and TBS)
pPan Carrier (PCK)
pMeasuring Strips (MS)
pGallon Markings (KM)
pKettle AccessoryKit (KAK) includes:
pClean-up Brush (CB) p36˝ Kettle Paddle (KP)
p36˝ Kettle Whip (KW) p36˝ Kettle Brush (KB)
pDraw-off Brush (DB) p24 oz. Ladle (KL)
pSwing Funnels for drain (SF)
pFaucet Mounting Bracket (FBKT)
pPressure Reducing Valvefor regulating incoming
steam pressure of over 45 psi (PRV-K)
pHot and cold, or cold only, Kettle Filler with 60˝
Hose (DKF-K or SKF-K)
Shall be CLEVELAND, Direct Steam Kettle, Tri-leg mounted, Model
KDL - _____ - T, _____ gallons, Tilting (hand or power) 23 Steam
Jacketed. Type 304 Stainless Steel kettle and support legs. 50 psi
Steam Jacket Rating; Steam Control Valve; heavy re-enforced
Rolled Rim. To operate, connect directly to a steam source sup-
plying 10 to 45 psi steam.
pAutomatic Water Cooling* (AWC-1)
*requires Console Mounting Option
pAlternate Mounting Systems - Console Mounting
pAutomatic Water Meter (GMF or LMF)
pWater Meter Stand (SWM)
pFood Strainer (FS)
pFlow Diverter (FD)
pDrain Strainers (DS-)
pPre-Rinse Spray Head and Hose (PRSK)
pHeat Deflector Shield (HS001)
pCorrectional Packages
ShortForm Specifications

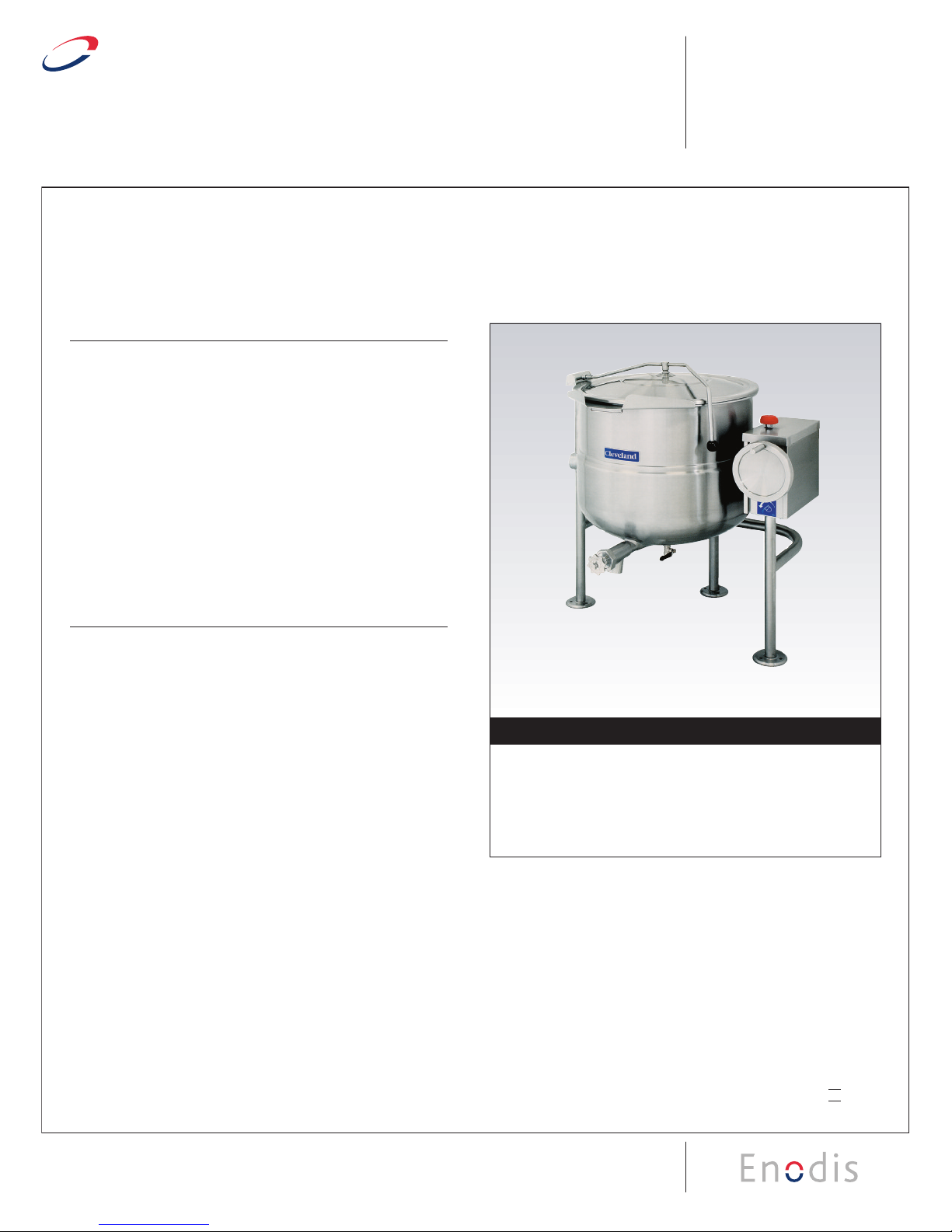

Shown with optional Spring-Assisted Cover, 2" Tangent Draw-Off Valve
MODELS:cKDL-25-T cKDL-60-T
cKDL-40-T
TRI-LEG, DIRECT STEAM
TILTING, 2⁄3 STEAM JACKETED
25, 40 or 60 GALLONS (100, 150 or 225 LITERS)
SECT. XPAGE 9
0707

(NOTTOSCALE)
SECT
.XP AGE 10
0707
Litho in U.S.A.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.
CAPACITIES: (in 8 oz. servings,
other sizes may be calculated.)
25 Gallon / 100 liters . . . 400 servings
40 Gallon / 150 liters . . . 640 servings
60 Gallon / 225 liters . . . 960 servings
G
UNIT SHOWN WITH OPTIONAL 2" TANGENT DRAW-OFF VALVE,
SPRING ASSIST COVER, HOT AND COLD WATER FAUCED AND STEAM CONTROL KIT.
H
O
N
HC
FLOOR DRAIN
(18" WIDE)
M
F
E
B
D
HANDWHEEL REPLACED BY
SWITCH FOR POWER
TILT OPTION
T(I.D.)
EXTENDED FOR
POWER TILT OPTION
A2
POWER TILT
A1
MANUAL TILT
S
C
KL
2 3/4
J
RECOMMENDED
FLOOR SLOPE
1" (26 mm) per 4' (1220 mm)
PIPE DRAIN RECOMMENDED
min. valve size plus 1" (26 mm)
4" (102 mm)
RECOMMENDED
9/16"
14
mm
120º
TYP
1" (25
mm)
MAX. ADJUSTMENT
1 5/8" (42 mm) Ø
FLANGED FOOT DETAIL
7/16" (11 mm) Ø
3HOLES ON
3 1/8" (80
mm) Ø
B.C.D.
4 7/8"
124
Ø mm
NOTE: TD3, 3" tangent draw off will
raise height of kettle by 5-5/8" (143mm).
Available on 60 gallon models only.
DIMENSIONS
GALS./
LITERS A1 A2 BCDEFGHJKLMN0STI.D.
25 IN 37 5/8 35 1/2 33 3/8 28 5/8 15 3/8 61 7/8 36 5/8 14 18 1/2 15 1/2 14 1/2 14 1/4 21 5/8 49 1/4 3 7/8 29 5/8 21
100 mm 957 902 848 728 391 1572 931 356 470 394 369 362 550 1251 99 753 534
40 IN 41 5/8 39 1/2 34 3/4 30 17 7/8 65 7/8 36 7/8 12 1/4 19 16 1/2 17 16 3/4 23 3/8 51 1/8 6 3/8 32 3/8 26
150 mm 1058 1004 883 762 455 1674 937 312 483 420 432 426 594 1299 162 823 661
60 IN 45 1/8 43 38 33 3/8 19 5/8 74 1/8 40 7/8 12 3/4 20 1/4 18 1/2 18 3/4 18 1/2 26 5/8 56 3/8 8 1/8 36 1/4 29 1/2
225 mm 1147 1093 966 848 499 1883 1039 324 515 470 477 470 677 1432 207 921 750
