Cleveland KEL-40-TSH User manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]
ELECTRIC KETTLES
SECT.VIII PAGE 15
0707
Cleveland Standard Features
n Self-contained, easily installed - needs only an electrical hook-up
nSteam jacket filled with treated water, venting and/or refilling is
not required
nAccurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
•LED indicator for heat cycle • LED indicator for low water
•Power ON/OFF switch • Adjustable temperature control dial
nWater resistant controls, splash-proof construction
nLarge pouring lip for high capacity and chunky products
nRe-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
nWelded-in heating elements, (holds vacuum better,won't leak
or loose water)
nEasily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
nRear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
n50 psi steam jacket rating for higher cooking temperatures
n50 psi safety valve
n Solid state water level control (no sight glass gauge to break or leak)
nSplash proof element cover with a double gasket seal
nTilt mechanism of roller bearings and case hardened
self-locking worm and segment gear
n 15/8˝ O.D. tri-leg supports with level adjustable feet for floor bolt-
ing
nStandard voltage is 208-240 volts, 60 Hz, 3 – phase, 3 wire
nTypical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
p316 Stainless Steel Liner (316)
p2" Tangent Draw-Off (TD2) (available in 40 gallon only)
pKettle Markings (KM)
pSpring Assist Cover (CHS)
pLift Off Cover (CL)
pBasket Strainer (BS)
pMeasuring Strip (MS)
pFood Strainer (FS)
pDrain Strainer (DS)
pSteam Control Kit (SCK1)
p240 Volt, Single Phase Option
Cleveland Electric Tilting Kettle, Model KEL-____-TSH, 35" rim height, Type
304 Stainless Steel and Supports, Fully Steam Jacketed, 50 psi Steam
Jacket Rating
,Permanently filled Steam Jacket, 208-240 volts, 60 Hz, 3
Phase,
Splash Proof Solid State Temperature(±1°C) and Safety
Control System in plug-in Module including L.E.D. indicators.
pPan Carrier (PCK)
pTri-Basket Strainer SupportSystems (TBS)
pKettle Accessory Kit (KAK)
pFlow Diverter (FD)
pCorrectional Packages
pHot and cold water faucet (DPK), or cold water (SPK).
Requires faucet bracket (FBKT)
pHeat Deflector Shield (HS001)
Short Form Specifications

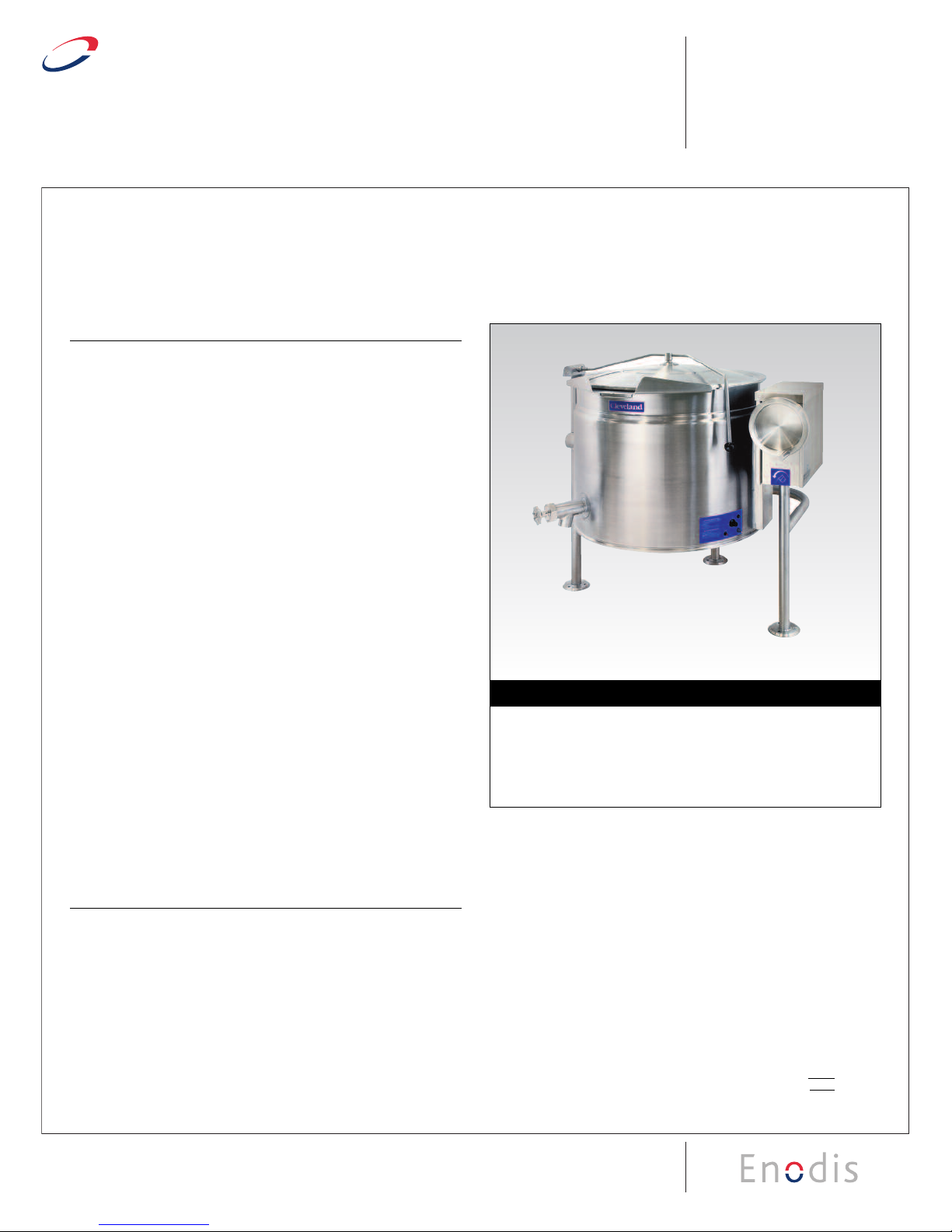

Shown with optional spring-assisted
cover and 2" tangent draw-off valve
MODELS:cKEL-40-TSH
cKEL-60-TSH
SHORT SERIES™ELECTRIC KETTLES
35˝ RIM HEIGHT, TILTING, FULL STEAM JACKETED
SELF-CONTAINED
, “ SPLASH PROOF SERIES”
40 or 60 GALLONS (150 or 225 LITERS)

DIMENSIONS
SPECIFICATIONS
UTILITIES
FOOT LOCATION &
FLOOR DRAIN DETAIL
(KEL-40-TSH)
FOOT LOCATION &
FLOOR DRAIN DETAIL
(KEL-60-TSH)
FLANGED
FOOT DETAIL
SOLID
FOOT DETAIL
P P
P
48 1/2
45
STANDARD WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
40 150 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
60 225 14.7 70.8 40.9 19.6 81.7 47.1 18.1 43.5 25.1 19.6 40.8 23.6
HIGH WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
40 150 24.5 N/A 68.1 30 N/A 75.3 32.6 68.1 39.3 25.1 66.2 38.2
60 225 29.4 N/A 81.7 39.2 N/A 94.3 39.2 81.7 47.1 30.2 79.4 45.9
(NOT TO SCALE)
SECT.VIII PAGE 16
0707
Litho in U.S.A.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., NSF, CGA, CSA, ETL and others.
•CAPACITIES: (in 8 oz. servings, other sizes may be calculated)
40 Gallon / 150 liters ...... 640 servings
60 Gallon / 225 liters ...... 960 servings
Consult factory for other voltages.
CLEARANCE
RIGHT = 0
LEFT = 0
REAR = 0
Allow 12" minimum on
right side for servicing.
