Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]
ELECTRIC KETTLES
SECT. VIII PAGE 3
0707
Cleveland Standard Features
nManual tilting, balanced design
nSpace saving design through shared, center console
nBalanced, attractive appearance
n Self-contained, easily installed - needs only an electrical hook-up
nSteam jacket filled with treated water, venting and/or refilling is
not required
nAccurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°Cvariance
(ideal for simmering). Operating temperature range from 145° -
260°F(63°C-127°C)
Control panel includes:
•LED indicator for heat cycle • LED indicator for low water
•Power ON/OFF switch • Adjustable temperature control dial
nWater resistant controls, splash-proof construction
nLarge pouring lip for high capacity and chunky products
nRe-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
nWelded-in heating elements, (holds vacuum better, won't leak
or loose water)
nEasily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
nRear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
n50 psi steam jacket rating for higher cooking temperatures
n50 psi safety valve
n Solid state water level control (no sight glass gauge to break or leak)
nSplash proof element cover with a double gasket seal
nSelf locking marine type tilting mechanism prevents acci-
dental spills. Balanced design makes it easy to tilt
nStandard for TKET-6-T and TKET-12-T is 208-240 volts, 60 Hz,
3-phase, 3-wire. Models TKET-6-T and TKET-12-T are field
rewirable to single phase. (Model TKET-3-T available in single
phase, 2-wire only).
nTypical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
pLift Off Covers (CL)
pCommon Hot and Cold (DPK) or Cold only (SPK) Water Faucet
with Swing Spout. Requires Mounting Bracket (FBKT)
p316 Stainless Steel Kettle Liner for high acid products (316-G)
pHigh wattages (HW) and special voltages (see back page)
pCooking Baskets (BS)
pFood Strainers (FS)
pMeasuring Strips (MS)
Shall be CLEVELAND, electric twin kettles, Table Type, self-con-
tained, tilting, Model TKET - _____ - T; _____ gallons each, _____KW,
_____ volts, _____ Hz, 3 phase/3 wire or single phase/2 wire: with
Splash Proof Solid State Temperature (±1°C) and Safety Control
System in plug-in Module including L.E.D. indicators, Large
Pouring Lips, Rear mounted Pressure/Vacuum Gauges,
Permanently filled Steam Jackets, 50 psi Steam Jacket Ratings and
Safety Valves. Optional Lift Off Covers.
pStainless Steel Equipment Stand with Drain Drawer and Splash
Shield (ST-42 for TKET-3-T & TKET-6-T),
(ST-55-t for TKET-12-T)
pKettle Markings (KM)
pProtective Control Panel (PCE)
Short Form Specifications

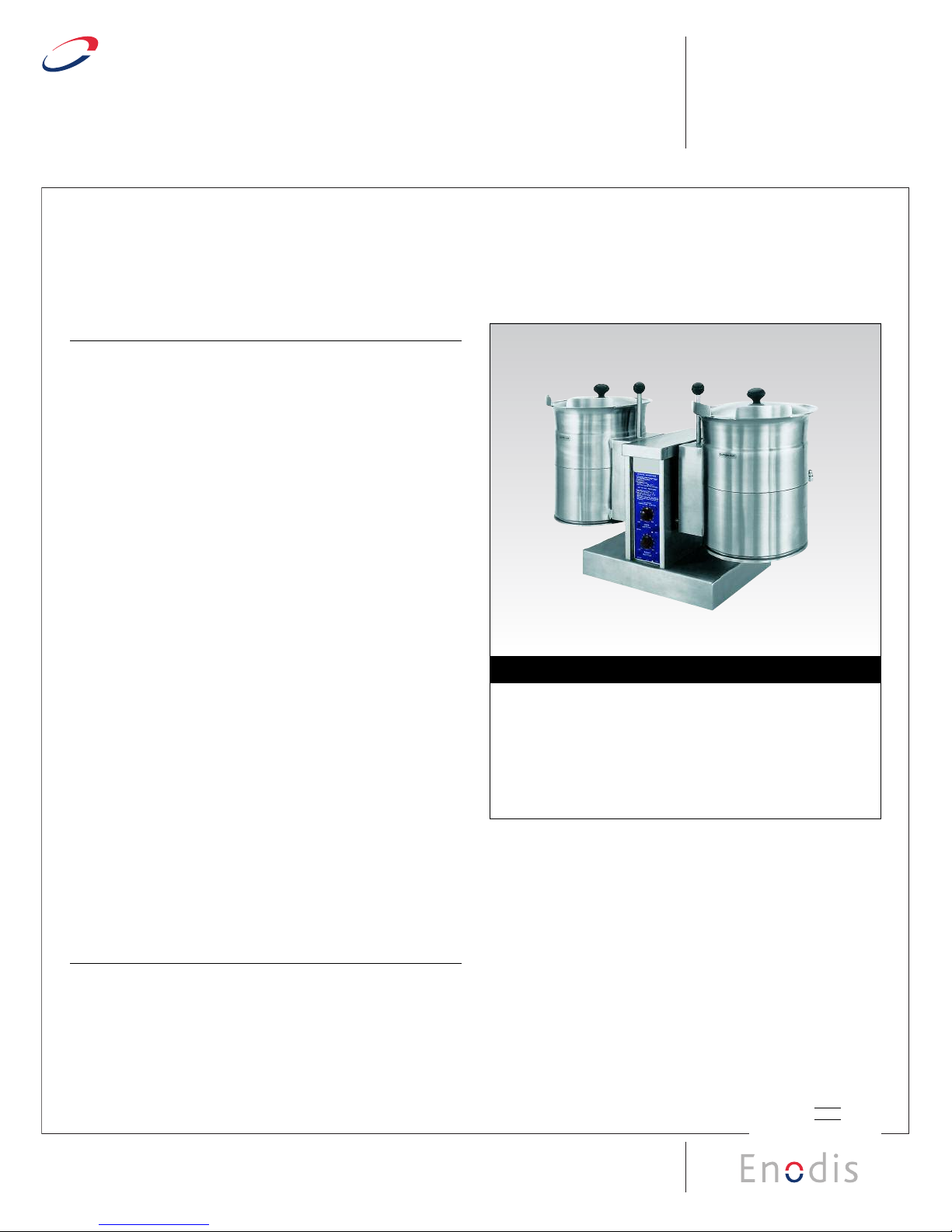

Shown with optional
lift off covers
TABLE TYPE
TWIN ELECTRIC KETTLES
“ SPLASH PROOF SERIES”, SELF-CONTAINED, 2⁄3 STEAM JACKETED,
Per Kettle: 3, 6 or 12 GALLONS (11, 23 or 45 LITERS)
MODELS:cTKET-3-T cTKET-12-T
cTKET-6-T

•CAPACITIES (PER KETTLE): (in 4 oz. servings,
other sizes may be calculated)
3gallons / 11 liters ......... 96 servings
6gallons / 23 liters ......... 192 servings
12 gallons / 45 liters ......... 352 servings
(NOT TOSCALE)
SECT.VIII PAGE 4
0707
Litho in U.S.A.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., NSF, CGA, CSA, ETL and others.
STANDARD WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
3 11 8.2 39.3 NA 10.9 45.4 NA NA NA NA NA NA NA
623 12.3 59.0 34.1 16.3 68.1 39.3 15.0 36.1 20.9 16.3 34.0 19.6
12 45 19.6 94.4 54.5 26.1 108.9 62.9 24.0 57.8 33.4 26.1 54.4 31.4
HIGH WATTAGE
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH
6 23 19.6 NA 54.5 26.1 NA 62.9 24.0 57.8 33.4 26.1 54.4 31.4
12 45 24.5 NA 68.1 32.7 NA 78.6 30.0 72.3 41.7 32.7 68.1 39.3
CLEARANCE
RIGHT = 0˝
LEFT =0˝
REAR = See “Q”on
chart above.
Consult factory for other voltages.
WATER
3⁄8˝O.D. copper tube or
1⁄2˝N.P.T. pipe.
When ordered with
optional faucet.
H
C
30"
(762mm)
24"
(610mm)
18"
(457mm)
12 27/32"
(326mm)
4 3/8"
(111mm)
6 15/32"
(164mm)
4 27/32"
(123mm)
1 15/16"
(
49 mm)
5/16-18 THREADED 
BUSHINGS
5/16-18 THREADED 
BUSHINGS
5/16-18 THREADED 
BUSHINGS
1 1/2"
(38mm)
7 9/32"
(185mm) 7 3/8"
(187mm) 10"
(254mm)
6 3/8"
(162mm)
1 11/32"
(34mm)
12 13/16"
(325mm)
12 1/2"
(318mm)
12 1/2"
(318mm)
12 1/2"
(318mm)
TKET-3-T TKET-6-T TKET-12-T
BASE MOUNTING DIAGRAMS
(VIEW FROM BOTTOM OF BASE)
