MODELS:c36-GM-K36-200
ITEM NUMBER __________________________________________
JOB NAME / NUMBER __________________________________
Cleveland Standard Features
nFactory assembled Kettle/Steam Generator NickleGard
Base combination with one 3 gallon and one 6 gallon kettle
with 200M BTU Gas-Fired Steam Generator
nSolid State steam generator Water Level Controls
nLow Water Safety Cut-Off
nPressure Limit Controls with 15 psi Safety Valve
nType 430 Stainless Steel exterior enclosure, and table top
(with Drain Trough which has 1.50" diameter male drain),
#4 exterior finish
nType 304 Stainless kettle(s), #4 exterior finish
nSeparate "Start/Reset" Illuminated Switch Controls,plus
Pressure Gauge
nSolid State Electronic SparkIgnition for energy savings
nMajor components serviceable from the front of the unit
nKettle(s) are 2/3 Steam Jacket rating, and include Lift-off
Covers
nHot and Cold Water Faucet with Swing Spout
nKettle(s) have 50 psi Steam Jacket Rating, 50 psi chrome
plated Safety Valve(s) and Manual Tilting, balanced design
nTilt Handles can be mounted on either side
nSteam Generator empties under pressure (blowdown)
automatically upon each Shut-Down. Automatic Water
Refill on Start-Up
nStandard voltage for controls is 115 volt, 60 Hz, single
phase
nAdjustable Flanged Feet (FF-A)
Options & Accessories
pPower Take-Off Kit (GPTO)
pSecondaryLowWater Cut-Off,factory installed (CALG)
(Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI.
MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY,
Wash. DC)
pGas, other than natural
pType 316 Stainless Steel kettle interior for high acid food
products (316)
pFood Strainers (FS)
pStainless Steel Base Frame (FSS)
p300,000 BTU Gas-Fired Boiler with Nickelguard
pBoiler Descaling Pump Kit (107142)
Shall be CLEVELAND, Modular Cabinet Base with one 3 gallon and one 6
gallon kettle, Model 36-GM-K36-200, 200M Nickelguard BTU Gas-Fired
Steam Generator, type 430 Stainless Steel exterior enclosure, Table Top,
Back Splash and 4 level adjustable feet. 2/3 Steam Jacketed type 304
Stainless Steel kettle(s) with 50 psi Steam Jacket Rating; needle type Steam
Control Valve on each kettle. Console mounted Controls, Pressure Gauge
and Illuminated "Start/Reset" Control Switches. Solid State Water Level Steam
Generator Controls and Electronic Spark Ignition. Steam Generator drains
under pressure (blowdown) after each Shut-Down with Automatic Water
Refill on Start-Up. 15 psi Safety Valve
Short Form Specifications
SECT. VII PAGE 25
1106

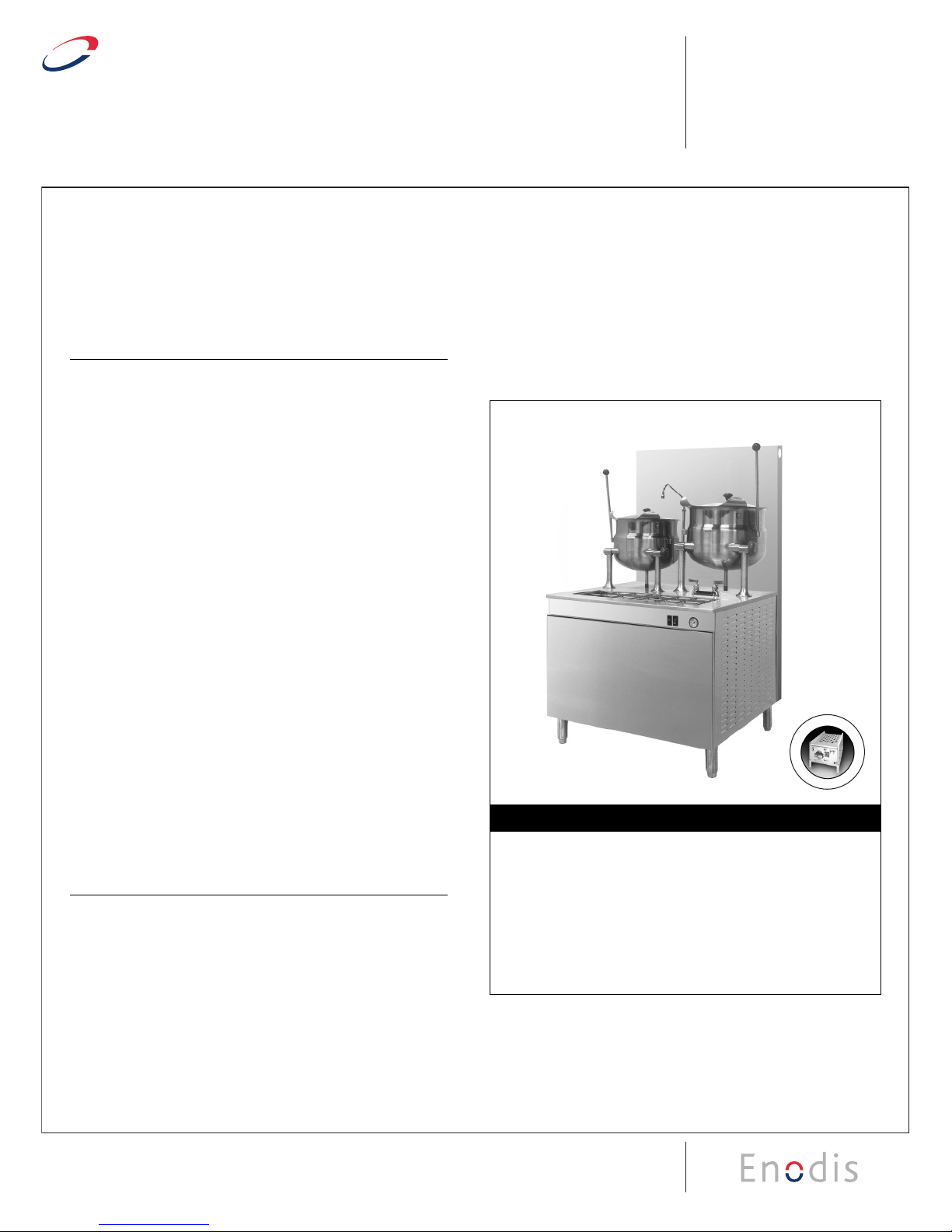

MODULAR BASE WITH KETTLES
200M BTU GAS-FIRED STEAM GENERATOR with NICKELGUARD™
ONE 3 GALLON KETTLE AND ONE 6 GALLON KETTLE
CABINET BASE: 36" (900MM) WIDE
1
0
0
%
5
Y
e
a
r
B
o
i
l
e
r
W
a
r
r
a
n
t
y
N
i
c
k
e
l
G
u
a
r
d
™
Cleveland
™
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site: www.ClevelandRange.com
Email: [e-mail]
MODULAR BASES

6.00”
6.00”
6.00”
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are ASME/N. Bd, UL/NSF#4 and CSA (AGA, CGA).
(NOT TO SCALE)
SECT. VII PAGE 26
1106
Litho in U.S.A.
WATER QUALITY REQUIREMENT
The recommended minimum water quality standards whether untreated or pre-treated,
based upon 10 hours of use per day, and a Daily Blowdown, are as follows:
TOTAL DISSOLVED SOLIDS less than 60 parts per million
TOTAL ALKALINITY less than 20 parts per million
SILICA less than 13 parts per million
pH FACTOR greater than 7.5
CHLORINE less than 30 parts per million
Consult a local water treatment specialist for an on site water analysis for recommendations
concerning steam generator feed water treatment (if required), in order to remove or
reduce harmful concentrations of minerals. The use of highly mineralized water will mean
that more frequent servicing of the steam generator will be necessary. The fact that a water
supply is potable is not proof that it will be suitable for the generator.
CAPACITIES
(in 4 oz. servings)
(Other sizes may be calculated.)
3gallon / 11 liters ..... 48 per kettle
6gallon / 23 liters ..... 160 per kettle
