KL1000 Classic+ - Programming and Operating Instructions
The KL1000 Classic+ is a compact digital lock based on the venerable KL1000 Classic, with the additional features of supporting up to 20 User Codes in Private Function and auto-opening in Public
Function. The lock is ideal for replacing keyed cam locks commonly supplied on a wide range of lockers, cabinets and cupboards.
Codes - The Basics
The KitLock has four code levels available:
i) Master Code
ii) Sub-Master Code
iii) User Code
iv) Technician Code
The KitLock is supplied with two factory set codes:
Master Code: 11335577
User Code: 2244
When fitted, immediately change the Master Code and User Code.
All Master Codes and Sub-Master Codes are 8 digits long.
All User Codes are 4 digits long.
All Technician Codes are 6 digits long.
The lock ‘open’ time is set at 4 seconds.

Functions
Before programming, select the most appropriate function for the application: A) or B) - See special Master Code set up commands.
A) PRIVATE USE Important Note: This is the default function and is already pre-programmed in new locks.
Once set, the User Code allows repeated unlocking of the lock. The lock will always re-lock automatically. This function is used for long term usage where a locker is typically allocated to an
individual.User Codes are 4 digits in length.
B) PUBLIC USE
The user enters their own personal four-digit code to lock the lock. Entering the same code will open the lock and clear the code, ready for the next user. This function is used for short term, multi
occupancy applications, e.g. a locker in a leisure centre.User Codes are 4 digits in length.

Operating Instructions
Note: The KitLock has a 10 button keypad and a # button.
The # button is hidden beneath the handle when in the locked position.

MASTER CODE
The Master Code can:
IMPORTANT:This guide is for the KL1000 Classic+ model. The standard KL1000 Classic Programming and Operating Instructions are available here.

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1000
Open the lock
Change the Master Code
Set / Change / Delete the Sub-Masterand User Code
Select between Private andPublic Functions
Activate/deactivate Technician Code
SUB-MASTER CODE
The Sub-Master Code can:
Open the lock
Change the Sub-Master
Set / Change / Delete / the User Code
USER CODE
The User Code can:
Open the lock
Change the User Code

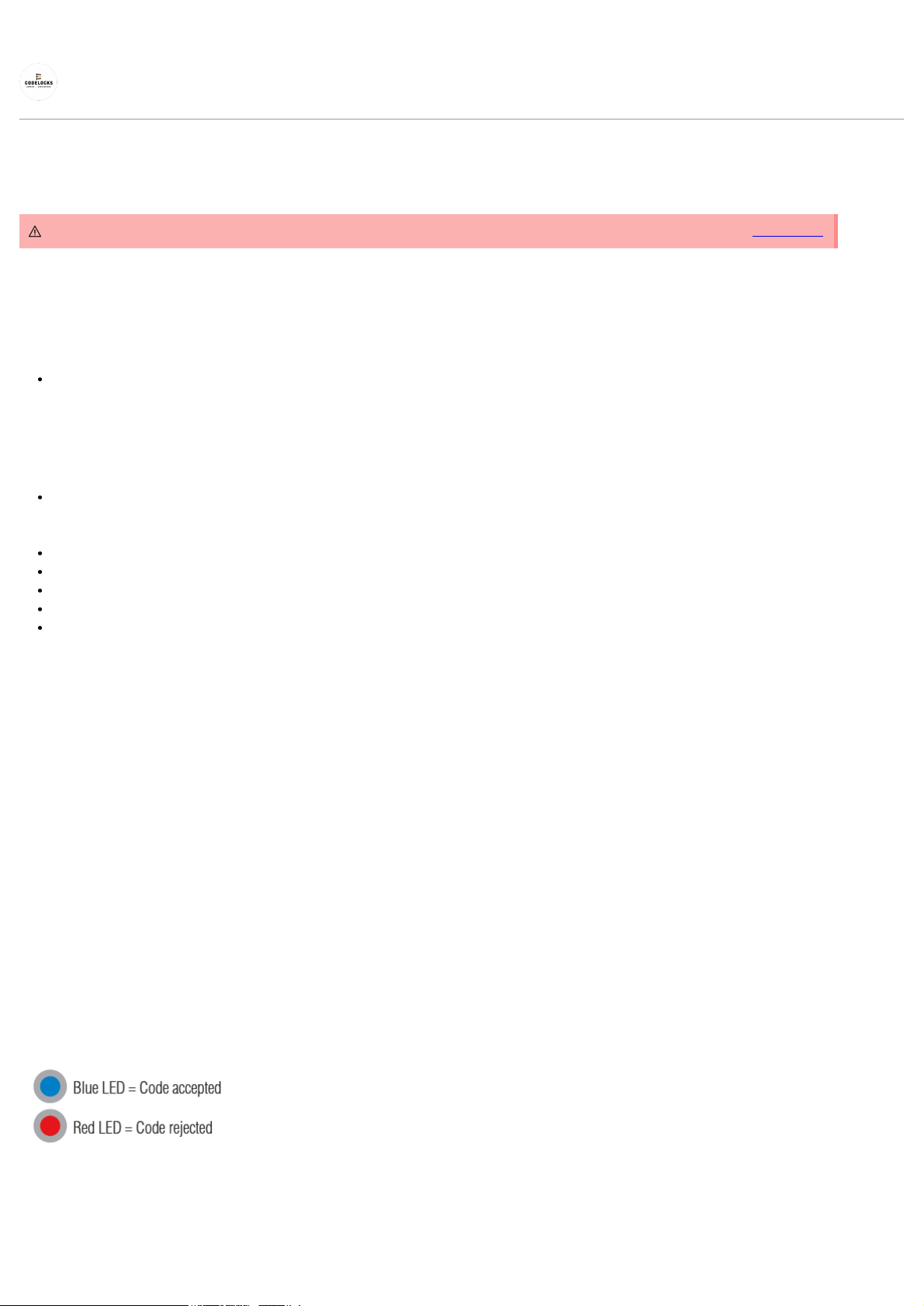

•Blue LED = Code accepted
•Red LED = Code rejected
TECHNICIAN CODE
The Technician Code can:
Open the lock
A code cannot be programmed into morethan one level
PENALTY TIME
Entering three incorrect codes willcause the lock to shutdown for 10seconds.
BATTERY POWER
The KitLock should provide well inexcess of 15,000 openings, of 4seconds each, from 2 x AAA 1.5v cells.
LOW BATTERY

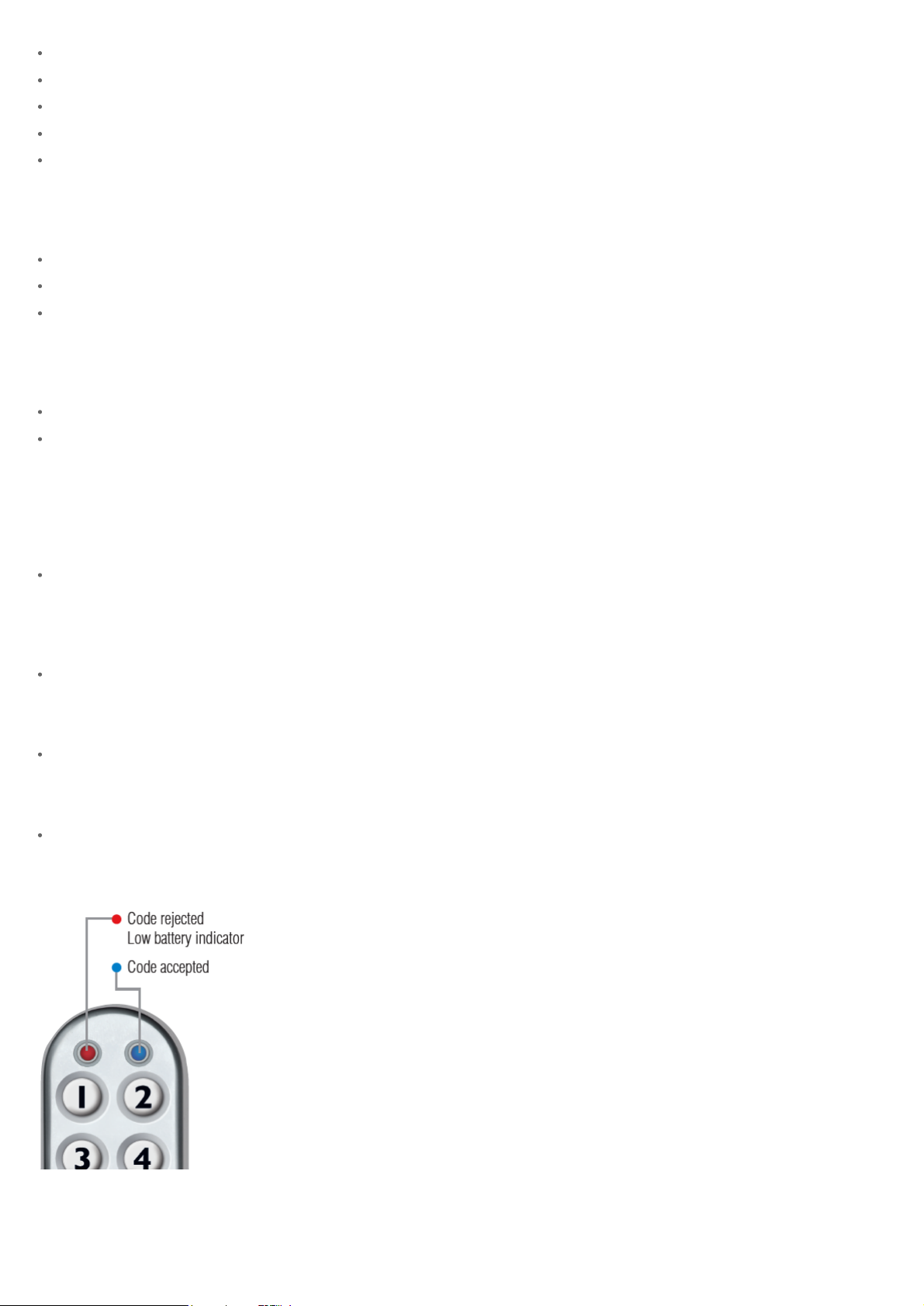

When the battery power is low the•Red LED will flash 3 times beforethe•Blue LED lights, accepting thecode. Fit new batteries as soon as thishappens. The lock
will operate for 100times with low battery.


BATTERY FAILURE OVERRIDE

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1000
The KitLock has been designed so anexternal PP3 battery can be placed againstthe contact points surrounding the Blueand Red LED’s so the lock can be openedto replace
the batteries should they fail.
The procedure is as follows:
Place the contact points of the PP3battery against the contact pointssurrounding the Blue and Red LED’s.
The positive + PP3 terminal against theRed LED contact point and the negative– PP3 terminal against the Blue LED.
Enter the Master Code.
The motor will withdraw the locking pinallowing the lock to be opened.
Fit new batteries by removing theupper fixing bolt and swinging the lockdown over the edge of the door. Refitthe lock.

Programming
To program – the lock must be in theopen position with the#button visible.Every program command must commenceby pressing the # button, followed byeither the Master
Code, Sub-Master Codeor User Code.

MASTER CODE COMMANDS
Master User
The Master User is effectively the administrator of the lock. All programs are available to the Master User.
CHANGE THE MASTER CODE
#Master Code • 01 • New Master Code • New Master Code ••
Example: #11335577 • 01 • 12345678 •12345678••
Result: Master Code has been changed to 12345678

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1000
Standard User
SET OR CHANGE THE USER CODE
#Master Code•  02• User Position • User Code ••
Example: #11335577 • 02 • 01 • 1234 • •
Result: The User Code 1234 has been added to position 01
Note: A user can change their own code using the program below:
#User Code  • New User Code •New User Code••
Example:  #1234 •9876 •9876 ••
Result:The user's code has now been set to 9876.
DELETE USER CODE
#Master Code • 03 • User Position • •
Example: #11335577 • 03 • 06 ••
Result: The User Code in position 06 has been deleted.
Note: Entering 00 as position will delete all User Codes.
Sub-Master User
SET OR CHANGE SUB-MASTER CODE
#Master Code• 04 • New Sub-Master Code • Confirm New Sub-Master Code ••
Example: #11335577 • 04 • 99775533 • 99775533 ••
Result: The Sub-Master Code 99775533 has been added.
DELETE THE SUB-MASTER CODE
#Master Code• 05 • 05 ••
Example: #11335577 • 05 • 05 ••
Result:The Sub-Master Code has been deleted.
Technician User
SET TECHNICIAN CODE
#Master Code • 13 • New Technician Code • Confirm New Technician Code ••
Example: #11335577 • 13 • 555777 • 555777 ••
Result: The Technician Code 555777 has been added.
DELETE TECHNICIAN CODE
#Master Code • 13 • 000000 • 000000 ••
Example: #11335577 • 13 • 000000 • 000000 ••
Result: The Technician Code has been deleted.

SUB-MASTER CODE COMMANDS
Sub-Master User
The Sub-Master has access to the majority of the programs but cannot change or delete the Master User. The Sub-Master User is not required for operation.
CHANGE THE SUB-MASTER CODE
#Sub-Master Code • 04 • New Sub-Master Code • Confirm New Sub-Master Code ••
Example: #11335577 • 04 • 99775533 • 99775533 ••
Result: The Sub-Master Code 99775533 has been added.
Standard User
SET OR CHANGE THE USER CODE
#Sub-Master Code • 02 • User Position •.User Code••
Example: #11335577 • 02 • 01 • 1234 ••
Result:  The User Code 1234 has been added to position 01.
Note: A user can change their own code using the program below:
#User Code • New User Code • New User Code ••
Example: #1234 • 9876 • 9876 ••
Result:The user's code has now been set to 9876.

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1000
DELETE USER CODE
#Sub-Master Code • 03 • User Position ••
Example: #11335577 • 03 • 06 ••
Result: The User Code in position 06 has been deleted.
Note: Entering 00 as position will delete all User Codes.
Technician User
SET TECHNICIAN CODE
#Sub-Master Code • 13 • New Technician Code • Confirm New Technician Code ••
Example: #11335577 • 13 • 555777 • 555777 ••
Result: The Technician Code 555777 has been added.
DELETE TECHNICIAN CODE
#Sub-Master Code • 13 • 000000 • 000000 ••
Example: #11335577 • 13 • 000000 • 000000 ••
Result: The Technician Code has been deleted.
TECHNICIAN CODE COMMANDS
Technician User
The technician can open a lock. After opening, the lock will automatically re-lock after four seconds. In public function, the active user code will remain valid. In private function, the technician is
essentially an additional standard user.
SET TECHNICIAN CODE
#Master Code • 13 • New Technician Code • Confirm New Technician Code ••
Example: #11335577 • 13 • 555777 • 555777 ••
Result: The Technician Code 555777 has been added.
DELETE TECHNICIAN CODE
#Sub-Master Code • 13 • 000000 • 000000 ••
Example: #11335577 • 13 • 000000 • 000000 ••
Result: The Technician Code has been deleted.
USER COMMAND
CHANGE THE USER CODE
# User Code • New User Code • New User Code ••
Example: #1234 • 9876 • 9876 ••
Result: The user's code has now been set to 9876.

SPECIAL MASTER CODE COMMANDS
PRIVATE USE
The default state of the lock is locked. A single default user is registered with a code of 2244. A total of 20 user codes can be added to the lock. Entering a valid user code will unlock the lock. The
lock will automatically re-lock after four seconds.
#Master Code • 26 ••
Example: #11335577 • 26 ••
Result: The lock will remain locked until a User, Technician, Sub-Master or Master Code is entered.
PUBLIC USE – SINGLE CODE ENTRY (DEFAULT)
The default state of the lock is unlocked. To lock, the user must enter a 4 digit code of their choice. The user does not need to confirm their code. After locking, on re-entering their code, the lock will
unlock and remain unlocked ready for the next user.
#Master Code • 24 ••
Example: #11335577 • 24 ••
Result: The lock will remain open until the next user enters a 4 digit code. The user will not be required to confirm their code. Once entered, the lock will lock.
Note: On re-entry of the same 4-digit code, the lock will open.

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1000
PUBLIC USE – DOUBLE CODE ENTRY
The default state of the lock is unlocked. To lock, the user must enter a 4 digit code of their choice and repeat for confirmation. After locking, on re-entering their code, the lock will unlock and
remain unlocked ready for the next user.
Note: Entering the Master or Sub-Master code when the lock is in Public Function will clear the active user code and put the lock into an unlocked state ready for a new user.
#Master Code • 22 ••
Example: #11335577 • 22 ••
Result: The lock will remain open until the next user enters a 4 digit code. The user will be required to confirm their code (double entry).
Note: On re-entry of the same 4-digit code, the lock will open.
CONFIGURATION
LOCKED LED
When enabled (default), the red LED will flash every 5 seconds to indicate locked status
#Master Code•08•Enable/Disable <00|01>••
Enable
Example: #11335577 •08 •01 ••
Result:Enables locked LED indication.
Disable
Example: #11335577 •08 •00 ••
Result:Disables locked LED indication.
AUTO UNLOCK AFTER X HOURS
Unlocks the lock automatically after a pre-determined time of being locked.
#Master Code •10 •Time <01-24> ••
Example: :#11335577 •10 •06 ••
Result:The lock will unlock 6 hours after locking.
Disable
#Master Code •10 •00 ••
KEYPAD ROTATION
The orientation of the keypad can be set to vertical, left or right. A new keymat/buttons may be required.
1. Disconnect power
2. Press and hold 8 button and reconnect power
3. Within 3 seconds, enter sequence: 1 2 3 4
4. Blue LED will flash twice to confirm
Note: If NetCode is enabled prior to changing the keypad orientation, the lock will require re-initialisation after the orientation has been changed.
ENGINEERING FUNCTIONS
BATTERY LEVEL CHECK
#Master Code • 87 ••
Example: #11335577 • 87 ••
Result: Red and Blue LEDs will flash to indicate current battery status.

https://codelocks.zohodesk.eu/portal/en/kb/articles/kl1000
FACTORY RESET
Note: The procedure requires the door tobe open.
VIA KEYPAD
#Master Code • 99 • 99 • •
Example : #11335577 • 99 • 99 ••
Result : The motor will engage and both LEDs will flash to indicate the lock has reverted to factory settings.
VIA POWER RESET
1. Disconnect power
2. Press & hold1button
3. Reconnect power whilst holding down1button
4. Release1button & within three seconds, press1three times
5. The Blue LED will flashtwice and the lock will have revertedto the factory Master Code 11335577and all other stored settings will beerased.


kITLOCK2020POI
