Comeup Seal Slim 9.5rs User manual

Self-Recovery Winch
Model: Seal Slim 9.5rs
PN: 295053 12V DC
Introduction
Feature
Line pull: 4,309 kg / 9,500 lb synthetic rope first layer
Synthetic rope: 10 mm × 30.5 m (3/8"×100′) synthetic rope
Brake: Patented cone brake holds full load
Clutch: Turn the L-handle for rapid rope payout
Control: Both handheld pendant switch and built-in digital two
ways wireless transmitter power the winch
Unpacking
．Winch assembly……………………………………………………....... 1 pc
．Control box…………………………………....………......................... 1 pc
．Remote control………………………………………………………….. 1 pc
．Synthetic rope with sling hook……………………………………….. 1 pc
．Hawse fairlead………………………..………………………………… 1 pc
．1.8 m (6′) 2 gauge battery lead……………………….………………. 1 pc
．Wireless transmitter……………………………………………………. 1 pc
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment
should be clear and dry.
Winch and hawse fairlead mountings
•It is very important that the winch will be
mounted on a flat and hard surface of
mounting channel in order to make sure
the motor, drum and gearbox housing are
aligned correctly.
•Hawse fairlead does not mount to the winch directly.
•The synthetic rope shall be wound in an under-wound orientation only.
•Four (4) M10 x 1.50 pitch 10.9 grade with 63.8 N-m torque settings
(maximum) high tensile steel bolts must be used in order to sustain the
loads imposed on the winch mounting.
•Two (2) M10 x 1.50 pitch stainless steel bolts must be used for fastening the
hawse fairlead into the mounting channel.

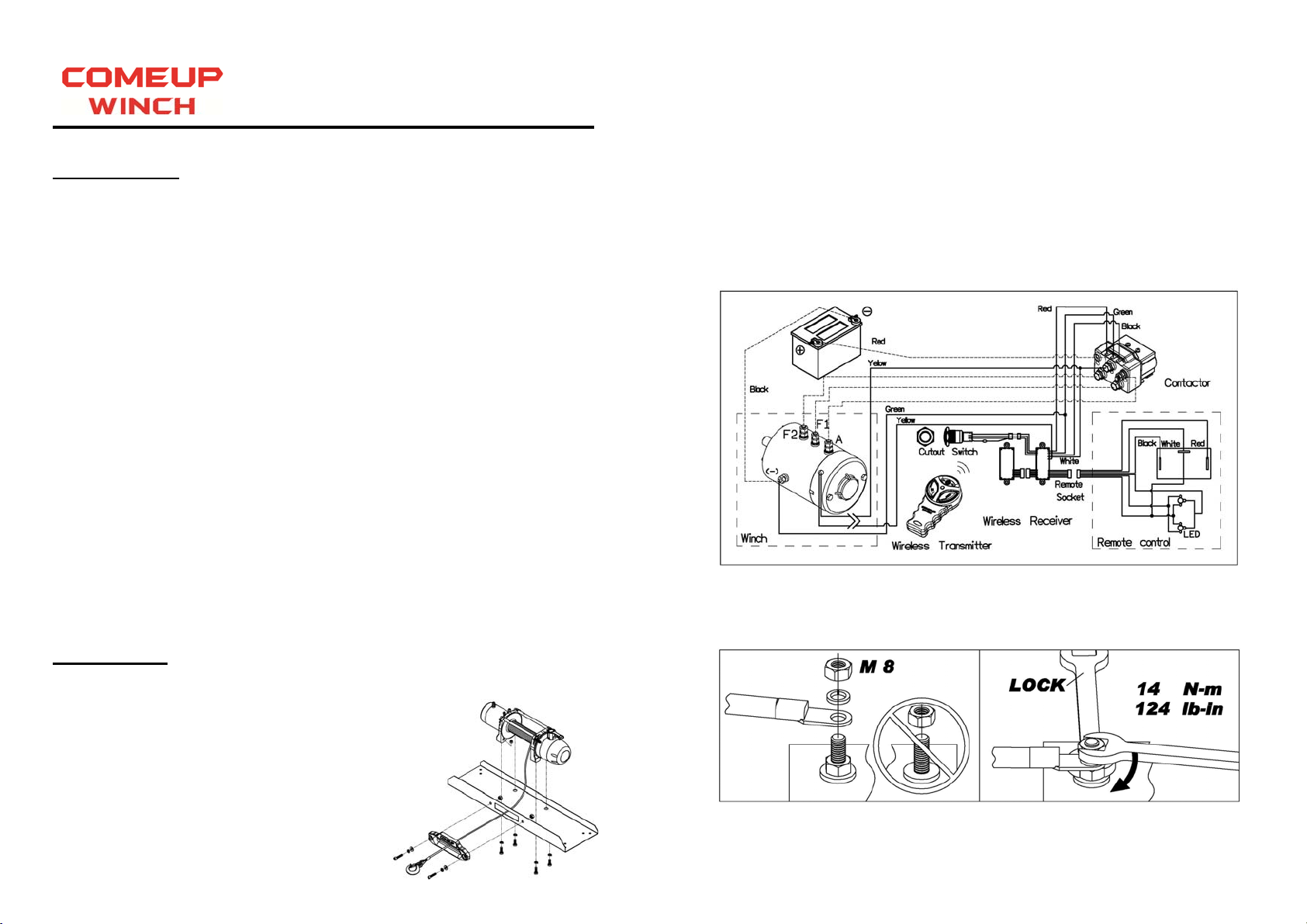

Wiring Diagram
Attach the black lead firmly to the negative (–) battery terminal and red lead
to the positive (+) battery terminal. The voltage drop for the winch motor
must not exceed 10% of the nominal voltage of 12V DC.
Nut fastening for motor & contactor
1. Holding the lower nut on the stub and fastening the upper nut clockwise.
2. The torque setting for nut is 14 N-m/124 lb-in.

Warning
．The winch is not intended to be used in any manner for the movement or lifting
of personnel.
．The rated line pull shown is based on the first layer of rope on the drum.
．The rope winding on the drum shall remain 10 wraps from the drum to support
the rated load.
．Manufacturer is not responsible for the results of misuse, misapplication, faulty
installation or abuse of synthetic rope in any way.
Parts List
Item No. Description Part No. Qty
1 Waterproof motor w/housing 12V 883576 1
2 Tie bar kit 883132 1
3 Motor coupling 880005 1
4 Drum bushing 880006 2
5 Drum kit 881521 1
6 Gearbox support rack 883578 1
7 Grounding lead 880009 1
8 Synthetic rope 883248 1
9 1s
t
shaft 880011 1
10 3r
d
ring gear kit 880114 1
11 3r
d
stage carrier 880115 1
12 2n
d
stage carrier 880116 1
13 1s
t
stage carrier 880117 1
14 1s
t
& 2n
d
ring gear 880118 1
15 1s
t
pinion 880119 1
16 Clutch kit 883236 1
17 Gear box kit 882524 1
18 Cone brake disc kit 880122 1
19 Brake clutch base 881100 1
20 Brake cover kit 882525 1
21 Mounting hardware 880024 1
22 Remote control 880126 1
23 Handsaver strap 880026 1
24 Control box 12V 883579 1
24-1 Remote socket kit 12V 881491 1
24-2 Control pack 12V 883581 1
24-2-1 Wireless receiver 884093 1
24-2-2 Cutout switch 882693 1
24-3 Wireless transmitter 883822 1
25 Sling hook 882477 1
26 Hawse fairlead 883410 1
Winch Assembly
2021/09/14 Ver:03
