Contec Dynamo CTL-335 E User manual

Safety information
- Do not look into the LEDs of the front
- Do not point the LED front light directly at people or animals.
- The light beam of the LED front light must point straight in direction.
- The light distribution may be obscured by no other attached parts or pieces of luggage, not even partially.
- The LEDs are not interchangeable. If the LED fails, the entire luminaire must be replaced.

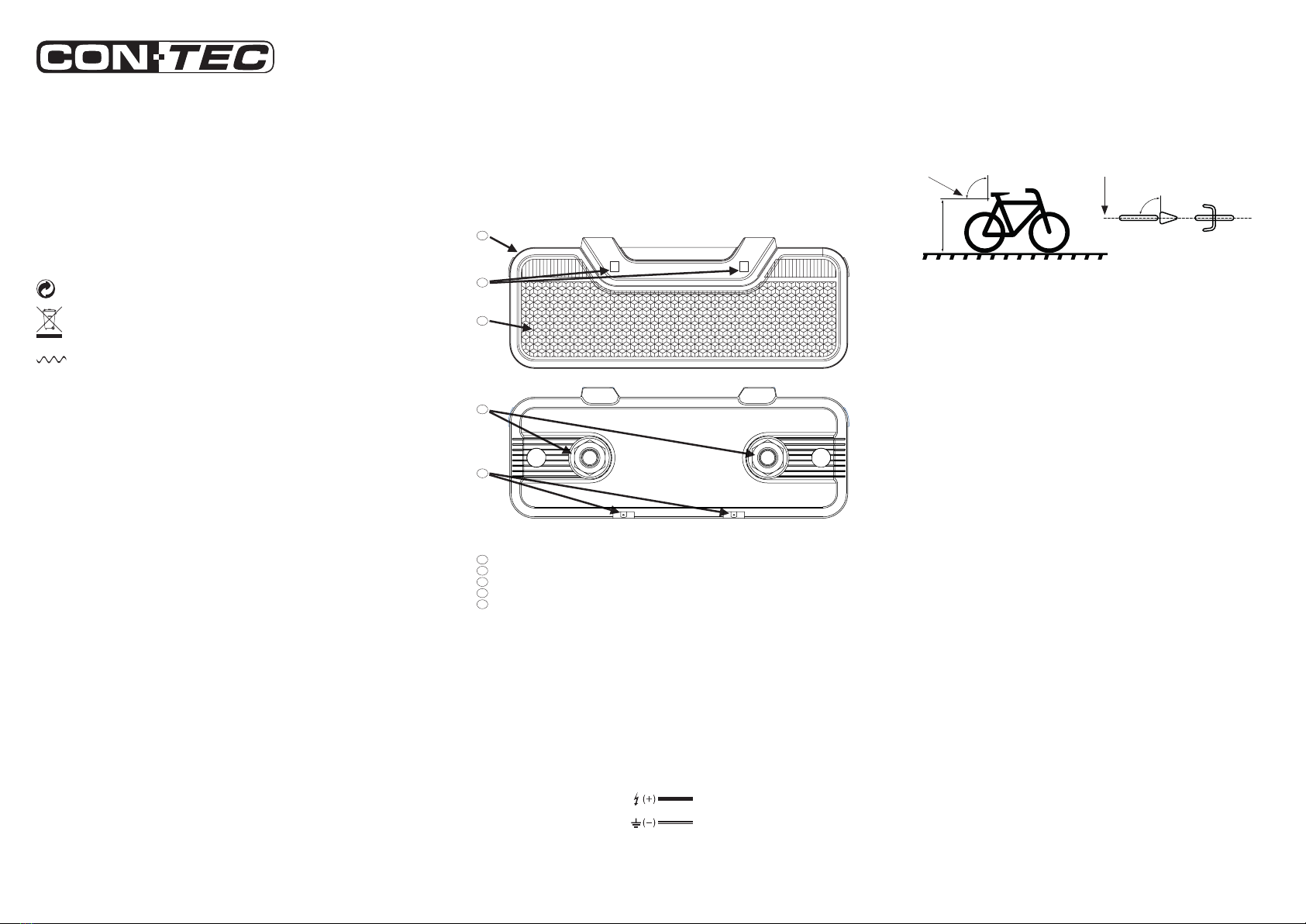

Mapped components
1 Rear light
2 2 LEDs rear light
3 Integrated rear reflector
4 Mounting screws
5 Cable connection for dynamo
Black cable = power
Black-white cable = earth
Manual Dynamo
LED Rear Light
CTL-335 E / CTL-335 ES
Congratulations on the purchase of your new device. The user’s manual is part of this device and
contains important information to safety, installation and disposal. Familiarize yourself with all
operating and safety instructions before using the device. Use the device as described and in the
specified areas of application. Keep this manual in a safe place and have it with you when using the
device.
Used symbols
Green Point – Recycling the packaging
Symbol for the detection of electrical and electronic devices
Test mark of the Federal Motor Transport Authority (K with
the following approval number)
Attention:
Regularly check the correct setting and mounting height of your rear light. The rear light must be
mounted in a range from 250 to 1200 mm above the ground. It must be mounted and adjusted so that
the reference axis is parallel to the vehicle longitudinal mid-plane and parallel to the road surface (see
figure).
Operation
The rear light is switched on and off via the e-bike system. Check regularly for proper function. A setting
or a "programming" is not necessary for the brake indicator function. It is automatically active with the
connection to the dynamo (or headlight). In case of a negative acceleration 2 LEDs of the brake
indicator function are additionally activated for approx. 3 seconds, so that 4 LEDs shine, while the brake
indicator function is active.
Attention:TL-335 E Stop: The brake indicator function is not a brake light.
Proper use
The product is intended for use on bicycles with pedal assistance and serves the illumination of the
road. This LED front light is approved according to the currently valid RTLR (StVZO). The product is
intended for outdoor use.
Note:
The light should only be installed on bikes with pedal assistance that meets one of the following
conditions. If after unloading-conditioned disconnection of the drive assistance still an uninterrupted
electricity supply of the lighting system is guaranteed for at least two hours or the drive assistance
can be used as an alternator transitional to continue to provide the lighting system with power.
WARNING! LIFE AND ACCIDENT HAZARD FOR INFANTS AND CHILDREN!
Never leave children unattended with the packaging material, because of suffocation danger by
swallowing packaging parts. Always keep the device away from children. The device is not a toy!
This device can be used by children of age 8 and over and by persons with reduced physical or
mental capabilities or lack of experience and knowledge if they have been supervised or instructed
concerning the safe use of the device and by understanding resulting hazards. Children are not
allowed to play with the device. Cleaning and user maintenance should not be carried out by
children without supervision. Do not disassemble the device. Improper repairs can cause
significant risks for the user. Only have repairing made by qualified personnel.
Manual_TL-335 E
K XXXX
1
3
4
5
LED rear light and rear reflector
Rear light adjustment
Reference axisReference axis
Mounting position from 250 to 1200mm
90°
90°
LED rear light assembly
Mount the rear light (1) to the carrier. Use the included screws and nuts.
Connection to the E-bike system
On the back of the rear light (1) is the contact plug (5) for connection to the light system. Plug the non-
insulated line ends to the contacts according to the polarity.
Back
Front
2

Manual_TL-335 E
Dispose of packaging and devices in an environmentally friendly way!
Cleaning
Clean the device only with a slightly damp, lint-free cloth. Never completely immerse the device under
water. Do not use any corrosive or abrasive cleaners. This causes damage to the device.
Warranty conditions
Dear Customer, you will receive a 2-year warranty on this device from the date of purchase. In the
event of defects in this product, you have legal rights against the seller of the product. These legal
rights are not limited by the warranty below.
Guarantee conditions
The warranty period begins with the date of purchase. Please keep the original receipt. This document
is required as a proof of purchase. If a defect in material or workmanship occurs within 2 years from
the date of purchase of this product, the product will be repaired or replaced by us at our discretion
free of charge. This warranty requires that within the 2-year period, the defective device and the proof
of purchase (receipt) presented and briefly described in writing, what the defect is and when it
occurred. If the defect is covered by our warranty, you will receive the repaired or a new product back.
Repair or replacement of the product does not commence a new warranty period. The guarantee time
is not extended by the guarantee. This also applies to replaced and repaired parts. Any damage and
defects already existing at the time of purchase must be reported immediately after unpacking. After
the warranty period incurred repairs are chargeable.
The packaging is made of environmentally friendly materials which you can
dispose of at local recycling centers. Throw your device if it has been used in
the interests of environmental protection, not in the household waste, but run it
to a proper disposal. You can find out about collective places and their opening
times by your responsible management.
Disposal of the disused device is available at your local or city government
office.
Warranty scope
The device has been carefully produced according to strict quality guidelines and METI-culously
checked before delivery. The warranty applies to material or manufacturing defects. This warranty
does not cover product parts that are subject to normal wear and tear and can be considered as
wearing parts or for damage to fragile components, such as switches, batteries or part made of glass.
This warranty is void if the product has been damaged, improperly used or serviced. For proper use of
the product, all instructions given in the operating instructions must be exactly followed. Uses and
actions that are advised against or warned against in the operating instructions are to be absolutely
avoided. The product is intended for private and non-commercial use only. Abusive and improper
handling, use of force and internal tampering not carried out by our authorized service branch, the
warranty will be void. If malfunctions or other defects occur, please first contact the service
department named below by phone or e-mail.
Product features
