66 CERTIFICATE
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 26K
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 08 1853
PERFORMANCE DECLARATION
No. C26K-CPR-130617-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
600 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.09%
NOx 82 mg/m3
OGC 43 mg/m3
PM 22 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 6 kW
Efficiency 79%
Flue gas temperature in connector at nominal
output
280°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st July 2013

GB
67
List of Contents
Technical details 68
Supply of combustion air 69
Connection to chimney 70
Installation distances 71
Installation of C26K Low 72
Final installation and joining 78
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injuries if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can cause
quick gas ignition with the risk of damage to property and
personal injury.
NOTE! WARNING!
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by
a qualified inspector. Your local chimney sweep must also
be informed about the installation, as this will affect the
routines for regular chimney-sweeping services.
CONTENTS

GB
68 FACTS
Effect 3-9 kW
Nominal effect 6 kW
Efficiency 79%
Model C26K Low
Weight (kg) 420
Width (mm) 580
Depth (mm) 462
Height (mm) 1312
Type approved in accordance with:
European standard EN 13240
Swedish environmental and quality marking,
P-marking cert. no. 220312
Norwegian standard NS 3059, SINTEF 110-0223
German standard DIN EN/ 13240 RRF 40 08 1853
Installation by authorised
technician
This manual contains instructions on
how the stoves must be assembled
and installed. To ensure the function
and safety of the stove, we recommend
that the installation be carried out by
an authorised technician. Contact one
of our dealers who can recommend
suitable fitters.
Building permission
These main instructions may give
guidance which would contravene
national building regulations. Please
refer to supplementary instructions
or ask your local authority for advice
regarding building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove
and chimney. The stove and chimney can
usually be placed on a normal wooden
joist in a single occupancy house, if the
total weight does not exceed 400 kg.
Hearth plate
Due to the risk of embers falling out, a
flammable floor must be protected by a
hearth plate. It must extend 300 mm in
front of the stove and 100 mm on each
side of the stove, or have a 200 mm
extension on each side of the opening.
The hearth plate can consist of natural
stone, concrete, metal plate or glass.
A painted metal or glass hearth plate
is available as an accessory for these
models.
Important to remember!Technical details

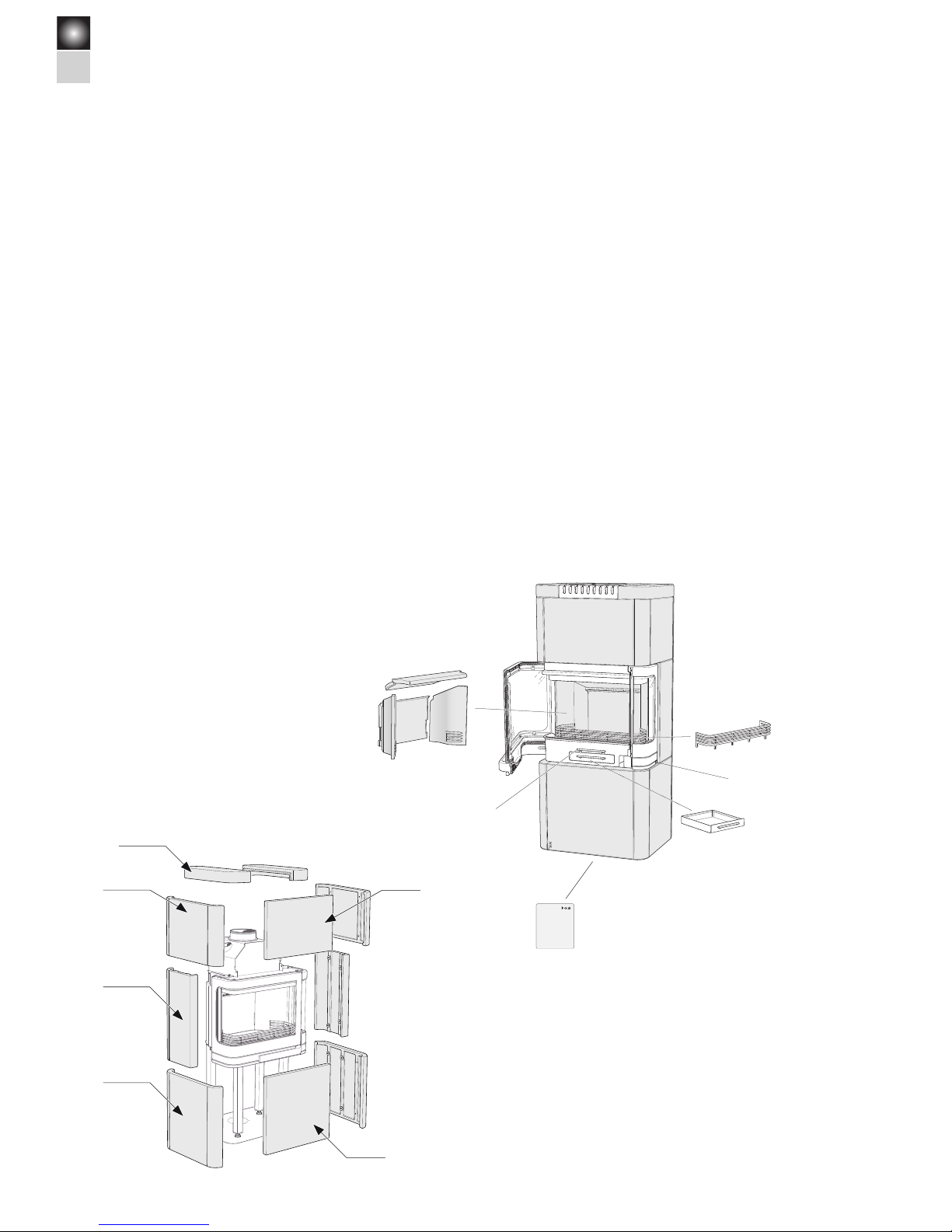

Name of the soapstone
403882
403932
403881
403931
403880
403930
403877
403927
403878
403928
403879
403929
Eldstadsbeklädnad
Rosterreglage Asklåda
Förbränningsluftsreglage
Brasbegränsare
HANDÖL
Inaccordance with standards below
markingwas affixed:
EuropeanStandard:
SEQuality Certification, P-marked:
NOStandard NS 3059:
DEand AT Standard DIN 18.891 and
Art15a B-VG:
Type:
NominalOutput:
Fuel:
Minimundraught:
Fluegas temerature:
Energyefficiency:
Emissionof CO in cumbustion products:
Distanceto cumbustible wall (mm):
Followthe user’s instructions and use only recomended fuel
NIBEAB Box 134 SE-285 23 MARKARYD SWEDEN
2007
EN13240
Certno 0112/07
SINTEF110-0275
RRF-4007 13 90
Handöl31/31A/32/32A
5kW
Wood
12Pa
280°C
78%
0,14%
Behind150
Beside450
Corner150
HANDÖL
NIBE AB SE-85 21 Markaryd Sweden
Type:
Production no.
50-series
7090300236
Rating plate
Log guard
Fire-box surround
Ash-pan
Grate shuttle
Air supply control

GB
69
HK HK
HK
HK
30 mm

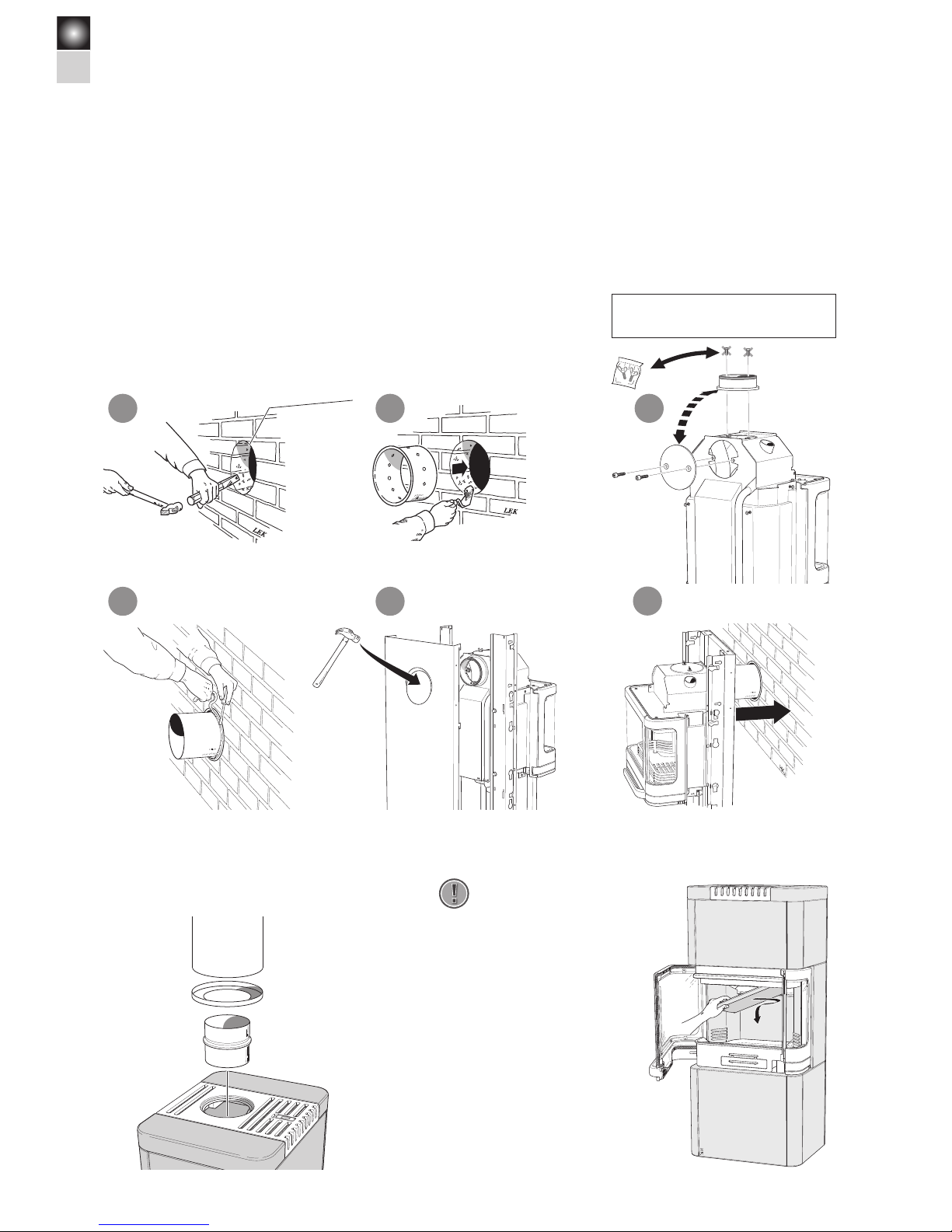

For this type of connection, first remove the valance
that sits in front of the back plate's air intake.
In the case of connection through the floor, first
remove the knockout in the guide plate and any
hearth plate.
SUPPLY AIR/ACCESSORY
Supply of combustion air
When a stove is installed in a room, the air supply demand to the
room increases. Air can be provided indirectly via a vent in the
outer wall or via a duct from the outside that is connected to the
connector on the underneath of the stove. The amount of air
needed for combustion is approx. 25m3/h.
The connector has an external diameter of 67 mm. When installing
ducts longer than 1 m, the pipe diameter must be increased to 100
mm and a correspondingly larger wall vent must be selected.
In hot areas, the duct should be insulated with 30 mm mineral
wool covered with a moisture barrier (plastic). It is important that
the lead-in, between the pipe and the wall (or floor), is sealed
using jointing compound.
A 1 m length of condensation-insulated ducting for combustion air
is available as an accessory.
Installation variants

GB
70 CHIMNEY
Connection to chimney
Ø
ca 180 mm
Ø
ca 180 mm
Rear connection to a masonry chimney
Top connection to the chimney
Make sure that the connector
gasket does not come loose
when the connection pipe is
placed on the sleeve. If further
sealing material is required, heat-
resistant sealant may be used.
The back panel must be installed before the stove is connected at the
rear.
The hot air grille must be installed before the chimney
is connected to the top.
• The stove meets the requirements for connecting to chimneys
dimensioned for flue gas temperatures of 350°C.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. The minimum recommended chimney
length is 3.5 m and suitable cross sectional area is 150-200 cm²
(140-160 mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on
the condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.
2 31
56 4
!

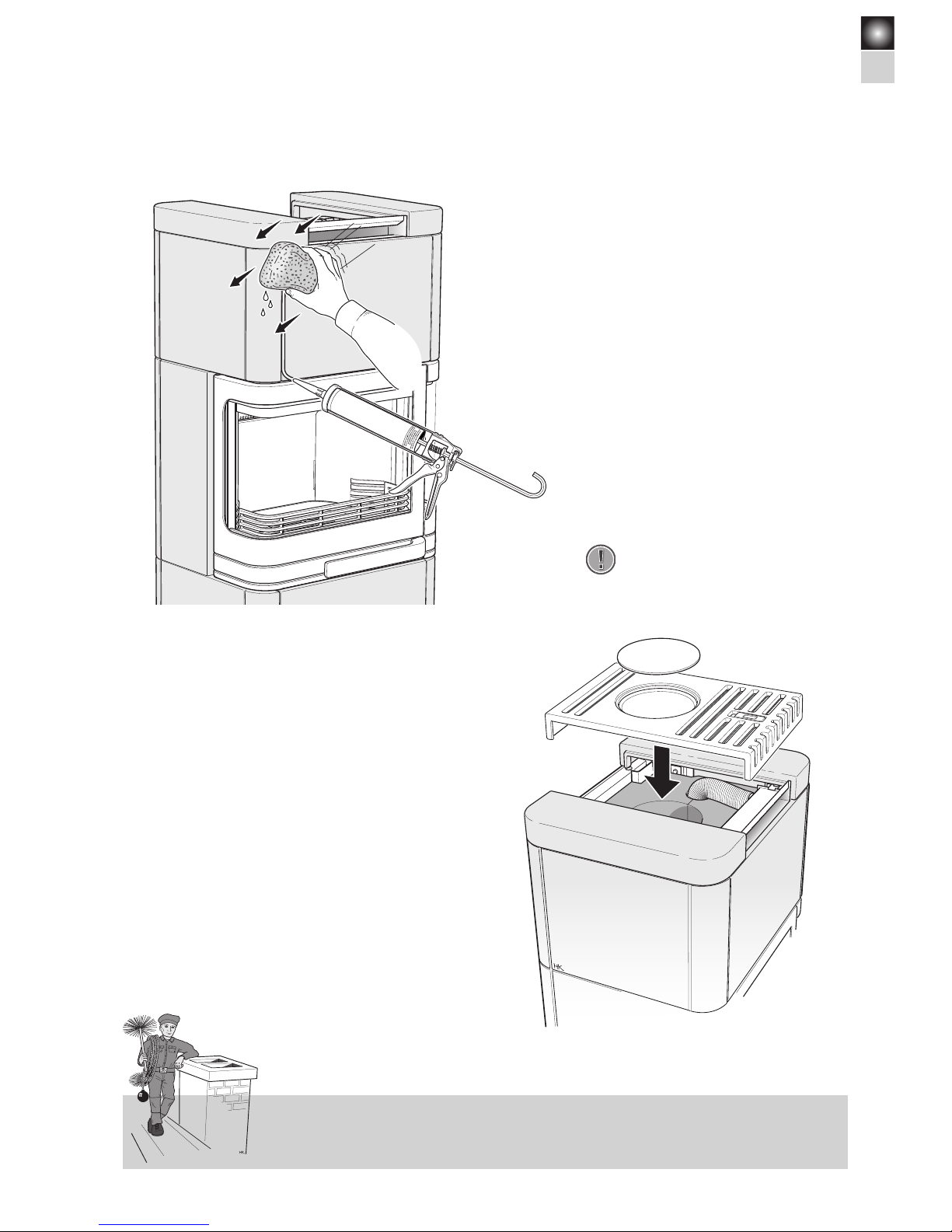

Sweeping
When sweeping, the smoke
baffle must be removed; on the
Contura 20 series this is easily
done by lifting and then pushing
the baffle to the side.
In the bag with these installation instructions
are two wing screws for the cover.

GB
71

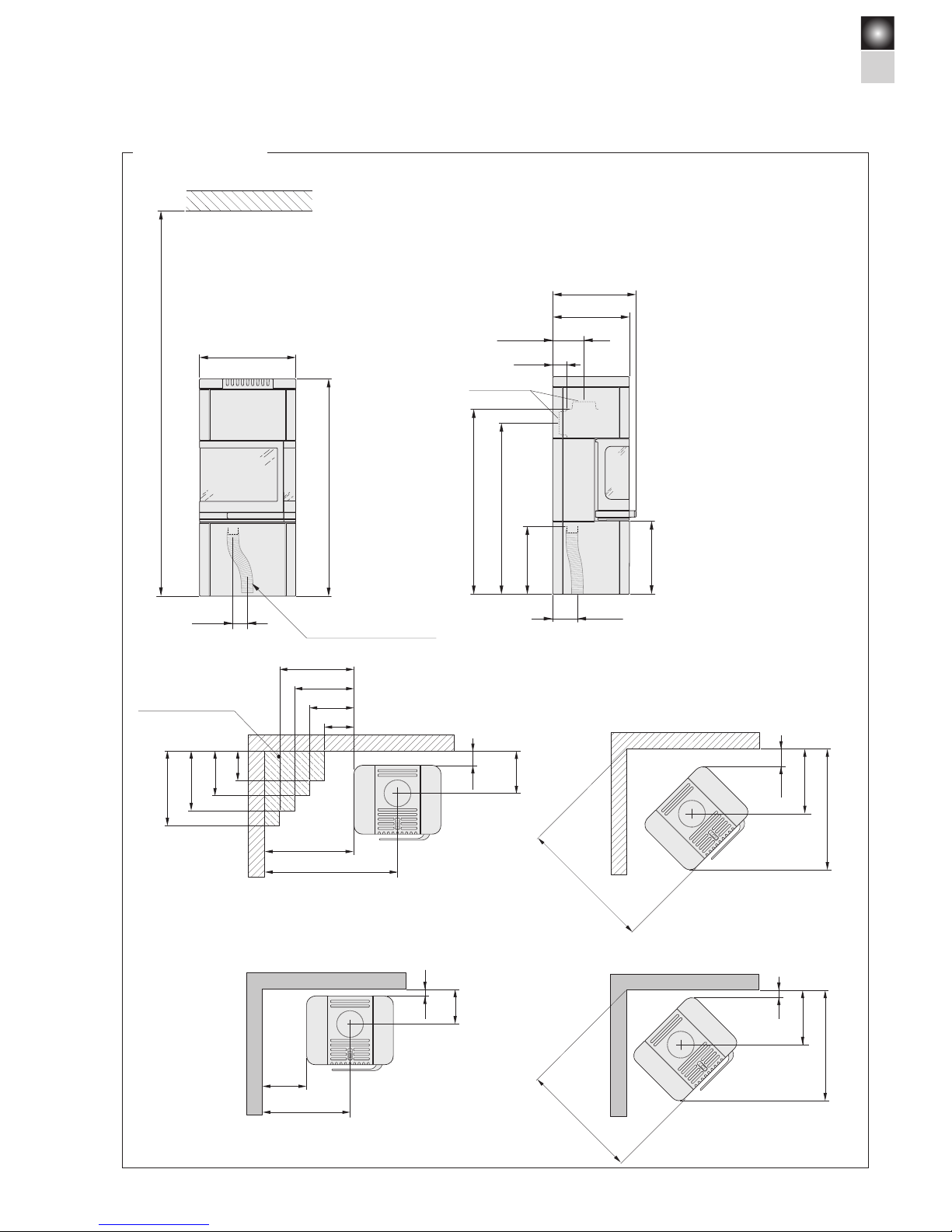

INSTALLATION DISTANCES
C26K Low
Installation distances
442
E 150
A 1116
B 1033
F 410
C 188
D 85
Utv Ø150
502
462
1312
582
2300
G 90
Combustible roof
Combustion air hose
(accessory)
*To prevent discolouration of painted fire walls, we recommend the same side distance as to combustible walls.
A = height from floor to chimney connection upwards
B = height from floor to c/c chimney connection rear
C = distance from back to c/c chimney connection upwards
D = distance from back to chimney connection rear
E = distance from back to hole in guide plate
F = height from floor to air inlet connector (410 mm)
G = distance to hole in guide plate
288
100
600
890
500
400
300
200
300
400
500
200
Combustible wall
Permitted area for
combustible material
435
120
890
810
Combustible wall
238
50
300*
590
Fire-retardant wall of
brick or concrete
365
50
795
740
Fire-retardant wall of
brick or concrete
Place the stove on the
hearth plate and check
that the installation
distances are not less
than those that are given
in the figures below. The
minimum distance in
front of the stove opening
to combustible parts of
the building or interior
decoration must be at least
1 m.
When top connecting
a steel flue, please
refer to the particular
manufacturer's installation
instructions. Observe
the safety distance to
combustible material that
the steel flue requires.

GB
72 ASSEMBLY
Assembling C 26K Low
Min 105 mm
445 mm
13
13
VANADIUM
No.7
CHROME
Centre marking chimney
10
10
VANADIUM
No.7
CHROME

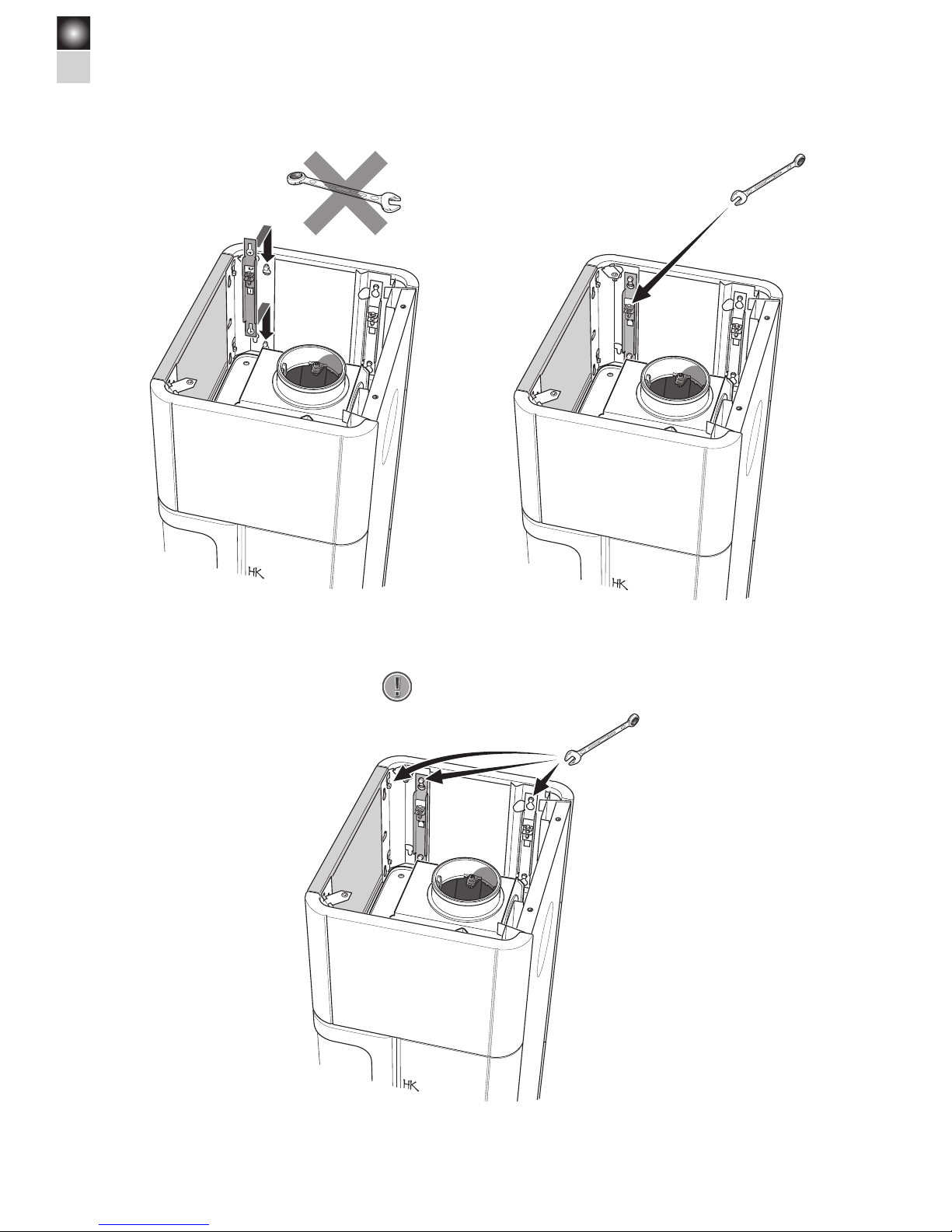

The stove needs to be placed on a level and horizontal surface, so
the courses do not end up uneven and crooked. Otherwise, this can
result in abnormally large gaps and uneven lines.
During assembly, check that all tiles stand horizontally and that all
parts in a course are of a uniform height.
Remember to handle the tiles with care. They scratch easily and
the sharp edges are vulnerable to knocks. Also, take care when the
screws are to be tightened, so as not to cause cracks.

GB
73
5 mm
Place the profile edge to
edge with the tile's side.
10
10
VANADIUM
No.7
CHROME
10
10
VANADIUM
No.7
CHROME
ASSEMBLY

GB
74 ASSEMBLY
10
10
VANADIUM
No. 7
CHROME
10
10
VANADIUM
No. 7
CHROME
Wait to tighten this screw until the
next tile is in place.
When installing the upper course:
Wait to tighten the screws in the tile until all parts
are in place and all adjustments have been made.

GB
75
10
10
VANADIUM
No.7
CHROME
10
10
VANADIUM
No. 7
CHROME
ASSEMBLY
Prevent the side panels from dipping
forward by hooking the hooks in the rear
profile and tightening the screws until
they engage

GB
76
Tighten all screws in the tiling.
The front plates are moved up
slightly by hooking the hooks in
the rear profile and tightening the
screws. Tighten the screws until the
upper plates align with the upper
edge.
!
10
10
VANADIUM
No. 7
CHROME
10
10
VANADIUM
No.7
CHROME
10
10
VANADIUM
No.7
CHROME
ASSEMBLY

GB
77
ASSEMBLY

GB
78
Adjustment screws for placement in
the guide plate to support the top
plates. Adjust them, so they are at the
same height as the top of the side
plates.
Open and fold out any deformed edges in the pipe
opening to facilitate installation.
ASSEMBLY
Final installation and joining

GB
79
ASSEMBLY
Check that the damper can be
opened and closed without
problem.
!
Work the sealant in with a lightly dampened sponge in
diagonal movements. After the sealant has dried the tiles
can be wiped clean.
Ensure that joints are clean and dry before applying the
sealant.
Final inspection of the installation
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.

811093 IAV SE-EX C26K Low -5
2013-11-12
NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden
www.contura.se
Contura reserves the right to change dimensions and
procedures described in these instructions at any
time without special notice. The current edition can be
downloaded from www.contura.eu
