Contura C 556 User manual

Installation
instructions
C 556
C 586
www.contura.eu

GB
44
556/586
Quality approval
The stove has been tested by SP, the Swedish National Testing and Research Institute and meets
the applicable regulations for CE marking and the stricter requirements for P marking. Manufacture
of the product has taken place in accordance with those documents which are the basis for the
relevant type approval certification and the required manufacturing checks. The chimney must be
dimensioned for at least 350° C for both top connection directly upwards and connection directly
backwards from the rear of the stove.
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
378 001
N
O
R
D
I
C
E
C
O
L
A
B
E
L
Contura 556/586 is a Swan marked stove.
NIBE was the first stove manufacturer in Sweden to commit to Swan marking their stoves.
The Swan mark is one aspect of our vision to be a company of the future, setting high quality
standards regarding the environment. Certification number 378-001.
EC Declaration of
conformity
MANUFACTURER
Name NIBE AB/NIBE STOVES
Address Box 134, Skulptörvägen 10, SE-285 23 Markaryd
Place of manufacture Markaryd, Sweden
PRODUCT COVERED BY THIS DECLARATION
Product type Stove fired by solid fuel
Type designation Contura
Type acc. to standard EN 13240 annex ZA
Intended for use Heating of living accomodation
Fuels Wood logs
Special conditions None
CE-MARKING 556 586
Nominal output 5 kW 5 kW
Fuel type Wood logs Wood logs
Flue gas temperature 291° 291°
Energy efficiency 79% 79%
Emission of CO 0,11% 0,11%
Appendix
Lighting and installation instructions
Niklas Gunnarsson
Business area manager NIBE STOVES

GB
45
556/586
Table of contents
Technical details 4
Prior to installation 4
Removing the loose parts 5
Connection to chimney 6
Supply of combustion air/Option 7
Installation distance 556 8
Installation distance 586 9
Installing 556 10

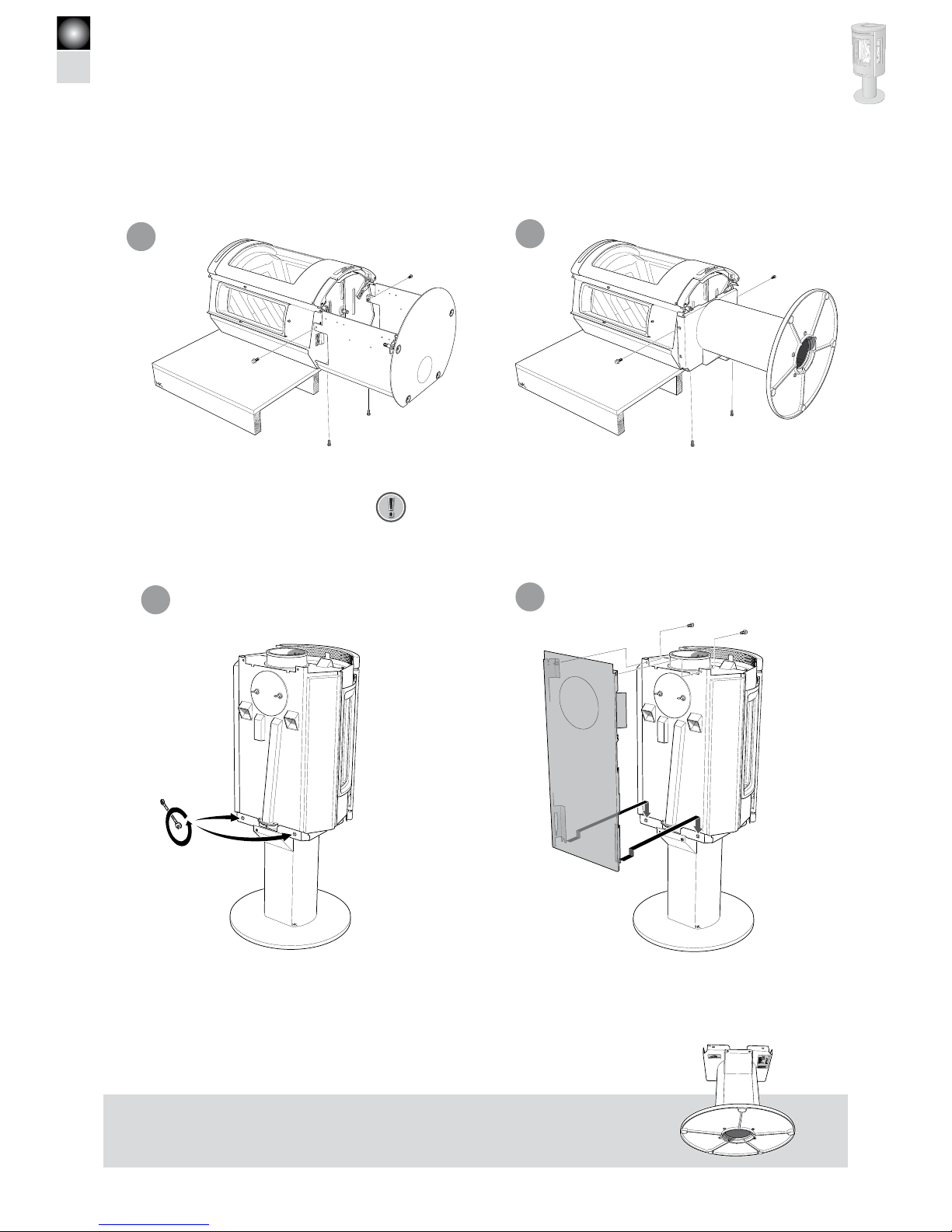

Installing 586 12
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you will
get a great deal of pleasure from your new stove. As a new
owner of a Contura stove you have secured a product with
timeless design and long service life.
The Contura is not only an efficient source of heat, but it
is environmentally friendly as well.
Read through these installation instructions carefully
before installation. Read how to best light your stove in
the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injury if touched. Be aware of
the strong heat radiated through the hatch glass. Placing
flammable material closer than the safe distance indicated
may cause a fire. Pyre lighting can cause quick gas ignition
with the risk of damage to property and personal injury.
NOTE! WARNING!
Report the installation of
a stove to your local authority.
The building owner is personally responsible for ensuring
compliance with the mandatory safety requirements and
must have the installation approved by a qualified inspector.

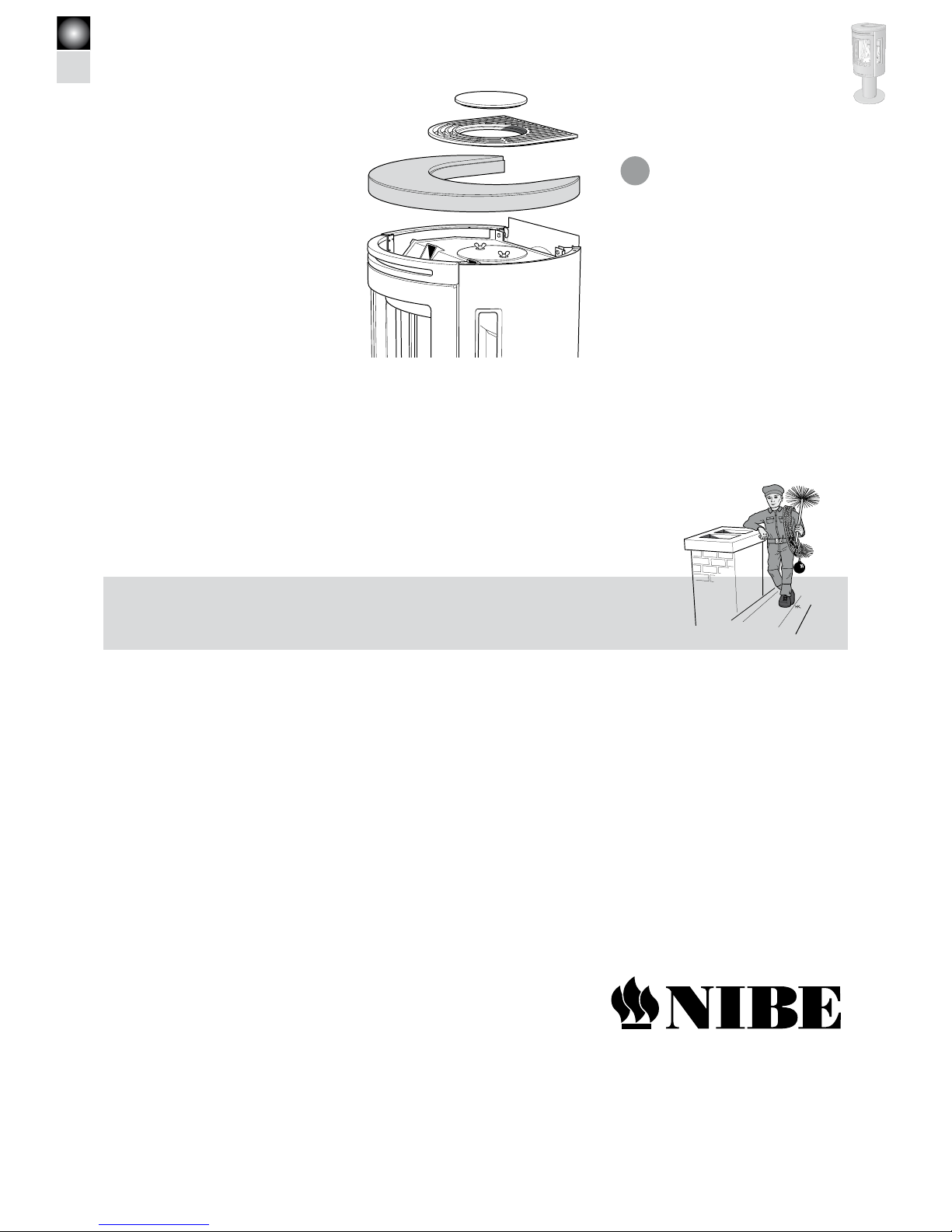

Your local chimney sweep must also be informed about
the installation as this will affect the routines for regular
chimney-sweeping services.

GB
46
556/586
FACTS
Output 3-7kW
Nominal output 5 kW
Efficiency up to 79%
Model 556 586
Weight (kg) 105 110
Width (mm) 495 495
Depth (mm) 440 440
Height (mm) 1080 1160
Type approved in accordance with:
European standard EN-13240
Swedish environmental and quality marking,
P-marking cert. no.220309
Norwegian standard NS 3059, SINTEF 043-140
German standard DIN Plus, RRF-40 10 2253
Contura 556 Contura 586
Prior to installation
If the insert needs bedding down
to be moved or if the pillar foot is
to be installed, remove any loose
components. When the stove is
installed reinstall the components in
reverse order.
1 Fire bars
2 Grate disc
3 Heat deflector
4 Hearth cladding (Vermiculite).
1
2
3
4
Installation by authorised
technician
This manual contains instructions about
how the stoves must be assembled and
installed. To ensure the function and safety
of the stove, we recommend that the
installation is carried out by an authorised
technician. Contact one of our dealers who
can recommend suitable technicians.
Building application
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority. Ask your local authority for
advice regarding building regulations and
the application.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove and
chimney. The stove and chimney can usually
be placed on a normal wooden joist in a
single occupancy house if the total weight
does not exceed 400 kg.
Hearth plate
Due to the risk of falling embers, the stove
must be placed on a non-combustible
surface. If the floor under the stove is
flammable, it must be protected by a
hearth plate which covers at least 300 mm
to the front and 100 mm along each side.
The hearth plate can consist of natural
stone, concrete, metal or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
Important to remember!
Technical details

GB
47
556/586
REMOVAL
How to remove the hearth surround (Vermiculite)
Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing
the four side parts. Reinstall in reverse order
4
3
How to remove the heat deflector
2
1
2
1

GB
48
556/586
CHIMNEY

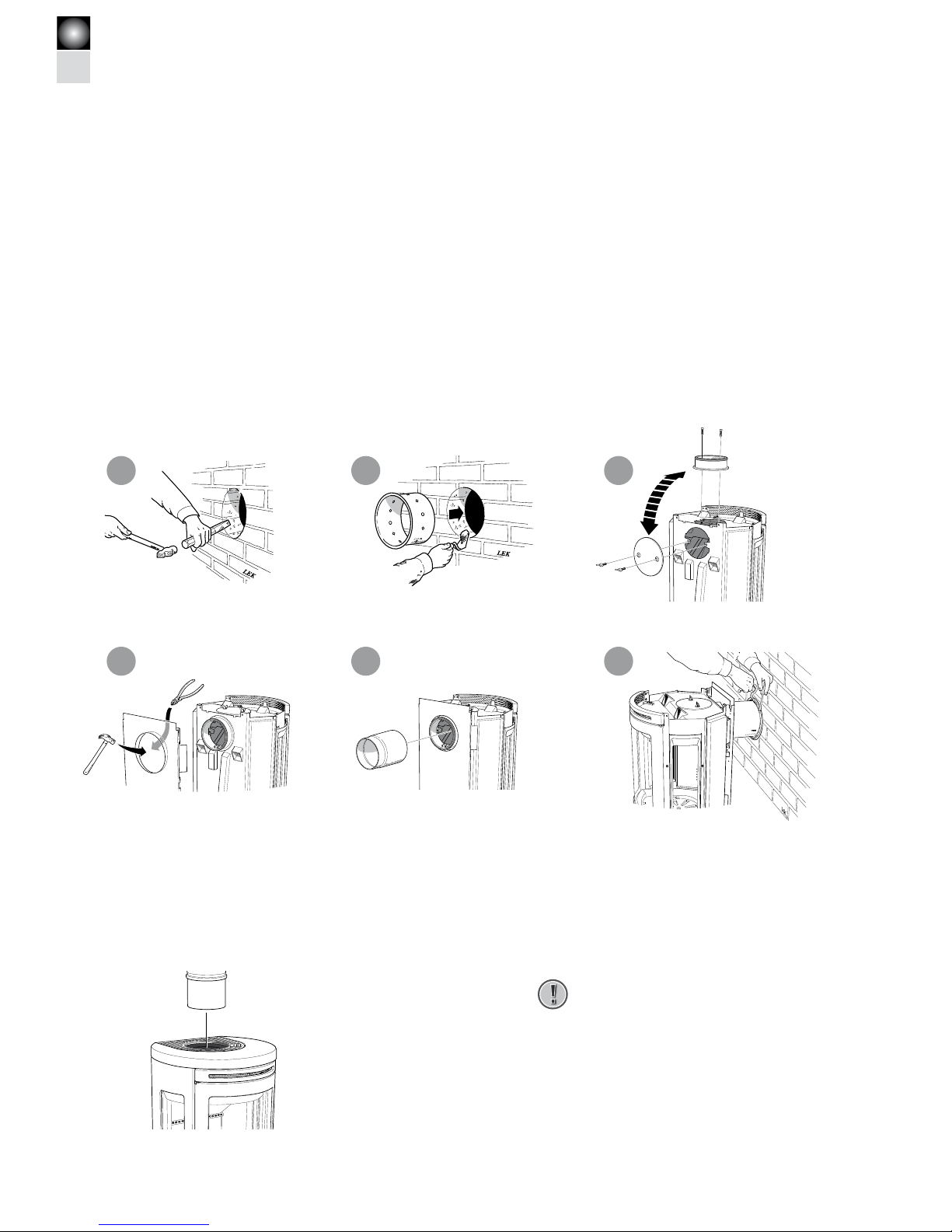

Connection to chimney
Ø
ca 180 mm
Ø
ca 180 mm
Rear connection to a masonry chimney
Top connection to the chimney
Make sure that the connector
gasket does not work loose when
the connection pipe is placed
on the connector. If further
sealing material is required, heat-
resistant sealant may be used.
The back panel must be installed before the stove is rear connected.
The hot air grille must be installed before chimney top connection.
• The stove meets the requirements for connecting to chimneys
dimensioned for 350°C flue gas temperature.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. Minimum recommended chimney length is
3,5 m and a suitable cross section area is 150-200 cm² (140-160
mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. Maximum horizontal flue is 1 m, on the
condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot hatches must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot hatches and flue connections.
2 31
5 64
!

GB
49
556/586
SUPPLY AIR/ACCESSORY

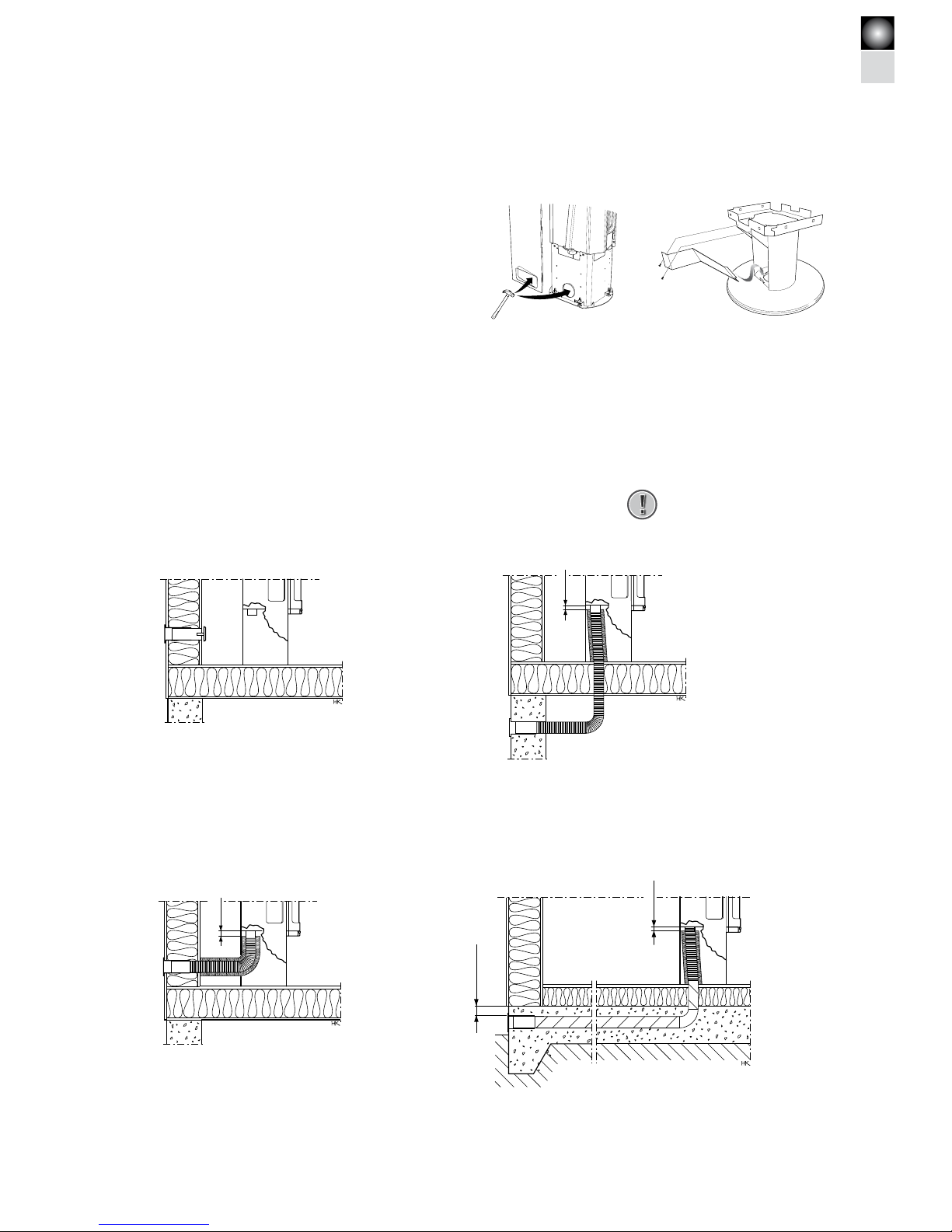

Supply of combustion air
When a stove is installed in a room, the air supply demand to the
room increases. Air can be provided indirectly via a vent in the
outer wall or via a duct from the outside that is connected to the
connector on the underneath of the stove. The amount of air
needed for combustion is 25m3/h.
The connector has an external diameter of 67 mm. When duct
routing further than 1 m the pipe diameter must be increased to
100 mm and a correspondingly larger wall vent must be selected.
In hot areas the duct should be insulated with 30 mm mineral wool
covered with a moisture inhibitor (plastic). It is important that the
lead-in between the pipe and the wall (or floor) is sealed using
jointing compound.
A 1 m length of condensation insulated ducting for combustion air
is available as an accessory.
40 mm
40 mm
30 mm
40 mm
Through the external wall.
Indirect air supply through the external wall.
Through floor and foundation slab.
Through floor and wall-and-cavity foundation.
LEK
C586
There is a detachable cover
on the reverse of the pillar
foot which is removed when
installing combustion air
connection.
C556
In the back and floor
plates there are knockouts
that must be removed to
insert the pipe.
Installation variants
Leave a 40 mm gap between
the condensation insulation
and the bottom of the stove.
!

GB
50
556/586
556
1080
495
2000*
D 370
Combustible roof
140
100
B 920*
A 1015*
C 380
35
440
Air inlet Ø67
Ø150
750
500
240
100
150
250
350
450
50
150
250
350
Combustible wall
410
400
200
100
695
880
Combustible wall
C556
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls, we recommended the same side distance as to combustible walls.
320**
700
1100
70**
190
50
Fire-retardant wall of
brick or concrete
280
70
565
670
800
800
Fire-retardant wall of
brick or concrete
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel
flue please refer to the relevant
manufacturer’s installation
instructions. Observe the safety
distances to combustible material
that steel flues require.
Installation distances
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate turntable instructions.
A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
Permitted
area for
combustible
material

GB
51
556/586
586
1160
495
2200*
Ø 510
D 445
Combustible roof
190
B 995*
A 1090*
C 485
35
140
440
Air inlet Ø67
Ø150
750
500
240
100
150
250
350
450
50
150
250
350
Combustible wall
410
400
200
100
695
880
Combustible wall
C586
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls, we recommended the same side distance as to combustible walls.
320**
700
1100
70**
190
50
Fire-retardant wall of
brick or concrete
280
70
565
670
800
800
Fire-retardant wall of
brick or concrete
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel
flue please refer to the relevant
manufacturer’s installation
instructions. Observe the safety
distances to combustible material
that steel flues require.
Installation distances
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate turntable instructions.
Permitted
area for
combustible
material
A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
A separate glass floor plate
(accessory) increases the
connection height to the
chimney by 10mm.Install
the spacers supplied with
the floor plate prior to
connection.
!

GB
52
556/586
556
Installing C556
10
10
VANADIUM
No. 7
CHROME
x 3
10
10
VANADIUM
No. 7
CHROME
2
3
1
Wait to tighten the back panel’s upper screws
until the side panels are installed. Clean the side glass
thoroughly before installing
the side panels.
4
Installing the rating plates C556
The following rating plates must be placed on the underneath of the heat
deflector. The heat deflector can be removed and is not used with the fan option.
In such a case, place the rating plates on the fan shelf.
!

GB
53
556/586
556
10
10
VANADIUM
No. 7
CHROME
6 5
13
13
VANADI UM
No. 7
CHROME
8
7
9
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
Final inspection of the installation
READY!
If the stove’s loose components are removed these
must be reinstalled in reverse order when the stove is
put in place.

GB
54
556/586
586
34
Wait to tighten the back
panel’s screws until the side
panels are installed.
10
10
VANADIUM
No. 7
CHROME
x 3
Do not tighten the screws until the
stove has been raised again.
2
1
Installing the rating plates C586
The following rating plates must be placed on the underneath of the pillar frame.
Installing C586
!

GB
55
556/586
586
Clean the side glass
thoroughly before
installing the side panels.
5
10
10
VANADIUM
No. 7
CHROME
10
10
VANADIUM
No. 7
CHROME
8
6
7
9
!

GB
56
556/586
586
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.
8
Final inspection of the installation
IAV SE-EX 1023-1 811 065
NIBE AB/NIBE STOVES · Box 134 · SE-285 23 Markaryd
SWEDEN · www.contura.se
NIBE Stoves reserves the right to change colours, materials,
dimensions and models at any time without special notice. Your
dealer can give you the most up to date information. Stoves
shown in brochures may have optional extras.
READY!
Reinstall the loose components in the fire
box when the stove is in place.
