Installation
instruction

GB
114 CERTIFICATE
DECLARATION OF PERFORMANCE
No. Ci51-CPR-150821-SE-1
PRODUCT
Product type Insert lit with solid biofuels
Type designation Contura i51
Manufacturing number See rating plate on the insert
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001/AC:2006, EN-13240:2001/A2:2004/AC:2007
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 15 4068
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, August 21, 2015
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 0 mm to rear
700 mm to side
According to the given conditions in the installa-
tion instructions.
Risk of falling embers Approved
Emissions from combustion CO 0.08%
NOx 96 mg/m3
OGC 69 mg/m3
PM 23 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 8 kW
Efficiency 80%
Flue gas temperature in connector at nominal
output
334°C
EN 13240:2001/AC:2006,
EN-13240:2001/A2:2004/AC:2007

GB
115
List of Contents
Technical specifications 116
Surround 117
Chimney 118
Supply of combustion air 119
Installation distance 120
Positioning the insert 121
Assembling the stand 123
Installing the surround 127
Assembling grate and top 132
CONTENTS
WARNING!
The insert becomes very hot
During operation, certain surfaces of the insert become
very hot and can cause burn injuries if touched. Also,
take heed of the strong heat radiated through the door
glass. Placing flammable material closer than the safe
distance indicated may cause a fire. Smoulder combustion
can cause quick gas ignition with the risk of damage to
property and personal injury.
NOTE:
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by
a qualified inspector. Your local chimney sweep must also
be informed about the installation as this will affect the
routines for regular chimney-sweeping services.
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new insert.
As a new owner of a Contura insert, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove in
the lighting instructions.

GB
116 FACTS
Application to local authority
Before installing a stove or erecting a
chimney, it is necessary for you to make
an application for permission to your
local authority. Ask your local authority
for advice regarding regulations and the
application.
Structural support
If the fireplace is to be positioned on
a wooden joist, a structural engineer
should evaluate the load capacity of the
floor. When the gross weight exceeds
400 kg, reinforcement of the wooden
joists is usually necessary.
Floor plate
Due to the risk of falling embers, a
flammable floor must be protected by a
hearth plate. It must extend at least 300
mm all the way around. The hearth plate
can consist of natural stone, concrete,
metal or glass. A glass hearth plate
is available as an accessory for these
models.
Technical specifications
Model i51 Log box (option)
Output 6-11 kW
Nominal output 8 kW
Efficiency 80 %
Weight A / S / T (kg) 290 / 335 / 350 50
Powerstone (option): + 100 kg
Width (mm) 770 400
Depth (mm) 500 500
Height (mm) 1650 500
Connector diameter Ø150 mm ext.
Walls behind
If your Contura i51 is to be installed
against a combustible wall, the wall
must be protected by a firewall or
by the integrated protective screen,
which is available as an option in
some markets. The following material
requirements are made of the firewall:
The building material must not be
combustible.
The thermal conductivity coefficient λ
must be a maximum of 0.14 W/mK. The
thickness of the building material must
always be at least 100 mm. In cases
where the building material’s insulation
properties are given as a U-Value, this
must be a maximum of
1.4 W/m²K.
List of suitable materials:
Aerated concrete λ = 0.12-0.14
Vermiculite λ = 0.12-0.14
Calcium silicate λ = 0.09
Contact your chimney sweep for advice
in choice of other materials. Remember
that even a non-combustible wall may
require protection if it is a load bearing
wall or has combustible material
behind it.
General
This manual contains instructions about
how to assemble and install the Contura
i51. More information about the insert
is available in the separate installation
instructions.
To ensure the function and safety of the
hearth, we recommend that installation is
carried out by an authorised technician.
Our Contura agents can recommend a
suitable installer; information regarding
our agents is available at www.contura.eu
Instructions for lighting are also supplied
with the insert. Read them carefully and
keep them safe for future use.

G
E
C
B
A
F
D
C
B
G
E
13
13
VANADI UM
No. 7
CHROME
GB
117
Allen screw 4
T25T20
13 mm
Surround
Section 1:
Height 450 mm.
Section 2:
Height 426 mm
Sections 3 and 4:
Height 357 mm.
Only handle the stone with clean hands or gloves. Handle the
stone carefully so as not to damage fragile corners and edges.
The stone is a natural material, which means that there may
be certain irregularities and variations in its appearance.
Clean the stone with a damp cloth. Soapy water can be used
if necessary. To avoid abnormally large gaps and uneven lines,
it is important that the stove and steel stand are straight and
stable. Adjust and align it carefully before hanging the stone.
During assembly, check that all the stone sections are straight
and that all stones are of a uniform height.
SURROUND

235
GB
118
Carefully check that the chimney is sealed and that there is no
leakage around soot hatches and flue connections.
Make sure that the connector gasket does not work loose when
the connection pipe is placed on the connector. If further
sealing material is required, heat-resistant sealant may be used.
It must be possible to sweep the full length of the flue and the
soot hatches must be easily accessible.
If two fireplaces are connected to the same chimney flue, the
stove must be equipped with self-closing door.
The stove is type approved in accordance with EN 13240 and
obtained values are presented in the Performance declaration,
diameter of external connection is Ø150 mm .
The insert requires a draft in the chimney of at least –12
Pa. The draft is affected both by the length and area of the
chimney, and by how well sealed it is. Minimum recommended
chimney length is 3.5 m and a suitable cross-sectional area is
150-200 cm2 (Ø140-160 mm). Note that a flue with sharp bends
and horizontal routing reduces the draught in the chimney.
The maximum horizontal flue is 1 m, on the condition that the
vertical flue length is at least 5 m.
Chimney

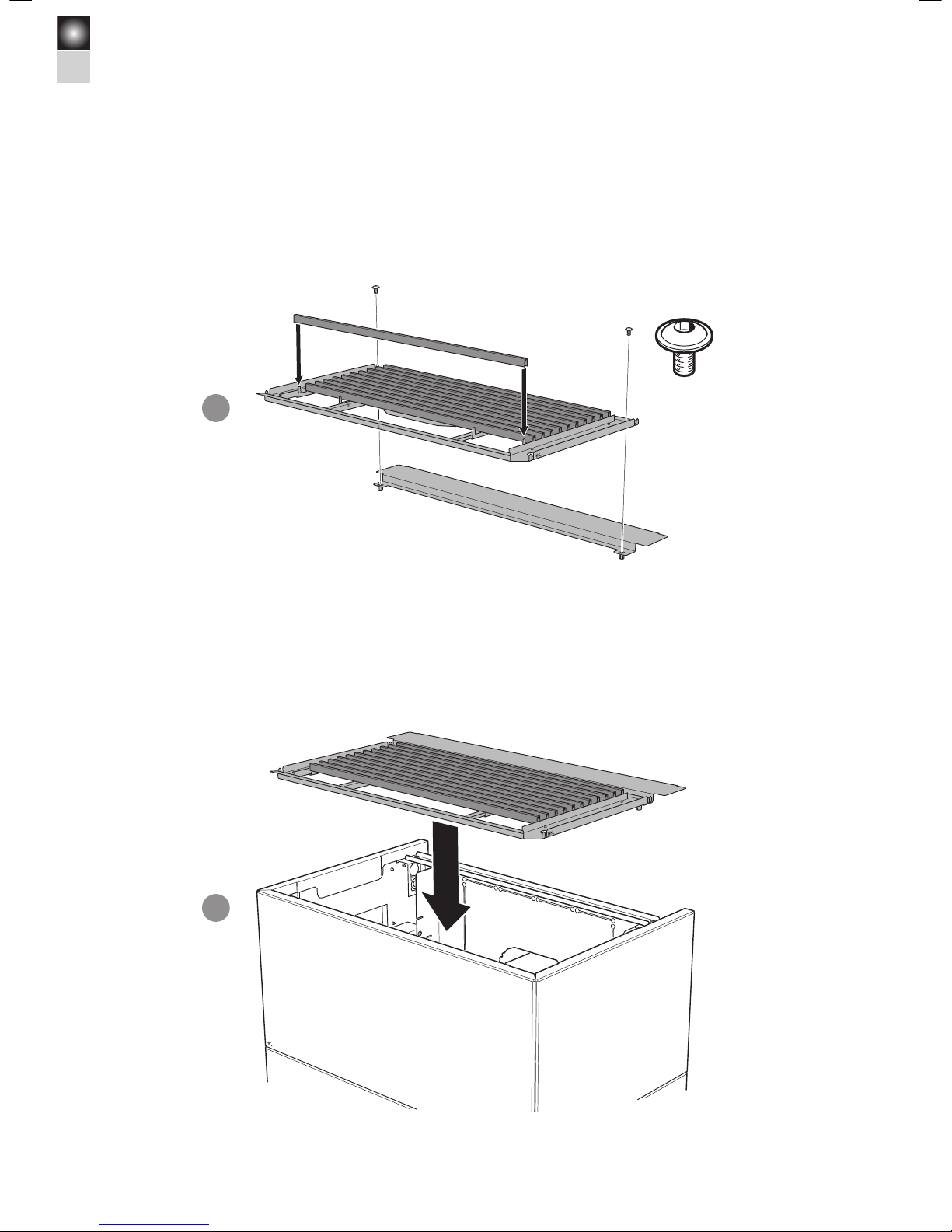

Create an opening in the top grate by using the shorter grate
profiles, see page 132. Cover the gap with a cuff.
If a protective screen is selected, this must be installed before
making the chimney connection.

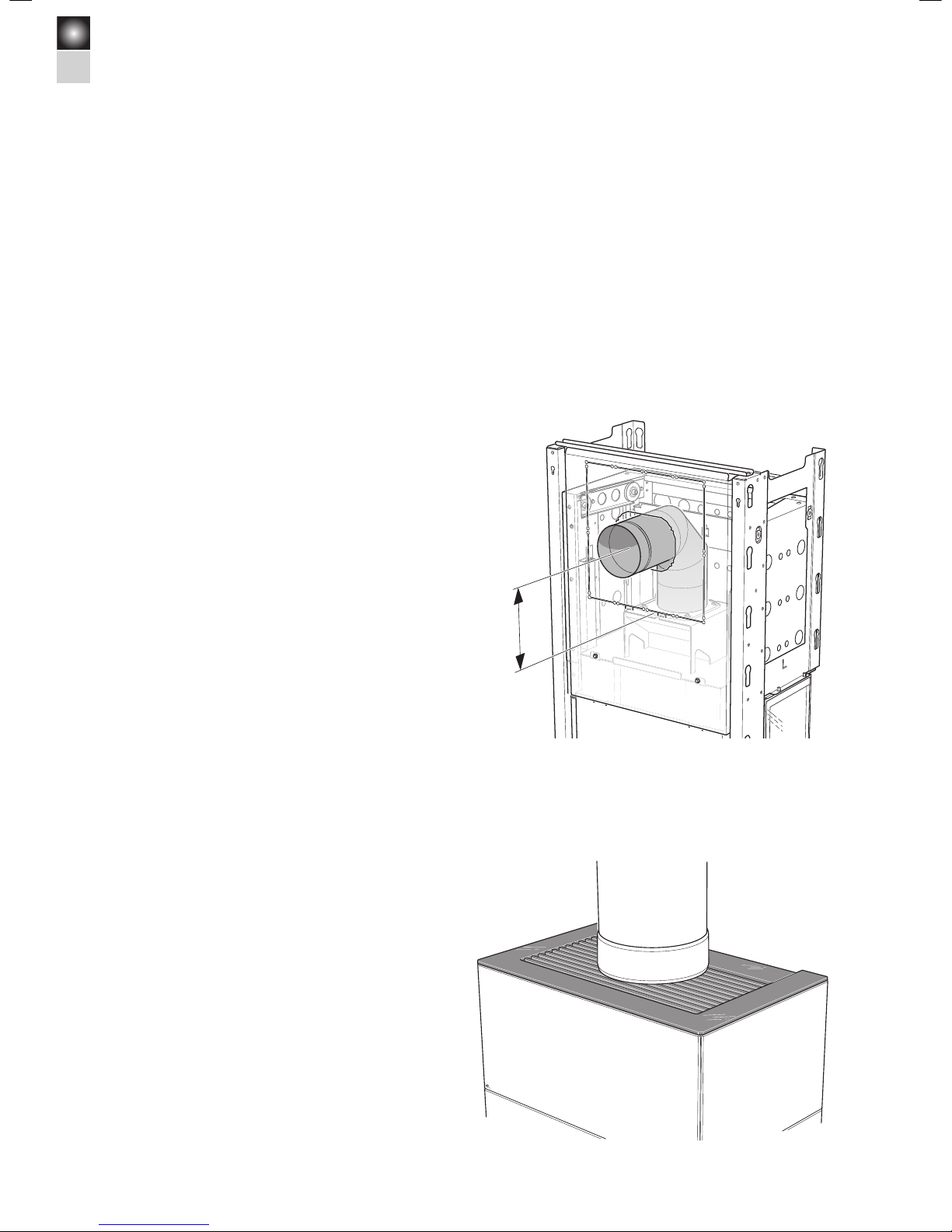

For the rearward connection it is recommended to use a 45°+45°
angle with soot hatch and with the centre 235 mm above the
connector.
Top connection
Rearward connection
CHIMNEY

HK
HK
HK
HK
255
75
235
130
GB
119
Knockout
Supply of combustion air
Supply rear
Supply down
To insert the combustion air hose through the floor panel,
remove the knockout.
SUPPLY
!
Supply of combustion must be provided. Combustion air can
be provided directly via a duct from outside, or indirectly via a
vent in the outer wall of the room where the stove is placed. The
amount of combustion air that is used for combustion is approx.
25 m3/h.
Some installation alternatives are shown below. The air duct
connection on the stove has an external diameter of Ø100 mm.
Turn the connector to ensure an air supply!
In hot areas, the duct should be insulated with 30 mm mineral
wool covered with a moisture inhibitor (aluminium tape). It is
important that the lead-in, between the pipe and the wall (or
floor), is sealed using jointing compound.
A 1 m length of condensation-insulated ducting for combustion
air is available as an accessory.

C i51
!
1085*
700*
Min 2380
510
920
1650
770
Brännbart tak
500
235
1135
1370
Ø 150Utv.
GB
120
500
235
1135
1370
Ø 150Utv.
Min 2380
510
920
1650
770
Brännbart tak
Min 2380
Ext. Ø 150
Combustible roof
*Optional protective screen, see separate instruction
For placement against combustible rear
walls, a built-in protective screen (option
in some markets), or an external firewall
that protects the wall behind is required.
Material requirements for firewalls
according to the section “Walls behind”
on page 116.
Important!
The dimension diagrams only show the minimum permitted
installation distances for the stove. When connecting to a
steel flue, also note the safety distance requirements of
the flue. The minimum distance to combustible parts of the
building or interior decoration in front of the stove must
be at least 1.5 m.

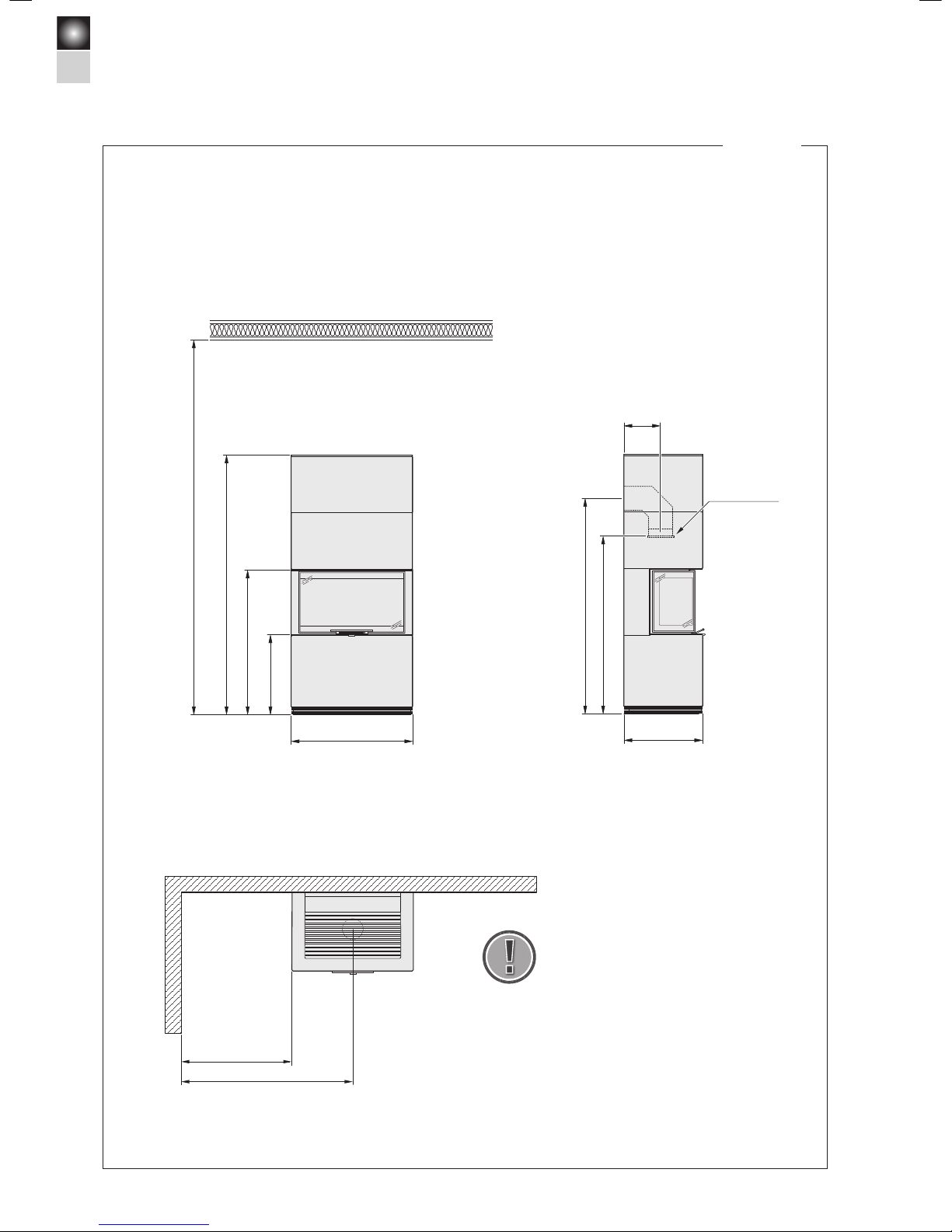

INSTALLATION DISTANCES
Installation distances

!
!
Min 1085*
2
10
10
VANADIUM
No. 7
CHROME
1
PH2
10 mm
GB
121
Positioning the insert
INSERT PLACEMENT
The cross in the floor panel indicates
the location of the flue gas output.
Position the floor section and check that the minimum permitted distance
to combustible material is kept. Measure to the centre of the floor section.
The rear edge of the floor section will align with the complete rear edge of
the surround.
If the protective screen is selected – read
these instructions before installing the
insert or chimney.
The stove can be positioned tight to the wall
behind.
When installing against non-vertical walls and
to facilitate installation it is recommended
that a small gap is left between the wall and
stove. Lay the floor section a slight distance
from the wall behind, and align the position of
the holes in the ceiling for the chimney lead-in
with the same dimensions.

!
min 505
13
13
VANADIUM
No. 7
CHROME
13 mm
13 mm
54
3
!
GB
122 INSERT PLACEMENT
• With combustion air hose as option –
now connect according to separate instructions.

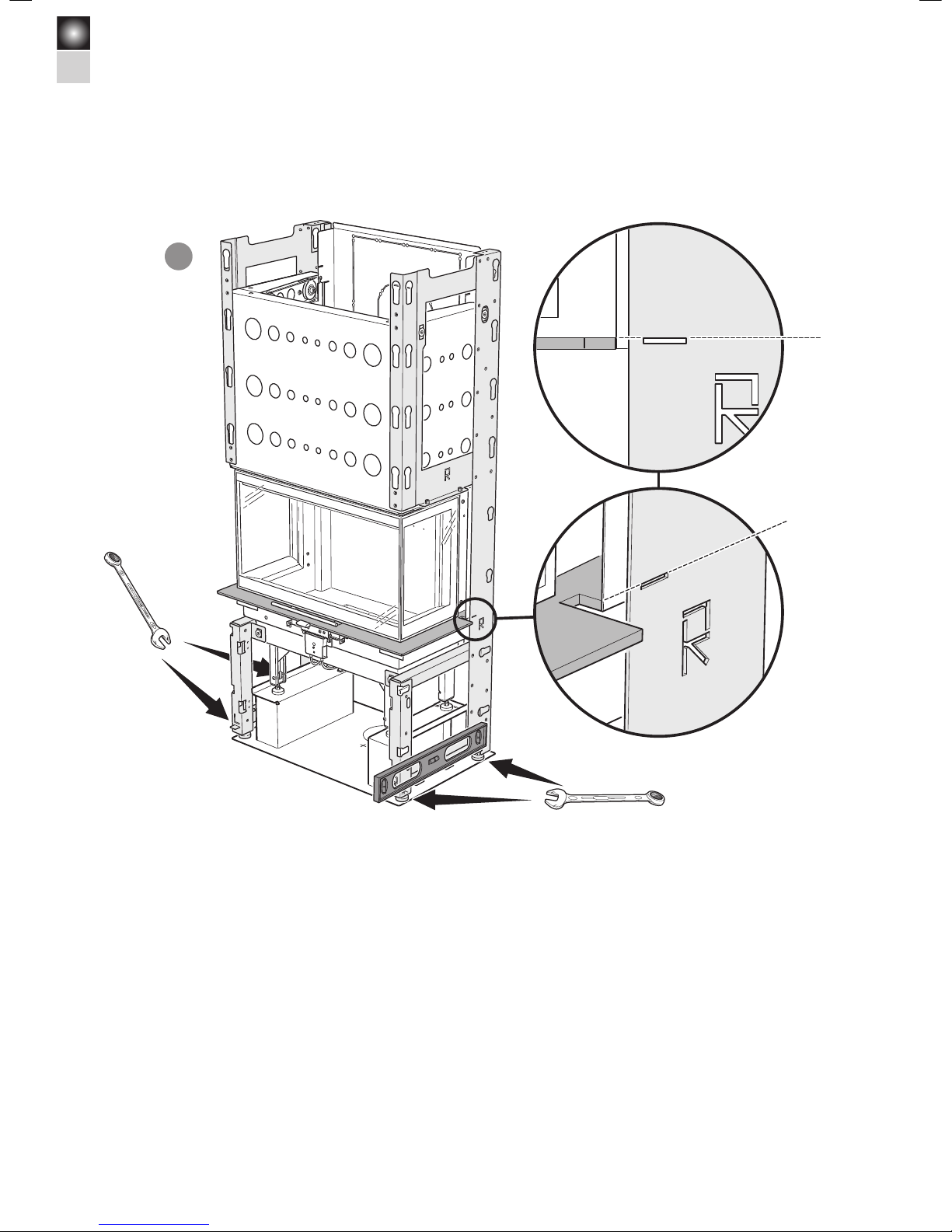

Position the spirit level as illustrated
and adjust the rear feet until the stove
is level.
Place a spirit level on the moulding below the door, and
adjust the front feet to the specified measurement from
the floor to the moulding's lower edge and until the spirit
level is straight.
Check that the transport locking device
of the counterweight is removed
according to the insert instructions
before assembling the surround.

90°
1
GB
123
Assembling the stand
x 6
Spacers
x 6
M5 x 20
Allen screw 4
STAND ASSEMBLY

13
13
VANADIUM
No. 7
CHROME
2
13 mm
13 mm
GB
124 STAND ASSEMBLY

3
4
GB
125
x 16
M5 x 9
T25
STAND ASSEMBLY

Min 30 mm
Min 30 mm
5
6
!
GB
126

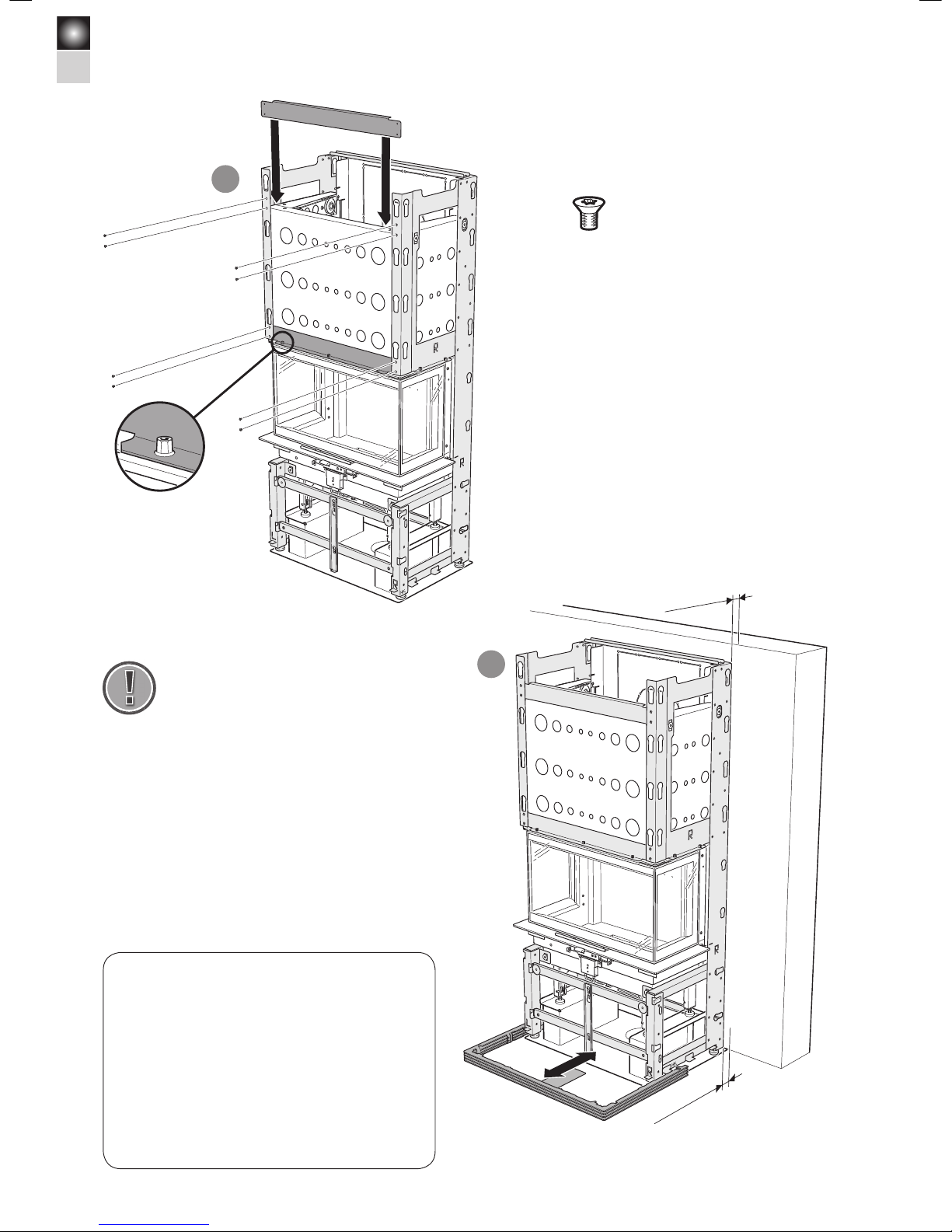

• Connect chimney –
upwards or rearwards, follow the chimney
manufacturer's instructions.
• With Powerstone as option –
position the heat tank according to the insert’s
instructions.
• With protective screen as option –
now install according to separate instructions.
Ensure that the disc base can be pushed around the
stand. Adjust the base height with the rubber feet. On
heavily sloping floors the insert and stand may need to
be raised further.
Then reposition the base until all stones are in place.
Check that there is a 30 mm gap all the way between
the rear of the stand and wall behind.
x 8
M4 x 6
T20
STAND ASSEMBLY

2
1
3
GB
127

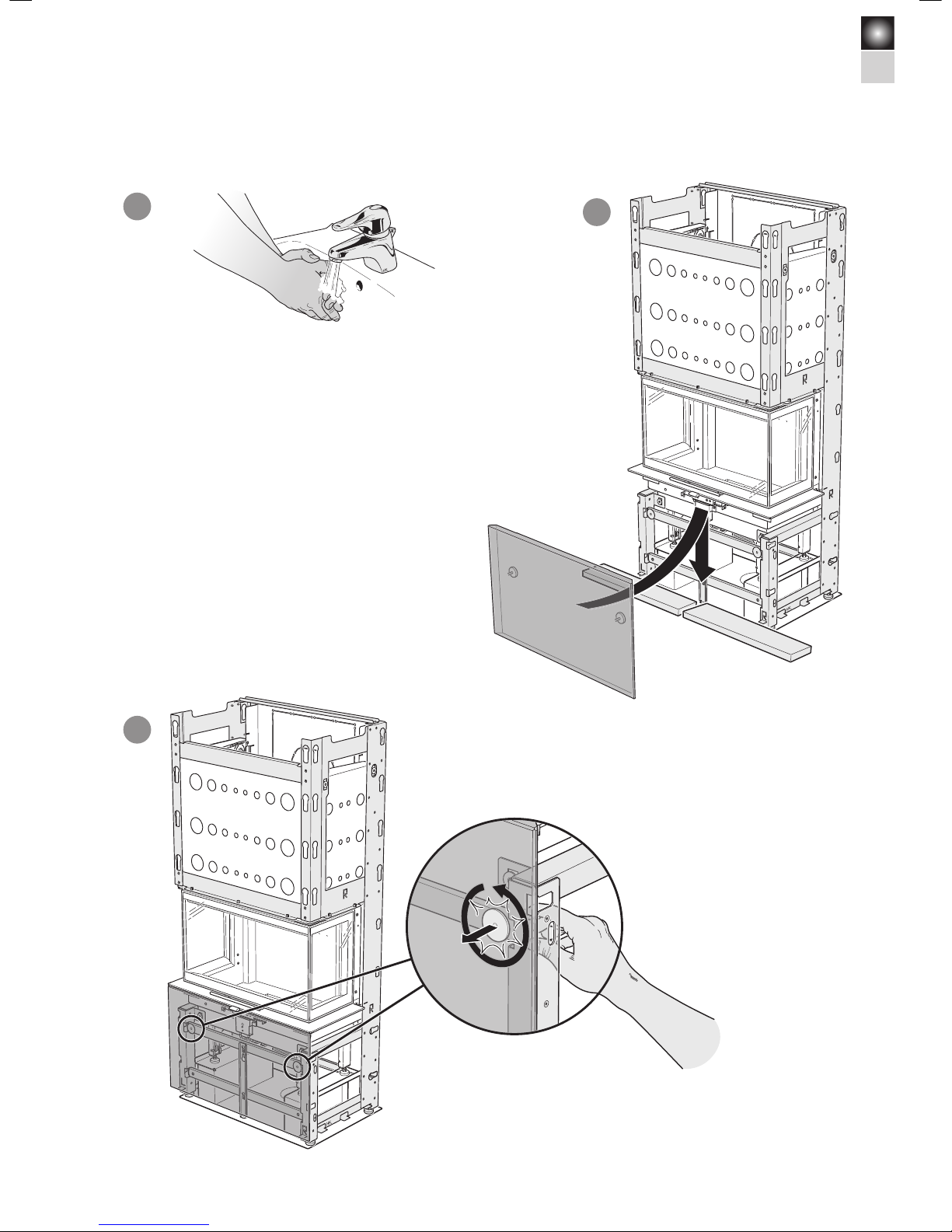

The stone must lie flush against the stand.
Place a foam sheet on the floor to
prevent the stone corners from becoming
damaged when handling.

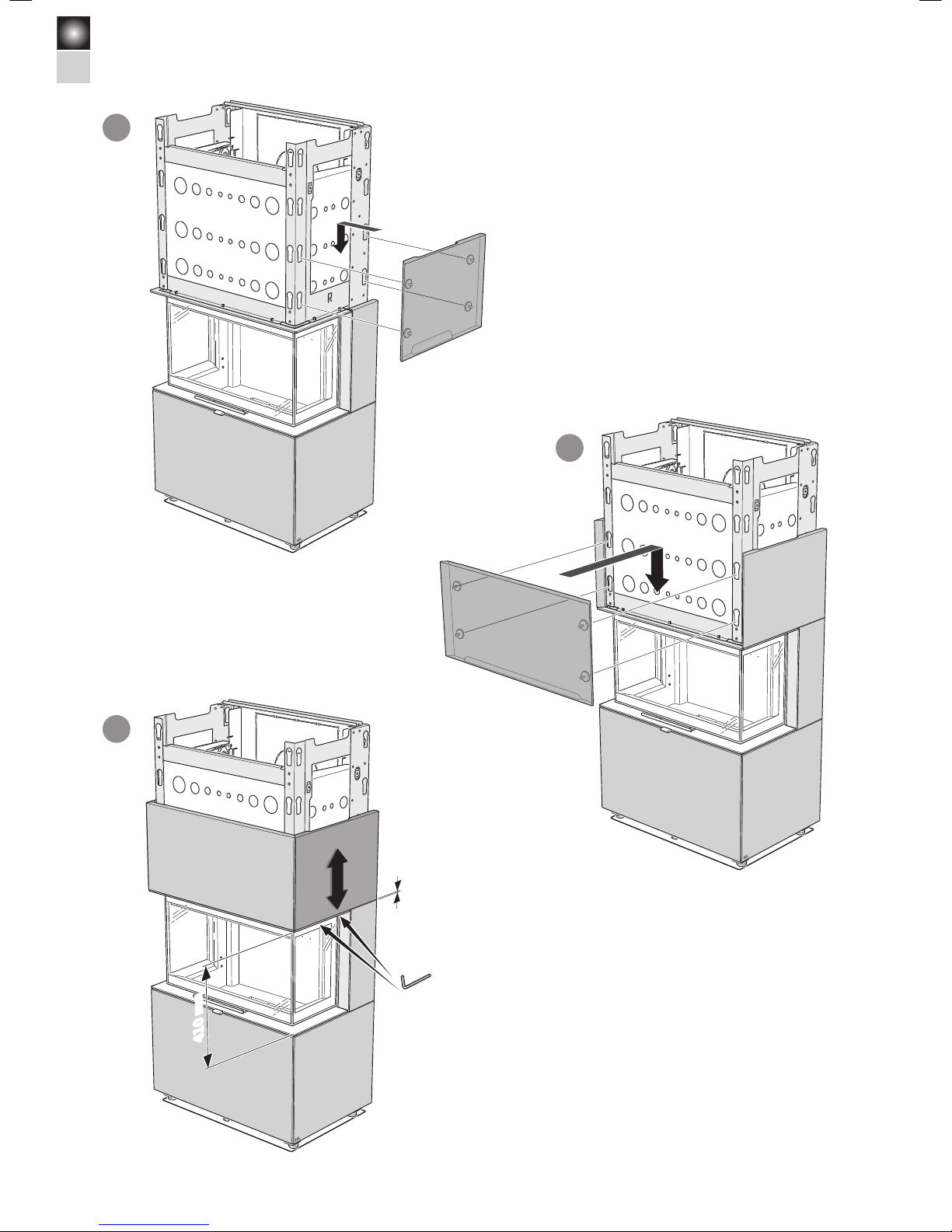

Installation of surround
INSTALLATION OF SURROUND

4
5 6
GB
128
x 1
M6 x 20
Allen screw 4

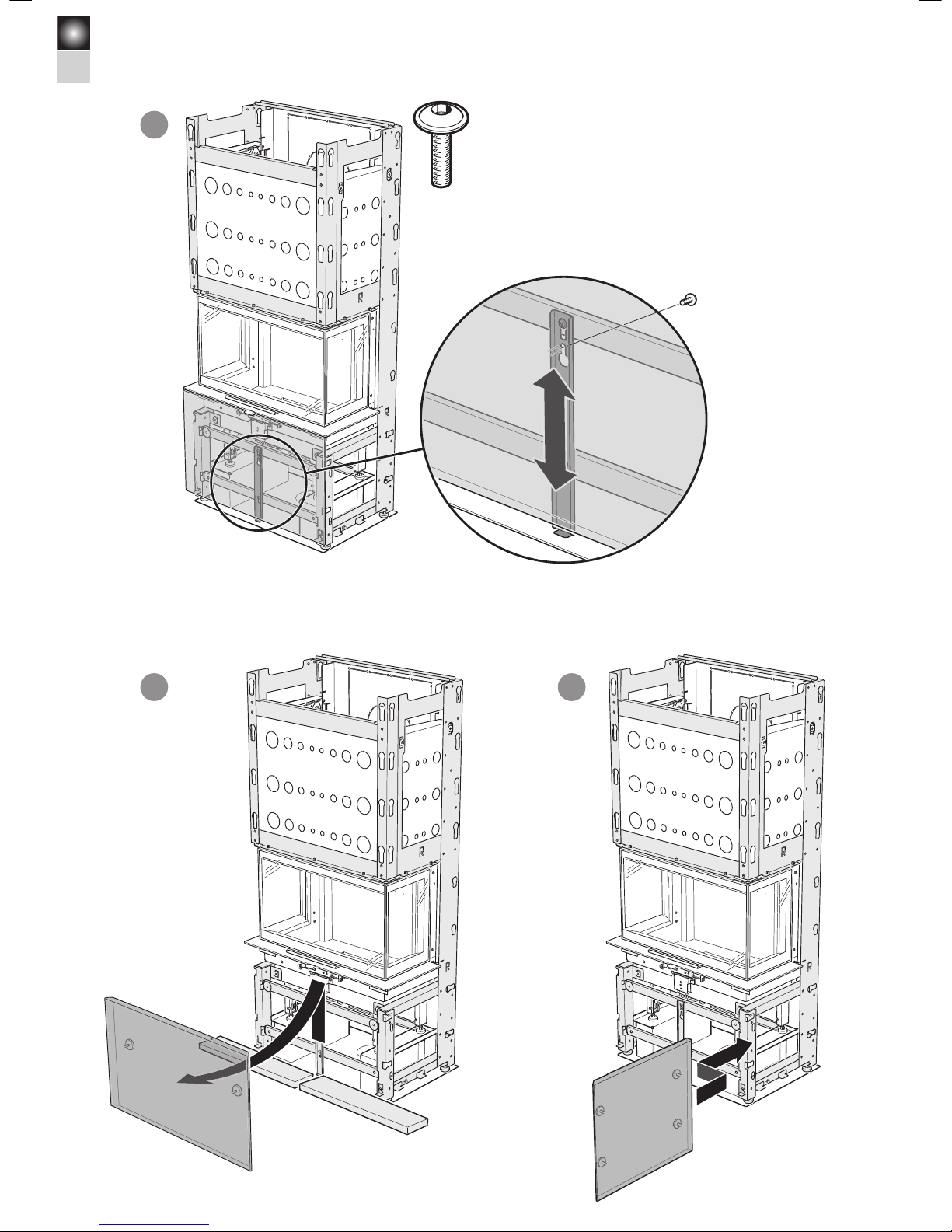

This panel can be removed for servicing.
Lock it in place by inserting a screw through
the moving catch in the front panel. Do not
tighten the screw – it must be possible to
move the catch upwards to detach the panel.
INSTALLATION OF SURROUND

7 8
910
GB
129
x 3
M6 x 25
Allen screw 4
x 4
M6 x 25
Allen screw 4
x 4
M6 x 12
Allen screw 4
INSTALLATION OF SURROUND

11
~ 1 mm
410 mm
12
13
GB
130 INSTALLATION OF SURROUND
Allen
screw 4

1514
16
GB
131
INSTALLATION OF SURROUND
Allen
screw 4

1
2
GB
132
x 2
M6 x 10
Allen screw 4
For rear connection
Assembling grate and top
INSTALLING GRATE AND TOP
