Contura C 34T User manual

Installation
instructions
C 34T
www.contura.eu
NIBE AB · Box 134 · 285 23 Markaryd · Suède
www.contura.eu

GB
66 CERTIFICATE
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 34T
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 09 1955
PERFORMANCE DECLARATION
No. C34T-CPR-130618-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
415 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.05%
NOx 106 mg/m3
OGC 53 mg/m3
PM 27 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 5 kW
Efficiency 80%
Flue gas temperature in connector at nominal
output
300°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st July 2013

GB
67
List of Contents
Technical details 68
Installation distance to walls and ceiling 69
Supply of combustion air 70
Connection to chimney 72
Installation of surround 74
Installation of accessories – heat reservoir 78
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injuries if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can
cause quick gas ignition with the risk of damage to prop-
erty and personal injury.
NOTE! WARNING!
Report the installation of a stove
to your local authority.
The owner of the house is personally responsible for
ensuring compliance with the mandatory safety require-
ments and must have the installation approved by a
qualified inspector. Your local chimney sweep must also be
informed of the installation, as this will affect the routines
for regular chimney-sweeping services.
CONTENTS

GB
68
Effect 3-7 kW
Nominal effect 5 kW
Efficiency 80%
Model C34T
Weight (kg) 320
Width (mm) 550
Depth (mm) 430
Height (mm) 1600
Reservoir stones (kg) 70
Installation by authorised
technician
This manual contains instructions on
how the stoves must be assembled and
installed. To ensure the function and
safety of the stove, we recommend that
the installation be carried out by an
authorised technician. Contact one of
our dealers who can recommend suitable
fitters.
Building permission
Before installing a stove or erecting a
chimney, it is necessary for you to make
an application for building permission
to your local authority. Ask your local
authority for advice regarding building
regulations and the application.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove
and chimney. The stove and chimney can
usually be placed on a normal wooden
joist in a single occupancy house, if the
total weight does not exceed 400 kg.
Hearth plate
Due to the risk of embers falling out, a
flammable floor must be protected by
a hearth plate. It must extend 300 mm
in front of the stove and 100 mm on
each side of the stove, or have a 200 mm
extension on each side of the opening.
The hearth plate can consist of natural
stone, concrete, metal plate or glass.
A painted metal or glass hearth plate
is available as an accessory for these
models.
Important to remember!Technical details
Type approved in accordance with:
European standard EN-13240
Swedish environmental and quality marking,
P-marking cert. no. 0112/07
Norwegian standard NS 3059, SINTEF 110-
0275
German standard DIN 18.891, RRF-40 09
1945
FACTS
Eldstadsbeklädnad
Rosterreglage Asklåda
Förbränningsluftsreglage
Brasbegränsare
HANDÖL
In accordance with standardsbelow
marking was affixed:
European Standard:
SE Quality Certification, P-marked:
NO Standard NS 3059:
DE and ATStandard DIN 18.891 and
Art 15a B-VG:
Type:
Nominal Output:
Fuel:
Minimun draught:
Flue gas temerature:
Energy efficiency:
Emission of CO in cumbustion products:
Distance to cumbustible wall (mm):
Follow the user’sinstructions and use only recomended fuel
NIBE AB Box 134 SE-285 23 MARKARYDSWEDEN
2007
EN 13240
Cert no 0112/07
SINTEF 110-0275
RRF-40 07 13 90
Handöl31/31A/32/32A
5 kW
Wood
12 Pa
280°C
78%
0,14%
Behind 150
Beside 450
Corner 150
HANDÖL
NIBE AB SE-85 21 Markaryd Sweden
Type:
Production no.
50-series
7090300236

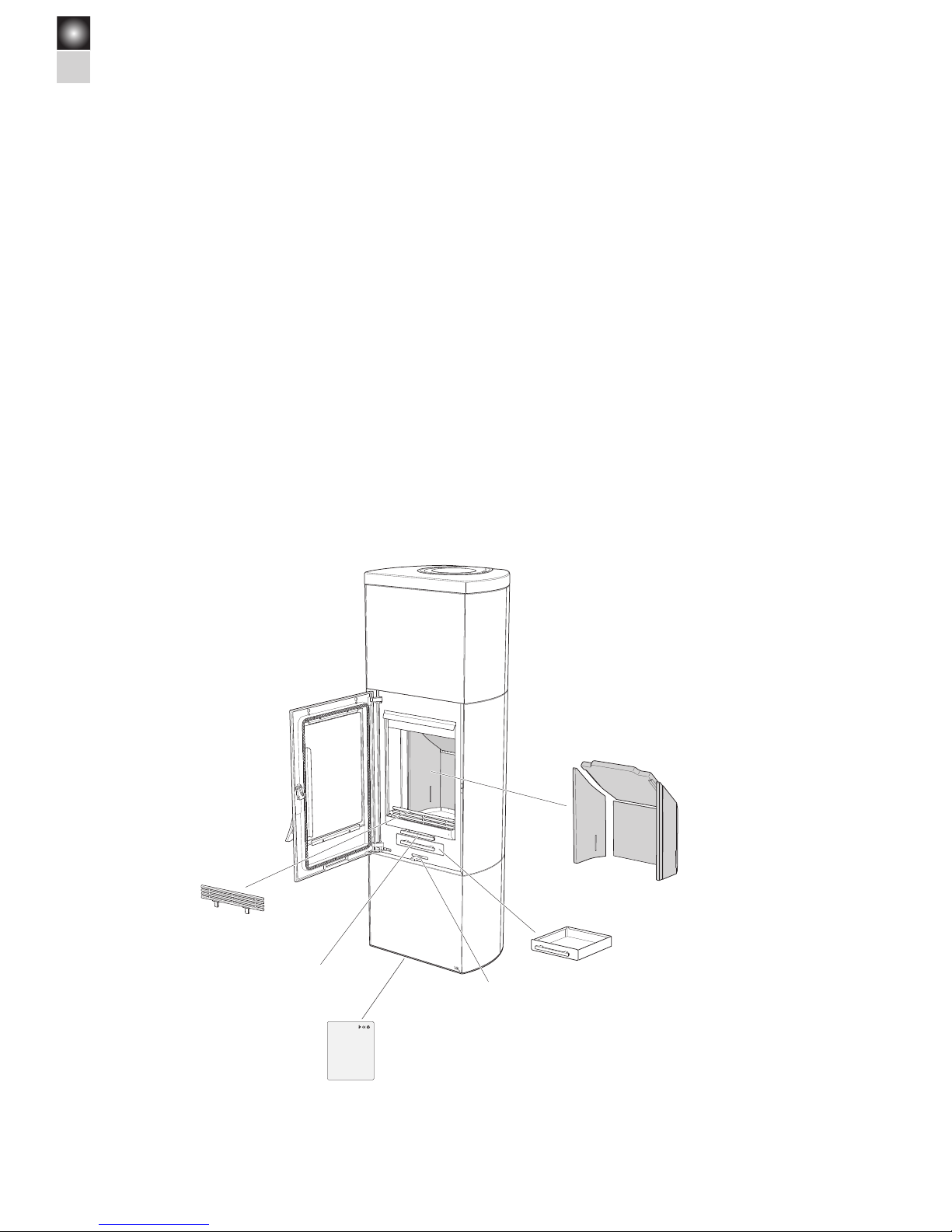

Rating plate
Fire bars
Hearth cladding
Grate control
Combustion air control
Ash-pan

GB
69
Installation distance to walls and ceiling
550
1600
102
217
min 2300
Combustible roof
Air inlet Ø64
120
430
430
1050 1140
167
Hole in foot plate Ø120
368
150
729
781
Combustible wall
267
100
415
400
300
100
300
200
100
690
Combustible wall
Permitted area for
combustible material
C34T
*To prevent discolouration of painted fire walls, we recommend the same side distance as to combustible walls.
268
50
629
900
900
640
Fire-retardant wall of
brick or concrete
217
50
700
1100
50*
325*
Fire-retardant wall of
brick or concrete
Place the stove on the hearth plate and check
that the installation distances are not less than
those that are given in the figures below. The
minimum distance in front of the stove opening
to combustible parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel flue, please
refer to the particular manufacturer's
installation instructions. Observe the
safety distance to combustible material
that the steel flue requires.
INSTALLATION DISTANCES

GB
70
HK HK
40 mm
HK
40 mm
HK
40 mm
Combustion air can be provided directly via a duct from outside, or
indirectly via a vent in the outer wall of the room where the stove
is placed. The amount of combustion air that is used for combus-
tion is approx. 25 m3/h.
Outside air can be connected through the floor plate or at two dif-
ferent heights through the two panels in the back of the stove. Tap
out the knockout using a hammer. The air duct connector on the
stove has an external diameter of Ø64 mm.
In hot areas, the duct has to be insulated with 30 mm mineral wool
covered with a moisture barrier (plastic). It is important that the
lead-in, between the pipe and the wall (or floor), is sealed using
jointing compound. When duct routing for further than 1 m, the
pipe diameter must be increased to 100 mm and a correspondingly
larger wall vent must be selected.
A 1 m length of condensation-insulated ducting for combustion air
is available as an accessory.
SUPPLY AIR/ACCESSORY
Supply of combustion air

GB
71
Self-closing door
The stove is equipped with a spring to close the door automati-
cally. The spring is situated above the heat deflector. The clos-
ing force of the hatch can be adjusted by moving the spring
between the three notches on the lever. The angle of the stove
also affects the closing force of the spring.
If the spring force seems weak, despite the spring being
mounted at the end of the lever, the angle of the stove should
be checked.
SUPPLY AIR/ACCESSORY

GB
72
Rear connection to a masonry chimney
The back panel must be installed before the stove is connected at
the rear.
Connection to chimney
Ø ca 180 mm
Ø ca 180 mm
Make sure that the connector
gasket does not come loose when
the connection pipe is placed on the
sleeve. If further sealing material is
required, heat-resistant sealant may
be used.
!
• The stove meets the requirements for connecting to chimneys
dimensioned for flue gas temperatures of 350°C.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney,
and by how well sealed it is. The minimum recommended chimney
length is 3.5 m and suitable cross-sectional area is 150-200 cm²
(140-160 mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m,
on the condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and
the soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is
no leakage around soot doors and flue connections.
CHIMNEY
In the bag with these installation instructions
are two wing screws for the cover.

GB
73
Top connection to the chimney
The hot air grille must be installed before the chimney is con-
nected to the top.
Connection to chimney
Sweeping
When sweeping, the smoke baffle must be removed; on the Con-
tura 30 series this can be done by lifting the smoke baffle and
removing the side piece. Lift the smoke baffle out and remove
the remaining sections. Handle the parts with care.
CHIMNEY

GB
74
Installation of surround
426 mm
(B 403961)
(B 403959)
(B 403962)
(B 403960)
(B 403963)
(B 403959)
(B 403962)
(B 403961)
(B 403976)
F 603499
F 603497
F 603500
F 603498
F 603501
F 603497
F 603500
F 603499
F 603496
The stones are numbered as illustrated above. We recommend
that the stones be installed in the order described on the fol-
lowing pages.
Take care of the soapstones! They scratch easily and are
easily stained by grease. Small grease marks can be removed
with pure acetone.
!
21

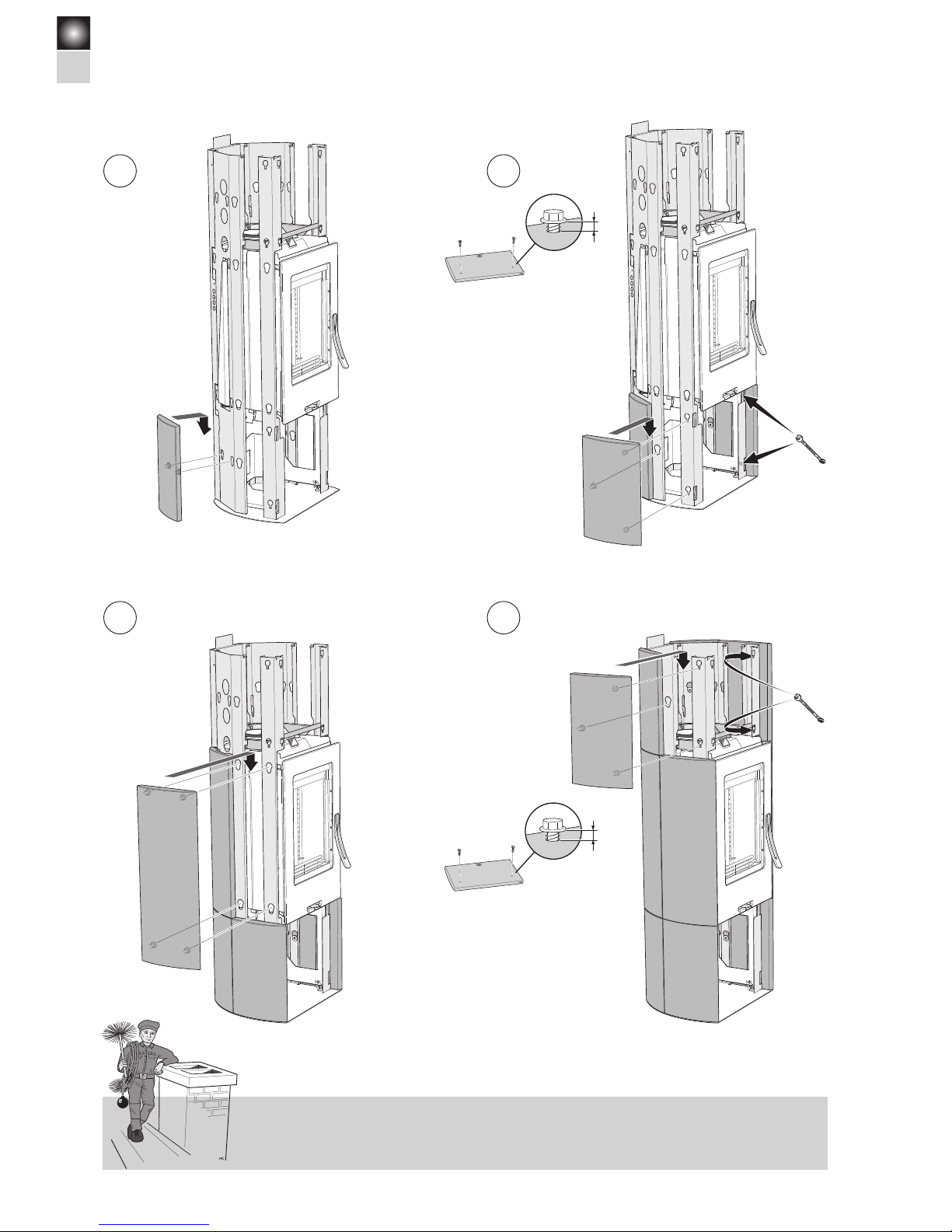

INSTALLATION
The measurements are from the
top of the bottom plate to the
door's bottom edge.

GB
75

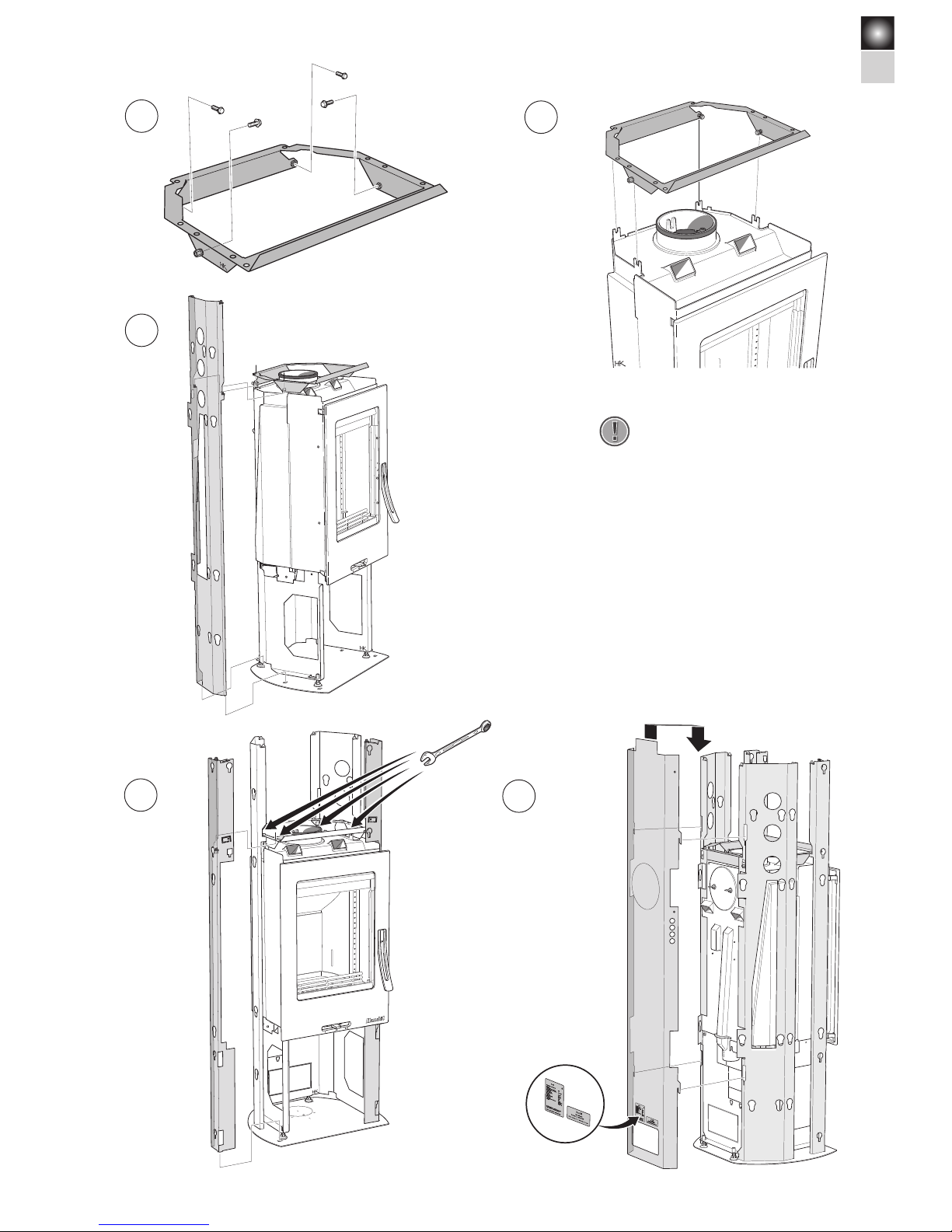

10
10
VANADIUM
No. 7
CHROME
Do not tighten the screws.
!
34
5
67

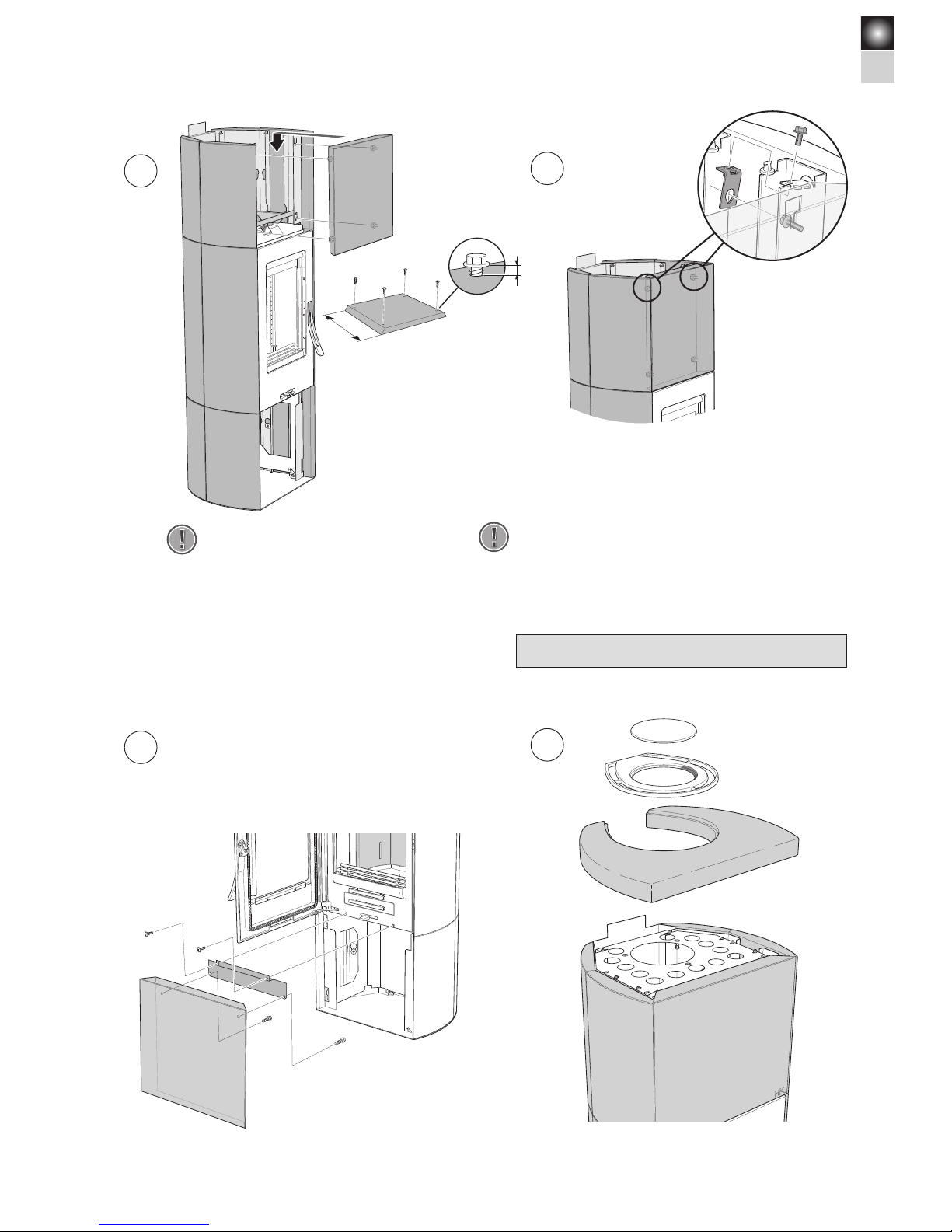

INSTALLATION

GB
76
3 mm
3 mm
8 9
10 11
INSTALLATION
Final inspection of the installation
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.

GB
77
3 mm
419 mm
See page 78 for installation of heat reservoir.
If a fan is to be installed, it has
to be done before the lower
front stone is put in place.
Attach the adjustment brackets to the upper concrete screws.
Adjust the stone so it is aligned with the side stones along the
top edge. Tighten the 4 concrete screws.
!
!
Check that the distance between the door and top front stone
is approx. 4 mm. If necessary, the insert's feet can be adjusted
so there is an even gap between both of the front stones and
the door.
12 13
14 15
INSTALLATION

GB
78
Heat reservoir to soapstone top
Installation of accessories – Heat reservoir
1 2
3 4
INSTALLATION

NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden
www.contura.eu
Contura reserves the right to change dimensions and
procedures described in these instructions at any
time without special notice. The current edition can be
downloaded from www.contura.eu
811096 IAV SE-EX C34T-5
2015-10-06
