Contura C330G User manual

C330G
www.contura.eu

SE
FR
FI
DE
GB
IT
NO
DK
NL
Fakta 3
Données Techniques 12
Tiedot 21
Fakten 6
Facts 15
Dati Tecnici 24
Fakta 9
Fakta 18
Gegevens 27
Installationsavstånd 4
Distances d’installation 13
Asennusetäisyys 22
Installationsabstände 7
Installation distances 16
Distanze di sicurrezza 25
Installasjonsavstand 10
Installationsafstand 19
Installatieafstand 28
Prestandadeklaration 5
Déclaration des performance 14
Suoritustasoilmoitus 23
Leistungsdeklaration 8
Declaration of performance 17
Dichiarazione di prestazione 26
Ytelseserklæring 11
Præstationserklæring 20
Prestatieverklaring 29
Montering 30
Montage 30
Asennus 30
Montage 30
Assembly 30
Montaggio 30
Montering 30
Montering 30
Monteren 30

GB
15
!
5 -9 kW 570 mm 750 mm 375 mm 115 kg
Nominal effect 7 kW
Efficiency 77 %
Meets requirements of:
European standard EN-13240
NS 3058/3059 (Norway)
DEFRA, Smoke control areas (UK)
The stove becomes very hot
During operation, certain surfaces of the
stove become very hot and can cause
burn injury if touched. Be aware of the
strong heat radiated through the hatch
glass. Placing flammable material closer
than the safe distance indicated may
cause a fire. Pyre lighting can cause quick
gas ignition with the risk of damage to
property and personal injury.
Connection to chimney
• The stove must be connected to chimneys dimensioned for a minimum flue
gas temperature of 400°C.
• The internal diameter of the connection sleeve is 150 mm.
• Normal chimney draw under nominal operation should be between 20-25
Pa close to the connector. The draft is affected both by the length and
area of the chimney, and by how well sealed it is. Minimum recommended
chimney length is 3.5 m and suitable cross section area is 120-175 cm²
(125-150 mm in diameter).
• A flue with sharp bends and horizontal routing reduces the draught in
the chimney. Maximum horizontal flue is 1 m, on the condition that the
vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the soot
hatches must be easily accessible.
• Carefully check that the chimney is sealed and that there is no leakage
around soot hatches and flue connections. See page 31.
Supply of combustion air
When a stove is installed in a room, the demand for air supply to the room
increases. Air can be provided indirectly via a vent in the outer wall or via a
duct from the outside that is connected to the connector on the underneath
of the stove. To determine correct amount of air supply use current edition
of Building Regulations.
The connector for the combustion air has an external diameter of 65 mm.
When duct routing further than 1 m the pipe diameter must be increased to
100 mm and a correspondingly larger wall vent must be selected.
In hot areas, the duct should be insulated with 30 mm mineral wool with a
moisture inhibiting outer cover. It is also important to seal around the hole
in the wall (or floor) of the lead-in using sealant.
A 1 m length of condensation insulated ducting for combustion air is
available as an accessory. See page 33.
Facts
Contura reserves the right to change dimensions and procedures described in these instructions
at any time without special notice. The current edition can be downloaded from www.contura.eu
General
In this manual you will find instructions
about how your Contura 330G shall be
installed. Before you start the installation it
is important that you read this instruction
carefully and fully understand the
requirements. All European, national and
local standards and regulations needs to be
fulfilled when the appliance is installed.
Note! The stove installation and connection
to a chimney must be accomplished with the
current edition of Building Regulations. We
recommend that you consult a local chimney
sweep before the installation to make sure
that the chimney is in good condition.
To guarantee the function and safety of
the stove we recommend that it is installed
by a professional. Our Contura agents can
recommend a suitable installer.
Remember to use only for the appliance
recommended fuel as wood logs.
Building application
Before installing a stove or erecting a
chimney it is necessary for you to apply
for planning permission from your local
authority. Ask your local authority for advice
regarding building regulations and the
application.

GB
16

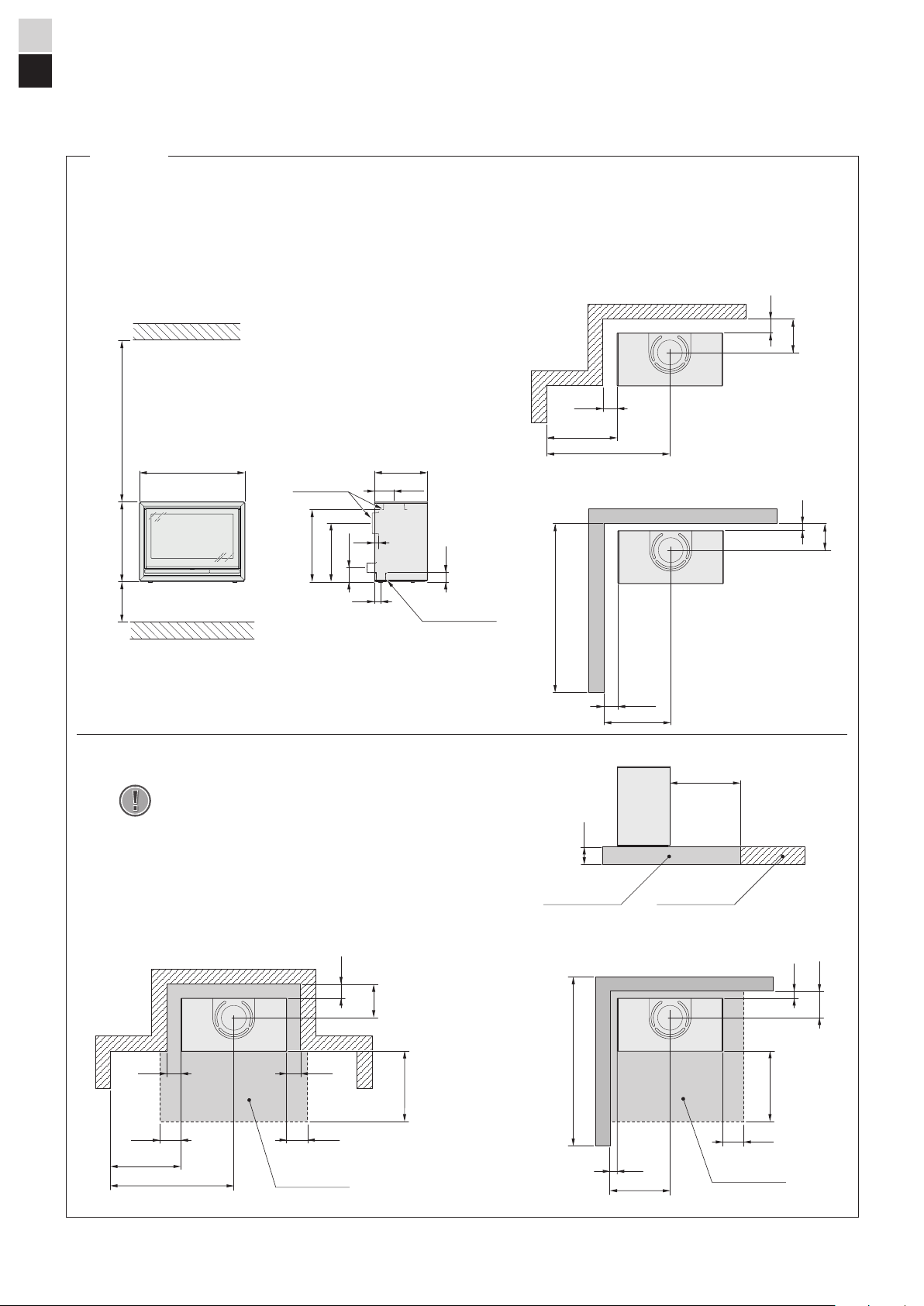

Installation distances
* To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
C330G
125
500
Constructional
Hearth Combustible floor
240
100
500
875
500
100
150
100
150
Constructional
Hearth
Combustible wall
190
50*
150
50*
425
500
1200
Constructional
Hearth
Fire-retardant wall of
brick or concrete
Move the stove in position and check that the minimum installation
distances given in the diagrams are met. The minimum distance in front
of the stove opening to combustible parts of the building or interior
decoration must be at least 1,4 m. If the appliance will be placed on the
floor it must stand on a constructional hearth which meet the building
regulations and has minimum dimension as shown in the diagram.
Always check that the building has enough bearing capacity for the
hearth, stove and chimney.
When top connecting a steel flue please refer to the relevant
manufacturer’s installation instructions. Observe the safety distances to
combustible material that steel flues require.
For use in GB and IE only.
!
750
570 700285
Combustible roof
Combustible floor
A 515
B 420
C 105
65
45
375
140
30
Air inlet Ø65
Ø150
190
50
475
1200
100**
Fire-retardant wall of
brick or concrete
240
100
875
100
500
Combustible wall

GB
17
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 330G
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001/A2:2004/AC:2007
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 17 4648
Declaration of performance according
to Regulation (EU) 305/2011
No. C330G-CPR-170824
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire NPD
Minimum distance to combustible material Rear: 100 mm
Side: 500 mm
Other safety distances according to
the installation instructions
Risk of falling embers Pass EN 13240:2001/A2:2004/AC:2007
Emissions from combustion CO 0,07 %
Surface temperatures Pass
Cleaning options Pass
Mechanical durability Pass
Emissions of hazardous substances Pass
Nominal output 7 kW
Efficiency 77 %
Flue gas temperature in connector at nominal
output
369°C
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st September 2017

30
1
2
4
5
3
SE
FR
FI NL
DE
GB
IT
NO
DK

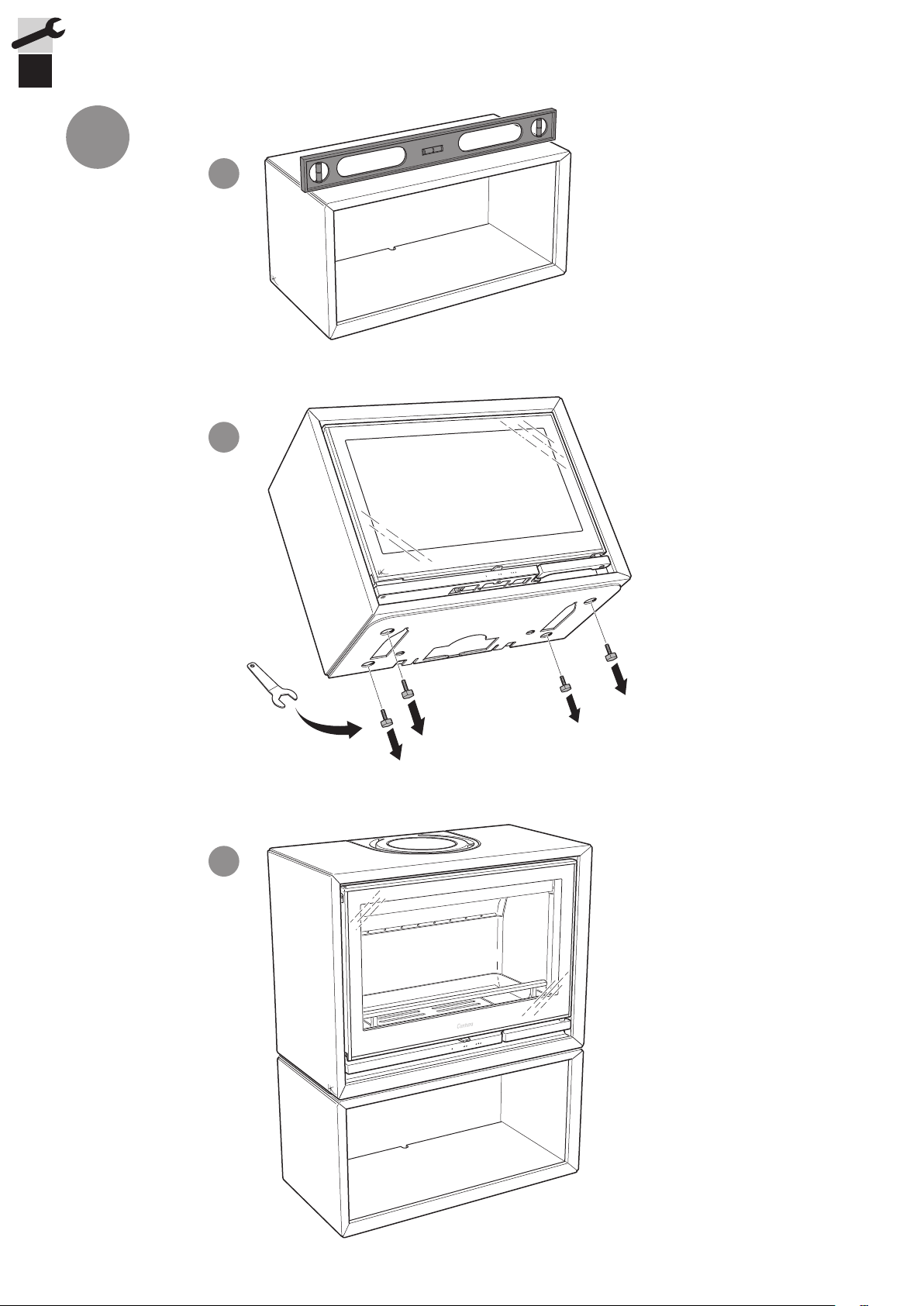

Montering
Om kaminen behöver läggas ned för att
förflyttas bör lösa delar demonteras.
Demontering av eldstadsbeklädnad
beskrivs i slutet av denna anvisning.
1 Eldstadsbeklädnad(Vermiculit)
2 Typskylt
3 Brasbegränsare
4 Roster
5 Varmluftsgaller
Vor der Montage
Wenn der Kaminofen in liegender
Position versetzt werden muss, sind lose
Komponenten zu demontieren. Demontage und
Brennraumauskleidung werden am Ende dieser
Anleitung beschrieben.
1 Feuerstättenauskleidung (Vermiculit)
2 Typenschild
3 Stehrost
4 Rost
5 Warmluftgitter
Før montering
Hvis ovnen må legges ned for å flyttes,
bør løse deler demonteres. Demontering
av ildstedsbekledning er beskrevet til slutt
i denne veiledningen.
1 Brennplater og hvelv (Vermikulitt)
2 Typeskilt
3 Kubbestopper
4 Rist
5 Varmluftsgitter
Avant de procéder au
montage
Les éléments non fixés devront être
retirés si le poêle doit être couché
pour être déplacé. Le démontage de
l’habillage est décrit à la fin des présentes
instructions.
1 Habillage du foyer (Vermiculite)
2 Plaque signalétique
3 Grille de retenue
4 Grille
5 Grille air chaud
Prior to installation
If the stove needs to be laid down for it
to be moved, loose components should be
removed. A description of how to remove
hearth cladding can be found at the end
of these instructions.
1 Fire bricks (Vermiculite)
2 Type plate
3 Fire bars
4 Grate
5 Hot air grille
Før opstilling
Hvis brændeovnen skal lægges ned for
at blive flyttet, bør løsdele afmonteres.
Afmontering af ovnbeklædning beskrives
i slutningen af denne vejledning.
1 Ovnbeklædning (Vermiculite)
2 Typeskilt
3 Brændeholder
4 Rist
5 Varmluftsgitter
Ennen asennusta
Jos takka pitää siirtää kyljellään, irto-osat
pitää irrottaa. Palotilaverhouksen irrotus
kuvataan ohjeen lopussa.
1 Tulipesän verhous (vermikuliitti)
2 Tyyppikilpi
3 Suojareunus
4 Arina
5 Lämminilmaritilä
Prima del montaggio
Se è necessario smontare l’inserto per
spostarlo, rimuovere prima i componenti
liberi. L’operazione di smontaggio è descritta
alla fine delle presenti istruzioni.
1 Rivestimento interno del focolare
(vermiculite)
2 Targhetta identificativa
3 Griglia ferma-legna
4 Griglia
5 Griglia di ventilazione
Voorafgaand aan montage
Als de kachel liggend moet worden
verplaatst, moeten losse onderdelen worden
gedemonteerd. Aan het eind van deze
instructies vindt u een beschrijving van de
demontage van de haardbekleding.
1 Haardbekleding (vermiculiet)
2 Typeplaatje
3 Houtvanger
4 Rooster
5 Heteluchtrooster

31
Ø ca 180 mm
Ø ca 180 mm
2
1
4
3
SE
DE
NO
FR
GB
DK
FI
IT
NL

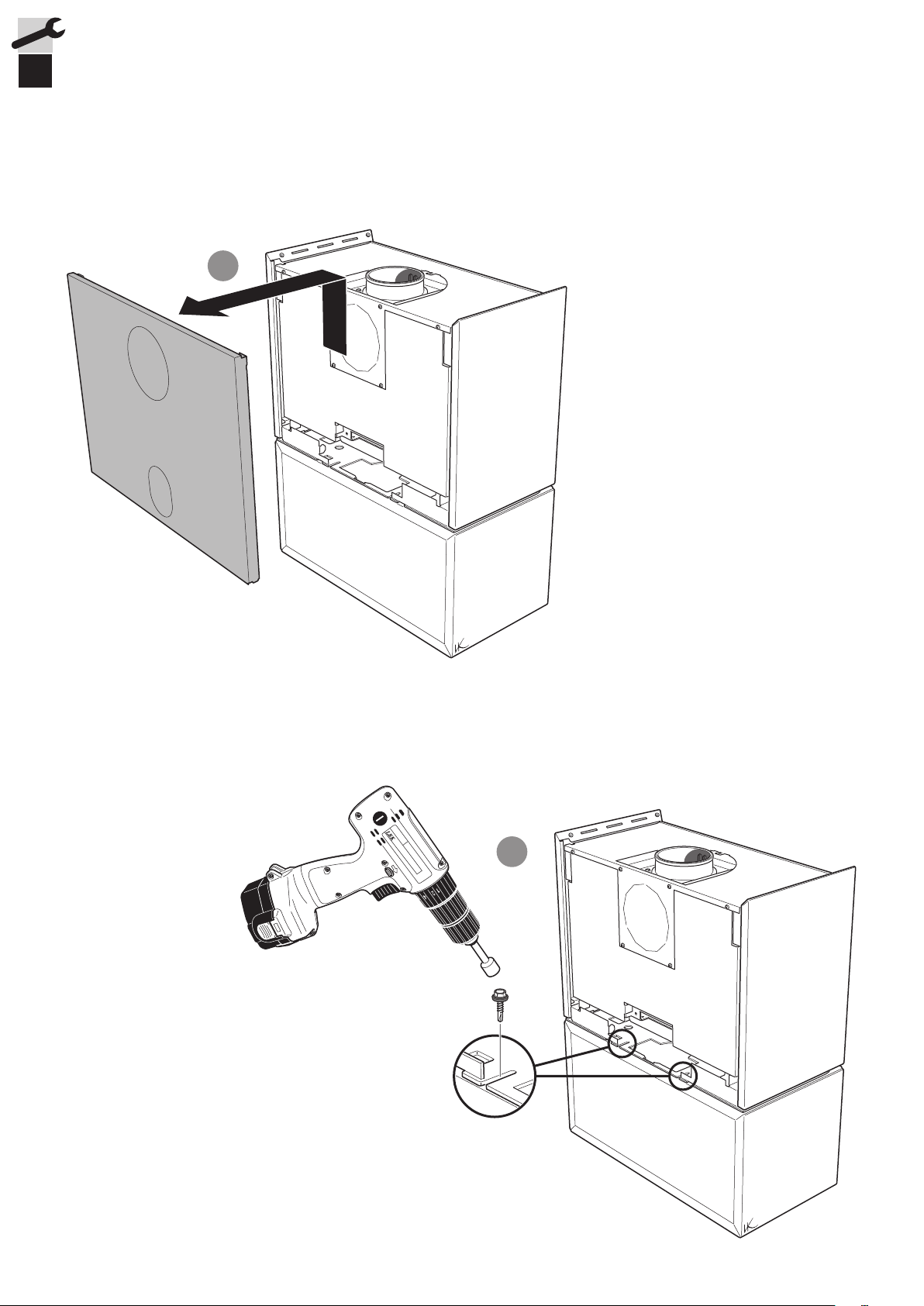

Bakåtanslutning till murad skorsten
Rückseitiger Anschluss an einen gemauerten Schornstein
Bakmontering til murt skorstein
Raccordement par l’arrière à une cheminée de maçonnerie
Rear connection to a masonry chimney
Tilslutning bagud til muret skorsten
Liitäntä taaksepäin muurattuun savupiippuun
Collegamento alla canna fumaria in muratura dal retro della stufa
Achterwaartse aansluiting op een gemetselde schoorsteen

32
SE
DE
NO
FR
GB
DK
FI
IT
NL

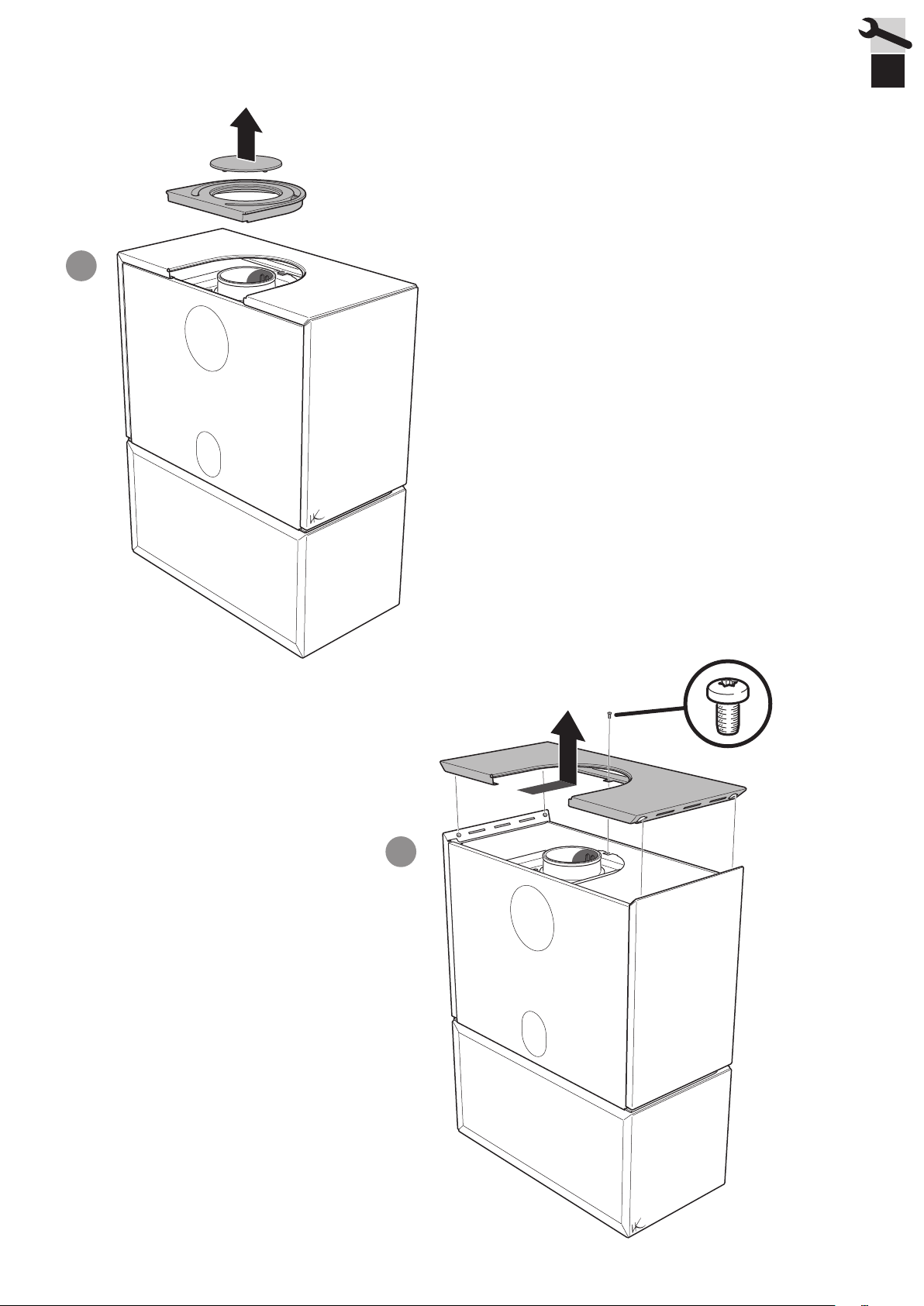

Toppanslutning till skorsten
Varmluftsgallret måste vara monterat innan
skorstenen toppansluts.
Oberseitiger Anschluss an den Schornstein
Das Warmluftgitter muss montiert sein, bevor ein
Schornsteinanschluss an der Oberseite erfolgt.
Toppmontering til skorstein
Varmluftsgitteret må være montert før skorsteinen
topptilkobles.
Raccordement par le haut
Monter la grille d’air chaud avant le raccordement à la
cheminée par le haut.
Top connection to the chimney
The hot air grille must be installed before chimney
top connection.
Toptilslutning til skorsten
Varmluftristen skal være monteret, før
skorstenen toptilsluttes.
Liitäntä ylöspäin savupiippuun
Lämminilmaritilä pitää asentaa ennen savupiipun
liitäntää ylöspäin.
Collegamento alla canna fumaria dal piano della stufa
Prima di collegare la canna fumaria al piano della stufa, assicurarsi
che la griglia dell'aria calda sia montata.
Bovenaansluiting op een schoorsteen
Het heteluchtrooster moet zijn gemonteerd, voordat de
schoorsteen op de bovenaansluiting wordt aangesloten.

33
12
3
SE
DE
NO
FR
GB
DK
FI
IT
NL
Tilluft
Tillbehör: Tilluftsstos
Zuluft
Zubehör: Zuluftanschluss
Tilluft
Tilbehør: Tilluftsstuss
Arrivée d’air
Accessoires : Manchon d’arrivée d’air
Supply
Accessories: Air inlet
Forbrændingsluft
Ekstraudstyr: Luftindsugningsstuds
Tuloilma
Lisävarusteet: Tuloilmaliitäntä
Alimentazione dell’aria
Accessori: Raccordo per la presa d’aria
Toevoerlucht
Accessoires: Toevoerluchtaansluiting

34
43
1 2
SE
DE
NO
FR
GB
DK
FI
IT
NL
Demontera eldstadsbeklädnaden (Vermiculit)
So demontieren Sie die Brennraumauskleidung (Vermiculit)
Slik demonterer du ildstedsbekledningen (Vermikulitt)
Voici comment démonter l’habillage du foyer (Vermiculite)
How to remove the hearth surround (Vermiculite)
Sådan afmonterer du ovnbeklædningen (Vermiculite)
Näin irrotat tulipesän verhouksen (vermikuliitti)
Come smontare il rivestimento del focolare (vermiculite)
Zo demonteert u de kachelbekleding (vermiculiet)
Handle with care!
!

35
87
5 6

36
1
2
3
Damper Blocker for C310, C320 and C330
For installation in the UK and in smoke control areas
Contura 310, 320 and 330, 7 kW woodburning stoves has been
recommended as suitable for use in smoke control areas. This
when burning wood logs and operated in accordance with these
instructions and when fitted with a permanent stop to prevent clo-
sure of the air control unit beyond 31% open position.
Mandatory for smoke control areas
The permanent stop must be installed if the appliance is to be
used in a smoke control area, this stop must not be removed in
smoke control areas, otherwise an offence will be committed if
the appliance is used without the permanent stop in place.
GB

37
1
2
Alt. 1

38
1
2
3
Alt. 2

39
M5x8 T25
4
5

40
6
7

811305 IAV SE-EX C330G-2
2018-01-09
NIBE AB · Box 134 · 285 23 Markaryd · Sweden
www.contura.eu
