Contura C 660K User manual

www.contura.eu
C 660K
Installation
instruction

66
GB
CERTIFICATE
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 660K
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 07 1478
PERFORMANCE DECLARATION
No. C660K-CPR-130608-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
500 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.06%
NOx 115 mg/m3
OGC 57 mg/m3
PM 28 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 6 kW
Efficiency 79%
Flue gas temperature in connector at nominal
output
280°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st July 2013

67
GB
List of Contents
Technical details 68
Removing the loose parts 68
Connection to chimney 70
Supply of combustion air 71
Installation distances 72
Assembly 73
Installation of oven (option) 76
Installing convection fascia (option) 77
Installation of tiled warming shelf (option) 77
Installation of base (option) 78
Installation of metal base (option) 78
Installing drawer 79
A warm welcome to Contura
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injury if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can cause
quick gas ignition with the risk of damage to property and
personal injury.
NOTE: WARNING!
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by
a qualified inspector. Your local chimney sweep must also
be informed about the installation as this will affect the
routines for regular chimney-sweeping services.
CONTENTS

1
2
4
3
5
68
GB
FACTS
Effect 3-9 kW
Nominal effect 6 kW
Efficiency up to 80%
Model 660K
Height (mm) 1220
Width (mm) 590
Depth (mm) 510
Weight (kg) 190
Type approved in accordance with:
European standard EN-13240 class 1
Swedish environmental and quality marking,
P-marking cert. no. 220306
Swedish type approved, cert.no. 0388/01
Norwegian standard NS 3059, cert. no. 043-104
German standard DIN 18.891, RO-91 01 319
Danish standard 887-1, id no. 598
Removing the loose
parts
If the insert needs to be put down to
be moved, loose components should be
removed. When the stove is installed
reinstall the components in reverse
order.
1 Fire bars
2 Grate disc
3 Cast-iron firebed
4 Ash-pan
5 Hearth cladding (Vermiculite).
Installation by authorised
technician
This manual contains instructions about
how the stoves must be assembled and
installed. To ensure the function and safety
of the stove, we recommend that the
installation is carried out by an authorised
technician. Contact one of our dealers who
can recommend suitable fitters.
Building permission
These main insructions may give guidance
which would contravene national building
regulations. Please refer to supplementary
instructions or ask your local authority for
advice regarding building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove and
chimney. The stove and chimney can usually
be placed on a normal wooden joist in a
single occupancy house, if the total weight
does not exceed 400 kg.
Floor plate
Due to the risk of falling embers, a
combustible floor must be protected by a
hearth plate which covers at least 300 mm
to the front and 100 mm along each side.
The hearth plate can consist of natural
stone, concrete, metal or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
Important to remember!
Technical details

LEK
LEK
LEK
!
5
2 3
1
69
GB
REMOVAL

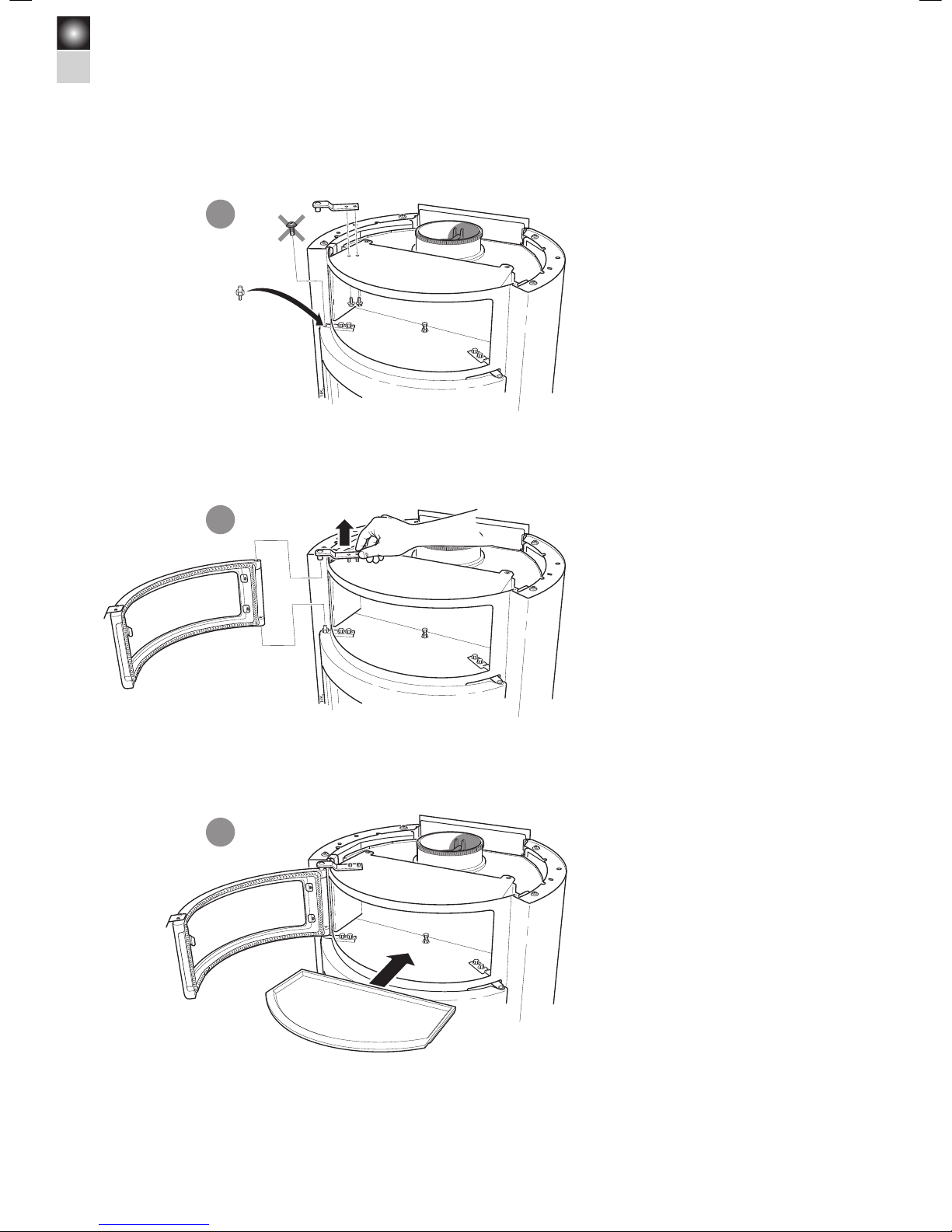

How to remove the hearth surround (Vermiculite)
The heat reflecting plate must be
fitted underneath the body of the
stove if the area below is to be used
as a log-box. The heat reflector can be
removed by turning it to the left until
it slides free from the lower set of
screws holding the legs in place. The
heat reflector is hooked back in place
on the screws by turning it to the right.
Handle the vermiculite with care. Lift the smoke baffle with one hand
whilst removing the sides pieces. If necessary, move the cast-iron firebed
slightly. Reinstall in reverse order

LEK
LEK
Ø
ca 180 mm
Ø
ca 180 mm
LEK
!
2 31
5 64
70
GB
In the bag with these installation instructions
are two wing screws for the cover.
CHIMNEY

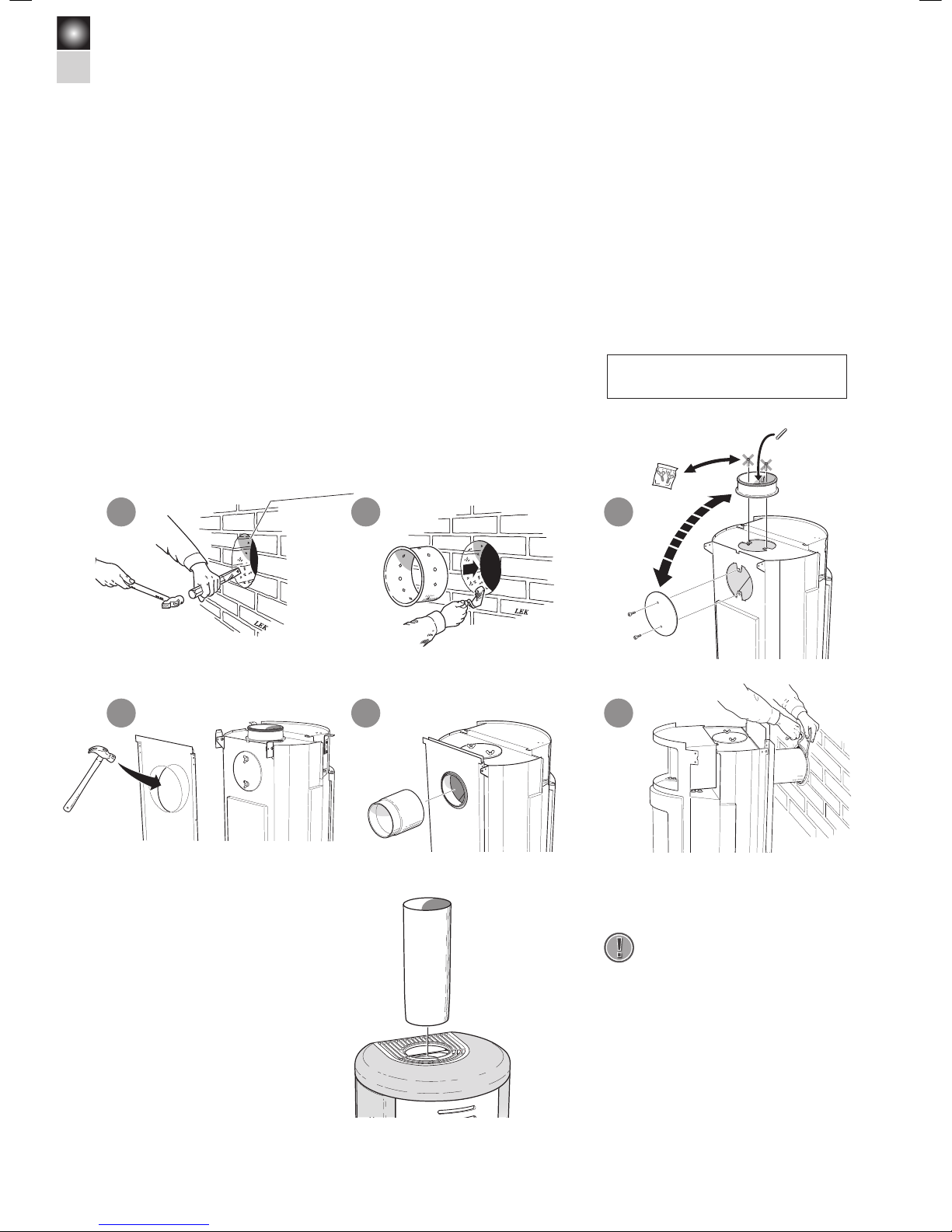

Connection to chimney
Rear connection to a masonry chimney
Top connection to the chimney
Make sure that the connector
gasket does not work loose when
the connection pipe is placed
on the connector. If further
sealing material is required, heat-
resistant sealant may be used.
Connection to the chimney from the rear of the stove body is carried
out after the back plate is installed, but before the tiled surround is
put into place.
When connecting the chimney to
the top of the stove body the tiled
surround must be installed first.
Remember to install the hot air grille
before top connecting.
• The stove meets the requirements for connecting to chimneys
dimensioned for 350°C flue gas temperature.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. Minimum recommended chimney length
is 3.5 m and suitable cross section area is 150-200 cm? (140-160
mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on the
condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.

LEK
LEK
LEK
LEK
30 mm
!
71
GB
SUPPLY AIR/ACCESSORY
Supply of combustion air
When a stove is installed in a room, the demand for air supply to the
room increases. Air can be provided indirectly via a vent in the outer
wall or via a duct from the outside that is connected to the connector
on the underneath of the stove. The amount of air needed for
combustion is approximately 25m3/h.
The connector has an external diameter of 67 mm. When duct
routing further than 1 m the pipe diameter must be increased to 100
mm and a correspondingly larger wall vent must be selected.
In hot areas the duct should be insulated with 30 mm mineral wool
covered with a moisture inhibitor (plastic). It is important that the
lead-in between the pipe and the wall (or floor) is sealed using
jointing compound.
A 1 m length of condensation-insulated ducting for combustion air is
available as an accessory.
Through the external wall.
Indirect air supply through the external wall.
Through floor and foundation slab.
Through floor and wall-and-cavity
foundation.
In the back and floor plates there are
knockouts that must be removed to insert
pipes or for air supply if the stove is
equipped with a lower hatch and/or fan
(accessory).
Installation variants
Leave a 40 mm gap between
the condensation insulation
and the bottom of the stove.

!
C 660K
72
GB
800
500
250
100
100
200
300
400
195
295
395
495
Combustible wall
800
500*
200
50
Fire-retardant wall of
brick or concrete
635
300
50
780
Fire-retardant wall of
brick or concrete
325
75
660
810
Combustible wall
D 300
E 1000
B 1000
A 1130
C 340
470
100
510
40
Ø150
Air inlet Ø64
1220
2100
295
590
Combustible roof
Air inlet Ø64
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel flue,
please refer to the particular
manufacturer's installation
instructions. Observe the safety
distance to combustible material
required by the steel flue

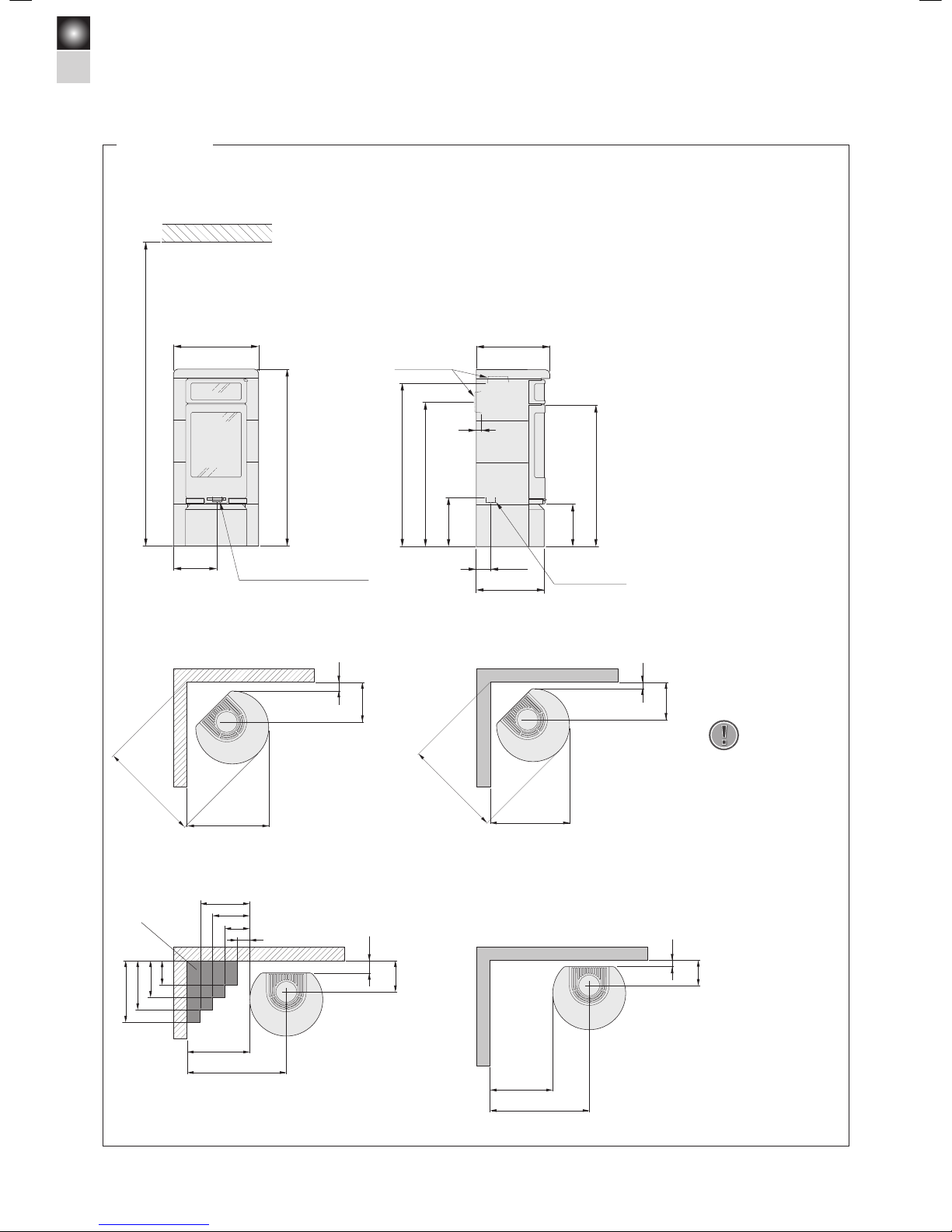

Installation distances
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate turntable installation instruc-
tions.
A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
E = height from floor to upper edge
of hatch
Permitted
area for
combustible
material
A separate glass hearth
plate (accessory)
increases the connection
height to the chimney
by 10 mm. The spacers
supplied with the hearth
plate are installed on the
stove before connection.
INSTALLATION DISTANCES

LEK
LEK
32
1
1
23
X8
73
GB

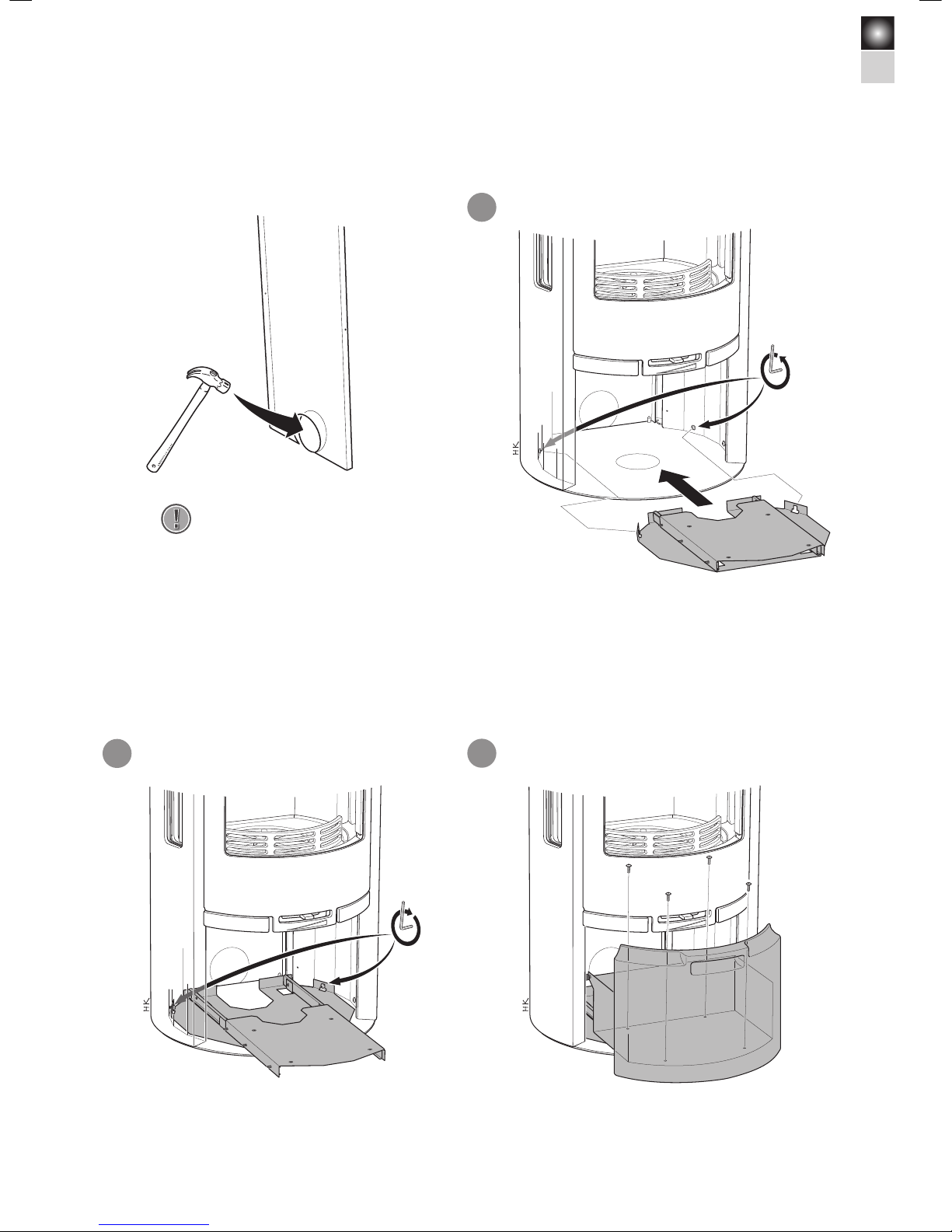

Installing C 660K
ASSEMBLY

!
LEK
3 mm
LEK
5
4
6
74
GB

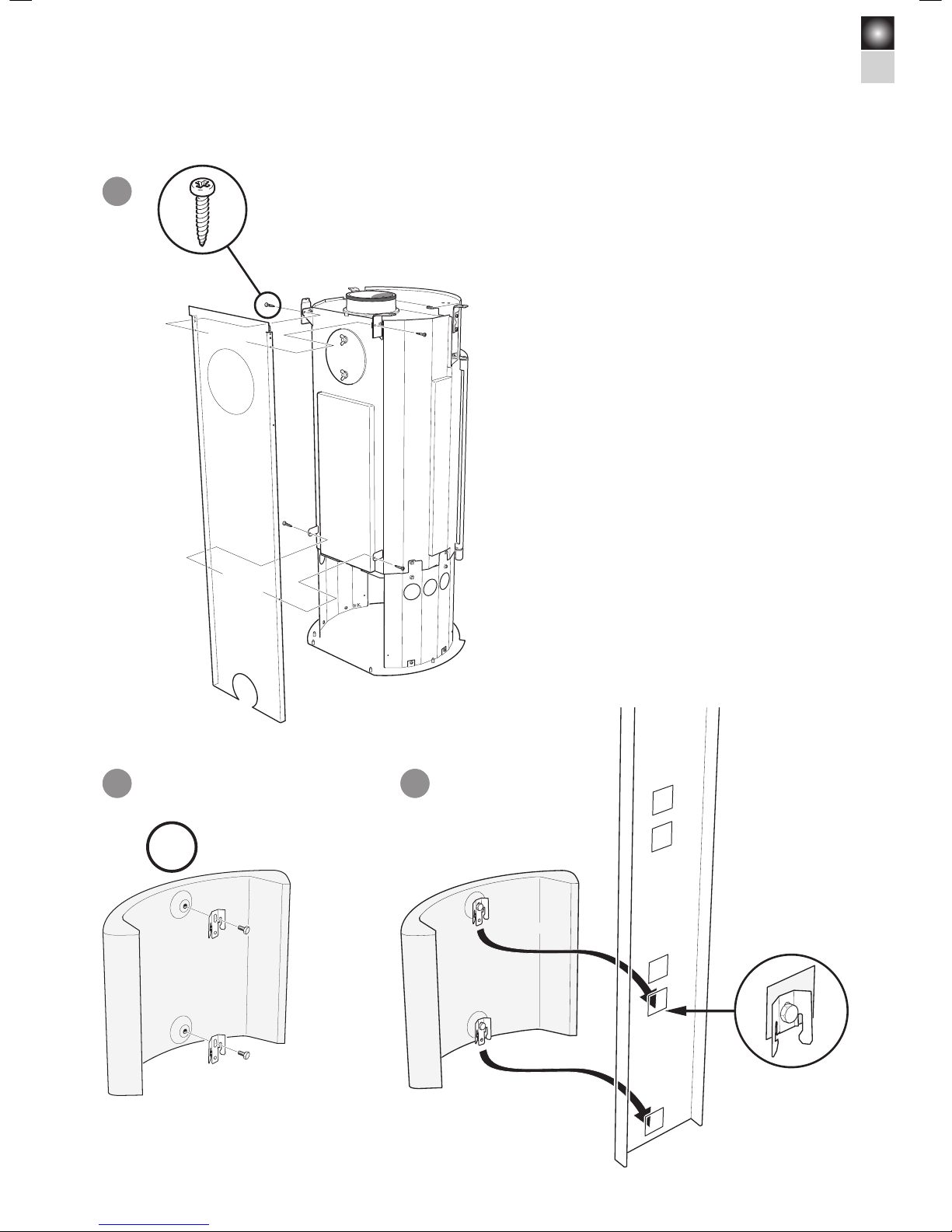

Handle the tiles with care,
the edges are susceptible to
damage.
ASSEMBLY

Silicone
LEK
LEK
LEK
LEK
7
75
GB
It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the "Lighting instructions" before lighting for the first time.
Final inspection of the installation
Alternative
2
Alternative
1
Installing rating plates
The rating plate supplied is placed on the back,
either internally or externally.
ASSEMBLY
Install the convection fascia, warming shelf or
baking oven according to the instructions in the
section for the relevant accessory on pages 76
to 77. This must be done before the tiled top is
installed.

1
2
3
76
GB
Installation of oven (option)
ASSEMBLY
Place the baking sheet in the oven. If
necessary, adjust the height of the baking
sheet by turning the adjusting screw at the
bottom of the oven unit.
Hold the oven door in place on the threaded
pin. Hook the top hinge in place and
loosely tighten one of the screws. Close
the oven door and adjust it so that it aligns
horizontally. Then open it carefully and
tighten both screws.

1 2
1 2
77
GB
Place the bottom plate for the warming shelf in the
heating compartment, use the adjuster screw at the
rear edge for level horizontal installation. Place paper
from the packaging as scratch protection because the
upper section must be slid into position.
Installation of tiled warming shelf (option)
Insert the convection fascia upwards first so that the locking
spring comes inside the front panel of the stove and push the
convection fascia lightly upwards. Then press the fascia in and
allow it to slide into place.
Open the hatch and install the convector fascia with the
retaining brackets angled as shown.
Installing convection fascia (option)
ASSEMBLY

LEK
78
GB
The base must be removable to
clean the area behind and for
service.
The base must be removable to
clean the area behind and for
service.
ASSEMBLY
Installation of metal base (option)
Installation of base (option)

x 3
!
1
23
79
GB
Hook the pull-out unit into place over the rear Allen
screws. Screw the unit into place.
Install the drawer on the pull-out unit using the four
Allen screws. Adjust the drawer so that it is centrally
positioned, then tighten the screws.
Slacken off the rear Allen screws three turns. Place
the pull-out unit on the base plate.
When installing the drawer, the
knockout in the back panel must
always be removed for the supply of
convection air.
ASSEMBLY
Installation of drawer (option)

811114 IAV SE-EX C660K - 2
2013-11-06
NIBE AB · Box 134 · 285 23 Markaryd · Sweden
www.contura.eu
Contura reserves the right to change colours, materials,
dimensions and models at any time without special notice.
Your dealer can give you the most up to date information.
Stoves shown in brochures may have extra equipment.
