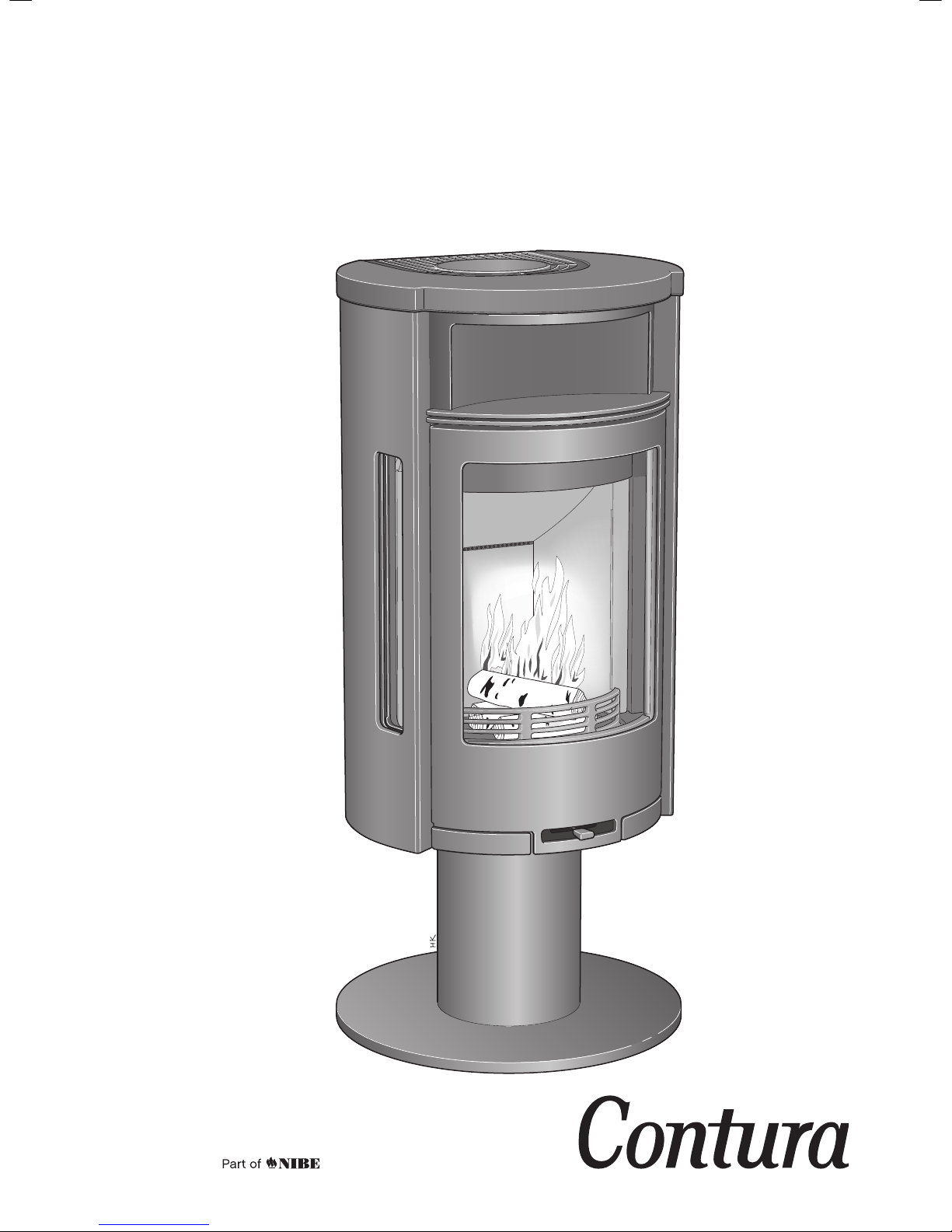

Contura C 685 User manual

www.contura.eu
C 685
Installation
instruction

66
GB
CERTIFICATE
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 685
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 07 1478
PERFORMANCE DECLARATION
No. C685-CPR-130608-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
520 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.06%
NOx 115 mg/m3
OGC 57 mg/m3
PM 28 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 6 kW
Efficiency 79%
Flue gas temperature in connector at nominal
output
280°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st July 2013

67
GB
List of Contents
Technical details 68
Removing the loose parts 68
Connection to chimney 70
Supply of combustion air 71
Installation distances 72
Assembly 73
Installation of oven (option) 77
Installation of metal warming shelf (option) 78
Installing convection fascia (option) 79
Installation of soapstone warming shelf (option) 79
A warm welcome to Contura
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injury if touched. Also, take
heed of the strong heat radiated through the door glass.
Placing flammable material closer than the safe distance
indicated may cause a fire. Smoulder combustion can cause
quick gas ignition with the risk of damage to property and
personal injury.
NOTE: WARNING!
Report the installation of a stove
to your local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by
a qualified inspector. Your local chimney sweep must also
be informed about the installation as this will affect the
routines for regular chimney-sweeping services.
CONTENTS

1
2
4
3
5
68
GB
FACTS
Effect 3-9 kW
Nominal effect 6 kW
Efficiency up to 80%
Model 685
Height (mm) 1260
Width (mm) 550
Depth (mm) 480
Weight (kg) 150
Type approved in accordance with:
European standard EN-13240 class 1
Swedish environmental and quality marking,
P-marking cert. no. 220306
Norwegian standard NS 3059, cert. no. 043-104
German standard DIN 18.891, RO-91 01 319
Danish standard 887-1, id no. 598

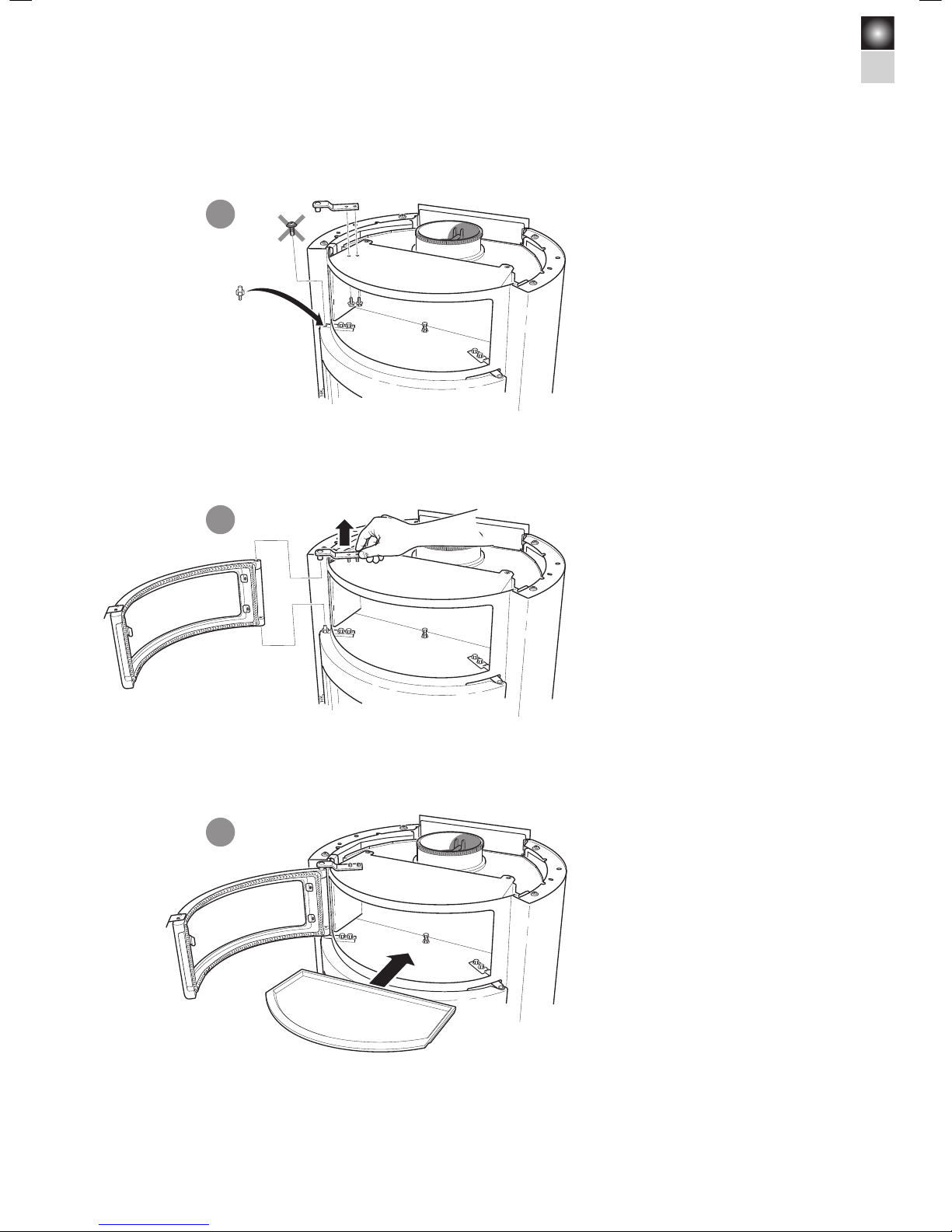

Removing the loose
parts
Before the insert is put down for
installing the pillar foot, loose
components should be removed. When
the stove is installed reinstall the
components in reverse order.
1 Fire bars
2 Grate disc
3 Cast-iron firebed
4 Ash-pan
5 Hearth cladding (Vermiculite).
Installation by authorised
technician
This manual contains instructions about
how the stoves must be assembled and
installed. To ensure the function and safety
of the stove, we recommend that the
installation is carried out by an authorised
technician. Contact one of our dealers who
can recommend suitable fitters.
Building permission
These main insructions may give guidance
which would contravene national building
regulations. Please refer to supplementary
instructions or ask your local authority for
advice regarding building regulations.
Before installing a stove or erecting a
chimney it is necessary for you to make
a building application permission to your
local authority.
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove and
chimney. The stove and chimney can usually
be placed on a normal wooden joist in a
single occupancy house, if the total weight
does not exceed 400 kg.
Floor plate
Due to the risk of falling embers, a
combustible floor must be protected by a
hearth plate which covers at least 300 mm
to the front and 100 mm along each side.
The hearth plate can consist of natural
stone, concrete, metal or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
Important to remember!
Technical details

LEK
LEK
LEK
!
5
2 3
1
69
GB

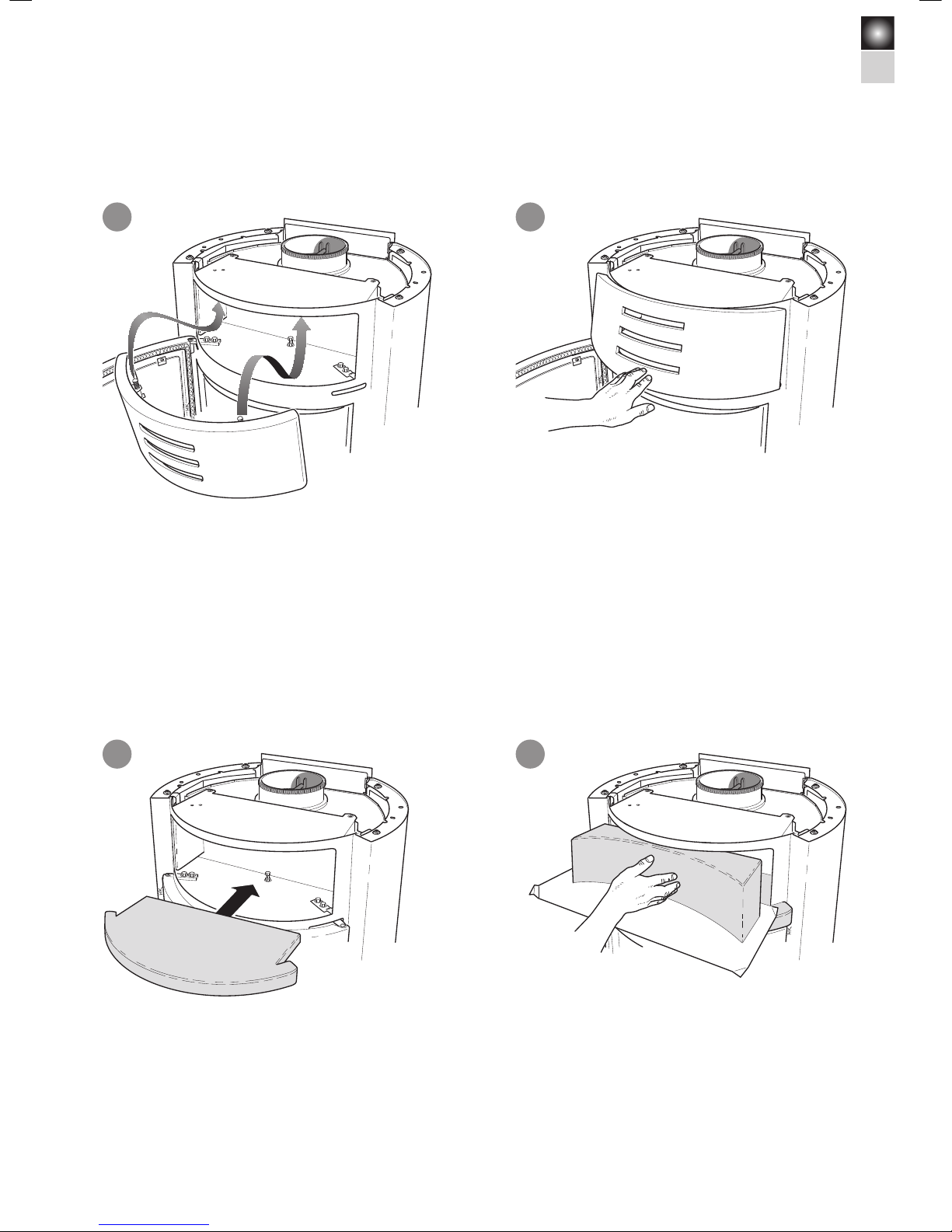

REMOVAL

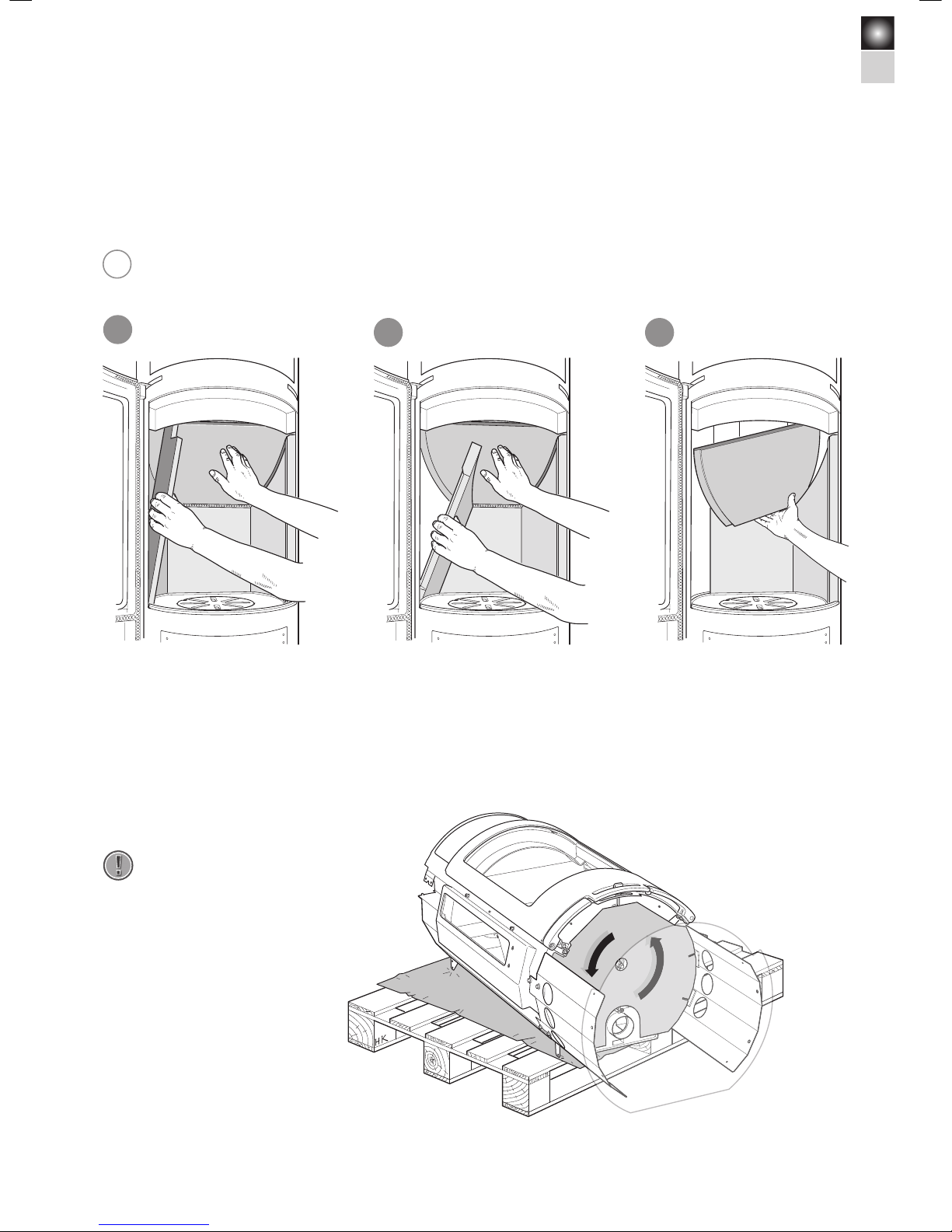

How to remove the hearth surround (Vermiculite)
The heat reflector can be removed by
turning it to the left until it slides free
from the lower set of screws holding
the legs in place.
Handle the vermiculite with care. Lift the smoke baffle with one hand
whilst removing the sides pieces. If necessary, move the cast-iron firebed
slightly. Reinstall in reverse order
How to remove the heat deflector

LEK
LEK
Ø
ca 180 mm
Ø
ca 180 mm
LEK
!
2 31
5 64
70
GB
In the bag with these installation instructions
are two wing screws for the lid.
CHIMNEY
Connection to chimney
Rear connection to a masonry chimney
Top connection to the chimney
Make sure that the connector
gasket does not work loose when
the connection pipe is placed
on the connector. If further
sealing material is required, heat-
resistant sealant may be used.
The back panel must be installed before the stove is connected at the
rear.
The hot air grille must be installed
before chimney top connection.
• The stove meets the requirements for connecting to chimneys
dimensioned for 350°C flue gas temperature.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. Minimum recommended chimney length
is 3.5 m and suitable cross section area is 150-200 cm? (140-160
mm in diameter).
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on the
condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.

LEK
LEK
30 mm
!
71
GB
SUPPLY AIR/ACCESSORY
Supply of combustion air
When a stove is installed in a room, the demand for air supply to
the room increases. Air can be provided indirectly via a vent in
the outer wall or via a duct from the outside that is connected to
the connector on the underneath of the stove. The amount of air
needed for combustion is approx. 25m3/h.
The connector has an external diameter of 67 mm. When duct
routing further than 1 m the pipe diameter must be increased to
100 mm and a correspondingly larger wall vent must be selected.
In hot areas the duct should be insulated with 30 mm mineral wool
covered with a moisture inhibitor (plastic). It is important that the
lead-in between the pipe and the wall (or floor) is sealed using
jointing compound.
A 1 m length of condensation-insulated ducting for combustion air
is available as an accessory.
Indirect air supply through the external wall.
Through floor and foundation slab.
Through floor and wall-and-cavity foundation.
There is a detachable cover on the reverse of
the pillar foot which is removed when installing
combustion air connection.
Installation variants
Leave a 40 mm gap between
the condensation insulation
and the bottom of the stove.

!
C 685
72
GB
615
300
70
750
800
800
Fire-retardant wall of
brick or concrete
800
520
250
100
100
200
300
400
175
275
375
475
Combustible wall
400
700
1200
120* (520)
200
50
Fire-retardant wall of
brick or concrete
640
325
95
785
Combustible wall
D 360
E 1060
B 1060
A 1190
C 400
220
480
40
Air inlet Ø64
Ø150
2100
555
1260
Ø580
Air inlet Ø64
Combustible roof
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel flue,
please refer to the particular
manufacturer's installation
instructions. Observe the safety
distance to combustible material
required by the steel flue
Installation distances
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate turntable installation instruc-
tions.
A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
E = height from floor to upper edge
of hatch
A separate glass hearth
plate (accessory)
increases the connection
height to the chimney
by 10 mm. The spacers
supplied with the hearth
plate are installed on the
stove before connection.
INSTALLATION DISTANCES
Permitted
area for
combustible
parts of the
building

!
2
1
73
GB

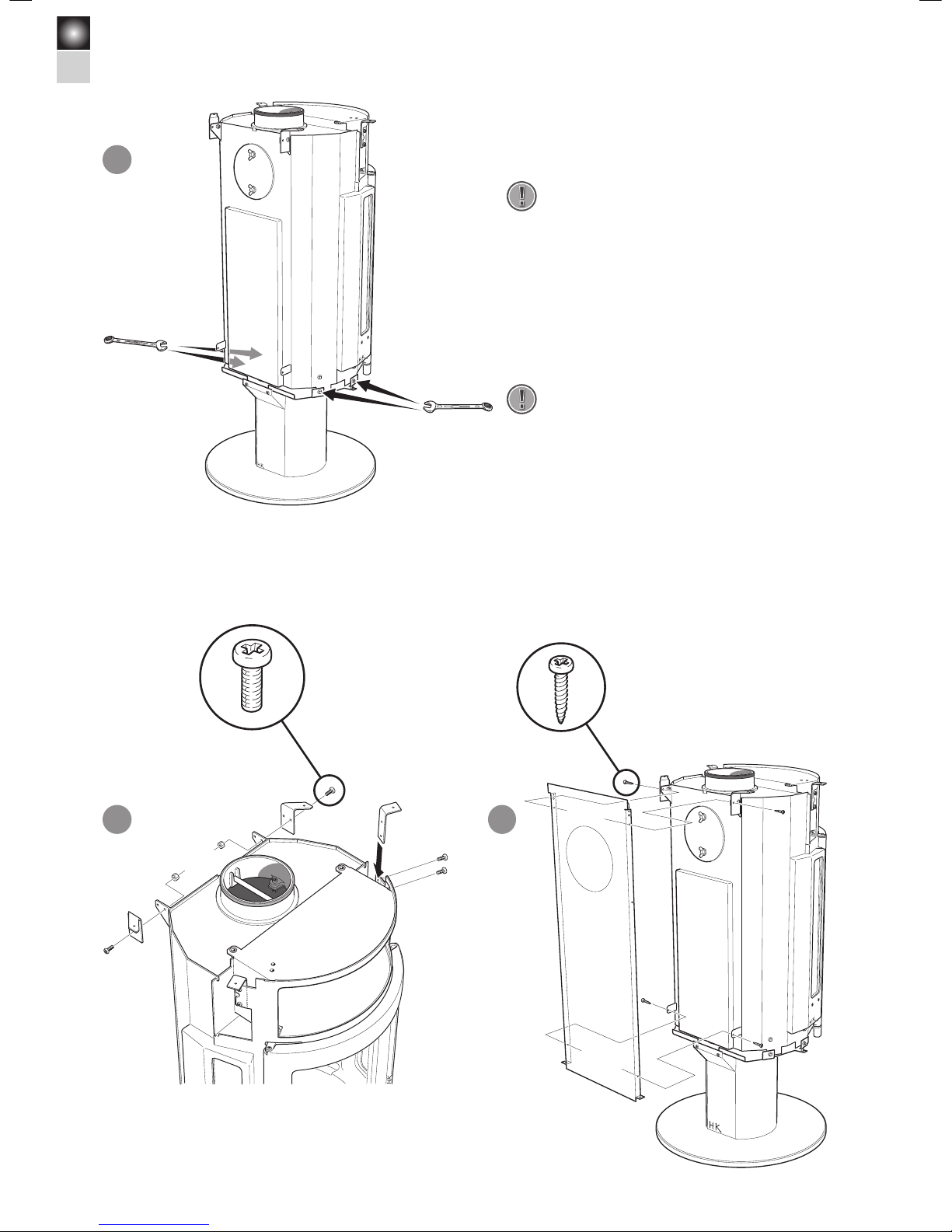

The pillar is mounted
using four screws. The
remaining four screws
must also be reinstalled
to prevent air leakage into
the firebox.
Installing C 685
ASSEMBLY

!
!
13
13
VANADIUM
No.7
CHROME
54
3
74
GB
Clean the side glass thoroughly before
installing the side panels.
Do not tighten the screws until
the insert has been raised from
the pallet and is level.
ASSEMBLY

6
7
75
GB
ASSEMBLY

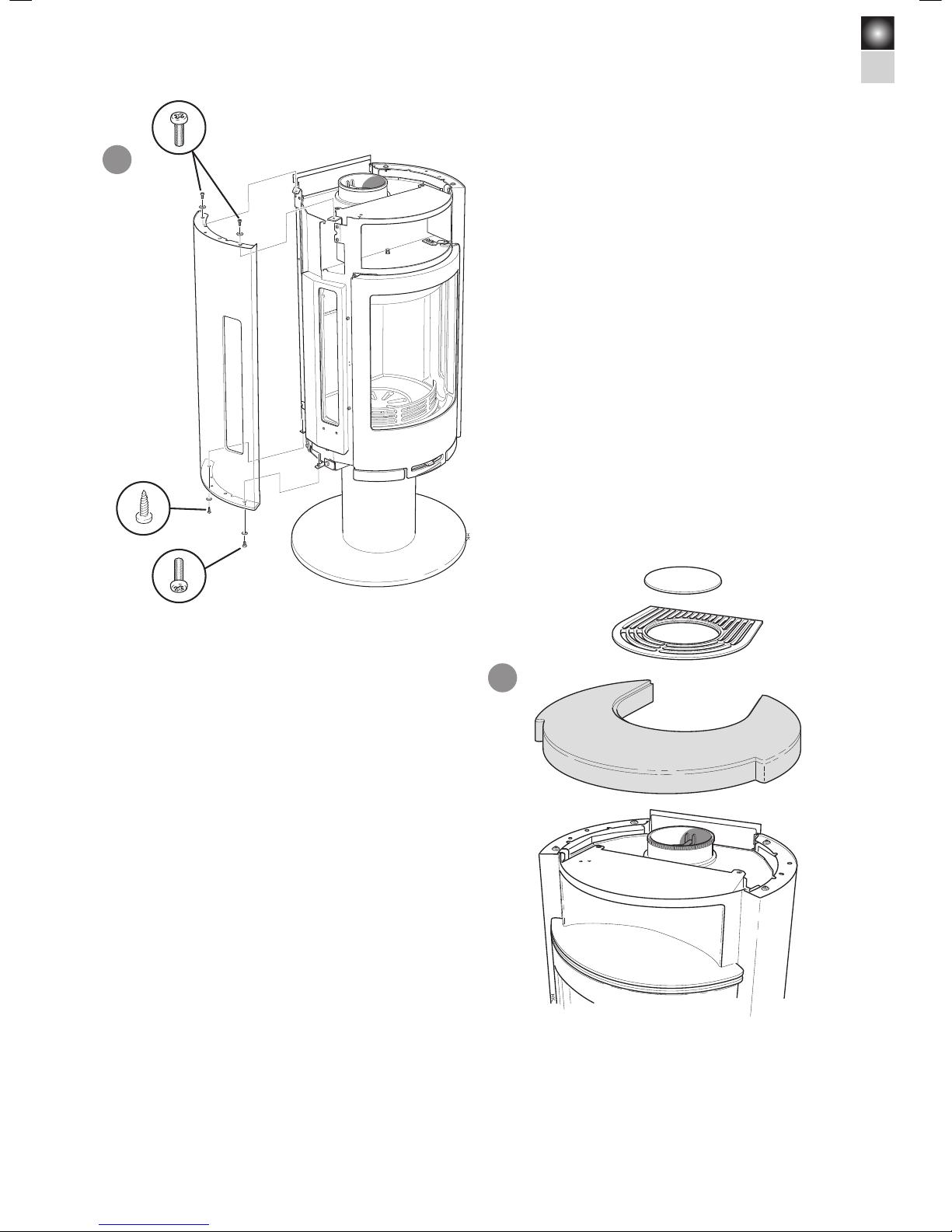

Install the convection fascia, warming shelf or baking
oven according to the instructions in the section for
the relevant accessory on pages 77 to 79. This must
be done before the stove top is installed.
Adjust the side panels so that they are against the
insert and so that there is an even join against the
back plate.

76
GB

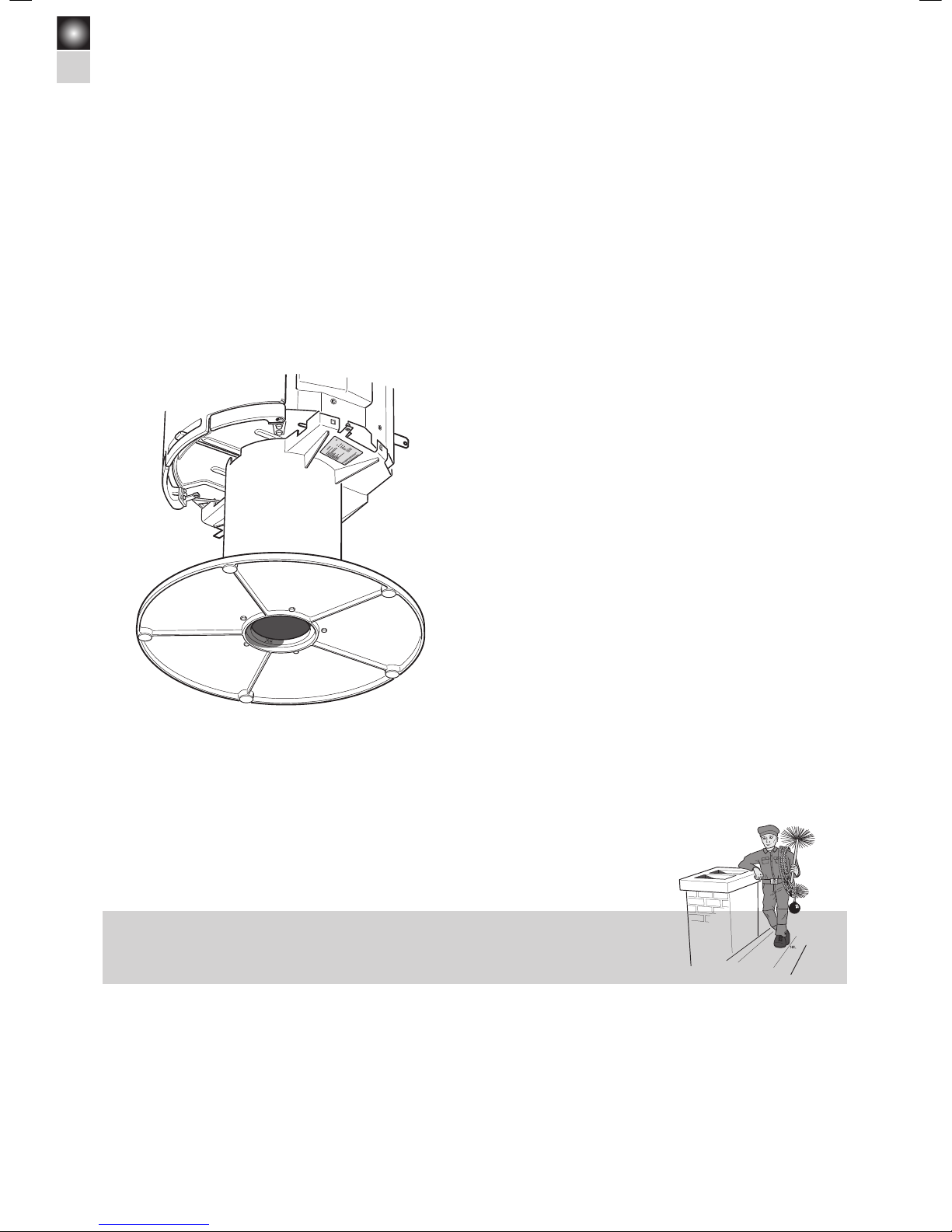

It is extremely important that the installation is inspected by an authorised chimney sweep before
the stove is used. Also read the "Lighting instructions" before lighting for the first time.
Final inspection of the installation
Installing rating plate
Position the supplied rating plate on the underside of the
pillar.
ASSEMBLY

3
2
1
77
GB
Installation of oven (option)
ASSEMBLY
Place the baking sheet in the oven. If
necessary, adjust the height of the baking
sheet by turning the adjusting screw at the
bottom of the oven unit.
Hold the oven door in place on the threaded
pin. Hook the top hinge in place and
loosely tighten one of the screws. Close
the oven door and adjust it so that it aligns
horizontally. Then open it carefully and
tighten both screws.

3
2
1
25 mm
78
GB
Replace the preinstalled adjuster screw
in the heating compartment with the
longer adjuster screws provided. Place the
warming shelf in the heating compartment,
use the adjuster screw at the rear edge for
horizontal installation. In the side of the
heating compartment there is a small gap,
this is used to install the rear cover panel.
Installation of metal warming shelf (option)
ASSEMBLY

2
2
1
1
79
GB
Installation of soapstone warming shelf (option)
Installing convection fascia (option)
ASSEMBLY

811115 IAV SE-EX C685 - 4
2014-05-06
NIBE AB · Box 134 · 285 23 Markaryd · Sweden
www.contura.eu
Contura reserves the right to change dimensions and
procedures described in these instructions at any
time without special notice. The current edition can be
downloaded from www.contura.eu
