Converters.TV 15464 Installation manual

HDMI/Displayport/VGA to
HDMI/HDBaseT Scaler ID# 15464
Operation Manual

Intro uction
The Multi-inputs with HDMI and HDBT output scaler box supports 5
inputs of HDMI, VGA and Displa Port. The input source is capable to
switch and scale to adopt resolution then transmit over HDMI and
HDBaseT. The HDTV resolution is achievable. Meanwhile, it offer
flexibilit application of audio which includes unbalance audio, MIC In
and line out. The professional 48V phantom microphone is compatible.
The audio DSP engine offer auto-mixer and auto-gain control to mix or
reduce background audio in order to enhance major audio source. The
s stem could be controlled and configure b easil operation of Telnet,
WebGUI, IR remote and RS-232. This scaler box is a suitable solution
for presentation purpose at classroom and conference room.
Features
• HDMI and HDCP compliant
• Supports multi inputs: 2 x HDMI, 2 x VGA and 1 x Displa port, 3 x
unbalance audio, 1 x MIC In (48V phantom selection)
• Scaler s nchronous outputs to 1 x HDMI, and 1 x CAT5e/6/7
• Supports HDTV resolutions up to 1080p (VGA to WUXGA)
• Supports Internal EDID
• Supports pass-through of PCM 2CH
• Audio DSP offer auto mixer and auto gain control for mix or reduce
background audio
• Device could be controlled via WebGUI, IR remote and RS-232
• Supports IR In and IR Out to receive or transmit IR signal from
compatible receiver with bi-directional RS-232 control
• Input control provides direct input source selection
• Support output resolutions up to 1080p
Applications
• Analog and digital source integration
• Upscaling standard definition video for high-definition displa s
• Conference centers
• Lecture halls
• Schools and universities
System Requirements
Input source equipment such as Blu-ra /DVD pla ers or PC/Laptop and
output to displa s, AV Receivers or active speakers.

Operating Functions
an Controls Front Views
1. IR Window:
Receiving IR signal from remote control unit which come with scaler
box.
2. “Enter” button:
Press this button to confirm the selection of On Screen Displa (OSD)
menu.
3. “Menu” button:
Press this button to access to On Screen Displa (OSD) menu.
4. “-“ (Minus) button:
Press button to navigate down on OSD menu.
Press "Menu" and "+" will direct output of XGA60(1024x768) and
"Menu" and "-" for 720p60.
5. “+” (Plus) button:
Press button to navigate up on OSD menu.
6. “Select” button:
Press this button for source selection. The active source will be indicator
on LEDs at front panel.
7. “Loc ” button:
Press this button to lock front panel and press again to unlock.
8. LEDs:
This LED for selected source indication. The LED for the selected
source will illuminate for indicating active source accordingl .
Rear Views

1. Service:
The service slot is for firmware update via USB driver.
2. Line out:
Connects with amplifier for audio source broadcasting.
3. MIC IN:
Plug microphone in for audio source output. The phantom
microphone is well supported.
4. Phantom on/off:
Arrange the slide switch to “on” for condenser microphone (5V) or
“phantom” for professional 48V phantom microphone. When slide
switch arrange to “off”, the audio output will be mute.
5. Line In:
Select the external analog audio on OSD and insert the audio to
HDMI or DP video source then output to displa .
6. PC1 / PC2:
When video source is PC, the PC audio cable shall connect in this
jack for PC audio source output with video to displa .
7. IR Out:
Connect with supplied IR blaster cable to sending IR single which
comes from remote control unit to compatible Receivers.
8. IR IN:
Connect with supplied IR extender cable to receive the IR signal from
the included IR remote. Ensure that the remote is within the direct
line-of-sight of the IR extender.
9. RS-232:
For sending RS-232 command to compatible Receivers.
10. Input Control:
This input control reserving for direct source input selection. Connect
ground pin (mark as C on panel) with following pin number for
individual source selection.
Pin Number Source
Pin 1 HDMI 1
Pin 2 HDMI 2
Pin 3 Display Port
Pin 4 PC1
Pin 5 PC2
11. Com Port:
Connect with D-Sub 9 pin cable with PC or laptop for this scaler box
controlled b RS-232 commands.
12. Control:
This port is the link for WebGUI control; connect to an active Ethernet
link with an RJ45 terminated cable.
13. Input Sources:

1. PC 1 & PC2: Connect to a PC/Laptop source for video signal input
with D-Sub 15pin cable.
2. Displa port: Connect to a PC / Laptop source for video signal
input.
3. HDMI 1 & HDMI2: Connect to HDMI sources such as Blu-ra /DVD
pla er for both video and audio signal.
14. Output:
1. CAT5e/6/7 Out: Connects with compatible Receiver for video
and / or audio output.
2. HDMI Out: Connect to an HDMI displa or AV Receiver for
video and/or audio output.
15. DC 24V:
Plug the 24V DC power suppl into the unit and connect the adaptor to
an AC outlet.

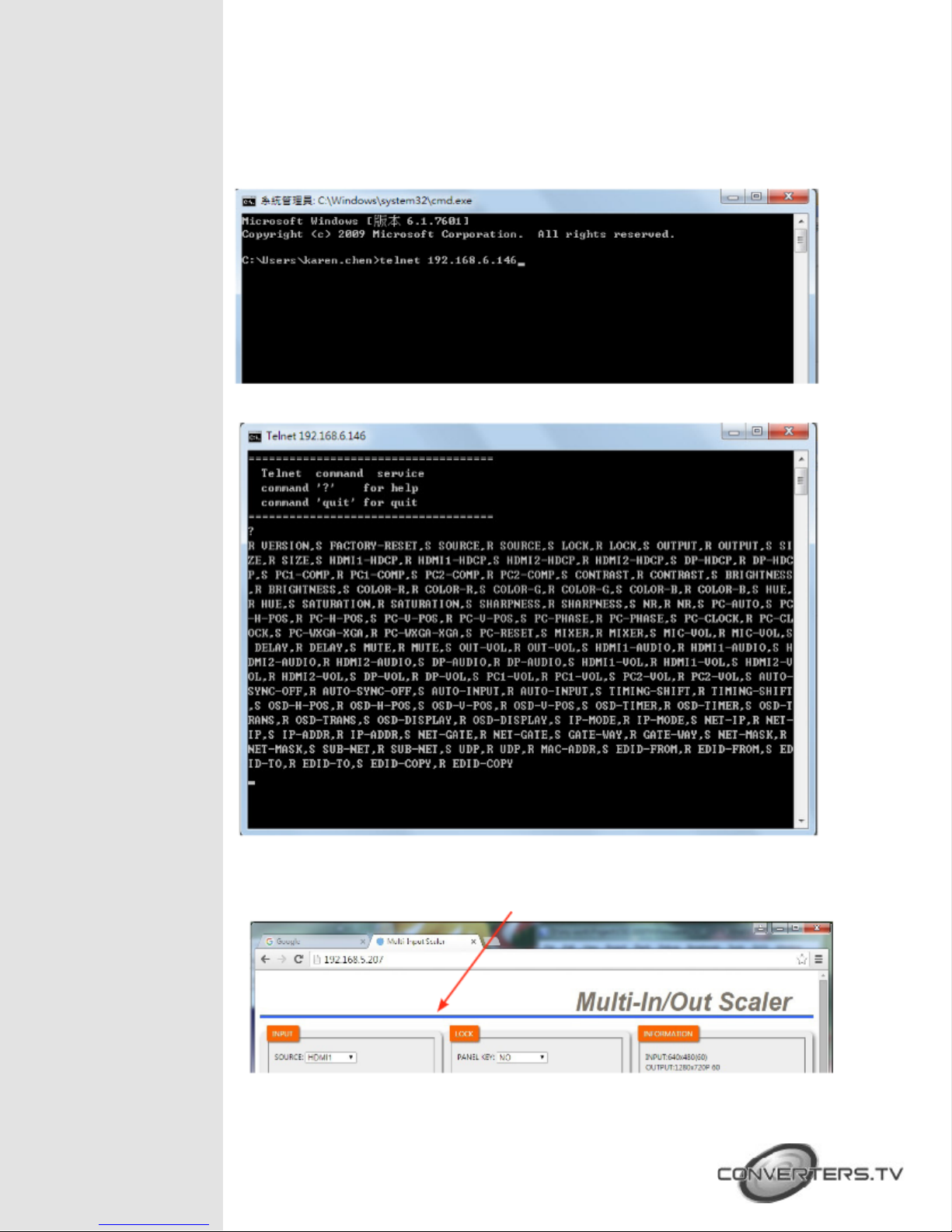

RS-232
Comman List
Comman Format:
1. <COMMAND><CR><LF>
2. <S><SPACE><COMMAND><CR><LF>
3. <R><SPACE><COMMAND><CR><LF>
4. <S><SPACE><COMMAND><SPACE><PARAMETER><CR><LF
Comman Format
Following command (from item 2) omits <SPACE><CR><LF> :
Item Command Description
1?<CR><LF> List all commands
2S<SPACE>factor -
reset<CR><LF>
Return to factory default settin
3 r version Read FW version
4 r source Read existin input source
5 s source 0 Set up HDMI 1 input (0:HDMI 1/
1:HDMI2 / 2:DP / 3: VGA1 /
4:VGA2)
6 r lock Read lock status of manual
selection button
7 s lock 1 Set up manual selection button lock
status (0: cancel press button lock)
8 r output Read output resolution
9 s output 0 Set up output resolution at 640x480
(1:800x600, 2:1024x768,
3:1280x768, 4:1360x768,
5:1280x720, 6:1280x800,
7:1280x1024, 8:1440x900,

9:1400x1050, 10:1680x1050,
11:1600x1200, 12:1920x1080,
13:1920x1200, 14:720x480P,
15:1280x720P60,
16:1920x1080I60,
17:1920x1080P60,
18:720x576P, 19:1280x720P50,
20:1920x1080I50,
21:1920x1080P50,
22:Native OUT1, 23:Native OUT2)
10 r size Read output picture size
11 S size 0 Set up over-scan for output picture
(1:Full/2:Follow-Input/3:Pan-
scan/4:Letter-
Box/5:Under2/6:Under1)
12 r hdmi1-hdcp Read HDCP status for HDMI 1
13 s hdmi1-hdcp 0 Active HDCP for HDMI 1 (1:disable
HDCP for HDMI2)
14 r hdmi2-hdcp Read HDCP status for HDMI 2
15 s hdmi2-hdcp 0 Active HDCP for HDMI 2 (1:disable
HDCP for HDMI2)
16 r dp-hdcp Read HDCP status for Displa Port
17 s dp-hdcp 0 Active HDCP for Displa Port
(1:disable HDCP for DP)
18 r contrast Read contrast status
19 s contrast 0 Set up contrast 0 (contrast could be
from 0 to 60)
20 r bri htness Read brightness status
21 s bri htness 0 Set up brightness 0 (brightness
adjustment from 0 to 60)
22 r color-r Read color-red status
23 s color-r 0 Set up color-red 0 (color-red
adjustment from 0 to 1023)
24 r color- Read color-green status
25 s color- 0 Set up color-green 0 (color-green
adjustment from 0 to 1023)
26 r color-b Read color-blue status
27 s color-b 0 Set up color-blue 0 (color-blue
adjustment from 0 to 1023)
28 r hue Read hue status

29 s hue 0 Set up hue 0 (hue adjustment from
0 to 60)
30 r saturation Read color-blue status
31 s saturation 0 Set up color-blue 0 (color-blue
adjustment from 0 to 1023)
32 r sharpness Read hue status
33 s sharpness 0 Set up sharpness 0 (sharpness
adjustment from 0 to 30)
34 r nr Read status of noise reduction
35 s nr 0 Set up noise reduction at off (1:Low
/ 2:Middle / 3:High)
36 s pc-auto 1 Enable auto function of PC
37 s pc-reset 1 Return to default setting of PC
38 r pc-h-pos Read horizontal position of PC
39 s pc-h-pos 0 Set up horizontal position 0 of PC (
position adjustment from 0 to 60)
40 r pc-v-pos Read vertical position of PC
41 s pc-v-pos 0 Set up vertical position 0 of PC
( position adjustment from 0 to 60)
42 r pc-phase Read PC phase
43 s pc-phase 0 Set up PC phase at 0 ( PC phase
adjustment from 0 to 30)
44 r pc-wx a-x a Read PC WXGA/XGA status
45 s pc-wx a-x a o Set up WXGA(1:XGA)
46 r mixer Read mixer status
47 s mixer 0 Set up mixer off (1:MIC)
48 r mic-vol Read microphone volume
49 s mic-vol 0 Set up microphone volume 0
(Volume adjustment form 0 to 100)
50 r delay Read audio dela status
51 s delay 0 Set up audio dela off (1: 40ms /
2:110ms / 3:150ms)
52 r mute Read audio mute status
53 s mute 0 Set up audio un-mute (1:Mute)
54 r out-vol Read volume of video output
55 s out-vol 0 Set up volume of video output at 0 (
video volume adjustment from 0 to

100)
56 r hdmi 1-audio Read HDMI 1 audio source
57 s hdmi-1 audio 0 Set up HDMI1 audio source at
automatic (1:Analog / 2:Embedded)
58 r hdmi2-audio Read HDMI 2 audio source
59 s hdmi2-audio 0 Set up HDMI2 audio source at
automatic (1:Analog / 2:Embedded)
60 r dp-audio Read Displa Port audio source
61 s dp-audio 0 Set up Displa port audio source at
automatic (1:Analog / 2:Embedded)
62 r hdmi1-vol Read HDMI 1 audio volume
63 s hdmi1-vol 0 Set up HDMI 1 volume at 0 (volume
adjustment from 0 to 100)
64 r hdmi2-vol Read HDMI 2 audio volume
65 s hdmi2-vol 0 Set up HDMI 2 volume at 0 (volume
adjustment from 0 to 100)
66 r dp-vol Read Displa Port audio volume
67 s dp-vol 0 Set up Displa Port volume at 0
(volume adjustment from 0 to 100)
68 r pc1-vol Read VGA1 audio volume
69 s pc1-vol 0 Set up VGA1 volume at 0 (volume
adjustment from 0 to 100)
70 r pc2-vol Read VGA2 audio volume
71 s pc2-vol 0 Set up VGA2 volume at 0 (volume
adjustment from 0 to 100)
72 r osd-h-pos Read OSD horizontal position
73 s osd-h-pos 0 Set up OSD horizontal position at 0
(position adjustment from 0 to 100)
74 r osd-v-pos Read OSD vertical position
75 s osd-v-pos 0 Set up OSD vertical position at 0
(position adjustment from 0 to 100)
76 r osd-timer Read OSD automatic off time
77 s osd-timer 10 Set up OSD automatic off time at
10 seconds (off time adjustment
from 10 seconds to 100 seconds)
78 r osd-trans Read OSD transparent status
79 s osd-trans 0 Set up OSD transparent status at 0
(transparent adjustment from 0 to

100)
80 r osd-display Read OSD displa status
81 s osd-display 0 Set up OSD displa status to off
(1:INFO,2:ON)
82 r mac-addr Read MAC address
83 r udp Read UDP address
84 s udp 1 Set up UDP address at 1 (UDP
address adjustment from 1 to
65535)
85 r ip-mode Read IP mode
86 s ip-mode 0 Set up IP mode at Static (change
parameter to 1 to DHCP mode)
87 r ip-addr Read IP address (b IP mode)
88 s ip-addr
192.168.001.050
Set up IP address
(000.000.000.000~255.
255.255.255). The IP address onl
allows to read it, it is not allow
setting IP address when under IP
mode at DHCP.
89 r sub-net Read subnet
90 s sub-net
255.255.255.255
Set up Sub Net
(000.000.000.000~255.255.
255.255)
91 r ate-way Read Gate-wa
92 s gate-wa
192.168.000.254
Set up Gate-wa
(000.000.000.000~255.25
5.255.255)
93 r auto-sync-off Read Auto S nc off
94 s auto-sync-off 0 Set up Auto S nc off close (1:Fast,
2:Slow)
95 r auto-input Read auto input status
96 s auto-input 0 Set up Auto-Input off (1:Scan All)
97 r pc1-comp Read COMP IN PC1 status
98 s pc1-comp 0 PC1 support PC signal onl (1:
support
COMP IN)
99 r pc2-comp Read COMP IN PC2 status
100 s pc2-comp 0 PC2 support PC signal onl (1:

support COMP IN)
101 r edid-from Read the copied EDID from output
source
102 s edid-from 0 Set up the copied EDID output
source as None (1:Out1, 2:out2,
3:Default)
103 r edid-to Read the copied EDID from input
source
104 s edid-to 0 Set up the copied EDID input
source as None (1:HDMI1,
2:HDMI2, 3:DP)
105 r edid-copy Read active status of copied EDID
106 s edid-copy 1 Set up to active copied EDID
(0:Inactive)

OSD Menu
OSD Selection Items Adjustable Parameters
Input and output setting menu
Picture settin menu
Audio settin menu
Miscellaneously settin menu
Factory default and settin Menu
Information Menu
Source and Resolution Setting Menu:
OSD Selection Items Adjustable Parameters
SOURCE: HDMI1, HDMI2, DP, PC1,
PC2
SIZE: OVER SCAN, FULL,
FOLLOW INPUT, PAN SCAN,
LETTER BOX,
UNDER 2, UNDER 1
RESOLUTION: 640x480, 800x600,
1024x768, 1280x768, 1360x768,
1280x720, 1280x800, 1280x1024,
1440x900, 1400x1050, 1680x1050,
1600x1200,1920x1080, 1920x1200,
720x480P, 1280x720P60,
1920x1080i60 1920x1080P60,
720x576P, 1280x720P50,
1920x1080i50,
1920x1080P50,NATIVE OUT1,
NATIVE OUT2

HDCP ON INPUT Menu:
OSD Selection Adjustable OSD Selection Adjustable
Items Parameters Items Parameters
ON, OFF ON, OFF
ON, OFF ON, OFF
ON, OFF
Picture Menu for HDMI1, 2, DP:
OSD Selection Items Adjustable Parameters
0 ~ 60
0 ~ 60
0 ~ 1023
0 ~ 1023
0 ~ 1023
0 ~ 60
0 ~ 60
0 ~ 30
OFF, LOW, MIDDLE, HIGH
Menu of Picture Setting for PC1, 2:
OSD Selection Items Adjustable Parameters
0 ~ 60
0 ~ 60
0 ~ 1023
0 ~ 1023
0 ~ 1023

Fine Tune Menu for PC1, 2:
OSD Selection Items Adjustable Parameters
NO, YES
0 ~ 60
0 ~ 60
0 ~ 30
700 ~ 2300
WXGA, XGA
NO, YES
Au io Menu:
OSD Selection Items Adjustable Parameters
OFF, MIC
0 ~ 100
OFF, 40ms, 110ms, 150ms
OFF, ON
0 ~ 100
Embe e Au io Menu:
OSD Selection Items Adjustable Parameters
Automatic, Embedded, Analo
Automatic, Embedded, Analo
Automatic, Embedded, Analo

Input Volume Menu:
OSD Selection Items Adjustable Parameters
0 ~ 100
0 ~ 100
0 ~ 100
0 ~ 100
0 ~ 100

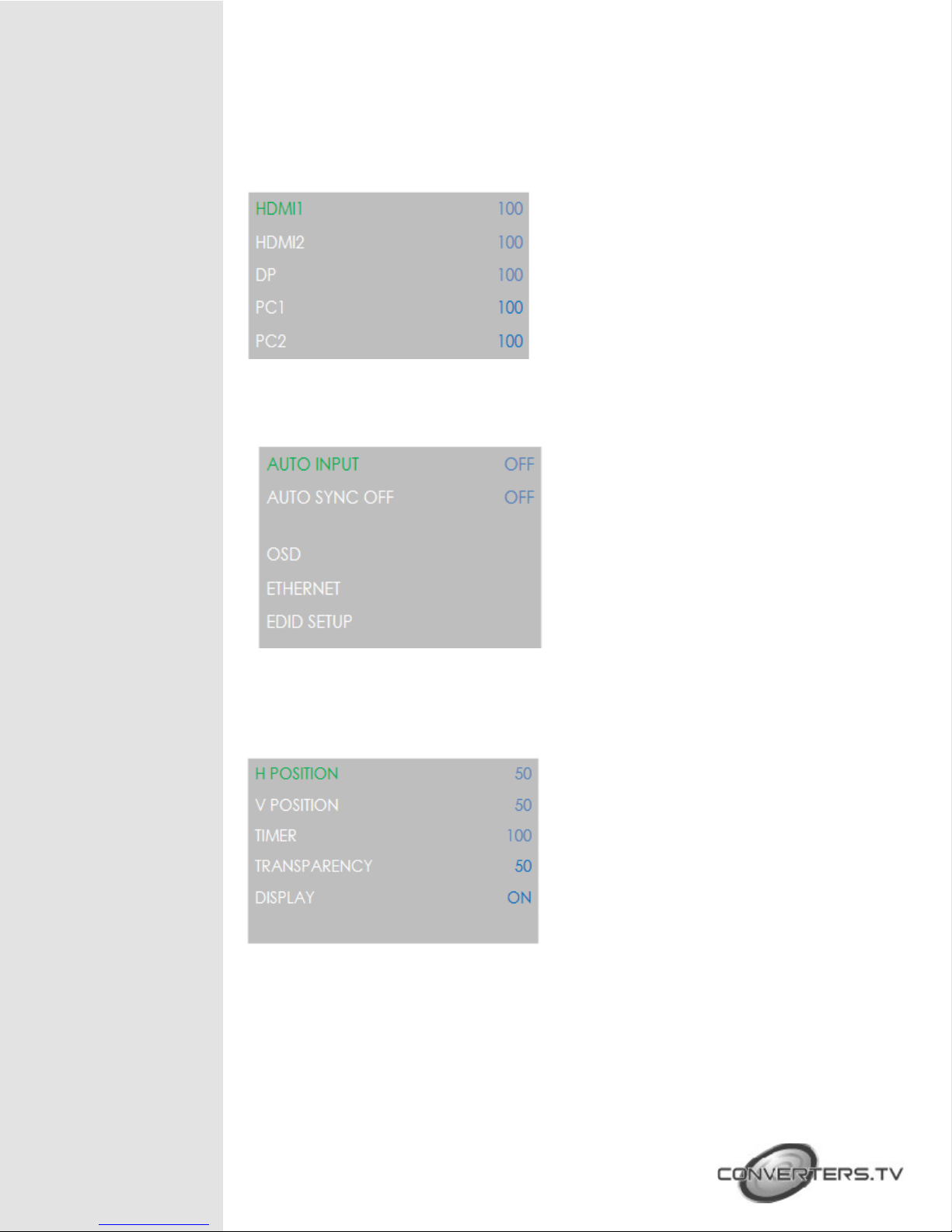

Miscellaneous Setting Menu:
OSD Selection Items Adjustable Parameters
Off, Scan All
Auto S nc Off: Off, Fast (10 sec),
Slow (120 sec)
Note: The Auto s nc off will stop
when scan off be active
OSD Setting Menu:
OSD Selection Items Adjustable Parameters
0 ~ 100
0 ~ 100
10 ~ 100
0 ~ 100
INFO, ON, OFF

Ethernet Setting Menu:
OSD Selection Items Adjustable Parameters
Static, DHCP
0~255, 0~255, 0~255, 0~255
0~255, 0~255, 0~255, 0~255
0~255, 0~255, 0~255, 0~255
1 ~ 65535
Factory default
EDID SETUP: onl provide EDID setting for HDMI and Displa port.
OSD Selection Items Adjustable Parameters
None, Out1, Out2, Default
None, HDMI1, HDMI2, DP
No, Yes
Factory Reset an Up ate Menu:
OSD Selection Items Adjustable Parameters
No, Yes
USB Update

WebGUI
Please enter the IP address to lo in WebGUI. If IP address is unware, please o
to OSD menu information for ettin it.
Telnet

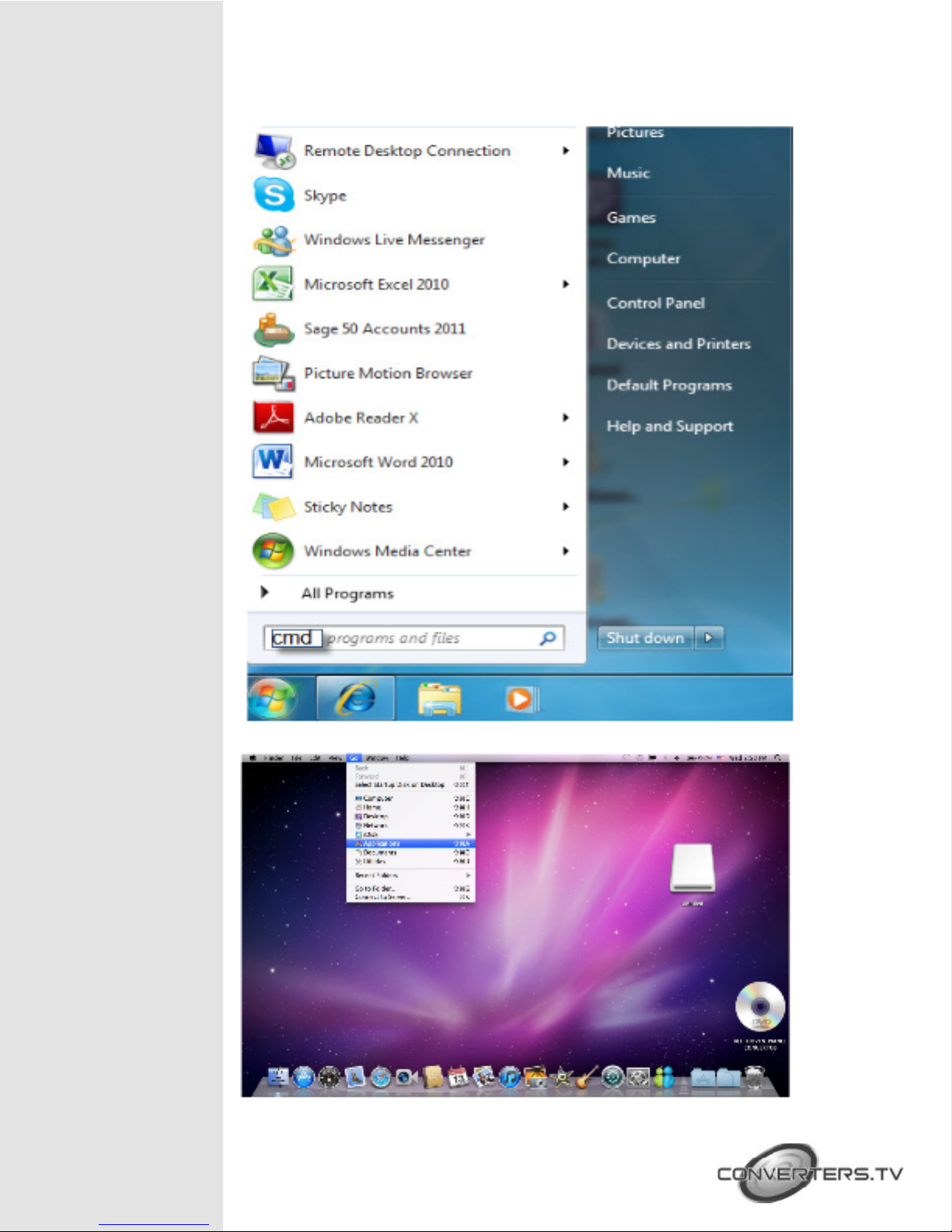

To access the telnet control under MS windows, click ‘Start’ menu and
t pe “cmd” in the search field then press enter.
Under Mac OS X, go to Go → Application → Utilities → Terminal
See below for reference.

Once in the command line interface (CLI) t pe “telnet”, then the IP
address and hit enter. The IP address is available once access to OSD
information menu.
Press “?” then hit enter to bring up all available commands.
Firmware Up ate:
1. Please log in WebGUI. And move mouse courser to blue line

2. Click mouse ri ht key for invokin Firmware update menu
3. Follow the instruction to update Firmware. The update Firmware file is
CSC103TXPL_all.bin.
IR Cable Pin Assignment
D-Sub 9 Pin Definitions
PIN DEFINE TX/RX
1 N/C
2 TxD/RxD
3 RxD/TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C

Cat5e/6/7 Cable Specification
Cable Type Range Pixel Clock
Rate
Vi eo Data
Rate
Supporte
Vi eo
CAT5e/6/7 60m
CAT5e/6/7
<=225MHz <=5.3 Gbps Up to 1080p
8 bits
Timing Support Table
PC, HDMI, DP HDMI & HDBT Output
480i x 576i 480p/576p
480p x 576p 720p@50&60
720p@50&60 1080i@50&60
1080i@50&60 1080p@50&60
1080p@24,25,30,50&60 640x480@60
640x480@60,72,75 800x600@60
800x600@56,60,72&75 1024x768@60
1024x768@60,70&75 1280x720@60
1280x1024@60 1280x768@60
1400x1500@60 1280x800@60
1600x1200@60 1280x1024@60
1680x1050@60 1360x768@60
1280x800@60 1400x900@60
1440x900@60 1400x1050@60
1366x768@60 1600x1200@60
1920x1200@60RB 1680x1050@60
1600x900@60 1920x1200@60
1920x1080@60
