Coway CHPI-620L User manual

Coway Water Filtration Device CHPI-620L
• This product is for domestic use only. It cannot be used in overseas countries where the power voltage
is dierent.
• Warranty card is included in this user’s manual.
• Read and save these instructions.
• English/French/Spanish/Chinese/Korean

BENEFITS OF COWAY WATER FILTRATION DEVICES
A water ltration device with an ice-making
feature
It is conveniently designed to provide cold water and ice.
Simple ice dispensing lever
The user can easily get ice just by gently pressing the ice dispense
lever.
Dispenser hole lighting
When an ambient/cold/hot water or ice outlet is in use, a soft lamp
will light up.
Front draining system
Hot water can be drained from the front simply by opening the
front drain cover, without moving the product.
Locking feature (ice/hot water dispenser)
With ice/hot water locking features, children and the elderly can
use the product safely.
Power saving feature with a light sensor
When the Power Saving button is pressed, the number of motor
and heater operations will decrease automatically at night,
reducing power consumption.
Removable internal water tank for cleaning
purpose
Since the internal water tank is removable, it can be cleaned easily.
* The cleaning procedure for internal water tank should be performed by
trained professionals only.
Fine particle ltering system
Plus Inno-Sense Filter minimizes the amount of ne dust that can
enter the internal water tank.
2
3
4
6
7
8
5
1

2
1
Thank you for using Coway Ice Water Filtration Device.
Please read this User Manual to learn about proper usage and maintenance of the product.
When a problem occurs while using the product, it can be solved by referring to the instructions
in this manual. As this manual contains the Product Warranty Card, please keep it in a safe place.
DEAR CUSTOMERS
- Always keep the User Manual in a place that can be easily accessed. -
CONTENTS
For Information How to use
Maintenance Others
| 03 | Safety Information
Regarding Power Supply
Regarding Installation
During Use
Others

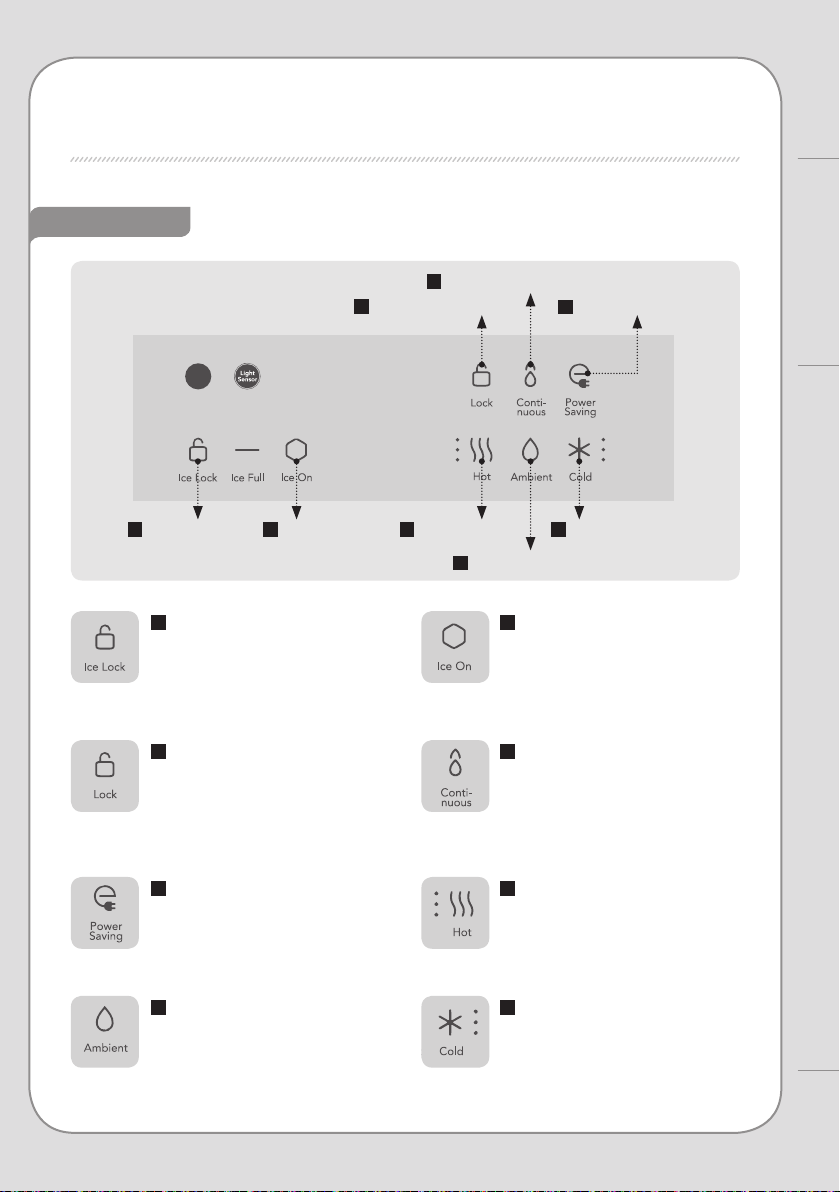

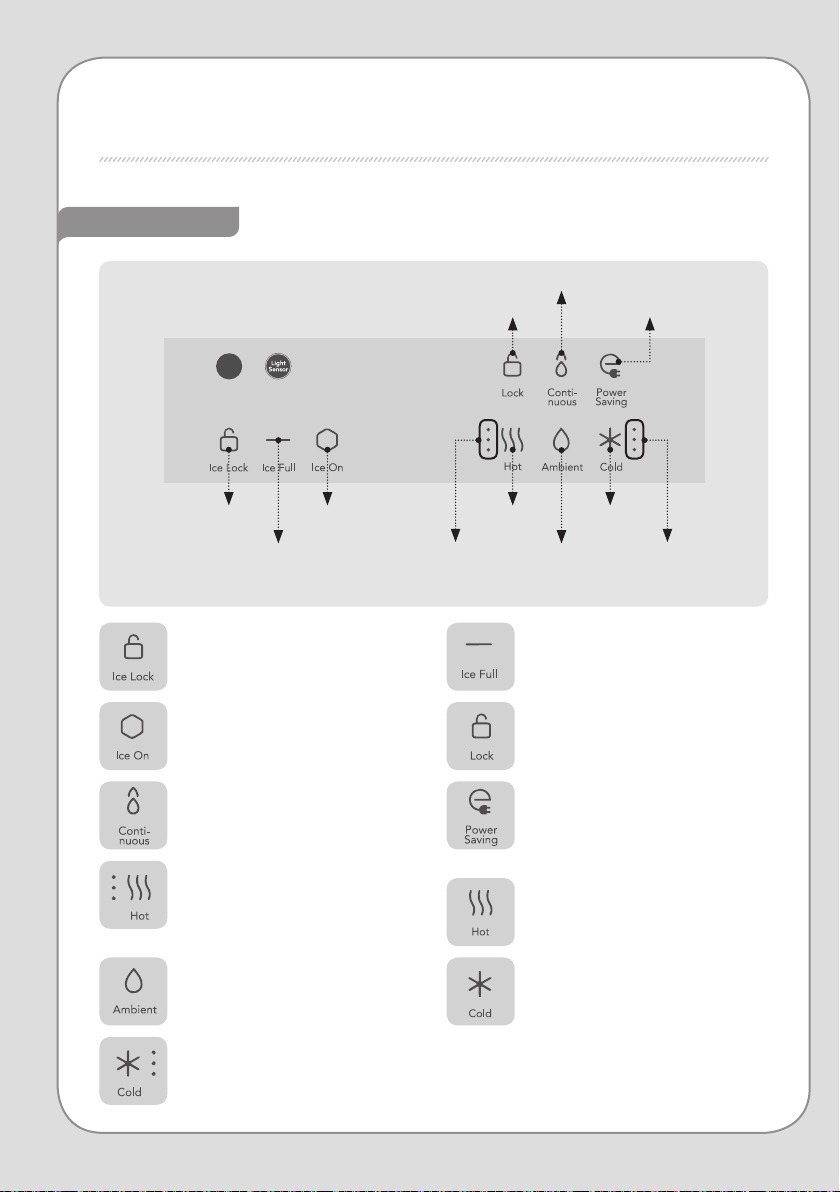

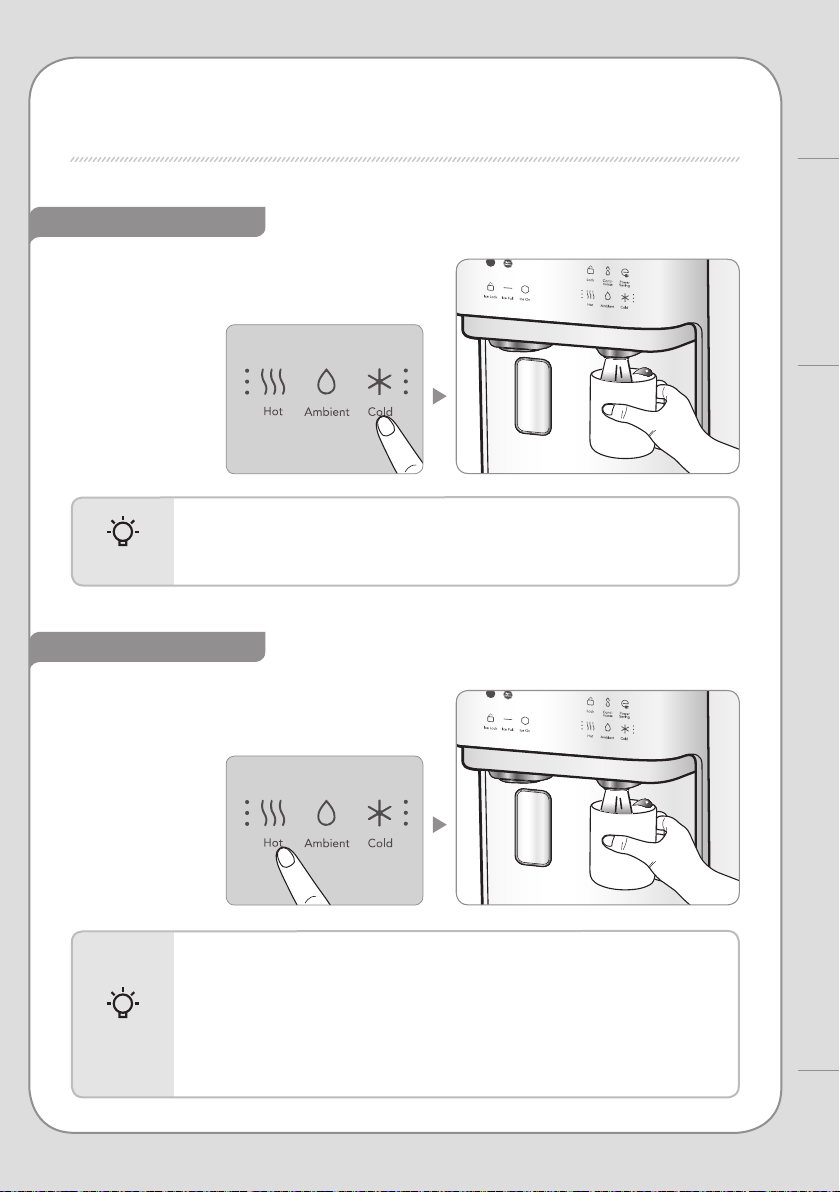

| 07 | Parts Name
| 09 | Water Filtration Process
| 10 | Please Check Before Use
| 11 | Buttons and Indicators
| 14 | How to Get the Desired Water
How to Get Cold Water
How to Get Hot Water
How to Get Ambient Water
How to Get Ice
| 16 | How to Install
| 18 | How to Clean (Cody Heart Service)
How to Clean the internal water tank
| 21 | Cleaning Method (for customers)
How to Clean the Drip Tray
How to separate and clean the basket
How to Clean the Faucet Cap
| 22 | Filter Replacement
| 23 | How to Replace the Filter
| 25 | Troubleshooting
| 26 | Product Specications
| 27 | Water Flow Diagram
| 28 | PERFORMANCE DATA SHEET
| 33 | Product Warranty Card
BENEFITS OF COWAY WATER FILTRATION DEVICES / DEAR CUSTOMERS / CONTENTS
Coway

SAFETY INFORMATION
If not observed,
serious injury
or property
damage could
occur.
If not observed,
serious injury
or property
damage could
occur.
If not observed,
minor injury
or property
damage could
occur.
DANGER WARNING CAUTION
Please follow the instructions as they are for your safety.
Please read this information to ensure your safety and prevent property damage.
Please read the cautions carefully and use the product correctly.
Regarding Power Supply
Do not use a damaged power plug or loose outlet.
If not observed, electric shock or re could occur.
Do not pull on the power cord.
If not observed, electric shock or re could occur.
Do not move the product by pulling the product with the power cord.
If not observed, electric shock or re could occur.
Do not touch the power plug with wet hands.
If not observed, electric shock or re could occur.
To prevent the power cord from being damaged or deformed, do not forcefully
bend it or put it under heavy objects.
If not observed, electric shock or re could occur.
Do not plug and unplug the power plug repeatedly.
If not observed, electric shock or re could occur.
If the electric outlet is wet, carefully unplug the unit and let the electric outlet
completely dry before subsequent use.
If not observed, electric shock or re could occur.
Make sure the product is unplugged while the product is being repaired, inspected,
or when its parts are being replaced.
If not observed, electric shock or re could occur.
Remove any dust or water off the pin and contacts of the power plug.
If not observed, electric shock or re could occur.

4
3
Regarding Installation
Do not plug into an outlet that is being used by several other appliances. Use a
dedicated outlet.
If not observed, electric shock or re could occur.
When you do not want to use the product for an extended period, shut off the main
water supply valve and unplug the product.
If not observed, electric shock or re could occur.
Do not arbitrarily connect or bend the power cord.
If not observed, electric shock or re could occur.
If the power cord is damaged, do not replace the cord by yourself. Call the Coway
Service Center to have it replaced.
If not observed, electric shock or re could occur.
Do not install near a heating device.
If not observed, re could occur.
The main water must be supplied to the cold water tube.
Supplying the main water to the hot water tube may cause breakdown of the product or
accidents.
Do not subject the product to constraint or impact.
If not observed, the product may be damaged.
Do not install the product on a sloped oor. Do not subject the product to
constraint or impact.
If not observed, physical injury and product damage could occur.
Do not install the water filtration system in a damp place, a place where dust is
present, or a place where water drips.
If not observed, electric shock or re could occur.
For Information SAFETY INFORMATION

SAFETY INFORMATION
If not observed,
serious injury
or property
damage could
occur.
If not observed,
serious injury
or property
damage could
occur.
If not observed,
minor injury
or property
damage could
occur.
DANGER WARNING CAUTION
During Use
When water leaks inside the product or water pools around the product, shut off
the water supply valve and unplug the product, and call the Service Center.
If not observed, electric shock could occur.
If the product produces a strange noise, burning smell, or smoke, immediately
unplug it from the electrical outlet and call the Service Center.
If not observed, electric shock or re could occur.
Do not put a candle or a cigarette out on the product.
If not observed, re could occur.
Do not place a bowl lled with water, medicine, food, small metallic objects, or any
ammable materials on the product.
If the content of any of the above material spills into the product, electric shock, re or damage
could occur.
Do not hold onto the cold/hot/ambient water/ice dispenser hole on the product
front. In particular, make sure that children do not play with the dispenser holes.
If the product collapses, it could cause physical injury and product damage.
Close the water tank cover inside completely before use.
Insects or other foreign particles can enter the product.
When the user has not used the product for an extended period, drain the saved
water completely and rinse out the newly lled water once before using it.
The saved water could be polluted.
Do not allow hot water to come in contact with body parts.
If not observed, burns could occur.
To drink the filtered water, change the filter according to the filter replacement
cycle.
If the user uses an old lter whose expiration date has passed, the system performance may
degrade.

Others
6
5
Unplug the electrical power cord before cleaning.
If not observed, electric shock or re could occur.
Do not repair, disassemble, or modify the product arbitrarily.
If not observed, electric shock or re could occur.
Do not clean by spraying water directly and do not wipe the product using
benzene or other thinners.
If not observed, electric shock or re could occur.
Do not use filtered water for an aquarium or a fishbowl.
The water ltered through a membrane removes ionic substances, possibly making it not suitable
for sh to live in. In some cases, the ltered water might kill sh.
For Information SAFETY INFORMATION

PARTS NAME
Front
Cold/Hot/Ambient Water Faucet
Control Part
Cup Dispenser Touch Lever
Drip Tray
Front Drain Cover
(Hot water)
Front Cover
Ice Dispenser Hole
Height-adjusting Feet

8
7
Back
Parts
Top Cover
Rear Cover
Radiator Grill
Inlet Hose for the Main
Water Supply (Orange)
Outlet Hose for
Reject Water (Blue)
Power Cord
User Manual Drain Hose Fitting ClipDistance
Maintenance Rod
Antibacterial
Filter
For Information PARTS NAME

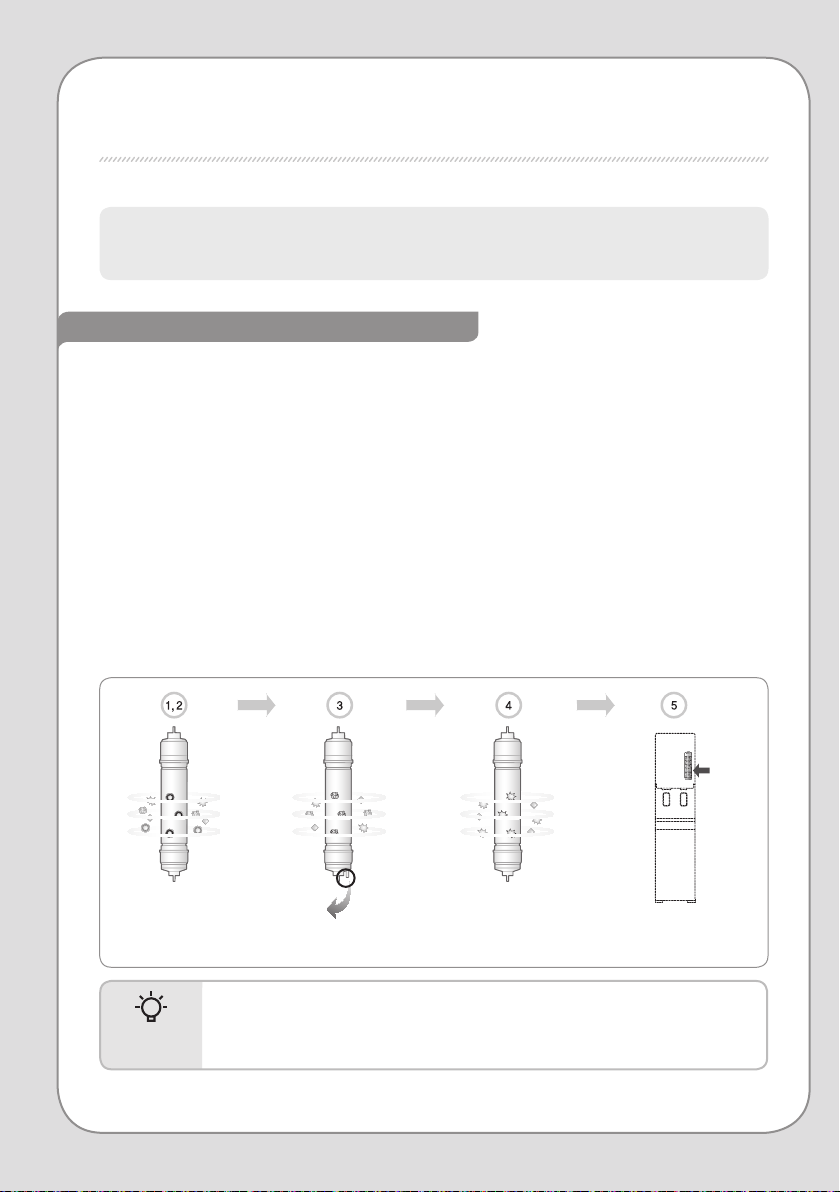

WATER FILTRATION PROCESSES
The essence of the water ltration system lies in the lters.
Using a lter that is not certied or even using a certied lter for too long may compromise the
lter performance.
Uses of reject water
- Reject water can be used for cleaning the bathroom, around the house,
washing clothes, or purposes other than drinking.
- Never use the reject water for drinking or cooking.
Tips
Neo-Sense
Filter
Membrane lter
(RO)
Plus Inno-Sense lter Antibacterial
Filter
Reject water
Outlet
The 5-step water filtration system (CHPI-620L)
First lter: Neo-Sense lter
Step 1: Neo-Sense lter removes particulate materials, such as sand and rust, from the main water supply.
Step 2: Removes chlorine from the main water supply and protects the membrane lter.
2nd lter: Membrane lter (RO)
Step 3: Membrane lter (RO) removes pollutants, including heavy metals, microorganisms, organic matters,
and inorganic ions. The water with concentrations of harmful substances (reject water) is drained
inside the reject water drain hose.
3rd lter: Plus Inno-Sense lter
Step 4: Plus Inno-Sense lter improves the water’s taste by removing odor-causing substances, soluble
pollutants, chlorine, and volatile organic compounds.
4th lter: Antibacterial lter
Step 5: The antibacterial lter inhibits microorganism development.
Anti-
bacterial
lter

10
9
PLEASE CHECK BEFORE USE
This water ltration unit must be plugged into its own
dedicated 120 V~ 60 Hz, AC only electric outlet.
It must be plugged into a grounded 120 V~ 60 Hz outlet. It must
be connected to a power source for the product to work normally.
Please check before use!
 Open the main water supply valve.
The main water supply must be turned on
for the product to work normally.
 When the indicator in the indication part
is turned off.
When the indicator in the indication part is
turned o, check if the power supply was
shut o due to power failure or other causes.
 When the user has not used the product
for a long time
When the user has saved water for a long
time or has not used water for a while, drain
the water inside the water filtration device
completely, and rinse out the newly filtered
water one time before use.
 After installing the water filtration
system
Following the product installation, make
sure the water tank is emptied or the water
is ltered for 50 minutes or longer. (Empty
the water tank filled with filtered water two
times or more.)
 Regular lter replacement
It is very important to replace the filter
regularly to maintain the intended water
quality. If the filter is used beyond its service
life, the performance of the water filtration
device will deteriorate. Take note of the filter
replacement cycle.
 When the user does not want to use
product for an extended period
Close the main water supply valve and
unplug the power cord.
Close the main water supply valve and unplug the power cord.
Tips
How to Use WATER FILTRATION PROCESSES / PLEASE CHECK BEFORE USE

BUTTONS AND INDICATORS
Indication Part
2Ice Full Indicator
The indicator is on when the ice
storage compartment is full.
1Ice Lock Indicator
The indicator is on when the Ice Lock
feature is selected.
4Lock indicator
The indicator is on when the lock
feature is selected.
3Ice On Indicator
The indicator is on when ice-making
feature is selected.
6Power Saving indicator
The indicator is on when the Power
Saving feature is selected. (The indicator
will blink when the Power Saving mode
is on.)
7Hot Water Temperature
Indicator
The indicator light will light up
according to the hot water temperature.
8Hot Water Indicator
The indicator is on when the Hot
Water feature is selected.
0Cold Water Indicator
The indicator is on when the Cold
Water feature is selected.
!Cold Water Temperature Indicator
The indicator light will light up according to the selected cold water
temperature.
9Ambient Water indicator
The indicator is on when the Ambient
Water feature is selected.
5Continuous dispense indicator
The indicator is on when the
Continuous dispense feature is selected.
1Ice Lock Indicator
2Ice Full Indicator
6Power Saving Indicator
4Lock Feature Indicator
8Hot Water
Indicator
0Cold Water
Indicator
3Ice On Indicator
5Continuous Dispense Indicator
9Ambient Water
Indicator
7Hot Water
Temperature
Indicator
!Cold Water
Temperature
Indicator

12
11
Control Part
1
Ice Lock Button
5
Power Saving Button
3
Hot Water Lock Button
6
Hot Water Button
8
Cold Water Button
2
Ice On Button
4
Continuous Dispense Button
7
Ambient Water Button
2
Ice On Button
Use this button to activate/
deactivate the ice-making feature.
(Press and hold)
5
Power Saving Button
Use this button to activate/
deactivate the Power Saving
feature. (Press and hold)
6
Hot Water Button
Use this button to activate/
deactivate the Hot Water feature.
(Press and hold) Use this button to
dispense hot water. (Press shortly)
3
Hot Water Lock Button
Use this button to activate/deactivate
the Hot Water Lock feature. When
locked, no hot water will be dispensed
even if the dispenser lever is pressed.
(Press and hold)
1
Ice Lock Button
Use this button to activate/deactivate
the Ice Lock feature. When locked,
no ice will be dispensed even if the
dispenser lever is pressed. (Press and
hold)
7
Ambient Water button
Use this button to dispense
ambient water.
8
Cold Water button
Use this button to activate/
deactivate the Cold Water feature.
(Press and hold) Use this button to
dispense cold water. (Press briey)
4
Continuous Dispense
Button
Use this button to dispense
water continuously. The user can
dispense water continuously for
approximately 1 minute.
BUTTONS AND INDICATORS
How to Use

BUTTONS AND INDICATORS
How to use the Cold Water feature
Press the Cold Water button for a few seconds and
check if the Cold Water indicator is on.
The indicator light will light up based on the cold
water temperature.
Press the Cold Water button again for a few
seconds to deactivate it.
How to use the Hot Water feature
Press the Hot Water button for a few seconds and
check if the Hot Water indicator is on.
The indicator light will light up based on the hot
water temperature.
Press the Hot Water button again for a few seconds
to deactivate it.
* It takes about 30 minutes to dispense hot water
after activating the Hot Water feature.
How to use the ice-making feature
Press the Ice On button for a few seconds and
check if the Ice On indicator is on.
Press the Ice On button again for a few seconds to
deactivate it.
How to use the Power Saving feature
When pressing the Power Saving button for a few
seconds, the Power Saving indicator will turn on.
When this indicator is lit, the motor and heater
reduce the operation at night, allowing you to
save energy.
* Activating Power Saving mode at night may
result in fewer ice cubes dispensed as the ice-
making feature will be suspended regularly.

14
13
Push the Cold Water button and press a glass against
the dispenser lever to dispense cold water.
Push the Hot Water button and press a cup against the
dispenser lever to dispense hot water.
HOW TO GET THE DESIRED WATER
How to Get Cold Water
How to Get Hot Water
- If the unit does not dispense cold water, check if the Cold Water indicator is
on (refer to P.11).
- If the Continuous dispense button is pressed before or during dispensing,
hot water will be dispensed continuously.
- If the unit does not dispense hot water, check if the Hot Water indicator is
on (refer to P.11).
- The hot water feature will be deactivated after some time, and the cold
water feature will be activated automatically. (If the Cold Water feature was
selected previously, or if none was selected, the Ambient Water feature will
be activated)
- If the Continuous dispense button is pressed before or during dispensing,
hot water will be dispensed continuously.
Tips
Tips
BUTTONS AND INDICATORS / HOW TO GET THE DESIRED WATER
How to Use

Push the Ambient Water button and press a glass against
the dispenser lever to dispense ambient water.
Please check if the Ice On indicator is on. Press a glass against the ice dispenser lever to get ice.
* When ice is dispensed, a little amount of water from melted ice may
be dispensed also.
* Be careful of a possible splash of what is inside the glass.
HOW TO GET THE DESIRED WATER
How to Get Ambient Water
How to Get Ice
- If the unit does not dispense ambient water, check if the Ambient Water
indicator is on (refer to P.11).
- If the Continuous dispense button is pressed before or during dispensing, hot
water will be dispensed continuously.
- If the unit does not dispense ice, check if the Ice indicator is on (refer to P.11).
- Ice will be dispensed only when the ice dispenser lever is pressed.
Have the ice dispenser lever pressed continually while getting ice.
- When ice cubes are dumped into the storage tank, a clattering noise may be
heard.
Tips
Tips

16
15
HOW TO INSTALL
Installation Guide

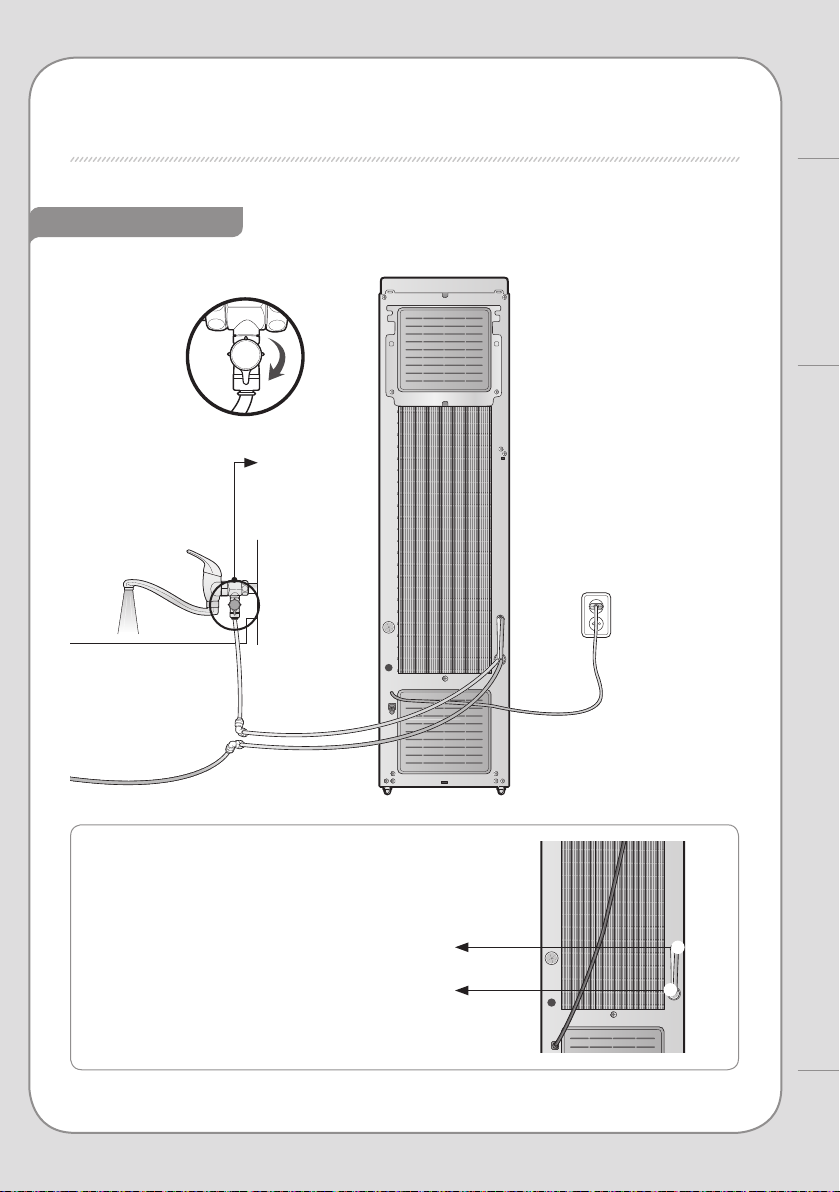

Connect the orange inlet hose into the tap water supply
pipe1. Connect the reject water drain hose2.
Main Water
Supply Valve
For own dedicated
120 V~ 60 Hz, AC only
electric outlet
Tap water supplying hose
(orange) tubing
Reject water outlet hose
(blue) tubing (CHPI-620L)
1
2
HOW TO GET THE DESIRED WATER / HOW TO INSTALL
Maintenance

Where to install the water
ltration unit I
Install the product in a cool part of the
room, on an even surface, out of direct
sunlight and away from humidity, dust, and
dripping water.
After installing the water
ltration unit
Filter the water for more than 50 minutes
or ll and drain once before using the unit.
(Drain the ltered water more than twice.)
Cold water tubing
Make sure the unit is connected to the cold
water supply line.
(If connected to the hot water supply line,
the ltration unit may be damaged.)
Water ltration installation
location II
Allow a clearance of 10 cm or more behind
the product, and level the water ltration
unit.
Relocation and installation
Following relocation of the unit, plug in
the electric power cord 30 minutes after
installation is complete.
There may be some water remaining inside the filter, which was used to
test the product during inspection process.
Please rest assured that it is a brand new product.
When installing this new ltration unit, do not reuse the main water
supply valve and hose.
Tips
Be Careful!
HOW TO INSTALL

18
17

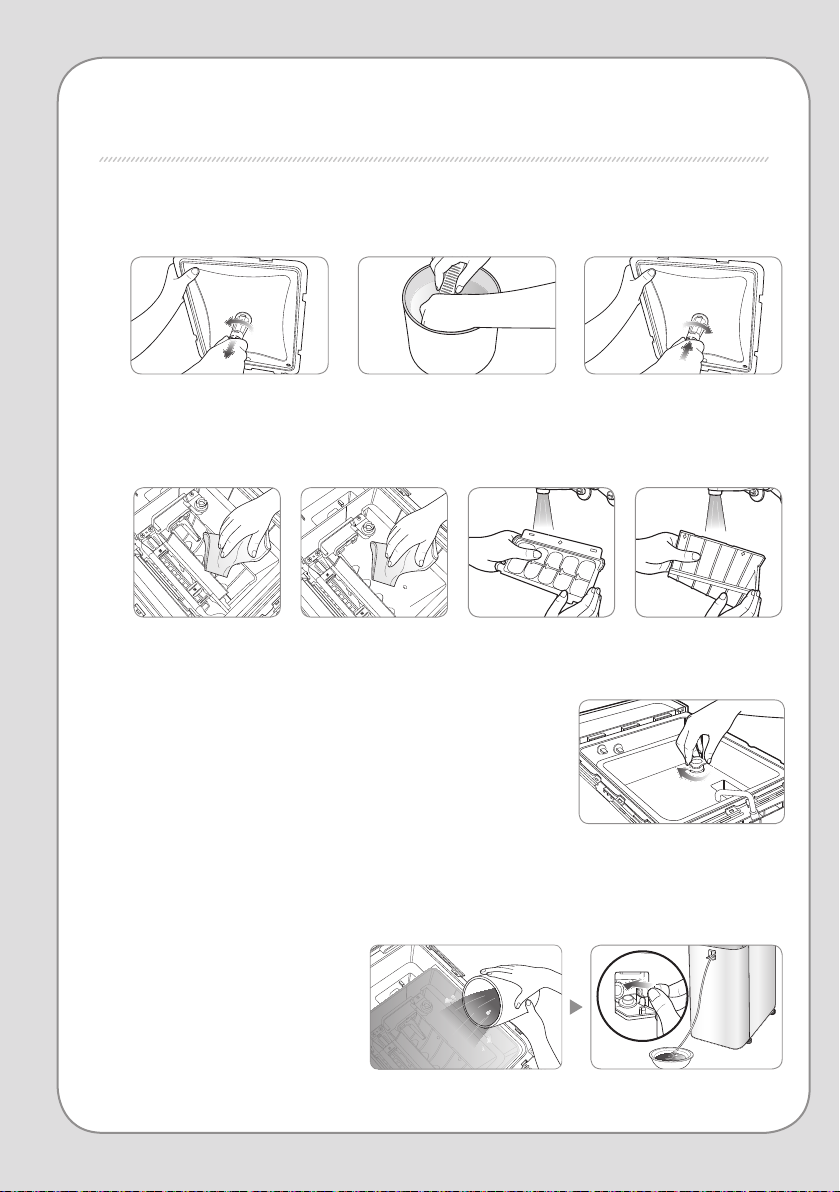

1. Use the drain hose to completely drain the water from the internal tank, and save
the drained water.
* For cold water, push the Cold Water button and press the dispenser lever to drain cold water.
* For ambient/hot water, open the front drain cover and use the
drain hose to drain the water.
2. Press the Cold/Hot Water button for
approximately 3 seconds at the front of the unit
to turn off the feature, and close the main water
supply valve before draining the water from the
cold water tank completely.
When draining is complete, unplug the electric
power cord.
3. Lift the top cover open, unlock the xing latches (6) on the internal water tank, take
the hose out, and open the internal water tank cover. Unscrew the internal water
tank xing latches and separate the internal water tank, ice tray, and internal tank.
HOW TO CLEAN
How to Clean the Internal Water Tank
►
►
►
►
►
►
► ►
HOW TO INSTALL / HOW TO CLEAN
Maintenance

4. Separate the antibacterial filter from the cover of the internal water tank and shake
& rinse it out in clean stored water before putting it back in.
5. Please wipe the inside of the cold water/ice storage tank, and the surface of the
evaporator using a soft cloth.
6 Install the internal water tank in the unit and lock the
xing latches of the internal water tank clockwise.
* If the internal xing latches are not turned tightly, leaks may
occur.
7. Use clean water to rinse out the internal water tank, use the drain hose to drain the
water completely, and rinse out the newly lled ambient water.
►►
► ► ►
HOW TO CLEAN
