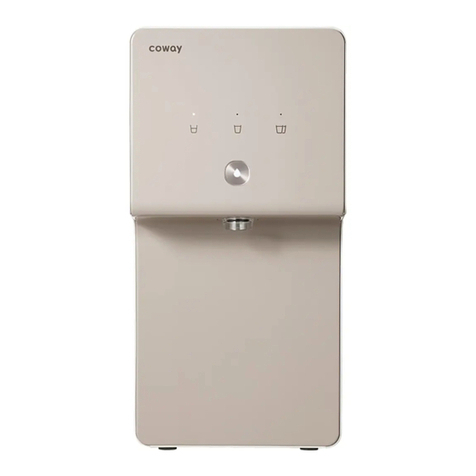

Coway CHP-06DL User manual

CHP-06DL
User、s ManualUser、s Manual
This Water Purifier is for domestic use. It can not be used in overseas where
the power rate is different.
For the right operation of Coway Water Filtration System read this manual.

2
3
4
5
02
To prevent accidents to inquisitive children, a hot
water lock is installed. Hot water cannot be
extracted when the lock is turned on. When trying
to extract water, alarm sound goes off.
More convenient, having cold, hot and room
water coming out of a single faucet.
The system automatically controls the operation
of the cooler according to the ambient light
conditions, decreasing noise and energy use.
A display window shows mode status (cold-water
/hot-water modes) at a glance, enabling easy
confirmation.
Hot water lock, hot water alarm sound
Extract cold, hot and room water
from a single faucet
Automatic energy saving decreasing
noise function
Display window showing the product
conditions at a glance
03
C
O
W
A
Y
FEATURES
Select the mode (cold/hot/room water) you want,
and touch the extraction part; you can extract a
cupful of water (or extract continuously), which is
very convenient.
Electronic, one-touch extraction of water
1
>> Coway Water Filtration System has differentiated function.
DEAR CUSTOMERS
For information How to use
Please Keep in Mind
13
Preparations
17
Operation Part/Indication Part
19
How to Operate
22
22
22
‐ To drink cold water
23
‐ To drink room water
23
‐ Fixed quantity extraction
23
‐ Continuous extraction
‐ To drink hot water
Installation and cleaning
24
26
26
28
29
31
Others
Features
‐ Electricity Safety
‐ Installation Safety
Safety Information
04
04
06
‐ Operation Safety
07
‐ Others
09
Names of Each Part
11
Water Filtration Process
12
Installing Method
‐ Inside water tank
‐ Gutter
Cleaning Method
Filter Replacement and Daily Check
Filter Replacement Method
 
Before Asking A/S
33
Specification
35
Water Flow Diagram
36
Warranty Information
37
First of all, we would like to thank you very much for purchasing this Coway water
filtration system. This product is superior to the ones in the past in function and we believe
that it will provide you with cleaner and healthier water. We would like to recommend
you to read this User's Manual carefully for proper operation and maintenance and keep
this manual well together with the warranty. This user's manual could solve your problem
so that you can easily fix by yourself in just a few minutes.
This system (CHP-06DL) conforms to NSF/ANSI 58 for the reduction of Pentavalent
Arsenic, Barium, Cadmium, Mercury, Selenium, Radium 226/228, Trivalent chromium,
Hexavalent chromium, Lead, Nitrate/Nitrite as verified and substantiated by test data. This
system (CHP-06DL) conforms to NSF/ANSI 42, 53 for the reduction of Chlorine and VOC
as verified and substantiated by test data. This system is acceptable for treatment for
influent concentrations of no more than 27mg/L nitrate and 3mg/L nitrite in combination
measured as N and is certified for nitrate/ nitrite reduction only for water supplies with a
pressure of 280kPa(40psig) or greater.
Contents

04 05
SAFETY INFORMATION
Please read this information to prevent property loss and ensure your safety.
Electricity Safety
05
Do not plug into an outlet or
power strip that is being used
by several other appliances.
Use a separate outlet for the unit.
Fire may occur as a result.
Close the main water supply valve
and unplug the power cord when
not using for a long time.
Electrical shock or fire may occur
as a result.
Do not attempt to repair the
power cord.
Electrical shock or fire may occur
as a result.
Unplug the unit before repair,
inspection, or replacement.
Electrical shock may occur as
a result.
Do not run the power cord under
a heavy object to prevent it from
being damaged.
Electrical shock or fire may occur
as a result.
If the cord or plug is wet, unplug
the unit and let it completely
dry before subsequent use.
Electrical shock or fire may occur
as a result.
If not observed, serious
injury or even death
could occur.
Danger
If not observed, serious
injury or property damage
could occur.
Warning
If not observed, slight
injury or property damage
could occur.
Caution
Do not use a damaged power
cord or plug, and loose outlet.
Electrical shock or fire may occur
as a result.
Do not unplug by pulling the cord
or handle the plug with wet hands.
Electrical shock or fire may occur
as a result.
For Information Safety Information Electricity Safety
-

06 07
SAFETY INFORMATION
Installation Safety
The length of the water inlet hose
must be 5 m or less.
If it is longer, it may degrade the
product’s performance.
Use or place the unit on a level area
and do not apply force to the unit.
Injury to the user or damage to the
unit could result.
The length of the water outlet hose
must be 25cm or less.
If it is longer, it may degrade the
product’s performance, and prevent
complete drainage of water.
Danger Warning Caution
Please read this information to prevent property loss and ensure your safety.
Do not repeatedly plug and unplug
the unit from the electrical outlet.
Electrical shock or fire may occur
as a result.
Do not use if the cord appears to
be damaged. Please ask Customer
Service to replace the cord.
Electrical shock or fire may occur
as a result.
Keep the product away from the
inflammables gas or burnable
material.
Electrical shock or fire may occur
as a result.
Remove any dust or water if it’s
on the plug.
*Never use Benzene or gasoline
to clean the plug.
Electrical shock or fire may occur
as a result.
Do not install the unit near
heaters.
Fire may occur as a result.
For Information Safety Information Electricity Safety Installation Safety Operation Safety
-
-
-
Operation Safety
Cut off the supplying valve and plug
out, then call to A/S center in the
case of any water
Leakage from the product.
Electrical shock or fire may occur as
a result.
Electricity Safety

08 09
SAFETY INFORMATION
Danger Warning Caution
For Information
When water if stored or the
product is not in use for a long
time, drain all the water in the
storage tank before use.
Stored water may get contaminated.
When moving the product or replacing
the fine post-carbon filter there may be
black residue particles under the tank
bottom stored water may get
contaminated.





Periodical filter replacement is
prerequisite for getting clean water.
In case filters are overused, the
performance of filters is deteriorate.
Be careful not to get burned
by the hot water while
extracting or draining.
Get burned may occur as a result.
Safety Information Operation Safety Others
-
-
Immediately unplug and call the
Customer Service center if the unit
makes a strange noise
or odd smell.
Fire may occur as a result.
Please use after completely closing
the cover of the water tank in the
product.
Bugs or other substances might get
inside the product.
Do not put a candle, cigarette or
any other flammable object on it.
Fire may occur as a result.
Do not place dishes or containers
of water, drugs, food, or small metal
objects on top of the product.
Danger of electric shock, fire, or product
damage if water or alien substances get
into the product.
Others
Do not spray water or wipe them
with benzene when cleaning .
Electrical shock or fire may
occur as a result.
Please read this information to prevent property loss and ensure your safety.
Operation Safety

10 11
SAFETY INFORMATION
Do not repair, disassemble, or
modify.
Electrical shock or fire may occur
as a result.
Do not use filtered water for the
water exchange of an aquarium
or a fishbowl.
Certain fish may die as a result.
Do not lift or move the product with
extraction faucet.
Danger of leakage or malfunctioning
The filtration system installation shall
comply with state and local laws and
regulations. Do not use with water
that is microbiologically unsafe or of
unknown quality without adequate
disinfection before or after the system.
NAMES OF EACH PART
Cold/Hot/Room Water
Extraction faucet
▶
Gutter
▶
Power Cord
▶
Radiator
▶
Top Cover
▶
Inlet(Orange)
▶
Outlet(Blue)
▶
Front
Rear
Light detection sensor
▶
Operation Part
▶
Selection Button
▶
Safety Information Others Names of Each Part
-
/
For Information
Do not carry the unit by its
power cord.
Electrical shock or fire may
occur as a result.
Please read this information to prevent property loss and ensure your safety.
Others

12 13
WATER FILTRATION PROCESS PLEASE KEEP IN MIND
The filter is the core technology of the filtration system. If you don’t use qualifying filter
or if you use an old filter that has expired, the system performance may degrade.
How to Use
NEO-SENSE FILTER
Reduces various foreign bodies that come from the feed water pipe such as dirt, sand,
rust particles, VOCs and chlorine.
MEMBRANE FILTER (RO)
POST-CARBON BLOCK FILTER
The RO(Reverse Osmosis) Membrane filter reduces Pentavalent Arsenic, Barium, Cadmium,
Mercury, Selenium, Radium 226/228, Trivalent chromium, Hexavalent chromium, Lead,
Nitrate/Nitrite. The influent water to the system shall include the following characteristics.
∙No organic solvents ∙Chlorine : < 2 ppm ∙pH : 7-8 ∙Temperature : 41-95 ℉(5-35 ℃)
∙Iron : < 2 ppm ∙Turbidity : < 1 NTU ∙Hardness : < 1000 mg/L
It is a composite filter. The post-carbon filter removes odor of water and improve water
taste. And the filter sensor eliminates the dust particles in the post-carbon filter.
Restraints propagation of the microorganism inside water tank and enhances sanitation.
 The 6-step water filtering system (CHP-06DL)
Disposed
Water
Outlet
NEO-SENSE
FILTER
POST-CARBON
BLOCK FILTER
MEMBRANE
FILTER
CERAMIC FILTER
CERAMIC FILTER
The disposed water shall be used for cleaning a toilet, a house, dishes, and as
water for sundry uses. However, please do not use it for potable water or
cooking water.
WARNING
This system conforms to NSF/ANSI 58 for the reduction of Barium, Radium
226/228, Cadmium, Lead and TDS as verified and substantiated by test data.
Water Filtration Process Please Keep In Mind
/
 The summary for the proper installation of the water filtration system.
1 Connect the power cord to the
voltage rating that matches it on
the rating plate only.
2 Close main water supply valve
to separate the faucet.
3 Wind the teflon tape on the adaptor
and fit it to the pipe.
4 Connect the faucet with the
adaptor.
5 Connect ¼orange tubing with
the connector on the adaptor.
Do not turn the water pipe.
Shall install the adaptor with connector on
the cold water pipe.
Flush water through each filter at least 5
minutes before Connection

14 15
 The summary for the proper use of the water filtration system.
To drink cold water, the cold water function must be operating.
Press the cold button for three seconds, and the cold water mode lamp
comes on; you can then use cold water. (See P. 20). If you don’t need the
cold water, press the cold button again for three seconds, and the lamp
goes out, exiting cold water mode.
1 Select the cold button to drink cold water.

PLEASE KEEP IN MIND
To drink cold water, select the cold
button and touch the extraction part,
and you can extract a cupful of water.
If you touch the extraction part again
during extraction, water stops
flowing.(See
P. 22)
2 To drink cold water, press the
cold button after the cold water
lamp comes on.
Select the room water button and
touch the extraction part, and you
can extract a cupful of water. If you
touch the extraction part again
during extraction, water stops
flowing.
3 To drink room water, select the
room button.
To drink hot water, the hot water function must be operating.
Press the hot button for three seconds, and the hot water
mode lamp comes on; you can then use hot water. (See
P. 21).
If you don’t need the hot water, press the hot button again for three
seconds, and the lamp goes out, exiting hot water mode. (The mode
automatically returns to cold water mode three seconds after the hot
water mode is selected).
4 Select the hot button to drink hot water.

6 Open the main water supply
valve to supply water to the
product.
Discard first 2 tanks of water.
How to Use Please Keep In Mind
 The summary for the proper installation of the water filtration system.

16 17
PLEASE KEEP IN MIND
 The summary for the proper use of the water filtration system.
7 Need for periodical filter
change and maintenance.
To drink clean water, the filter needs to be changed and cleaned
periodically.
Change the filter according to the filter replacement cycle. (See P. 30)
6 Empty the gutter periodically.
Prevent water overflowing from the
water receptacle by periodically
emptying it. (See P. 28)
Select the hot button and touch the
extraction part, and you can extract
a cupful of water. If you touch the
extraction part again during
extraction, the water stops flowing.
(See P. 22)
5 To drink hot water, select the
hot button after the hot water
lamp goes on.
PREPARATIONS
 Please check before use
Then, open the feed valve to supply water to the filtration system.
Connect it to voltage rating that matches it on the rating plate.
When the lamp on the indication
parts are turned out
When the lamp on the indication parts
are turned out please check the reason
for break of electric supply in case of
electricity failure or other conditions.
■
After installation
Use after throwing away the water in
the water tank up to full level more
than twice.
■
Hot water caution
Take care to avoid burns when
extracting hot water.
■
Draining hot water
Pull the drainage door at the side
downwards, and insert the drainage
hose; this way, you can completely drain
the hot water inside the system.
 Note: take care not to burn yourself, since
hot water suddenly
starts to drain as soon as the hose is inserted.
■
How to Use Please Keep In Mind Preparations
/

18 19
PREPARATIONS
OPERATION PART
/INDICATION PART
 Please check before use
Regular filter change
The regular filter change is very
important to have clean water. The filter
after life is ended may degrade the
performance. Thus, do not miss the
time for the filter change.
■
In case of no service for a long time
In case of no service for a long time,
completely drain the water from the tank.
Next, fill and empty water again. And use
the product.
■
When not using for a long time please lock the main
water supply valve and plug out the power cord.
 Operation Part/Indication Part
Hot water
lock button
Hot water mode lamp
/ hot water 3 step LED
1
Cold water mode lamp
/ cold water 3 step LED
2
3
▶
Hot water
lock on
4
Light detection
sensor
8
Hot water
button
5
▶
▶
Cold
water button
7
▶
▶
▶
▶
Room water
button
6
▶
The lamp is on when hot water mode
is selected. The lamps reflect the
temperature of the water, so more
lamps come on as the temperature
gets higher.
Hot water mode lamp
Hot water temperature 3 step LED
The lamp is on when a cold water
mode is selected. The lamps reflect
the temperature of the water, so
more lamps come on as the
temperature gets lower.
Cold water mode lamp
Cold water temperature 3 step LED
1 2
When the hot water lock button is
pressed for three seconds, hot water
cannot be extracted, even by pressing
the hot water button, and an alarm
goes off.
Hot water lock button
The lamp goes on when the hot
water lock button is selected.
Hot water lock on
3 4
How to Use Preparations Operation Part/Indication Part
/

20 21
OPERATION PART
/INDICATION PART
 Operation Part/Indication Part
When using cold water
Press the cold button, and check if
the cold water mode lamp is on.
■
Press the cold button, check if the
cold water mode lamp is on, and
extract water.
Cold water button
Detects the ambient light,
reducing energy usage by
automatically decreasing the
operation frequency of the cooler.
Light detection sensor
7 8
To use hot water, press the hot button,
check if the hot water mode lamp goes
on, and extract water. (However, the
mode automatically returns to cold
water mode three seconds after hot
water has been extracted.)
Hot water button
To use room water, press the
room button and extract water.
Room water button
56
When using room water
Press the room button, and touch
the extraction part.
■
When using the hot water lock
Press the hot water lock for three
seconds. Check if the hot water lock
lamp comes on.
■
Light detection sensor setting function
Press the hot and cold buttons together for
three seconds; the hot water mode lamp
flickers as shown in the picture with a “pinging”
sound, and the system enters the setting
mode.
Press the cold button once; the cold water
mode lamp comes on, and the light detection
sensor function is set.
(When the cold water mode lamp goes out, the
function is disabled.)
After setting the mode, press the room button
for three seconds; the system saves the last
set mode and converts to standby mode.
■
To use hot water
Press the hot button, and check if the
hot water mode lamp is on.
■
To use both the hot water and cold water modes, press each button for more than three seconds. Once both hot water
and cold water mode lamp go on, you can use them.
“Light detection sensor” is set to disabled status at the initial usage
Fixed quantity extraction function
Press the hot and cold buttons together for
three seconds; the hot water mode lamp
flickers as shown in the picture with a “pinging”
sound, and the system enters the setting mode.
The quantity is adjusted each time the hot
button is pressed (120cc
 200cc  300cc 
120cc), and the hot water mode lamp goes on
according to each quantity phase. After
completing the mode setting,
press the room button for more than three
seconds; the system saves the last set mode
and converts to standby mode.
■
set unset
120cc 200cc 300cc


How to Use Operation Part/Indication Part

22 23
HOW TO OPERATE
 To drink cold water
Press the cold button after the cold
water mode lamp has come on, and touch the
extraction part.

 To drink hot water
Presse the hot button after the hot water mode
lamp has come on, and touch the extraction part.
 To drink room water
Press the room button and touch the extraction
part.

 Continuous extraction
seconds
3
Select the water mode you desire, and touch and
hold the extraction part for 3 seconds or more.
The extraction part LED flickers, signifying
continuous extraction, and discharges water for
60 seconds. Touching the extraction part again
during extraction stops the flow of water.
 Fixed quantity extraction
Select the water mode you desire, and lightly
touch the extraction part. A predetermined
quantity of water comes out.
When the cold water does not extract from the product please check if the
cold water mode indicator is on.

How to Use How to Operate
The influent water should not include any organic solvents because they may damage
RO membrane polymer and may decrease the performance of RO membrane.

24 25
 Follow the instruction for installation
Inlet tubing (Orange)
Connect the orange color inlet tubing to
the tap water supplying pipe.Connecting the
outlet tubing .
Outlet tubing (Blue)
Main water
supply valve
▶
cooling
stopper
▶


INSTALLING METHOD
Be cautious
Installation place
Ⅰ
When installing avoid bumpy areas,
damp areas, and area in the reach of
direct sunlight, dusty areas, water
splashing areas.
■Installation placeⅡ



■
After installation
After installing use after throwing
away room water more than twice.
■Moving and installation.
When moved, connect the power
cord after 30minutes of installation.
■
Cold water pipe



■
No
hot water
To secure the optimum performance of the product, consult with an installation
expert for further installation. -Service center : 213-480-1600
Residuals may be left inside the filter which is used during the process of inspection
when the product was manufactured.
- It is not used product so feel safe to use them.
Do not use the main water supply valve or hose again that is used before when
installing the product.
Installing Method
Installation and Cleaning

26 27
CLEANING METHOD
 Inside water tank
Remove the ceramic filter
from the bottom part of
the water drum cover,
and clean by agitating in
room-temperature water.
Close the water supply valve, press the cold
water button at the front of the product for 3
seconds to turn off the cold water function,
and completely drain the
cold/room-temperature water
by selecting continuous cold
water extraction mode.
Open the drain door, and remove the red drain
safety cap. Using the drainage hose, completely
discharge all the hot water in the tank, and
store the water. When the water
is completely drained, pull out
the power cord.
Open the top cover of the product, and open the water drum
cover inside the product.


1
2
3
4



 
Cleaning Method
Installation and Cleaning
Clean the surface of the water drum with a
soft cloth.
Rinse the water drum with
the previously stored room-
temperature water, plug the
power in, and completely
drain the rinsing water using
the cold water continuous
extraction function.
Fix the ceramic filter underneath the water drum cover, and
close the water drum cover.


5
6
7
Close the top cover and then connect the power cord
before opening the main water supply valve. After
checking water extraction from the faucet of the
cold/room water and hot water, press the cold water
selection switch in front of the product for re-operation.
8
Please close the cover of the storage
tank completely.
Ants or other substances might get inside.



28 29
CLEANING METHOD
 Gutter
1
Removing the receptacle


2
Installing the receptacle



When cleaning storage tank do not use
chemicals or detergents.
When the chemicals and detergents are not washed out
completely it may be harmful to health.
Please always keep environment clean and clean the storage tank
once every two months.
■
chemicals or
detergents
chemicals or
detergents
FILTER REPLACEMENT
AND DAILY CHECK
Cleaning Method Filter Replacement and Daily Check
/
Installation and Cleaning
 Filter Replacement
Filter
The vitality of product is the filter. The fraudulent filters or
missing time for filter change may degrade the
performance and so interrupt the filtration.
If the filter is not regularly replaced, it may degrade the water quality from the product. The filter
change cycle may vary within the range of expected replacement cycle depending on the feed
water quality.
 The period for the filter exchange is made based on 10ℓuse in a day for house use (4 people
based) and 20ℓuse for business.
■
Estimated Time of Filter Replacement
■
About Estimated Time of Filter Replacement
The filter change cycle described above is not the filter quality
warranty period but the expected cycle that the filter shows its
original performance. (based on the tap water.)
 The filter change cycle may be reduced for the areas with poor
water quality or more applications.
■
Part No.
Names of Filter Usable Period
Neo-sense F ilter
Membrane
F ilter(RO)
Post-Carbon Block Filter
Ceramic F ilter
12
months
6 months
24 months
18 months
The product water should be tested every 6 months to ensure
that the contaminants are being reduced effectively.
Please contact your local dealer or Coway to initiate this service.
∙This reverse osmosis system contains a replacement component critical to the efficiency of the
system. Replacement of the reverse osmosis component should be one with identical
specifications, as defined by the manufacturer, to assure the same efficiency and contaminant
reduction performance.
∙This reverse osmosis system contains a replacement treatment component critical for the
effective reduction of total dissolved solids, and that the product water shall be tested periodically
to verify that the system is performing properly.
 Inside water tank

30 31
FILTER REPLACEMENT
AND DAILY CHECK
 Please replace filter
After pulling out the power plug lock the feed water valve
and drain out the water inside the Water Purifier.
1
Pull up the front drain door and using a cross screw driver
loosen the screw. Push down the lower cover and pull to the
front and separate.
2


Filter Replacement and Daily Check Filter Replacement Method
Installation and Cleaning
 Regular Check
Power
- Does the indication part repeat ON and OFF when you touch the power cord When the power
is connected?
- Is a part of power cord hotter than usual?
- Is a part of power cord distorted, discolored or damaged?
■
Indication Part
- Does any lamp on the indication part abnormally flicker?
■
For safe operation, we recommend the frequent check on the product. Keep the
optimum status of the product by frequent check for the following items.
For any event above, immediately stop the operation and
contact your nearest Coway Customer Service Center.
For the abnormal flickering of lamp, immediately Contact your
nearest Coway Customer Service Center.
FILTER REPLACEMENT
METHOD
/

32 33
BEFORE ASKING A/S
 Check the followings before asking A/S.
The product may not properly work due to the reasons except the breakdown because
you are not accustomed to how to operate or any negligible reasons. In those cases,
check the followings, and you can solve the simple troubles without the help from the
customer service center. If the trouble continues after you check the followings, contact
your nearest Customer Service Center.
The water
tastes weird
The water is
flowing
slower.
There is no
cold water.
There is no
hot water
Check Items Solutions
Did you use the filter system for
too long?

Remove the stored water
and clean the water drum.
Did you clean the water drum?

Clean the water drum.
Is it about time to change the filter?

Request filter change.
Is the power turned on?

Connect the power to the voltage
rating that matches it on the rating
plate.
Is it about time to change the filter?

Request filter change.
Did you lock the water supply valve?

Open the water supply valve.
Did the temperature of the water
drop suddenly?

When the temperature drops, the
amount of water filtered decreases.
The cooling system may be malfunctioning.

Request A/S.
Is the hot water lamp on?

Turn the cold water mode on by
pressing the cold water button for 3
seconds
Is the power connected?

Connect the power to the voltage
rating that matches it on the rating
plate.
Is the hot water lock lamp on?

Deactivate hot water.
Did you close the water supply
valve?

If the water level is low, the cold
water function does not activate,
to protect the electronic motor.
Open the water supply valve.
Is the cold water lamp on?

Turn the cold water mode on by
pressing the cold water button for 3
seconds
Is room-temperature water
overflowing or leaking?

Request A/S.
Problem
Other Cautions for Safety
Filter Replacement Method Before Asking A/S
FILTER REPLACEMENT METHOD
3
Replace after separating the fitting connected to the filter
needed for replacement.
4
Adjust the front cover to the matching part at the lower part
and then close it pressing downward.
After replacing the filter check if there is no leakage and drain out
the room water.


Separate the fitting with using proper equipment.
When exchanging neo-sense filter : Install the filter after cleaning it for about 30seconds.
When exchanging fine post-carbon filter : Install after cleaning the filter with water that has gone
through the neo-sense filter for about 3 minutes.
/
 Please replace filter

34 35
BEFORE ASKING A/S SPECIFICATION
※Without any prior notice, all or parts of the product are subject to change for the purpose of
improving the performance of the product.
※Efficiency rating means the percentage of the influent water to the system that is available to
the user as reverse osmosis treated water under operating conditions that approximate typical
daily usage.
※Recovery rating means the percentage of the influent water to the membrane portion of the
system that is available to the user as reverse osmosis treated water when the system is
operated without a storage tank or when the storage tank is by passed.
Product
Model
Coway Water Purifier
260(W) x 440(D) x 510(H)mm <10.2(W) x 17.6(D) x 45.3(H)inch>
CHP-06DL
Reverse Osmosis
0.8gal
0.6gal
1.7gal
Room water
Cold water
0.3gal
Hot water
Total water
Working Temperature
Filtration Capacity
Working Pressure
5-35℃(41-95℉)
76.8/ day (20GPD) (25℃, 20psi)
0.07-0.82MPa (20-120psi)
Net Weight
18.7(41.2 lb)
Demension
Filtration method
Power Supply
Voltage rating that matches it on the rating plate.
Tank
capacity
Other Cautions for Safety
Before Asking A/S Specification
/
A/S Phone No : 213-480-1600









Solutions
Check Items
Problem
Water does
not come
out, or the
fixed
quantity has
changed
All functions
suddenly
stop during
operation.
There is
leakage.
Is water leaking from the water drum
cover or from inside the product?
Is room-temperature water
overflowing or leaking?
Is the power turned on?
Is the water being supplied properly?
Is the water inlet hose too long?
Is the hose bent?
cold/warm/room-temperature water
extraction faucet may be malfunctioning.
Is the water supply valve closed,
or the water supply cut?
Is it about time to change the filter?
Request filter change.
Open the water supply valve.
Request A/S.
Straighten the hose.
Shorten the water inlet hose
to 5m or less.
Check the water supply valve.
Connect the power to the voltage
rating that matches it on the
rating plate.
Request A/S.
Open the top cover and check.
Close the water supply valve and
request A/S.

36 37
WATER FLOW DIAGRAM
WARRANTY INFORMATION
▶CHP-06DL
Product Guarantee
Parts and components shall be replaced free of charge within the guarantee period if
the defects occur due to manufacturing defects in normal operation.
Contact us in case of breakdown.
In the following cases, repair work shall be charged even within the guarantee period.
▶Breakdown caused by careless operation or unreasonable repair and renovation.
▶Breakdown caused by nonperformance of the instructions specified in the manual.
Even after the expiration of guarantee period, it is possible to apply for charged repair.
Present this Letter of Guarantee whenever repair is needed.
This Letter of Guarantee is valid only in domestic where you buy this product.
Keep this Guarantee carefully as it is not re-issued.
Please contact our customer's service center in case you are not satisfied with our A/S service.
● Nationwide Periodical Inspection and Filter Replacement Call : 213-480-1600
● Nationwide A/S Call : 213-480-1600
● Customer Counseling Center Call : 213-480-1600 Fax :
In case any other filters or parts which are not genuine
products of we are used, we is not responsible for any
problems related to water quality.
☞
Model CHP-06DL
1 year
Guarantee Period
Serial No.
Date of Purchase
Guarantee Period From To
Customer’s Address
Customer’s Name Tel.
Coway Co., Ltd
658 Yoogoo-Ri, Yoogoo-Eub, Gongju-Si, Choongnam, Korea
Tel : [phone] Fax : [phone]
www.coway.com
1.
2.
3.
4.
5.
6.
7.
Water Flow Diagram Warranty Information
/
Other Cautions for Safety

38 39
MEMO
Other Cautions for Safety
