Introduction
Features and Functions
The Crestron®Professional Multimedia Switch C2N-MMS is a high performance
multimedia switch that can switch four RGB sources to two RGB devices and three
video sources to two video devices. With the optional C2N-MMS-SC scan converter
card, the RGB sources can also be switched to the video devices. The C2N-MMS
features three Y/C (S-video)/composite inputs, four RGB inputs, two Y/C
(S-video)/composite outputs, and two RGB outputs.
C2N-MMS Functional Summary
• Four RGB input channels with selectable sync impedance* and Auto-
Detect
• Two RGB output channels with user-selectable frequency and level
compensation for longer cable runs
• Three video input channels with Auto-Detect supporting composite and
Y/C (S-video) formats
• Two video output channels supporting composite and Y/C (S-video)
formats
• Supports NTSC and PAL signal types
• Transient blanking on RGB input signals to avoid visible transients
when switching between RGB sources
• 400 MHz bandwidth for RGB signals, 100 MHz bandwidth for video
signals
• Optional scan converter card C2N-MMS-SC allows RGB signals to be
switched to video output devices
* Selectable sync impedance is only available on C2N-MMS devices with the part number 6003312 on
the manufacturing label located on the bottom of the unit. Units labeled with 6001581 do not have
this feature.
The C2N-MMS can drive RGB cable runs over 100 feet with user-selectable
frequency and level compensation on the RGB outputs. The RGB inputs feature
selectable impedance on the sync input that may alleviate problems experienced with
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •1

Professional Multimedia Switch Crestron C2N-MMS
coax cables of longer lengths (50 to 100 feet). The C2N-MMS automatically detects
the presence of video and RGB signals by monitoring activity on the luminance
(COMP/Y) connection of each video input and the horizontal sync line of each RGB
input. For laptops that require the presence of a monitor to enable its video output,
the C2N-MMS has a selectable feature (DDC) that simulates the presence of a
generic high-resolution monitor so RGB sources (such as a laptop computer) will
transmit a signal even when a RGB device is not connected to the C2N-MMS output.
NOTE: Selectable sync impedance and the DDC feature are only available on
C2N-MMS devices with the part number 6003312 on the manufacturing label
located on the bottom of the unit. Units labeled with part number 6001581 do not
have this feature.
RGB signal switching features transient blanking to avoid visible transients when
switching between RGB sources operating at different sync frequencies. Transient
blanking disables the output signal before the sync is switched to another source.
Transient-free switching between RGB sources is completed in less than 1/10 of a
second.

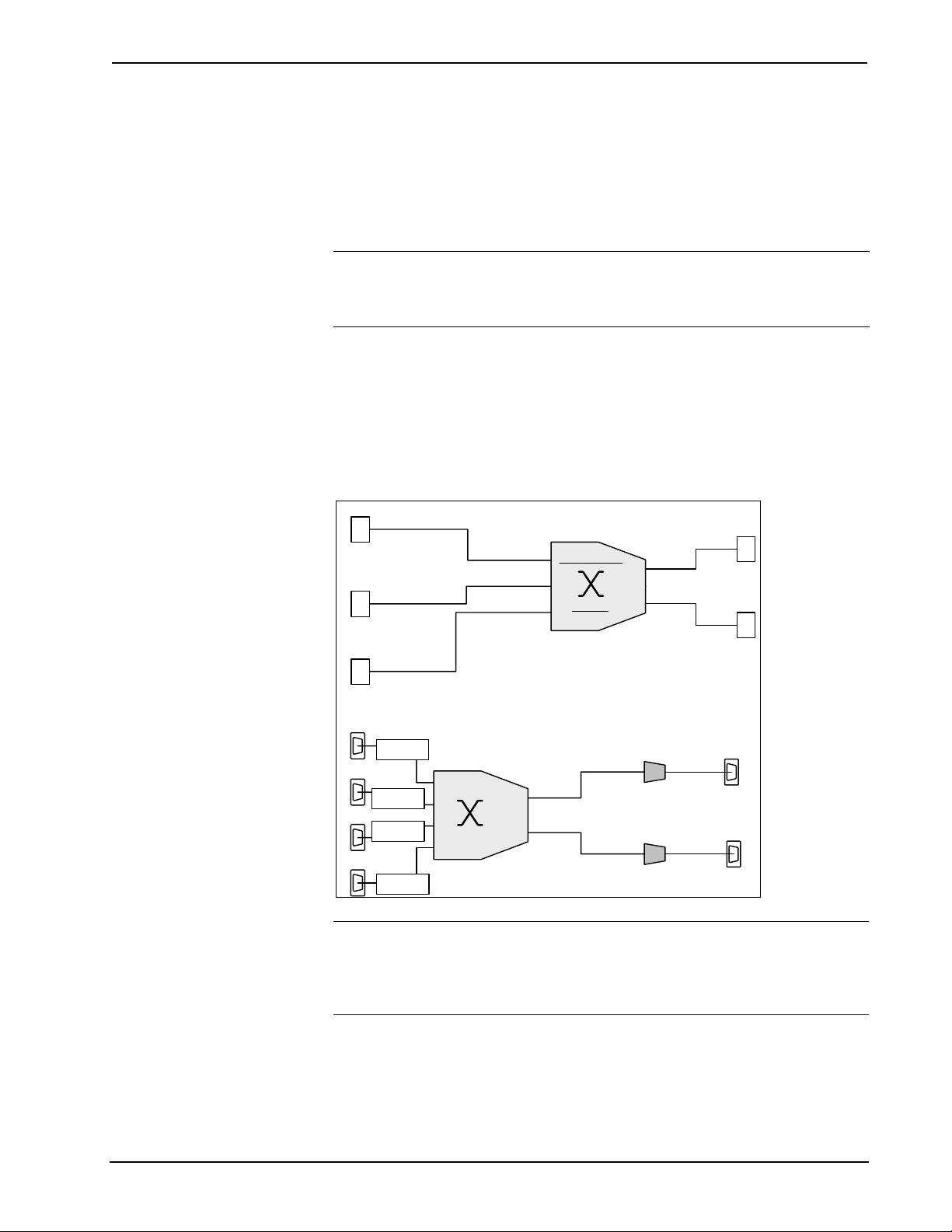

The following diagram illustrates the functional capabilities of the C2N-MMS.
Functional Diagram
4 X 2 SWITCH
400MHz
Cable
Compensation
Cable
Compensation
Video 1 IN
Video 2 IN
Video 3 IN
RGB 1 IN
RGB 2 IN
RGB 3 IN
RGB 4 IN
RGB 1 OUT
RGB 2 OUT
3 X 2 SWITCH
100MHz
Video 1 OUT
Video 2 OUT
DIP
Switches
DIP
Switches
DIP
Switches
DIP
Switches
NOTE: DIP switches for selecting input impedance and the DDC feature are only
available on C2N-MMS devices with the part number 6003312 on the manufacturing
label located on the bottom of the unit. Units labeled with part number 6001581 do
not have this feature. Refer to “Configuring the RGB Input Ports” on page 11 for
more information.
When used in conjunction with a Crestron MP2E Multimedia Processor or other
2-Series Control Processors, the C2N-MMS provides a variety of switching
solutions. The following diagram illustrates a sample application using the
C2N-MMS with a Crestron MP2E Multimedia Processor.
2 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
C2N-MMS in Basic Room Configuration with MP2E Multimedia Processor
With the optional C2N-MMS-SC scan converter card, signals from the RGB sources
can be switched to a video device. With the scan converter installed, RGB sources
with resolutions up to 2048 x 1536 can be switched to either of the two video outputs
in Y/C (S-video) or composite formats using National Television System Committee
(NTSC) or Phase Alternating Line (PAL) signal types. Refer to the Scan Converter
Card Operations Guide (Doc. 6138) which is available from the Crestron website
(http://www.crestron.com/manuals).
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •3

Professional Multimedia Switch Crestron C2N-MMS
Specifications
The following table provides a summary of specifications for the C2N-MMS.
Specifications for the C2N-MMS
SPECIFICATION DETAILS
Cresnet®Power Usage 6 Watts (0.25 Amp @ 24 VDC)
Default NET ID 11
RGB Input Channels
Type
Impedance
Input Levels
Sync Input Level
Sync Impedance
(4) D-15 with Auto-Detect on H sync
75 ohms
0.3Vpp to 1.5 Vpp with no offset at unity gain
Max DC offset with min input: ±1.0 V
Max DC offset with max input: ±0.5 V
2.0 Vpp to 5 Vpp offset tolerant to ±2.5 VDC offset
max.
1k ohms, 500 ohms, 75 ohms
(Selectable via DIP switches)
Video Input Channels
Type
Impedance
Input Levels
(3) BNC S-Video or Composite with
Auto-Detect on the Y input
75
0.3Vpp to 1.5Vpp with no offset at unity gain
Max DC offset with min input: ±1.0V
Max DC offset with max input: ±0.5V
RGB Output Channels
Type
Output Level
Impedance
Sync Output Level
Sync Impedance
Sync Max Rise/Fall
Time
Sync Latency
Sync Polarity
(2) D-15 with Frequency/Level Compensation and
3 dB Signal Boost
0.7 Vpp to 0.75 Vpp terminated with 0.7 Vpp input
75 ohms
4.0 Vpp to 5.0 Vpp
33 ohms
3.5 ns
< 30 ns
Follows input
Video Output Channels
Type
Impedance
Output Level
(2) BNC S-Video or Composite
75 ohms
1.0 Vpp to 1.1 Vpp terminated with 1.0 Vpp input
(composite)
RGB Input/Output Format RGBHV
Min Resolution: 460 x 400
Max Resolution: 2048 x 1536
Maximum RGB Output
Cable Length
Tested to 100 feet. Cable length in excess of 100
feet may be subject to signal degradation.
(continued on following page)
4 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
Specifications for the C2N-MMS (continued)
SPECIFICATION DETAILS
Supported Video Signal
Formats
National Television System Committee (NTSC) &
Phase Alternating Line (PAL)
Bandwidth RGB: 400 MHz (-3 dB) at unity gain
Video: 100 MHz (-3 dB) at unity gain
Firmware C2N-MMS.v2.14.upg or later
Control System Update
Files1,2
2-Series Control System Version C2-V3015.CUZ or later
MP2/MP2E Version MP2-V3016.CUZ or later
Operating Temperature
and Humidity
41º to 104º F (5º to 40º C),
10 to 90% Relative Humidity (non-condensing)
Dimensions and Weight Height: 1.70 in (4.32 cm)
Width: 17.03 in (43.26 cm) without mounting ears
Depth: 7.15 in (18.16 cm)
Weight: 3.4 lbs (1.5 kg)
1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following
these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the website are for Authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
may be required to register to obtain access to certain areas of the site (including the
FTP site).
Physical Description
The front panel of the C2N-MMS contains a green (PWR) and yellow (NET) LED
that illuminate when power is on and during network communications respectively.
The rear panel of the C2N-MMS contains ten BNC connectors that compose the
three chrominance/luminance (Y/C) video inputs and two Y/C video outputs. The
C2N-MMS also contains six HD15 connectors that compose the four RGB inputs
and two RGB outputs. DIP switches located inside the device are used to configure
the RGB inputs. For more information on the DIP switches, refer to “Configuring the
RGB Input Ports” on page 11. Two four-position terminal block connectors provide
connectivity to the Cresnet network. A pushbutton with an indicating red LED
marked “SETUP” is for Touch-Settable ID operation.
NOTE: DIP switches for selecting sync input impedance and the DDC feature are
only available on C2N-MMS devices with the part number 6003312 on the
manufacturing label located on the bottom of the unit. Units labeled with part
number 6001581 do not have this feature.
The C2N-MMS can be placed in a rack (with included mounting ears) or on a table
with the supplied rubber feet. Refer to “Rack Mounting” on page 14 for more
information.
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •5

Professional Multimedia Switch Crestron C2N-MMS

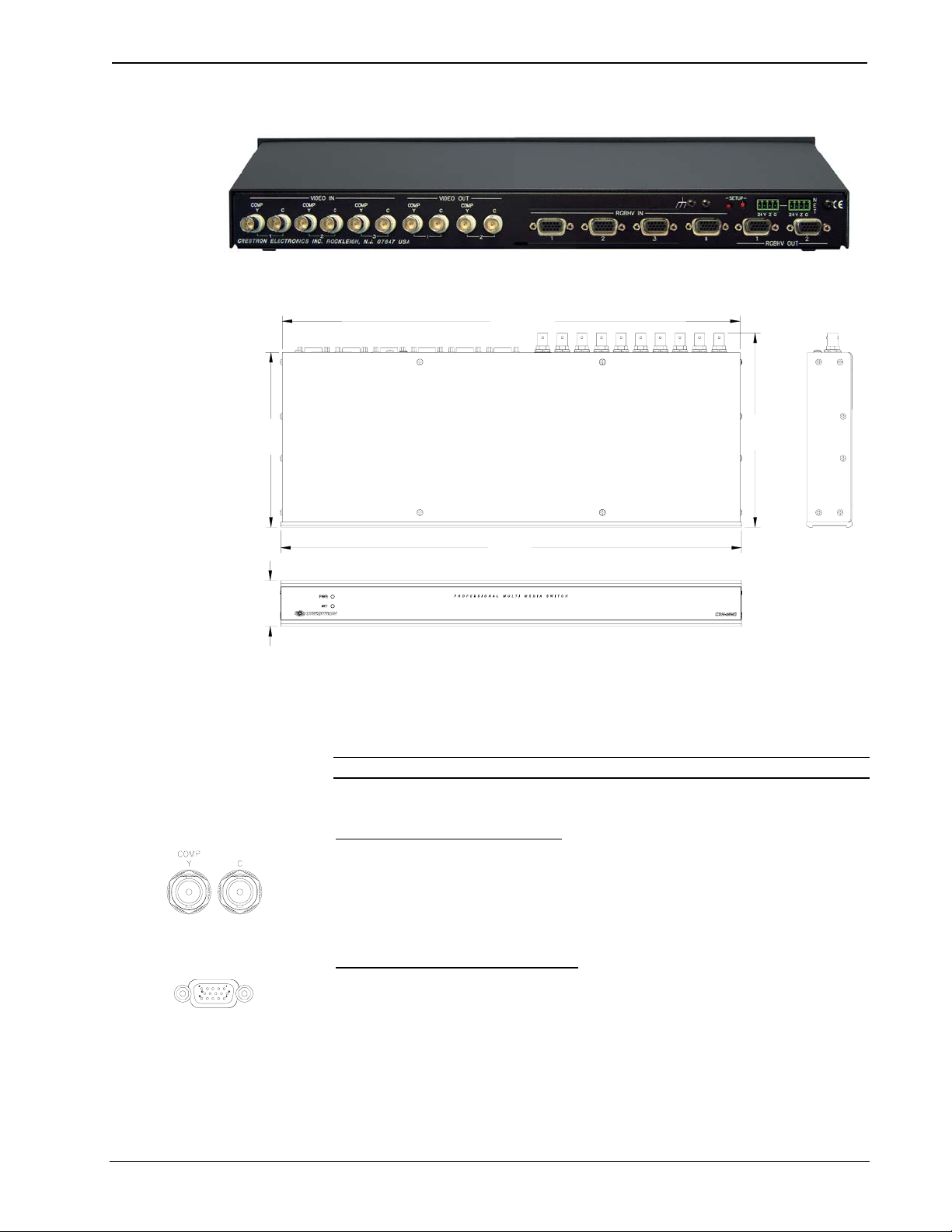

C2N-MMS (Rear Panel)
Physical Views of the C2N-MMS (Top, Front, and Side)
16.92 in
(42.98 cm)
6.44 in
(16.35 cm)
7.15 in
(18.17 cm)
17.03 in
(43.25 cm)
1.70 in
(4.32 cm)
Ports
All connections to the C2N-MMS are made through the ports on the rear panel.
Refer to the illustrations and descriptions that follow.
NOTE: Interface connectors for the NET ports are provided with the C2N-MMS.
VIDEO IN and VIDEO OUT
Each video input and output features two BNC connectors. When switching an
S-video signal, the chrominance “C” and Luminance “COMP/Y” connectors should
be connected. When switching composite video, only the “COMP/Y” connector
should be connected.
RGBHV IN and RGBHV OUT
Each RGB input and output uses a standard HD15 connector for RGBHV signals.
Refer to the following table for pin assignments.
Each of the RGB inputs can be configured to optimize performance. For more
information, refer to refer to “Configuring the RGB Input Ports” on page 11.
6 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
RGBHV Pinouts
PIN FUNCTION PIN FUNCTION
1 Red Video 9 No Connect
2 Green Video 10 Ground
3 Blue Video 11 No Connect
4 Reserved 12 Monitor Sense (input) /
No Connect (output)
5 Ground 13 Horizontal Sync
6 Red Ground 14 Vertical Sync
7 Green
Ground
15 Monitor Sense Clock (input) /
No Connect (output)
8 Blue Ground
NET
Two 4-position terminal block connectors are used to connect the C2N-MMS to the
Cresnet system. Data and power for the C2N-MMS are provided via either
connection. Refer to “Network Wiring” on page 8.
NET Pinouts
PIN # DESIGNATION DESCRIPTION
1 24 Power
2 Y Data
3 Z Data
4 G Ground
SETUP LED and Pushbutton
The C2N-MMS is Touch Settable (TSID) ready. The SETUP pushbutton and its
associated LED are located on the rear panel and are used for setting up the unit’s
network ID during the initial configuration of a Cresnet system or when the device is
being added/replaced. Refer to “Identity Code” on page 9 for detailed information.
Industry Compliance
As of the date of manufacture, the C2N-MMS has been tested and found to comply
with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •7

Professional Multimedia Switch Crestron C2N-MMS
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Setup
Network Wiring
CAUTION: In order to ensure optimum performance over the full range of your
installation topology, Crestron Certified Wire, and only Crestron Certified Wire, may
be used. Failure to do so may incur additional charges if support is required to
identify performance deficiencies as a result of using improper wire.
CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to
do so could cause equipment damage or void the Crestron warranty.
CAUTION: Provide sufficient power to the system. Insufficient power can lead to
unpredictable results or damage to the equipment. Please use the Crestron Power
Calculator to help calculate how much power is needed for the system
(http://www.crestron.com/calculators).
When calculating the length of wire for a particular Cresnet run, the wire gauge and
the Cresnet power usage of each network unit to be connected must be taken into
consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisy-
chained on the run, the Cresnet power usage of each network unit to be daisy-
chained must be added together to determine the Cresnet power usage of the entire
chain. If the unit is a home-run from a Crestron system power supply network port,
the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The
wire gauge and the Cresnet power usage of the run should be used in the following
equation to calculate the cable length value on the equation’s left side.
Cable Length Equation
40,000 Where:
R x P
L <
L = Length of run (or chain) in feet.
R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 MM2))
P = Cresnet power usage of entire run (or chain).
Make sure the cable length value is less than the value calculated on the right side of
the equation. For example, a Cresnet run drawing 20 watts should not have a length
of run more than 333 feet.
NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One
twisted pair is the +24V conductor and the GND conductor, and the other twisted
pair is the Y conductor and the Z conductor.
8 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to
avoid nicking the conductors. Twist together the ends of the wires that share a pin on
the network connector, and tin the twisted connection. Apply solder only to the ends
of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle.
Insert the tinned connection into the Cresnet connector and tighten the retaining
screw. Repeat the procedure for the other three conductors.
NOTE: For larger networks (i.e., greater than 28 network devices), it may become
necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality
throughout the network. Also, for networks with lengthy cable runs, it may be
necessary to add a Hub/Repeater after only 20 devices.
Crestron Toolbox
NOTE: The minimum version of Crestron Toolbox required to operate with the
C2N-MMS is version 1.0.06 or later.
The Crestron Toolbox (a replacement for Crestron Viewport, you may continue to
use Viewport version 3.109 or later if desired) is a broad-based software package
that accomplishes multiple system tasks, primarily using an RS-232 or TCP/IP
connection between a PC and one or more Crestron control systems.
You can use the Crestron Toolbox to:
• Observe system processes.
• Upload operating systems and firmware.
• Upload programs and touchpanel projects.
• Set or change device Network IDs.
• Change serial numbers.
• Run scripts to automate tasks.
• Perform system diagnostics, and much more.
The Crestron Toolbox allows you to perform these functions using simple graphical
views and click and drag methods.
Identity Code
Every network device and user interface within the Cresnet network requires a
unique identity code (Net ID). These codes are two-digit hexadecimal numbers from
03 to FE. The Net ID of each unit must match an ID code specified in the SIMPL
Windows program. Refer to “Setting the Net ID in Device Settings” on page 18 for
details of the SIMPL Windows procedure.
The Net ID of the C2N-MMS has been factory set to 11. The Net IDs of multiple
C2N-MMS devices in the same system must be unique. Net IDs are changed from a
personal computer (PC) via the Crestron Toolbox.
NOTE: For detailed information on establishing communication between the PC,
control system, and the C2N-MMS, refer to “Establishing Communications” on page
19. If communication cannot be established, refer to the “Troubleshooting
Communications” section in the latest version of the 2-Series Control System
Reference Guide (Doc. 6256), which is available from the Crestron website.
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •9

Professional Multimedia Switch Crestron C2N-MMS
The Crestron Toolbox provides several methods to easily set or change device Net
IDs for any device on the network. The following method permits you to change the
Net ID of any device in the network through the “Network Device Tree” window.
NOTE: This method prevents you from selecting an existing Net ID that is assigned
to a device that is not equipped with TSID.
This method permits you to manually set the Net ID for any device in the network,
set any known Net IDs that may require changing, and may also be used for non-
TSID equipment. This method will not permit you to choose an ID already in use by
another device that is not equipped with TSID. A warning message will appear if you
attempt to use an ID that is already in use by a device that is equipped with TSID.
Duplicate Net ID Warning Message
This method does not change the Net ID as assigned in SIMPL Windows. For
information on setting the Net ID in SIMPL Windows, refer to “Setting the Net ID in
Device Settings” on page 18.
NOTE: You may also use SystemBuilder™ to perform Network ID setup. Refer to
the respective help file for more information.
1. Ensure that all network devices are connected to the control system.
2. Open Crestron Toolbox and establish communications (refer to Establishing
Communications on page 19).
3. Select the Network Device Tree icon, or select Tools | Network
Device Tree.
4. Expand the device tree until the Net ID that is to be changed is visible.
Right-click on the Net ID, and when the sub-menu appears, select Change
Network ID.
“Network Device Tree” – Sub-Menu
10 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
5. Select a new Net ID and press Enter.
Enter New Net ID
Repeat this procedure for each additional network device requiring a Net ID change.
Hardware Hookup
The C2N-MMS can be mounted in a rack or stacked with other equipment. Make the
necessary connections as called out in the illustration that follows this paragraph.
Refer to “Network Wiring” on page 8 before attaching the 4-position terminal block
connector. Apply power after all connections have been made.
Hardware Connections for the C2N-MMS (Back of the Unit is Shown)
VIDEO INPUTS:
COMPOSITE
OR S-VIDEO
RGBHV
INPUTS:
AUTO-
DETECTION
ON H SYNC
CRESNET:
TO ANY
CRESNET
NETWORK
DEVICE
VIDEO
OUTPUTS:
COMPOSITE
OR S-VIDEO
RGBHV
OUTPUTS:
FREQUENCY
AND LEVEL
COMPENSATION
CY
1
C Y
2 3
Y C
1
Y C
2
Y C
COMP COMP
VIDEO IN
COMP COMP
VIDEO OUT
COMP
NET
RGBHV IN
1 2 3 4
RGBHV OUT
24
1
ZY G G
2
24 ZY
SETUP
C R E S T R O N E L E C T R O N I C S I N C . R O C K L E I G H , N . J . 0 7 6 4 7 U S A
SETUP:
FOR
TOUCH-
SETTABLE
CRESNET ID
G
R
O
U
N
D
Configuring the RGB Input Ports
Each of the four RGB input ports feature a set of six DIP switches located inside the
C2N-MMS. These switches are used to configure the sync input impedance of each
port and enable the DDC feature of each RGB input.
NOTE: DIP switches for selecting input impedance and the DDC feature are only
available on C2N-MMS devices with the part number 6003312 on the manufacturing
label located on the bottom of the unit. Units labeled with part number 6001581 do
not have this feature.
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •11

Professional Multimedia Switch Crestron C2N-MMS
The sync input impedance can be set to either 1k, 500, or 75 ohms. The setting from
the factory is 1k ohms and should work with most RGB sources. If the signal quality
is poor, lowering the input impedance to match the impedance of coax cable may
alleviate sync signal problems that are associated with RGB cables greater than the
typical VESA standard (typically six feet).
For laptops that require the presence of a monitor to enable its video output, the
C2N-MMS has a selectable feature (DDC) that simulates the presence of a generic
high-resolution monitor so RGB sources (such as a laptop computer) will transmit a
signal even when a RGB device is not connected to the C2N-MMS output. Changing
a DIP switch setting can enable or disable this feature. The C2N-MMS is shipped
from the factory with the DDC feature disabled.
NOTE: The sync input impedance and DDC feature should be set prior to placing
the C2N-MMS in an equipment rack.
Finding the DIP Switches
The DIP switches that configure the RGB input ports are located inside the
C2N-MMS. The only tools required are a #2 Phillips screwdriver and a grounding
strap (or grounded workstation).
CAUTION: The C2N-MMS contains ESD-sensitive devices. Perform the following
procedure while wearing a grounding strap that is properly grounded or on a
grounded workstation to avoid damaging the C2N-MMS.
1. Make all connections to the C2N-MMS as described in “Hardware
Hookup” on page 11.
2. Open the C2N-MMS by removing the 16 screws (located on the sides and
top of the C2N-MMS) securing the top cover. Use a #2 Phillips screwdriver
to remove the screws.
3. Remove the lid to expose the DIP switches as shown in the following
diagram.
DIP Switch Location
DIP SWITCHES
12 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
Setting the DIP Switches
1. Referring to the following table, set the DIP switches to the required sync
input impedance and DDC functionality of each RGB input port.
DIP Switch Function Chart
DDC HORIZONTAL
SYNC
VERTICAL
SYNC
SWITCH 1 2 3 4 5 6
FUNCTION SETTING
OFF OFF OFF X X X X
DDC
ON ON ON X X X X
1K X X OFF OFF OFF OFF
500 X X ON OFF ON OFF
SYNC INPUT
IMPEDANCE
75 X X ON ON ON ON
NOTE: The function table is also located on the C2N-MMS adjacent to the DIP
switches.
NOTE: The factory setting for the DIP switches are DDC disabled (switches 1 & 2
in the OFF position) and 1k ohm impedance (switches 3 through 6 in the OFF
position).
2. Replace the top cover and secure the screws using the #2 Phillips
screwdriver.
RGB Signal Compensation
To account for varying cable lengths for RGB output signals, the C2N-MMS features
switchable 3 dB frequency compensation and 1.25 dB signal boost to provide clear
images on cable runs over 100 feet. The following table illustrates which settings to
use for specific RGB cable lengths. All settings are made from the control system
program. Refer to “Programming Software” on page 15 for more information.
Cable Length and Suggested EQ/Boost Settings
CABLE LENGTH EQ1 EQ2 BOOST
0 to 25 ft Off Off Off
25 to 50 ft On Off Off
50 to 75 ft Off On Off
75 to 100 ft On On Off
More than 100 On On On
NOTE: The sync output is not affected by peak and boost settings.
NOTE: These settings are only suggested settings. Results may vary depending on
the type of cable and installation methods used. The user should determine the
settings for best results in specific installations.
NOTE: Crestron has successfully tested 100-foot cable runs without loss of picture
quality. Cable runs in excess of 100 feet may be subject to signal degradation as
cable length increases over 100 feet.
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •13

Professional Multimedia Switch Crestron C2N-MMS
Rack Mounting
WARNING: To prevent bodily injury when mounting or servicing this unit in a
rack, take special precautions to ensure that the system remains stable. The following
guidelines are provided to ensure your safety:
• The unit should be mounted at the bottom of the rack if it is the only unit in the
rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom
to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before
mounting or servicing the unit in the rack.
NOTE: If rack mounting is not required, rubber feet are provided for shelf placement
or stacking. Apply the feet near the corner edges on the underside of the unit.
NOTE: Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit. (e.g., use of power strips).
Two “ears” are provided with the C2N-MMS so that the unit can be rack mounted.
These ears must be installed prior to mounting. Complete the following procedure to
attach the ears to the unit. The only tool required is a #2 Phillips screwdriver.
1. There are 12 screws (#6-32 x 0.375" LG) that secure the sides of the
C2N-MMS top cover. Using a #2 Phillips screwdriver, remove the
three screws closest to the front panel from one side of the unit. Refer
to the diagram on the following page for a detailed view.
2. Position a rack ear so that its mounting holes align with the holes
vacated by the screws in step 1.
3. Secure the ear to the unit with three screws from step 1, as shown in the
illustration after this step.
Ear Attachment for Rack Mounting
4. Repeat procedure (steps 1 through 3) to attach the remaining ear to the
opposite side.
14 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374

Crestron C2N-MMS Professional Multimedia Switch
Programming Software
Have a question or comment about Crestron software?
Answers to frequently asked questions (FAQs) can be viewed in the Online Help
section of the Crestron website. To post a question or view questions you have
submitted to Crestron’s True Blue Support, log in at http://support.crestron.com.
First-time users will need to establish a user account.
Setup is easy thanks to Crestron’s Windows-based programming software.
Crestron’s SystemBuilder software creates a complete project, with no special
programming required. While traditional programming tools can still be used to
program a system, SystemBuilder can be used to easily complete all necessary
programming for a base system including all touchpanel screens and the control
system program. The program output of SystemBuilder is a SIMPL Windows
program with much of the functionality encapsulated in macros and templates. Once
SystemBuilder creates the project, the system interfaces and program logic can be
customized in SystemBuilder or can be easily modified with Crestron development
tools (i.e., SIMPL Windows and Crestron VisionTools®Pro-e (VT Pro-e) software
packages).
NOTE: Modifications to the program that are made outside of SystemBuilder (for
example, in VT Pro-e or SIMPL Windows) are not preserved when you reenter
SystemBuilder.
SystemBuilder comes with templates for all supported interfaces. If a user wishes to
create a touchpanel project using templates with a different look-and-feel, this can be
accomplished by making a custom template. This custom template can then be used
by SystemBuilder to create the final project files to be loaded into the panels.
Alternatively, VT Pro-e can be used to tweak projects created with the
SystemBuilder or develop original touchpanel screen designs.
Digital, analog and serial join numbers are a common thread between VT Pro-e and
SIMPL Windows. These numbers define how the objects on a touchpanel page of a
VT Pro-e project interface to the outside world, specifically the Cresnet system as
defined in the SIMPL Windows program. There are digital join numbers that carry
out some predetermined function (a logical high or low); analog join numbers for
displaying incremental values, sliders, gauges and bar graphs; and serial join
numbers that allow for the display of variable text and transmission/reception of
serial commands from other manufacturers. Unjoined objects are not interfaced with
the system and thus cannot initiate any logic functions (although they can perform
page flips).
Earliest Version Software Requirements for the PC
NOTE: Crestron recommends that you use the latest software to take advantage of
the most recently released features. The latest software is available from the Crestron
website.
The following are the minimum recommended software versions for the PC:
• SIMPL Windows version 2.03.17 or later. Requires SIMPL+ Cross
Compiler version 1.1 or later.
• Crestron Toolbox 1.01.06 or later
Operations Guide – DOC. 6374 Professional Multimedia Switch: C2N-MMS •15

Professional Multimedia Switch Crestron C2N-MMS
• (Optional) SystemBuilder version 2.0 or later with SystemBuilder
Templates version 2.0.1or later. Requires the following software versions:
o SIMPL Windows version 2.06.20 or later with library update file
345 or later. Requires SIMPL+ Cross Compiler version 1.1.
o Crestron database 17.2.2 or later
o Vision Tools Pro-e 3.3.4.0 or later
o Crestron Toolbox 1.01.06 or later
o Engraver 2.4.1.2 or later
o Microsoft DCOM '98 if running under Win 95 or 98 (not needed
for NT or 2000)
o Microsoft Data Access Components if running under Win 95 or 98
(not needed for NT or 2000)
Programming with the Crestron SystemBuilder
The easiest method of
p
rogramming, but does not
offer as much flexibility as
SIMPL Windows.
Crestron SystemBuilder offers automatic programming for such residential and
commercial applications as audio distribution, home theater, video conferencing, and
lighting. The interface of this tool guides you through a few basic steps for
designating rooms and specifying the control system, touchpanels, devices, and
functionality. Crestron SystemBuilder then programs the system, including all
touchpanel projects and control system logic.
Crestron SystemBuilder is fully integrated with Crestron's suite of software
development tools, including SIMPL Windows, VT Pro-e, and the Crestron
Database. Crestron SystemBuilder accesses these tools behind the scenes, enabling
you to easily create robust systems.
For additional details, download SystemBuilder from the Crestron website and
examine the extensive help file.
Programming with SIMPL Windows
NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.
NOTE: The following are acceptable file extensions for programs that include a
C2N-MMS, developed for specific control system types:
.smw: projectname.smw (SIMPL Windows source file)
.spz: projectname.spz (compiled file for 2-series)
.usp: projectname.usp (source code module for SIMPL+)
.umc: projectname.umc (user macro for SIMPL)
NOTE: In the following description, the MP2E multimedia processor is used.
SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system. SIMPL Windows offers drag and drop
functionality in a familiar Windows®environment.
16 •Professional Multimedia Switch: C2N-MMS Operations Guide – DOC. 6374
