Introduction
The DIN-HUB is a DIN rail-mounted Cresnet®hub designed to facilitate
the configuration of large Cresnet networks. DIN rail mounting enables
modular installation alongside Crestron®DIN Rail lighting and
automation control modules and other third party DIN rail mountable
devices.
Features and Functions
• Three-segment Cresnet hub
• Recommended for large Cresnet networks*
• Configurable power distribution
• No programming required
• 6M wide DIN rail mounting
* Use of a DIN-HUB is advised whenever the number of Cresnet devices on a
network is greater than 20 or when the combined total length of Cresnet cable
exceeds 914 meters (3000 feet).
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •1

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
Three-Segment Cresnet Hub
Cresnet is the communications backbone for Crestron lighting modules,
wall box dimmers, shade controllers, thermostats, keypads, touchpanels,
and many other devices. This flexible 4-wire bus normally supports
approximately 20 Cresnet devices without requiring a hub. Larger
systems are easily enabled by adding the DIN-HUB. The DIN-HUB
features three isolated Cresnet segments, each supporting an additional
20 devices, allowing for systems of approximately 80 devices total
(including the “host” segment). More hubs may be added to allow up to a
maximum potential of 252 devices.*
* The actual number of possible devices per segment and per network may vary
depending upon the amount of data traffic, the length and geometry of network
wiring, and the power requirements of every device. A general rule of thumb
suggests approximately 20 devices, an aggregate of 914 meters (3000 feet) of
cable, and up to a 75 Watt load per segment (wiring and devices permitting). In
any case, 252 is the maximum number of possible devices on a complete Cresnet
network. Contact Crestron True Blue Support
(www.crestron.com/true_blue_support) for further design assistance.
Cresnet Power Distribution
In addition to data, Cresnet carries 24 Volts DC for powering the devices
connected to it. The DIN-HUB provides an easy way to manage the
distribution of power for a complete Cresnet network. Each segment can
be configured to receive its power from the “host” power source or from
another power supply. Separate power supplies may be dedicated to each
segment, or a single supply can be shared amongst multiple segments as
needed. Each segment supports up to 75 Watts.
DIN Rail Installation
The DIN-HUB is designed to snap onto a standard DIN rail for
installation in a wall mount enclosure or mounted on a wall panel. Wiring
connections are made using detachable screw terminals positioned along
the top and bottom, clearly accessible from the front for easy installation
and servicing. Diagnostic indicators are positioned on the center front
panel. When installed in an enclosure utilizing 45 mm cutouts, the
DIN-HUB’s front panel stays visible while the connections are
concealed.
2 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Applications
The following diagram shows a DIN-HUB in a typical application.
DIN-HUB in a Typical Application
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •3

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
Specifications
Specifications for the DIN-HUB are listed in the following table.
DIN-HUB Specifications
SPECIFICATION DETAILS
Power Requirements
Cresnet Power Usage 0.6 Watts
(0.03 Amp @ 24 Volts DC)
Maximum Load per
Segment 75 Watts (3.13 Amps @ 24 Volts DC)
Environmental
Temperature
Humidity
Heat Dissipation
0° to 40°C (32° to 104°F)
10% to 90% RH (non-condensing)
2 BTU/Hr
Enclosure Light gray polycarbonate housing
with polycarbonate label overlay,
UL94 V-0 rated, 35 mm DIN EN
60715 rail mount, DIN 43880 form
factor for enclosures with 45 mm
front panel cutout, occupies 6 DIN
module spaces (108 mm)
Dimensions
Height
Width
Depth
94.2 mm (3.71 in)
106 mm (4.17 in)
58.0 mm (2.28 in)
Weight 155 g (5 oz)
Available Accessories
DIN-BLOCK
DIN-PWS50
DIN Rail Cresnet Distribution
Block
DIN Rail 50 Watt Cresnet Power
Supply
4 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Physical Description
This section provides information on the connections, controls and
indicators available on your DIN-HUB.

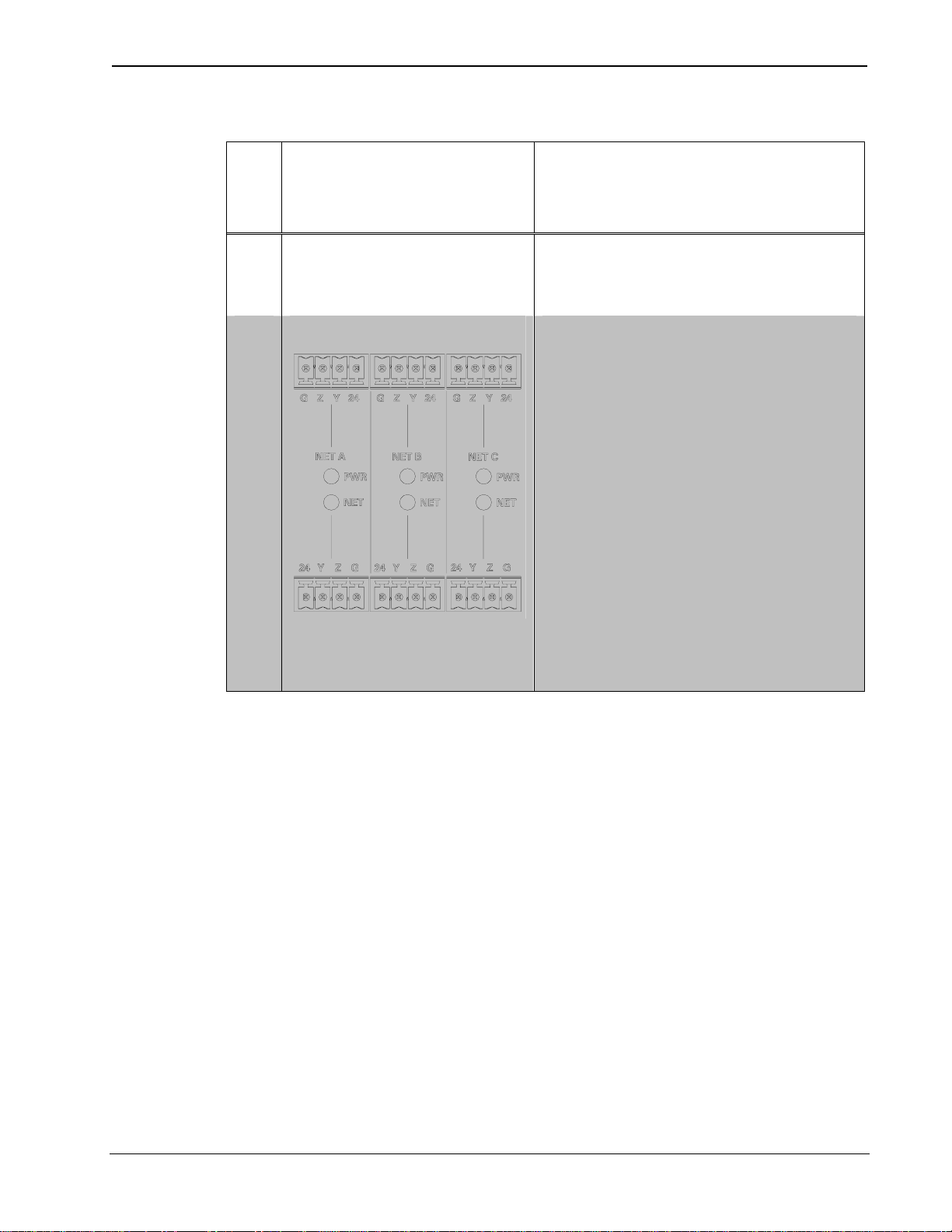

DIN-HUB Physical View
DIN-HUB Overall Dimensions
106 mm
(4.17 in)
94.2 mm
(3.71 in)
90 mm
(3.54 in)
58 mm
(2.28 in)
1
2
3
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •5

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
Connectors, Controls & Indicators
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
1 NET PWR INPUT
(A/B/C) (3) 3-pin 3.5 mm detachable terminal blocks
Cresnet power selection
connectors for each segment
Connect to external Cresnet
power supplies, or to “host”
power source via jumpers, to
power devices connected to the
NET A/B/C ports
Max Wire Size:
1.5 mm2(16 AWG)
Maximum Load per Segment:
75 Watts
(3.13 Amps @ 24 Volts DC)
2 NET HOST and LEDs (2) 4-pin 3.5 mm detachable
terminal blocks, paralleled
Connects to Master NET port of
DIN-AP2 or other control
system, and loops through to
additional DIN Rail Cresnet
devices
Max Wire Size:
1.5 mm2(16 AWG)
Pin 1 (24): Power (24 VDC)
Pin 2 (Y): Data
Pin 3 (Z): Data
Pin 4 (G): Ground
(1) Green LED indicates
Cresnet power is supplied to
unit via either NET HOST port
(Continued on following page)
6 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
2 NET HOST and LEDs
(Continued) (1) Yellow LED indicates
Cresnet bus activity at either
NET HOST port
3 NET A/B/C and LEDs2(6) 4-pin 3.5 mm detachable
terminal blocks comprising (2)
Cresnet ports (paralleled) per
each of (3) segments
Max Wire Size:
1.5 mm2(16 AWG)
(3) Green LEDs indicate
Cresnet power is available at
NET ports of corresponding
hub segment
(3) Yellow LEDs indicate
Cresnet bus activity at NET
ports of corresponding hub
segment
1. Interface connectors for NET HOST, NET PWR INPUT, and NET ports are
provided with the unit.
2. Y, Z, and Gterminals are paralleled within each segment.
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •7

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
Industry Compliance
This unit has been manufactured to comply with UL’s Standards for
Safety in Canada and the United States. Formal approval is pending.
As of the date of manufacture, the DIN-HUB has been tested and found
to comply with specifications for CE marking and standards per EMC
and Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
8 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Setup
Network Wiring
When wiring the Cresnet®network, consider the following:
• Use Crestron Certified Wire.
NOTE: Cresnet-HP wire cannot be used.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
CAUTION: Insufficient power can lead to unpredictable results
or damage to the equipment. Please use the Crestron Power
Calculator to help calculate how much power is needed for the
system (www.crestron.com/calculators).
For more details, refer to “Check Network Wiring” on page 14.
Installation
The DIN-HUB must be installed by a licensed electrician, in accordance
with all national and local codes.
CAUTION: This equipment is for indoor use only. Mount in a well
ventilated area. The ambient temperature must be 0º to 40º C
(32º to 104º F). The relative humidity must be 10% – 90%
(non-condensing).
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •9

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
The DIN-HUB is designed for installation on a DIN rail. Refer to the
following diagram when installing.
Installing the DIN-HUB
DIN-HUB
TOP
DIN RAIL
(NOT SUPPLIED)
DIN RAIL RELEASE
1. Place the top of the DIN-HUB’s rail mount over the top of the DIN
rail.
2. Tilt the bottom of the DIN-HUB toward the DIN rail until it snaps
into place.
NOTE: When mounting DIN rail products, it may be necessary to
use a flat-head screw driver to pull the DIN rail release tab while
snapping the device onto the DIN rail.
To remove the DIN-HUB from the DIN rail, use a small, flat object (i.e. a
flat-head screwdriver) to pull the DIN rail release tab and tilt the bottom
of the DIN-HUB away from the DIN rail.
NOTE: Certain third party DIN cabinets provide space for an
informational label between each DIN rail row. Crestron’s Engraver
software (version 4.0 or later) can generate appropriate labels for all
Crestron DIN rail products.
10 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Hardware Hookup
Make the necessary connections as called out in the illustration that
follows this paragraph. Refer to “Network Wiring” on page 9before
attaching the 4-position terminal block connector. Apply power after all
connections have been made.
When making connections to the DIN-HUB, use a Crestron power
supply.
Hardware Connections for the DIN-HUB
NET:
TOCONTROL SYSTEMAND
OTHER CRESNET DEVICES
NET PWR INPUT:
24 VDC JUMPERED FROMNET
HOST PORT orEXTERNAL
SUPPLY. EACH PORT PROVIDES
POWER TOA SEGMENT
NET B:
CONNECT TOCRESNET
DEVICES ON SEGMENT B
NET A:
CONNECT TO
CRESNET
DEVICES ON
SEGMENT A
NET C:
CONNECT TO
CRESNET
DEVICES ON
SEGMENT C
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •11

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
Power can be supplied from a DIN-PWS50 DIN Rail Power Supply or
other Cresnet power supply connected to the NET HOST port. For more
information, refer to the latest version of the DIN-PWS50 Operations &
Installation Guide (Doc. 6667), which is available for download from the
Crestron website (www.crestron.com/manuals).
NOTE: The DIN-HUB can only be powered by the NET HOST port.
Power cannot be supplied from network devices that are connected to any
of the segments.
Hub segments can be powered internally or from an external power
supply like the DIN-PWS50.
To power a segment internally, install a jumper from the HOST pin to
the EXT pin on the segment’s NET PWR INPUT port as shown in the
following diagram.
Powering a Hub Segment Internally (Segment A Shown)
To power a segment externally, connect the external power supply to the
EXT and Gpins on the segment’s NET PWR INPUT port as shown in
the following diagram.
Powering a Hub Segment Externally (Segment A Shown)
DIN-PWS50 orOTHER
CRESTRON 24 VDC
SUPPLY
24 G
12 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble
situations. If further assistance is required, please contact a Crestron
customer service representative.
DIN-HUB Troubleshooting
TROUBLE POSSIBLE
CAUSE(S) CORRECTIVE
ACTION
NET HOST
PWR LED does
not illuminate.
DIN-HUB is not
receiving power. Determine that the
NET HOST port on the
DIN-HUB is properly
connected to a
Cresnet power supply.
Segment is
improperly wired. Verify wiring
connections: proper
connector is used,
cable in intact, and
connections are
secure.
Device(s) attached
to segment is not
properly identified
in SIMPL™
Windows®.
Use Crestron Toolbox
to verify that the SIMPL
Windows program
recognizes all of the
devices.
Segment’s NET
LED does not
illuminate.
Other segment is
improperly wired. Remove all segment
connections except for
segment attached to
control system and
segment for which the
LED is not illuminating.
(Continued on following page)
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •13

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
DIN-HUB Troubleshooting (Continued)
TROUBLE POSSIBLE
CAUSE(S) CORRECTIVE
ACTION
Incorrect wiring at
NET PWR INPUT
port.
Verify that the NET
PWR INPUT port is
wired correctly for
internal or external
power.
Segment’s PWR
LED does not
illuminate.
Insufficient power. Verify that sufficient
power is available. If
necessary, connect the
NET PWR INPUT port
to an external power
supply.
Network not
working and only
one LED is
illuminated.
Wiring problem. Disconnect segment
that resulted in
illuminated LED and
correct wiring.
Check Network Wiring
Use the Right
Wire In order to ensure optimum performance over the full range of your
installation topology, Crestron Certified Wire and only Crestron Certified
Wire may be used. Failure to do so may incur additional charges if
support is required to identify performance deficiencies because of using
improper wire.
Calculate
Power CAUTION: Use only Crestron power supplies for Crestron equipment.
Failure to do so could cause equipment damage or void the Crestron
warranty.
CAUTION: Provide sufficient power to the system. Insufficient power
can lead to unpredictable results or damage to the equipment. Please use
the Crestron Power Calculator to help calculate how much power is
needed for the system (www.crestron.com/calculators).
When calculating the length of wire for a particular Cresnet run, the wire
gauge and the Cresnet power usage of each network unit to be connected
must be taken into consideration. Use Crestron Certified Wire only. If
14 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A

Crestron DIN-HUB DIN Rail Cresnet®Distribution Hub
Cresnet units are to be daisy-chained on the run, the Cresnet power usage
of each network unit to be daisy-chained must be added together to
determine the Cresnet power usage of the entire chain. If the unit is
home-run from a Crestron system power supply network port, the
Cresnet power usage of that unit is the Cresnet power usage of the entire
run. The wire gauge and the Cresnet power usage of the run should be
used in the following equation to calculate the cable length value on the
equation’s left side.
Cable Length Equation
L = Length of run (or chain) in feet
R = 6 Ohms (CrestronCertifiedWire:0.75 MM (18 AWG))
P = Cresnet power usage of entire run (or chain )
2
L < 40,000
R x P
Where:
Make sure the cable length value is less than the value calculated on the
right side of the equation. For example, a Cresnet run using 0.75mm2
(18 AWG) Crestron Certified Wire and drawing 20 watts should not have
a length of run more than 101 meters (333 feet). Cresnet-HP cannot be
used.
NOTE: All Crestron certified Cresnet wiring must consist of two
twisted pairs. One twisted pair is the +24V conductor and the GND
conductor and the other twisted pair is the Y conductor and the Z
conductor.
Strip and Tin
Wire When daisy-chaining Cresnet units, strip the ends of the wires carefully
to avoid nicking the conductors. Twist together the ends of the wires that
share a pin on the network connector and tin the twisted connection.
Apply solder only to the ends of the twisted wires. Avoid tinning too far
up the wires or the end becomes brittle. Insert the tinned connection into
the Cresnet connector and tighten the retaining screw. Repeat the
procedure for the other three conductors.
Reference Documents
The latest version of all documents mentioned within the guide can be
obtained from the Crestron website (www.crestron.com/manuals). This
link will provide a list of product manuals arranged in alphabetical order
by model number.
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB •15

DIN Rail Cresnet®Distribution Hub Crestron DIN-HUB
List of Related Reference Documents
DOCUMENT TITLE
DIN-PWS50 DIN Rail 50 Watt Cresnet Power Supply
Further Inquiries
If you cannot locate specific information or have questions after
reviewing this guide, please take advantage of Crestron's award winning
customer service team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the Crestron website
(www.crestron.com/onlinehelp) to ask questions about Crestron products.
First-time users will need to establish a user account to fully benefit from
all available features.
Future Updates
As Crestron improves functions, adds new features and extends the
capabilities of the DIN-HUB, additional information may be made
available as manual updates. These updates are solely electronic and
serve as intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
16 •DIN Rail Cresnet Hub: DIN-HUB Operations & Installation Guide – DOC. 6671A
