Crestron HD-MD6X2-4K-E Owner's manual

HD-MD6X2-4K-E/HD-MD4X2-4K-E/
HD-MD4X1-4K-E
4K HDMI®Switchers
Supplemental Guide
Crestron Electronics, Inc.

The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, and DigitalMedia are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States
and/or other countries. HDMI, the HDMI logo, and High Definition Multimedia Interface are either trademarks or registered trademarks of
HDMI Licensing LLC in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in
this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the
marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2016 Crestron Electronics, Inc.

Supplemental Guide – DOC. 7761A Contents
•
i
Contents
Introduction 1
Using the Web Interface 1
Accessing the Web Interface................................................................................... 1
Logging In to a Switcher ............................................................................ 2
Navigating the Web Interface ..................................................................... 3
Viewing Status Information...................................................................................... 4
Configuring Routes ................................................................................................. 5
Configuring Input Settings ....................................................................................... 6
Configuring Output Settings .................................................................................... 8
Configuring Network Settings................................................................................ 10
Configuring Device Settings .................................................................................. 11
Enabling or Disabling the Front Panel....................................................... 11
Changing the Username and Password ................................................... 12

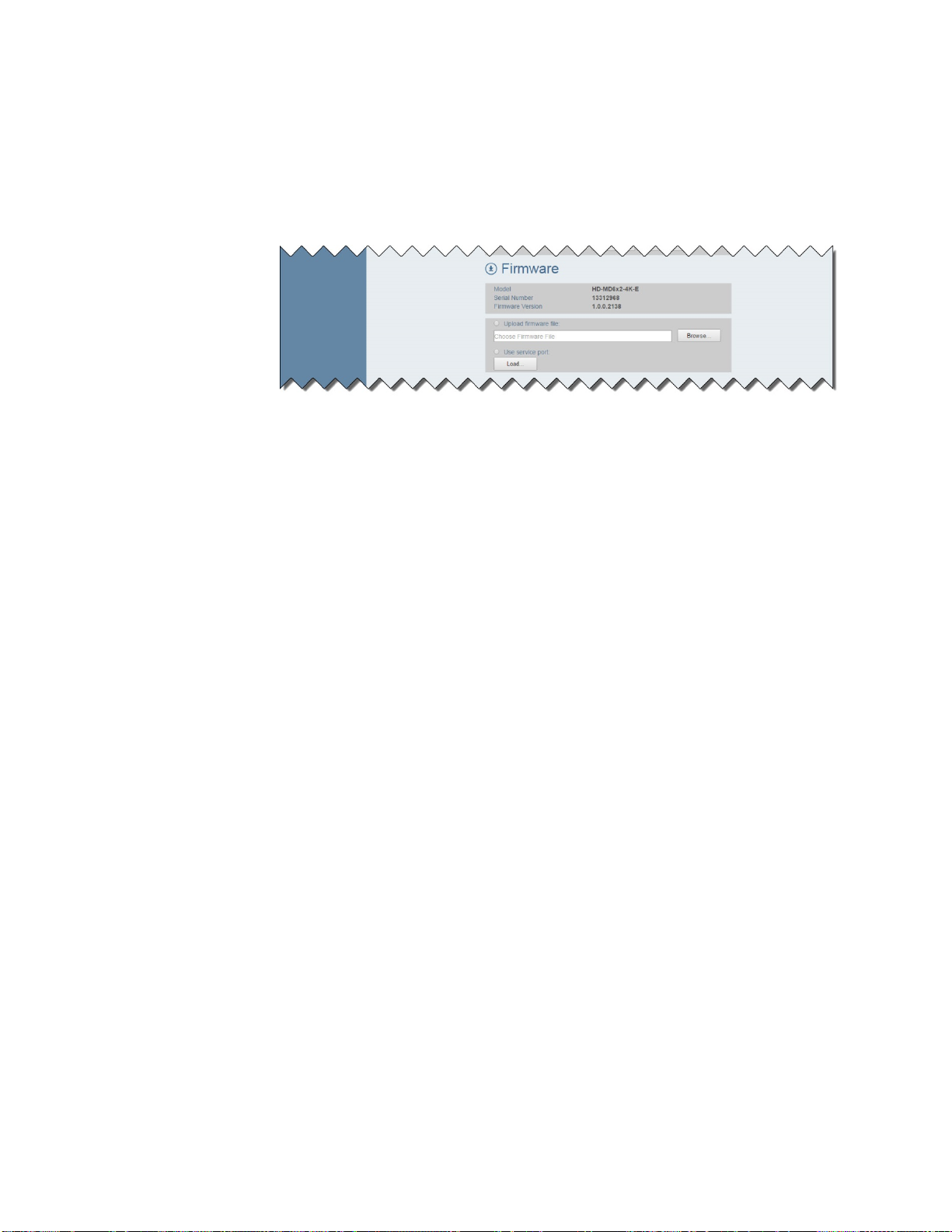

Upgrading Firmware................................................................................. 13
Using the Front Panel OLED Display 14

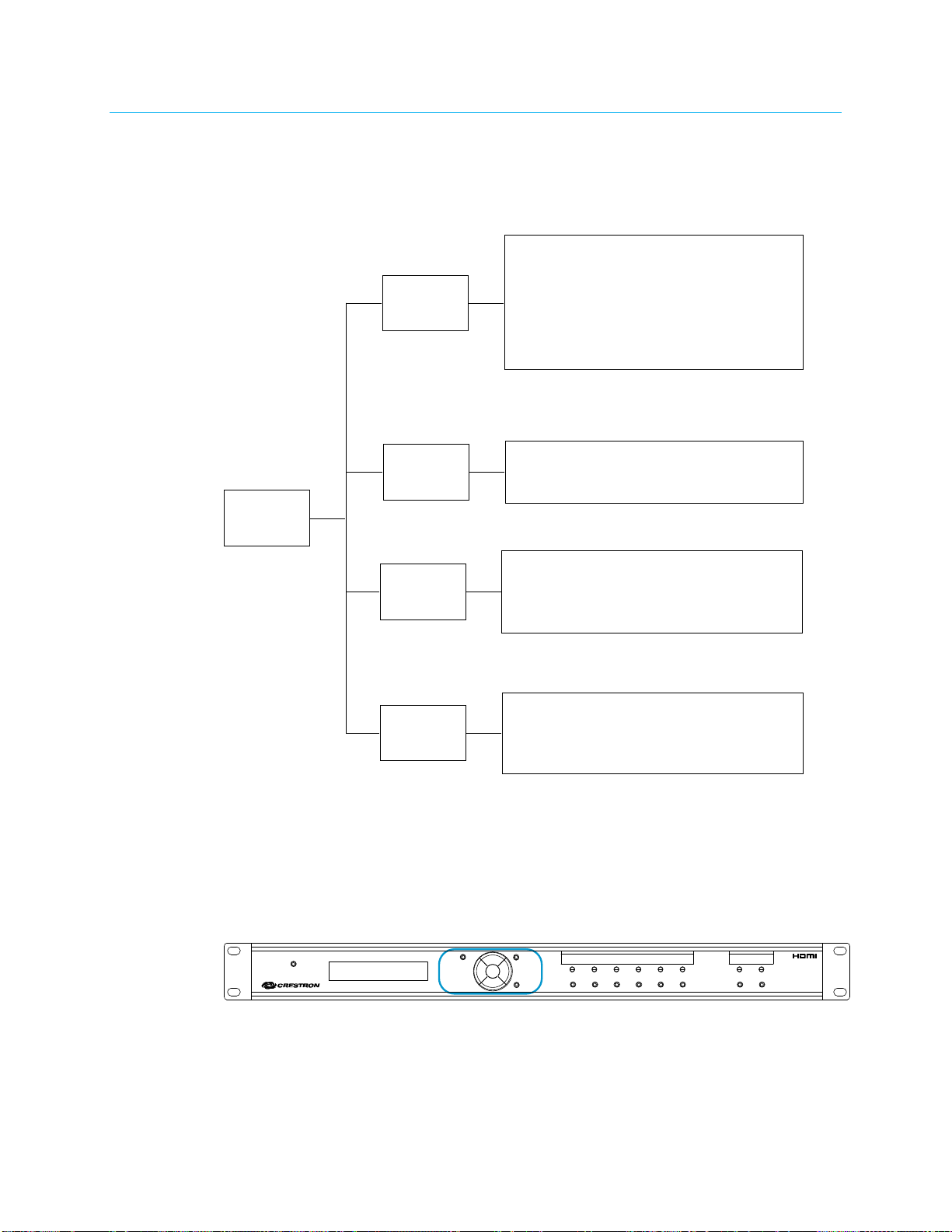

Accessing and Navigating the OLED Display Menu............................................... 14
Configuring Input Settings ..................................................................................... 15
Configuring Output Settings .................................................................................. 18
Configuring Network Settings................................................................................ 19
Configuring Device Settings .................................................................................. 20
Using the Routing Push Buttons 21
Routing Inputs on the HD-MD6X2-4K-E and HD-MD4X2-4K-E ............................ 21
Routing Inputs on the HD-MD4X1-4K-E................................................................ 22

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
1
HD-MD6X2-4K-2/HD-MD4X2-4K-E/
HD-MD4X1-4K-E:
4K HDMI®Switchers
Introduction
The Crestron®HD-MD6X2-4K-E, HD-MD4X2-4K-E, and HD-MD4X1-4K-E are 4K HDMI®
switchers. Each switcher supports high-resolution signals up to 4K/60 and provides
advanced DigitalMedia™ EDID management, native Crestron control via Ethernet, a built-in
web server, and a front panel OLED (organic light-emitting diode) display.
While similar in functionality, the switchers differ in the number of HDMI inputs and outputs:
•The HD-MD6X2-4K-E provides six HDMI inputs and two independent HDMI
outputs.
•The HD-MD4X2-4K-E provides four HDMI inputs and two independent HDMI
outputs.
•The HD-MD4X1-4K-E provides four HDMI inputs and one HDMI output.
This guide provides information about configuration of the switchers using the web
interface and the front panel OLED display. Information about the routing push buttons
is also provided. For additional information about the switchers, refer to the
HD-MD6X2-4K-E/HD-MD4X2-4K-E/HD-MD4X1-4K-E DO Guide (Doc.7760).
Using the Web Interface
Built-in web pages of the HD-MD6X2-4K-E, HD-MD4X2-4K-E, and HD-MD4X1-4K-E allow
configuration of routing, input, output, network, and device settings. In addition, information
about the switchers can be viewed.
Accessing the Web Interface
To access the web interface, do the following:
1. Note the IP address that appears on the front panel OLED display.
NOTE:
After power is applied to a switcher, the IP address appears on the front
panel OLED display.

2
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
2. Open a web browser.
3. Go to the IP address of the switcher.
The Login page opens. For login information, refer to “Logging In to a Switcher”
below.
Logging In to a Switcher
The Login page allows access to the web interface of a switcher.
Login Page
To log in to a switcher, do the following:
1. Enter the username and password. The default username is admin, and the default
password is admin.
NOTE:
The username and password are case sensitive.
NOTE:
For enhanced security, it is recommended that the default username and
password be changed. For information about changing the username and
password, refer to “Changing the Username and Password” on page 12.
2. Click the
Submit
button.
The Status page opens. For information about navigating the web interface, refer to
“Navigating the Web Interface” on the following page.

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
3
Navigating the Web Interface
The web interface provides a navigation bar and built-in web pages of the switchers.
Web Interface (Sample Status Page of HD-MD6X2-4K-E Shown)
The navigation bar provides access to the web pages as follows:
•Clicking
STATUS
accesses the Status page, which provides general information
about a switcher as well as network-related information. For additional information,
refer to “Viewing Status Information” on the following page.
•Clicking
ROUTING
accesses the Routing page, which allows routes to be set on a
switcher. For additional information, refer to “Configuring Routes” on page 5.
•Clicking
INPUTS
accesses the Input page, which allows the desired EDID to be
sent to the inputs. For additional information, refer to “Configuring Input Settings”
on page 6.
•Clicking
OUTPUT
accesses the Output page, which allows the selection of an input
for routing to an output. For additional information, refer to “Configuring Output
Settings” on page 8.
•Clicking
NETWORK
accesses the Network page, which allows network settings
such as hostname and DHCP (Dynamic Host Configuration Protocol) mode to be
set. For additional information, refer to “Configuring Network Settings” on page 10.
•Clicking
DEVICE
accesses the Device page, which allows changes to username
and password settings and also controls various device functions. For additional
information, refer to “Configuring Device Settings” on page 11.
NOTE:
After 10 minutes of inactivity, the web interface times out and returns to the
Login page.

4
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
Viewing Status Information
General information, such as model name, serial number, and firmware version of a
switcher, can be viewed. The current network settings, such as hostname and IP address,
can also be viewed.
To view status information, do the following: In the navigation bar, click
STATUS
.
The Status page opens.
NOT
E
:
The Status page opens after logging in to a switcher.
Sample Status Page
The Status page displays the following information about a switcher:
•General information, which consists of the following:
oModel (HD-MD6x2-4K-E, HD-MD4x2-4K-E, or HD-MD4x2-4K-E)
oSerial Number
oFirmware Version
•Network-related information, which consists of the following:
oHostname
NOTE:
In the sample Status page shown on the previous page for the
HD-MD6X2-4K-E, the default hostname is
HDMD6X2-6200F1
, where
6200F1
consists of the last six digits of the MAC address of the
HD-MD6X2-4K-E.
oIP Address
oSubnet Mask
oDefault Gateway
oMAC Address

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
5
Configuring Routes
Routes can be set so that an HDMI signal from any input on a switcher can be routed to any HDMI
output on the switcher.
•The HD-MD6X2-4K-E allows any of the six inputs to be routed to up to two
independent outputs simultaneously.
•The HD-MD4X2-4K-E allows any of the four inputs to be routed to up to two
independent outputs simultaneously.
•The HD-MD4X1-4K-E allows any of the four inputs to be routed to a single output.
To route the desired inputs to one or more HDMI outputs, do the following:
1. In the navigation bar, click
ROUTING
. The Routing page opens.

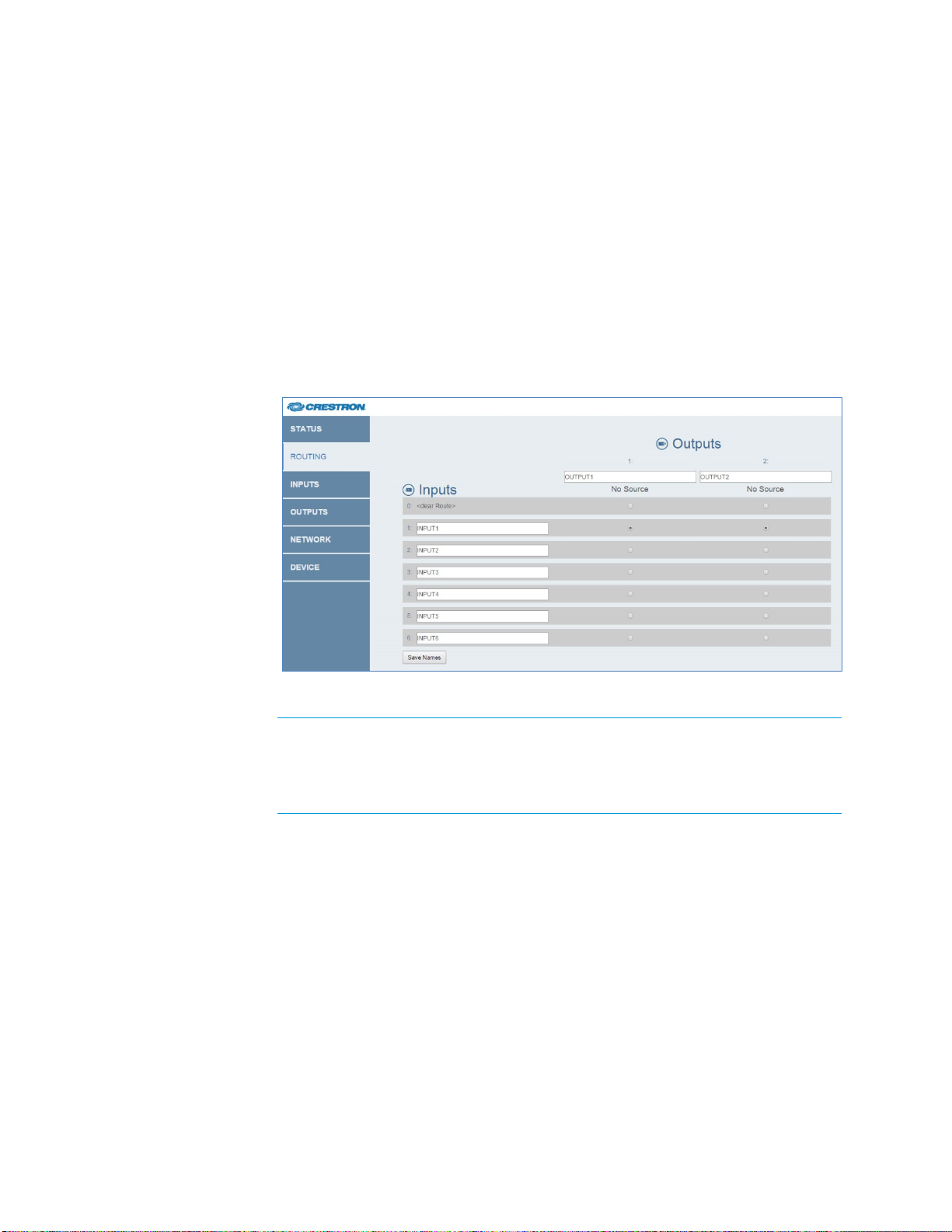

Routing Page ( HD-MD6X2-4K-E Page Shown)
As shown above, the Routing page provides a list of inputs and a list of outputs.
NOTE:
The Routing page varies depending on the model of the switcher.
The Routing page shown above applies to the HD-MD6X2-4K-E, which has six
inputs and two outputs. For the HD-MD4X2-4K-E, the Routing page lists four
inputs and two outputs. For the HD-MD4X1-4K-E, the Routing page lists four
inputs and one output.
The default names of the HDMI inputs are
INPUT1,
INPUT2
,
INPUT3
,
INPUT4,
INPUT5
(HD-MD6X2-4K-E only), and
INPUT6
(HD-MD6X2-4K-E only). For the
HD-MD6X2-4K-E and HD-MD4X2-4K-E, the default names of the HDMI outputs
are
OUTPUT1
and
OUTPUT2
. For the HD-MD4X1-4K-E, the default name of the
HDMI output is
OUTPUT
.
2. In the text entry boxes for the inputs and outputs, rename the inputs and outputs if
desired, and then click the
Save Names
button.
3. To route an input to an output, select the corresponding output radio button for the
input. The input is routed to the output immediately.

6
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
NOTE:
For the HD-MD6X2-4K-E and HD-MD4X2-4K-E, two output radio buttons
can be selected for a single input if desired.
NOTE:
For each output, the resolution and frame rate being transmitted to the
output are displayed. If the input resolution is changed, the resolution and frame
rate are updated dynamically. If no source is detected, the message
No Source
is
displayed.
4. (Applicable to the HD-MD4X1-4K-E only) Enable or disable automatic routing:
•To enable automatic routing, click the
TRUE
radio button if it is not already
selected. By default, the
TRUE
radio button is selected.
•To disable automatic routing, click the
FALSE
radio button.
To disconnect a route for an input, click the
<clear Route>
radio button for the
corresponding output.
Configuring Input Settings
The desired EDID can be selected and sent to the inputs. Built-in EDID files are available for
selection, and custom EDID files can also be selected. The EDID can be selected on a
global basis and sent to all inputs, or it can be selected on an individual basis for each input.
In addition, inputs can be renamed. HDCP (High-bandwidth Digital Content Protection)
support can also be enabled or disabled for each input on an individual basis.
To send the desired EDID to the inputs, do the following:
1. In the navigation bar, click
INPUTS
. The Input page opens.

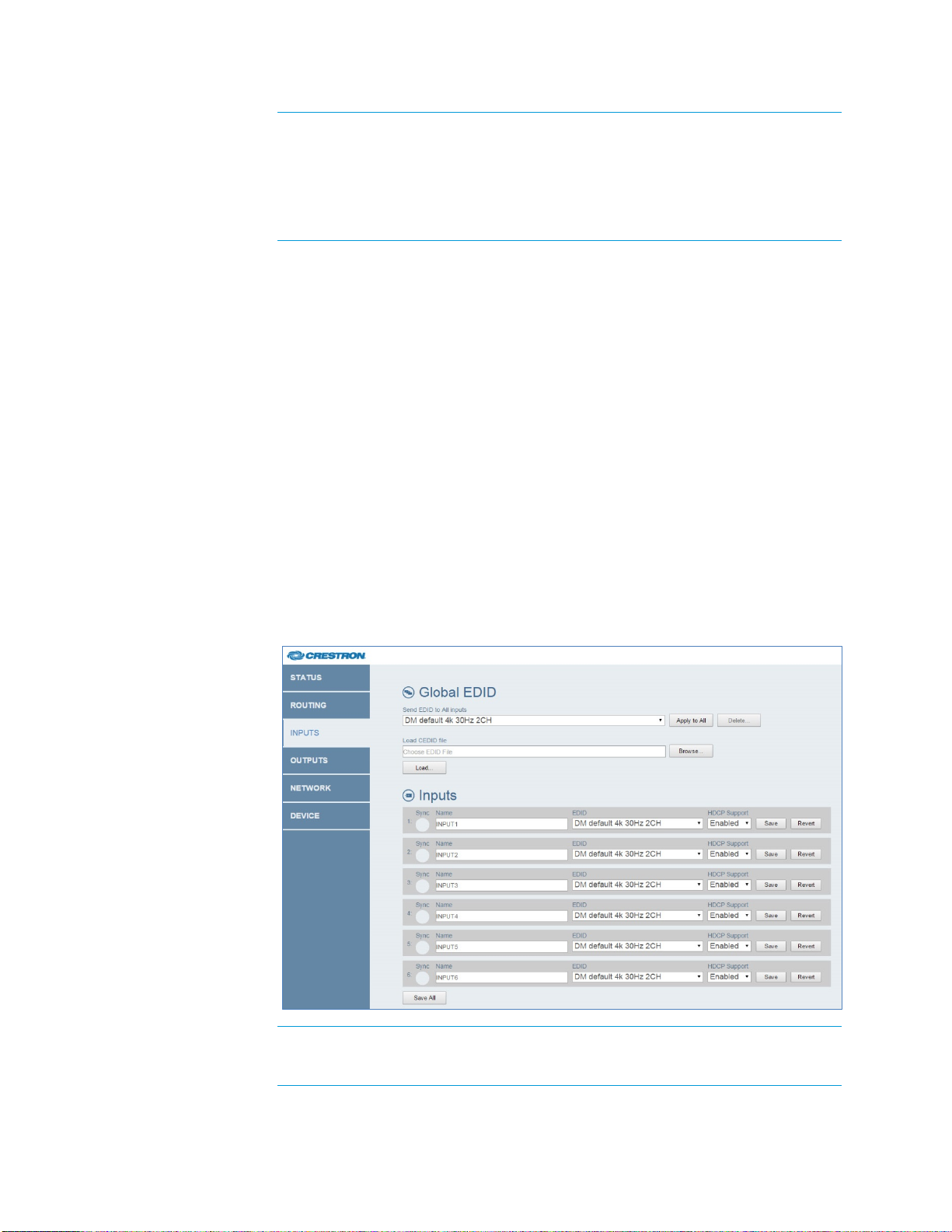

Input Page (HD-MD6X2-4K-E Page Shown)
NOTE:
The Input page varies depending on the model of the switcher. The Input
page shown above applies to the HD-MD6X2-4K-E, which has six inputs. For the
HD-MD4X2-4K-E and the HD-MD4X1-4K-E, the Input page lists four inputs.

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
7
2. Determine whether a built-in EDID file or a custom EDID file is to be sent to one or
more inputs. If a custom EDID file is desired, continue with step 3; otherwise, skip
step 3 and proceed to step 4.
3. (For loading of custom EDID files only) In the
Global EDID
section of the page, load
the desired custom EDID file by doing the following:
a. Click the
Browse…
button located to the right of the
Load CEDID file
field.
Windows Explorer opens.
b. Navigate to the desired EDID file (*.cedid), select the file, and then click the
Open
button.
The selected EDID file appears in the
Load CEDID file
field.
c. Click the
Load…
button. A prompt appears asking for confirmation that the
EDID file be uploaded to the input device.
d. Click the
OK
button. The following occurs:
•In the
Global EDID
section of the page, the custom EDID filename
is added to the
Send EDID to All inputs
drop-down list.
•In the
Inputs
section of the page, the custom EDID filename is
added to the
EDID
drop-down lists.
4. Configure the inputs as follows:
a. (Optional) In the
Global EDID
section of the page, globally apply the same
EDID to all inputs simultaneously by doing the following:
i. In the
Send EDID to All inputs
drop-down list, select the desired
built-in EDID file or a custom EDID file. The built-in EDID files are as
follows:
DM default 4k 30Hz 2CH (Default setting)
DM default EDID
Laptop 16x10 1280x800 2CH
Laptop 16x10 1920x1200 2CH
Laptop 16x9 1080P50 2CH
Laptop 16x9 1080P 2ch
Laptop widescreen 2CH
Consumer 4k 25Hz HBR 3D
Consumer 4k 30Hz HBR 3D
Consumer 1080P50 3D HBR
Consumer 1080P50 HBR
Consumer 1080P 3D HBR
Consumer 1080P HBR
Consumer 720P50 HBR
Consumer 720P HBR
Output 1 (HD-MD6X2-4K-E and HD-MD4X2-4K-E Only)
Output 2 (HD-MD4X2-4K-E and HD-MD4X2-4K-E Only)
Output (HD-MD4X1-4K-E Only)
NOTE:
Selecting
Output 1, Output 2,
or
Output
copies the EDID
from the output to all of the inputs.
ii. Click the
Apply to All
button. The selected EDID is automatically
sent to all inputs and appears in the
EDID
drop-down list for all
inputs in the
Inputs
section of the page.

8
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
b. In the
Inputs
section of the page, configure each input as follows:
NOTE:
For each input, the Sync icon denotes whether a source is
detected at the input. If a source is detected, the icon is green. If no source
is detected, the icon is gray.
i. In the
Name
text box, rename the input if desired.
ii. If an EDID other than the Global EDID is to be assigned, select the
desired EDID in the
EDID
drop-down list.
iii. In the
HDCP Support
drop-down list, select
Enabled
or
Disabled
.
The default setting is
Enabled
.
iv. Do one of the following:
•Click
Save
to save the
Name
,
EDID
, and
HDCP Support
entries for each corresponding input.
•Click
Revert
to go back to the previous settings without
saving the current entries.
•Click
Save All
to save all unsaved entries.
To delete a custom EDID file, click the
Delete…
button in the
Global EDID
section of the
page. The custom EDID file is deleted from the
Send EDID to All inputs
drop-down list and
also from each individual
EDID
drop-down list in the
Inputs
section of the page.
NOTE:
Only custom EDID files can be deleted. Built-in EDID files cannot be deleted.
Configuring Output Settings
Configuration of output settings includes the selection of an input for routing to an output,
the renaming of an output, and the enabling of HDCP. Information about the connected
display can also be viewed.
To configure output settings, do the following:
1. In the navigation bar, click
OUTPUTS
. The Output page opens.
Output Page (HD-MD6X2-4K-E Page Shown)

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
9
NOTE:
The Output page varies depending on the model of the switcher.
The Output page shown on the preceding page applies to the HD-MD6X2-4K-E,
which has six inputs and two outputs. For the HD-MD4X2-4K-E, the Output page
lists four inputs and two outputs. For the HD-MD4X1-4K-E, the Output page lists
four inputs and one output.
2. For each output, do the following as appropriate:
a. In the
Route
drop-down list, select
0: <clear Route>
to clear a route to
the output, or select the desired input to set a route.
The
Transmitting
icon indicates whether an HDMI signal is being
transmitted to the output:
•A green icon indicates that an HDMI signal is being transmitted to
the output.
•A gray icon indicates that an HDMI signal is not being transmitted
to the output.
b. In the
Name
text entry box, rename the output if desired.
c. In the
HDCP Output
drop-down list, select one of the following:
•
Auto:
(Default setting) Specifies that the output be encrypted if the
input requires HDCP protection
•
Always Enabled:
Specifies that the output always be encrypted
regardless of the input requirements
d. Do one of the following:
•Click
Save
to save the
Route
,
Name
, and
HDCP Output
entries
for each corresponding output.
•Click
Revert
to go back to the previous settings without saving the
current entries.
•Click
Save All
to save all unsaved entries.
The Output page also displays the following information about the connected display:
•
Manufacturer:
Specifies the name of the manufacturer of the connected display
•
Model:
Specifies the model name of the connected display
•
Serial Number:
Specifies the serial number of the connected display

10
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
Configuring Network Settings
To configure network settings, do the following:
1. In the navigation bar, click
NETWORK
. The Network page opens.
Network Page
2. Configure network settings as required:
•In the
Hostname
text box, overwrite the existing hostname with a name
that identifies the switcher on the network. The hostname is restricted to
the letters ato z(not case sensitive), the digits 1to 9, and the hyphen.
The default hostname is HDMD6X2-xxxxxx for the HDMD6X2-4K-E,
HDMD4X2-xxxxxx for the HD-MD4X2-4K-E, and HDMD4X1-xxxxxx for the
HD-MD4X1-4K-E, where xxxxxx consists of the last six digits of the MAC
address of the device.
•Specify whether the IP address of the switcher is to be assigned by a
DHCP (Dynamic Host Configuration Protocol) server. To set the IP address,
click either of the following radio buttons:
o
Obtain an IP address automatically:
(Default setting) Allows the
IP address of the switcher to be automatically assigned by a
DHCP server on the local area network (LAN) for a predetermined
period of time.
NOTE
: If a DHCP server does not exist on the network and
45 seconds have elapsed since the switcher was powered on, the
IP address defaults to a link-local address. Refer to RFC 3927 for
information about link-local addressing.
o
Use the following IP address:
Allows static IP address, subnet
mask, and default gateway settings to be configured:
•
IP Address:
Enter a unique IP address for the switcher.
•
Subnet Mask:
Enter the subnet mask that is set on the
network.
•
Default Gateway:
Enter the IP address that is to be used
as the network’s gateway.

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
11
3. Do either of the following:
•To save the current entries, click the
Save
button. The switcher
automatically reboots.
•To go back to the previous settings without saving the current entries, click
the
Revert
button.
Configuring Device Settings
Configuration and management of device settings consist of the following:
•Enabling or disabling the front panel
•Changing the user name and password
•Upgrading firmware
Enabling or Disabling the Front Panel
By default, the front panel of the switcher is enabled, allowing the navigation pad of the
OLED display as well as the routing push buttons to function. The navigation pad and
routing push buttons can be disabled. In addition, the OLED display and all LEDs on a
switcher can be turned off. Although the switcher appears as though it is not powered on
and functioning, the device remains powered on and continues to function.
NOTE:
For information about the OLED display, refer to “Using the Front Panel OLED
Display” on page 14. For information about the routing push buttons, refer to “Using the
Routing Push Buttons” on page 21.
To enable or disable the front panel, do the following:
1. In the navigation bar, click
DEVICE
. The Device page, which includes a
Front Panel
section, opens.
Device Page—Front Panel
2. Configure front panel settings as desired:
a. Enable or disable the front panel. To enable the front panel, click the
Enabled
radio button if it is not already selected. To disable the front panel,
click the
Disabled
radio button. When the front panel is disabled, the
navigation pad of the OLED display as well as the
INPUT
and
OUTPUT
push buttons are disabled.
b. In the
Display Default
drop-down list, select one of the following to control
the information that appears on the OLED display or to enable or disable
the OLED display:
•
Show IP Address:
(Default setting) Allows the IP address of the
switcher to be shown on the OLED display

12
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
•
Show video routing:
Allows the route for each output to be
shown on the OLED display. For each of the two outputs of the
HD-MD6X2-4K-E and HD-MD4X2-4K-E, the output name followed
by the corresponding input name is displayed, for example:
OUTPUT1: INPUT1
OUTPUT2: INPUT 4
For the single output of the HD-MD4X1-4K-E, the output name
followed by the corresponding input name is displayed, for
example:
OUTPUT: INPUT1
•
Disable:
Turns off the OLED display, preventing the IP address or
video routing information from being shown on the display.
In addition, the PWR LED and the INPUT and OUTPUT LEDs also
turn off.
Changing the Username and Password
To change the username and password, do the following:
1. In the navigation bar, click
DEVICE
. The Device page, which includes a
Username
and Password
section, opens.
Device Page—Username and Password
2. Do the following:
NOTE:
The username and password are case sensitive.
a. In the
Username
text box, enter the desired username.
b. In the
Password
text box, enter the desired password.
c. In the
Confirm Password
text box, reenter the desired password to
confirm the password.
d. Do either of the following:
•To save the current entries, click the
Save
button.
•To go back to the previous settings without saving the current
entries, click the
Revert
button.

Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
13
Upgrading Firmware
To upgrade firmware of the switcher, do the following:
1. In the navigation bar, click
DEVICE
. The Device page, which includes a
Firmware
section, opens.
Device Page—Firmware
The
Firmware
section displays the following information about the switcher:
•Model, which is
HD-MD6X2-4K-E
,
HD-MD4X2-4K-E
, or
HD-MD4X1-4K-E
•Serial Number
•Firmware Version
2. To upgrade the firmware, click the
Upload firmware file
radio button or the
Use
service port
radio button:
•If the
Upload firmware file
radio button is selected, do the following:
a. Click the
Browse
button. Windows Explorer opens.
b. Locate and select the desired firmware file (*.bin), and then click
the
Open
button. The
Browse
field displays the firmware filename.
c. Click the
Load
button. A prompt appears asking for confirmation
that the firmware be upgraded.
d. Click the
OK
button to upgrade the firmware.
•If the
Use service port
radio button is selected, do the following:
a. Insert a USB mass storage device containing the firmware file into
the
SERVICE
port of the switcher.
b. Click the
Load
button. A prompt appears asking for confirmation
that the firmware be upgraded.
c. Click the
OK
button to upgrade the firmware.

14
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
Using the Front Panel OLED Display
The front panel OLED display provides a menu that allows configuration of the switchers.
The following illustration provides a menu tree of the OLED display.
OLED Display Menu Tree
The following sections provide information about the OLED display menu.
Accessing and Navigating the OLED Display Menu
To access and navigate the OLED display menu, use the OLED push buttons and the
navigation pad on the front panel of the switchers.
OLED Push Buttons and Navigation Pad (HD-MD6X2-4K-E Shown)
To access the main menu of the OLED display, press the
MENU
button. The OLED display,
which displays two lines at a time, appears as shown on the following page.
Global EDID
Input 1
Input 2
Input 3
Input 4
Input 5 (HD-MD6X2-4K-E Only)
Input 6 (HD-MD6X2-4K-E Only)
Main Menu
Inputs
Output 1
Output 2 (HD-MD6X2-4K-E and
HD-MD4X2-4K-E Only)
Outputs
Status
DHCP
DHCP Renew (Displayed only if DHCP is ON)
IP Setup (Displayed only if DHCP is OFF)
Network
Details
Front Panel
Firmware Update
Restore
Device
Enter
MENU
HD-MD6X2-4K-E
EXIT



123456 1 2
PWR
INPUT OUTPUT
BACK


Supplemental Guide – DOC. 7761A HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers
•
15
OLED Main Menu
<< Main Menu >>
Inputs
To navigate the main menu and submenus on the OLED display, do the following:
•To navigate upward in a menu, press the up button ( ) on the navigation pad.
•To navigate downward in a menu, press the down button ( ) on the navigation
pad.
•To move the cursor to the left when entering data, press the left button ( ) on the
navigation pad.
•To move the cursor to the right when entering data, press the right button ( ) on
the navigation pad.
•To select an item in a menu, press the
Enter
button on the navigation pad.
•To save a new setting, press the
Enter
button on the navigation pad.
•To go back to the previous level in a menu, press the
BACK
button on the front
panel.
•To exit the menu of the OLED display, press the
EXIT
button on the front panel.
Configuring Input Settings
To configure input settings, do the following:
1. On the main menu, select
Inputs.
The Inputs submenu opens.
Inputs Submenu
< Inputs >
Global EDID
Available selections are as follows:
Global EDID
Input 1
Input 2
Input 3
Input 4
Input 5 (applicable to the HD-MD6X2-4K-E only)
Input 6 (applicable to the HD-MD6X2-4K-E only
2. Configure inputs as follows:
a. (Optional) Select
Global EDID
.
The following message flashes across the OLED:
Apply EDID to All Inputs
i. Confirm the selection by pressing the
Enter
button. A list of EDID
files is presented.
DM default 4k 30Hz 2CH (Default setting)
DM default EDID
Laptop 16x10 1280x800 2CH
Laptop 16x10 1920x1200 2CH
Laptop 16x9 1080P50 2CH
Laptop 16x9 1080P 2ch





16
•
HD-MD-6X2/4X2/4X1-4K-E: 4K HDMI Switchers Supplemental Guide – DOC. 7761A
Laptop widescreen 2CH
Consumer 4k 25Hz HBR 3D
Consumer 4k 30Hz HBR 3D
Consumer 1080P50 3D HBR
Consumer 1080P50 HBR
Consumer 1080P 3D HBR
Consumer 1080P HBR
Consumer 720P50 HBR
Consumer 720P HBR
External EDID 1
External EDID 2
External EDID 3
External EDID 4
External EDID 5
External EDID 6
External EDID 7
External EDID 8
Copy Output 1
Copy Output 2 (applicable to the HD-MD6X2-4K-E and
HD-MD4X2-4K-E only)
NOTE:
In the list above,
External EDID 1
through
External
EDID 8
represent placeholders for custom-loaded EDID files.
NOTE:
Selecting
Output 1
or
Output 2
copies the EDID from the
output to all of the inputs.
ii. Select the desired EDID.
A prompt appears asking for confirmation that the selected EDID
be applied to all inputs.
iii. Select
Yes
or
No:
•If
Yes
is selected, the
Setting…
message appears, and
then the OLED display returns to the Inputs submenu.
•If
No
is selected, the OLED display returns to the list of
available EDIDs.
b. Configure each input on an individual basis by selecting the input number
in the Inputs submenu.
The Input Status and Configuration submenu opens for the selected input.
Input Status and Configuration Submenu (Input 1 Shown)
< Input 1 >
Status
