Crestron TST-602 Owner's manual

TST-602
5.7" Wireless Touch Screen
Supplemental Guide
Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,
non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron
dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron
website at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or
other countries. Wi-Fi is either a trademark or registered trademark of Wi-Fi Alliance in the United States and/or other countries. Other
trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors
in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Supplemental Guide – DOC. 7688A Contents
•
i
Contents
Access the Setup Screens 1
Configure the TST-602 2
RF Setup................................................................................................................. 2
Audio Setup ............................................................................................................ 3
Display Setup.......................................................................................................... 4
Standby Timeout..................................................................................................... 6
Networking Setup ................................................................................................... 7
LAN Setup ................................................................................................. 8
WiFi Setup ............................................................................................... 10
Diagnostics ........................................................................................................... 13
Keypad Test............................................................................................. 14
Touch Test............................................................................................... 15
Mic Test ................................................................................................... 15
LAN Test.................................................................................................. 16
WiFi Test .................................................................................................. 17
RF Test .................................................................................................... 18
Test Patterns............................................................................................ 19
Rava Test................................................................................................. 20
RTSP Test................................................................................................ 21
Battery Diagnostics .................................................................................. 22
Dock Test ................................................................................................ 23
Suspend Test........................................................................................... 23
About .................................................................................................................... 24
Save & Edit ........................................................................................................... 24

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
1
TST-602: 5.7" Wireless Touch Screen
Access the Setup Screens
The setup screens enable basic configuration prior to regular operation of the Crestron®
TST-602. If no project is loaded, tap the screen to access the main setup screen. If a
project is running, the main setup screen can be accessed by pressing
HOME
,
MEDIA
, ,
and (to the left of the touch screen display) in sequence twice (press
HOME
,
MEDIA
, ,
,
HOME
,
MEDIA
, , ) within a 5-second period.
The
TST-602 Setup
screen is displayed.
TST-602 Setup Screen
The
TST-602 Setup
screen is composed of buttons for RF setup, audio setup, display
setup, standby timeout, networking setup, and diagnostics. In addition, there is a button to
toggle system messages on or off, an
About
button that provides information about the
touch screen, and a
Save & Exit
button. The functions of each are detailed in the following
pages of this guide.

2
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
Configure the TST-602
RF Setup
On the
TST-602 Setup
screen, tap
RF Setup
to display the
RF Setup
screen.
RF Setup Screen
The
RF Setup
screen shows RF signal strength, gateway UID, and gateway name. It also
has controls for acquiring the TST-602, setting the RF ID, RF channel, and RF power,
enabling RF roaming, and selecting the series of the control system.
Before a TST-602 can be used with a Crestron control system, it must first be acquired by a
Crestron Extended Range (RF) Wireless gateway (sold separately). To acquire a TST-602,
perform the following procedure:
1. Use a stylus or other thin-tipped object to press
ACQUIRE
on the gateway to enter
Acquire mode. The accompanying LED illuminates, indicating the unit is ready to
link with the touch screen.
2. On the TST-602’s
RF Setup
screen, tap
Acquire
. The screen displays an “Acquire
in progress” message, and the TST-602 is automatically acquired by the gateway
within two minutes.
3. When the screen displays an “Acquire OK” message, press
ACQUIRE
on the
gateway to exit Acquire mode. The LED turns off.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
3

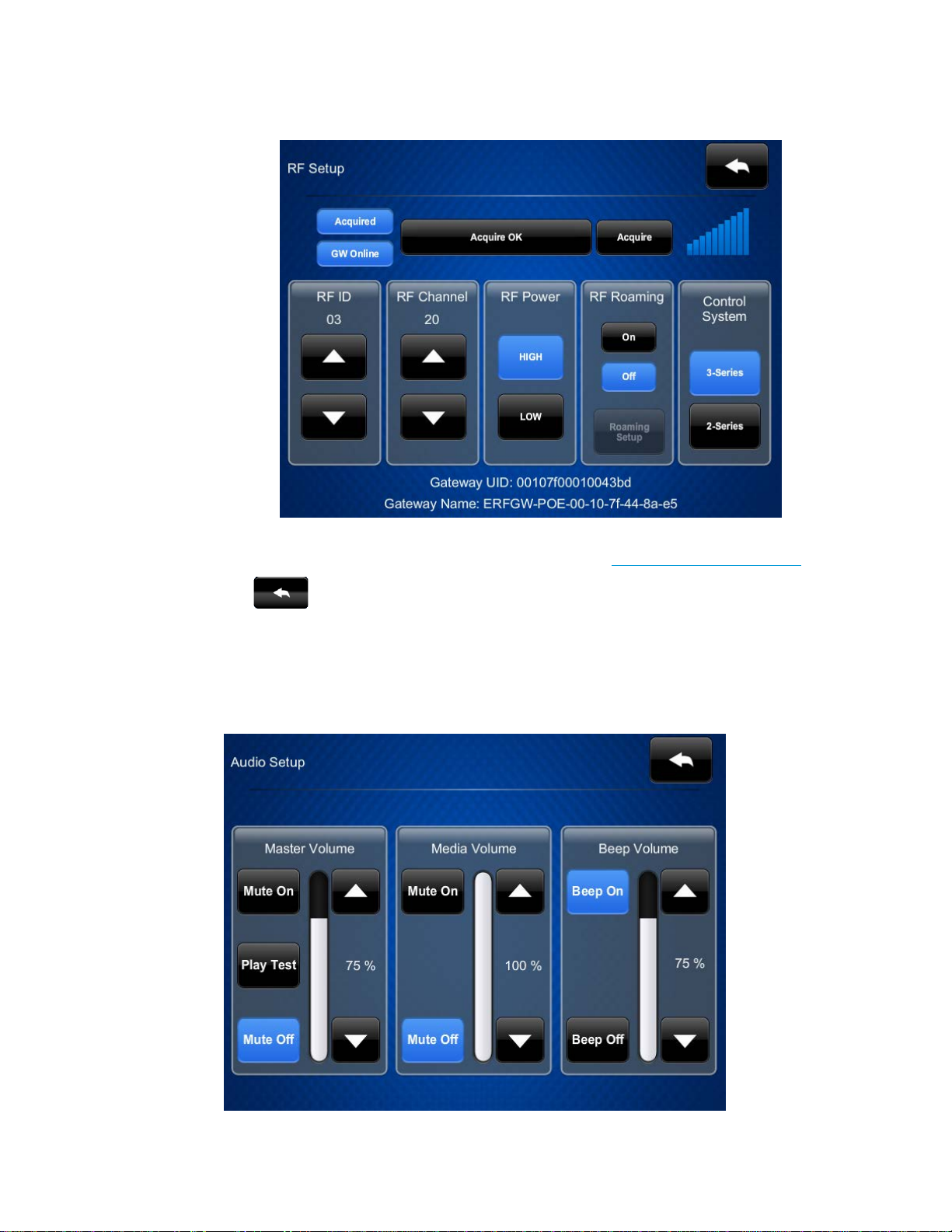

RF Setup – Acquire OK
For installations with multiple gateways, the TST-602 can be set up for RF roaming. For
details, refer to Touch Screen RF Roaming (Doc. 7671) at www.crestron.com/manuals.
Tap to return to the
TST-602 Setup
screen.
Audio Setup
On the
TST-602 Setup
screen, tap
Audio Setup
to display the
Audio Setup
screen.
Audio Setup Screen

4
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
The
Audio Setup
screen provides controls for muting or unmuting the audio, and for
adjusting levels for the master volume, media volume, and beep volume. The
Media
Volume
controls adjust the H.264 streaming media level in relation to the
Master Volume
controls.
Tap to return to the
TST-602 Setup
screen.
Display Setup
On the
TST-602 Setup
screen, tap
Display Setup
to enter the
Display Setup
screen.
Display Setup Screen
The
Display Setup
screen provides controls to adjust the screen’s LCD brightness and key
backlight brightness, controls to toggle the hard key backlight on and off, and controls to
enable using a hard key to wake the LCD.
Tap
High, Med, & Low Settings
to display the
Display Setup - High, Med, & Low
Settings
screen.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
5

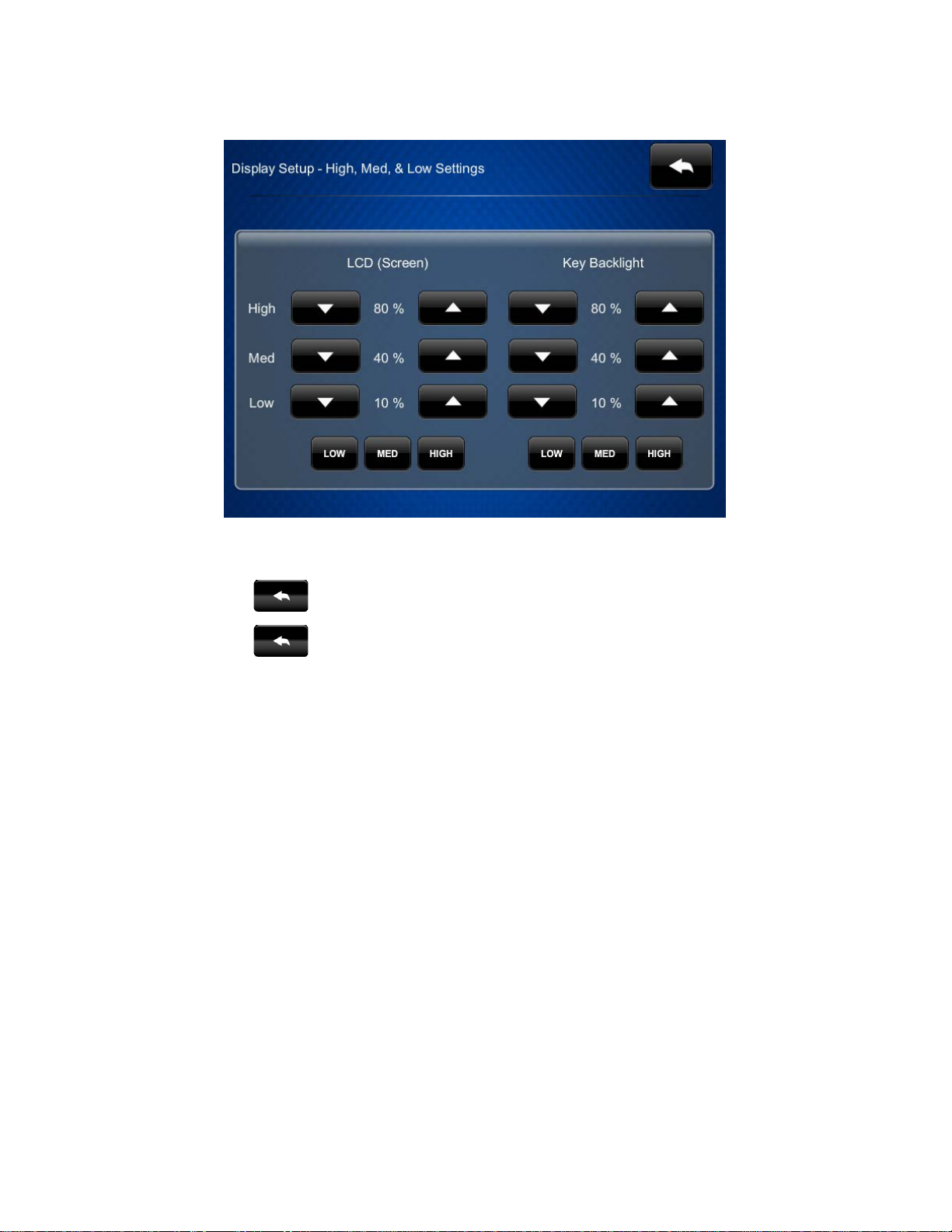

Display Setup - High, Med, & Low Settings Screen
This screen provides access to
Low
,
Med
, and
High
presets for the screen and the key
backlight, in addition to custom adjustment for each of these.
Tap to return to the
Display Setup
screen.
Tap again to return to the
TST-602 Setup
screen.

6
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
Standby Timeout
On the
TST-602 Setup
screen, tap
Standby Timeout
to display the
Standby Timeout
screen.
Standby Timeout Screen
The
Standby Timeout
screen provides controls to adjust standby timeout and power down
for an undocked TST-602, and standby timeout for a docked TST-602. Standby timeouts
can be from 0 to 120 seconds. Power down can be from 0 to 240 seconds.
Tap
Screen Saver Options
to display the
Standby - Screen Saver
screen.
Standby - Screen Saver Screen

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
7
The
Standby - Screen Saver
screen provides controls to turn the digital clock screen saver
on and off, as well as controls to display the time in a 24-hour format and to adjust the
screen saver brightness.
Tap to return to the
Standby Timeout
screen.
Tap again to return to the
TST-602 Setup
screen.
Networking Setup
On the
TST-602 Setup
screen, tap
Networking Setup
to display the
Networking Setup -
Choose WiFi or LAN
screen.
Networking Setup - Choose WiFi or LAN Screen
The
Networking Setup - Choose WiFi or LAN
screen provides controls for enabling the
Wi-Fi®or LAN access. The following paragraphs pertain to LAN setup. For Wi-Fi setup, refer
to page 10.

8
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
LAN Setup
For LAN, tap
LAN Setup
on the
Networking Setup - Choose WiFi or LAN
screen to
display the
Ethernet Setup
screen.

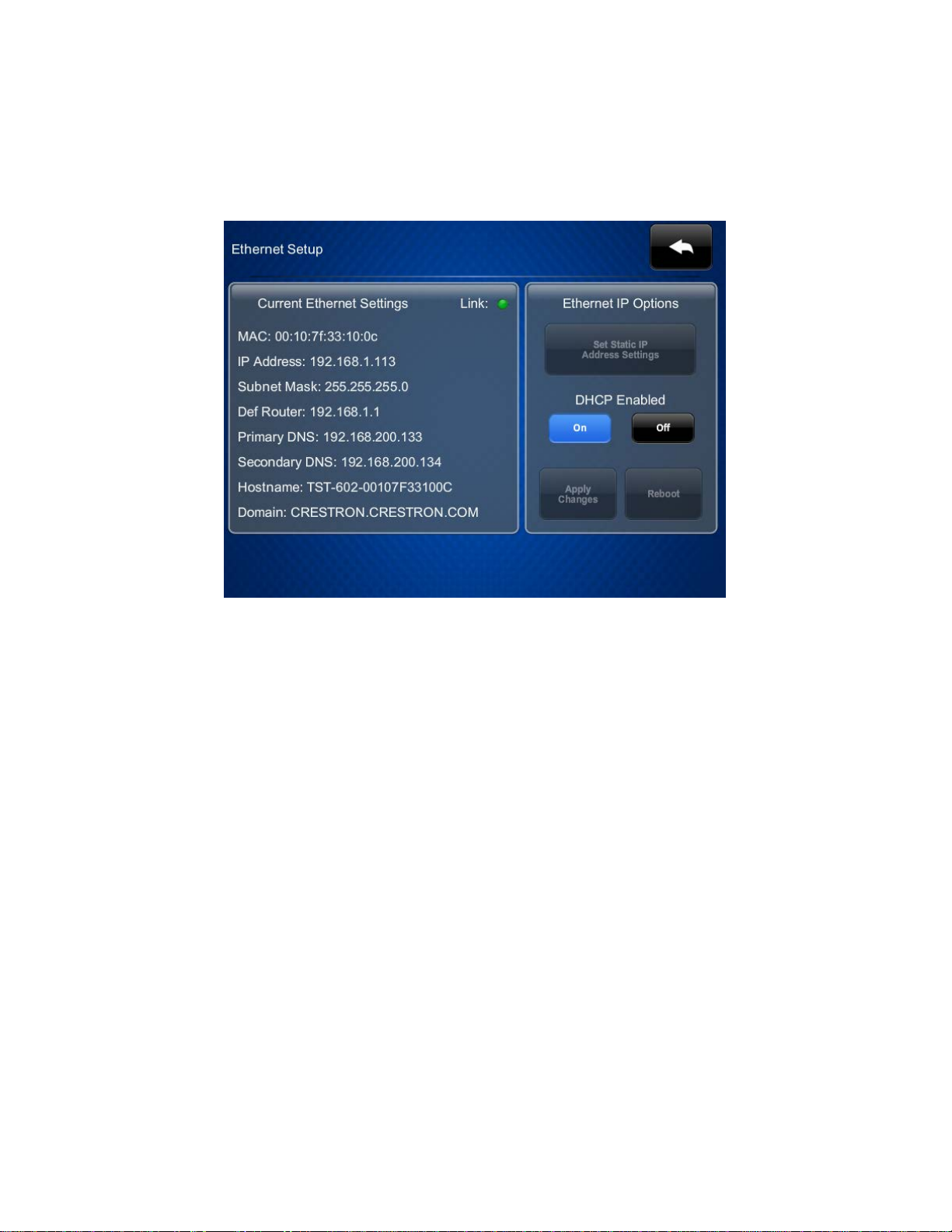

Ethernet Setup Screen
The
Ethernet Setup
screen displays current settings, and provides controls for toggling
DHCP on and off.
The TST-602 ships with DHCP enabled by default. To enter static IP settings, use the
following procedure:
1. On the
Ethernet Setup
screen, tap
Off
under
DHCP Enabled
, and then tap
Set
Static IP Address Settings
to display the
Ethernet Setup - Static IPs
screen.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
9

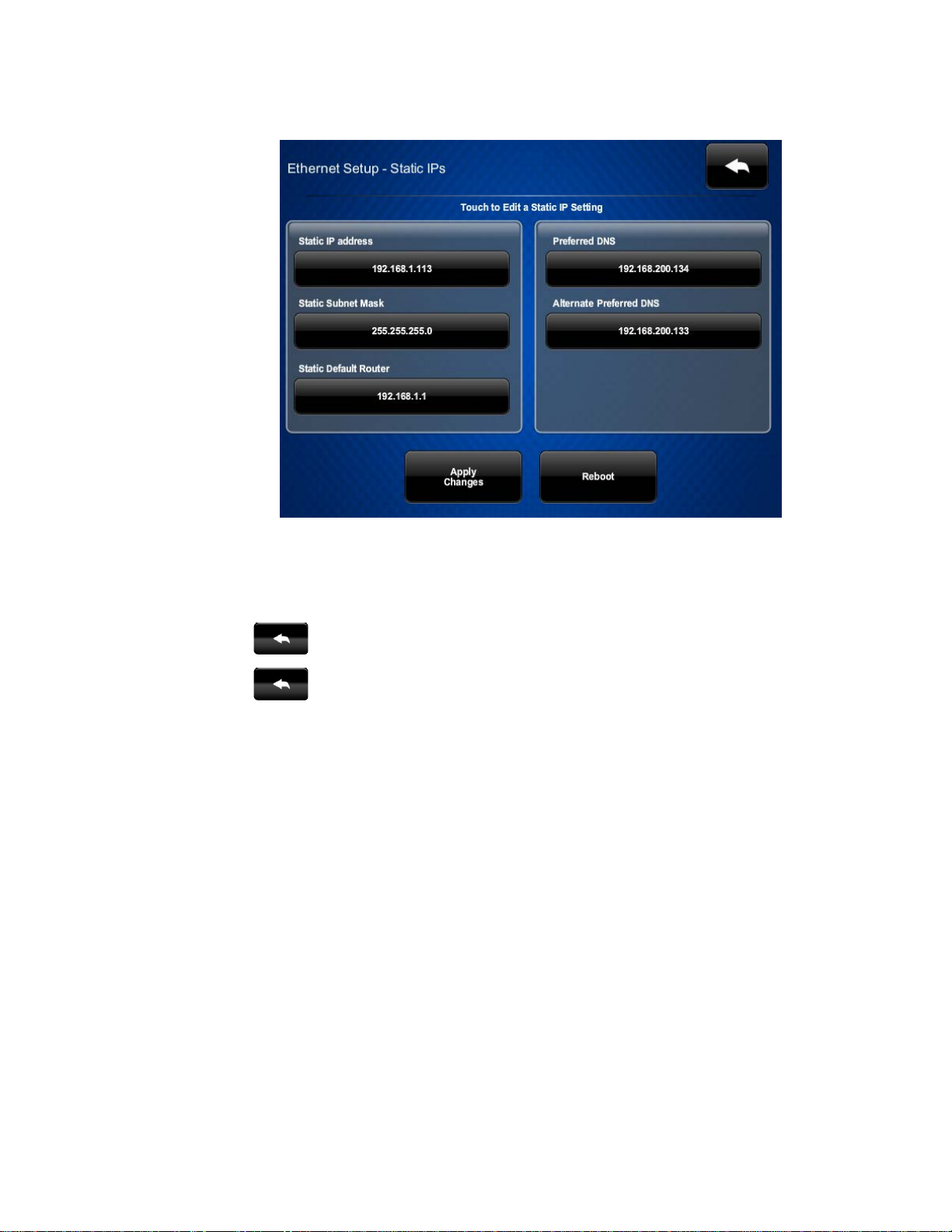

Ethernet Setup - Static IPs Screen
2. Use the
Ethernet Setup - Static IPs
screen to edit the static IP address, static
subnet mask, static default router, preferred DNS, and alternate preferred DNS.
Tap each field to display a keypad for entering the new setting.
3. Tap
Apply Changes
to save the new settings.
Tap to return to the
Networking Setup - Choose WiFi or LAN
screen.
Tap again to return to the
TST-602 Setup
screen.

10
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
WiFi Setup
For Wi-Fi, tap
WiFi Setup
on the
Networking Setup - Choose WiFi or LAN
screen to
display the
WiFi Setup
screen.

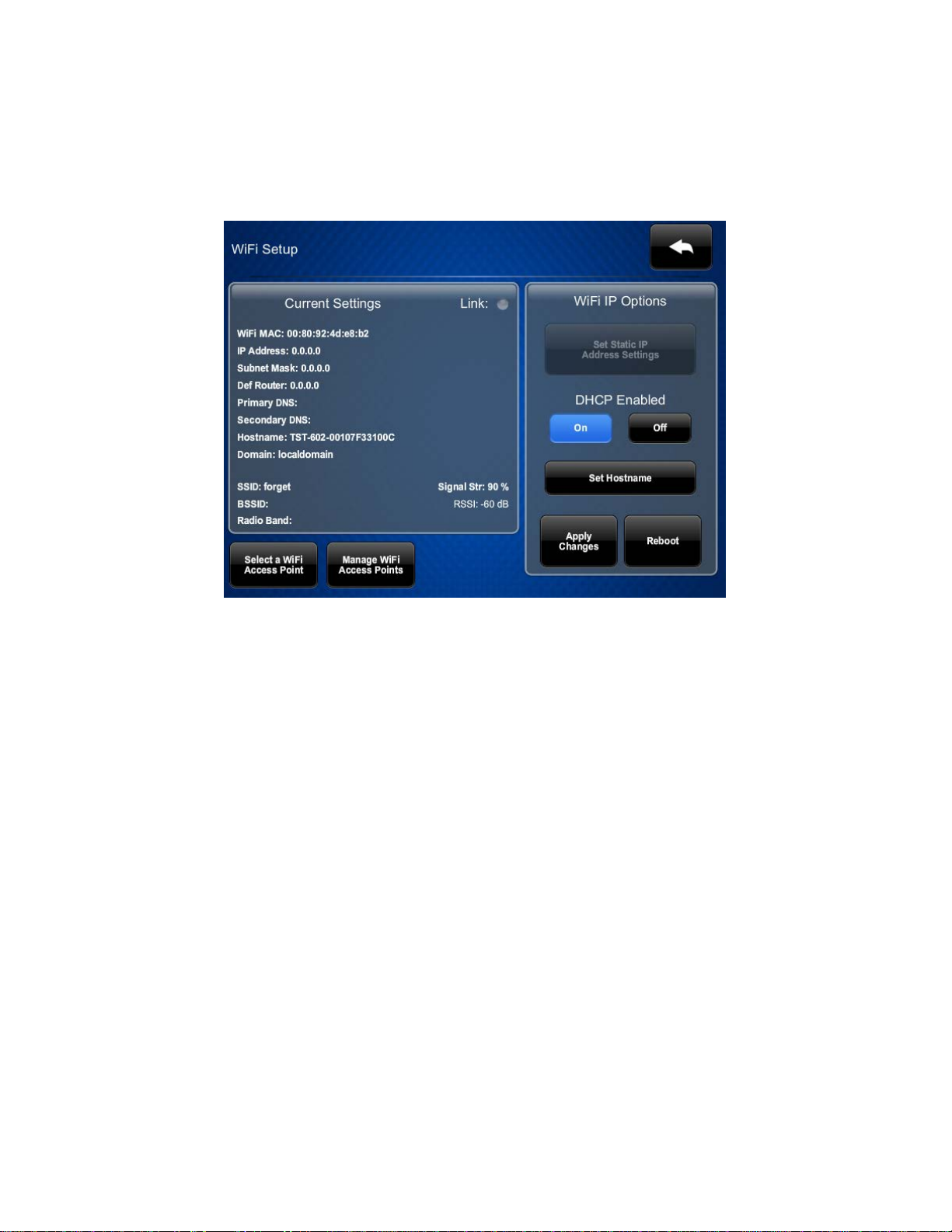

WiFi Setup Screen
The
WiFi Setup
screen displays current settings and provides controls for toggling DHCP
on and off, and for selecting and managing access points.
To enter Wi-Fi settings, use the following procedure:
1. If using a static IP address, tap
Off
under
DHCP Enabled
, and then tap
Set Static
IP Address Settings
to display the
WiFi Setup - Static IPs
screen. If using DHCP,
skip to step 4 to connect to a Wi-Fi access point.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
11

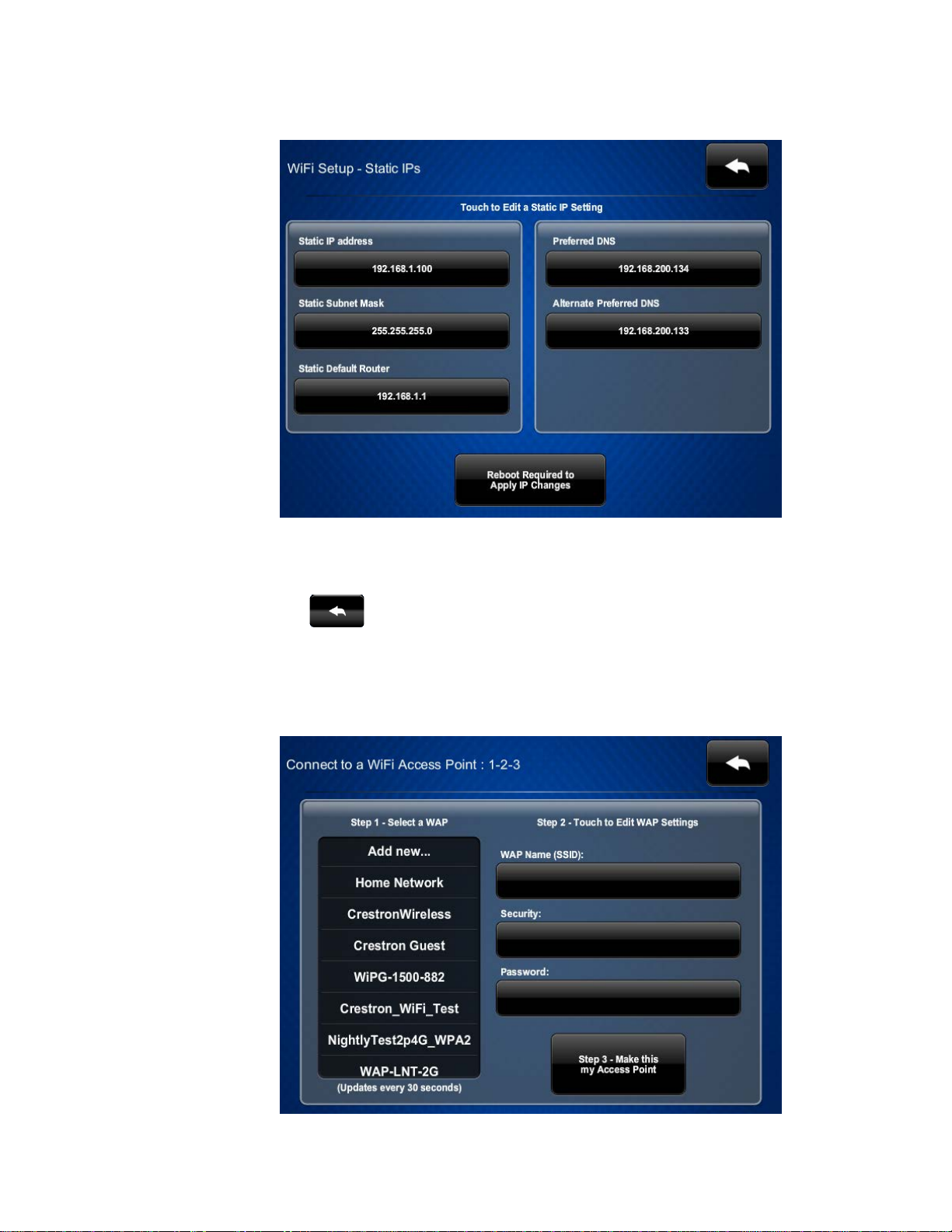

WiFi Setup - Static IPs
2. Use the
WiFi Setup - Static IPs
screen to edit the static IP address, static subnet
mask, static default router, preferred DNS, and alternate preferred DNS. Tap each
field to display a keypad for entering the new setting.
3. Tap to return to the
WiFi Setup
screen. Then tap
Apply Changes
. (Refer
to the image of the
WiFi Setup
screen on the previous page.)
4. On the
WiFi Setup
screen, tap
Select a WiFi Access Point
to display the
Connect
to a WiFi Access Point: 1-2-3
screen.
Connect to a WiFi Access Point: 1-2-3 Screen

12
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
5. Choose from the list of available access points displayed on the left side of the
screen. Once selected, the name and security type for the selected access point
are displayed on the right side of the screen.
Connect to a WiFi Access Point: 1-2-3 Screen
6. Tap the
Password
field to display a keyboard and then enter the password. Once a
password is entered, tap
Save
.
7. Tap
Step 3 - Make this my Access Point
.
Tap to return to the
Networking Setup - Choose WiFi or LAN
screen.
Tap again to return to the
TST-602 Setup
screen.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
13
Diagnostics
On the
TST-602 Setup
screen, tap
Diagnostics
to display the
Diagnostics
screen.

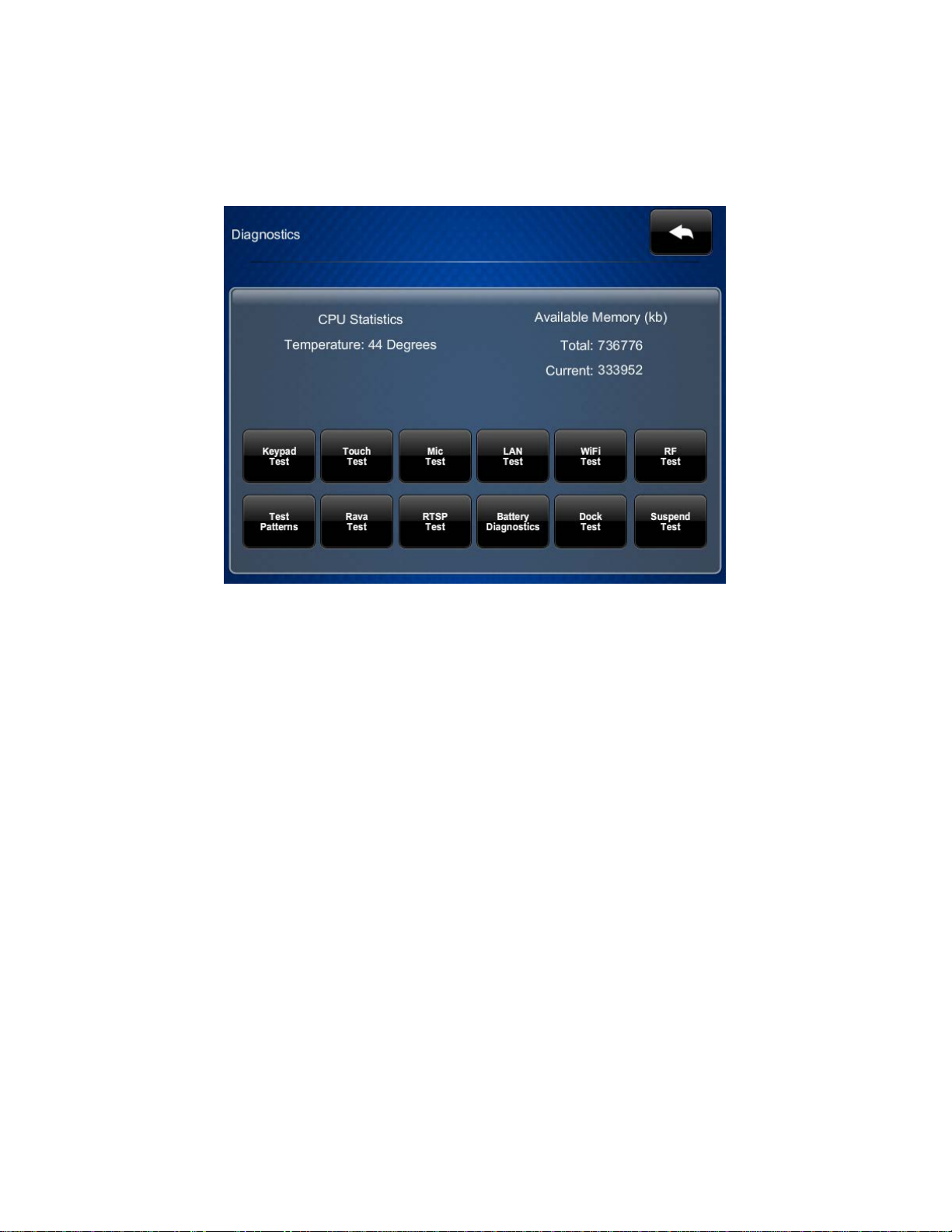

Diagnostics Screen
The
Diagnostics
screen displays the CPU temperature and the available memory, and it
provides controls to open various test screens. These are explained in the sections that
follow.

14
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
Keypad Test
On the
Diagnostics
screen, tap
Keypad Test
to display the
Diagnostics - Keypad Test
screen.
Diagnostics - Keypad Test Screen
The
Diagnostics - Keypad Test
screen can be used to test the function of the hard keys.
When a hard key is pressed, its corresponding indicator on the screen lights.
Tap to return to the
Diagnostics
screen.

Supplemental Guide – DOC. 7688A TST-602: 5.7˝Wireless Touch Screen
•
15
Touch Test
On the
Diagnostics
screen, tap
Touch Test
to display the touch test screen.

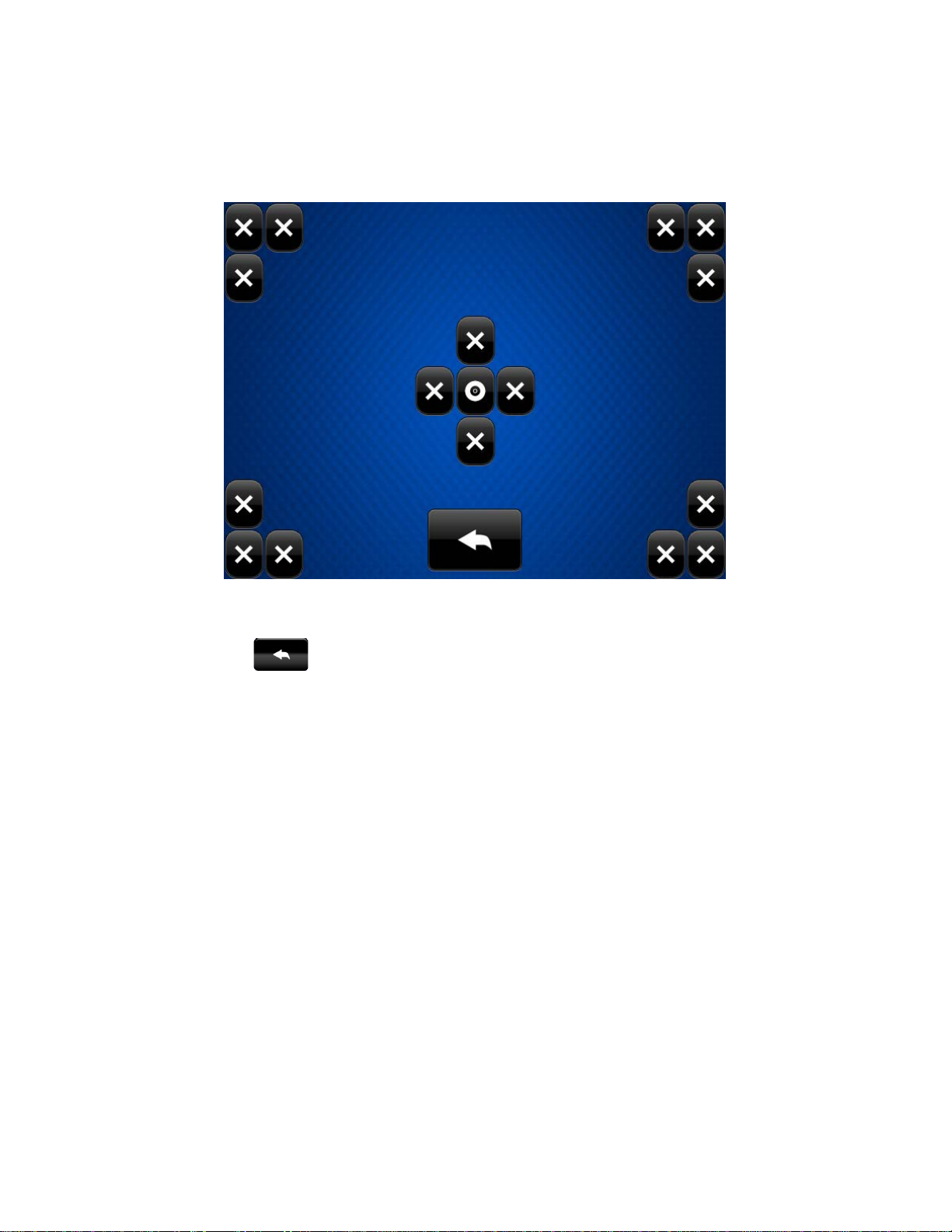

Touch Test Screen
The touch test screen can be used to test the function of the screen. When a location
button is tapped, its indicator on the screen lights.
Tap to return to the
Diagnostics
screen.
Mic Test
On the
Diagnostics
menu, tap
Mic Test
to begin a microphone test.
The built-in microphone (located above the touch screen display) records your voice for five
seconds and plays it back to confirm the microphone is functioning. When playback is
finished, the display returns to the
Diagnostics
screen.

16
•
TST-602: 5.7˝Wireless Touch Screen Supplemental Guide – DOC. 7688A
LAN Test
On the
Diagnostics
screen, tap
LAN Test
to display the
Diagnostics - LAN
screen.

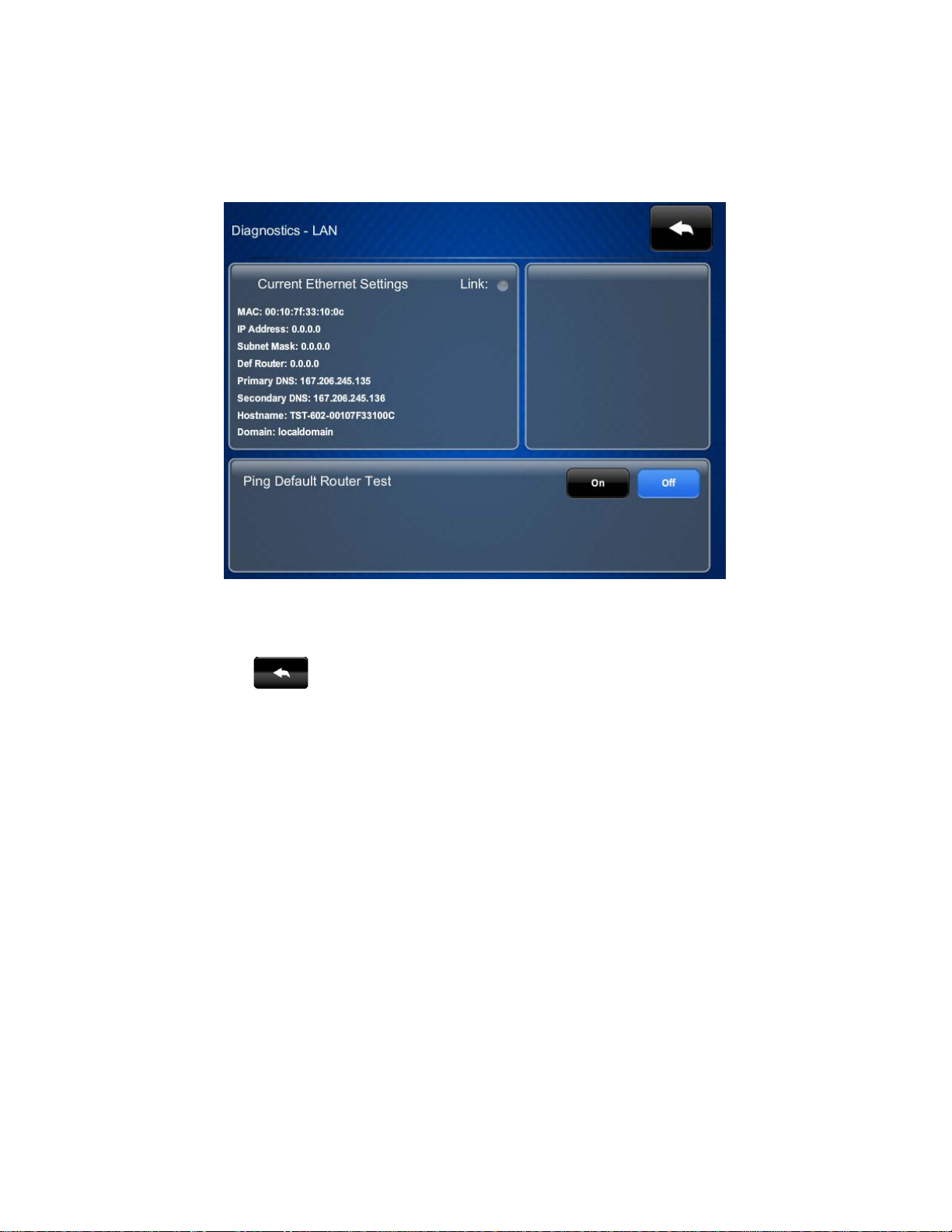

Diagnostics - LAN Screen
The
Diagnostics - LAN
screen displays current settings. This screen also contains a Link
indicator to show the status of the Ethernet connection, and controls to test the connection
to the default router.
Tap to return to the
Diagnostics
screen.
