Crestron DM-TX-200-C-2G Dimensional drawing

DO GUIDE
DO Check the Box
QTY PRODUCT PART NUM.
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac 2045866
4 Screw, #6-32 x 3/4", Truss Head, Combo 200 9211
Installation into a Floor Box
Install the DM-TX-200-C-2G into a 2-gang opening in a 6-inch (153 mm) deep oor box.
Using a Phillips head screwdriver, attach the DM-TX-200-C-2G to an installed oor box using
the four included #6-32 x 3/4-inch truss combo head screws.
DM-TX-200-C-2G
Wall Plate DigitalMedia 8G+®Transmitter 200
DO Make Connections to the Rear Panel
Make connections to the rear panel of the Crestron®DM-TX-200-C-2G before installing the unit
into an electrical box (not included) or oor box (not included).
NOTE: The DM OUT port is a Power over DM (PoDM) and HDBaseT®PoE (Power over Ethernet)
powered device (PD) port. To receive PoDM or HDBaseT PoE, the DM-TX-200-C-2G requires a
connection to a DigitalMedia™ switcher or other equipment that has a PoDM or HDBaseT PoE
power sourcing equipment (PSE) port. Any wiring that is connected to a PoDM or HDBaseT PoE
PSE port is for intrabuilding use only and should not be connected to a line that runs outside of
the building in which the PSE is located.
DO Install the DM-TX-200-C-2G
Install the DM-TX-200-C-2G into a 2-gang electrical box or into a 6-inch oor box.
Installation into an Electrical Box
Install the DM-TX-200-C-2G into a 2-gang electrical box in a wall, oor, or ceiling. A minimum
mounting depth of 2-1/2 inches (64 mm) is required.
To install the DM-TX-200-C-2G into an electrical box, do the following:
1. Using a Phillips head screwdriver, attach the DM-TX-200-C-2G to the electrical box using
the four included #6-32 x 3/4-inch truss combo head screws.
2. Attach a decorator-style faceplate (not included) to the front panel of the DM-TX-200-C-2G
using four screws (not included).
Ground To DM®switcher,
receiver, or other
DM device or to
HDBaseT®device
24 Vdc from
power pack
(included)

DO GUIDE DOC. 7759B (2043306) 11.16
Specications subject to change without notice.

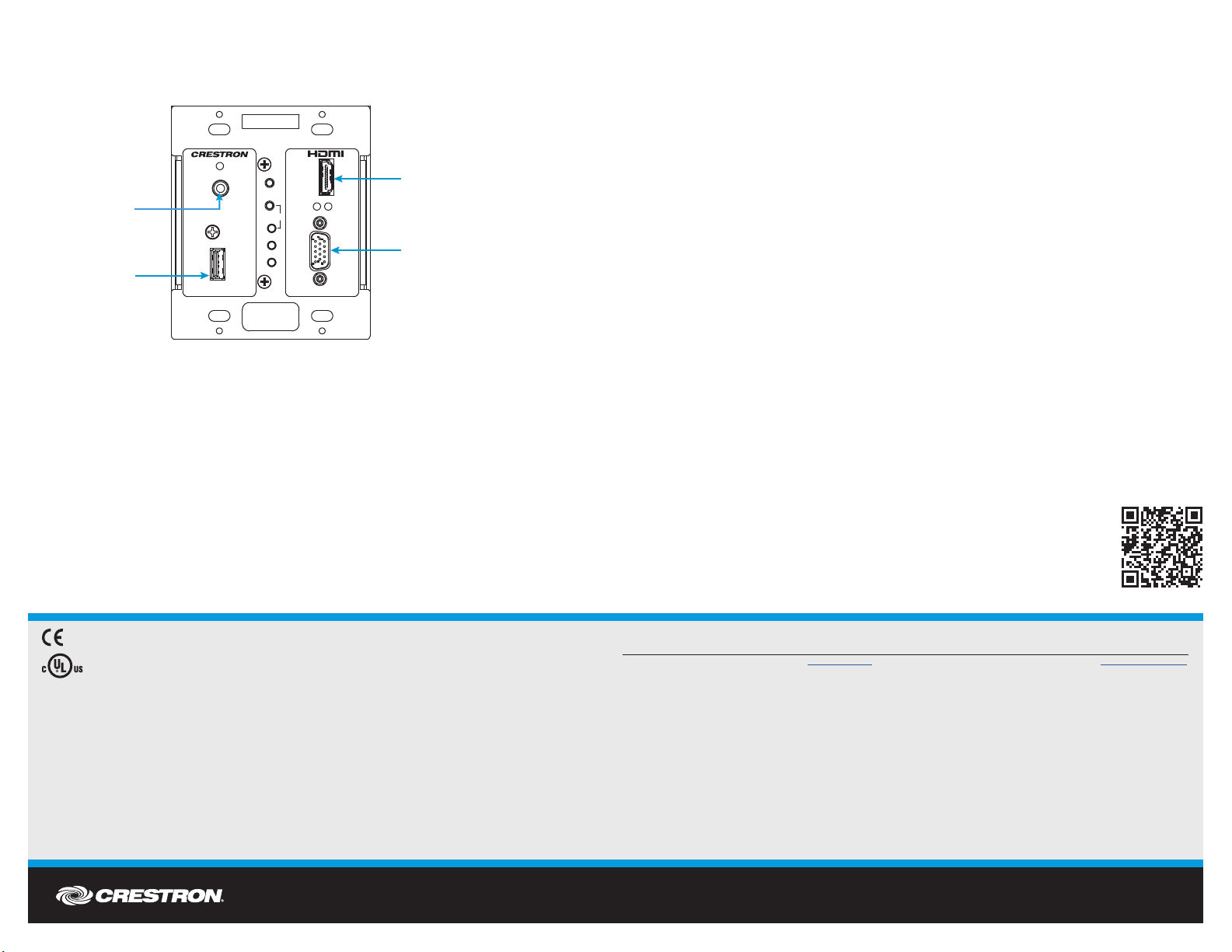

DO Make Connections to the Front Panel
Make connections to the front panel of the DM-TX-200-C-2G as required for the application.
DO Set the IP Address
The conguration of the DM-TX-200-C-2G within the DigitalMedia 8G+®system determines how
the IP address of the DM-TX-200-C-2G is set:
• If the DM-TX-200-C-2G connects to a DigitalMedia switcher, the DM-TX-200-C-2G is
congured by the switcher automatically.
• If the DM-TX-200-C-2G connects to a DigitalMedia 8G+ receiver, the
DM-TX-200-C-2G uses its own conguration settings. By default, DHCP (Dynamic Host
Conguration Protocol) is enabled. If it is desired that the default IP address be assigned
to the DM-TX-200-C-2G, hold down the SETUP button while the unit boots up. The default
IP address 192.168.1.239 overwrites the current setting. To manually set a different IP
address, use the Crestron Toolbox™ application.
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn
more about this product, use a QR reader application on your mobile device to scan
the QR image.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
This product is Listed to applicable UL Standards and requirements tested by Underwriters Laboratories Inc.
Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Industry Canada (IC) Compliance Statement
CAN ICES-3(A)/NMB-3(A)
The specic patents that cover Crestron products are listed at patents.crestron.com. The product warranty can be found at www.crestron.com/warranty.
Crestron, the Crestron logo, Crestron Toolbox, DigitalMedia, DigitalMedia 8G+, and DM are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or
other countries. HDBaseT and the HDBaseT logo are either trademarks or registered trademarks of the HDBaseT Alliance in the United States and/or other countries. HDMI and the HDMI logo are
either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries. UL and the UL logo are either trademarks or registered trademarks of Underwriters
Laboratories, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2016 Crestron Electronics, Inc.
PWR
AUDIO
IN
USB
HID
HDMI
HDMI
IN
PC
PC
IN
RESET
SETUP
8G LINK
8G ACTV
RGB (VGA), component,
S-video, or composite
video input
HDMI®digital
video/audio input
Unbalanced
stereo line level
audio input
Mouse/keyboard
input
