Crestron DigitalMedia DMCF-TX-4K-SFP Dimensional drawing

DO GUIDE
2. Carefully insert the card into the card guides of the selected slot, and then push the card
inward until it is fully seated and engages the chassis backplane.
3. Finger-tighten the two captive panel screws to secure the card—do not overtighten
the screws.
DO Connect the Card
Connect the card as required for the application.
DMCF-TX-4K-SFP Connections
DMCF-TX-4K-SFP/DMCF-RX-4K-SFP
DigitalMedia™SFP+ Transmitter/Receiver Cards for DMF-CI-8
DO Install the Card
The Crestron®DMCF-TX-4K-SFP transmitter card and DMCF-RX-4K-SFP receiver card occupy
the DMF-CI-8 card chassis.
CAUTION: The cards are susceptible to damage from electrostatic discharge (ESD).
Observe standard ESD precautions when handling the cards. Always wear an ESD wrist strap
that is connected to ground, and place the cards on grounded surfaces only.
CAUTION: To prevent damage to a card that is connected to cables, disconnect all cables
from the card before installing the card into a card slot or removing the card from a card slot.
NOTE: In a new installation of the DMF-CI-8, it is recommended that the cards be installed
before power is applied to the DMF-CI-8. In an existing installation of the DMF-CI-8, the cards
can be added or replaced without the need to shut down the DMF-CI-8; that is, the cards are
hot swappable.
NOTE: When installing cards into a partially populated DMF-CI-8, install the cards into slots
5–8 before using slots 1–4. Doing so ensures better cooling and lower power consumption.
In addition, always cover empty slots using the filler plates included with the DMF-CI-8.
To install a card into the DMF-CI-8, do the following:
1. Using a #2 Philips screwdriver (not included) or your ngers, remove the ller plate of an
unused slot by loosening the two captive panel screws.
DO Check the Box
QTY PRODUCT COLOR PART NUM.
1Connector, 5-Pin 2003577
To
HDMI®
display
From HDMI
audio/video
sources
Balanced/
unbalanced
stereo line
level audio
input
To DM IN
port of
DigitalMedia™
SFP+ receiver†
10BASE-T/
100BASE-TX/
1000BASE-T
Ethernet to
LAN or local
network device*
*To connect to the LAN, use either the LAN port of the DMCF-TX-4K-SFP transmitter or the LAN port of the companion
receiver (DMCF-RX-4K-SFP or DMF-RMC-4K-SFP)—do not connect the transmitter and receiver LAN ports to the
LAN simultaneously.
†Use Crestron®SFP+ transceiver modules only. Refer to the SFP-10G Series DO Guide (Doc. 7862) for
additional information.
Captive
panel screws
Captive
panel screws

DO GUIDE DOC. 7902C (2046656) 10.16
Specications subject to change without notice.

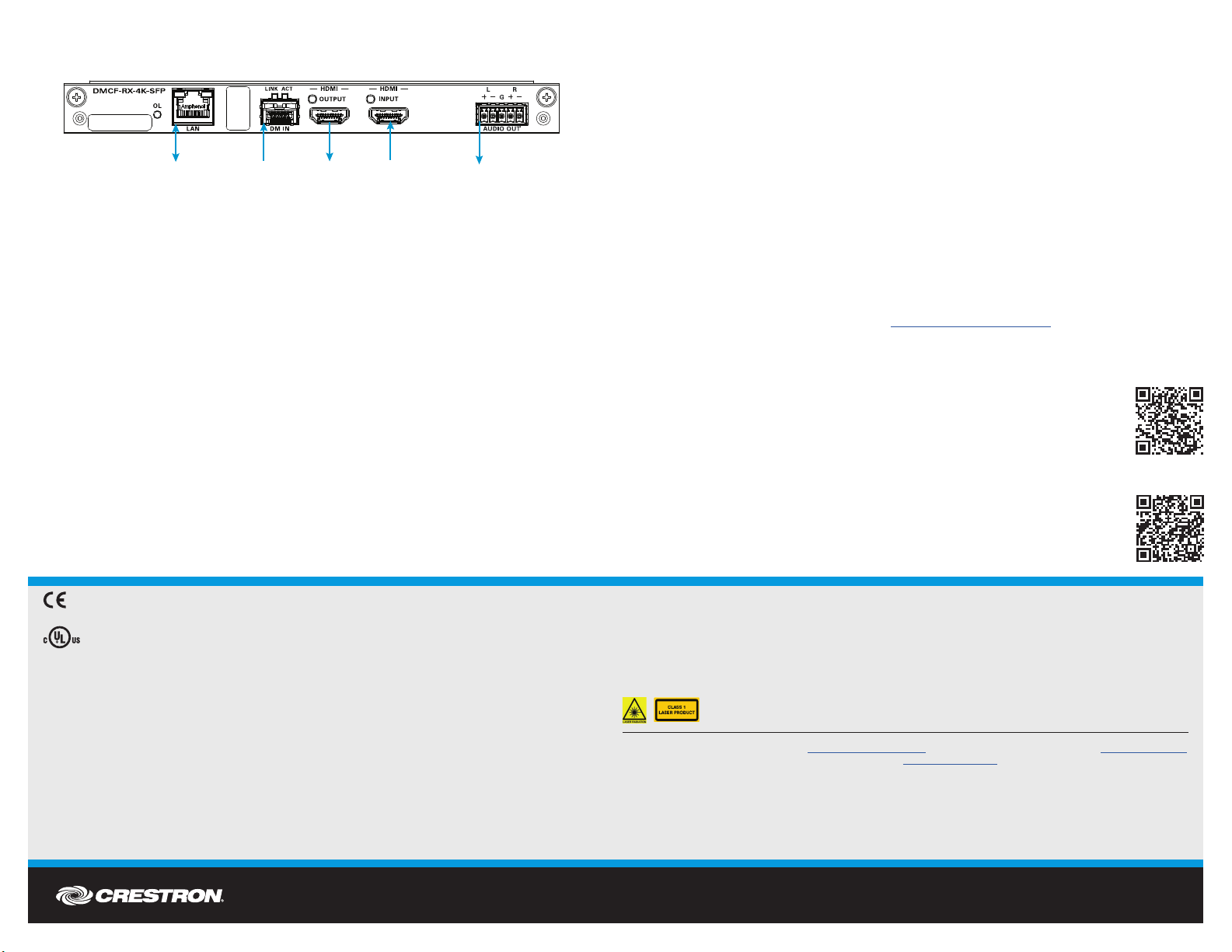

DMCF-RX-4K-SFP Connections
DO Congure the Card
NOTE: If the HDMI®output of the DMCF-RX-4K-SFP or an HDMI input of the
DMCF-TX-4K-SFP connects to a DigitalMedia™ switcher, the switcher automatically congures
the IP table of the DMCF-TX-4K-SFP according to the SIMPL program. The DMCF-TX-4K-SFP
hosts the conguration settings of the connected DigitalMedia SFP+ receiver
(DMCF-RX-4K-SFP or DMF-RMC-4K-SFP).
In a stand-alone conguration, congure the card as follows:
• Congure the DMCF-TX-4K-SFP using the web interface.
NOTE: The DMCF-TX-4K-SFP hosts the routing, input, and output conguration of the
connected receiver (DMCF-RX-4K-SFP or DMF-RMC-4K-SFP).
• Congure the routing, input, and output settings of the DMCF-RX-4K-SFP when
conguring the connected transmitter (DMCF-TX-4K-SFP or DMF-TX-4K-SFP).
Congure network and device settings of the DMCF-RX-4K-SFP by doing the following:
- To congure network settings, use the web interface of the DMCF-RX-4K-SFP or the
menu on the front panel display of the DMF-CI-8.
- To congure device settings, use the web interface of the DMCF-RX-4K-SFP.
To access the web interface of a card, open a web browser and then go to the IP address of
the card.
NOTE: By default, DHCP is enabled. To nd the IP address of a card, use the menu on the front
panel display of the DMF-CI-8.
To log in to the web interface, enter the user name and password of the card. The default user
name is admin, and the default password is admin.
For detailed conguration information, refer to the DigitalMedia SFP+ 4K Fiber Transmitters and
Receivers Supplemental Guide (Doc. 7940) at www.crestron.com/manuals.
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn
more about this product, use a QR reader application on your mobile device to scan
the QR image.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
These products are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Ces produits sont énumérés aux normes applicables et les exigences UL par Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION:Changes or modications not expressly approved by the manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
The products are Class 1 laser products. They comply with safety regulations of IEC-60825-1,
FDA 21 CFR 1040 11 and FDA 21 CFR 1040 10.
WARNING: Visible and invisible laser radiation when open. Avoid direct exposure to beam.
The specic patents that cover Crestron products are listed at http://www.crestron.com/legal/patents. The product warranty can be found at www.crestron.com/warranty.
Certain Crestron products contain open source software. For specic information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, and DigitalMedia are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI
logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries. UL and the UL logo are either trademarks or registered trademarks
of Underwriters Laboratories, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or
photography.
This document was written by the Technical Publications department at Crestron.
©2016 Crestron Electronics, Inc.
To HDMI
display
From HDMI
audio/video
source
Balanced/
unbalanced
stereo line
level audio
output
From DM OUT
port of
DigitalMedia
SFP+
transmitter†
10BASE-T/
100BASE-TX/
1000BASE-T
Ethernet to
LAN or local
network device*
*To connect to the LAN, use either the LAN port of the DMCF-RX-4K-SFP receiver or the LAN port of the companion
transmitter (DMCF-TX-4K-SFP or DMF-TX-4K-SFP)—do not connect the receiver and transmitter LAN ports to the
LAN simultaneously.
†Use Crestron®SFP+ transceiver modules only. Refer to the SFP-10G Series DO Guide (Doc. 7862) for
additional information.
DMCF-RX-4K-SFP
DMCF-TX-4K-SFP
