CRH Leviat HALFEN HEA-160/4 User manual

HALFEN HEA INST_HEA 06/20
Assembly Instructions •Montageanleitung
D
GB
Luftschicht-
Einschlaganker
Cavity Wall Tie
®

2© 2020 · INST_HEA 06/20 · www.halfen.com
HALFEN HEA Assembly Instructions
Deutsch English
Dimensions in mm
Tools
Identification
HEA identification

Insertion tool
HEA EW 4 EW 5
For cavity wall tie
diameter dA[mm] 45
Stop-drill-bit SDS
HEA BB 4 BB 5
Drill-bit, nominal diameter [mm] 6 7
Drill-bit, cut diameter [mm] ≤ 6.40 ≤ 7.45
Type range, specifications
Cavity wall tie D Cavity
a
Drill hole
diameter
× depth
Stop-
drill-bit
type
Insertion
tool type
Spacings and
building component thickness [cm]
Type L/dA[mm] [mm] [mm] [mm] daa
r
HEA - 160/4 6 0–45
6 × 42 HEA-BB4 HEA-EW4
≥ 10 ≥ 18 ≥ 9
HEA - 200/4 6 45–85
HEA - 250/4 6 85–135
HEA - 300/4 6 135–185
HEA - 200/5 7 45–85
7 × 42 HEA-BB5 HEA-EW5HEA - 250/5 7 85–135
HEA - 300/5 7 135–185
acc. EN 845-1
DIBt* = Deutsches Institut für Bautechnik.
German Institute of Construction Engineering
42
a
HEA HEAHEA
D
H
HH
D
H
HH
HEA 4
HEA 5
40
d
A
L
7
D
d
a
a
a
a
ar
ar ar
ar
ar
ar
Concrete ≥ C20/25
All components are made of stainless steel for
a durable, safe anchorage.
Material class A (non-flammable) acc. to DIN 4102,
therefore suitable for structures with high demands
on fire protection.
Schematic diagram of a HEA installation; horizontal cross section of a façade:
Load bearing wall, concrete ≥ C20/25
Cavity including insulation
Facing brickwork
HEA Cavity wall ties are officially approved for
connecting facing brickwork to concrete support
walls. General construction permit/national techni-
cal approval Z-21.1-910, (DIBt* Berlin, Germany),
concrete grade ≥ C20/25.
Identifi-
cation
Expansion sleeve,
pre-assembled
Cavity wall tie
anchor rod

3
© 2020 · INST_HEA 06/20 · www.halfen.com
HALFEN HEA Assembly Instructions
Deutsch English
2.
30 mm
50 mm
a
25 mm
4.
5.
1.
3.
Load bearing
concrete ≥ C20/25 Facing brickwork
HEA-BB Stop-drill-bit
Expansion sleeve
HEA Cavity wall tie
Drill hole
HEA-EW Insertion tool
Concrete surface
Expansion sleeve

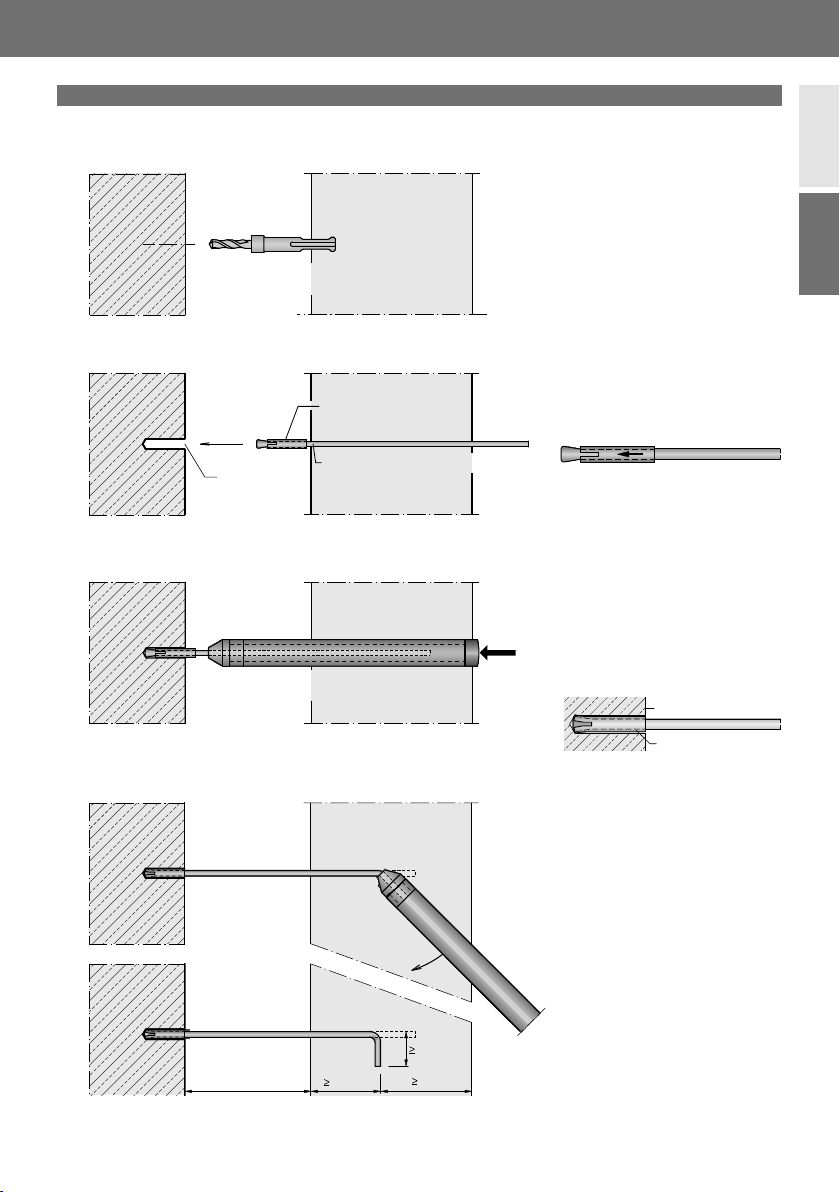

1. Hole diameter 6 × 42mm or
7 × 42 mm drilled using the
HEA-BB4 (-BB5) Stop-drill-bit.
Clean any dust etc. out of the
drilled hole.
horizontal cross section
2. If supplied seperately, first slide
the expansion sleeve on the
HEA Anchor rod as shown in
the drawing.
Insert the HEA Cavity wall tie with
the expansion sleeve in place into
the drilled hole.
3. Using a hammer and the
HEA-EW4 (-EW5) Insertion tool,
drive the expansion sleeve into
the drill hole until the end of
the sleeve is flush with the
concrete surface.
4. Bend the end of the HEA Cavity
wall tie to an angle of 90° and ...
5. ... mortar into the brickwork joint.
Installation

4© 2020 · INST_HEA 06/20 · www.halfen.com
Deutsch English
HALFEN HEA Montageanleitung
Maße in mm
Werkzeuge
Kennzeichnung
Kennzeichnung HEA

Einschlagwerkzeug
Typ HEA EW 4 EW 5
für Luftschicht-Einschlaganker
Ø dA[mm] 45
Bundbohrer SDS
Typ HEA BB 4 BB 5
Bohrer Nenndurchmesser [mm] 6 7
Bohrer Schneidendurchmesser [mm] ≤ 6,40 ≤ 7,45
Typenauswahl, technische Daten
Einschlag-
anker
D Abstand zwischen
Betonschale und
Verblendmauerwerk
Bohrloch
∅ × Tiefe
Bund-
bohrer
Typ
Einschlag-
werkzeug
Typ
Abstände und Bauteildicke [cm]
Typ L/dA
[mm] [mm]
a
[mm] [mm] daa
r
HEA - 160/4 6 0–45
6 × 42 HEA-BB4 HEA-EW4
≥ 10 ≥ 18 ≥ 9
HEA - 200/4 6 45–85
HEA - 250/4 6 85–135
HEA - 300/4 6 135–185
HEA - 200/5 7 45–85
7 × 42 HEA-BB5 HEA-EW5HEA - 250/5 7 85–135
HEA - 300/5 7 135–185
gem. EN 845-1
42
a
HEA HEAHEA
D
H
HH
D
H
HH
HEA 4
HEA 5
40
d
A
L
7
D
d
a
a
a
a
ar
ar ar
ar
ar
ar
Beton ≥ C20/25
Alle Komponenten sind aus rostfreiem Edelstahl für eine
dauerhaft sichere Verbindung.
Baustoffklasse A nach DIN 4102, dadurch auch geeignet
für Bauteile, an die besondere Anforderungen hinsichtlich
des Brandschutzes gestellt werden.
Schemadarstellung für Einbau HEA, Fassadenschnitt waagerecht
Tragkonstruktion, Beton ≥ C20/25
Luftschicht einschließlich Dämmung
Verblendmauerwerk
HEA Luftschicht-Einschlaganker sind bauaufsichtlich
zugelassen, allgemeine Bauartgenehmigung/ Zulassung
Nr. Z-21.1-910, für die Verankerung von Verblendmauer-
werk gem. EC6 an Wänden aus Beton ≥ C20/25.
Kennzeich-
nung
Spreizhülse,
vormontiert
Luftschicht-
ankerstange

5
© 2020 · INST_HEA 06/20 · www.halfen.com
Deutsch English
HALFEN HEA Montageanleitung
Horizontalschnitt
2.
30 mm
50 mm
a
25 mm
4.
5.
1.
3.
Tragkonstruktion
Beton ≥ C20/25 Verblendmauerwerk
1. Loch ∅ 6 × 42 mm bzw. 7 × 42 mm
mit Bundbohrer HEA-BB4 bzw.
-BB5 bohren. Bohrloch säubern.
2. Wenn lose mitgeliefert, vorher
Spreizhülse auf die HEA-Luft-
schichtankerstange gemäß Skizze
aufschieben.
HEA-Luftschicht-Einschlaganker mit
vormontierter Spreizhülse mit dem
konisch geformten Ende in das
Bohrloch einsetzen.
3. Mit einem Hammer und dem
Einschlagwerkzeug HEA-EW4
bzw. -EW5 die Spreizhülse in
das Bohrloch eintreiben, bis das
Hülsenende mit Betonoberfläche
bündig abschließt.
4. Das Ende des HEA-Luftschicht-
Einschlagankers um 90° abwinkeln
und ...
5. ... in der Mauerwerksfuge
einmörteln.
Montage
Bundbohrer HEA-BB
Spreizhülse,
vormontiert
Luftschicht-Einschlaganker HEA
Bohrloch
Einschlagwerkzeug HEA-EW
Betonoberfläche
Spreizhülse

6© 2020 · INST_HEA 06/20 · www.halfen.com

For more information on the products featured here, please contact Leviat:
Notes regarding this catalogue
© Protected by copyright. The construction applications and details provided in this publication are
indicative only. In every case, project working details should be entrusted to appropriately qualified
and experienced persons. Whilst every care has been exercised in the preparation of this publication
to ensure that any advice, recommendations or information is accurate, no liability or responsibility
of any kind is accepted by Leviat for inaccuracies or printing errors. Technical and design changes
are reserved. With a policy of continuous product development, Leviat reserves the right to modify
product design and specification at any time.
