CRH MONTAGE 21834.000 User manual

User Manual
Fall Protection Post
CRH Concrete A/S
Vestergade 25
DK-4130 Viby S.
Doc. ref:
Date/sign:
20-3172 rev. 5
January 2021/ENI
Worldwide Patent Pending

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 1
Table of contents
1Introduction ..................................................................................... 2
1.1 Coverage and references.................................................................. 2
1.2 CE marking .................................................................................. 2
1.3 Declaration of Conformity ................................................................ 3
1.4 Data plate ................................................................................... 4
1.5 Technical data .............................................................................. 5
2Description of fall protection post ........................................................... 6
2.1 Structure..................................................................................... 7
2.2 Operation - Work instruction during setup ............................................ 10
2.3 Signage...................................................................................... 11
3General instruction ............................................................................ 11
3.1 Normal use ................................................................................. 12
3.2 Abnormal use .............................................................................. 12
3.3 Errors / Troubleshooting ................................................................. 12
4Service / repair / maintenance.............................................................. 12
4.1 Maintenance of fall protection equipment ............................................ 12
4.2 Inspection ensures optimal maintenance of fall protection ........................ 13
4.3 Cleaning and storage ..................................................................... 13

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 2
1 Introduction
IMPORTANT!
This User Manual is intended for installers, operators, maintenance personnel and
repairers who install, operate, maintain and repair fall protection posts. Please note
that this manual must always be available in the immediate vicinity of the mast.
It is assumed that the said personnel are trained in the use of the safety equipment
concerned, and also read this manual carefully before putting the equipment into
operation.
Fall protection post is a fall arrest mast used as an anchorage point for personal fall
arrest equipment. The post is designed for a maximum of 2 persons and tested for 1,300
kg. The post is fixed to the concrete deck via lifting anchors in the concrete deck.
IMPORTANT!
There must be a maximum distance from the post to the outside edge of the concrete
deck of 5m (5000mm). Only one person shall be anchored to each anchorage point (eye)
at the top of the pile.
It is important that the concrete deck is securely fixed or has a self-weight so that it is
not possible to tip/rotate the deck in a fall.
1.1 Coverage and references
This manual applies only to the fall protection post and not to personal fall protection
post equipment being attached.
1.2 CE marking
The fall protection post may only be used for the purpose described in this manual and
for the purpose for which it is intended.
The fall arrest device is only intended for the securing of persons, via an embedded
concrete anchor, Load class 2,5 or 5,0 tons, together with a lifting eye of type: DEHA
KKT-U 6102-2,5 or 6102-5,0.
The fall protection post may not be used for purposes other than those for which it is
intended, and its use is also subject to correct assembly, installation, operation,
maintenance and repair.
All work with the fall protection post in connection with assembly, installation,
operation, maintenance and repair must also be carried out by professionals or
alternatively well-instructed operators.

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 3
1.3 Declaration of Conformity
EC - Declaration of Conformity
Directive 2006/42/EC
Manufacturer:
CRH Concrete A/S
Address:
Vestergade 25
4130 Viby
Denmark
I hereby declare that:
Fall protection post
Type: 21834.000 Rev.C.
- Complies with the Machinery Directive. Directive 2006/42/EC and Directive 95/16/EC.
The following harmonized standards have been applied:
•DS/EN 12100-1:2011 Safety of machinery - General principles for design - Part 2: Safety of
machinery
Risk assessment and risk mitigation
•DS/CEN/TS 16415 Personal fall protection equipment - Anchor devices -
Recommendations for anchor devices to be used by several persons
simultaneously
•DS/EN 795 Personal fall protection equipment - Anchor devices
•DS/EN 365:2004 Personal protective equipment and fall arresters - General
requirements for instructions for use. Maintenance. Periodic
inspection, repair, marking
Approved by:
Location: CRH Concrete A/S
Address: Vestergade 25
4130 Viby
Denmark
Date: 01-02-2021
Signature: ___________________

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 4

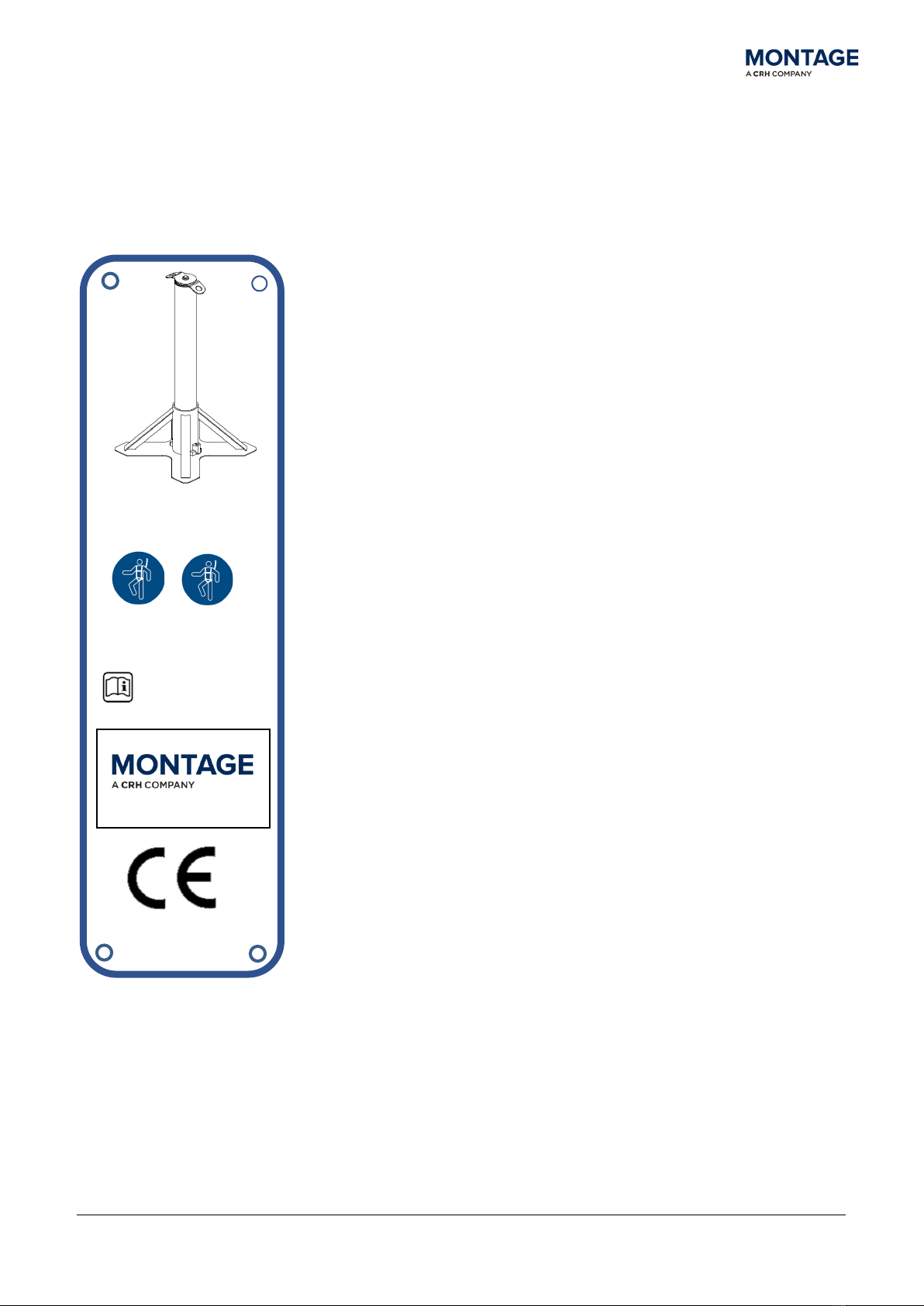

1.4 Data plate
The fall protection post is marked with a data plate on the mast and base.
Fall protection post:
Type 21834.000
Series No. 001
Maximum load 2 persons
Production year 2021
Own weight 23 kg
Always read the user manual
before use.
EN 795 and
DS/CEN/TS 16145
Data plate: aluminum
50 x 180 mm m.
This User Manual has been prepared for the use of the fall protection post of:
CRH Concrete A/S
Vestergade 25
4130 Viby
Vestergade 25
4130 Viby-DK

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 5
1.5 Technical data
Ambient environment : Outdoor use -20°C to 60°C
Material : Stainless steel and aluminum
Surface treatment : None
Weight, total : Approx. 23 kg.
Max. load : 2 persons

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 6
2 Description of fall protection post
The fall protection post is CE marked according to DS/EN 795 and DS/CEN/TS
16415. The data plate is located on the column and base.
Main dimensions:

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 7
2.1 Structure
The fall protection post must be used with the following parts:
1. Concrete deck with cast-in lifting anchor
2. Lifting eye for fixing between concrete deck anchor and base plate
3. Bottom plate with locking pin for fall protection post
4. Column for fall protection post
Ad 1) Concrete deck with embedded lifting anchor as

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 8

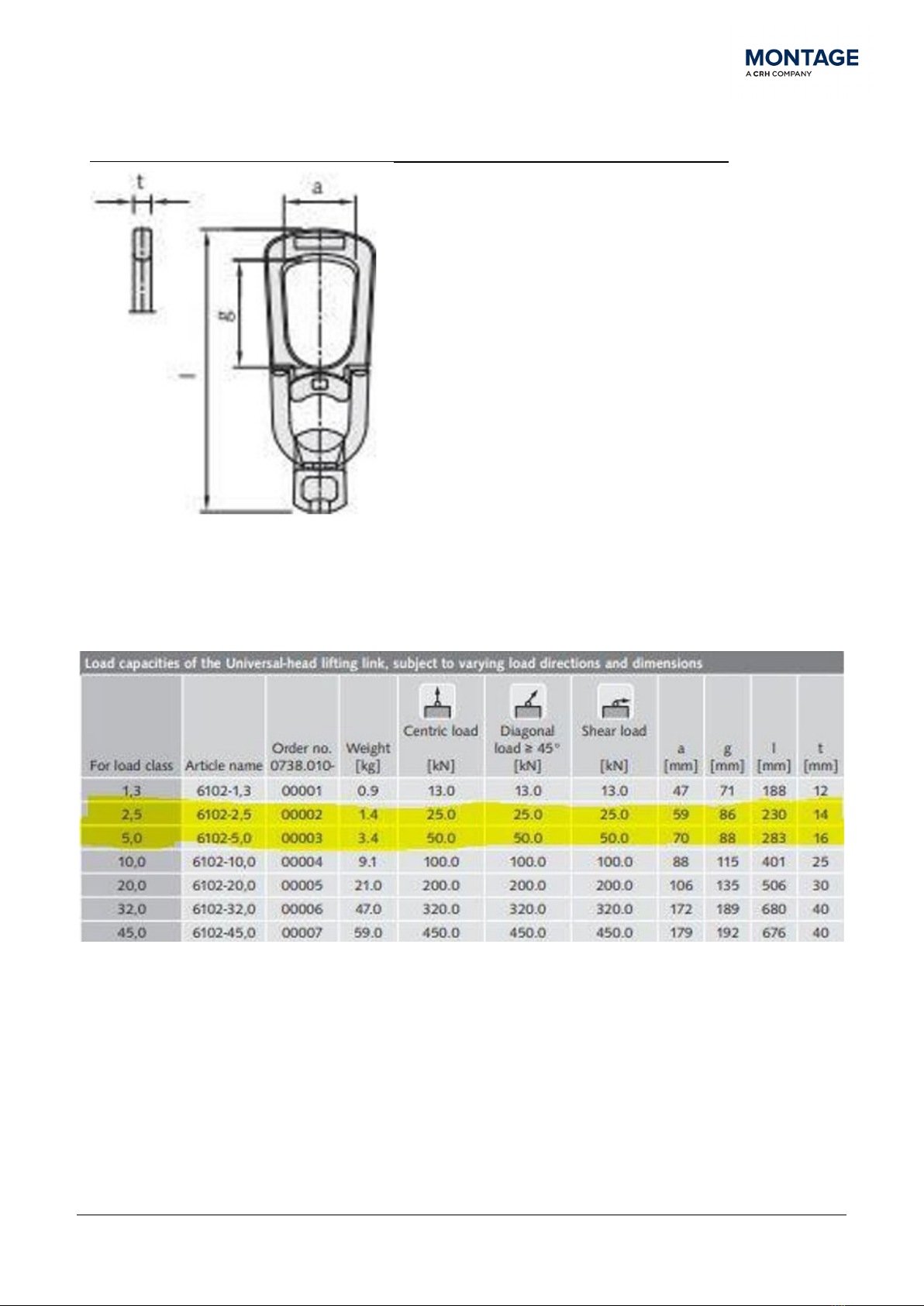

Ad 2) Lifting eye for fixing between concrete deck anchor and base plate

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 9
Ad 3) Bottom plate with locking pin for fall protection post
Ad 4) Column for fall protection post

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 10
2.2 Operation - Work instruction during setup
Important!
Max usable distance from concrete edge = 5000mm.
1: Harness attachment loops
2: Anchor post, mounted so that red marking is covered
3: Base plate to be mounted over DEHA KKT-U 6102 2,5 or 6102 5,0
4: Locking mandrel mounted and secured with split

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 11
2.3 Signage
The employer must ensure that work areas where fall
protection equipment must be used are marked with signs.
3 General instruction
Suitable fall protection equipment must be used if work at a height cannot otherwise
be planned, organized and carried out safely with collective safeguards against falls,
such as guardrails, scaffolding or personnel lifts.
When organizing work with fall-arrest equipment, account must be taken of any
physical or mental strain, inconvenience, etc. associated with the use of the
equipment. This may be done, for example, by limiting working hours or by providing
appropriate breaks in the work. In construction work, there are special rules for the
use of fall protection equipment, which are described in AT Guidance 2.4.1 on falls
from a height on construction sites and 2.4.2 on falls from a height when working on
roofs.
The employer must provide suitable fall protection equipment when, on the basis of a
specific assessment, the work situation so requires.
The employer must ensure the maintenance and cleaning of the fall-arrest equipment.
The fall protection equipment must be used immediately at the start of the work,
throughout the work and in the work areas where it is required.
Before using the fall protection equipment, the user must have received instruction in
the use of the equipment and information on the dangers of not using it. The user must
also be trained and, if necessary, regularly instructed in its use.
The user must be instructed in the plan for rescue after a fall, including rescue
equipment, as injuries can quickly occur to a hanging person.

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 12
3.1 Normal use
The fall prevention safeguard may only be used for the purpose for which it is intended.
It must not be used for purposes other than its intended use, and its use is further
subject to proper assembly, installation, operation, maintenance and repair.
3.2 Abnormal use
Abnormal use of the fall protection device is not allowed, including examples (not
exhaustive) to be aware of.
One must avoid:
•overloading the fall prevention safeguard by more persons than allowed using it
•load the pile with loads other than the accidental load of the person
•use the fall prevention safeguard for other than normal purposes
3.3 Errors / Troubleshooting
All technical faults are recorded in a logbook with description, date and name.
4 Service / repair / maintenance
To ensure optimum durability and reliability, the fall arrest post must undergo
continuous inspection and maintenance.
In case of malfunction or abnormal wear, this must be repaired immediately.
4.1 Maintenance of fall protection equipment
Maintenance of fall protection and inspection of fall protection equipment is a necessary
safety measure when working at height. The equipment must be checked before use and
it is therefore necessary to have a safe routine implemented in the daily workflow.
It is therefore important that employees are aware of fall protection maintenance.
However, it is the employer's duty to provide procedures for storage, maintenance,
repair and replacement of equipment. As described in EN 365, fall protection equipment
must undergo an annual inspection by an authorized or competent person. In addition,
any equipment that has been subjected to maximum loads or is in questionable
condition - must be discarded as it is no longer deemed to provide adequate safety.

CRH Concrete A/S - Vestergade 25 - 4130 Viby - T: [phone] - www.crhconcrete.dk /page 13
4.2 Inspection ensures optimal maintenance of fall protection
•Before use, it is visually checked that the fall prevention safeguard is without
visible cracks or deformations
•Inspection of the fall prevention safeguard shall be carried out once a year by a
competent person
•If the CE marking is missing or illegible, the fall prevention safeguard shall not be
used until the product has been identified and relabeled
•If the equipment is found with cracks or deformations, it must be discarded
Service scheme:
Checkpoints: Yearly by
instructed personnel
Visual inspection of all welds X
Cracks or deformations of steel structure X
Cracks or deformations of lock pin and spring split X
Cracks or deformations in the attachment point X
Data plate intact X
4.3 Cleaning and storage
Cleaning is a fundamental point of fall protection maintenance, which will prolong the
life of the equipment as well as ensure that the equipment is functional.
Clean the equipment regularly with a damp cloth and a mild detergent. Wipe with a
towel.
The fall protection post can be stored outdoors, but preferably in a dry place. Store
so that it is not mechanically damaged by impact from other objects. A box with a lid
is preferable.
Worldwide Patent Pending
