INSTRUCTION MANUAL
MODEL 3115-21-109# Block Upconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 6
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear I/O’s 10
2.3 Front Panel Controls, Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
3.0 Environmental Use Information 17
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
3115-21-109# Manual, Rev. 0 Page 2 01/30/19

MODEL 3115-21-109# Block Upconverter
1.0 General
1.1 Equipment Description
The 3115-21-109# Block Upconverter converts 0.95-1.85 to 10.90-11.80 GHz or 0.95-2.05 to 11.70-12.80
GHz. The gain range is 0 to +20 dB, adjustable in 0.5±0.5 dB steps. Front panel LEDs indicate Remote
operation, PLL Alarm and DC Power. Band select, gain and internal/external/Auto reference frequency
selection are controlled by front panel switches or remotely via RS 232C or RS485/422 (Ethernet Optional) and
are viewable on the LCD Display. Connectors are SMA female for the RF and BNC female for the L-Band and
external reference input and reference output. In AUTO, the 10 MHz reference stays in external if the external
level is in the +2 to +8 dBm range. It is powered by a 100-240 ± 10% VAC power supply, and housed in a
1 3/4” X 19” X 14” rack mount chassis.
MENU
EXECUTE
MODEL 3115
CROSS TECHNOLOGIES INC.
B2 11.70-12.80 GHZ
G=10.0 REF=AUTO-E
REMOTE POWERALARM
BLOCK UPCONVERTER
FRONT PANEL - 3115-21-109#
AC RF OUTPUT
GND
J101
J8
10 MHZ REF
OUTPUT
J11
ALARM
15 23 46
78
9
J2
EXT 10 MHZ
INPUT L-BAND
INPUT
J1
J14
REAR PANEL - 3115-21-109# (Shown with optional RJ45 Ethernet Connector)

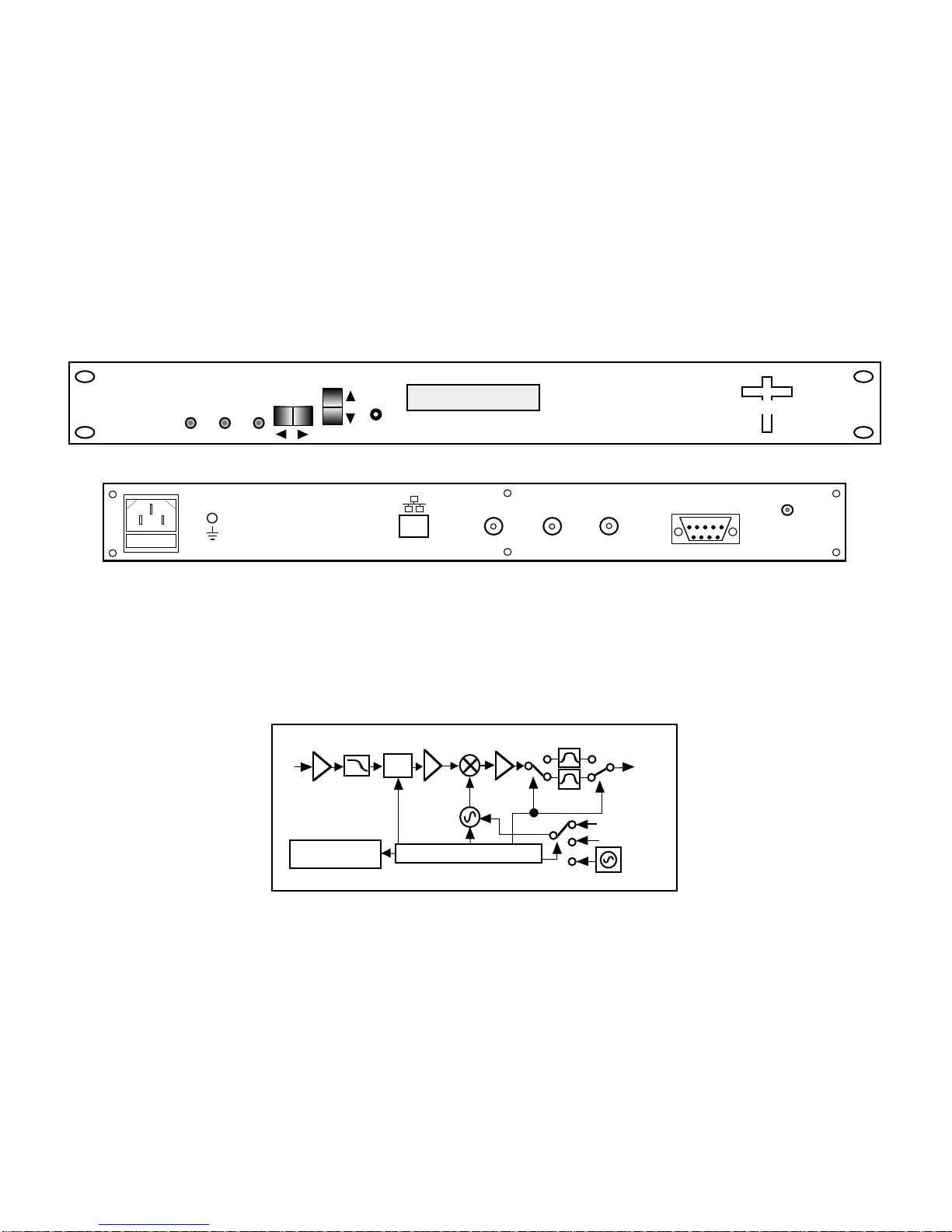

FIGURE 1.1 3115-21-109# Front and Rear Panels
.95
to
2.05
GHz
IN
10.90-
11.80
OR
11.70-
12.80
GHz
OUT
2.2 GHz LP
B2 11.70-12.80 GHZ
G=10.0 REF=AUTO-E
9.95 or
10.75
GHz EXT
10MHz
var
atten
INT 10MHz
3115-21-109# Upconverter Block Diagram
AUTO
10.70-11.80 BP
11.70-12.8 BP
CONTROLLER
FIGURE 1.2 3115-21-109# Block Diagram
3115-21-109# Manual, Rev. 0 Page 3 01/30/19

1.2 Technical Characteristics
*10 degrees C to +40 degrees C; Specifications subject to change without notice.
Technical Specifications continued on page 5...
3115-21-109# Manual, Rev. 0 Page 4 01/30/19
±1.5 dB
,
10.90 -11.80 GHz and 11.70 -12.80 GHz out
;
± 0.5 dB
,
40 MHz BWFre
q
uenc
y
Res
p
onse
Channel Characteristics
LO Characteristics
±0.01
pp
m maximum oven tem
p
erature internal reference
;
external reference in
p
utFre
q
uenc
y
Accurac
y
Non-invertin
g
Fre
q
uenc
y
Sense 1
;
2
<-50 dBC for two carriers at 4 MHz spacing, each at -15 dBm out, Gain = +20 dB
Intermodulation
<-50 dBm, Band 1; 9.7-10.7 and 11.9-15.5 GHz; Band 2; 10.7-11.6 and 12.8-15.5 GHz
S
p
urious
,
Out of Band
SIGNAL RELATED <-50dBC in band, -10dBm out; SIGNAL INDEPENDENT,<-60dBm
S
p
urious
,
Inband
+2 to +8 dBm in, with Auto-detect; Monitor Output = +3 ±3 dBm
10 MHz Level In/Out
9.95 GHz
;
10.75 GHzLO Fre
q
uenc
y
Band 1
;
2
> 60 dB
,
minimumIma
g
e Re
j
ection +20 dB ±2 dB, max. gain at @Fc; 0 to +20 dB variable in 0.5 ±0.5 dB Steps
Gain
,
Max.
(
ad
j
ustment
)
BNC
(
female
),
50ΩL-Band Connector
19 inch
,
Standard Chassis
,
1.75” hi
g
h X 14.0” dee
p
Size
DB9 - NO or NC Contact Closure on AlarmAlarm / Remote Connector
BNC
(
female
),
50Ω/ 75Ω10 MHz Connectors
Other
100-24 ±10% VAC
,
47-63 Hz
,
45 watts maximum
Power
SMA
(
female
),
50ΩRF Connector
Controls
,
Indicators
RS232C/RS485/422
,
9600 baud
(
Ethernet O
p
tional
)
Remote
Direct Readout LCD
;
p
ushbutton switches or remoteBand
;
Gain
;
10M Ref. Select
Yellow LED
,
Red LED
,
Yellow LED
,
Green LEDRemote
;
Alarm
;
Mute
;
Power
TABLE 1.0 3115-21-109# Block Upconverter Specifications*
>50 dB @ 0 dBm outMute
+0 dBm
,
at maximum
g
ainOut
p
ut 1 dB com
p
ression
-40 to -20 dBmIn
p
ut Level Ran
g
e20 dB Maximum GainNoise Fi
g
ure
,
Maximum 0.95 to 1.85
;
0.95 to 2.05 GHz
;
Fre
q
uenc
y
Band 1
;
2
-20 to -10 dBmOut
p
ut Level Ran
g
e
Out
p
ut Characteristics
(
L-Band
)
In
p
ut Characteristics
(
RF
)
10.90 to 11.80
;
11.70 to 12.80 GHzFre
q
uenc
y
Band 1
;
2 50Ω/ 14 dB
;
Mute and UnmuteIm
p
edance / Return Loss
50Ω/ 14 dBIm
p
edance / Return Loss
-110-95-85-75-70 1M100K10K1K100 Standard dBC/
(
Hz
)
Phase Noise @ F
(
Hz
)
>

Technical Characteristics continued from page 4...
3115-21-109# Manual, Rev. 0 Page 5 01/30/19
Ethernet
;
with Direct TCP/IP Interface - W28
Remote M&C Ethernet O
p
tions
Ethernet with SNMP
(
and MIB
)
Interface - W18
W8 +W18 +W28
Ethernet with Web Browser Interface
- W828
- W8
50Ω
SMA
(
RF
),
75Ω BNC
(
L-Band
)
S7 -
50Ω
N-T
yp
e
(
RF
),
75Ω BNC
(
L-Band
)
N -
50Ω
SMA
(
RF
),
50Ω N-T
yp
e
(
L-Band
)
SN -50Ω
SMA
(
RF
),
50Ω SMA
(
L-Band
)
SS -
50Ω SMA
(
RF
),
75Ω F-t
yp
e
(
L-BAND
)
SF -
50Ω N-t
yp
e
(
RF
),
50Ω N-t
yp
e
(
L-BAND
)
NN -
Available Connector O
p
tions
,
See Table 2.2
,
PG 10
Available Connector O
p
tions
50ΩN-type (RF), 75ΩF-type (L-BAND)
NF -

1.3 Monitor and Control Interface
A) Remote Serial Interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option Q)
Female DB-9
PC Com Port Male DB-9
2
1
3
4
5
6
7
8
9
2
1
3
4
5
6
7
8
9
M&C Cable Diagram - Cross Technologies Frequency Converters and
Frequency Sources
Connector: Rear panel, DB-9 male
J10 Pinouts
(RS-232C/422/485)
Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
3115-21-109# Manual, Rev. 0 Page 6 01/30/19

B) Status Requests - Table 1.1 lists the status requests for the 3115-21-109# and briefly describes them.
* PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.1 3115-21-109# St
a
atus
Status Requests
TABLE 1.1 3115-21-109# Status Requests
Command Syntax * Description
Get Gain {aaSG} returns {aaSGxxxx} where:
• xxxx = Converter gain in 0.5 dB steps
Get Internal 10 MHz Reference Offset {aaSO} Returns {aaSOxxxxx} where:
• xxxxxx = Internal 10 MHz reference frequency offset.
Get 10 MHz Reference Mode {aaSE} Returns {aaSEx} where:
• x = 0 if the converter's 10 MHz reference mode is set to Internal
• x = 1 if the converter's 10 MHz reference mode is set to External
• x = 2 if the converter's 10 MHz reference mode is set to Auto
Get Mute {aaSM} Returns {aaSMx} where:
• x = 0 if the converter's RF output is NOT muted (RF output is ON)
• x = 1 if the converter's RF output is muted (RF output is OFF)
Get 10 MHz Reference Status {aaSB} Returns {aaSBx} where:
• x = 0 if the currently selected 10 MHz reference is Internal
• x = 1 if the currently selected 10 MHz reference is External
Get IP Address {Si} Returns {Sixxx.xxx.xxx.xxx} where:
Options W8, W18, W28 only) • xxx.xxx.xxx.xxx = IP address
Get Subnet Mask {Ss} Returns {Ssxxx.xxx.xxx.xxx} where:
Options W8, W18, W28 only) • xxx.xxx.xxx.xxx = subnet mask
Get Product/Model info {SV} Returns {SV3115-21-109#y..yverZZZZ} where:
• 3115-xx is the product model number
• y..y = list of options, if any
• '"ver" = separates model & options from firmware version
• ZZZZ = firmware version (e.g., 4.00)
Get Alarm Status {aaSA} Returns {aaSAx}where:
• x = 0 if alarm is off
• x = 1 if alarm is on
Get Band {aaSN} Returns {aaSNx}where:
• x = 1 if Band 1 is selected
• x = 2 if Band 2 is selected
3115-21-109# Manual, Rev. 0 Page 7 01/30/19

C) Commands
Table 1.2 lists the commands for the 3115-21-109# and briefly describes them.
After a command is sent the 3115 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {CND...}, where:
{ = start byte
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
3115-21-109# Manual, Rev. 0 Page 8 01/30/19
TABLE 1.2 3115-21-109# Commmands
Commands
TABLE 1.2 3115-21-109# Commands
Command Syntax * Description
Set Gain {aaCGxxx} where:
• xxx = Converter gain in 0.5 ±0.5 dB steps.
Range: 000 to 200 where 200 = 20.0 dB
Example: {CG155} sets the converter's gain to +15.5dB
Set Internal 10 MHz Reference Offset {aaCOxxxxx} where:
• xxxxxx = Internal 10 MHz reference frequency offset.
Range: -2000 to +2000
Set 10 MHz Reference Mode {aaCEx} where:
• x = 0 if the converter's 10 MHz reference mode is set to Internal
• x = 1 if the converter's 10 MHz reference mode is set to External
• x = 2 if the converter's 10 MHz reference mode is set to Auto
Set Mute {aaCMx} where:
• x = 0 if the converter's RF output is NOT muted (RF output is ON)
• x = 1 if the converter's RF output is muted (RF output is OFF)
Set Band {aaCNx} where:
• x = 1 to set the converter to Band 1
• x = 2 to set the converter to Band 2

2.0 Installation
2.1 Mechanical
The 3115 is powered by a 100-240 ± 10% VAC power supply, and housed in a 1 3/4” X 19” X 14” rack mount
chassis. The 3115-21-109# can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how
the 3115-21-109# is assembled.
POWER
SUPPLY
FIGURE 2.0 3115-21-109# Mechanical Assembly
3115-21-109# Manual, Rev. 0 Page 9 01/30/19

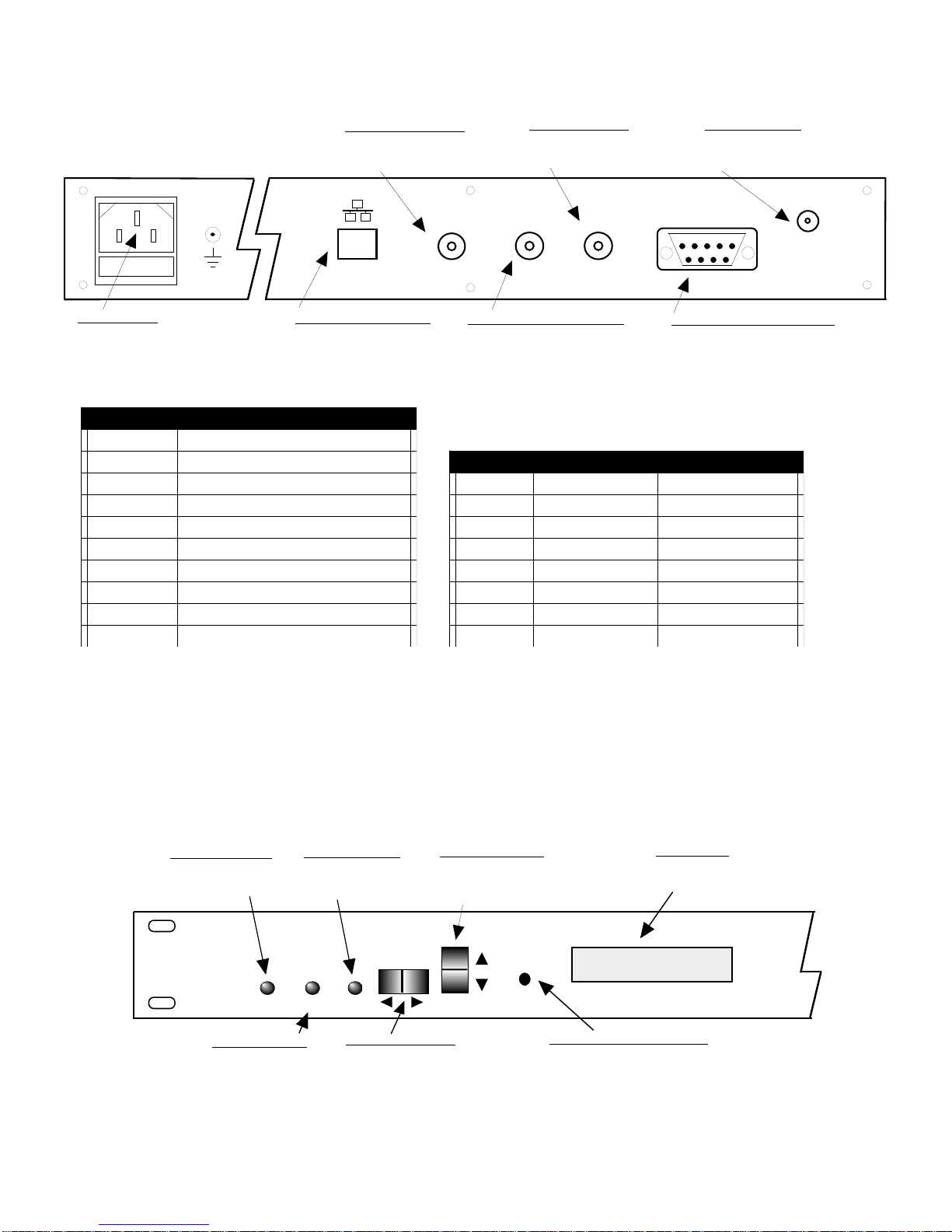

2.2 Rear Panel Input/Output Signals
Figure 2.1 shows the input and output connectors on the rear panel.
AC
GND
AC - POWER IN
AC input for switching power supply.
100-240 VAC, 47-63 Hz.
J11
ALARM
5 4 3 2 1
9 8 7 6
J11 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
J101
EXT 10 MHZ
J101 - RF OUTPUT
Band 1 - 10.90-11.80 GHZ
Band 2 - 11.70-12.80 GHZ
SMA (female) connector.
INPUT
J8 - 10 MHz EXT REF OUTPUT
10 MHz external reference output,
3 ± 3 dBm, 50 ohms,
BNC (female) connector.
J2 - EXT 10 MHz INPUT
10 MHz reference input,
3 ± 3 dBm, 50 ohms
BNC (female) connector.
J14 - Ethernet Connection
RJ45 Ethernet Connector
(Option -W8).
J14
10 MHZ REF
OUTPUT INPUT
L-BAND
J2 J8 J1
J1 - L-BAND INPUT
Band 1 - 0.95-1.85 GHZ
Band 2 - 0.95-2.05 GHZ
BNC (female) connector.
RF OUTPUT
FIGURE 2.1 3115-21-109# Rear Panel I/Oʼs
TABLE 2.1 J110
TABLE 2.1 J10 Pinouts*
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
TABLE 2.2 Connector
2.2 Connector Optionns
Options
Option RF L-Band
-N 50ΩN-Type 75ΩBNC
-NF 50ΩN-Type 75ΩF-Type
-NN 50ΩN-Type 50ΩN-Type
-S7 50ΩSMA 75ΩBNC
-SF 50ΩSMA 75ΩF-Type
-SN 50ΩSMA 50ΩN-Type
-SS 50ΩSMA 50ΩSMA
*Remote Serial Interface
Interface: DB-9 Male Protocol: RS-232C (RS-232C/422/485, Option Q),
9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.

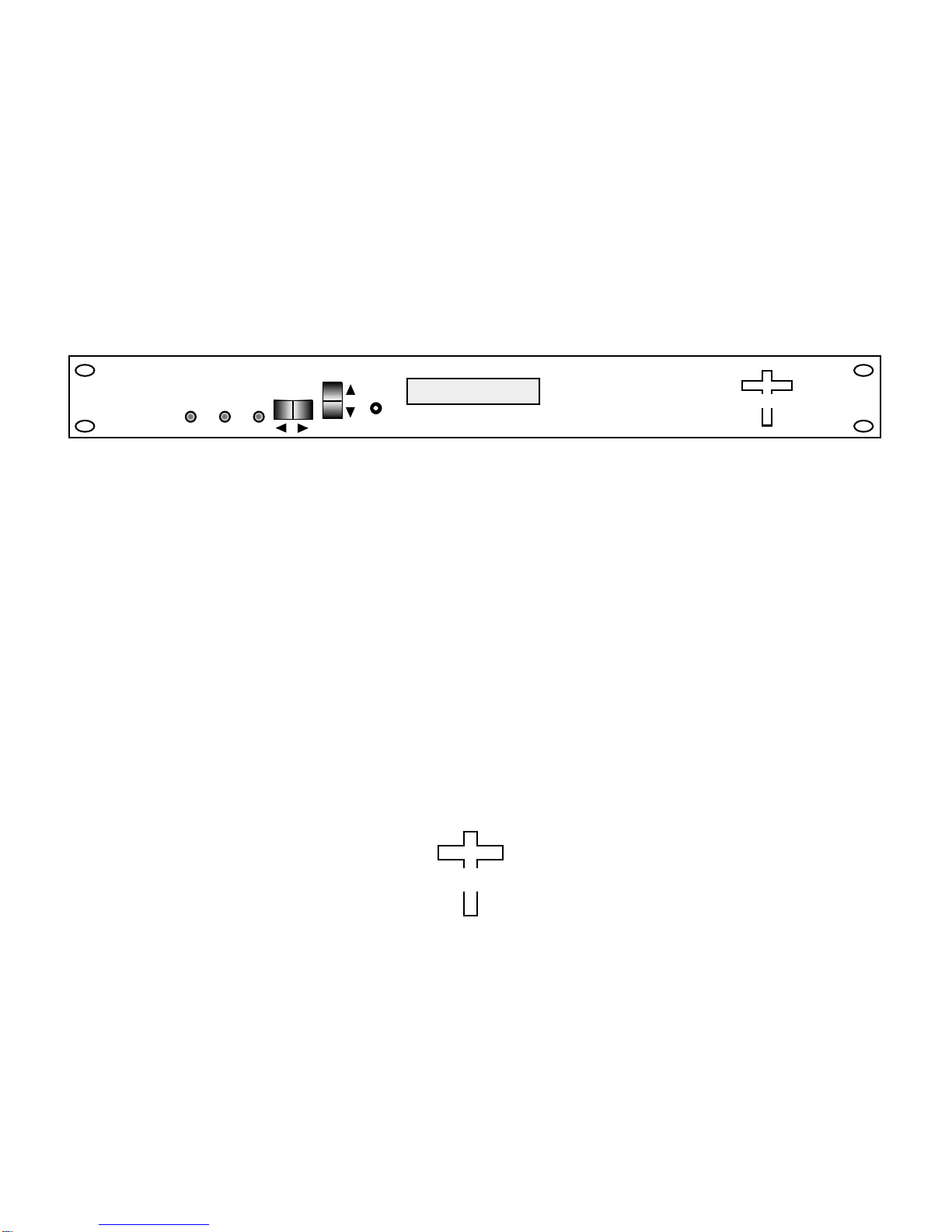

2.3 Front Panel Controls and Indicators
Figure 2.2 shows the front panel controls and indicators.
POWER
DS6 - ALARM LED
Red LED indicates an
alarm condition.
REMOTE
DS2 - POWER LED
Green LED indicates
presence of DC power
from power supply.
DS3 - REMOTE LED
Yellow LED indicates
remote operation.
LCD DISPLAY
Display shows current
mode and output level
in dBm or gain in dB.
MENU
EXECUTE
S3 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode.
S1 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode.
ALARM
B2 11.70-12.80 GHZ
G=10.0 REF= AUTO-E
3115-21-109# Manual, Rev. 0 Page 10 01/30/19

FIGURE 2.2 3115-21-109# Front Panel Controls and Indicators
2.4 Installation / Operation
2.4.1 Installing and Operating the 3115-21-109#
1. Connect a -40 dBm to -20 dBm signal to RF IN, J1 (Figure 2.1).
2. Connect the RF OUT, J101, to the external equipment.
3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.
4. Set the gain +20 dB maximum, adjustable in 0.5 ±0.5 dB steps.
Make sure the output stays within -20 to -10 dBm with the gain selected and the
input level provided. (See Section 2.5 Menu Settings).
5. Be sure DS2 (green, DC Power) is on and DS6 (red, Alarm) is off (Figure 2.2).
6. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot
in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MA
X
FUSE
TYPE T 2A GDC
250 VOL
T
FOR 100 - 240 V~
~
FIGURE 2.3 Fuse Location and Spare Fuse
3115-21-109# Manual, Rev. 0 Page 11 01/30/19

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD display
and alarm indicator LEDs. All functions for the equipment are controlled by these components. The functions
are (See Figure 2.4):
Power Up
Normal Display
Menu 1 Set Band
Menu 2 Set Gain
Menu 3 Set Mute
Menu 4 Set Reference Mode
Menu 5 Set Reference Offset
Menu 6 Set Remote
Menu 7 Set Remote Interface
Menu 8 Set RS-485 Address
Save Menu When “R” is selected from any above menu or at the end.
Alarm indications appear on the LEDs (see Figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
3115-21-109# Manual, Rev. 0 Page 12 01/30/19

2.5.2. Power On Settings
NOTE: THE LAST OPERATING PARAMETERS OF A UNIT ARE RETAINED EVEN WHEN
POWER IS REMOVED. WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S
PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The Model and Software version will be displayed.
3115-277#-1200W18
Rev. 4.00
3. The present frequency and gain of the upconverter is shown.
B2 11.70-12.80 GHZ
G=10.0 REF=AUTO-E
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the
display cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During gain changes, the vertical movement will raise or lower the number
in the direction of the arrows.
b. For other functions such Remote on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
3115-21-109# Manual, Rev. 0 Page 13 01/30/19

2.5.4 Gain Changes
When you get to this menu note that gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 30 seconds, and the system will return to the normal operating mode.
NOTE: THE GAIN WILL CHANGE AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS
THAN -20 dBm OUTPUT LEVEL.
Press the Up/Down switch to change the gain in 0.5, 1, or 10 dB steps and then push the
Menu/Execute switch to get to the Save Settings Menu:
GAIN = +17.5 R
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Figure 2.4 (page 15) gives the menu items and how to make changes.
3115-21-109# Manual, Rev. 0 Page 14 01/30/19

2.5.5 Alarm Indications
An alarm condition will occur if any local oscillator phase lock loop (PLL) comes out of lock.
The Remote LED will light when you select the Remote mode.
2.5.6 10 MHz Reference Mode Operation
Internal Mode: The unit uses its own built-in 10 MHz OCXO. The Internal Reference is present on the
Reference Output Connector, J8. REF = INT appears on the front panel display.
External Mode: The unit uses a 10 MHz Reference that is connected to the External Reference Input, J2.
REF = EXT appears on the front panel display. The External 10 MHz Reference level
must be +3dBm, ±3dB. If the External 10 MHz signal does not meet the unit’s
specified parameters then the unit will not function properly. The External Reference
is present on the Reference Output connector, J8.
Auto Mode: The unit defaults to the External 10 MHz Reference as long as the level meets the +3dBm,
±3dB specification. REF = AUTO - E appears on the front panel display where the -E
indicates that the unit is using the External 10 MHz Reference. The External Reference is
present on the Reference Output connector, J8.
If the external 10 MHz Reference signal level is less than -1dBm, the unit switches to
Internal 10 MHz Reference. REF = AUTO -I appears on the front panel display
where -I indicates that the unit is using the Internal 10 MHz Reference. The Internal
10 MHz Reference is present on the reference output connector, J8.
3115-21-109# Manual, Rev. 0 Page 15 01/30/19

NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
3115-21-109#W18
4.0
B2 11.70-12.80 GHZ
G=10.0 REF=AUTO-E
PUSH BUTTON
Power Up 1:
Power Up 2:
Normal Display
Menu 1 Set Band
Menu 2 Set Gain
Menu 3 Set Mute
Menu 4 Set Reference Mode
Menu 5 Set Reference Offset
Menu 6 Set Remote
Menu 7 Set Remote Interface
Menu 8 Set RS485 Address
Save? When go to end
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
R
R
R
SCROLL <>
SCROLL
PUSH BUTTON
R
SCROLL <>
SCROLL
PUSH BUTTON
GAIN = 15.5
MUTE = ON
REF MODE = AUTO
INTERNAL FREQ ADUST
OFFSET = -1225
INTERFACE = RS232
RS485 ADDRESS = 0
R
R
SAVE SETTINGS? Y N
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
REMOTE = ON
R
SCROLL <>
SCROLL
PUSH BUTTON
= = = IP Addr = = =
192.168.123.002
ON POWER UP (1)
ON POWER UP (2)
BAND = 1
10.90 - 11.80
R
SCROLL <>
SCROLL
PUSH BUTTON
FIGURE 2.4 Menu Display and Sequences
3115-21-109# Manual, Rev. 0 Page 16 01/30/19

3.0 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature).
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
3115-21-109# Manual, Rev. 0 Page 17 01/30/19

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
3115-21-109# Manual, Rev. 0 Page 18 01/30/19
