CrustBuster Speed King User manual

Field
Loader
OWNER’S MANUAL
#03240900 (02-01)

Table of Contents
Warranty Information . . . . . . . . . . . . . . . . . . . . . . Inside Front Cover
Operator Qualifications / Sign Off Sheet . . . . . . . . . . . . . . . . . . . . . 1
SafetyInstructions .................................... 2-3
Assembly:
MainConveyor .................................... 4-5
Belt............................................... 6
GasEngine ........................................ 7
ElectricMotor ....................................... 8
Guard ............................................. 9
BeforeOperation ...................................... 10
Operation ............................................ 10
Transporting.......................................... 10
Lubrication ........................................... 11
Storage ............................................. 11
Repair Parts:
Undercarriage & Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Pan&Transition................................. 14-15
Drive.......................................... 16-17
GasDrive ...................................... 18-19
ElectricDrive ................................... 20-21
Pan........................................... 22-23
Spout ............................................ 23
3'Extension .................................... 24-25
Warranty
CrustBuster/Speed King, Inc. of Dodge City, Kansas, warrants consumer products, so
far as the same is of our own manufacture, against defects in material and
workmanship under normal and reasonable use for a period of one (1) year after date
of delivery to the original purchaser. Our obligation under this warranty is limited,
however, to furnishing a replacement part for a defective part, or at our option to repair
the defective parts without charge, either method F.O.B. our works, provided the
consumer gives CrustBuster/Speed King,Inc. written notice within ten (10) days after
said part appears to be defective and affords CrustBuster/Speed King,Inc. an
opportunity to inspect. Unless otherwise expressly agreed to by CrustBuster/Speed
King,Inc., the consumer shall bear the expense of installation.
CrustBuster/Speed King, Inc. will not be liable for consequential damages where the
loss is commercial, including but not limited to loss of profit, delays or expenses.
This warranty sets forth the extent of our liability. The foregoing is in lieu of all other
warranties, expressed or implied, including any warranties that extend beyond the
description of the product.

1
Operator Qualifications
Operation of this conveyor shall be limited to competent and experienced persons. In addition, anyone
who will operate or work around conveyor must use good common sense. In order to be qualified, he
or she must also know and meet all other requirements, such as:
1. Some regulations specify that no one under the age of 16 may operate
power machinery. It is your responsibility to know what these regulations
are in your area or situation.
2. Current OSHA regulations state in part: "At the time of initial assignment
and at least annually thereafter the employer shall instruct EVERY
employee in the safe operation of servicing of all equipment with which the
employer is, or will be involved."
3. Unqualified persons are to STAY OUT of the work area.
4. A person who has not read and understood all operating and safety
instructions is not qualified to operate the machinery.
FAILURE TO READ THIS CONVEYOR MANUAL AND
ITS SAFETY INSTRUCTIONS IS A MISUSE OF THE
EQUIPMENT.
Sign Off Sheet
As a requirement of OSHA, it is necessary for the employer to train the employee in the safe operation
and safety procedures with this conveyor. We include this sign off sheet for your convenience and
personal record keeping.
DATE EMPLOYER EMPLOYER'S SIGNATURE

2
BE ALERT!
Your Safety is involved.
General Safety Statement
WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY
PRECAUTIONS. IT MEANS "ATTENTION )
))
)))
))))
)) BECOME ALERT!"
YOUR SAFETY IS INVOLVED.
It is your responsibility as an owner, operator, or supervisor to know and instruct
everyone using this conveyor at the time of initial assignment and at least annually
thereafter, of the proper operation, precautions, and work hazards which exist in the
operation of this conveyor in accordance with OSHA Regulations.
Safety Is No Accident
The following safety instructions, combined with common sense, will save your equipment from
needless damage and the operator from unnecessary exposure to personal hazard. Pay
special attention to the caution notes in the text. Review this manual at least once each year
with new and/or experienced operators.
1. Read and understand the operator's manual before operating this conveyor. Failure
to do so is considered a misuse of the equipment.
2. Make sure conveyor is secure before operating.
3. Always keep children away from conveyor when operating.
4. The motor controls and reset button must be located so that the operator has a full
view of the entire operation.
5. During regular operation of the conveyor, one person should be in a position to
monitor the operation. A second person should always be nearby to shutdown the
conveyor in case of an emergency.
6. Make sure everyone that is not directly involved with the operation is out of the work
area before beginning the operation.
7. Keep the work area clear of grease, oil, water, and other objects that could cause a
slip or a fall.
8. Make sure all safety devices, shields, and guards are in place and are functional
before beginning the operation.

3
9. Shut off power to adjust, service, or clean the conveyor.
10. Keep hands, feet, and clothing away from moving parts. It is a good idea to remove
all jewelry before starting the operation.
11. Visually inspect the conveyor periodically during operation for signs of excessive
vibration, loose fasteners, and unusual noises.
Electric Safety
1. Electric motors and controls should be wired by a qualified electrician and meet all
standards set by Federal, State, and Local Electrical Codes.
2. Make certain electric motors are grounded.
3. A magnetic starter should be used to protect your motor.
4. Your motor must have a manual reset button.
5. Electrical power must be disconnected before resetting your motor.
6. A main power disconnect switch, with the ability to be locked in the off position,
should be provided. The switch should be locked in the off position whenever work
is to be done on the conveyor or the conveyor is going to be left unattended.
7. Disconnect power before resetting motor overload.
CAUTION
1. Read and understand instruction manual before operating.
2. Keep all safety shields and devices in place.
3. Make certain everyone is clear before operating machine.
4. Keep hands, feet, and clothing away from moving parts.
5. Shut off power to adjust, service, or clean.
6. Make sure machine is secured before operating.
7. Disconnect power before resetting motor overload.
8. Make certain electric motors are grounded.

4

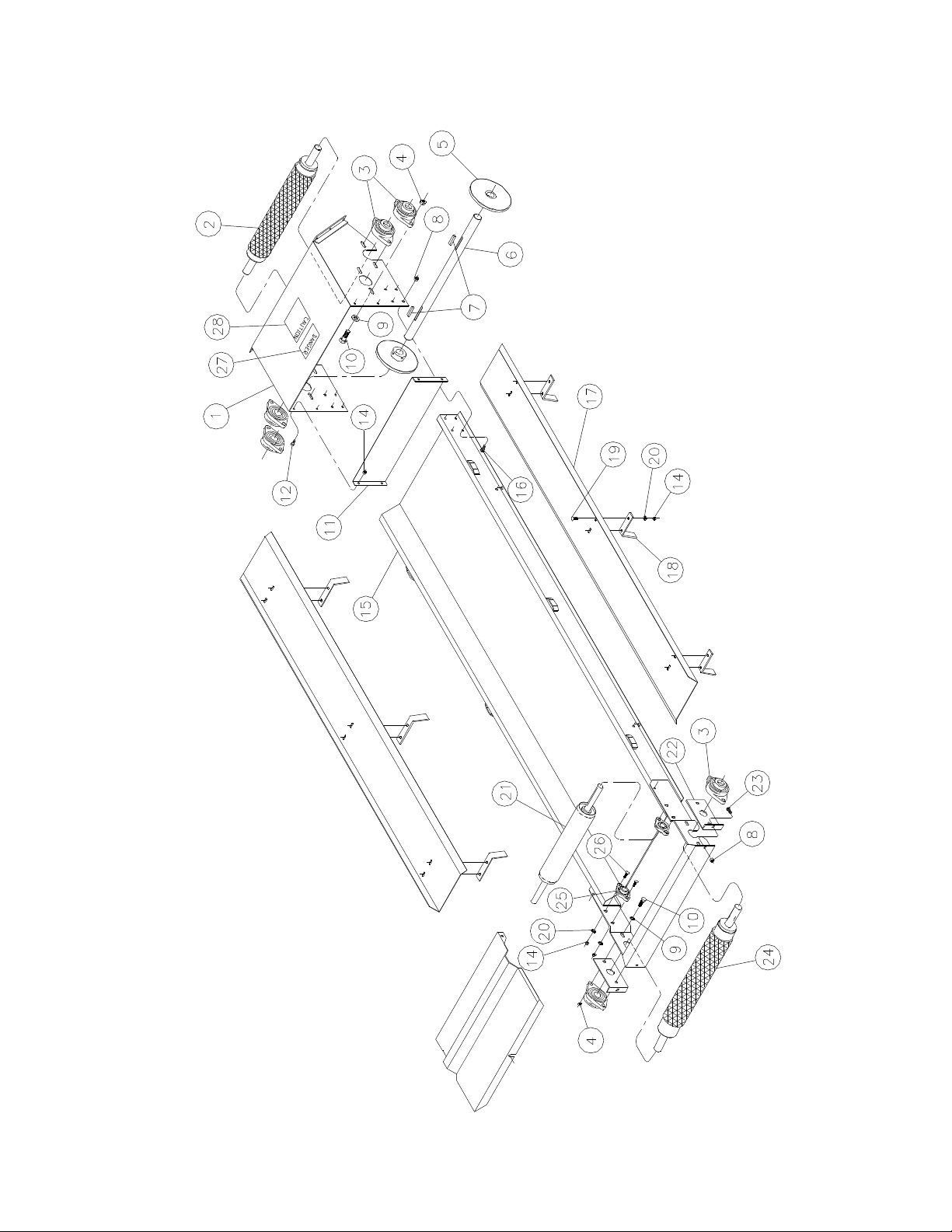

Figure #1
Assembly
The conveyor has been pre-assembled into two main assemblies to
simplify final assembly. As with any large machinery, assembly safety
is the first concern. Choose a clear, solid, level work area that is large
enough to provide room for forklifts and cranes to move easily. Any
slings, chains, or stands used to lift or support should be of adequate
capacity and in good condition.
NOTE: Axle spacer is required if unit has 3' extension. See Step #1A.
Main Conveyor
STEP #1. Refer to Figure #1.
Position the main assembly (1) on the ground
allowing room in front of the incline section to attach
the upper 15' incline section. The main assembly (1)
consists of the feed pan, lower 10‘ incline drive
assembly, and undercarriage.
Lift the axle assembly (2) so the three plates on the
axle match the three plates on the undercarriage.
Attach the center plate with 2- ½" x 1½" HHCS (6)
and nylock nuts (7) and the outer plates with 4- 5/8"
x 1½" HHCS (3) and nylock nuts (4)
If tires were included with your shipment, attach
them to hubs with lug nuts provided. If you are
providing your own tires choose a tire that will fit the
15" x 6" wide rims (5) provided and is approximately
30" to 32" tall. Each tire carries about 1000 pounds.
Choose a tire that will fit your towing speeds and
needs.
Remember to re-tighten lug nuts after
the first 1 to 2 miles and then
periodically thereafter.
Lower and pin the support stand which is located in
the center of the undercarriage in front of the axle.
This will provide added support for the next
assembly step.
STEP #1A.
With the 3' incline extension the axle must be moved
toward the discharge end. Attach center plate of
axle to spacer with 2- ½" x 1½" HHCS (6) and nylock
(7). And outside plates to undercarriage plates with
4- 5/8" x 4" HHCS.

5

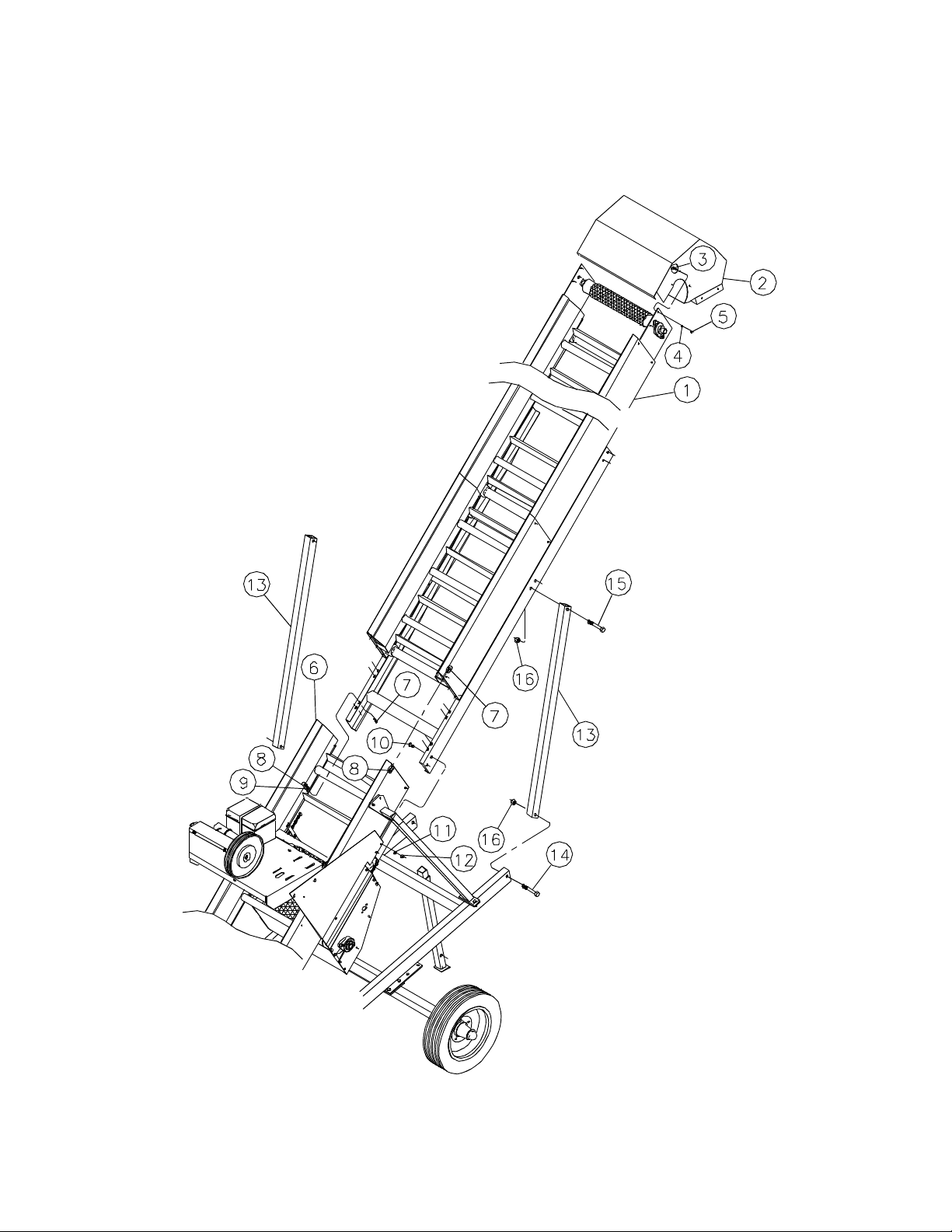

Figure #2
Assembly
STEP #2. Refer to Figure #2.
Position spout (2) over the head roller frame on the
15' incline assembly (1) and attach with 6-5/16" x 1"
HHCS (3), lock washers (4), and hex nuts (5).
Sling and lift the 15' incline assembly (1) up to the
end of the main assembly (6). Attach trough
sections and lower channel support with 14-3/8" x 1"
HHCS (7), lock washers (9), and hex nuts (8). Using
4-1/2" x 1 1/4" HHCS’s (10), lock washers (11), and
hex nuts (12), bolt channel support to drive sides.
Install upper support tubes (13) to front tubes of
undercarriage and each side of channel support with
2-3/4" x 3½" (15) and 2-3/4" x 5" HHCS (14) and 3/4"
nylock nuts (16).

6

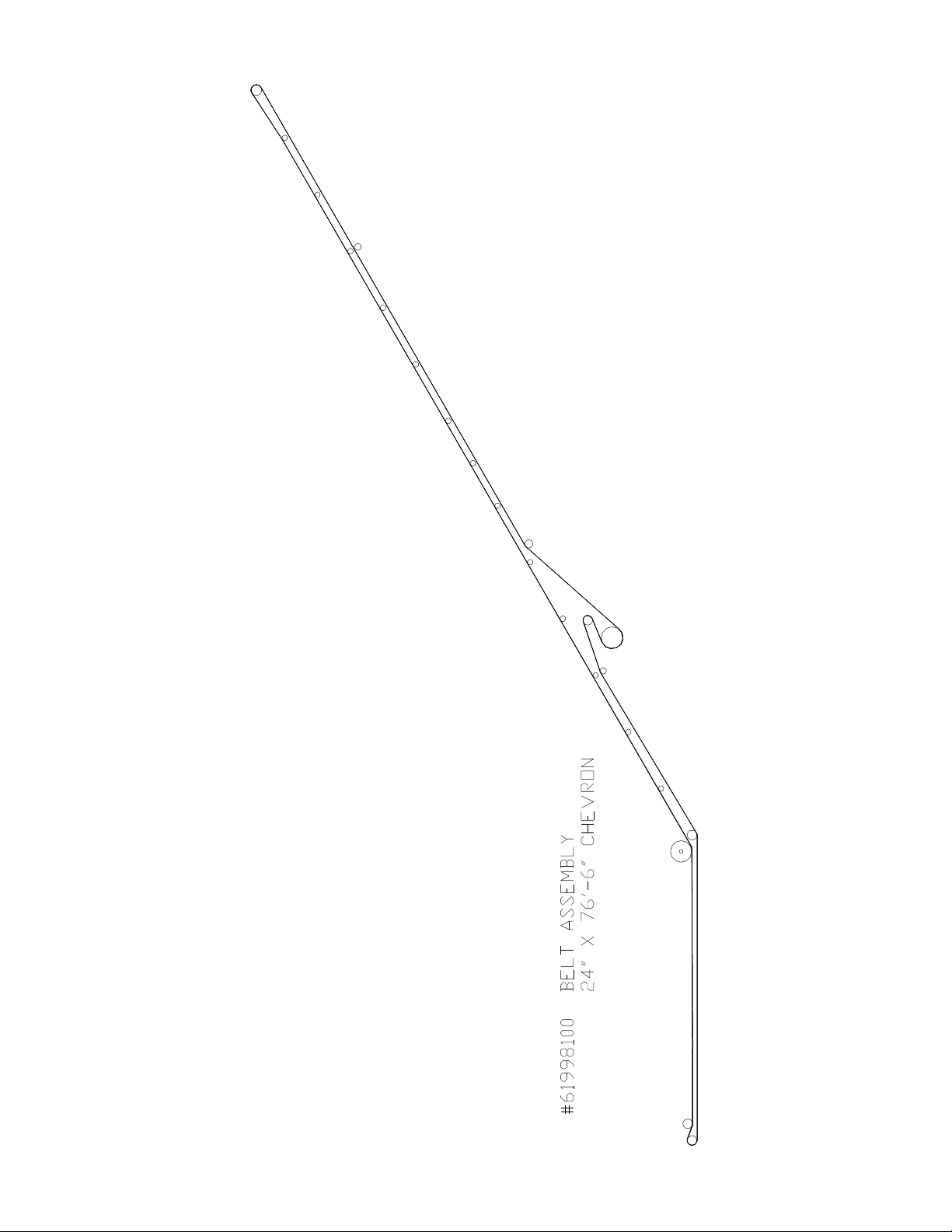

Figure #3
Assembly
STEP #3. Refer to Figure #3.
To install conveyor belt, insert a shaft through center
of belt roll and support it at the hitch end of the
conveyor with stands or forklift. Position the belt roll
so the pattern is up as the belt is unrolled.
Lift the pan sideboards off and place out of the way.
Pull the belt across the feed pan section and under
the hold down rollers in the incline transition section.
Continue to unroll the belt and push it up the 25'
incline section to the spout. Thread the belt through
the spout and back down to the drive unit. Make
sure to put the belt on top of all the cross braces and
rollers.
Unroll all of the remaining belt on the roll and lay it
back and forth in the feed pan. Insert this end of the
belt under the tail hold down roller, wrap around the
tail roller, under the feed pan and incline transition
roller and through the drive unit. Again, make sure
belt is on top of all cross braces and rollers.Using
belt clamps and power pull bring ends of belt
together. Align and interlace the clipper lacing and
secure with splice cable. The rubber adhesive
supplied with the belt can be used to seal the lacing
and secure the cable splice in place.
Re-install pan sideboards by inserting the 3 ears into
the 3 slots on each side of feed pan. Use the ½"
take-up bolts in each side of the drive unit to evenly
tighten the conveyor belt. Belt training will be
addressed in “Before Operation” section.

7

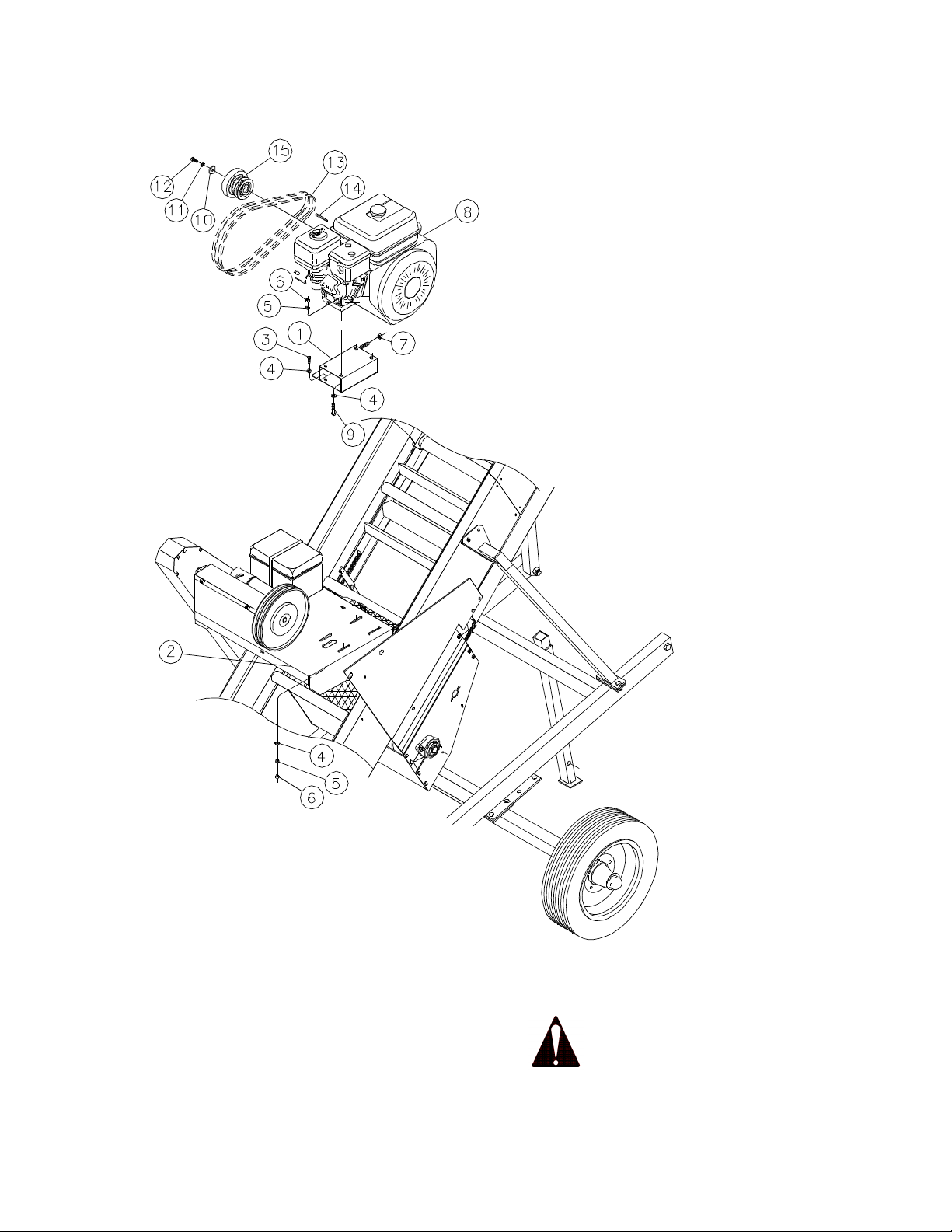

Figure #4
Assembly
GAS ENGINE
STEP #4. Refer to Figure #4.
Mount the engine slide (1) to the four slotted holes in
the drive plate (2) using 4-3/8" x 1" HHCS (3), flat
washers (4), lock washers (5), and hex nuts (6).
Make sure take-up bolt goes through take-up tab on
front of drive plate (2). Install ½" hex nylock nut (7)
to take-up bolts. Leave these bolts loose until v-belts
are installed.
Apply an anti-seize compound to the engine (8) drive
shaft. Insert key (14) into keyway and slide
centrifugal clutch (15) (sheave side first) onto shaft.
Secure clutch to shaft with large 3/8" flat washer
(10), lock washer (11), and 3/8" x 1 1/4" fine thread
HHCS (12).
Lift engine and clutch assembly onto the already
assembled engine slide (1). Attach with 4-3/8" x 1
1/4" HHCS (9), flat washers (4), lock washers (5),
and hex nuts (6). Install ground cable to the engine
mounting bolt closest to the battery box.
Install the 2- B-48 v-belts (13) from the engine
sheave to the jack shaft sheave. Move 12" diameter
sheave on jack shaft to align with engine sheave.
Tighten v-belts using the engine slide take-up bolt.
Center of belt span should deflect 3/16" with 7 lb.
force. Now tighten the engine slide bolts (3) which
were previously left loose.
Install positive battery cable to the solenoid of the
engine. The starting battery is not included. Any 12
volt, top post automotive battery should work.
Connect cable hooked to engine solenoid to the
positive post of the battery. Connect the cable
bolted to the engine base to the negative post of the
battery.
CAUTION:
Engine is shipped WITHOUT oil. Refer
to engine operator manual for
lubrication recommendations, operation,
service, and maintenance.

8
NOTE: 7.5 HP motor required
for normal application.
Figure #4a
Assembly
ELECTRIC MOTOR
STEP #4a. Refer to Figure #4a.
Mount the motor slide (1) to the four slotted holes in
the drive plate (2) using 4-3/8" x 1" HHCS (3), flat
washers (4), lock washers (5), and hex nuts (6).
Make sure take-up bolt goes through take-up tab on
front of drive plate (2). Install ½" hex nylock nut (7)
to take-up bolts. Leave these bolts loose until v-belts
are installed.
Mount electric motor (8) to motor slide (1) and
attach with 4-3/8" x 1 1/4" HHCS (9), flat washers
(4), lock washers (5), and hex nuts (6). Attach
bushing (10), key (14), and 6.8 sheave (15). Align
sheaves moving 12" sheave on jackshaft if required.
Install the 2- B-52 v-belts (13) Tighten v-belts using
the motor slide take-up bolt. Center of belt span
should deflect 3/16" with 7 lb. force. Now tighten the
motor slide bolts (3) which were previously left loose.

9
Figure #5
Assembly
GUARD
STEP #5. Refer to Figure #5.
Remove end plate (3) from guard assembly (2).
Slide guard assembly (2) over jack shaft and engine
clutch or motor sheave as shown until hole in bottom
tab of guard (2) aligns with slot in side of drive plate
(1). Loosely attach with 5/16" x 1" HHCS (8), flat
washer (9), lock washer (10), and hex nut (11).
Re-install end plate (3) with 1/4" bolts (4) and
hardware (5,6, & 7) previously removed. Attach
bottom of end plate (3) to side of drive plate with
5/16" x 1" HHCS (8), flat washer (9), lock washer
(10), and hex nut (11). Position guard for clearance
and tighten all mounting bolts.
Before starting engine, review the engine
owner’s manual for specifices about
safety, operation, service, and storage
information.

10
Before Operation
1. GAS: Check engine fluids according to engine
m a n u f a c t u r e r ’ s o w n e r ’ s m a n u a l
recommendations.
ELECTRIC: Check motor, starter, and wiring to
be sure they are in good condition.
2. Make sure v-belts are tight. V-belts from jack
shaft to drive roller should deflect ½" with 7
pound force applied at center of span.
3. Conveyor belt should be evenly tightened using
the two ½" take-up bolts on each side in the
front of the drive unit. Measure from the take-up
roller to the front of the drive to get the roller
square. Before tightening belt, make sure it is
centered in the pans and rollers.
Tension belt until the span of belt entering the
drive unit will only deflect 2-3" with a 50 pound
force. During operation, the belt should not slip
on the drive roller.
4. To align or train conveyor belt, move belt slowly
one or two complete revolutions. Check to be
sure belt is staying centered on all rollers (tail,
transition, drive, and head roller). The belt will
move to the loose side. To train the belt to the
center of each roller, either tighten the belt on
the side you want the belt to move away from, or
loosen the side you want the belt to move to.
Continue to slowly drive and train belt until it
runs centered.
5. Make sure all guards are in place. Check
general condition of conveyor. Check for
damage, excessive debris around moving
parts, and loose nuts or bolts.
Operation
1. GAS: Check engine according to engine
manufacturer’s recommendations before
starting.
ELECTRIC: Check motor, starter, and wiring to
be sure they are in good condition.
2. Be sure area around conveyor is clear of
obstacles and unauthorized personnel. Chock
wheels, lower, and pin support stand located in
front of axle. This will prevent nose over when
conveying material.
3. GAS: Start engine and allow to idle until warm..
ELECTRIC: Start motor.
4. GAS: The conveyor is equipped with a
centrifugal clutch. Make sure the
engine is ran fast enough to insure full
clutch engagement. Clutch over-
heating will occur if clutch is allowed to
slip.
Increase engine speed with throttle lever to
engage clutch and continue to speed up engine
until desired belt speed is reached.
5. Load material onto feed pan at a rate the
conveyor and engine are comfortable handling.
(Approximately 2½ to 3 ton/minute of fertilizer or
grain.)
6. GAS: To stop conveyor simply slow engine to
idle to disengage centrifugal clutch. Turn off fuel
valve before transporting.

11
Transporting
1. Check general condition of conveyor for loose
parts or damage. Check and re-tighten
wheel lug nuts. Check tires for proper
inflation pressure. Inspect safety chain and
coupler.
2. GAS: Make sure engine gas shut off valve is in
the OFF position to prevent gasline from leaking
into crank case.
ELECTRIC: Make sure motor and wiring are
secure.
3. Remove klik pin and pin from below hitch tube.
Lift conveyor to let hitch tube drop down and re-
insert pin ABOVE hitch tube. Secure pin with
klik pin.
4. Lift conveyor and attach to vehicle towing ball.
Use proper ball size. Make certain ball is
completely engaged in coupler socket and
coupler is locked. Attach safety chain.
Allow enough slack for turns.
5. While towing, travel at a safe speed. Watch for
overhead obstacles. Avoid sudden maneuvers,
turns, or stops. Avoid steep side hills.
6. Reverse above steps to ready conveyor to move
material. Refer to “Operation“ section.
Lubrication
Refer to engine owner’s manual for proper
lubrication of engine.
Grease conveyor ball bearings with good quality gun
grease weekly during season. DO NOT over-
grease!
Bearing Location Quantity Lubrication Amount
Tail Roller 2 3 pumps
Hold-down Roller 2 2 pumps
Hold-down Wheels 2 3 pumps
Transition Return Roller 2 3 pumps
Jack Shaft 2 2 pumps
Drive Roller 2 3 pumps
Head Roller 2 3 pumps
Storage
During off season or when the conveyor will not be
used for several months it should be serviced for
storage.
Refer to engine owner’s manual for storage
recommendations of the engine.
The conveyor should be washed to remove excess
debris which could cause corrosion.
All bearings should be greased. Refer to
“Lubrication” section.
To avoid deterioration from sunlight, the conveyor
should be stored inside. Jack and block to remove
load from tires. If this is not possible, the belt and
tires should be removed and stored in a cool, dry,
dark, place.

12
Undercarriage & Hitch
Repair Parts

13
Undercarriage & Hitch
Repair Parts
Stainless Steel Mild Steel
Item Qty Part No. Description
1 1 81884900 Undercarriage
2 1 335125 HHCS 3/4" x 2"
3 1 156661 Bushing 1 1/8" x 5/8"
4 1 433938 Safety Chain 11000#
5 1 330233 HHCS 3/4" x 4 ½"
6 2 330456 Klik Pin 7/16"
7 1 331215 Clevis Pin 3/4" x 5 1/4"
8 4 330316 Hex Nylock Nut 3/4"
9 1 81907800 Ball Hitch
10 1 01438100 Coupler
11 2 334300 HHCS ½" x 3 ½"
12 2 330142 Lock Washer ½"
13 2 330134 Hex Nut ½"
14 2 81917700 Lower Support
15 10 01147800 HHCS ½" x 1½"
16 4 330159 Flat Washer ½"
17 10 331363 Hex Nylock Nut ½"
18 1 81880700 Axle
19 2 05702600 Grease Seal
20 2 03040300 Inner Bearing
21 2 05707500 Hub 5 Bolt w/cones only
22 2 05741400 Outer Bearing
23 2 02080000 Spindle Washer
24 2 02154300 Cotter Pin 5/32" x 1½"
25 2 331801 Hub Nut
26 2 05703400 Dust Cap
27 2 530238 Wheel 5 Bolt 15 x 6
28 10 331314 Wheel Nut
29 2 551242 Hub (Includes #19-26 & #28)
30 1 82037300 Undercarriage Support
31 2 81882300 Center Support
32 1 330449 Clevis Pin 3/4" x 4½"
33 2 16544900 Head Support
34 2 01299700 HHCS 3/4" x 5"
35 4 331983 HHCS 5/8" x 4"
36 2 01244300 HHCS 5/16" x 3/4" SS 01144500 HHCS 5/16" x 3/4" (Mild Steel)
37 2 02218600 Flat Washer 5/16" SS 330852 Flat Washer 5/16" (Mild Steel)
38 2 03933900 Nylock 5/16" SS 330811 Hex Nut 5/16" (Mild Steel)
39 4 01025600 HHCS 3/8" x 1 1/4" SS 01017300 HHCS 3/8" x 1" (Mild Steel)
40 8 02219400 Flat Washer 3/8" SS 330894 Flat Washer 3/8" (Mild Steel)
41 4 03934700 Nylock 3/8" SS 330837 Hex Nylock Nut 3/8" (Mild Steel)
42 4 334821 HHCS 5/8" x 1½"
43 4 01572700 Hex Nylock Nut 5/8"
44 1 82272600 Axle Spacer (Units with 3' Extensions)

14
Pan & Transition
Repair Parts

15
Pan & Transition
Repair Parts
Stainless Steel
Item Qty Part No. Description
1 1 81888000 Hold Down Transition
2 1 81623100 Lagged Roller 3½" x 24"
3 6 03018900 Bearing 1 5/16" 2B Flange
4 12 01564400 Hex Nut ½" SS
5 2 81891400 Hold Down Roller
6 1 16693400 Shaft 1 5/16" x 30.11/16"
7 2 10682300 Key 5/16" x 1 1/4"
8 10 03934700 Nylock 3/8" SS
9 12 02221000 Flat Washer ½" SS
10 12 01239300 HHCS ½" x 1½" SS
11 1 16574600 Transition Back Plate
12 4 01244300 HHCS 5/16" x 3/4" SS
13
14 20 03933900 Nylock 5/16" SS
15 1 81892200 Pan 8' x 24"
16 8 01134600 HHCS 3/8" x 1" SS
17 2 16654600 Pan Hopper
18 6 20061800 Hopper Bracket
19 12 01255900 Carriage Bolt 5/16" x3/4" SS
20 16 02218600 Flat Washer 5/16" SS
21 1 81937500 Roller 3½" 17"
22 2 16545600 Bearing Bracket
23 2 01253400 Carriage Bolt 3/8"x1 1/4" SS
24 1 62372800 Lagged Roller 3½" x 26½"
25 2 03001500 Bearing 1" 2B Flange
26 4 01252600 Carriage Bolt 5/16" x1" SS
27 1 05375100 Danger
28 1 05373600 Decal Caution
Mild Steel
Item Qty Part No. Description
1 1 82066200 Hold Down Transition
2 1 81623100 Lagged Roller 3½" x 24"
3 6 03018900 Bearing 1 5/16" 2B Flange
4 12 330134 Hex Nut ½"
5 2 81891400 Hold Down Roller
6 1 16693400 Shaft 1 5/16" x 30.11/16"
7 2 10682300 Key 5/16" x 1 1/4"
8 10 330035 Hex Nut 3/8"
9 12 330159 Flat Washer ½"
10 12 01147800 HHCS ½" x 1½"
11 1 17169400 Transition Back Plate
12 4 01144500 HHCS 5/16" x 3/4"
13 4 330845 Lock Washer 5/16"
14 20 330811 Hex Nut 5/16"
15 1 82067000 Pan 8' x 24"
16 8 01017300 HHCS 3/8" x 1"
17 2 17177700 Pan Hopper
18 6 17178500 Hopper Bracket
19 12 334409 Carriage Bolt 5/16" x 3/4"
20 16 330852 Flat Washer 5/16"
21 1 81937500 Roller 3½" 17"
22 2 17179300 Bearing Bracket
23 2 335919 Carriage Bolt 3/8" x1 1/4"
24 1 62372800 Lagged Roller 3½" x 26½"
25 2 03001500 Bearing 1" 2B Flange
26 4 01047000 Carriage Bolt 5/16" x1"
27 1 05375100 Danger
28 1 05373600 Decal Caution

16
Drive Repair Parts

17
Drive Repair Parts
Stainless Steel
Item Qty Part No. Description
1 1 18907600 Drive Mount Plate Left
2 2 12639100 Drive Mount Strap
3 1 05316500 Decal Turn Fuel Off
4 10 06874200 Roller Clip 1/16" x 4 3/8" SS
5 5 60192200 Roller Assembly 2" x 18"
6 2 19711100 Roller Bracket
7 4 03001500 Bearing 1" 2B flange
8 1 80014400 Roller 3" x 24 ½"
9 24 03933900 Nylock 5/16" SS
10 26 03934700 Nylock 3/8" SS
11 4 01252600 Carriage Bolt 5/16" x 1" SS
12 26 01134600 HHCS 3/8" x 1" SS
13 8 02219400 Flat Washer 3/8" SS
14 1 83932400 Pan 10' x 24"
15 1 60195500 Roller Assembly 2 3/8" x 24"
16 2 13019500 Return Roller Bracket
17 2 14812200 Lock Plate
18 2 02226900 HHCS 1/4" x 3/4" SS
19 1 18631200 Spreader
20 2 10682300 Key 5/16" x 1 1/4"
21 1 18636100 Shaft 1 5/16" x 35½"
22 8 01037100 HHCS 5/16" x 1 1/4" SS
23 33 02218600 Flat Washer 5/16" SS
24 1 15315500 Drive Unit Side Left
25 2 01561000 Square Nut ½" SS
26 11 01210400 HHCS 5/16" x 1" SS
27 2 81610800 Bearing Slide
28 2 10330900 Take-up Bearing Bracket
29 2 83106500 Take-up Bolt ½" x 14" SS
30 1 18906800 Drive Mount Plate Right
31 1 60391000 Lagged Roller 3½" x 24½"
32 1 60453800 Lagged Roller 8" x 24½"
1 5/16" B
33 2 01244300 HHCS 5/16" x 3/4" SS
34 1 19703800 Drive Unit Support
35 1 19704600 Drive Unit Back Plate
36 4 01239300 HHCS ½" x 1 ½" SS
37 4 02221000 Flat Washer ½” SS
38 4 01564400 Hex Nut ½" SS
39 2 03018900 Bearing 1 5/16" 2B flange
40 1 15314800 Drive Unit Side Right
41 2 337550 Lock Washer 1/4" SS
42 2 01507300 Hex Nut 1/4" SS
43 2 16116600 Wear Plate
44 4 01409200 Screw #10-24 x ½"
45 4 01052000 Hex Nut #10-24
Mild Steel
Item Qty Part No. Description
1 1 17158700 Drive Mount Plate Left
2 2 17160300 Drive Mount Strap
3 1 05316500 Decal Turn Fuel Off
4 10 06874200 Roller Clip 1/16" x 4 3/8"
5 5 60192200 Roller Assembly 2" x 18"
6 2 17157900 Roller Bracket
7 4 03001500 Bearing 1" 2B flange
8 1 80014400 Roller 3" x 24 ½"
9 24 330811 Hex Nut 5/16"
10 26 330035 Hex Nut 3/8"
11 4 01047000 Carriage Bolt 5/16" x 1"
12 26 01017300 HHCS 3/8" x 1"
13 8 330894 Flat Washer 3/8"
14 1 82050600 Pan 10' x 24"
15 1 60195500 Roller Assembly 2 3/8" x 24"
16 2 13019500 Return Roller Bracket
17 2 14812200 Lock Plate
18 2 01057900 HHCS 1/4" x 3/4"
19 1 17140500 Spreader
20 2 10682300 Key 5/16" x 1 1/4"
21 1 18636100 Shaft 1 5/16" x 35½"
22 3 330845 Lock Washer 5/16"
23 33 330852 Flat Washer 5/16"
24 1 17154600 Drive Unit Side Left
25 2 332197 Square Nut ½"
26 11 01010800 HHCS 5/16" x 1"
27 2 81610800 Bearing Slide
28 2 17168600 Take-up Bearing Bracket
29 2 80886500 Take-up Bolt ½" x 14"
30 1 17159500 Drive Mount Plate Right
31 1 60391000 Lagged Roller 3½" x 24½"
32 1 60453800 Lagged Roller 8" x 24½"
1 5/16" B
33 9 01144500 HHCS 5/16" x 3/4"
34 1 17153800 Drive Unit Support
35 1 17156100 Drive Unit Back Plate
36 4 01147800 HHCS ½" x 1 ½"
37 4 330159 Flat Washer ½”
38 4 330134 Hex Nut ½"
39 2 03018900 Bearing 1 5/16" 2B flange
40 1 17155300 Drive Unit Side Right
41 2 330050 Lock Washer 1/4"
42 2 332205 Hex Nut 1/4"
43 2 17719600 Wear Plate
44 4 01409200 Screw #10-24 x ½"
45 4 01052000 Hex Nut #10-24

18
Gas Drive
Repair Parts
Belt Guard Bracket Locations
