CYP CMSI-424E User manual

CMSI-424E
HDBaseT™ 4×4 HDMI Matrix over 4 CAT5e/6/7
with 2 HDMI Outputs
Operation Manual
Operation Manual
5-Play™

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 13/09/12 Preliminary Release
VS1 11/07/12 Updated format/diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel.........................................3
6.2 Rear Panel .........................................4
6.3 Side Panel ..........................................5
6.4 Remote Control.................................5
6.5 IR Pin Assignment ..............................6
6.6 RS-232 Protocols ................................6
6.7 RS-232 and Telnet Commands ........7

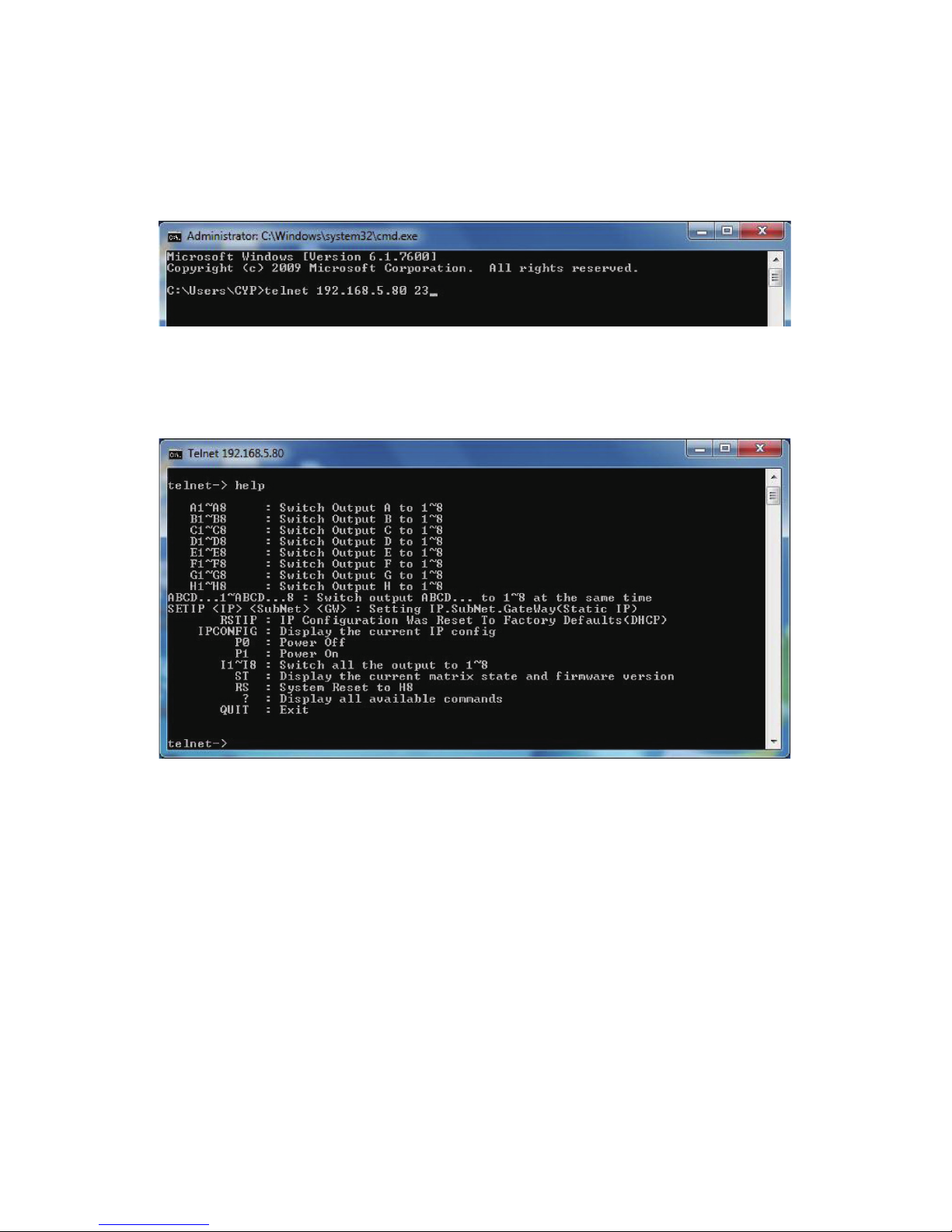

6.8 Telnet Control ....................................8
6.9 Web GUI Control.............................10
7. Connection Diagram .......................... 12
8. Specications ...................................... 13
9. Acronyms ............................................. 13

1
1. INTRODUCTION
The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 with two additional
simultaneous HDMI outputs supports the transmission of video
(resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel
digital audio and control via IR, RS-232 or Web GUI/Telnet IP from
four high denition sources to four HDBaseT outputs over a single
CAT5e/6/7 cable (up to 100m) for each output. Output A and C have
additional mirrored HDMI outputs.
It supports high resolution digital audio formats such as LPCM 7.1 CH,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as
3D content that can be displayed when connecting a 3DTV and 3D
source. Power over Ethernet (PoE) support means that compatible
receivers do not need their own seperate power supplies, allowing for
greater exibility in installations and the LAN serving function allows
devices such as Smart TVs to be connected to the network/internet.
2. APPLICATIONS
• Domestic HDMI Matrix system
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University Lecture hall display and control
• Retail Sales and demonstration
3. PACKAGE CONTENTS
• 4x4 HDMI Matrix over 4 CAT5e/6/7 with 2 HDMI outputs
• 1×IR Extender Cable*
• 1×IR Blaster Cable*
• 1×24V/3.75A DC adaptor
• 1×Remote control
• Operation manual
*Additional IR Blasters and extenders can be purchased seperately

2
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• HDBaseT™ Receivers (i.e. CH-506RX, CH-507RX or CH-1109RX)
5. FEATURES
• HDMI, HDCP 1.1 and DVI compliant
• Supports HDMI 3D features
• Supports resolutions VGA~WUXGA and 480i~1080p dependent upon
the output display’s EDID settings
• Supports distances up to 100 meters through CAT6/7 cables and
80m for CAT5e
• Supports 3D signal display dependent upon the output display's
EDID settings
• Supports simultaneous HDMI and CAT 5e/6/7 display on outputs A
and C
• Supports PoE* (Power over Ethernet) on compatible receivers only
• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution
• Supports bi-directional IR from input and output locations
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet or Web GUI)
• 1U size design
• Supports external and internal EDID settings
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports LAN serving function through the LAN/CONTROL port
Note:
1. The PoE function is designed for powering compatible receiver
units only—non-PoE receivers will need their own power supply.
Receivers of another brand may not be compatible.
2. Do not connect the LAN port to CAT outputs of this device or to
CAT inputs or receiver. Doing so may demage the unit.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
OUT
12
34IN
CMSI-424E
4X4 HDMI MATRIX
POWERLOCK MENU AB
CD
61 2 3 4 5
1
LCM : Displays the setting information of each input and output
setting.
2
IR Window: IR Receiver window (accepts the remote control signal
of this device only).
3
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
4
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate when locked.
5
MENU: Press once to select EDID setting from STD (internal) 1 or TV
(external) 2 then press it again to conrm the selection. Press the
the 'MENU' button to conrm the input or output selection
6
IN/OUT and 1~4/A~D: Press the OUT button and then the number
buttons to select the required output ports, and press IN button
and then a single number button to select the required input
source, nally press the MENU button to conrm the selection.
For example, if outputs A~B need to be set to input 1 and outputs
C~D need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: OUTABIN1→MENU,
and then press: OUTCDIN2MENU.
Note: If the menu button is not pressed the selection will not be
changed.

4
6.2 Rear Panel
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI OUT CAT5e/6 OUT
A
CAT5e/6 OUT
B
HDMI OUT CAT5e/6 OUT
C
CAT5e/6 OUT
D
HDMI IN 1HDMI IN 2 HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
IR OUT
IR IN
ALL
SERVICE
RS232
IP &
ETHERNET
2 3
5
1110
1
4
86
7 9
1
RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
2
IP & ETHERNET: Connect to an active network for LAN serving and
Telnet/Web GUI control (refer to Sections 6.8 and 6.9).When the
Matrix or any compatible LAN equipped receivers are connected
to a network, this allows the network access (including internet
access if available) to be shared between the Matrix and all
connected LAN equipped receivers. Connect any Ethernet
equipped device such as a Smart TV or games console to the LAN
port of a receiver for that device to share the network/internet
access.
Warning: Please do not connect this port directly to the PC/Laptop
as the Telnet function will not work.
3
SERVICE: Manufacturer use only.
4
HDMI OUT and CAT5e/6/7 OUT A/C: Simultaneous HDMI and
HDBaseT CAT5e/6/7 output. The HDMI output can be connected
directly to a display or to a point transmitter/receiver set. Connect
the CAT5e/6/7 output to a compatible receiver unit to extend the
signal up to 100 m.
5
CAT5e/6/7 OUT B/D: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
Warning: Please do not connect the CAT5e/6/7 output into the
receiver's LAN port.
6
HDMI IN 1~4: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
7
IR IN 1~4: Connect the IR extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender.

5
8
IR OUT 1~4: Connect the IR blasters for IR signal transmission. Place
the IR blaster in direct line-of-sight of the equipment to be
controlled.
9
ALL IR OUT: Connect to the IR blaster for IR signal transmission of the
source or display equipment. Place the IR blaster in direct line-of-
sight of the equipment to be controlled.
10
ALL IR IN: Connect to the IR extender for IR signal reception of the
remote control of this device or the source and display equipment.
Ensure that remote being used is within the direct line-of-sight of
the IR extender.
11
DC24V: Connect the 24 V DC power supply to the unit and plug the
adaptor into an AC outlet.
6.3 Side Panel
1
1
Fan Ventilator: These are fan ventilation areas, DO NOT block these
areas or cover them with any object. Ensure there is adequate
space around the unit for air to circulate.
6.4 Remote Control
1
POWER: Press this button to switch on the
device or set it to standby mode.
2
1~4 IN: Input ports selection 1~4.
3
A~D OUT: Output ports selection A~D.
Note: IR Matrix control from Zones only
require the user to select the desired
input.
1A
B
2
C
3
4D
CR-121
IN OUT
1
23

6
6.5 IR Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Extender
IR Blaster
6.6 RS-232 Protocols
4 HDMI MATRIX REMOTE CONTROL
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

7
6.7 RS-232 and Telnet Commands
COMMAND DESCRIPTION
A1~A4 Switch output A to 1~4
B1~B4 Switch output B to 1~4
C1~C4 Switch output C to 1~4
D1~D4 Switch output D to 1~4
AB...1~CD...4 Switch output ABCD... to 1~4
SETIP<IP><SubNet><GW> Setting IP. SubNet. GateWay (Static IP)
RSTIP IP Conguration: Reset to Factory
Defaults <DHCP>
IPCONFIG Display the current IP cong
P0 POWER OFF
P1 POWER ON
I1~I4 Switch all outputs to 1~4
ST Displays the current matrix status and
rmware version
RS System Reset to A1, B2, C3 & D4
EM Setting EDID MODE. 1=STD, 2=TV
?Display all the available commands
Quit Exit (for telnet only)
Note: All the commands will not be executed unless followed with a
carriage return. All letters are case-insensitive.

8
6.8 Telnet Control
Before attempting to use the Telnet control, ensure that both the
Matrix (via the LAN/Control port) and the PC/Laptop or control system
being used are connected to the same active network.
To access the Telnet control in Windows 7, click on the 'Start' menu
and type 'cmd' in the Search Field then press Enter (see below for
reference). Under Windows XP, go to the 'Start' menu and click on
'Run', type 'cmd' then press Enter.
Under Mac OS X, go to the le menu then navigate to
GoApplicationsUtilitiesTerminal (see below for reference.)

Once in the Command Line Interface (CLI) type 'telnet' along with the
IP address of the unit you wish to control and '23' then hit Enter (see
below for reference). This will bring us into the device which we wish to
control.
Note: The IP address of the Matrix can be displayed on the device's
LCM monitor by pressing the Menu button twice.
Type 'HELP' to list the available commands (see below for reference).
Type 'IPCONFIG' To show all IP congurations. To reset the IP, type
'RSTIP' and to use a set static IP, type 'SETIP'.
Note:
1. All commands will not be executed unless followed by a carriage
return. Commands are case-insensitive.
2. If the IP is changed then the IP Address required for Telnet/
WebGUI access will also needs to be changed accordingly.

6.9 Web GUI Control
On a PC/Laptop or control system that is connected to the same
active network as the Matrix, open a web browser and type device's
IP address on the web address entry bar. The browser will display the
device's status, and the control and user settings pages.
Click on the 'Control' tab to control power, input/output ports, EDID
and reset mode.

11
Click on the 'User Setting' tab allows you to reset the IP conguration.
The system will ask for a reboot of the device every time any of the
settings are changed. The IP address needed to access the Web GUI
control will also need to be changed accordingly on the web address
entry bar.

12
7. CONNECTION DIAGRAM
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI OUT CAT5e/6 OUT
A
CAT5e/6 OUT
B
HDMI OUT CAT5e/6 OUT
C
CAT5e/6 OUT
D
HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4
LAN
RS232
DC 24V
1
2
3
4
V+
GND
GND GND
V+
IR OUT
IR IN
ALL
SERVICE
IR BLASTER
1.5m
60°
IR EXTENDER
7m
3m 3m
60°
m
ZONE A
RX Power
Extender Blaster
IR2
IR1
RS232OutCAT5e/6 In
Link
RX Power
Extender Blaster
IR2
IR1
RS232OutCAT5e/6 In
Link
ZONE B
RX Power
Extender Blaster
IR2
IR1
RS232OutCAT5e/6 In
Link
ZONE C
RX Power
Extender Blaster
IR2
IR1
RS232OutCAT5e/6 In
Link
ZONE D
RX Power
Extender Blaster
IR2
IR1
RS232OutCAT5e/6 In
Link
1 2 3 4
TX RS-232 In
LAN
HDMI In
HDMIto CAT5e/6 with LAN/IR/RS232
Transmitter
RS-232 Equipped PC
or Control System
RS-232
LAN
Router
(with Internet
Connection)
Blu-ray Player
HDMI Inputs
IR In/Out
CAT5e/6/7
Cables (100m)
CAT5e/6/7
Cable
AV Receiver
Media Server Set-top BoxSatellite Receiver
Receiver Units
HDMI Outputs
IR Out/In
Displays
Projector
Simultaneous
HDMI Output
Simultaneous
HDMI Output
Power
Supply
IR OUT (ALL)
IR IN (ALL)

13
8. SPECIFICATIONS
Video Bandwidth 225 MHz/6.75 Gbps
Input Ports 4×HDMI, 5×IR Extender, 1×LAN/CONTROL,
1×RS-232, 1×Mini-USB Type B(for rmware
update only)
Output Ports 4×CAT5e/6/7, 2×HDMI, 5×IR Blaster
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 24 V/3.75 A DC (US/EU standards, CE/
FCC/UL certied)
Dimensions 436 mm (W)×255 mm (D)×48 mm (H)
Chassis Material 3372 g
Silk Skin Color Metal
Operating Temperature Black
Storage Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Relative Humidity −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Power Consumption 20~90 % RH (non-condensing)
Relative Humidity 64.2 W
9. ACRONYMS
ACRONYM COMPLETE TERM
DTS Digital Theater System
EDID Extedned Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
